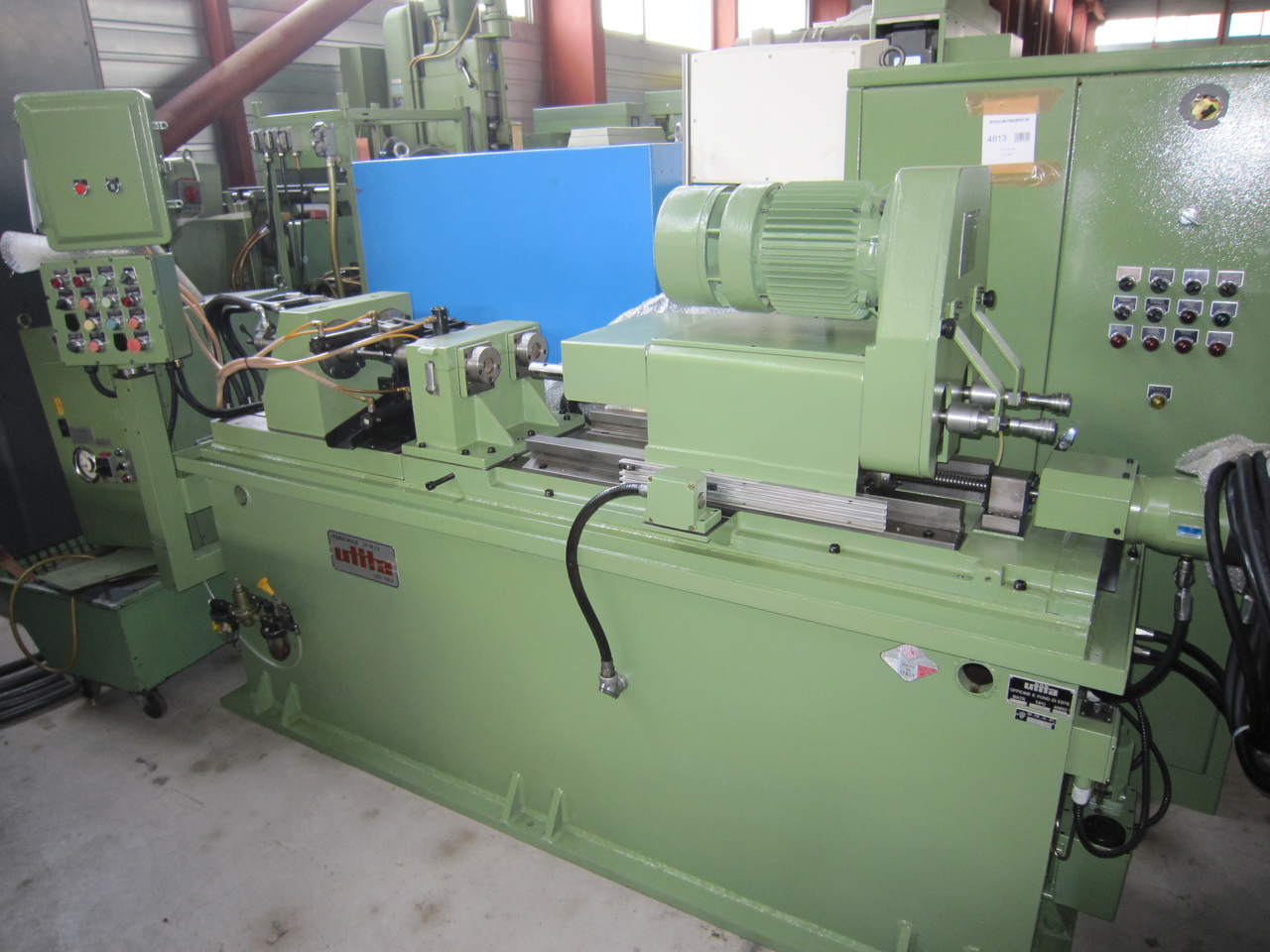

UTITA AF 15X2 is a Deep-hole drilling machine of high precision, engineered for superior accuracy and reliability. Working capacities: 2 drill spindles, drilling from Ø 15 mm, centre height 200 mm; table 700×380 mm; longitudinal travel (X) 400 mm. Main technical specifications: 9 stepped spindle speeds 1,500–12,600 t/min; voltage 50 Hz 3×380 V; power 3.2 kW; overall dims L3000×W1600×H1800 mm. Enables tight tolerances; suitable for automotive, aerospace, tooling and medical industries.
| Number of drill spindles | 2 |
| Drill capacity in steel: | |
| from diameter | 15 mm |
| Centre height | 200 mm |
| Table length | 700 mm |
| Table width | 380 mm |
| Longitudinal travel (X-axis) | 400 mm |
| Spindle speeds: | |
| number (steps) | 9 |
| from | 1500 t/min |
| up to | 12600 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 3.2 kW |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 1600 mm |
| Height | 1800 mm |
| Various accessories: | |
| Loader |
