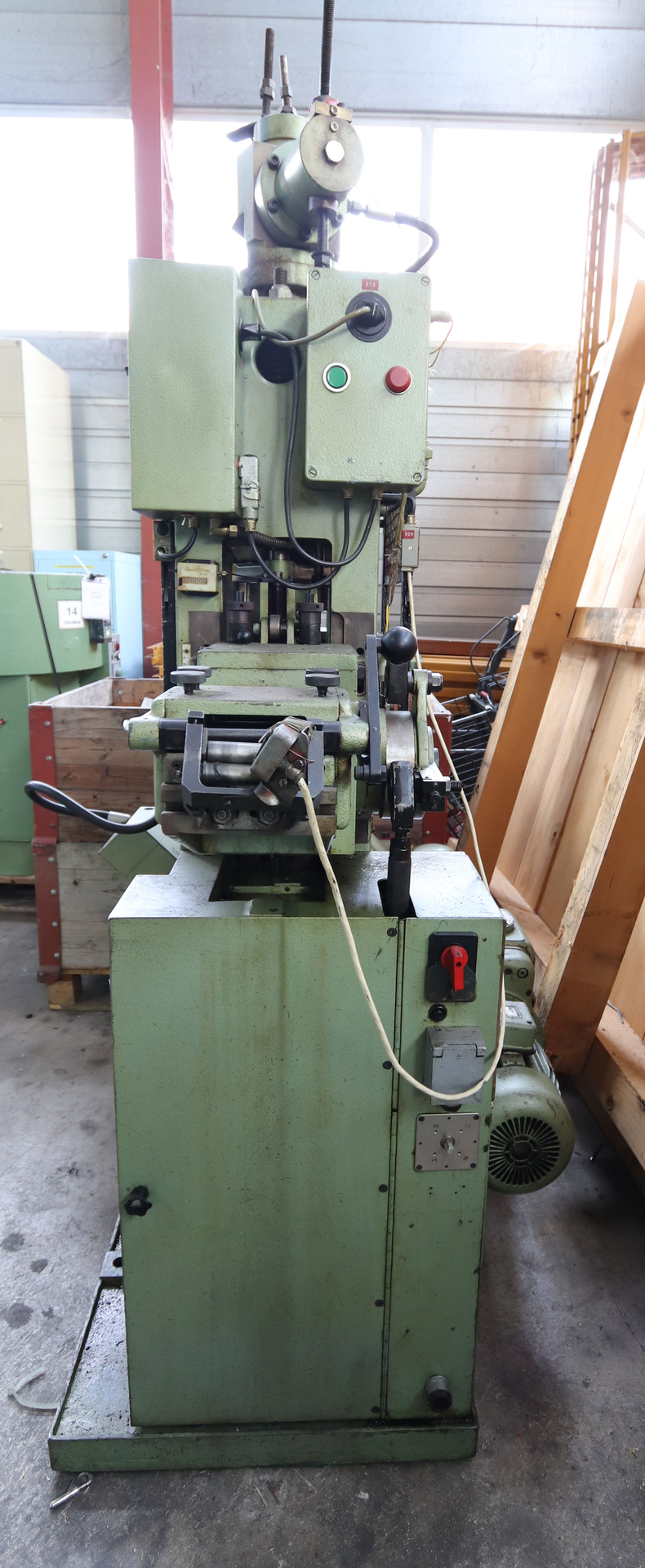

ESSA BH 15 is a high speed press engineered for precision, high accuracy and reliability. Capacities: pressure 15 to; speed stepless 200–500 c/min; table L320×W250×th60 mm; table opening L250×W140 mm; cut area 300 mm²; slide stroke 24 mm, adjustment 60 mm; passage between supports L320×lat170 mm; max table‑to‑slide nose 211 mm. Specs: 3×380 V 50 Hz, power 4 CV, weight ≈1800 kg, dimensions L1350×W850×H1950 mm. Accessories: 2 automatic feeds (rolls) max stroke 100 mm, straightening device. Applications: tight tolerances for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Pressure | 15 to |
| Stroke: (stepless) | |
| from | 200 c/min |
| up to | 500 c/min |
| Execution: | |
| 4 supports | |
| Table surface: | |
| Length | 320 mm |
| Width | 250 mm |
| Thickness | 60 mm |
| Table relieving: | |
| Length | 250 mm |
| Width | 140 mm |
| Cut edge | 300 mm2 |
| Slide adjustment | 60 mm |
| Slide stroke | 24 mm |
| slide bore diameter | 25 mm |
| Distance table to slide nose: | |
| max | 211 mm |
| Passage between the supports: | |
| longitudinal | 320 mm |
| Lateral | 170 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 4 CV |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 1350 mm |
| Width | 850 mm |
| Height | 1950 mm |
| Various accessories: | |
| Automatic feed: number | 2 |
| Execution: | |
| rolls | |
| max. stroke | 100 mm |
| Straightening device |
