001317 - SCHAUBLIN 102-80
Type: 102-80
Manufacturer: SCHAUBLIN
Group: Toolmakers lathe
Subgroup: Toolmakers lathe
Stock: 001317
SCHAUBLIN 102-80 is a Toolmakers lathe for precision machining, designed for high accuracy and reliability. Capacities: centre height 102 mm; distance between centres 470 mm; swing over cross‑slide 120 mm; swing over bed 200 mm; spindle hole 20 mm; 3‑jaw chuck Ø135; collet 20 W. Specs: tailstock taper 2 CM; 50 Hz 3x380 V; weight ~500 kg; L1300×W600×H1300 mm. Accessories: knee‑operated reversing switch, 2 drawers, drilling tailstock and drill chuck. Suited to tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
Centre height | 102 mm |
Distance between centres | 470 mm |
Swing over cross-slide | 120 mm |
Swing over bed | 200 mm |
Spindle hole | 20.0 mm |
Inner taper type | 20 W |
Taper spindle threaded | |
Taper in tailstock: | 2 CM |
Voltage 50 Hz 3x | 380 Volt |
Machine's weight about | 500 kg |
Overall dimensions machine: | |
Length | 1300 mm |
Width | 600 mm |
Height | 1300 mm |
Various accessories: | |
Knee-operated reversing switch | |
2 drawers | |

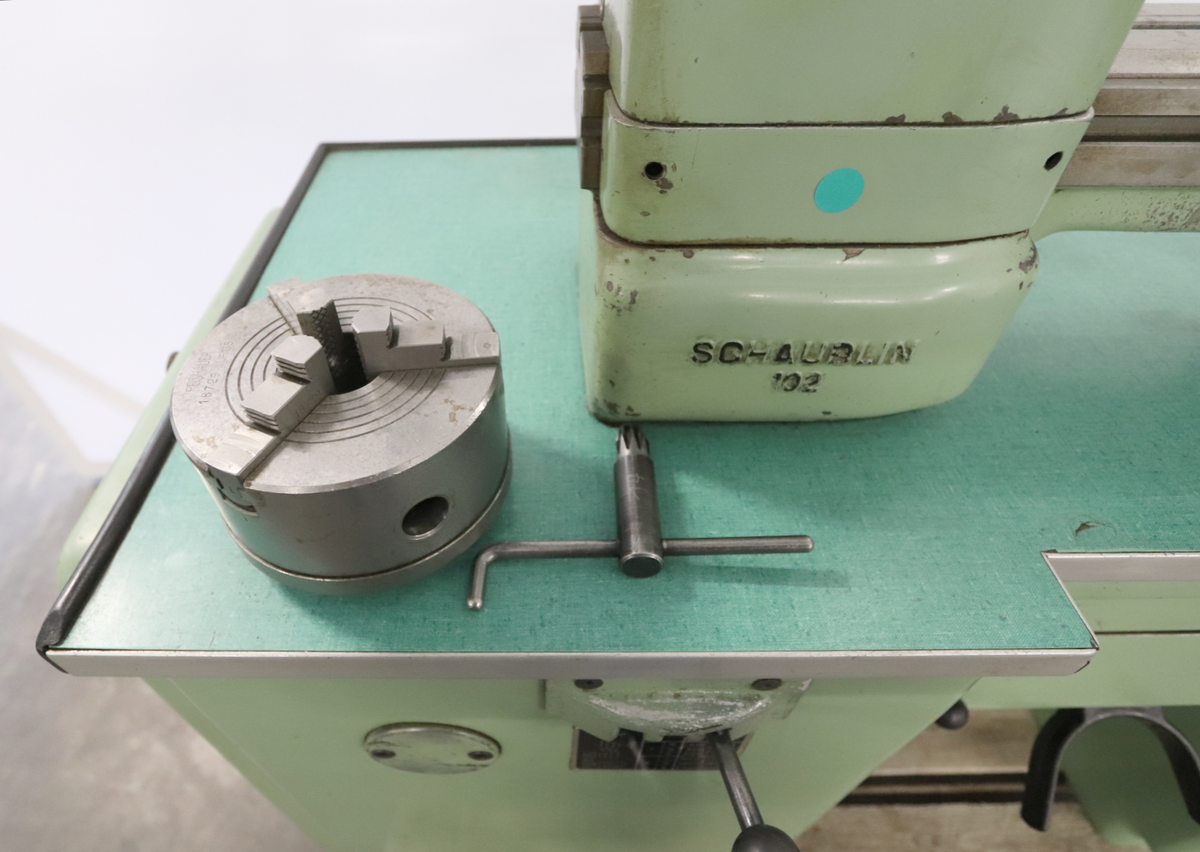

3-jaw chuck diameter | 135 mm |
Drilling tailstock | |
Drill chuck |
