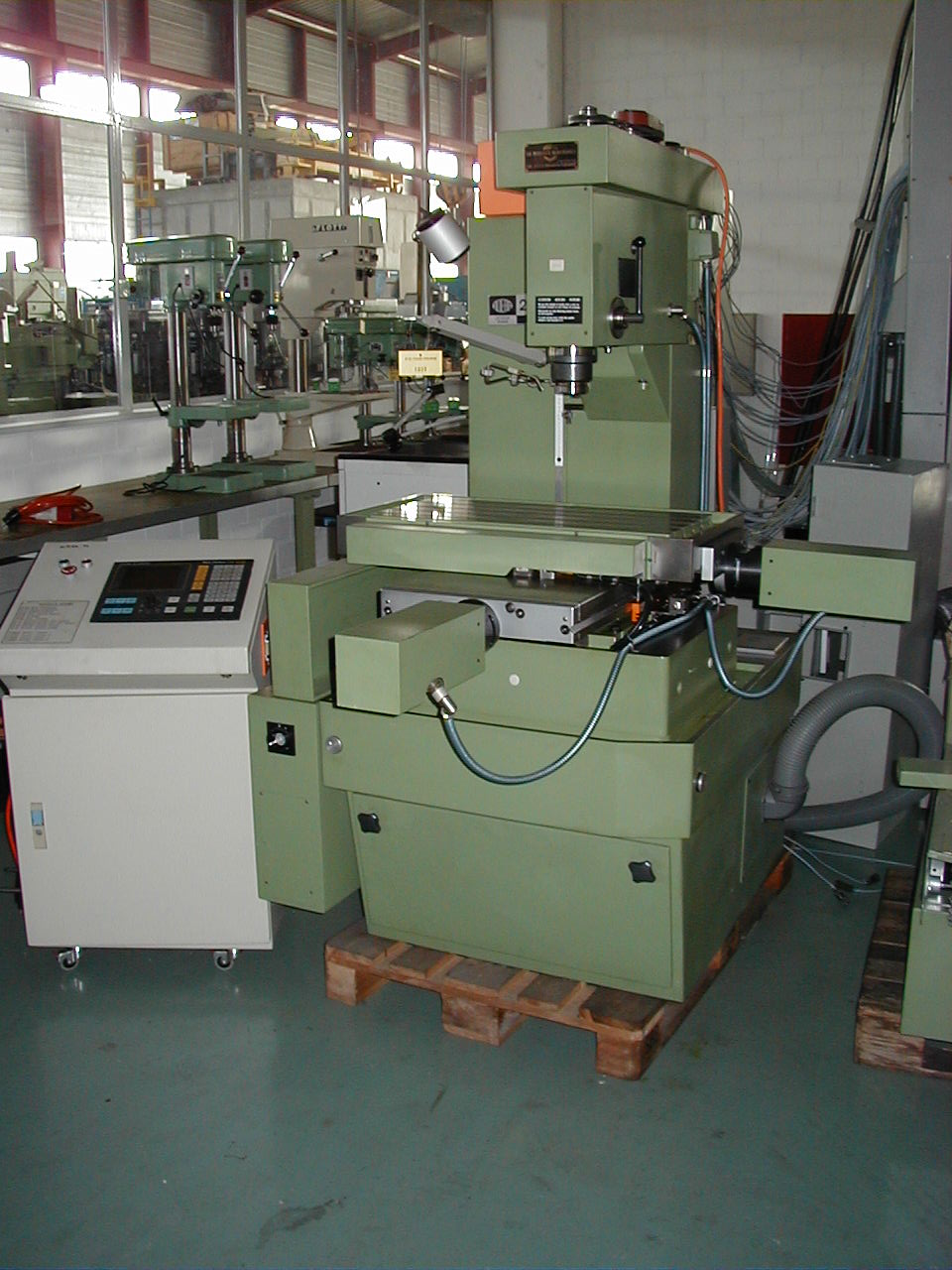

ACIERA 24 CNC
Type: 24 CNC
Manufacturer: ACIERA
Group: CNC drilling machine
Subgroup: CNC drilling machine
Control: GE MARK CENTURY ONE PLUS
Stock: 001023
ACIERA 24 CNC is a CNC drilling machine for precision machining, providing high accuracy and reliability. Capacities: drill in steel 23 mm; table 820×400 mm; travels L 400 mm, T 320 mm, V 470 mm. Specs: spindle 9 steps 42 t/min–3500 t/min; feeds 1000 mm/min; rapid 3.5 m/min; voltage 50 Hz 3x380 V; power 2.5 kW. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
Retrofit: new control system
| number of tools | |
| Drill capacity in steel | 23 mm |
| Spindle speeds :steps | 9 |
| from | 42 t/min |
| up to | 3500 t/min |
| Table length | 820 mm |
| Table width | 400 mm |
| Longitudinal travel | 400 mm |
| Transversal travel | 320 mm |
| Vertical travel | 470 mm |
| Feeds | 1000 mm/min |
| Rapid traverse: | 3.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 2.5 kW |
