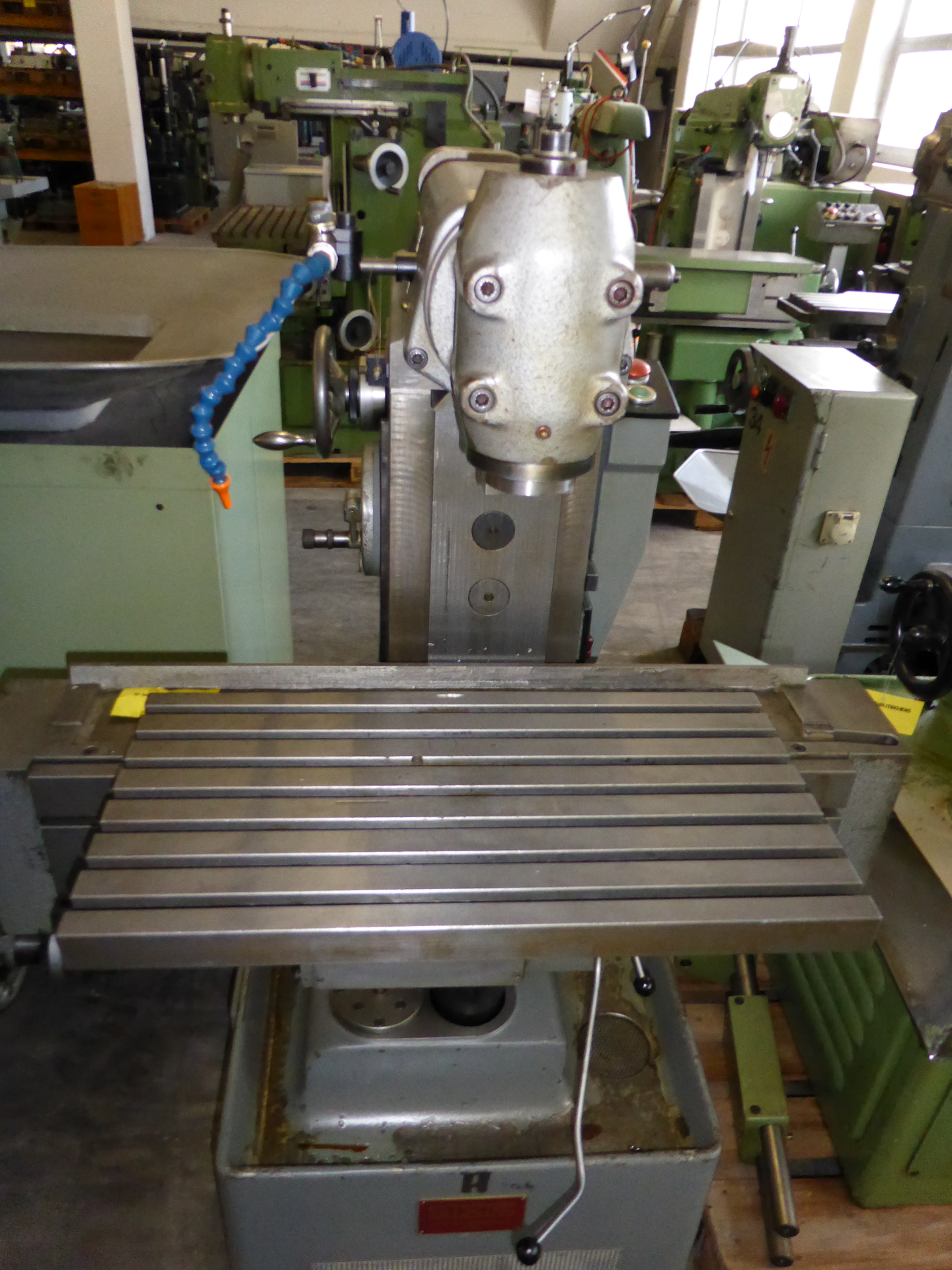

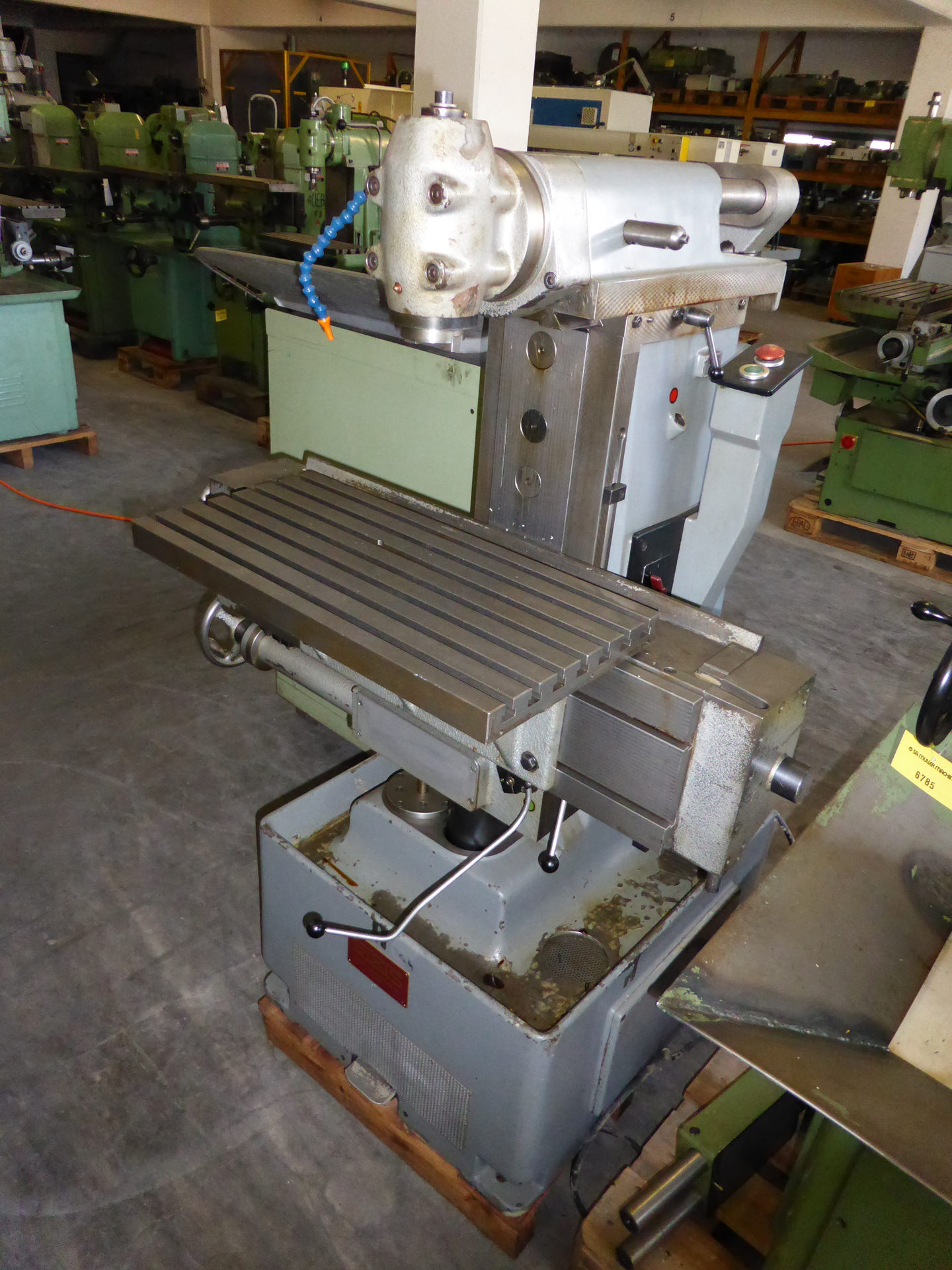

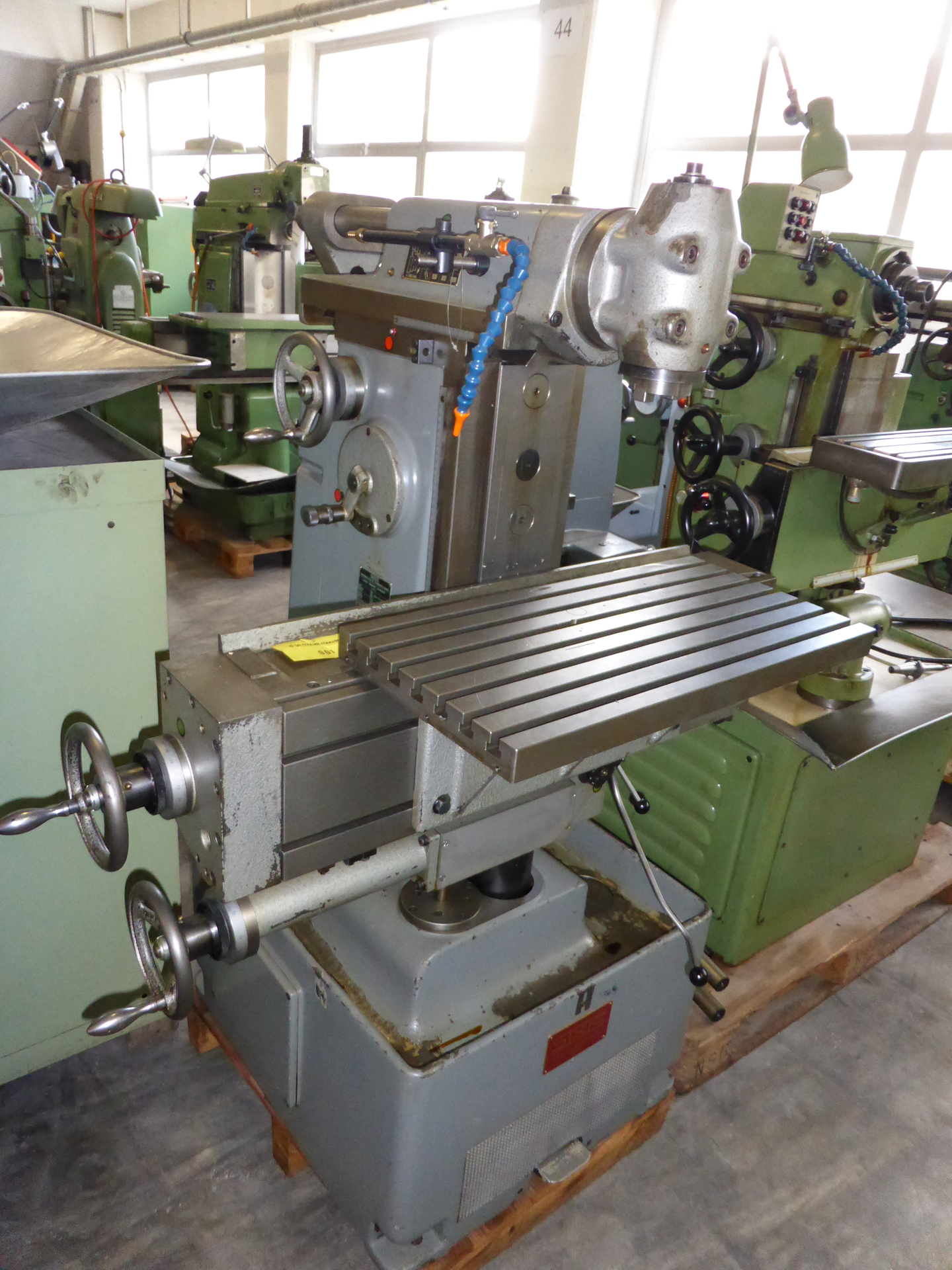

SIXIS S 103 R
Type: S 103 R
Manufacturer: SIXIS
Group: Universal milling machine
Subgroup: Universal milling machine
Stock: 000901
SIXIS S 103 R is a Universal milling machine for high‑precision machining, superior accuracy and reliable operation. Table 600x300 mm; travels X450 Y170 Z410 mm; distance spindle–table 320 mm. Spindle ISO30, 18 speeds 60–2400 t/min; 8 feeds (X 12–216 mm/min, Z 6–108 mm/min); rapid traverse X1.0 m/min, Z0.5 m/min. Power 3x380 V 50 Hz; motor 1.5 CV; total installed 2 CV; weight ~800 kg. Accessories: coolant, steady, rigid table. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical.
| Table length | 600 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y axis) | 170 mm |
| Vertical travel (z axis) | 410 mm |
| Distance from vertical spindle to table | 320 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 60 t/min |
| up to | 2400 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 216 mm/min |
| vertical from | 6.0 mm/min |
| up to | 108 mm/min |
| Rapid traverse: | |
| longitudinal | 1.0 m/min |
| vertical | 0.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 800 kg |
| Various accessories: | |
| Coolant system | |
| Steady | |
| Rigide table |
