000563 - DECKEL S 1 K
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

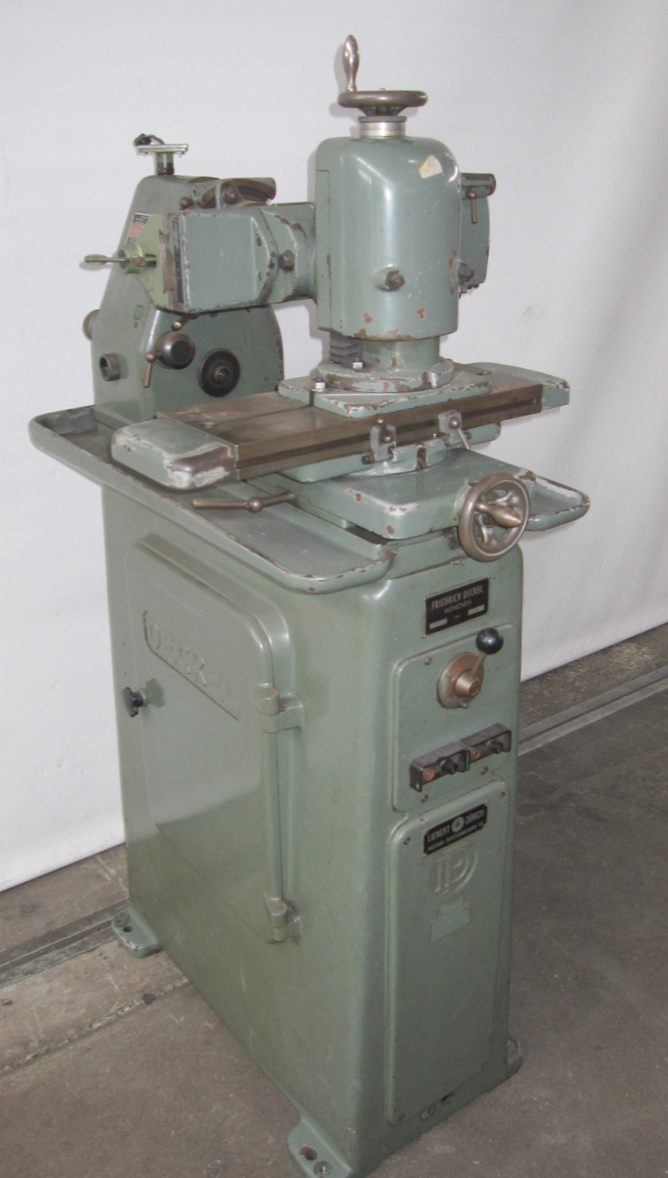

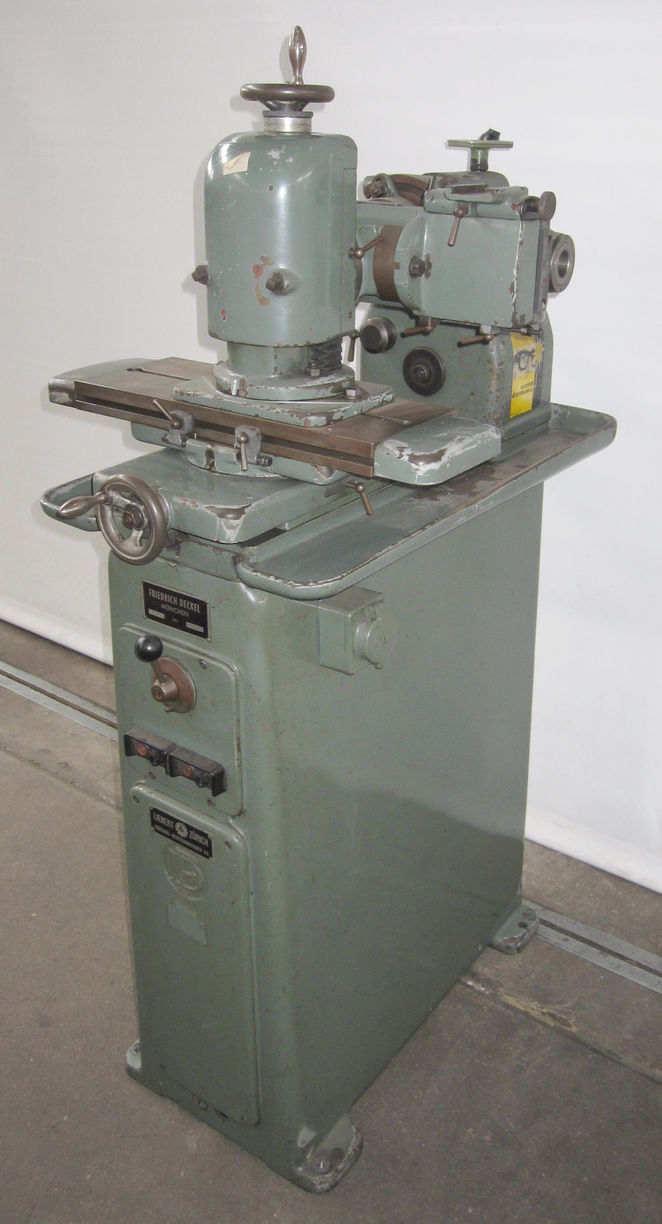

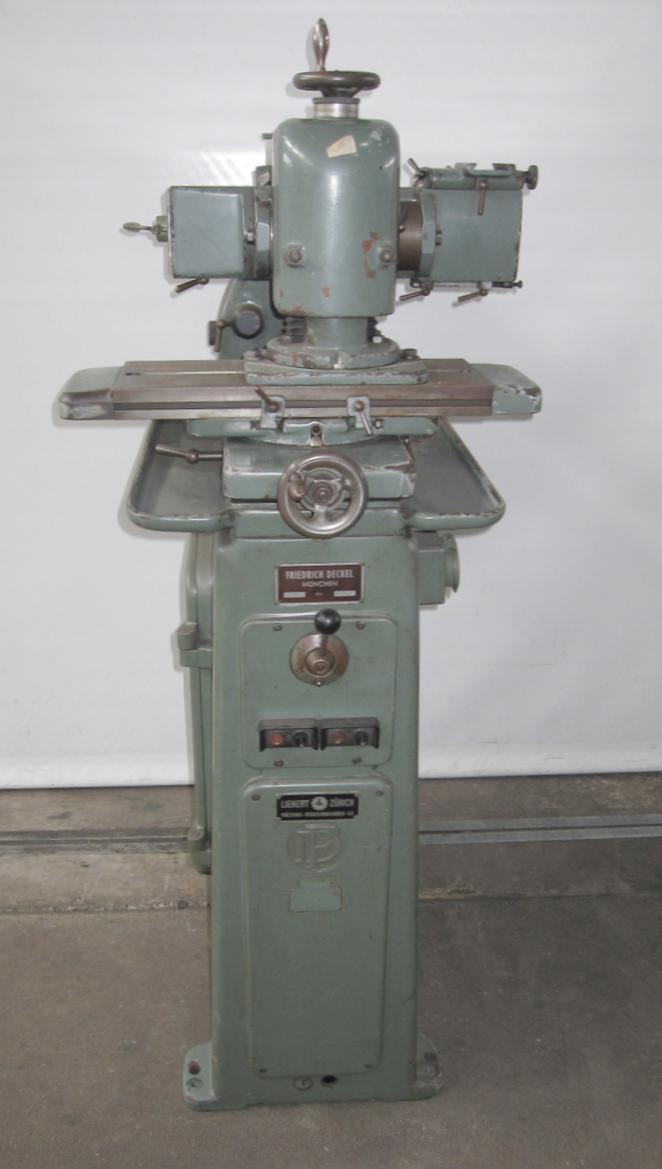

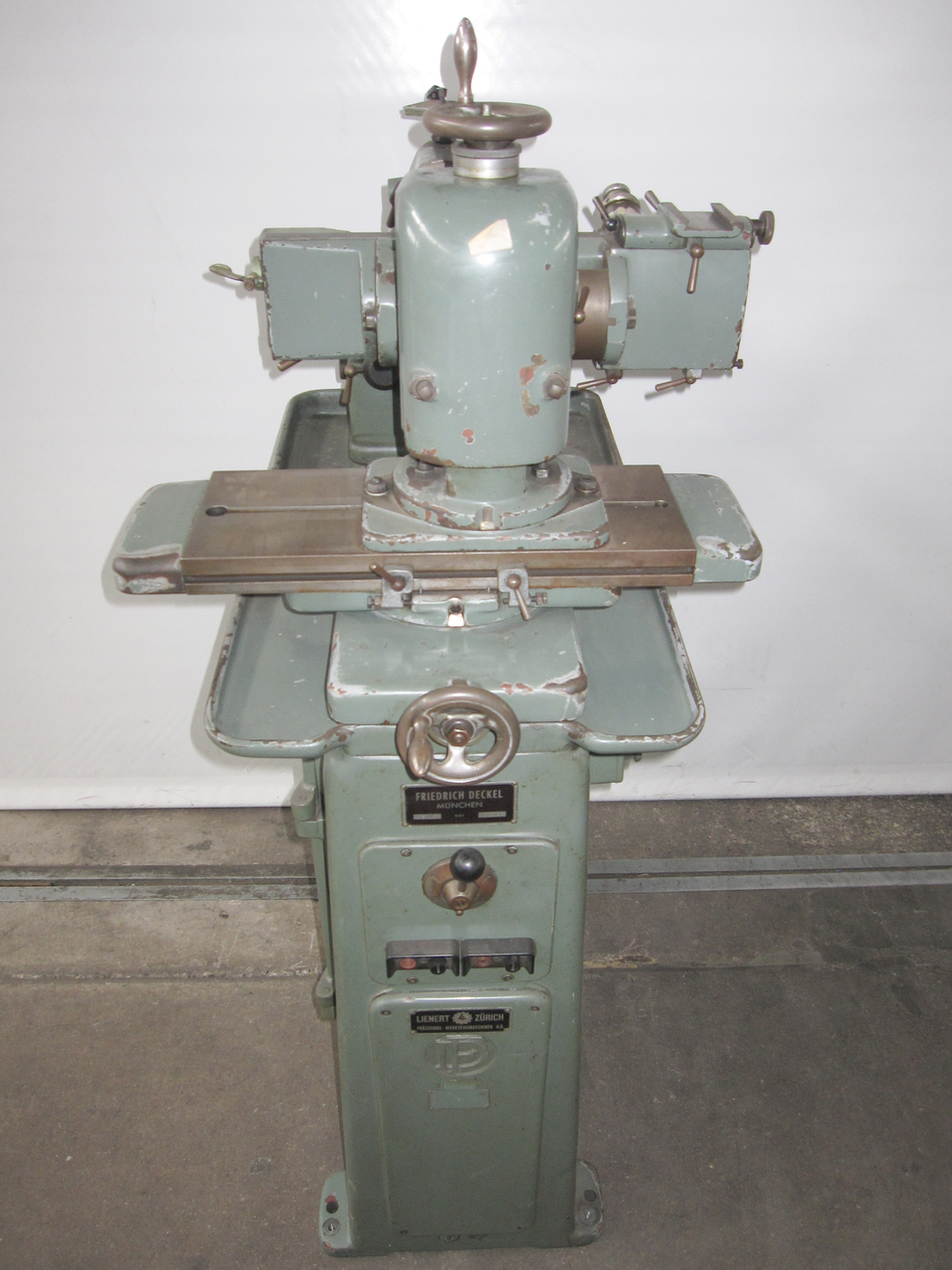

DECKEL S 1 K is a tool and cutter grinder for precision, high accuracy and reliability. Capacities: centre height 95 mm; distance between centres 250 mm; table 450×175 mm; max Ø 130 mm; travels L260×T50×V50 mm; table 360°, head 360°/220°. Specs: spindle 2 steps 3,750–7,500 rpm; 50 Hz 3×380 V; spindle motor 0.50 CV; total power 1 CV; weight 450 kg; size 1000×600×1400 mm. Accessories: dividing attachment, tailstock, vice (jaw 80 mm). Achieves tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Centre height | 95 mm |
| Distance between centres | 250 mm |
| Table length | 450 mm |
| Table width | 175 mm |
| Max. grinding diameter | 130 mm |
| Longitudinal way of table | 260 mm |
| Transversal way of the table | 50 mm |
| Vertical adjustment of the table | 50 mm |
| Table swivels | 360 ° |
| Slewing range of grinding head: | |
| horizontal | 360 ° |
| vertical | 220 ° |
| Grinding spindle speeds: | |
| number (steps) | 2 |
| from | 3750 t/min |
| up to | 7500 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 0.50 CV |
| Total power required | 1 CV |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 600 mm |
| Height | 1400 mm |
| Various accessories: | |
| Dividing attachment | |
| Tailstock | |
| Vice: width | 80 mm |
