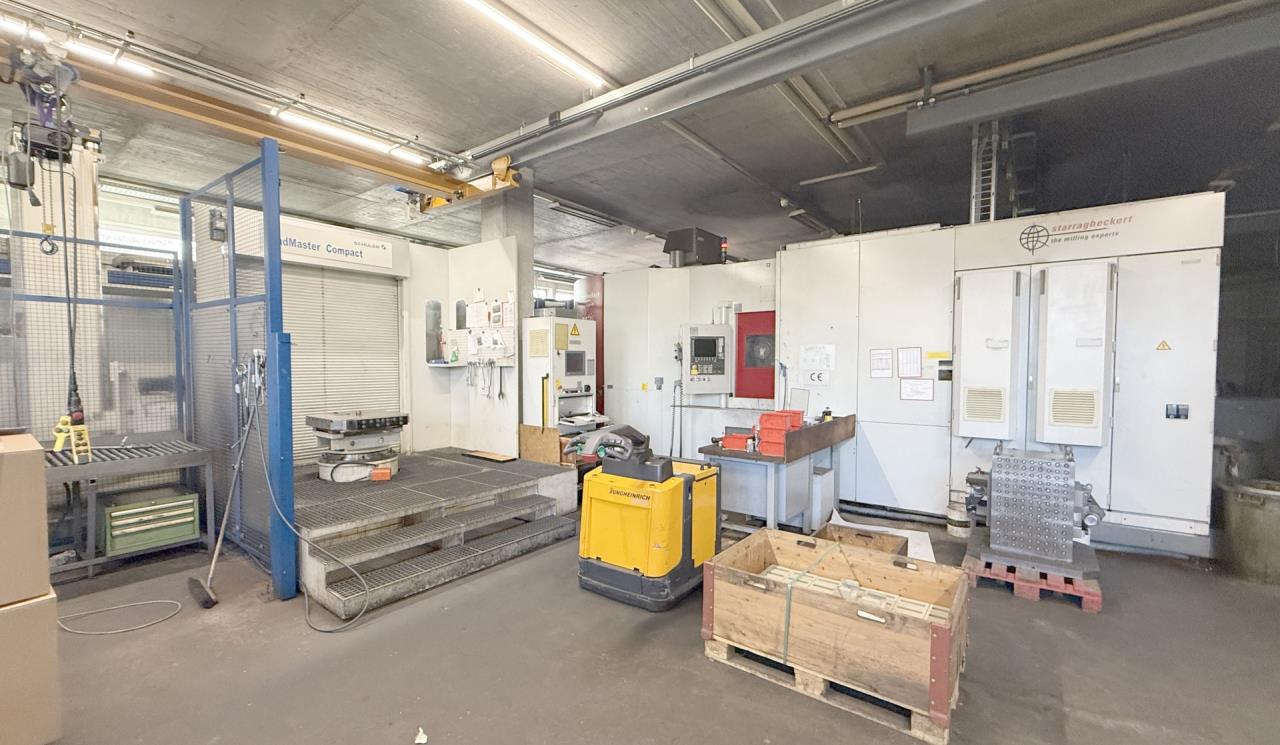

STARRAG HECKERT HEC 800
Controller :

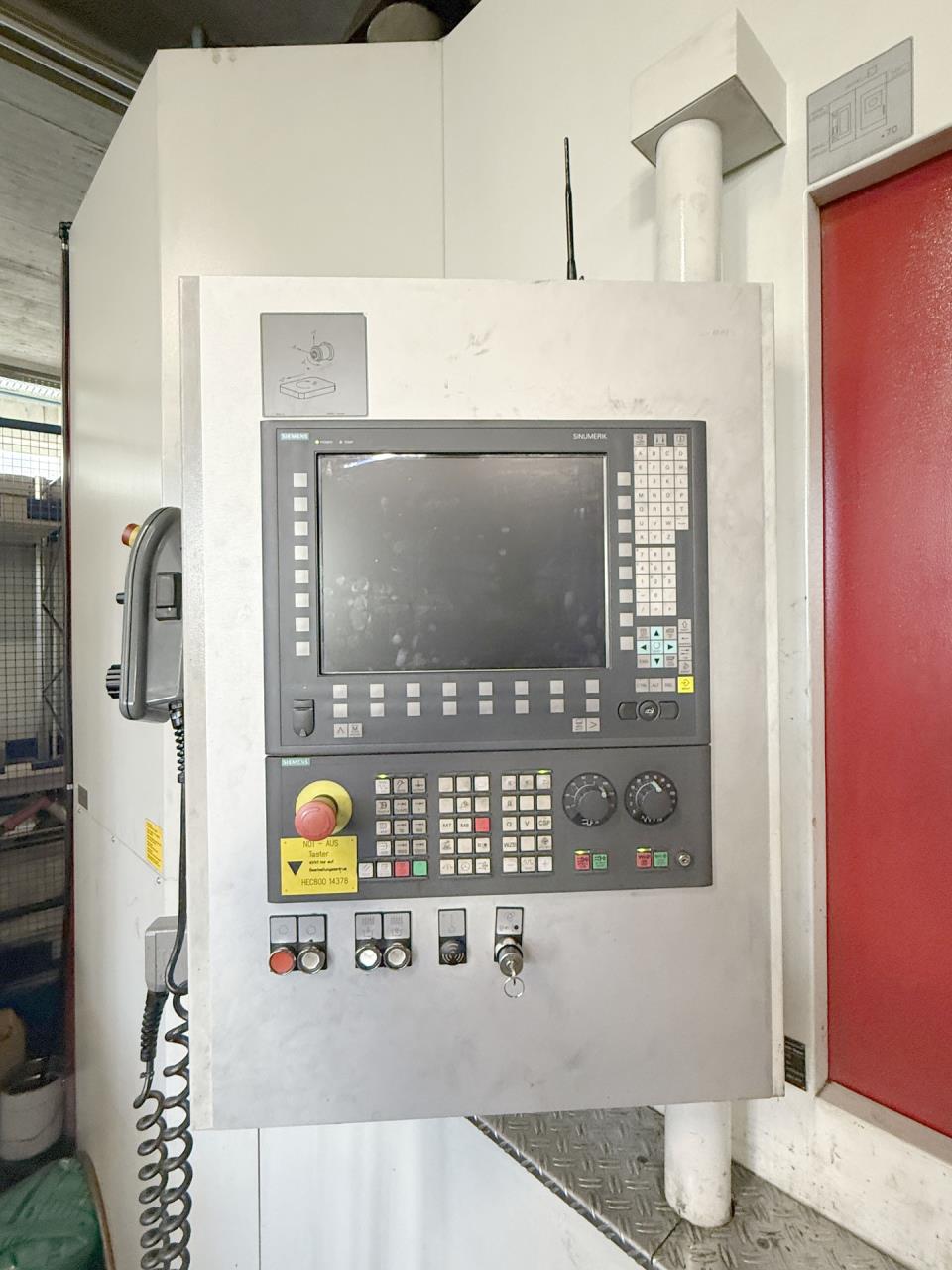

SIEMENS SINUMERIK 840 D Solutionline
Jahrgang :
2011

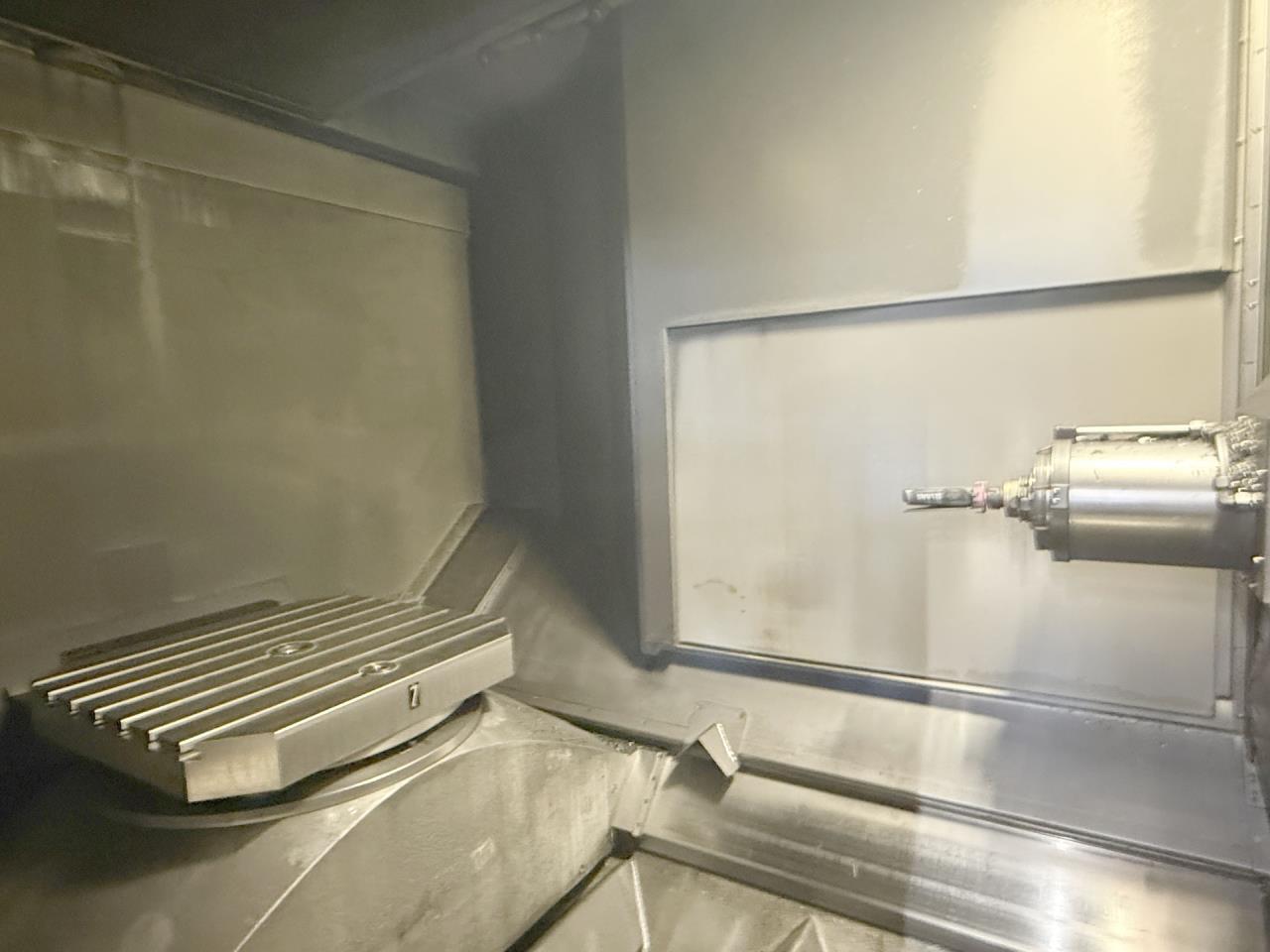

Technical data
Number of axis total
4
Table length
800 mm
Table width
800 mm
Maximum swing circle of up to
1600 mm
Longitudinal travel (X-axis)
1450 mm
Transversal travel (y-axis)
1100 mm
Vertical travel (z axis)
1300 mm
Dimension of the workpice:
Height
1400 mm
Diameter
1400 mm

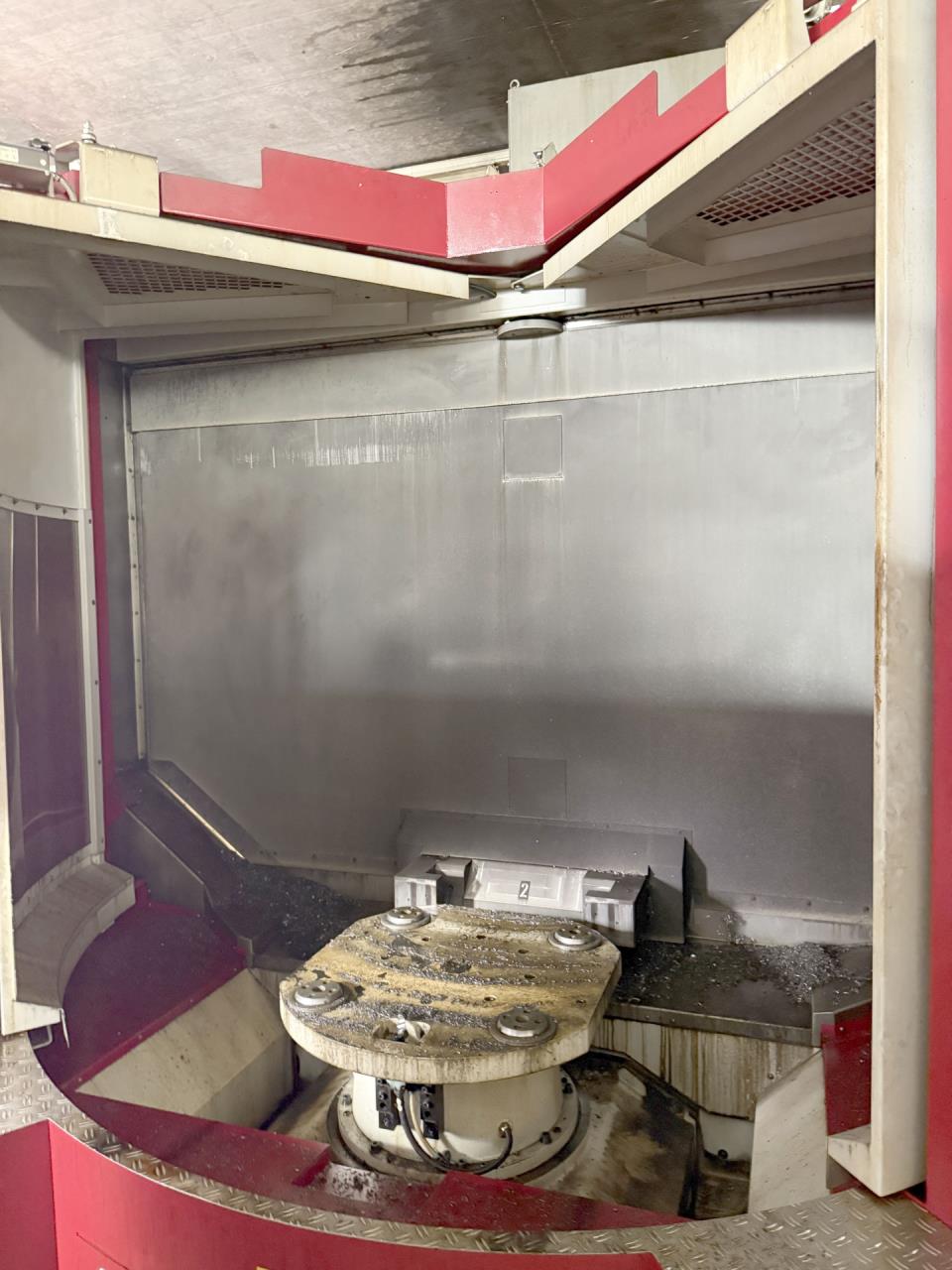

B axis
0.001 °
Table speed
60 rpm
Holding torque B-axis
20000 Nm

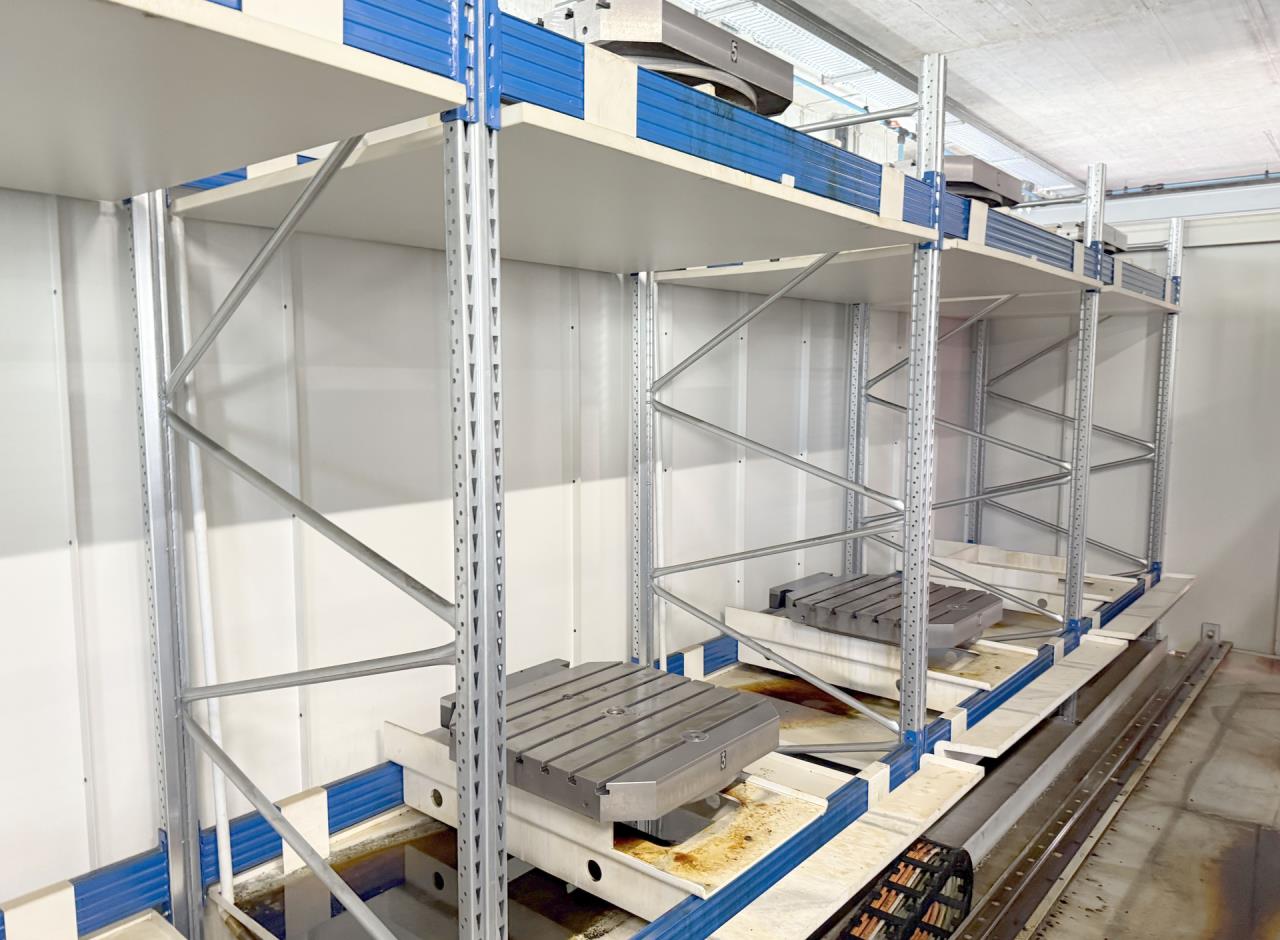

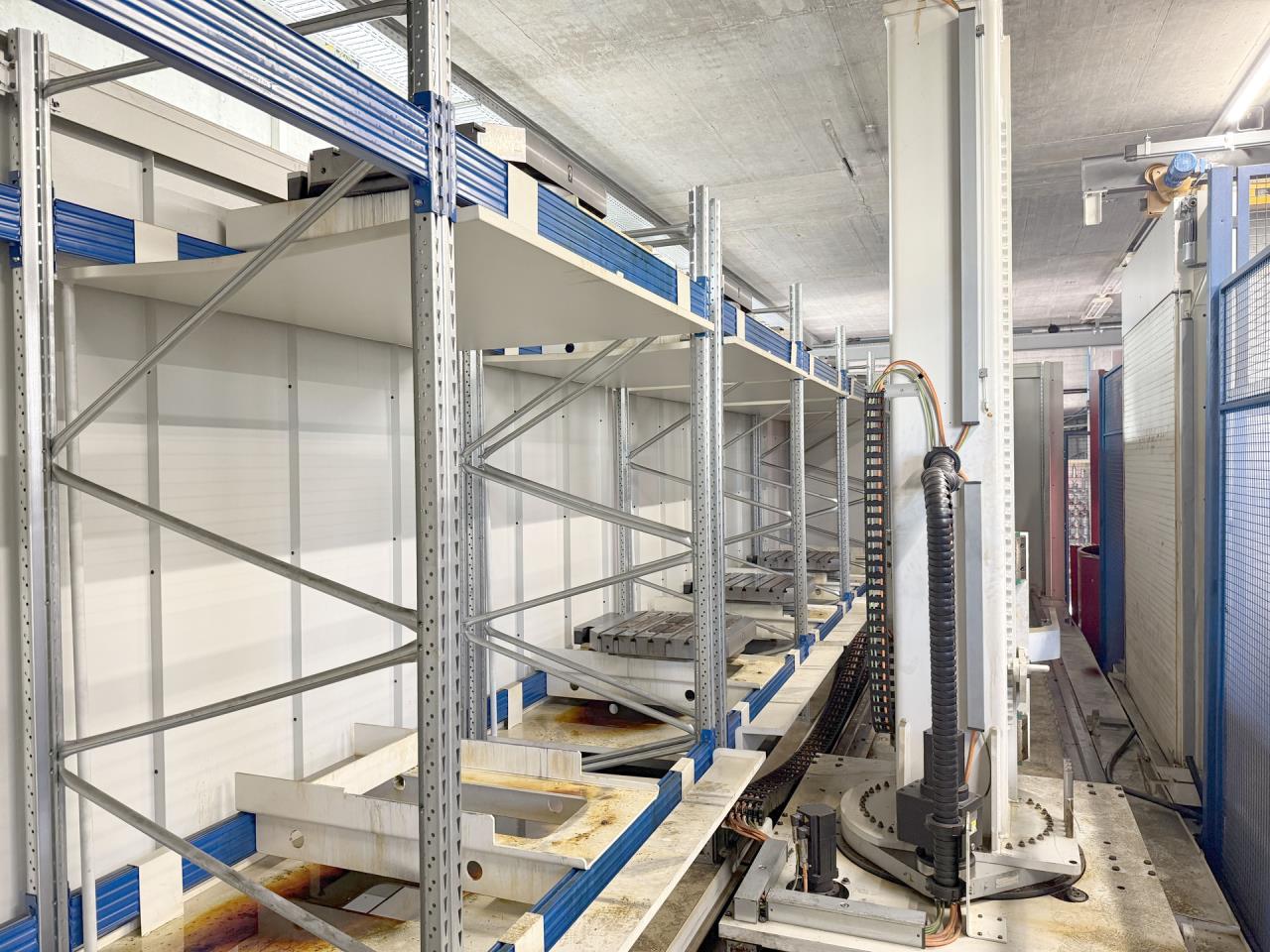

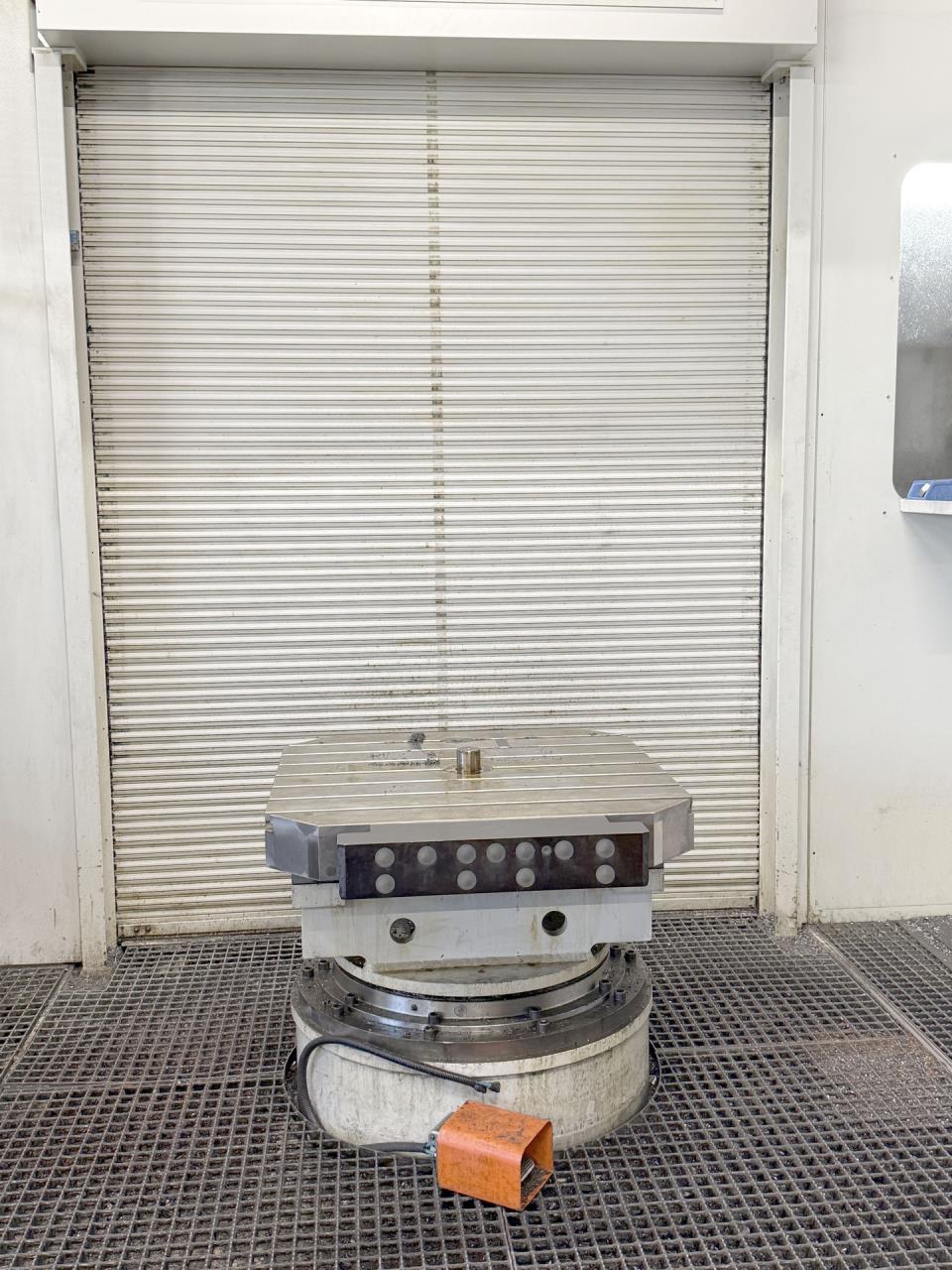

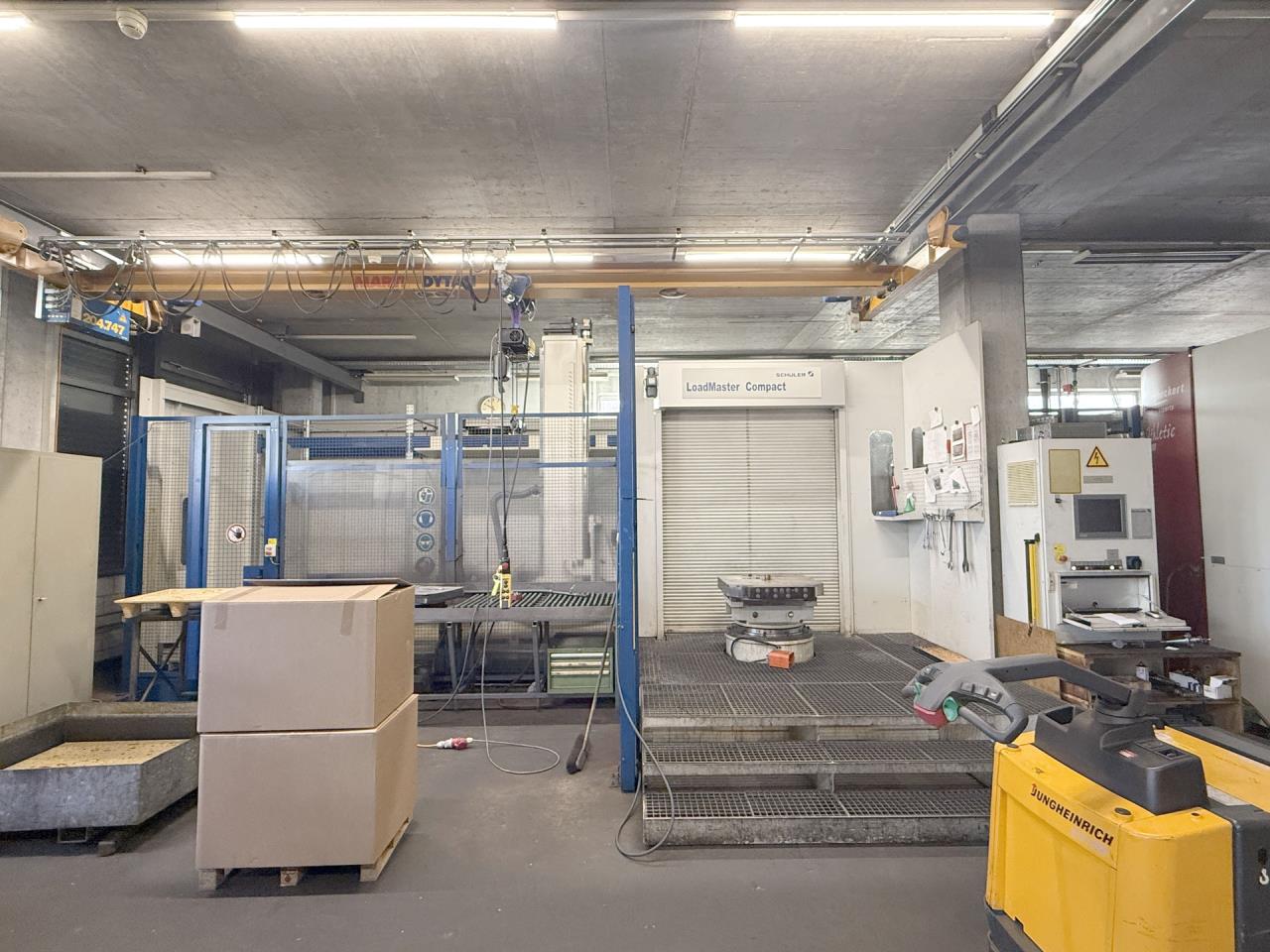

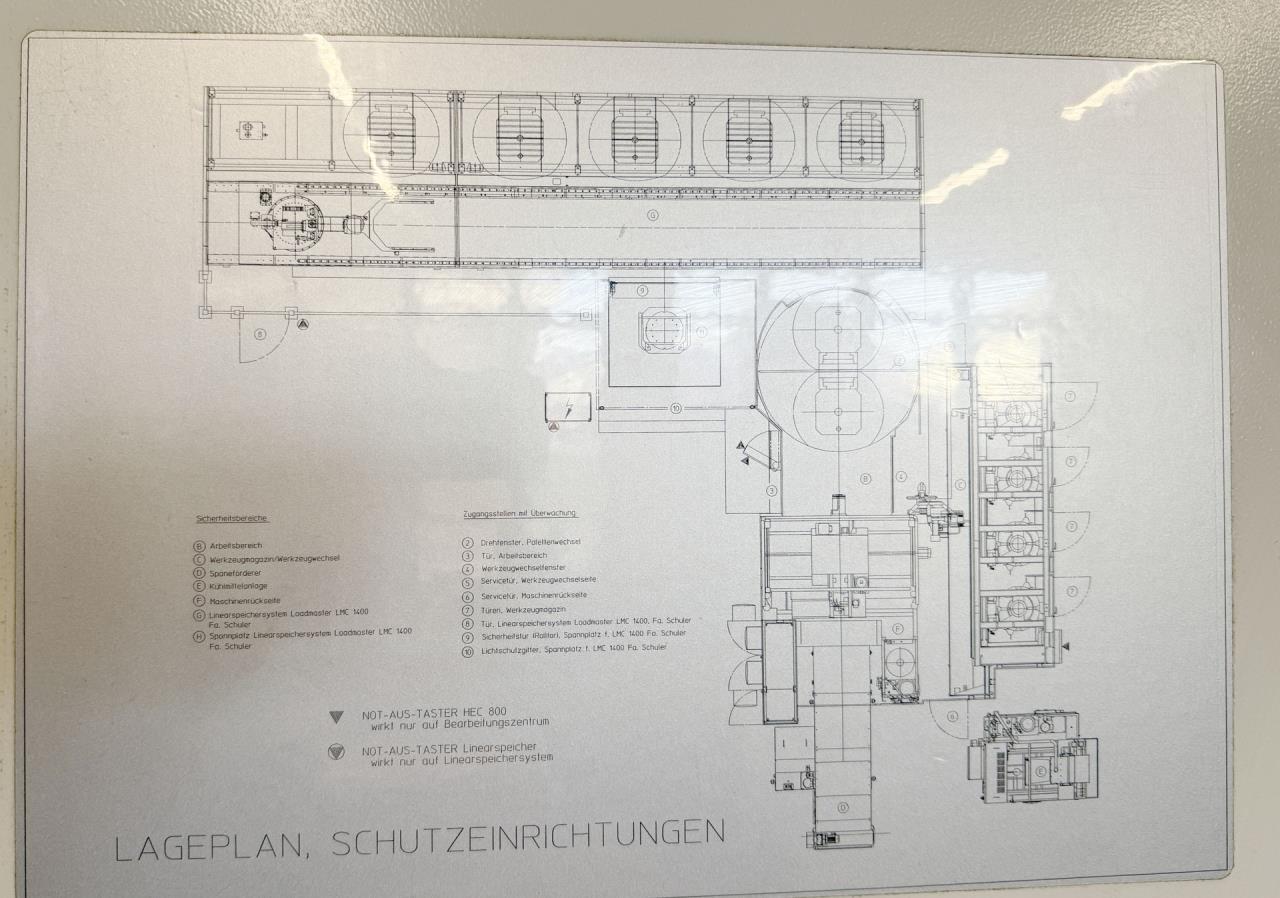

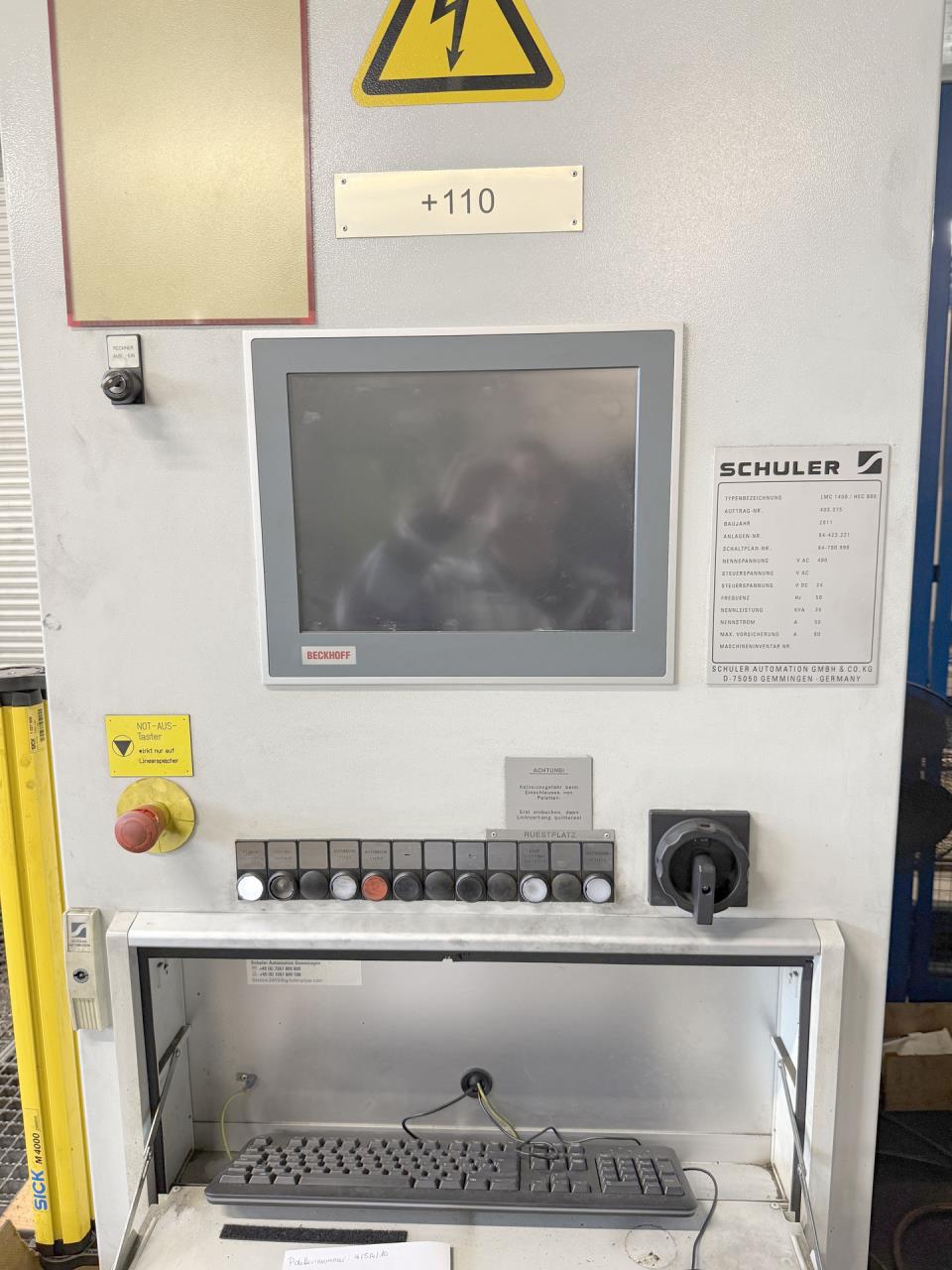

Pallets chanching device:
numbers
10
Length
800 mm
Width
800 mm
Transport weight
2000 kg

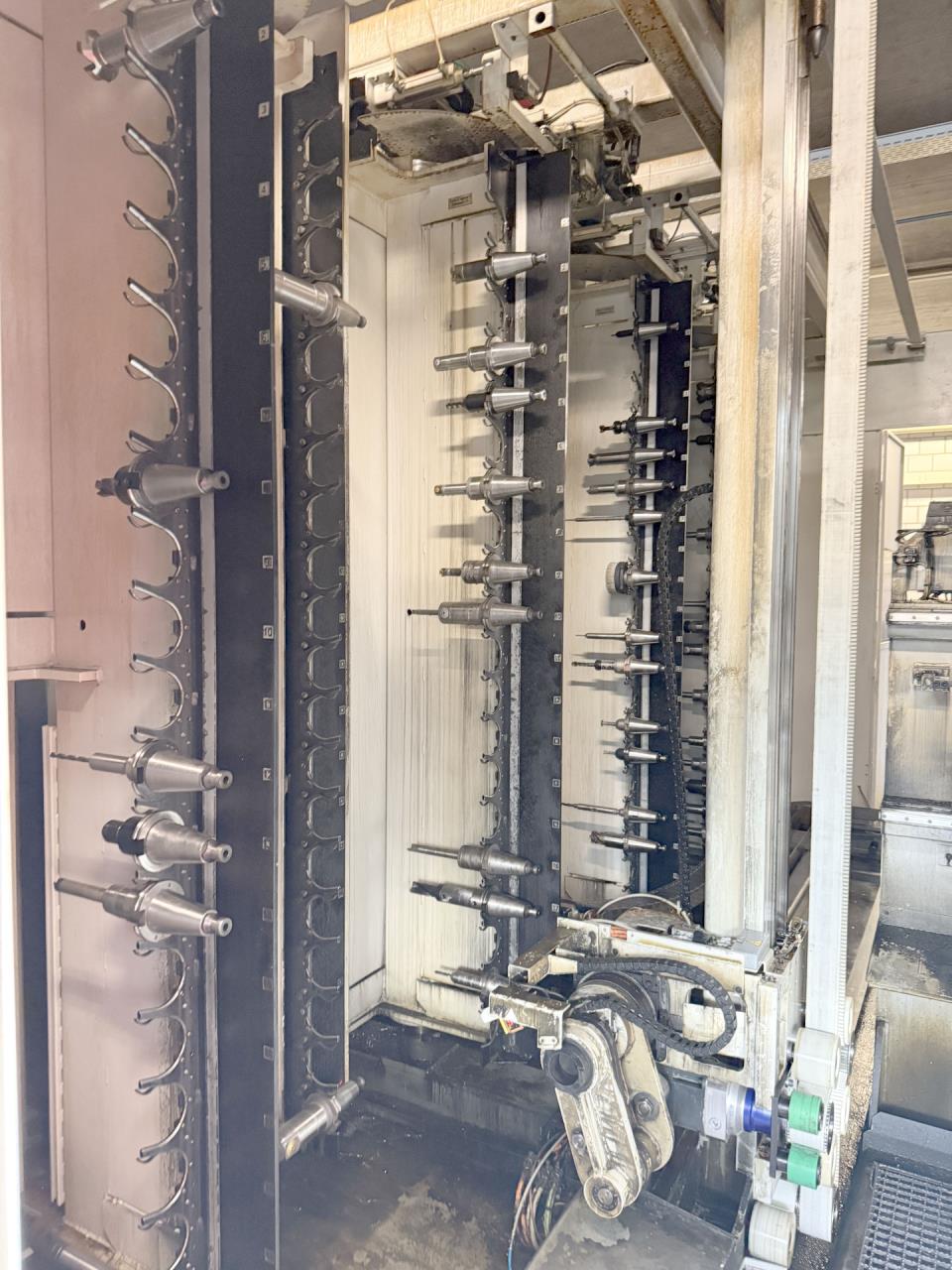

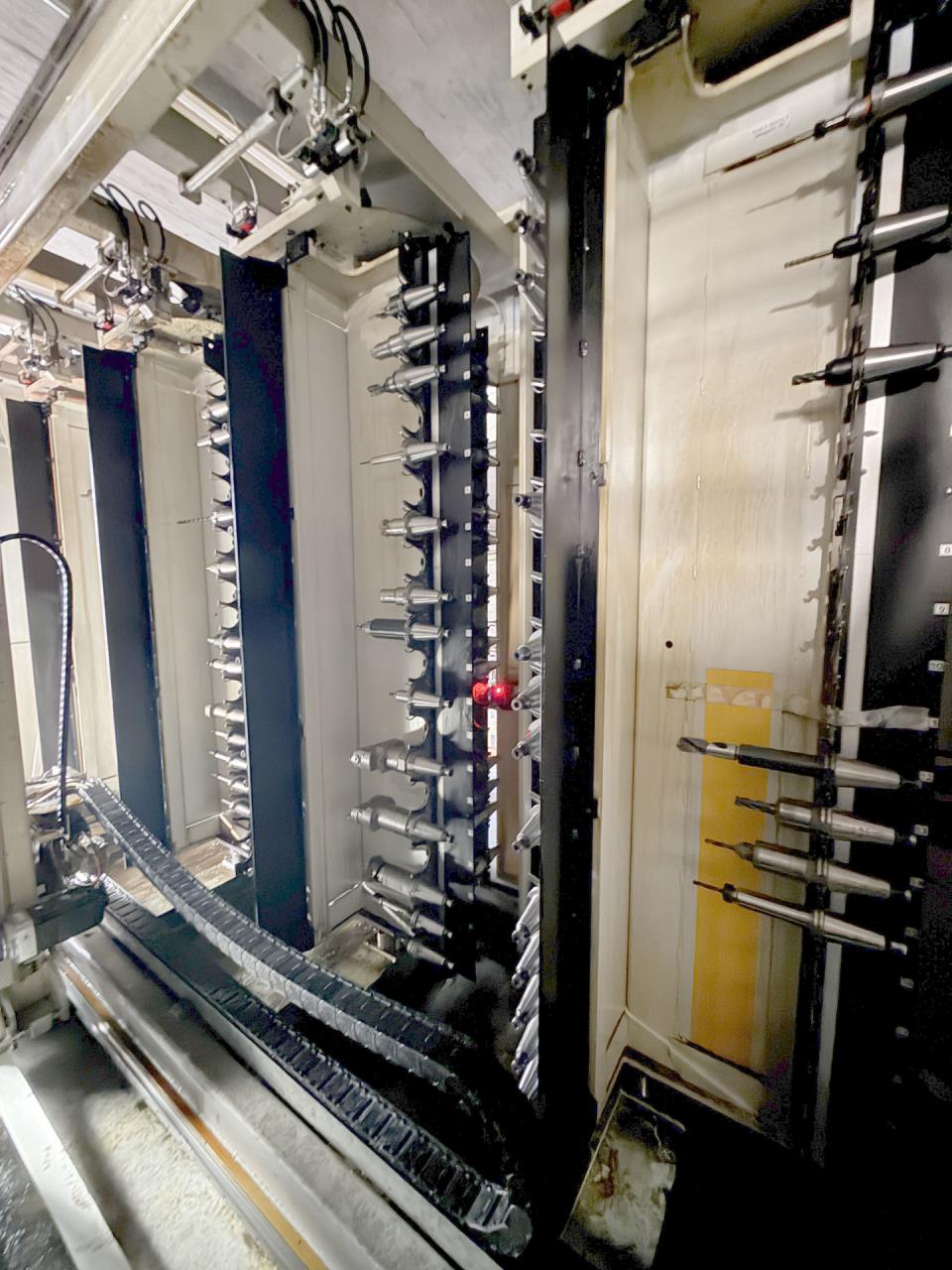

Tool changer:
Tool magazine number of tool places
320
Tool diameter max.
110 mm
Diameter with free adjacent pockets
250 mm
Tool lenght
450 mm
Max. tool-weight
35 kg
Average chip-to-chip time
5 sec
Spindle nose SK
50 DIN 69871

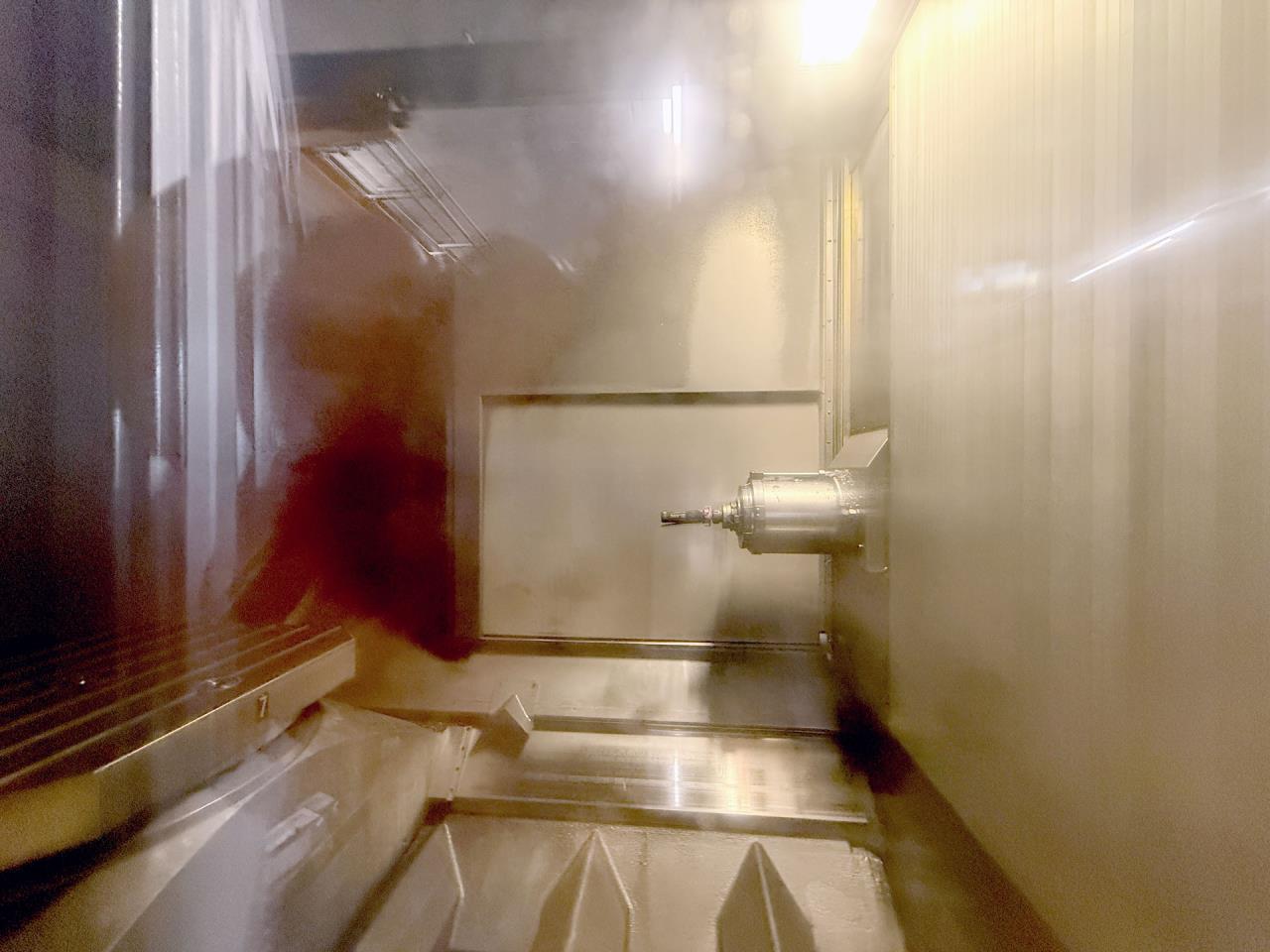

Spindle speeds:
stepless
from
20 rpm
up to
7500 rpm
Torque max.
992 / 1510 Nm
Feeds:
X axis
60 m/min
Y axis
60 m/min
Z axis
60 m/min
Acceleration
5 m/s
Max. Feed force
2200 N
Voltage 50 Hz 3x
400 Volt
Spindle power
41 / 67 kW
Machine's weight about
25000 kg
Overall dimensions machine:
Length
15485 mm
Width
13180 mm
Height
4405 mm
Various accessories:
Pallets: number
2 (800 x 1000)

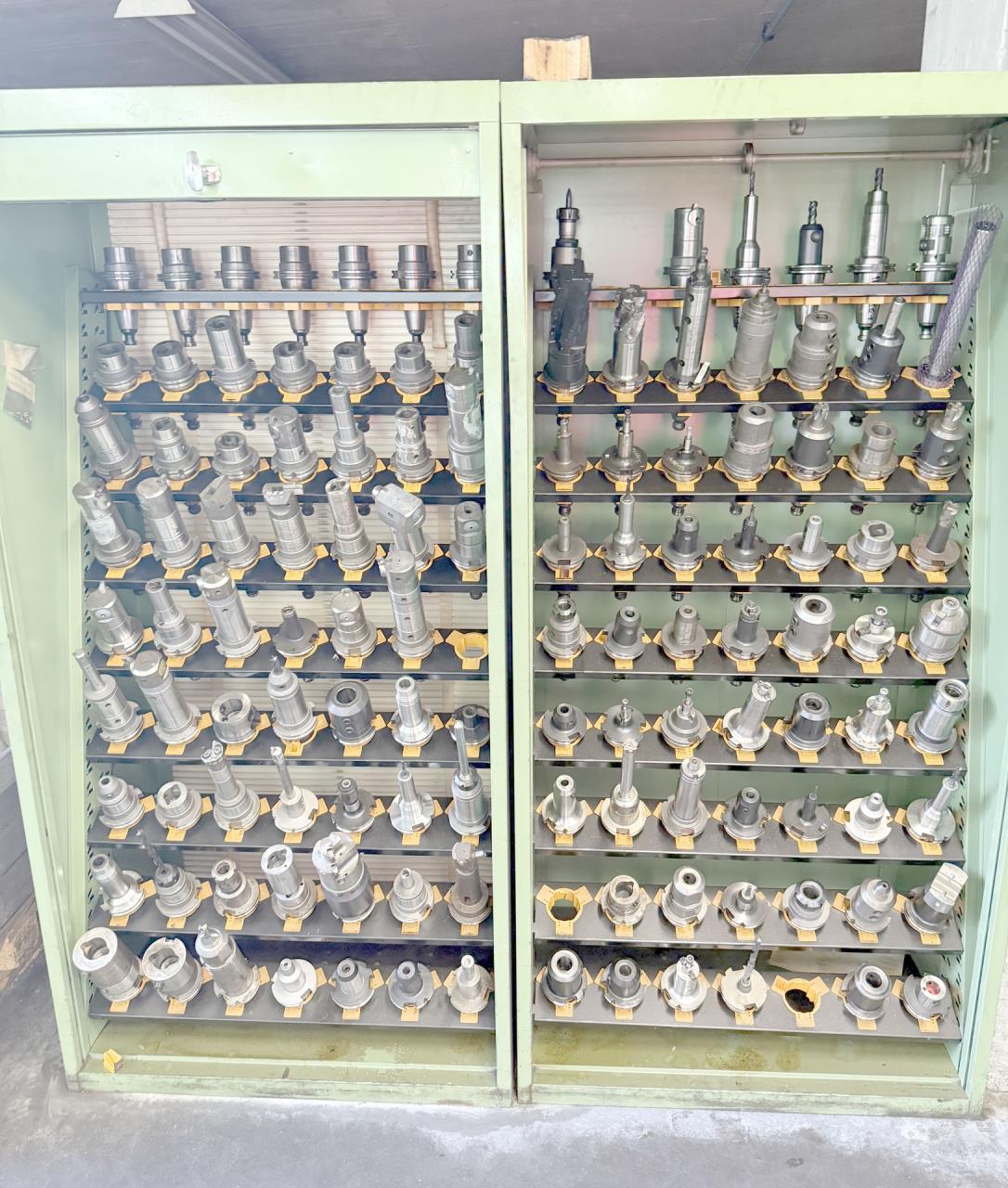

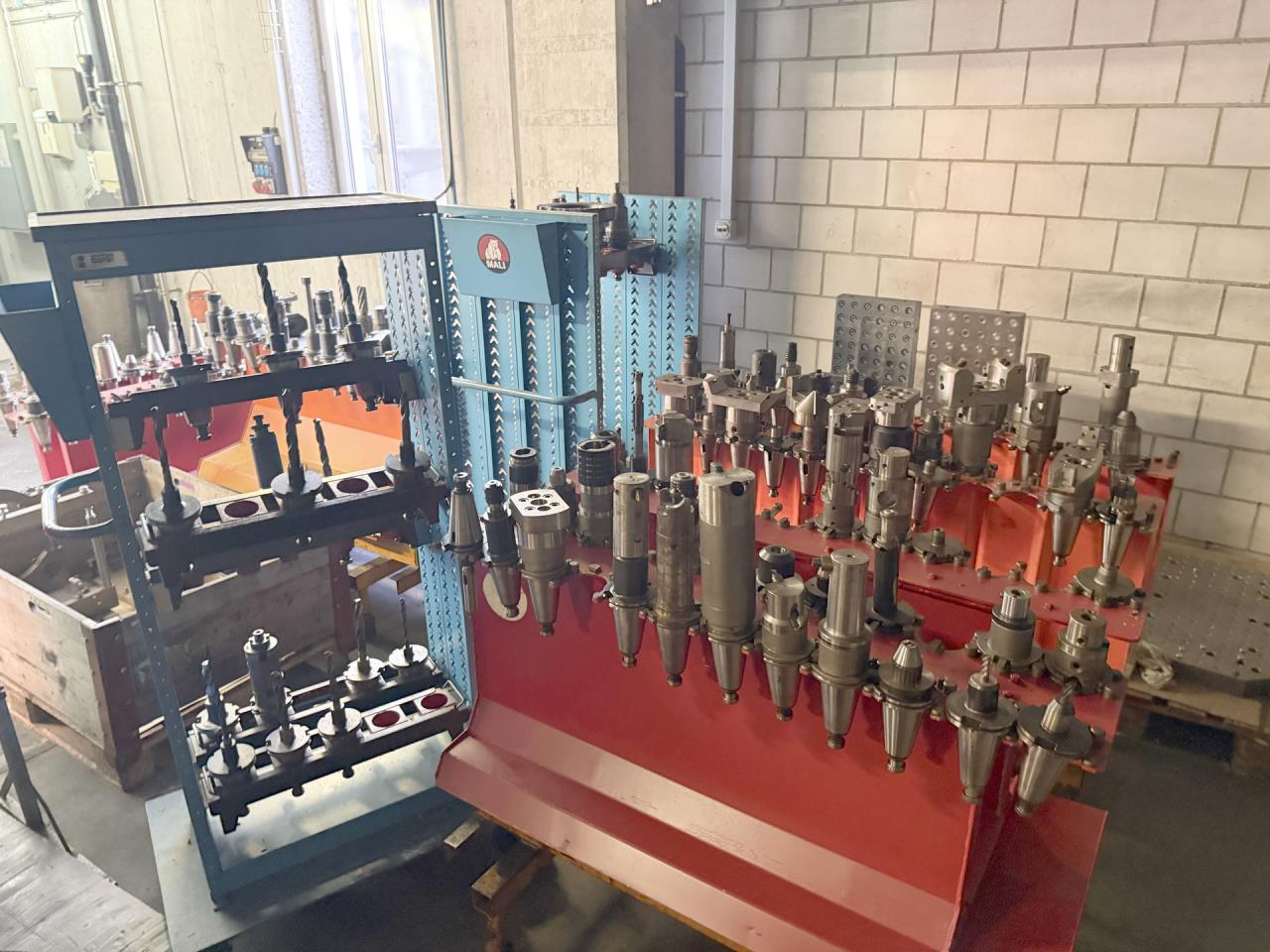

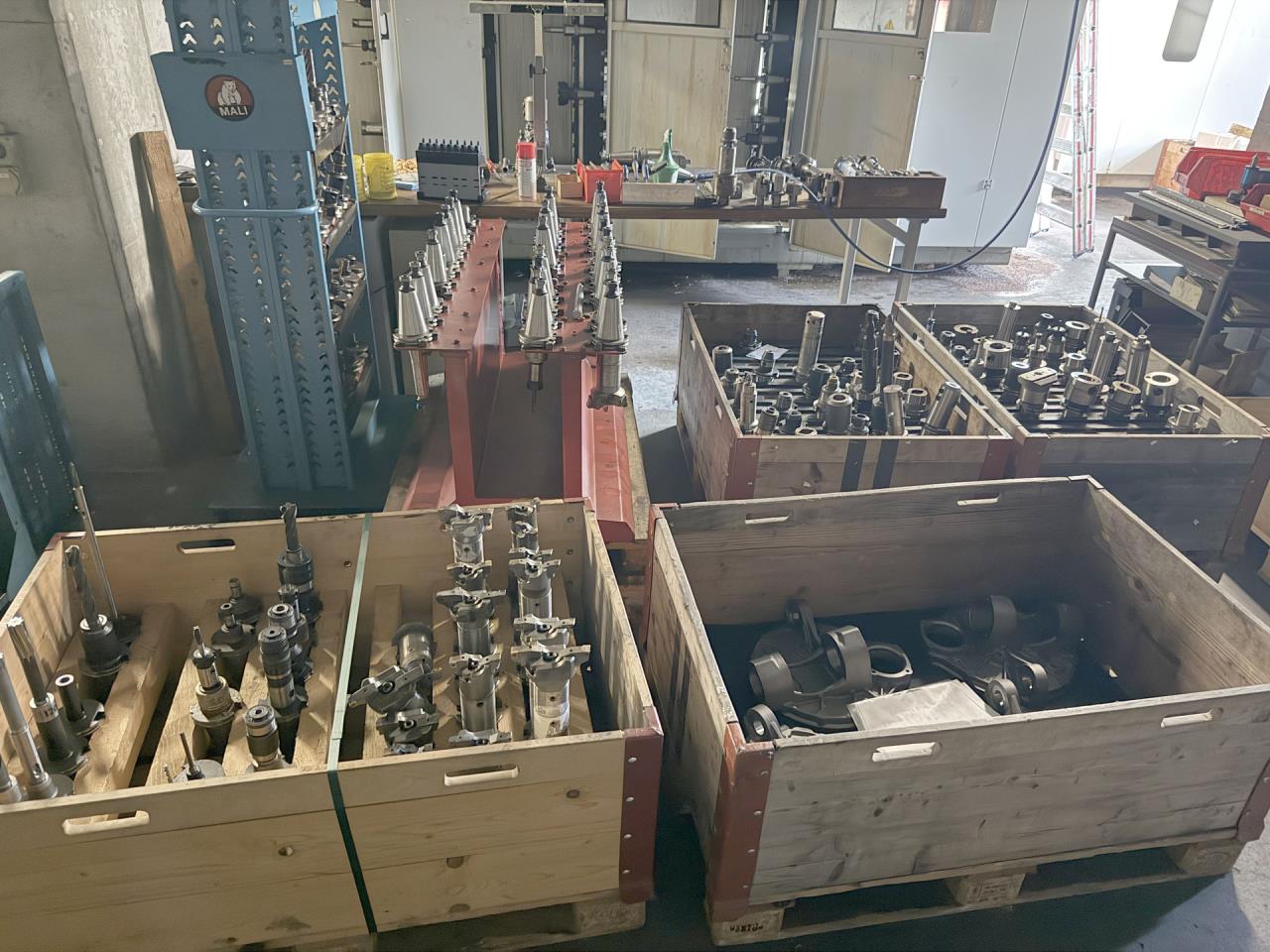

Set of toolholders
High pression colant device
80 bar

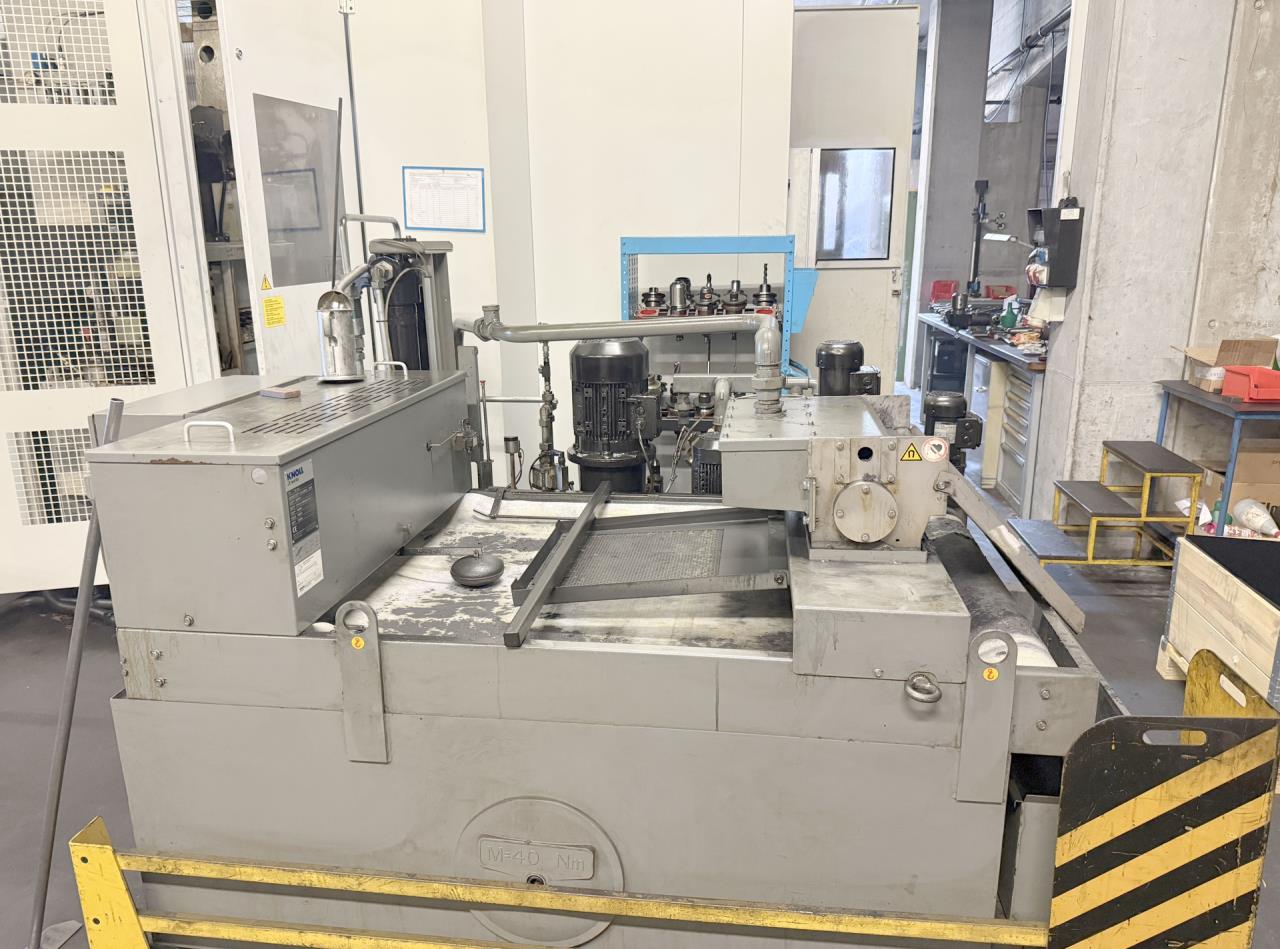

Paper filtration system
Filter for coolant system
KNOLL
