Technical data
Table length
500 mm
Table width
500 mm

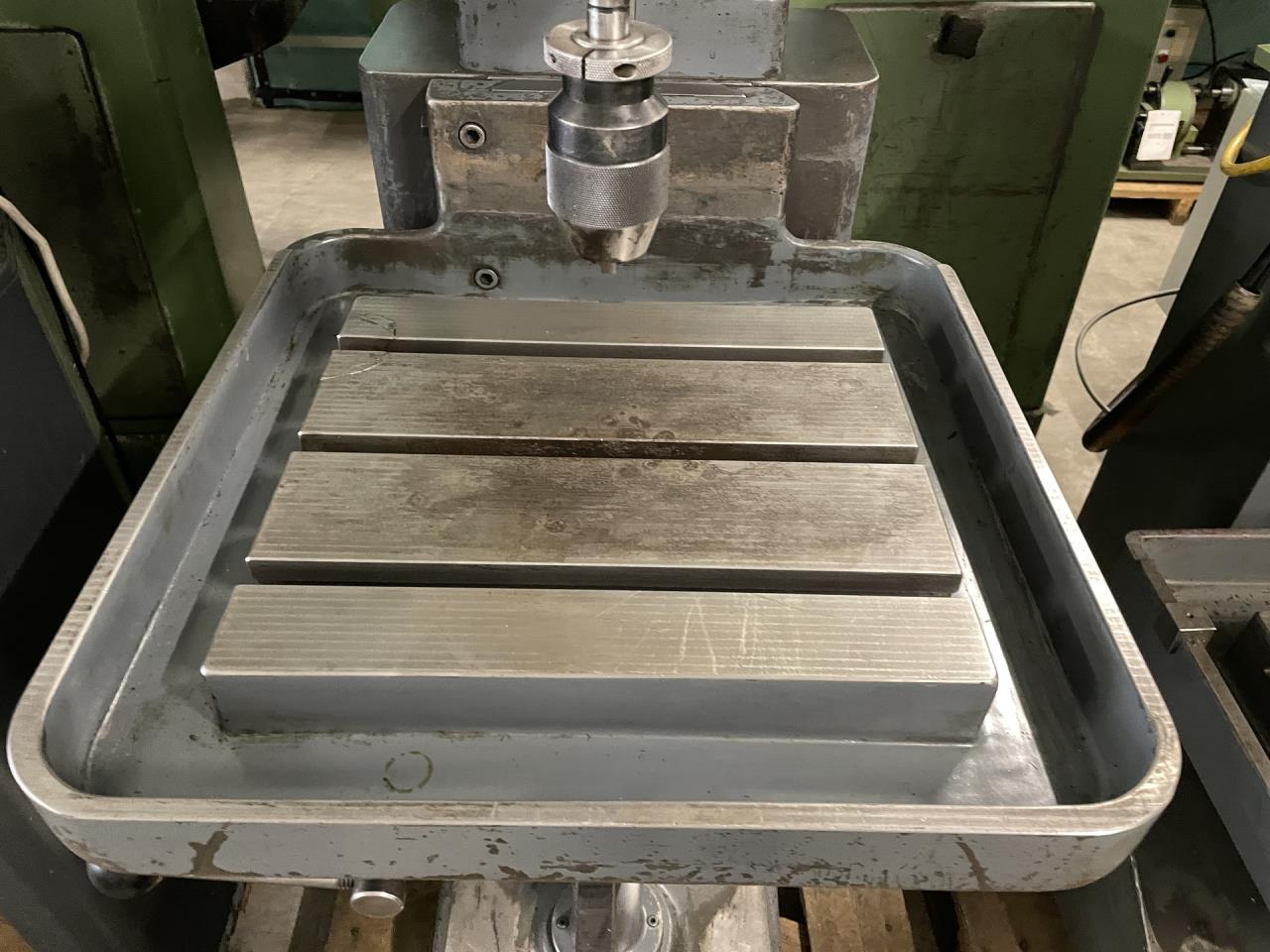

Clamping surface:
Length
360 mm
Width
320 mm
Number of T-channels
3
Distance of the T-slots
100 mm
T-channel width
16 mm
Drill capacity in steel
22 mm
Drill capacity in cast-iron
24 mm
Taper in spindle: MT
3
Depth of throat
300 mm
Drill depth (spindle stroke)
120 mm
Spindle head adjustment
300 mm
Table travels:
Longitudinal travel (X-axis)
330 mm
Transversal travel (y-axis)
210 mm
Vertical travel (z axis)
350 mm

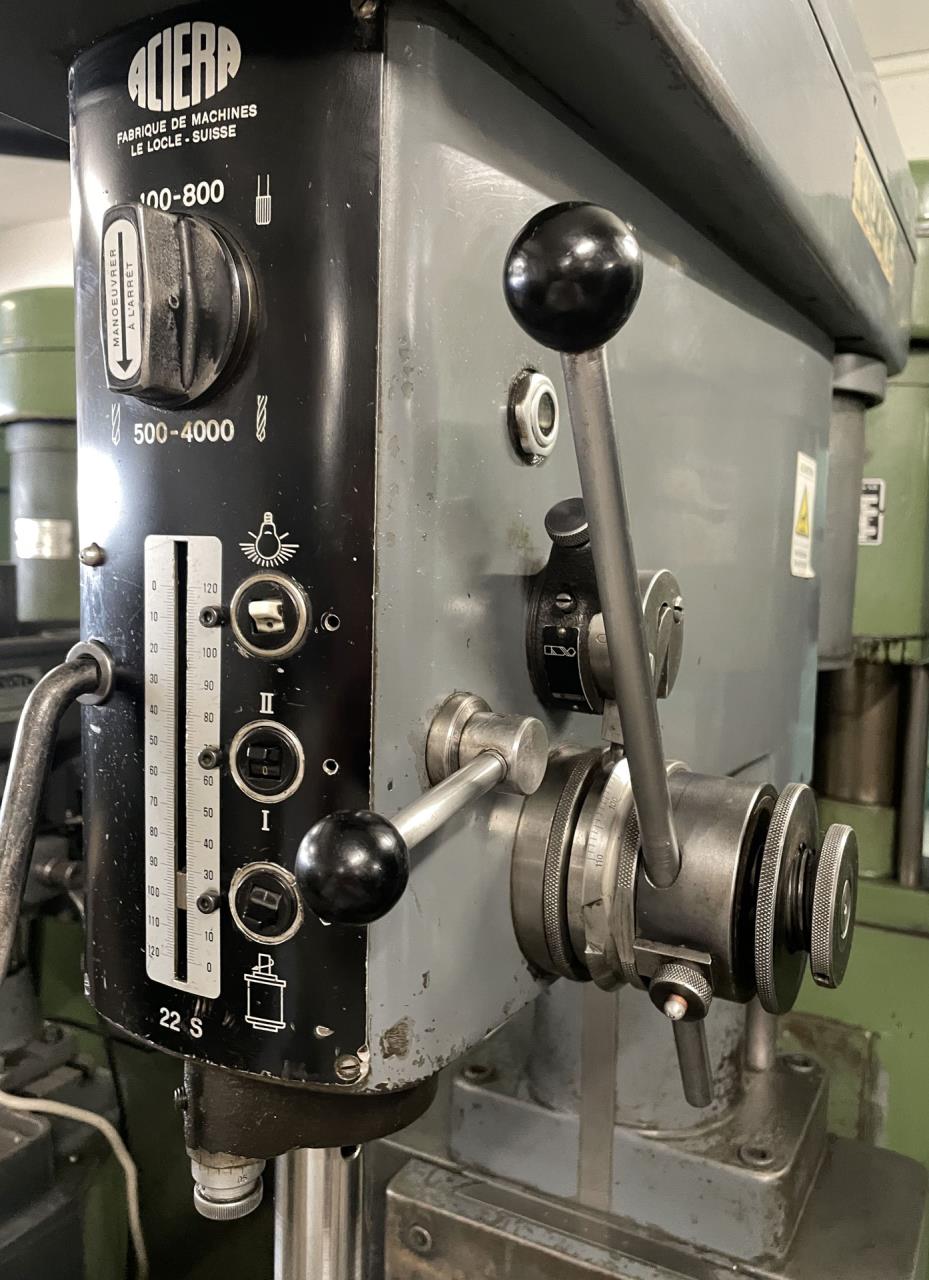

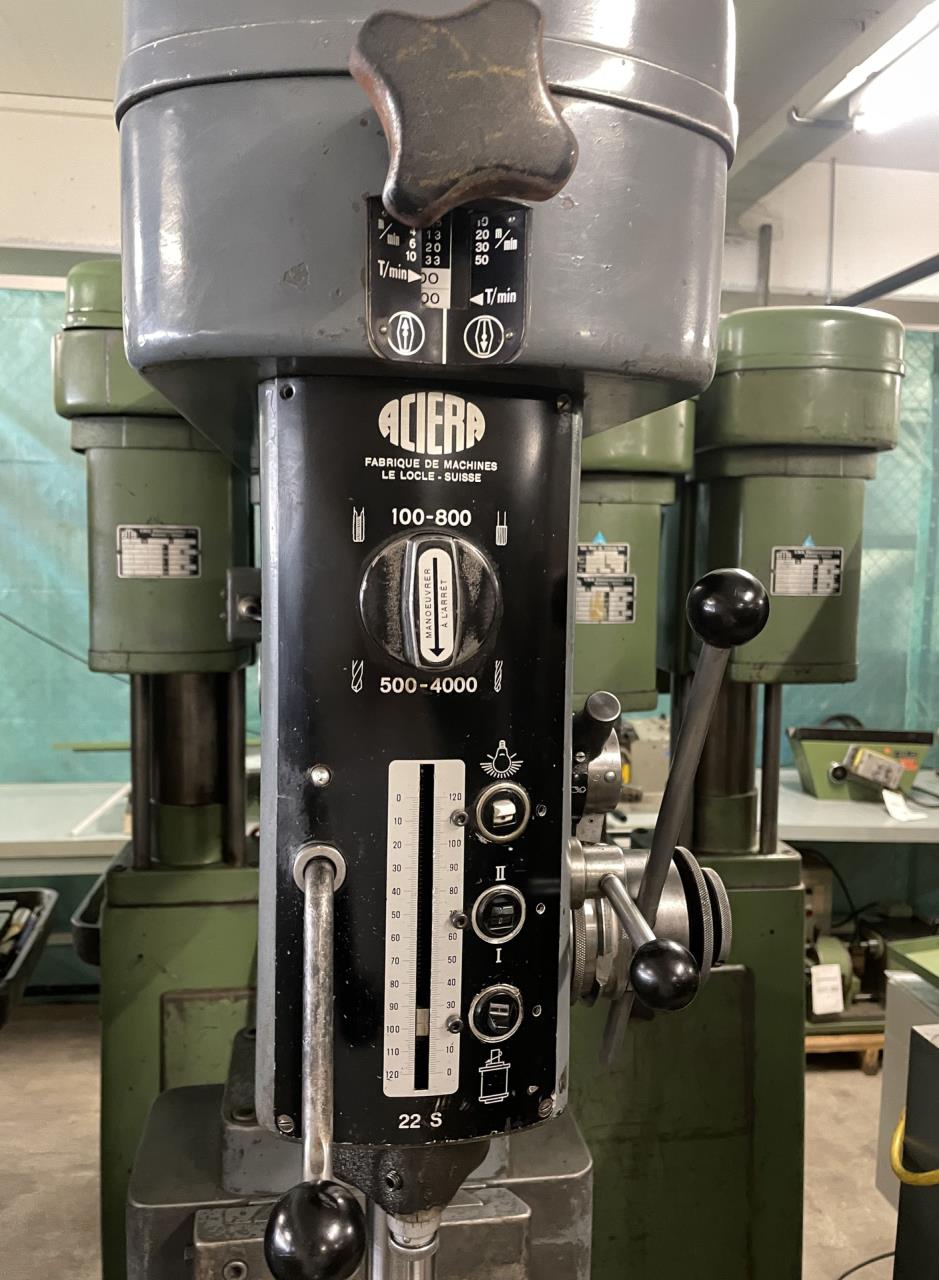

Spindle speeds:
stepless
from
100 rpm
up to
4000 rpm
Feeds:
stepless
from
0.02 mm/r
up to
0.25 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
1.0 / 1.5 HP
Machine's weight about
900 kg

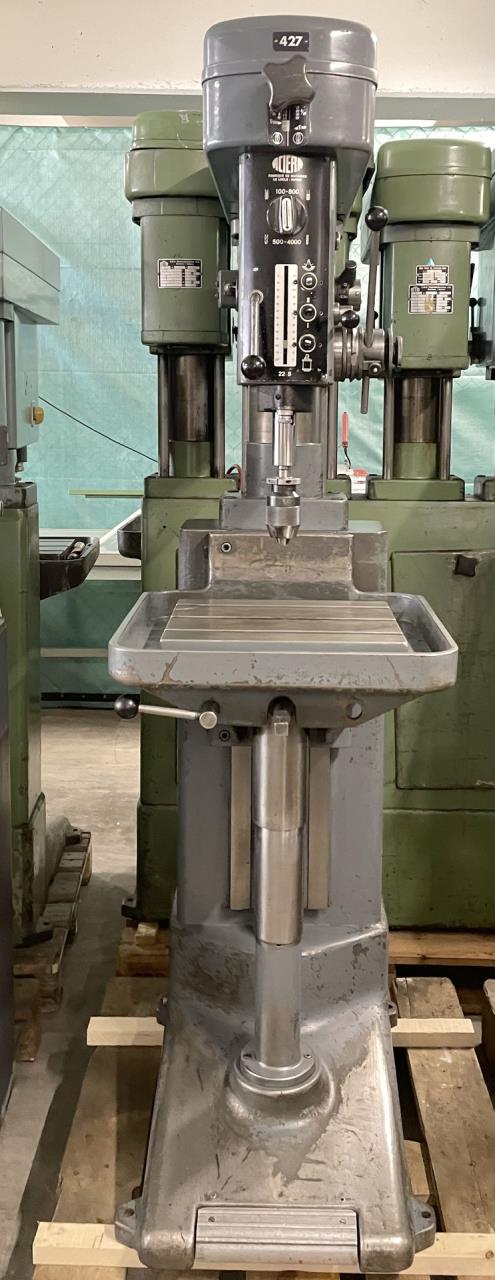

Overall dimensions machine:
Length
1100 mm
Width
600 mm
Height
2100 mm
Various accessories:
Drill chuck
Technical specifications and pictures without guarantee.
