Technical data
Number of axis total
3
Longitudinal travel (X-axis)
560 mm
Transversal travel (y-axis)
430 mm
Vertical travel (z axis)
570 mm
Tool magazine number of tool places
40
Tool diameter max.
80 mm
Tool lenght
220 mm
Max. tool-weight
8 kg
Spindle nose: ISO
40
Distance spindle nose to table
150 - 720 mm
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Work feed rate
1 - 10000 m/min
Rapid traverse: long.
42 m/min
Rapid traverse: transversal
42 m/min
Rapid traverse: vertical
32 m/min
Voltage 50 Hz 3x
380 Volt
Machine's weight about
4400 kg
Overall dimensions machine:
Length
3548 mm
Width
1937 mm
Height
2745 mm
Various accessories:
Coolant system
High pression colant device
Chip conveyor

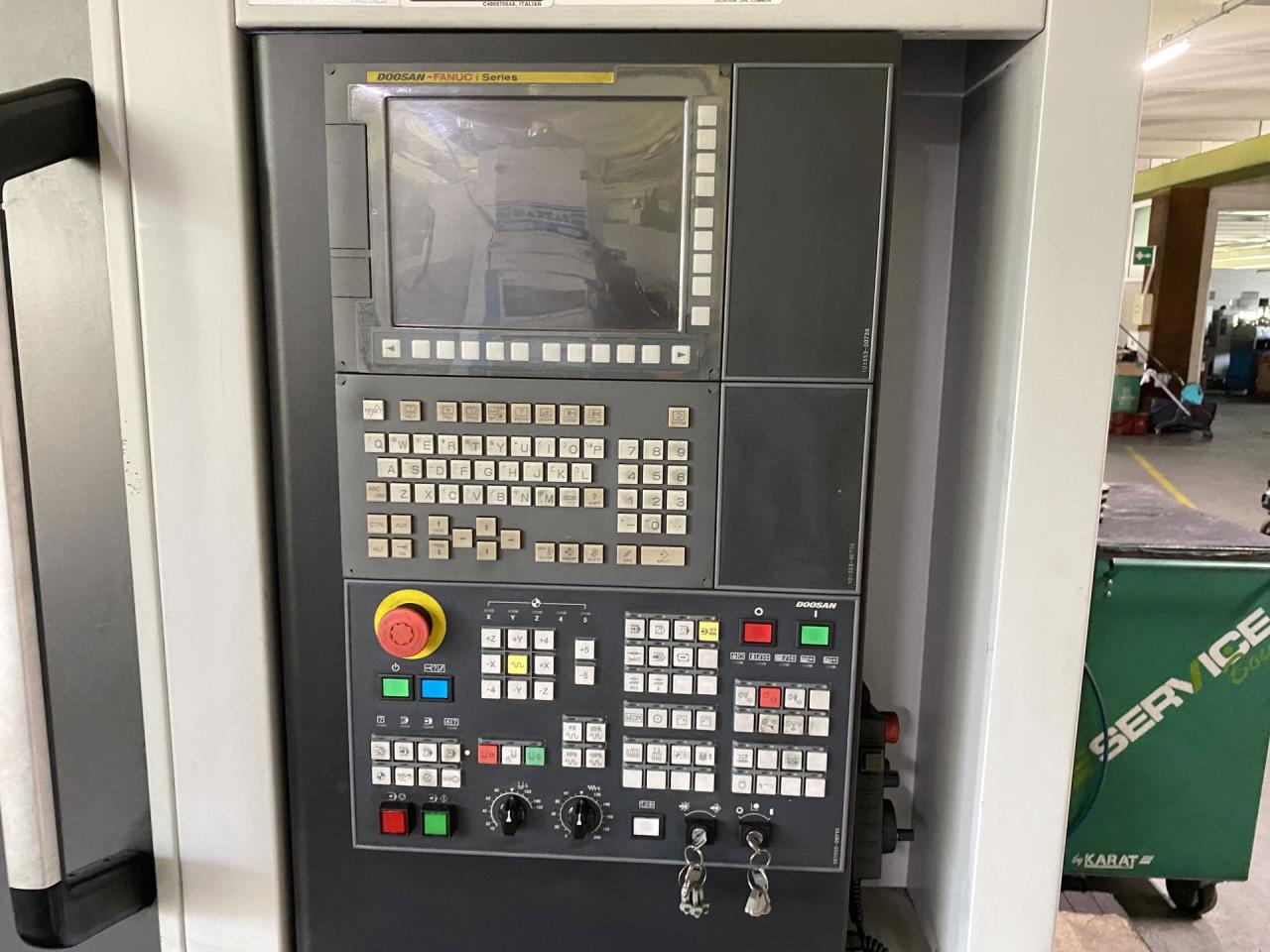

Handwheel electroinic

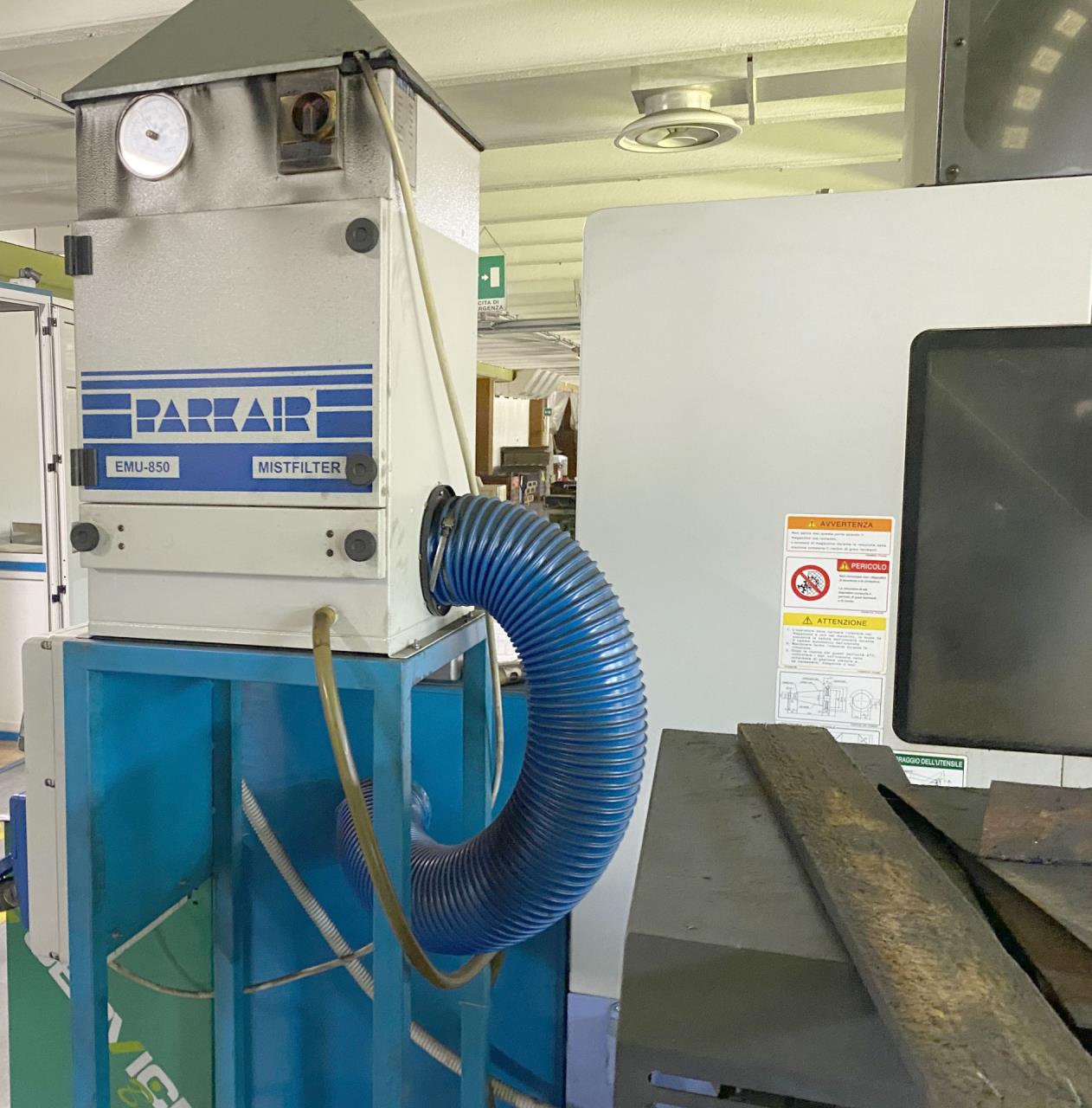

Oil mist extractor
Technical specifications and pictures without guarantee.
