Technical data
Table length
700 mm
Table width
370 mm

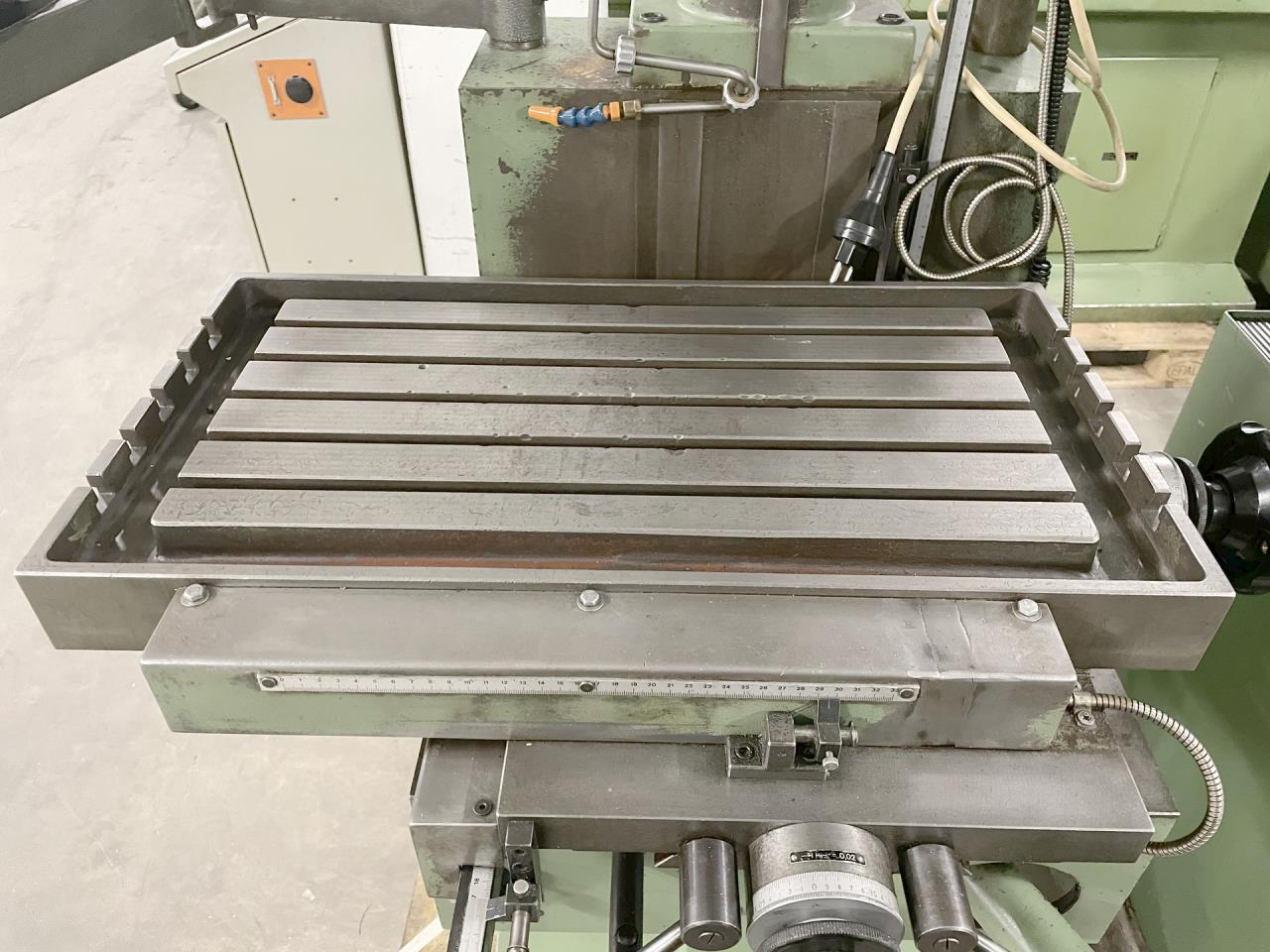

Clamping surface:
Length
580 mm
Width
280 mm
Number of T-channels
5
Distance of the T-slots
50 mm
T-channel width
12 mm
Drill capacity in steel
22 mm
Drill capacity in cast-iron
24 mm
Depth of throat
300 mm
Drill depth (spindle stroke)
120 mm
Spindle head adjustment
300 mm

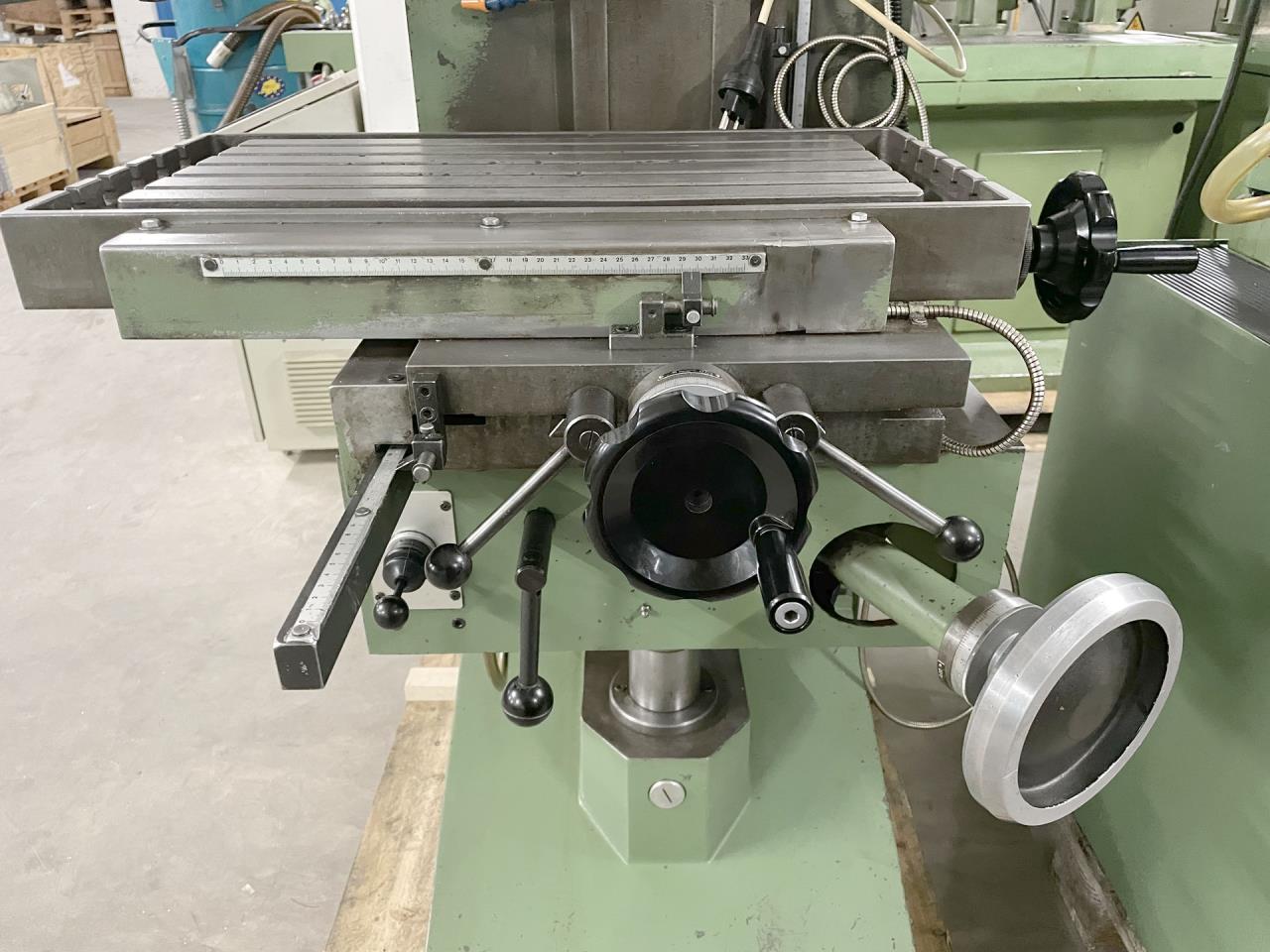

Table travels:
Longitudinal travel (X-axis)
330 mm
Transversal travel (y-axis)
210 mm
Vertical travel (z axis)
350 mm

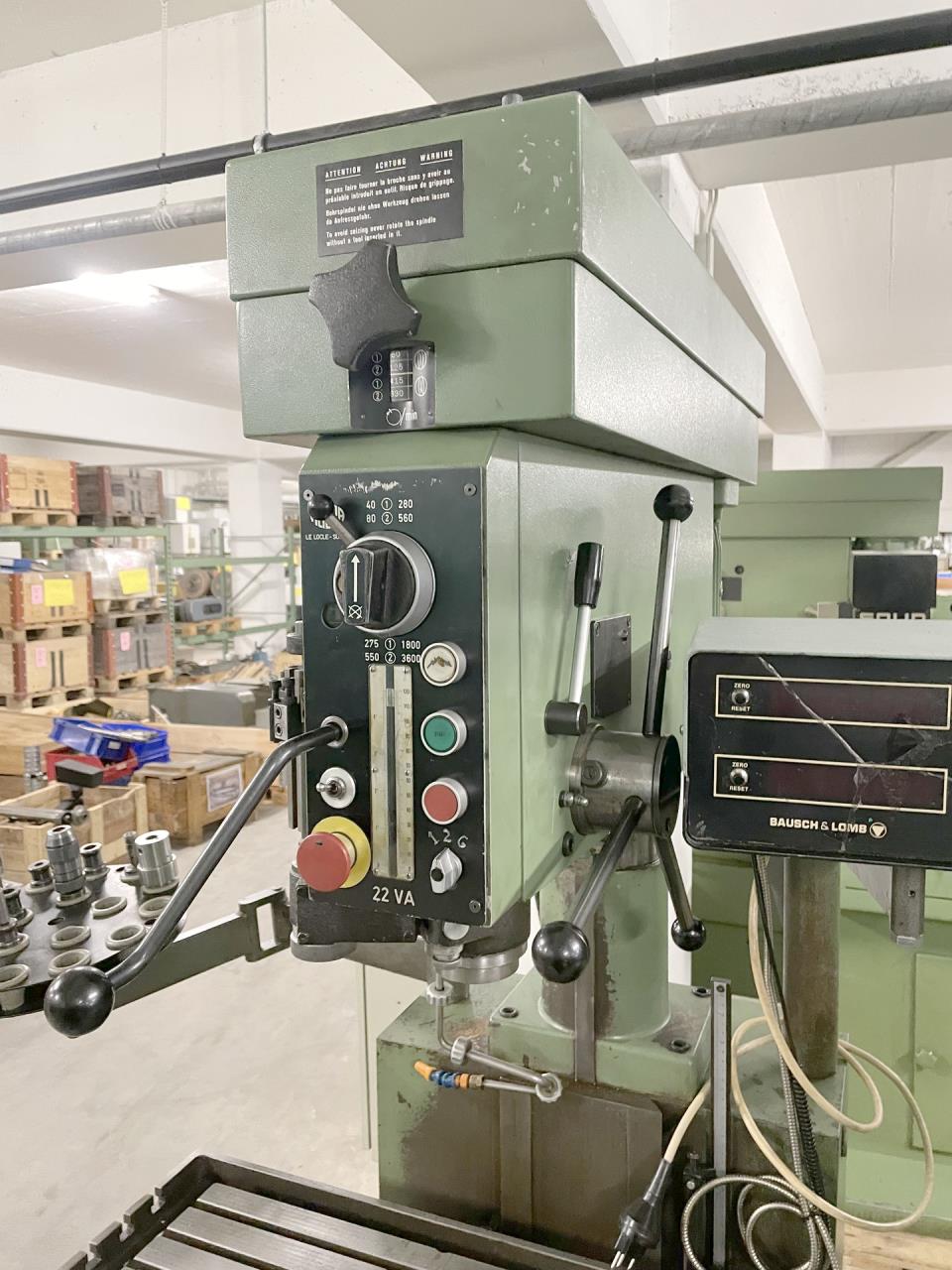

Spindle speeds:
stepless
from
40 rpm
up to
3600 rpm
Feeds:
stepless
from
0.02 mm/r
up to
0.25 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
1.0 / 1.5 HP
Machine's weight about
900 kg
Overall dimensions machine:
Length
1300 mm
Width
1000 mm
Height
2000 mm
Various accessories:

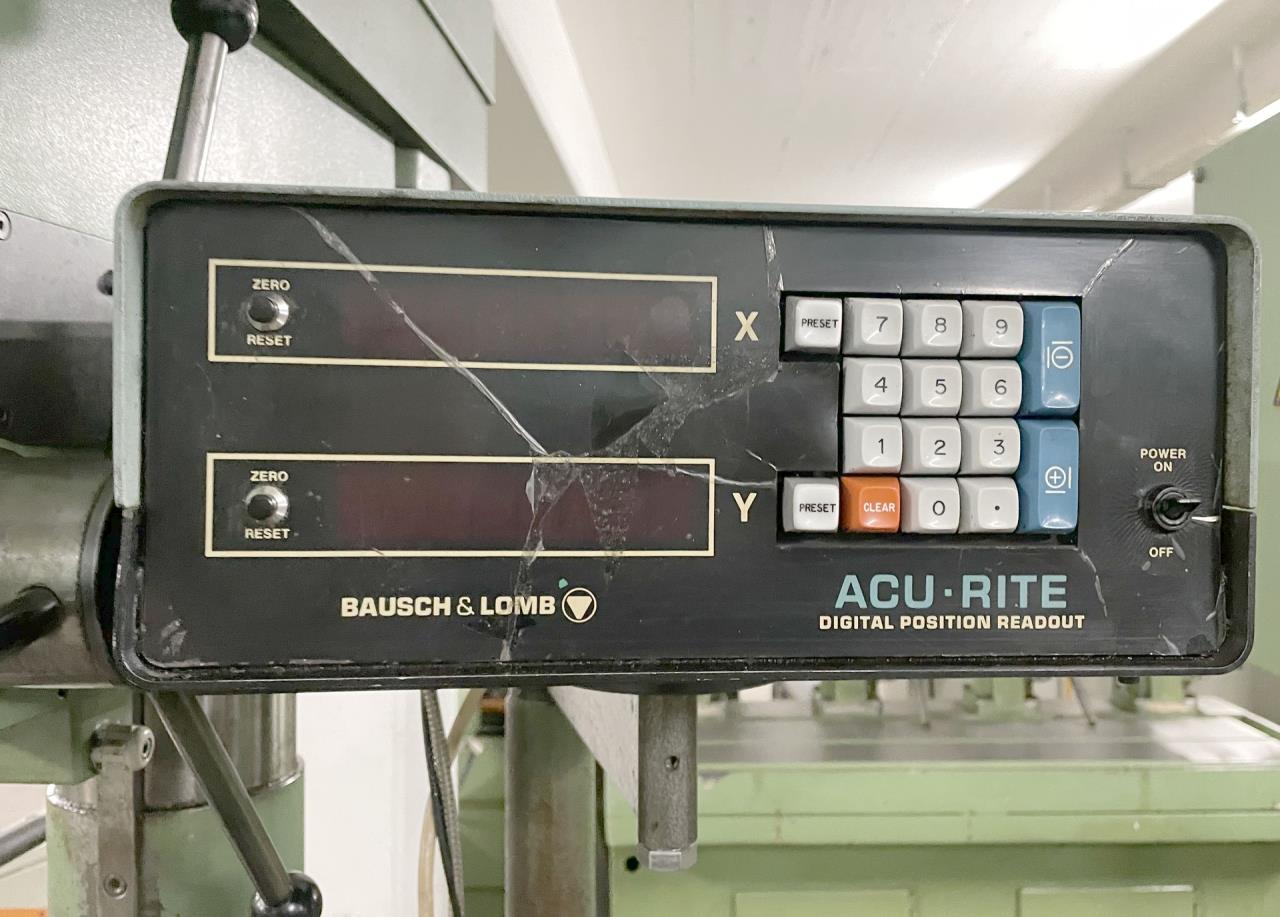

Digital readout number of axis:
2

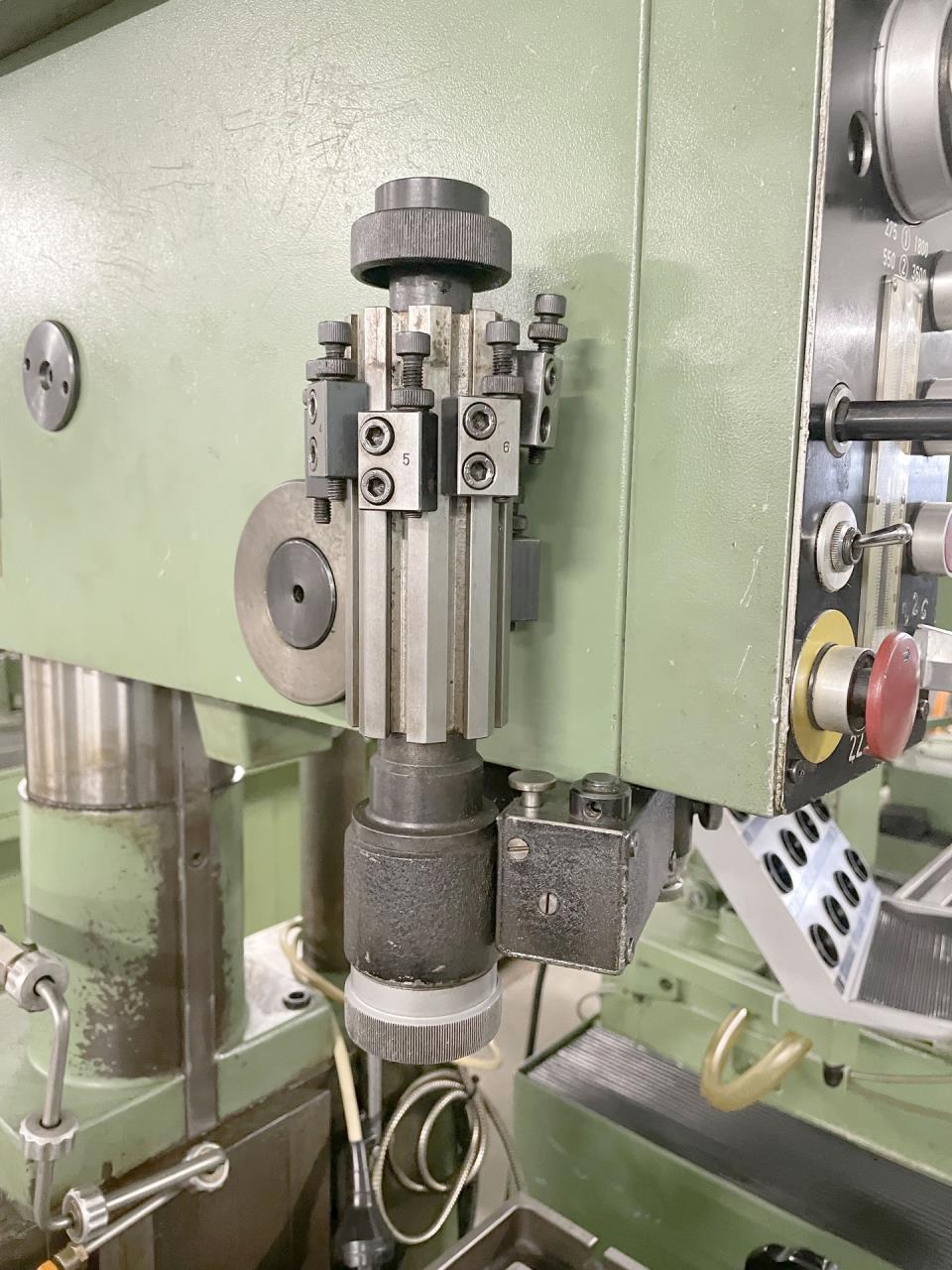

Threading device

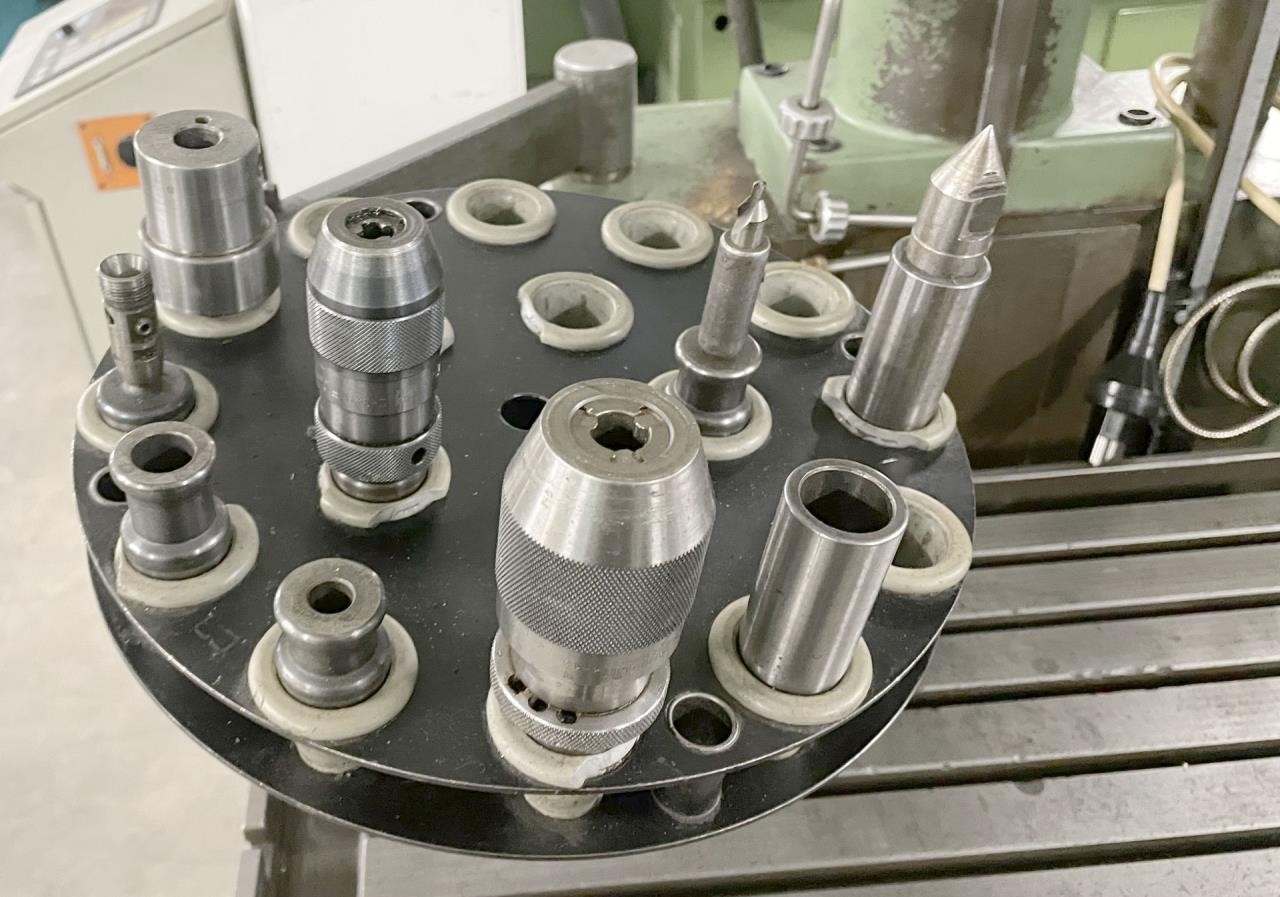

Tool storage
Coolant system
Drill chuck
Quick change device
Adjustable depth stop
Set of toolholders
Motorized table adjustment
Technical specifications and pictures without guarantee.
