Technical data
Time under power
52198 Hour
Working time
13872 Hour

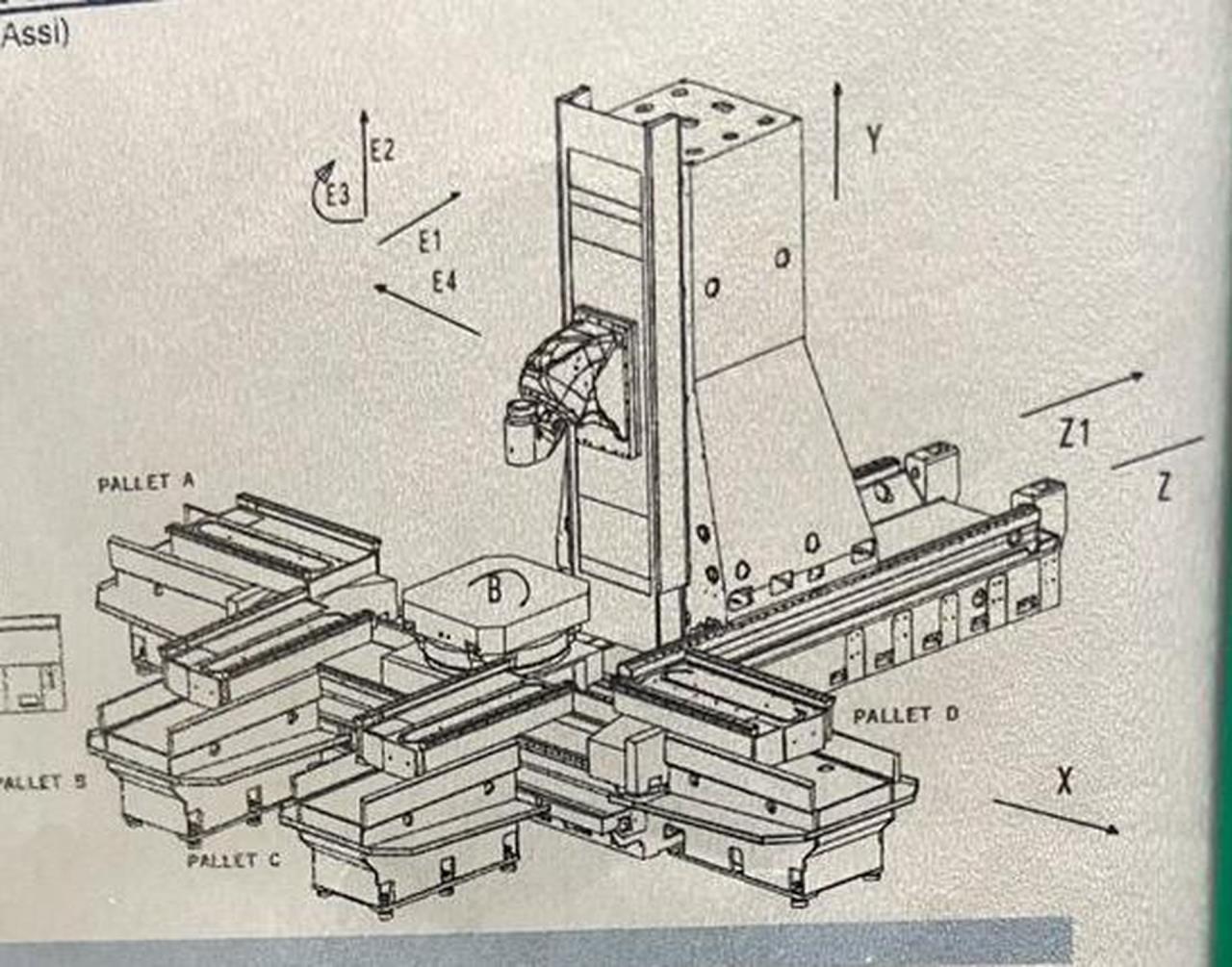

Longitudinal travel (X-axis)
2000 mm
Transversal travel (y-axis)
1600 mm
Vertical travel (z axis)
1800 mm
Dimension of the workpice:
Diameter
1550 mm
B axis
360 °

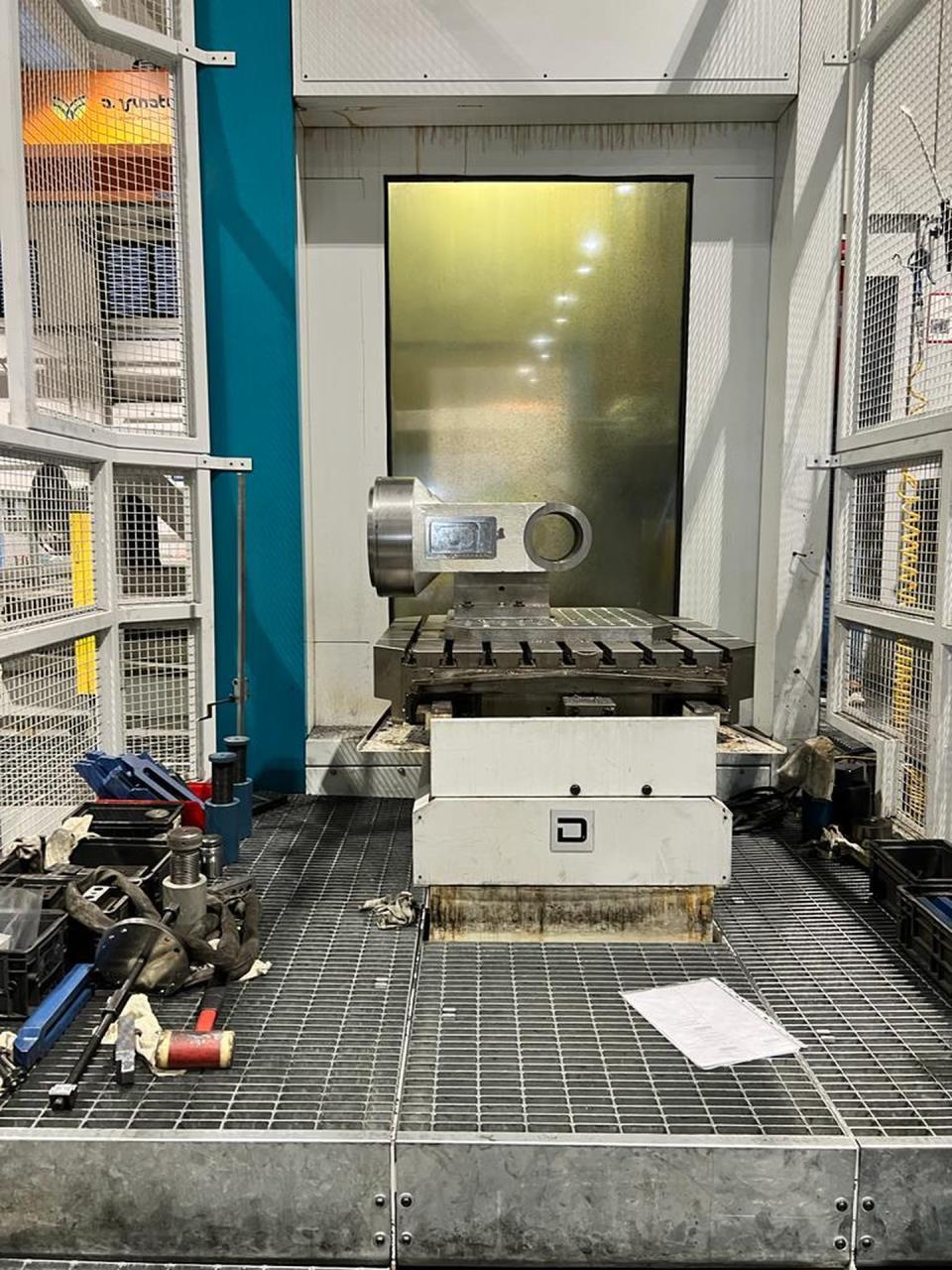

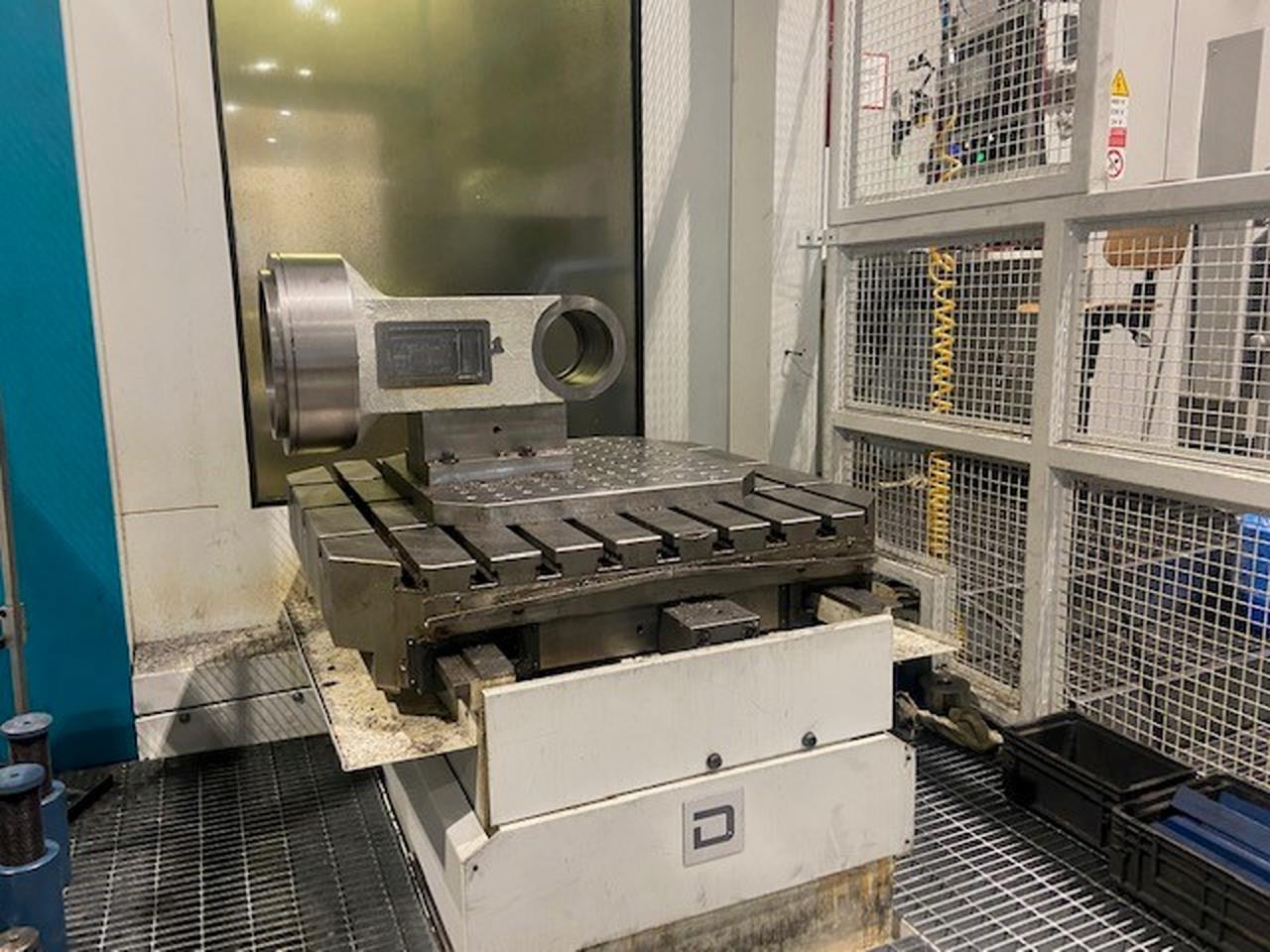

Pallets chanching device:
Automatic pallet change-unit (number of paletts)
4
Length
1000 mm
Width
1000 mm
central bore
22H7 mm
Maximum workpiece weight
3000 kg

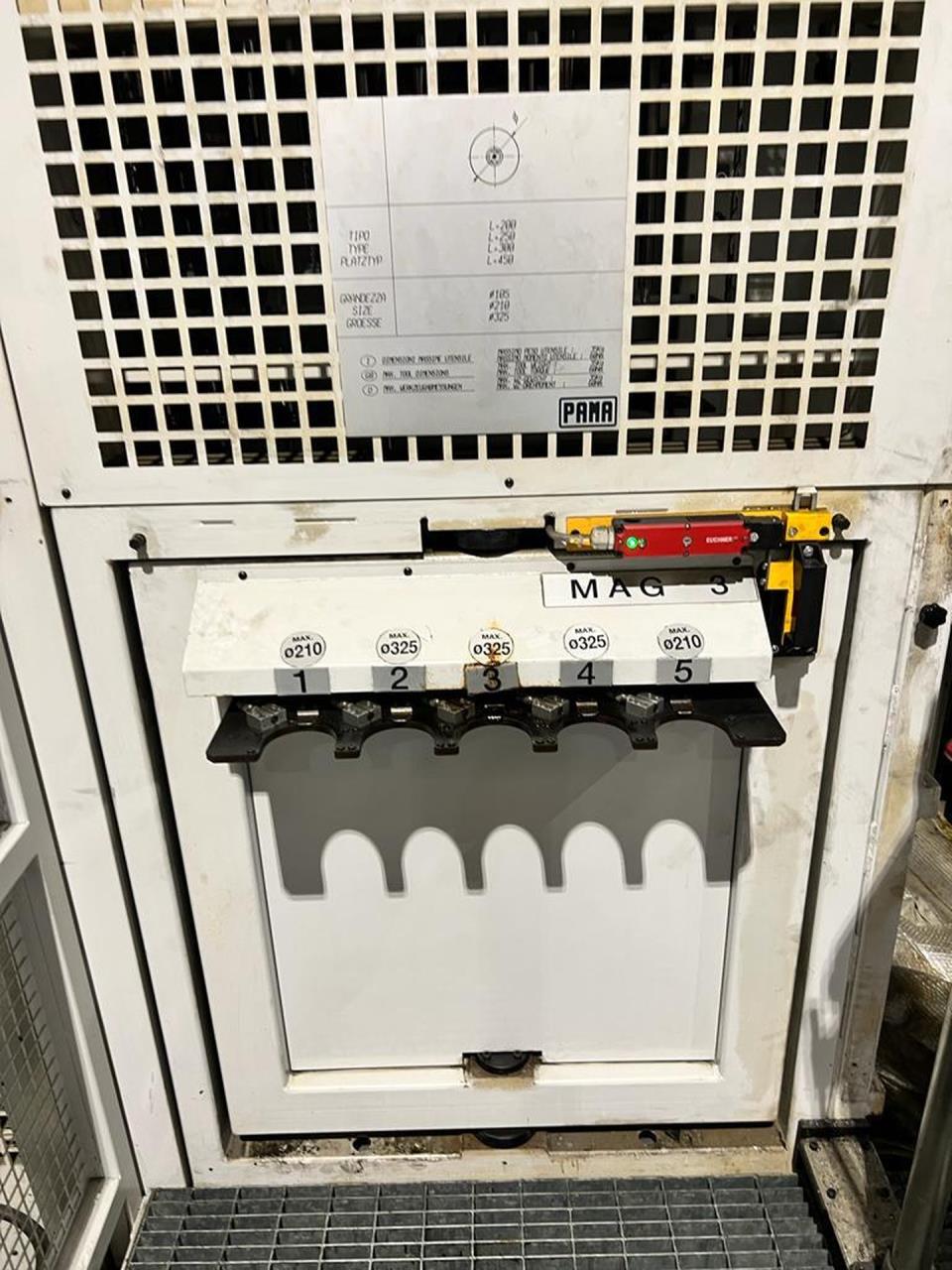

Tool magazine number of tool places
306
Max. tool-weight
35 kg

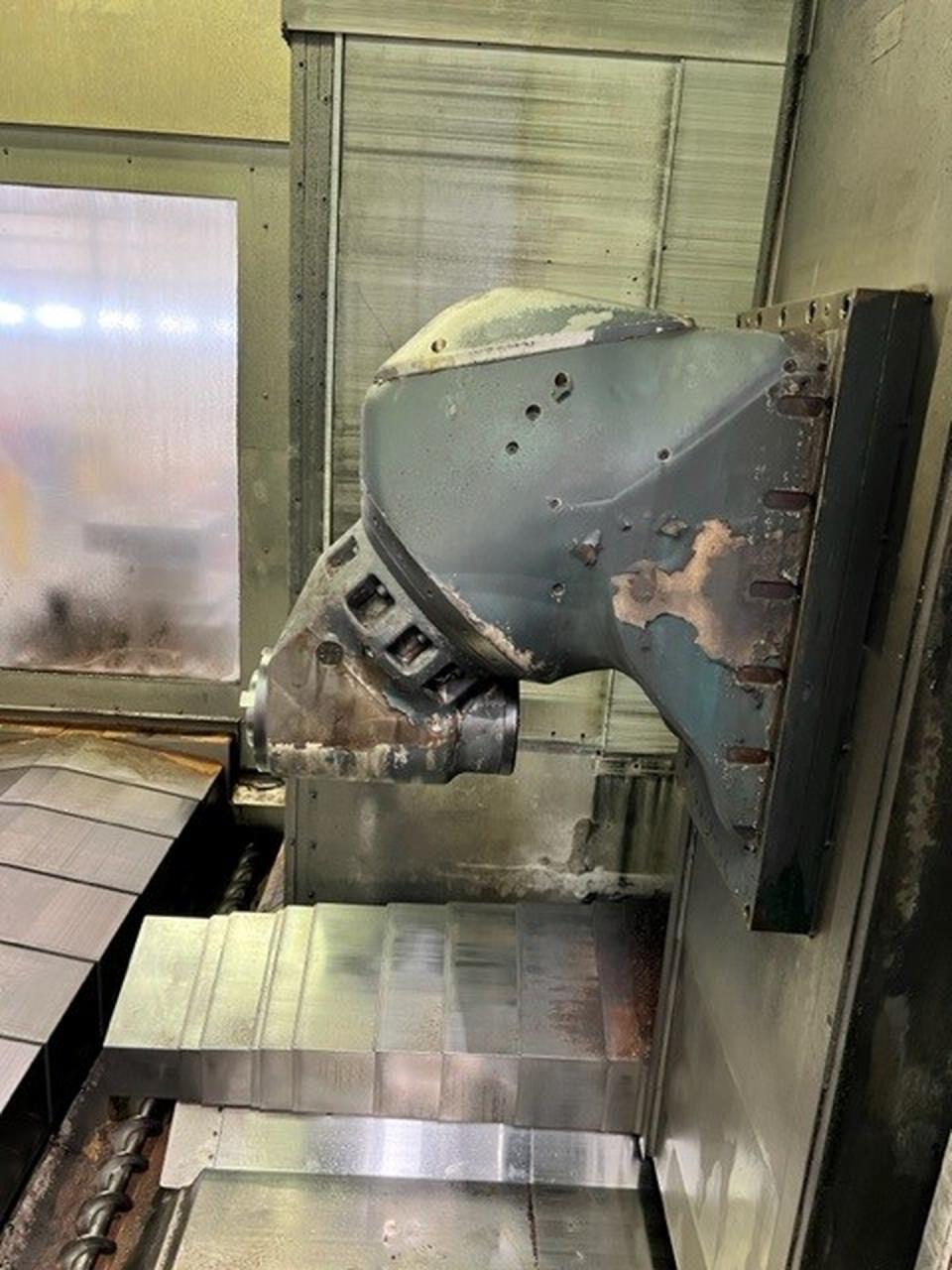

Spindle nose: ISO
50 DIN69871/2
Spindle speeds:
stepless
from
0 rpm
up to
4000 rpm
Torque max.
162 Nm
Acceleration
4 m/s
Air connect
4 bar
Voltage 50 Hz 3x
400 Volt
Spindle motor
37 kW
Noise level
78 dB (A)
Various accessories:

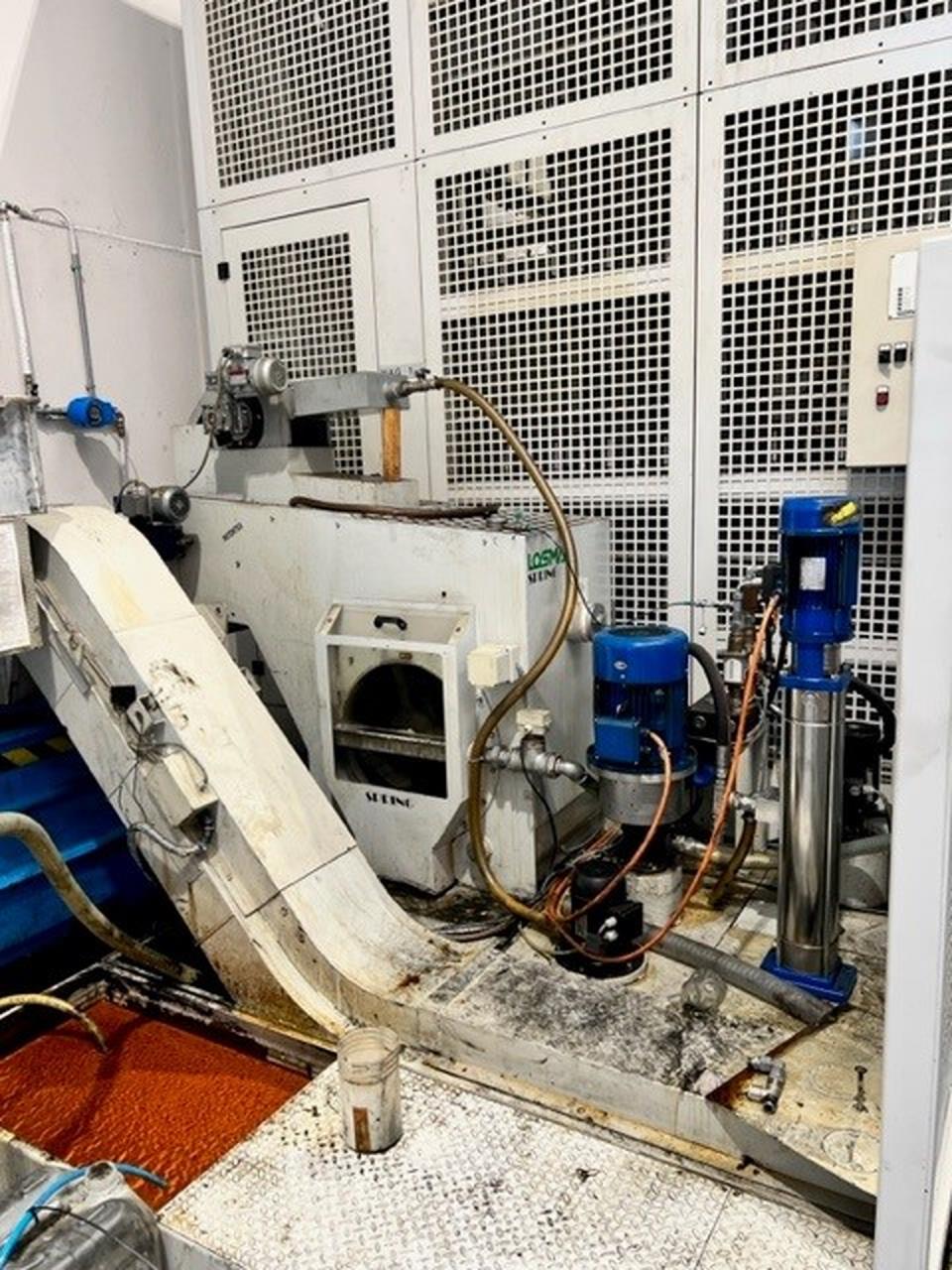

High pression colant device
30 bar
Touch Probe Renishaw
Technical specifications and pictures without guarantee.
