stock no. :
21969
Machine's group :
Type :
FINETECH SMV 1370 H3L
Controller :
FANUC 0i-MF Plus
Jahrgang :
2022
Technical data
Number of axis total
3
Table length
1450 mm
Table width
700 mm
Number of T-channels
5
Distance of the T-slots
100 mm
T-channel width
18 mm
Table load max.
800 kg
Longitudinal travel (X-axis)
1300 mm
Transversal travel (y-axis)
700 mm
Vertical travel (z axis)
700 mm
Tool magazine number of tool places
30
Spindle nose: BT
40
Distance spindle nose to table
150 - 800 mm
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Rapid traverse:
25 m/min
Spindle motor
18.5 kW
Total power required
45 kVA
Machine's weight about
9000 kg
Overall dimensions machine:
Length
3650 mm
Width
2220 mm
Height
2560 mm
Various accessories:

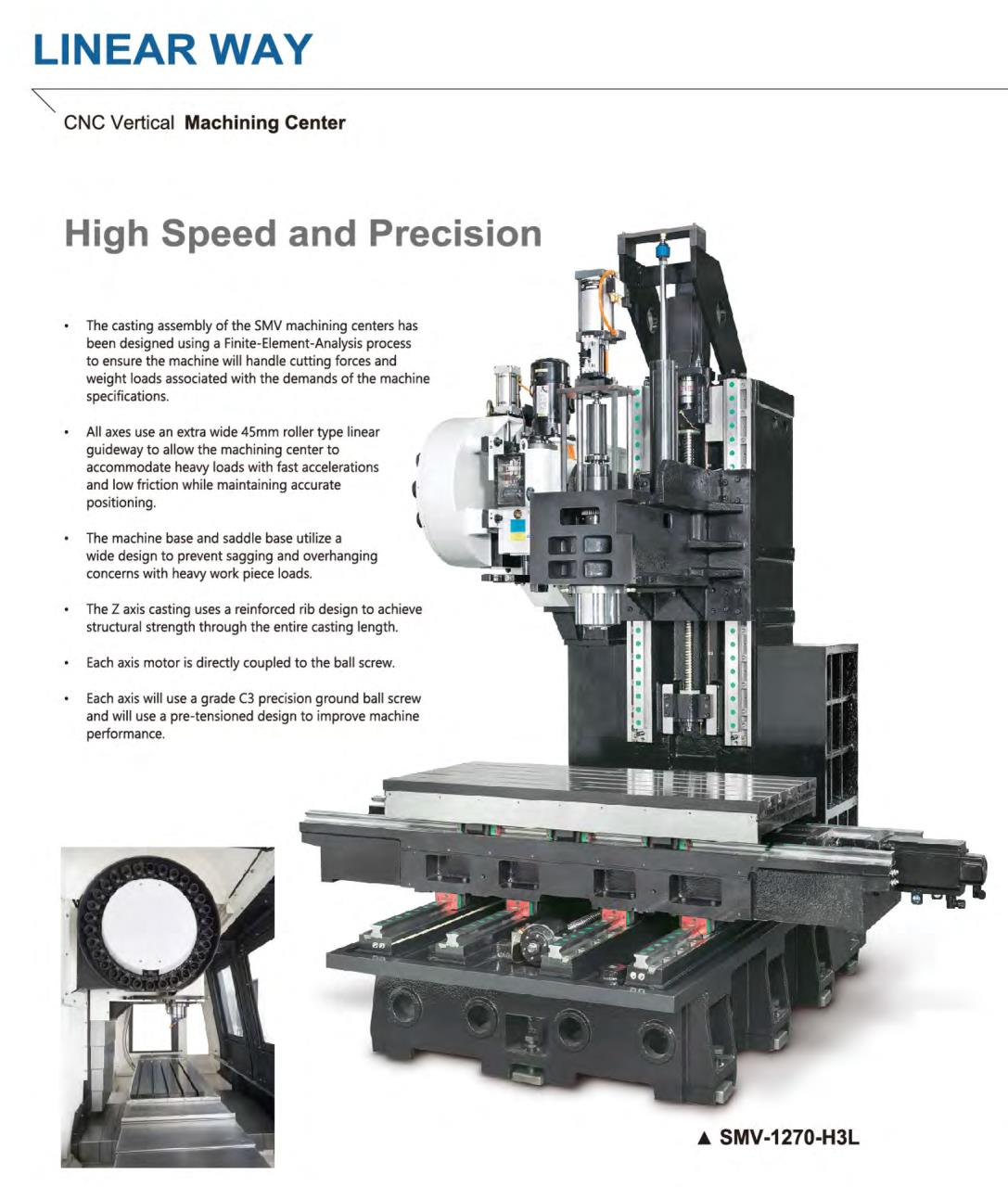

Linear Axes direct driven
Coolant system

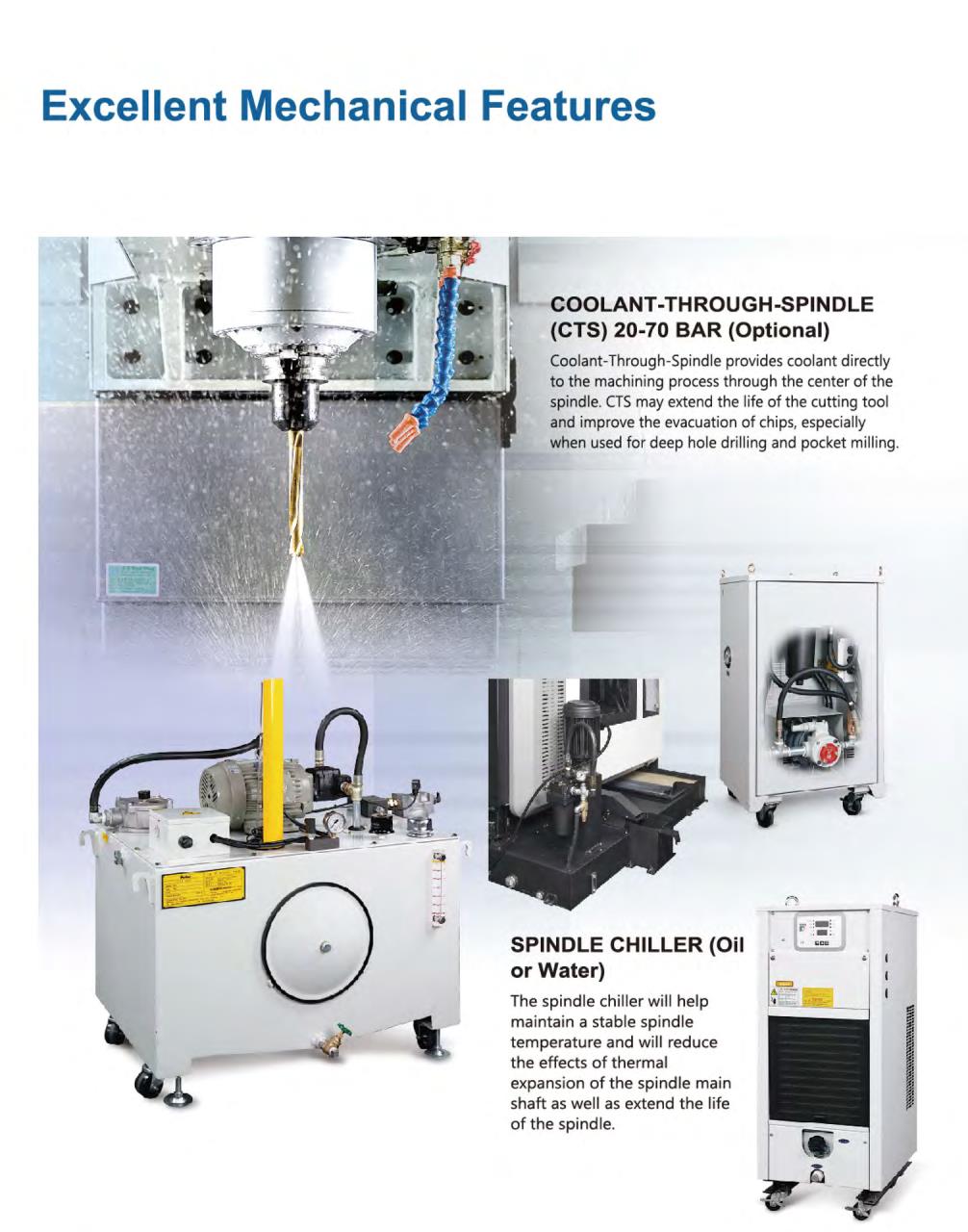

Coolant through spindle (cts)
20 bar
Spindle blow out device
Chip conveyor
Handwheel electroinic
Lamp
Spindlecooling
Spindle oil cooler
Rinsing Guns
Blow-off Guns
Automatic switch off
Central lubrification
Switch cabinet Air conditioner
Status light
Technical specifications and pictures without guarantee.
