Technical data
Number of axis total
3
Table length
550 mm
Table width
450 mm
Number of T-channels
5
Distance of the T-slots
80 mm
T-channel width
18 mm
Longitudinal travel (X-axis)
500 mm
Transversal travel (y-axis)
400 mm
Vertical travel (z axis)
350 mm
Tool changer:
Number of tools
30
Spindle nose: HSK
E40
Distance from vertical
spindle to table
440 mm
Spindle speeds:
stepless
from
0 rpm
up to
42000 rpm
Feed range
2 - 20000 mm/min
Rapid traverse:
22 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle motor
13 kW
Total power required
16 kVA
Machine's weight about
4350 kg
Overall dimensions machine:
Length
2700 mm
Width
2200 mm
Height
2800 mm
Various accessories:

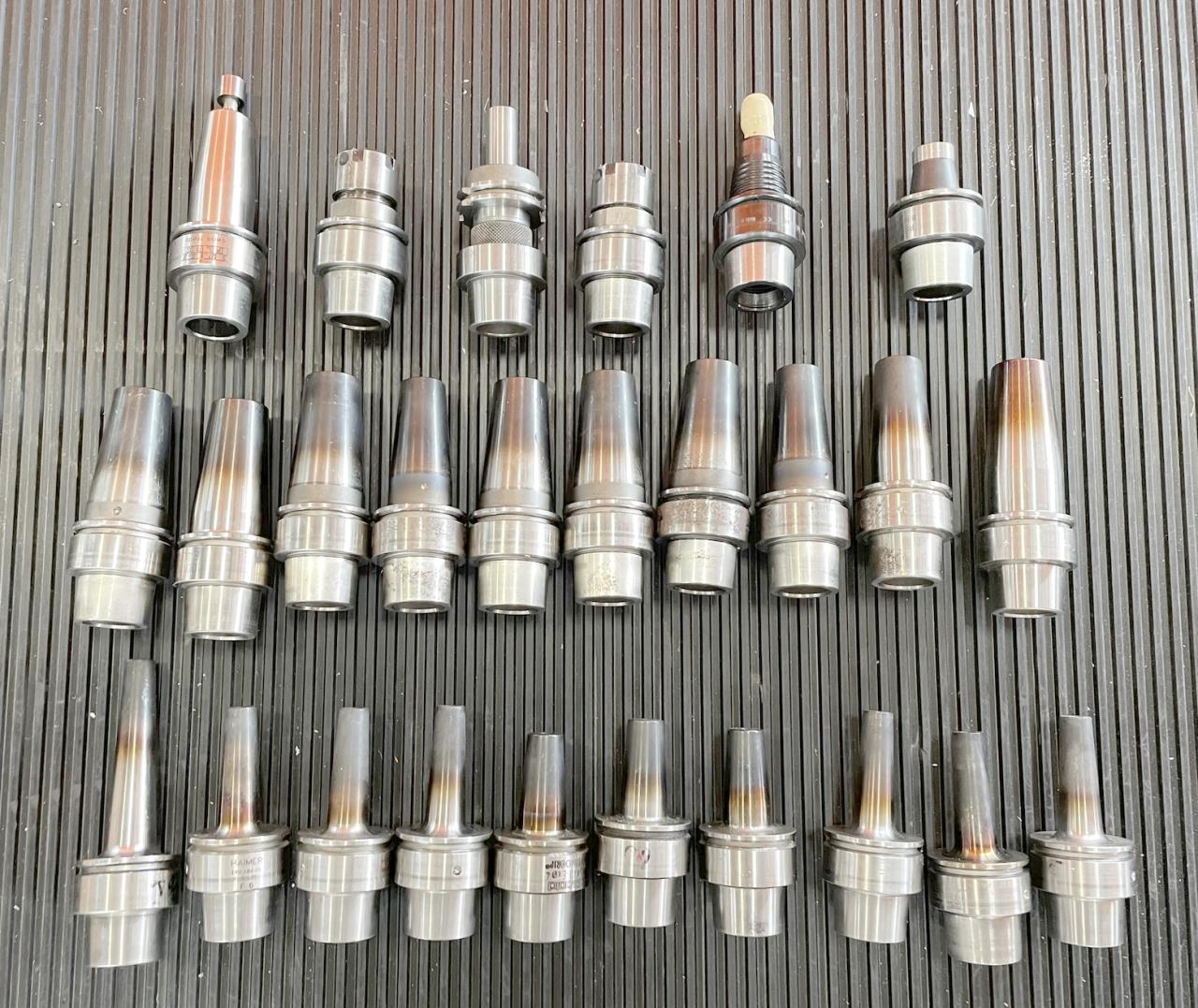

Set of toolholders
Coolant system

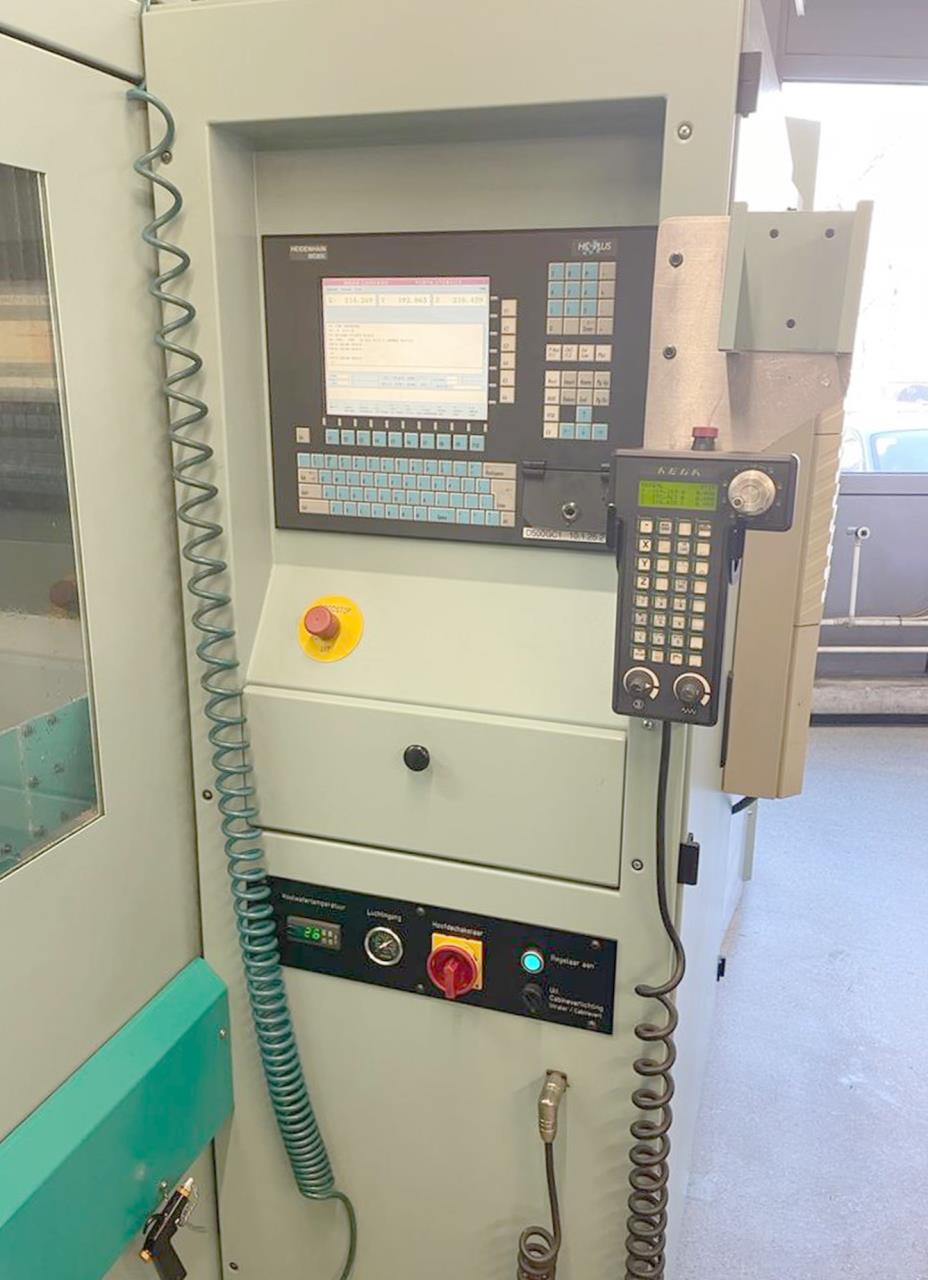

Handwheel electroinic
Lamp

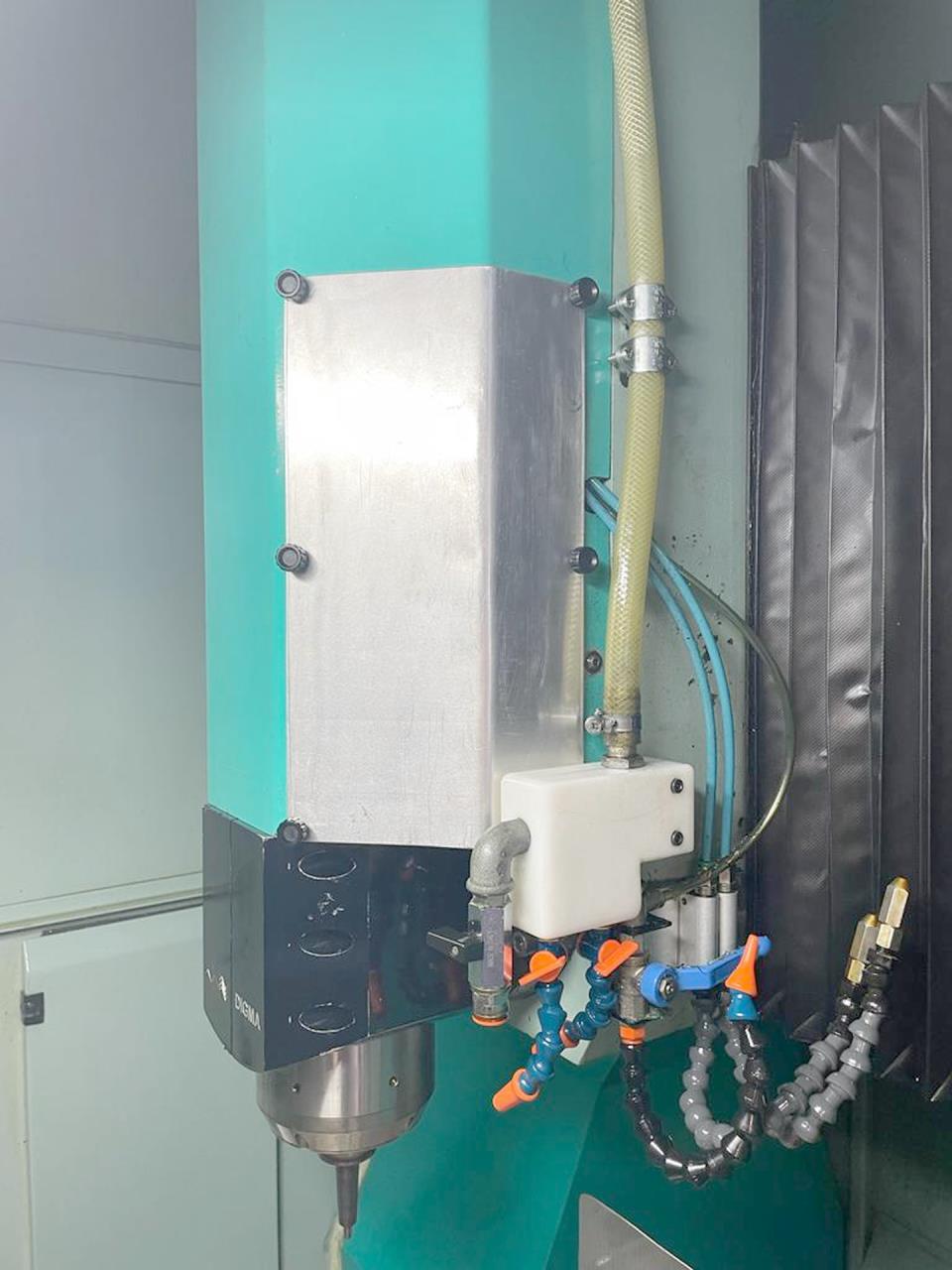

High frequency spindle
42000 rpm

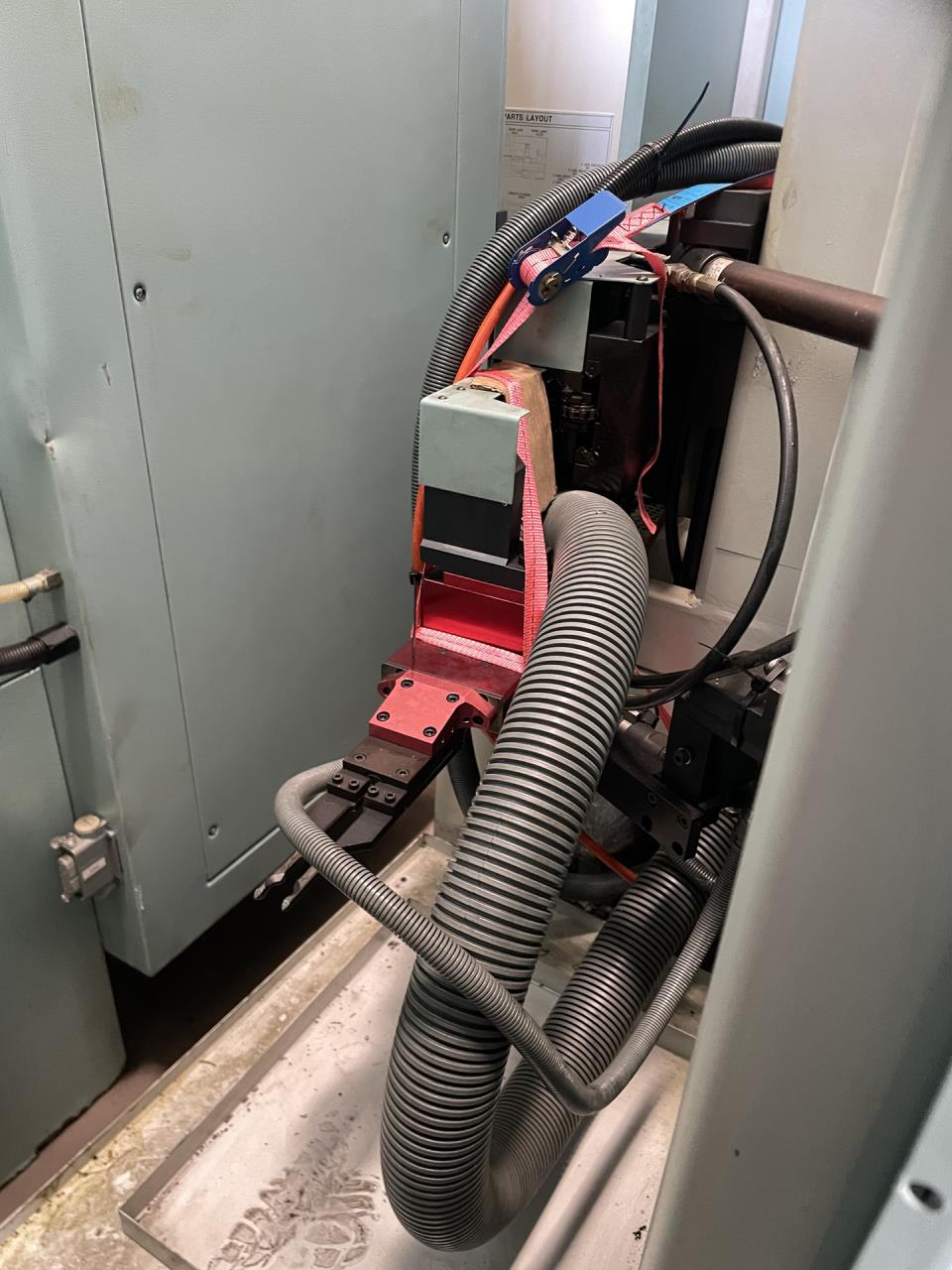

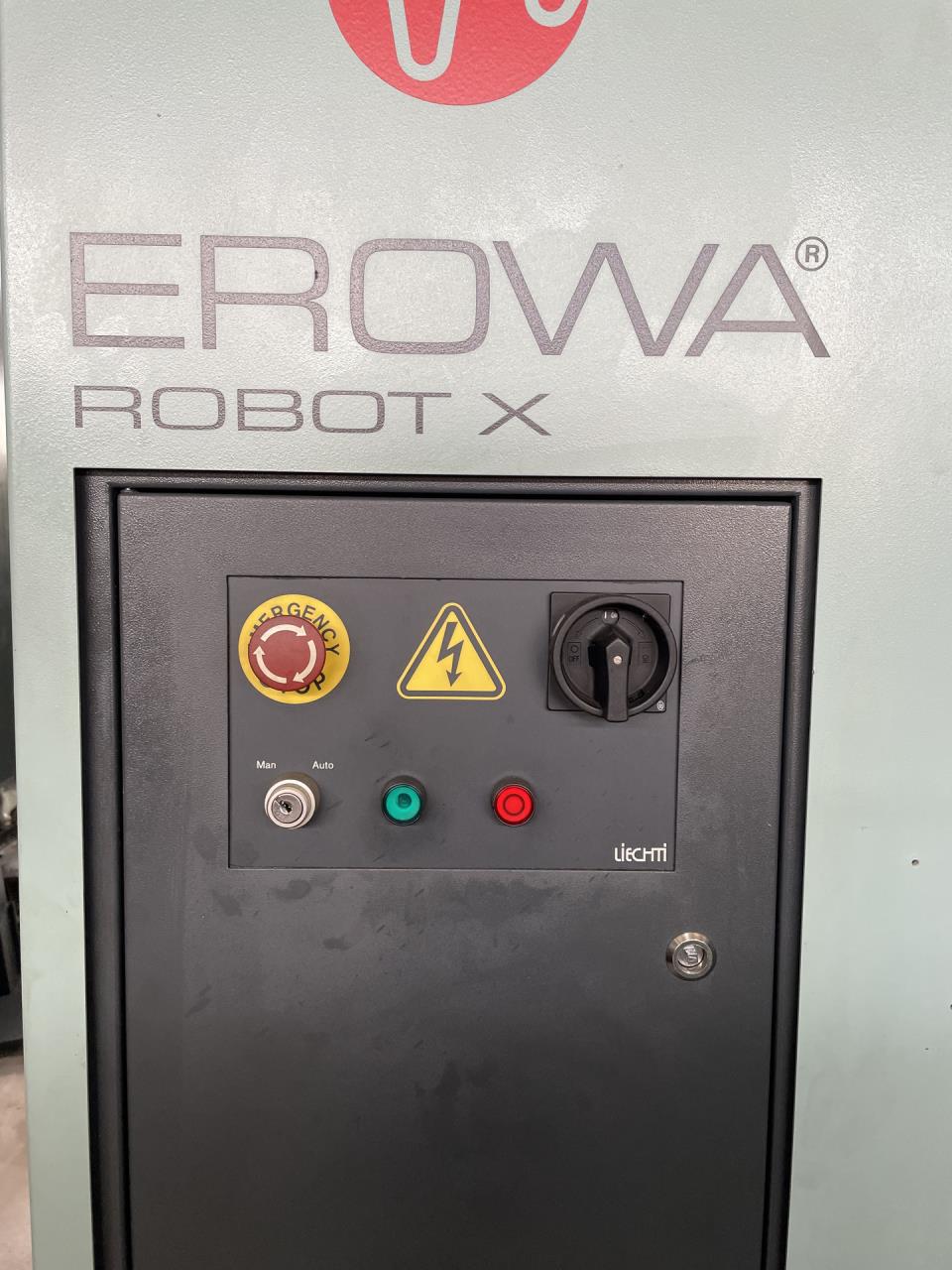

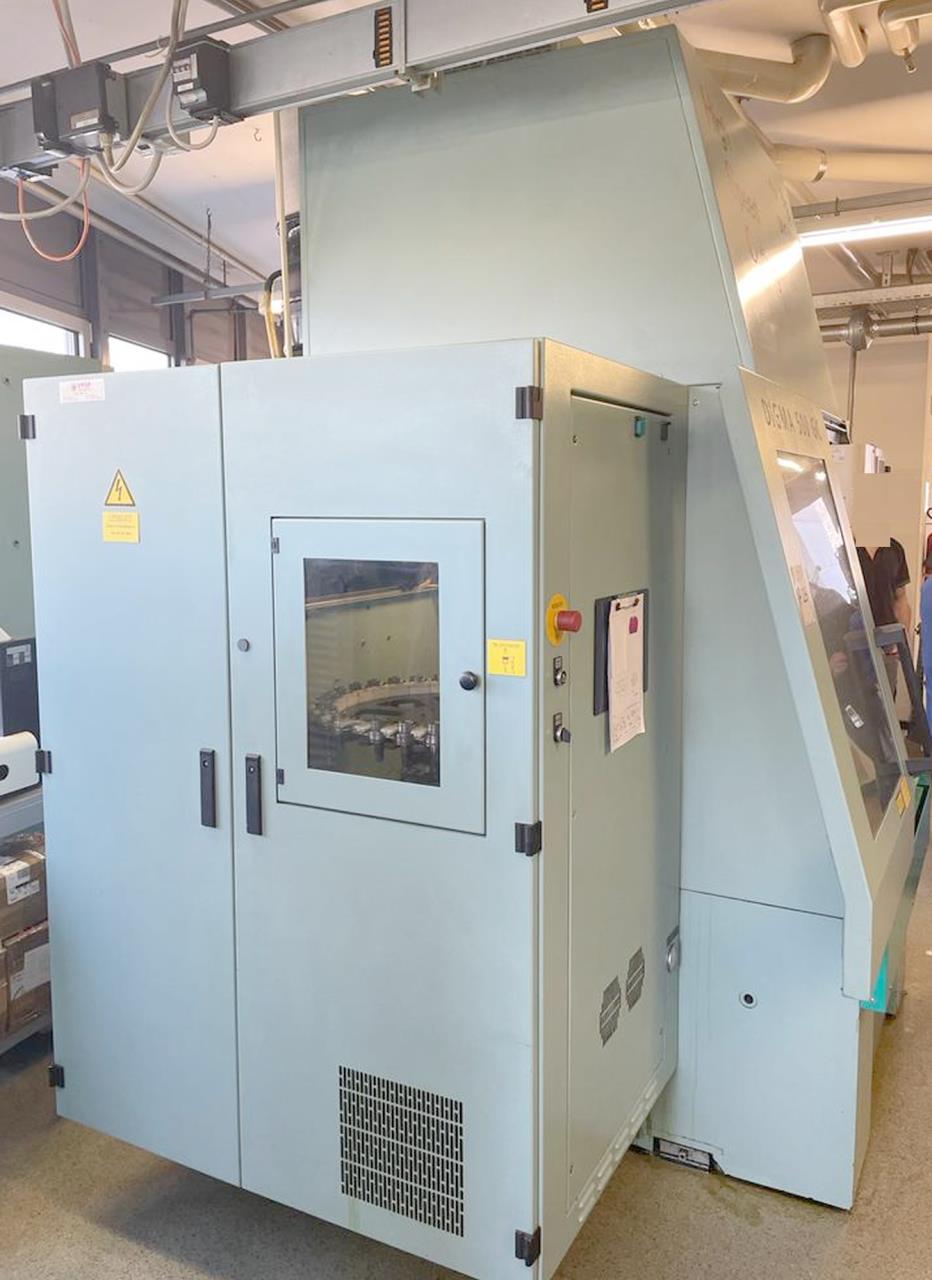

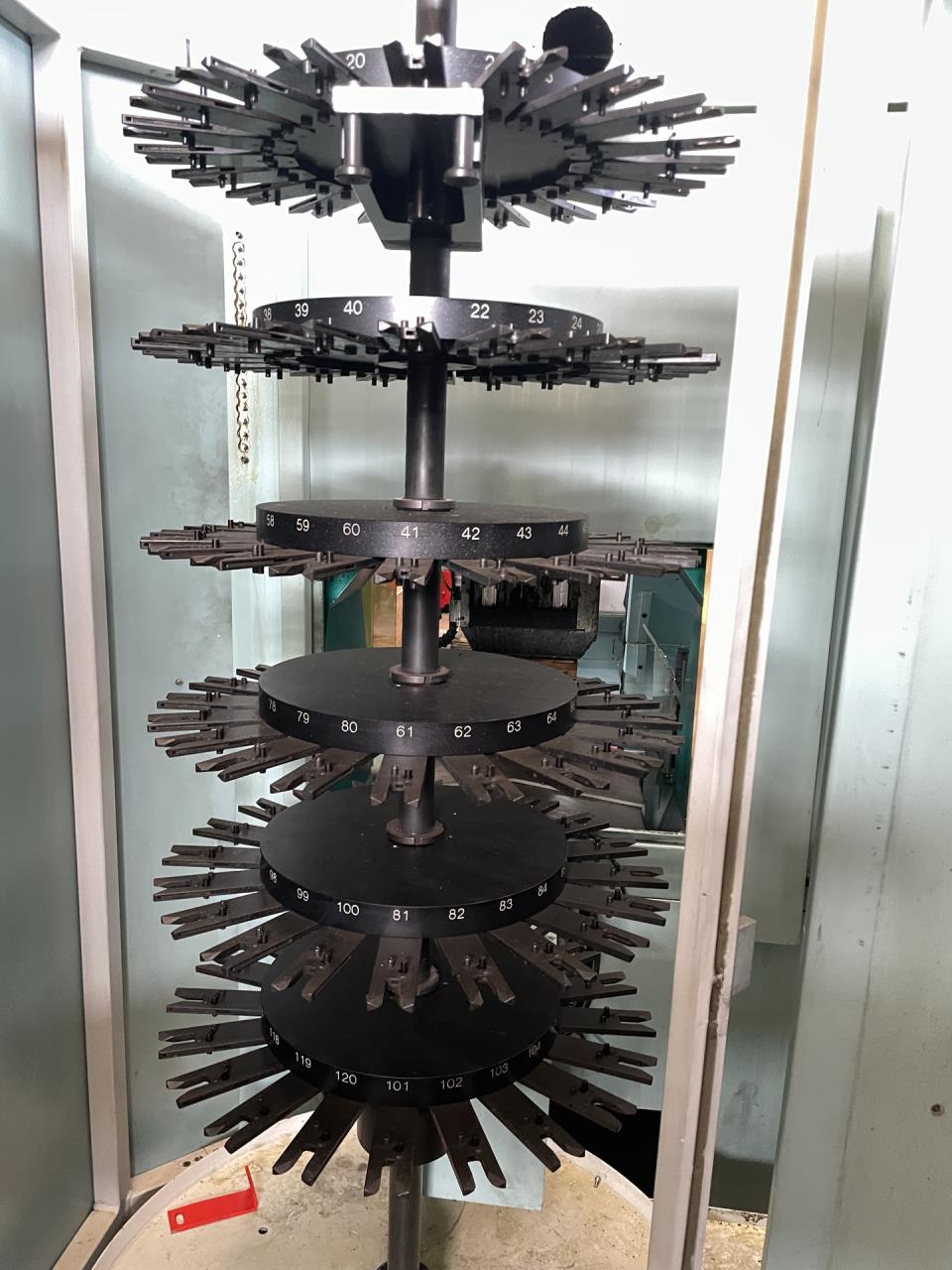

Workpiece loader
EROWA ROBOT X
Number of positions
120

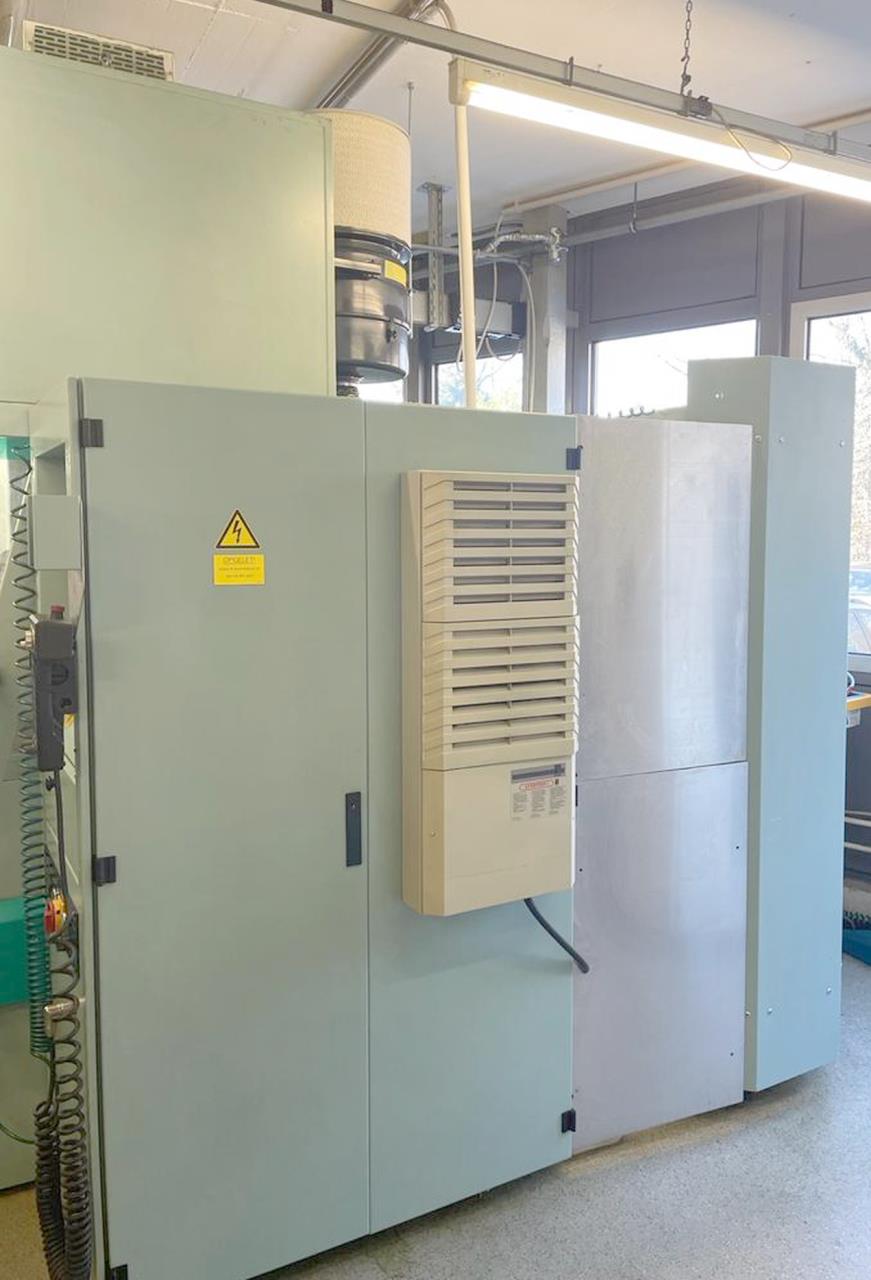

Switch cabinet Air conditioner

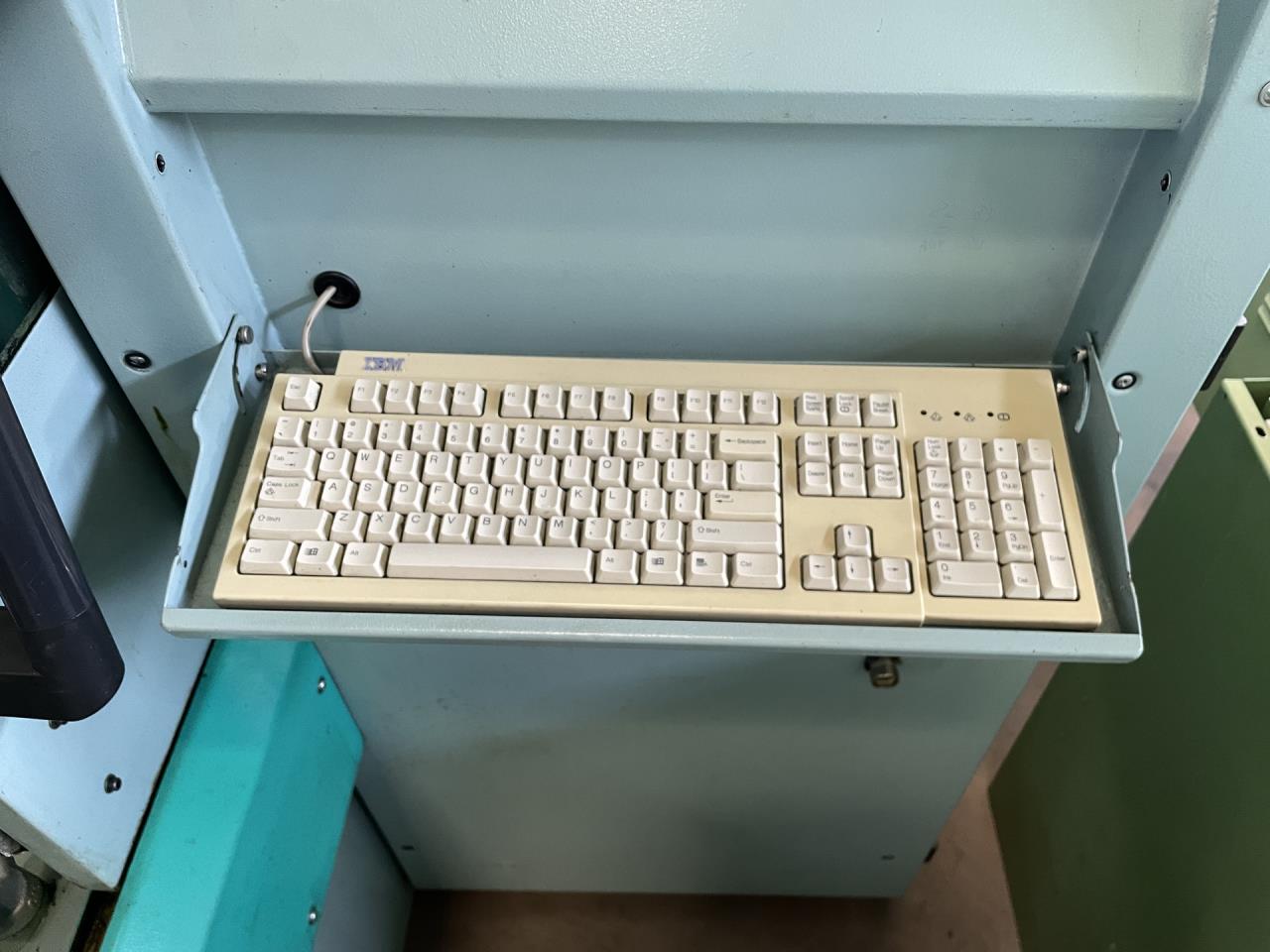

Keyboard
Technical specifications and pictures without guarantee.
