Technical data
Table length
900 mm
Table width
300 mm
Longitudinal travel (X-axis)
700 mm
Transversal travel (y axis)
250 mm
Vertical travel (z axis)
370 mm
Travel of the upper slide
400 mm

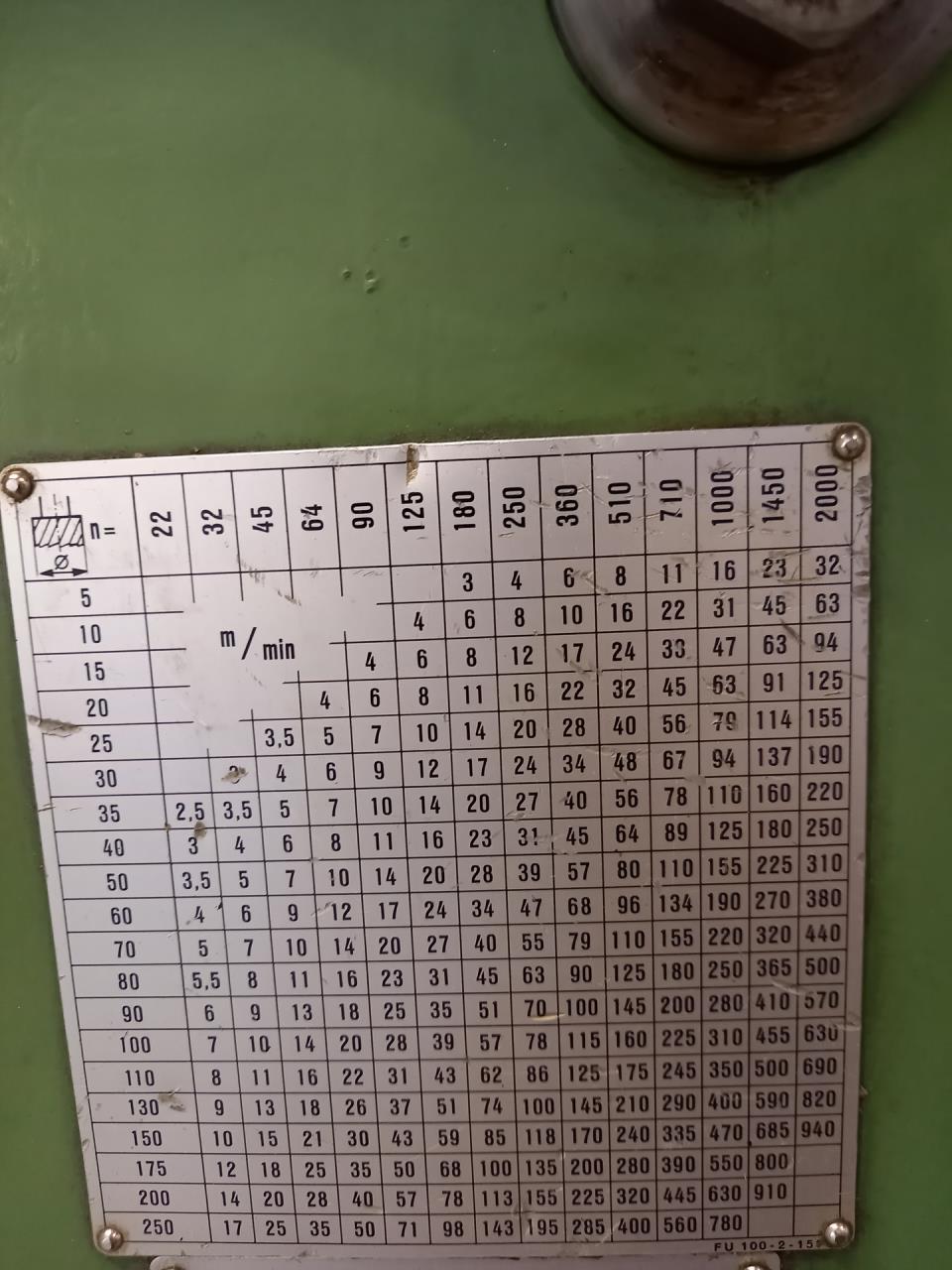

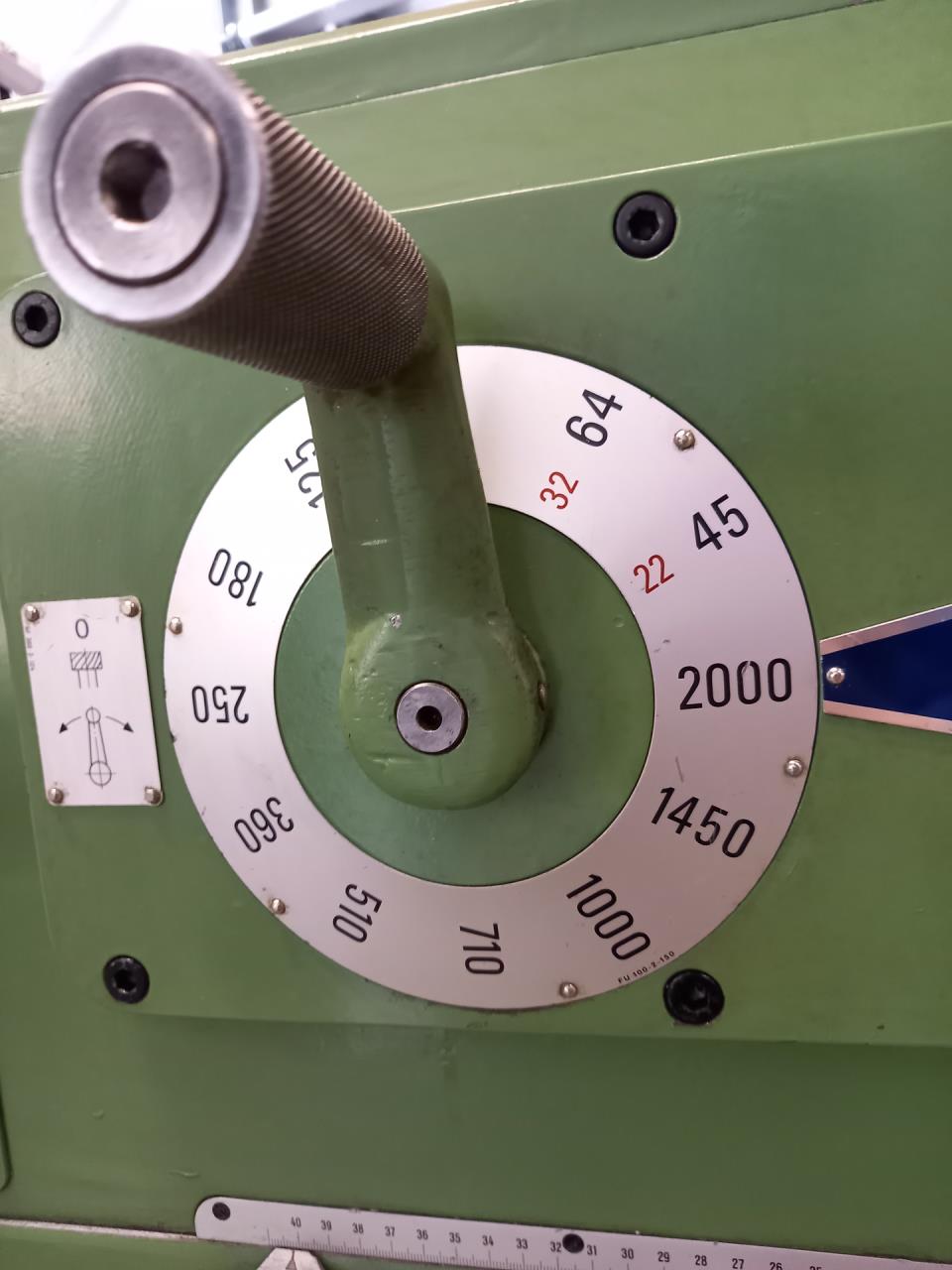

Spindle speeds:
number (steps)
12
from
45 rpm
up to
2000 rpm
Taper in spindle
40 ISO

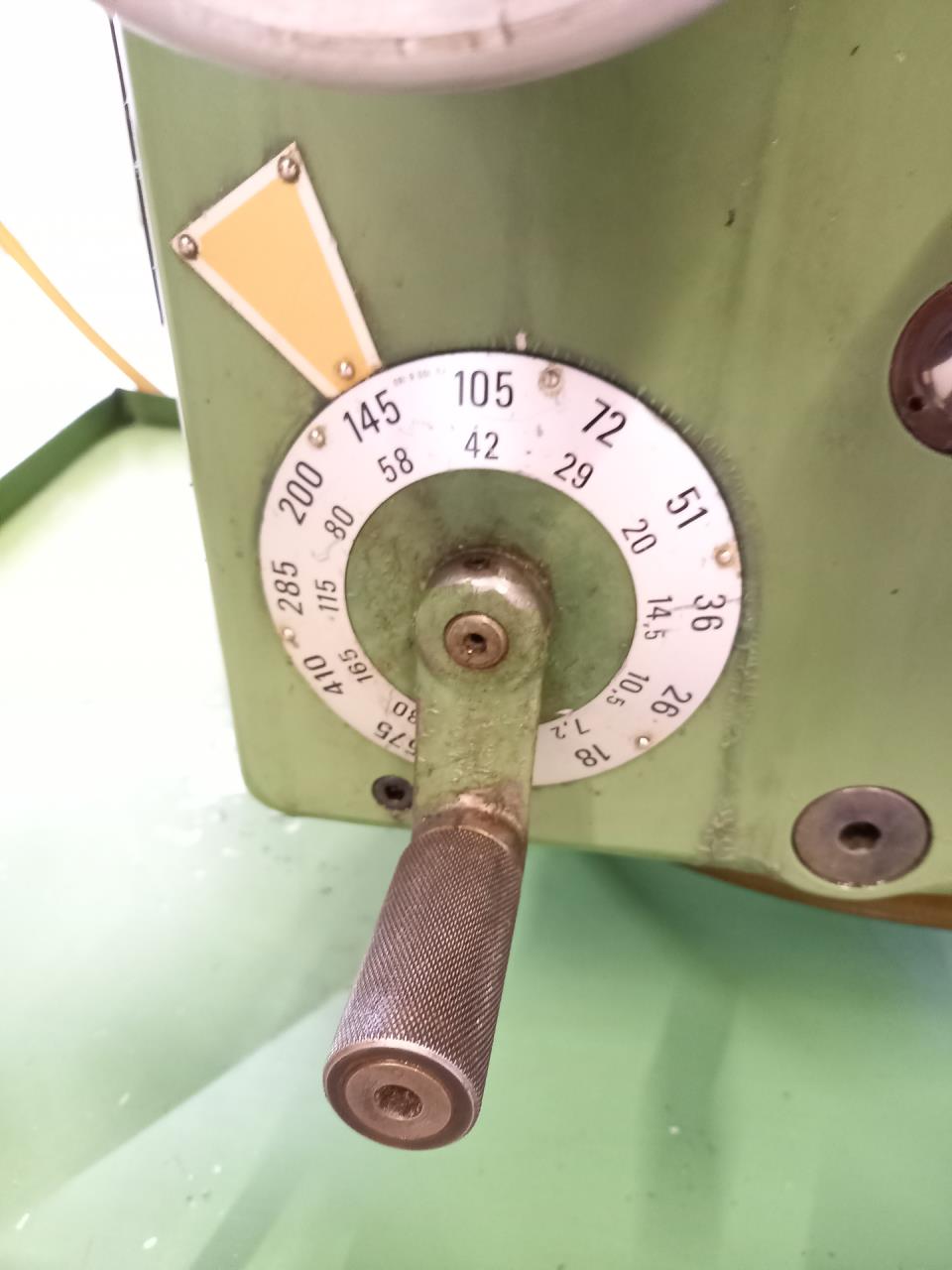

Feeds steps:
12
longitudinal from
18 mm/min
up to
800 mm/min
transversal from
18 mm/min
up to
800 mm/min
vertical from
7.2 mm/min
up to
320 mm/min
Rapid traverse:
longitudinal
2.5 m/min
transversal
2.5 m/min
vertical
1.0 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
6 HP
Machine's weight about
1900 kg
Overall dimensions machine:
Length
2000 mm
Width
1600 mm
Height
1700 mm
Various accessories:

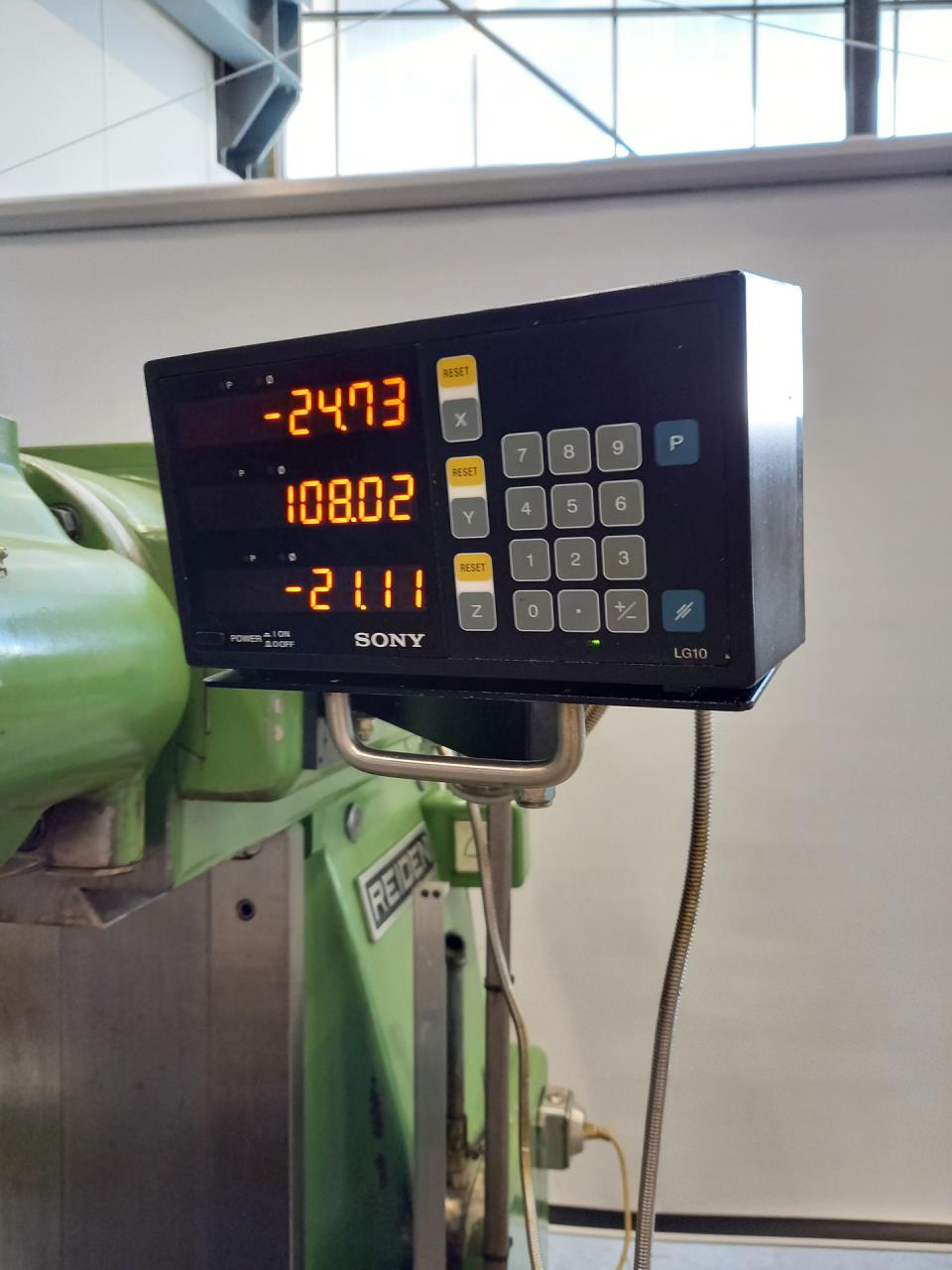

Digital readout number of axis:
3
Technical specifications and pictures without guarantee.
