Technical data
Pressure
125 to
Pressure
1250 kN
Fixed table: length
1300 mm
Number of strokes:
stepless
from
50 s/min
up to
120 s/min
Adjustment of the slide
3 mm
Slide surface:
Width
1300 mm
depth
800 mm
Adjustable stroke:
from
16 mm
up to
200 mm
Max. tool-weight
300 kg
Air connect
5 - 6 bar
Voltage 50 Hz 3x
400 Volt
Power
24 kW
Machine's weight about
14000 kg
Overall dimensions machine:
Length
1910 mm
Width
1250 mm
Height
3920 mm
Various accessories:
Belt feeding
MEDIUM SRF 200 U5
Band width
200 mm
Sheet thickness
4.5 mm

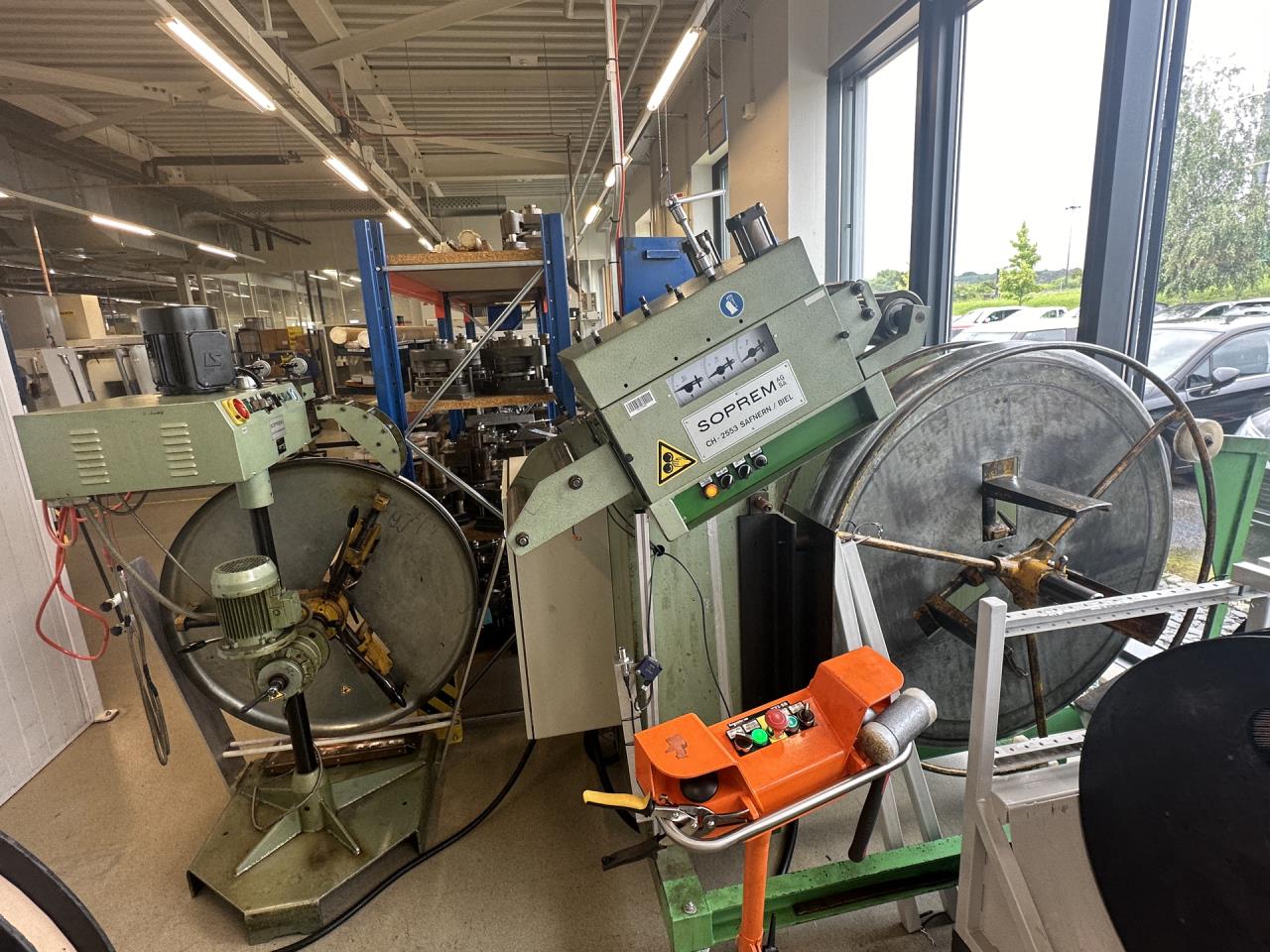

Stock reels
SOPREM

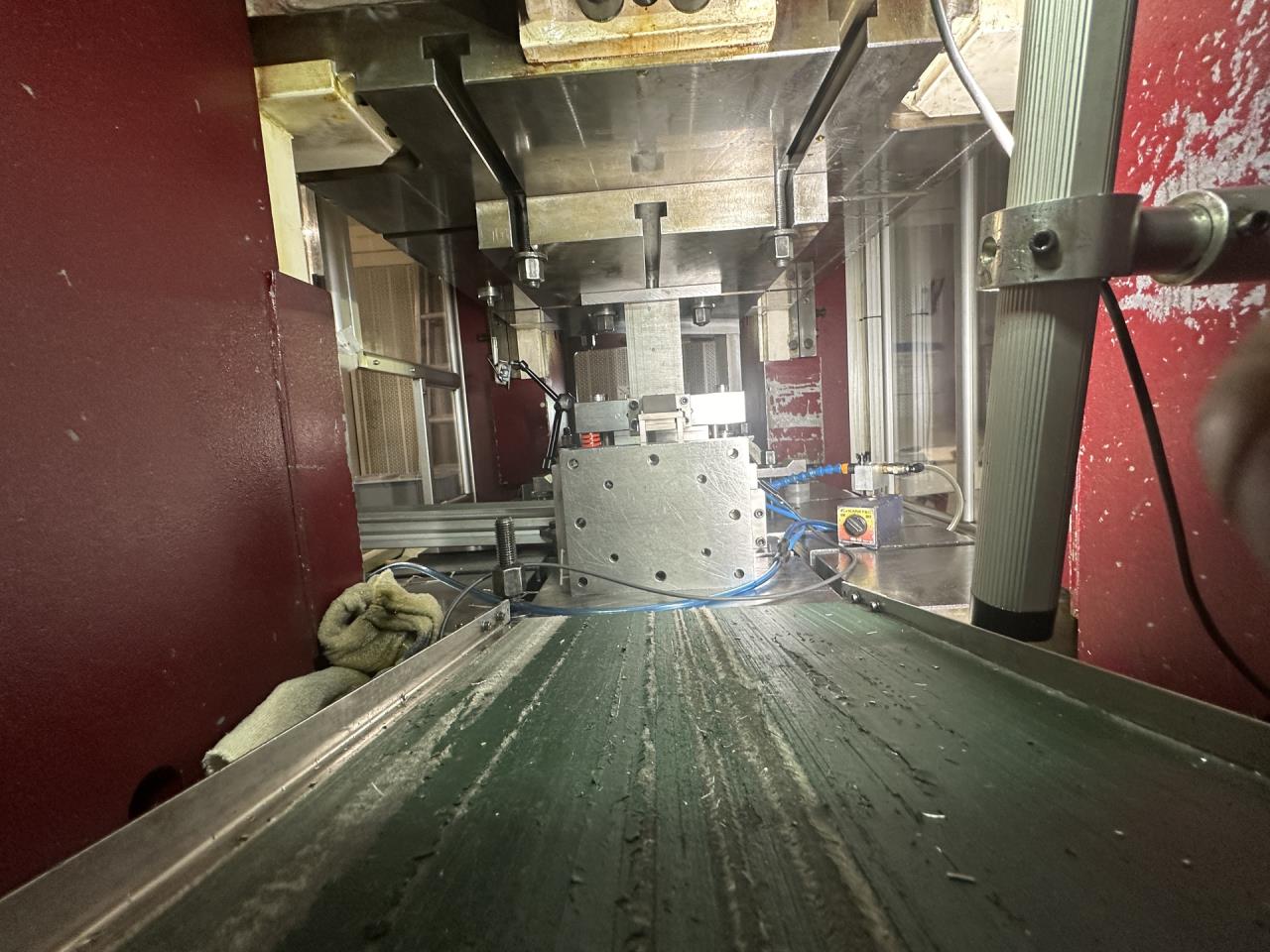

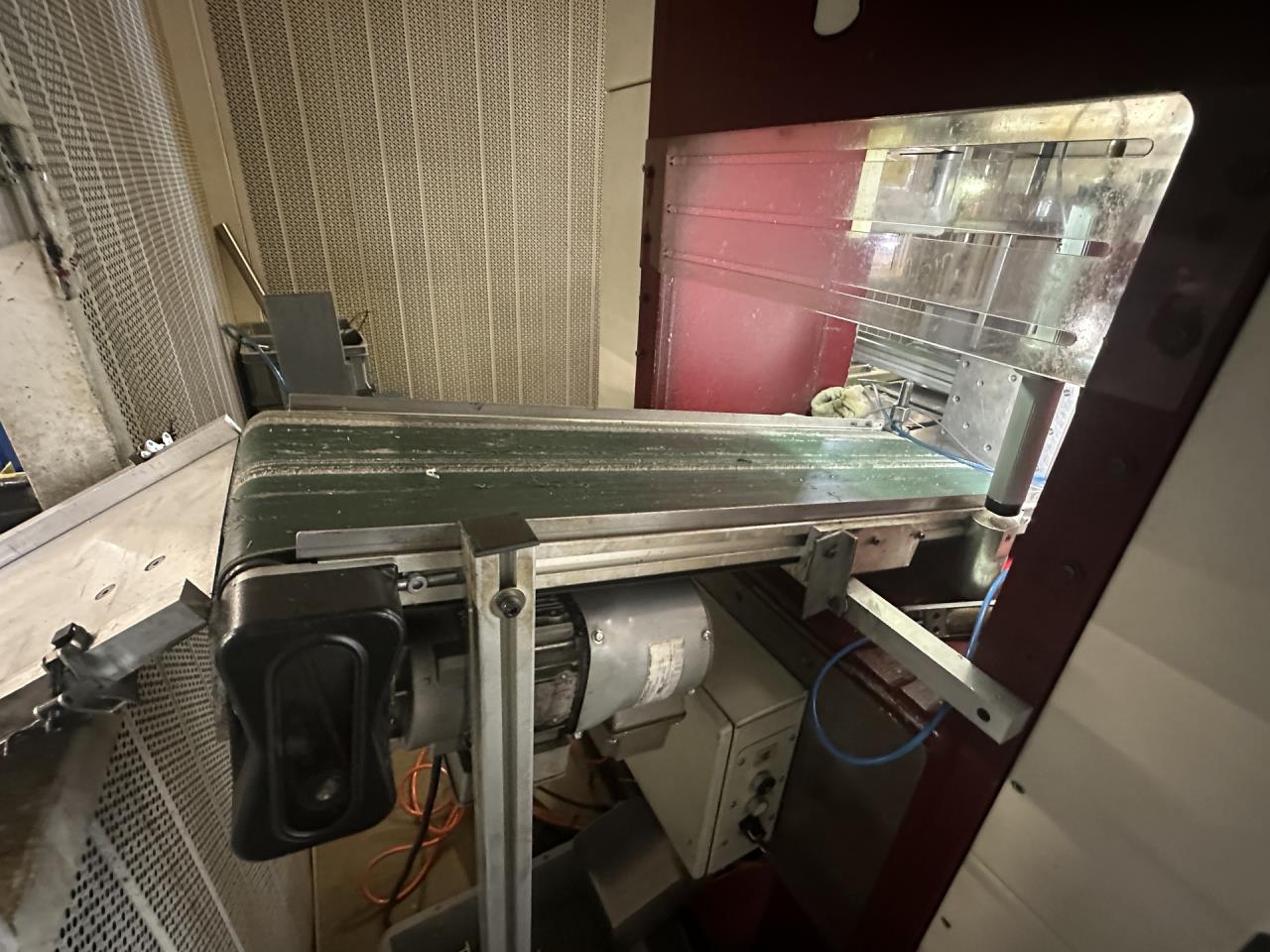

Workpiece conveyor

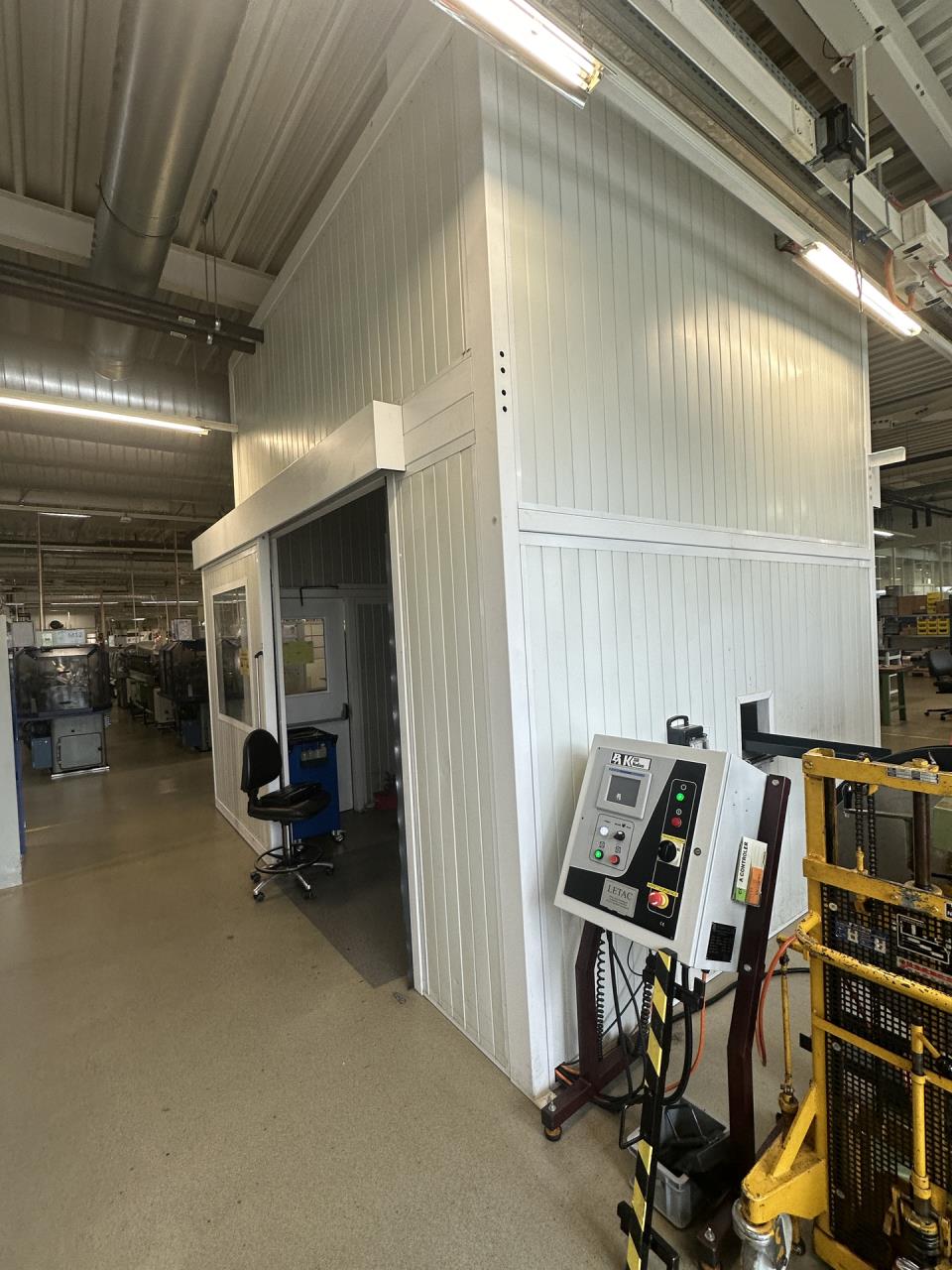

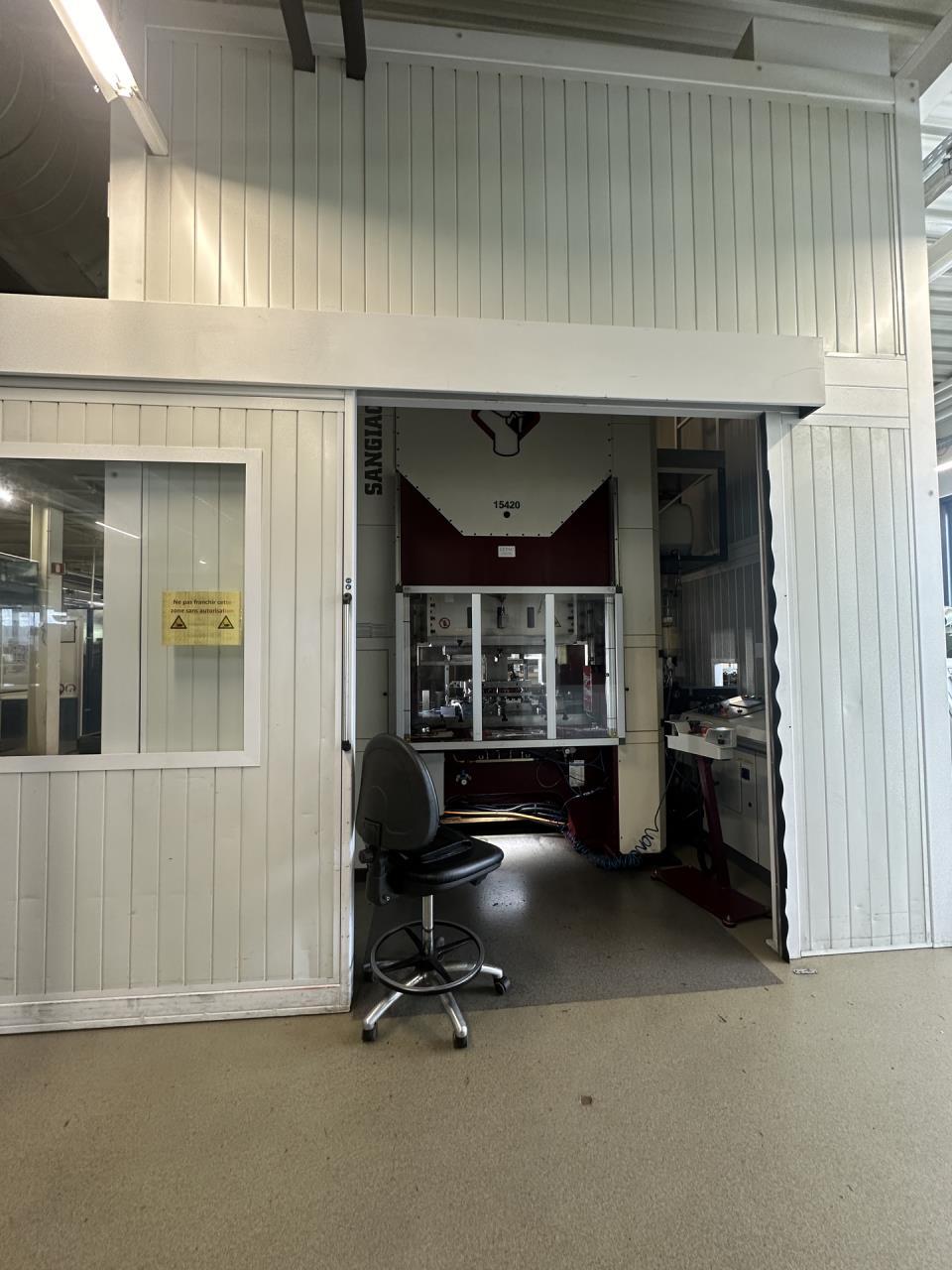

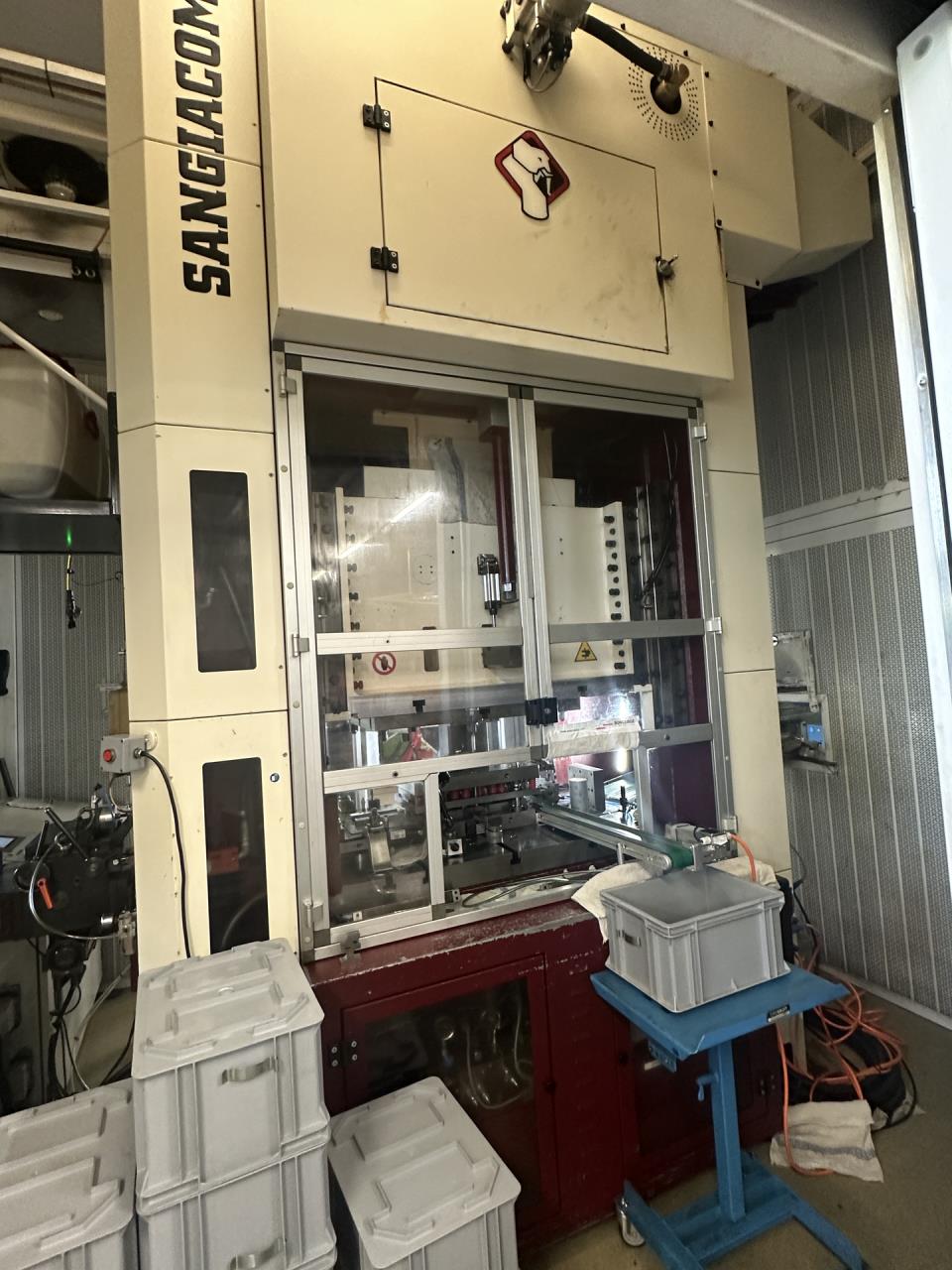

Sound insulation cabin

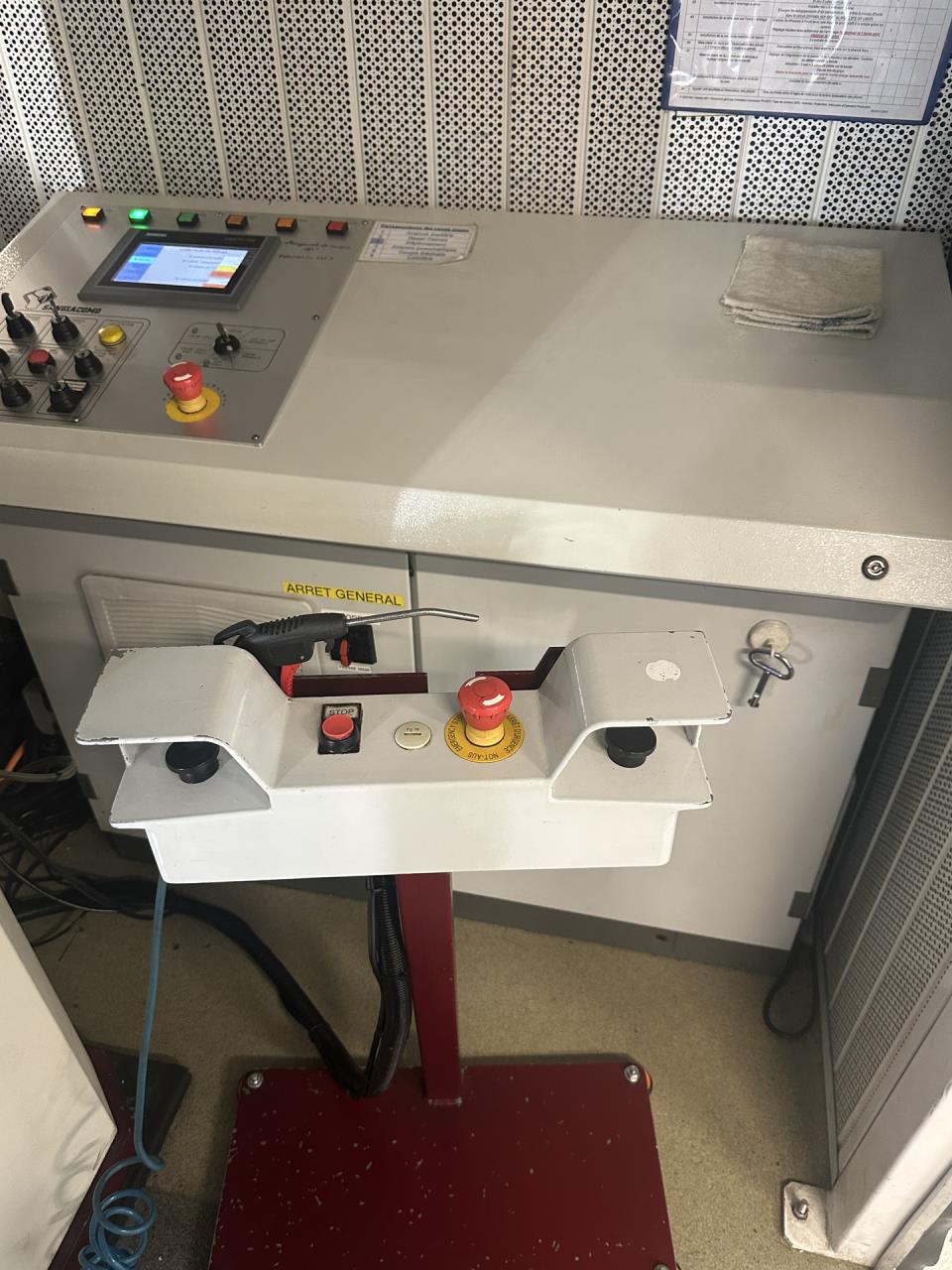

Déclanchement à deux mains

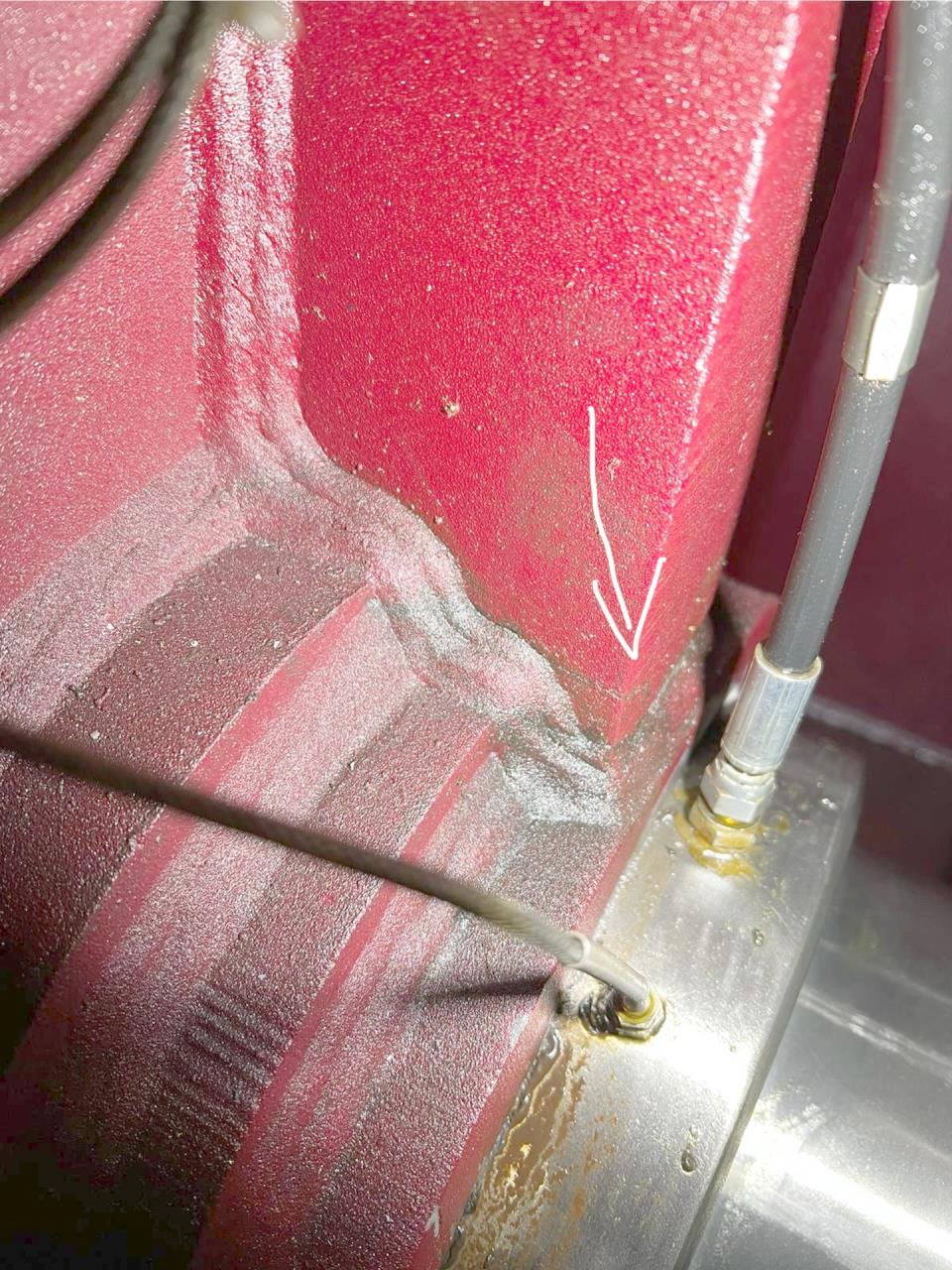

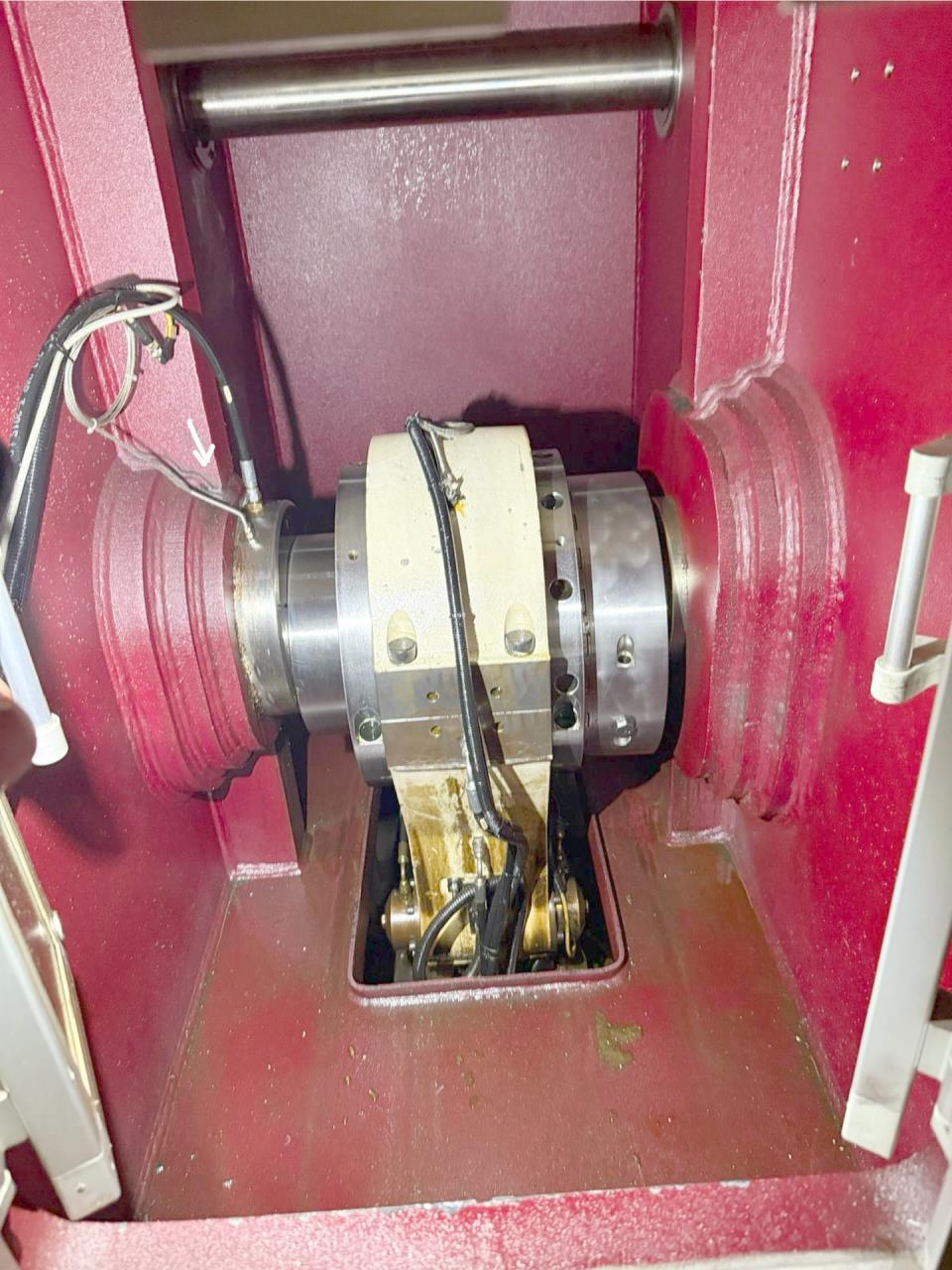

Attention machine has one micro-crack (no restriction on use) pic. 16 & 17
Technical specifications and pictures without guarantee.
