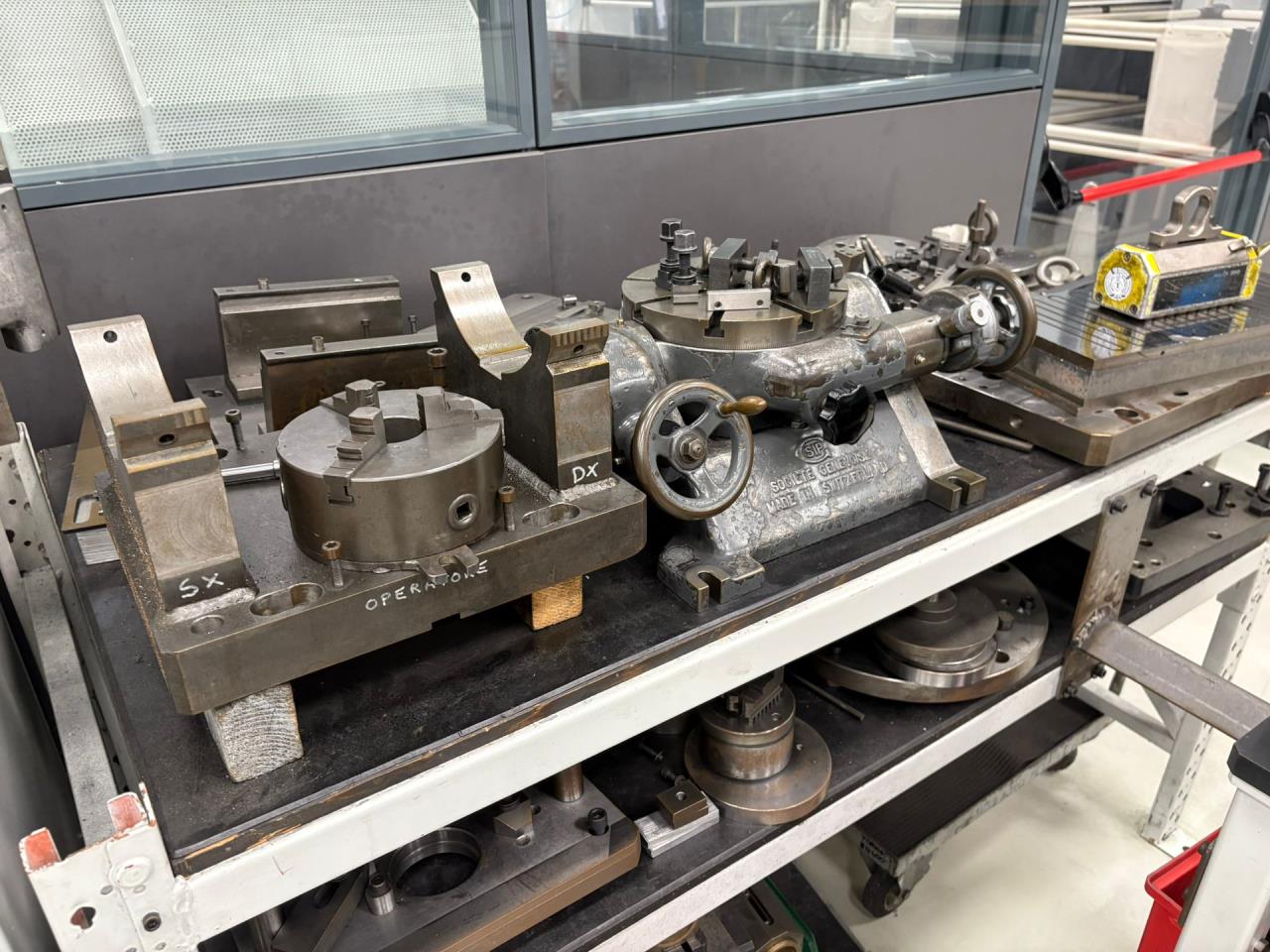

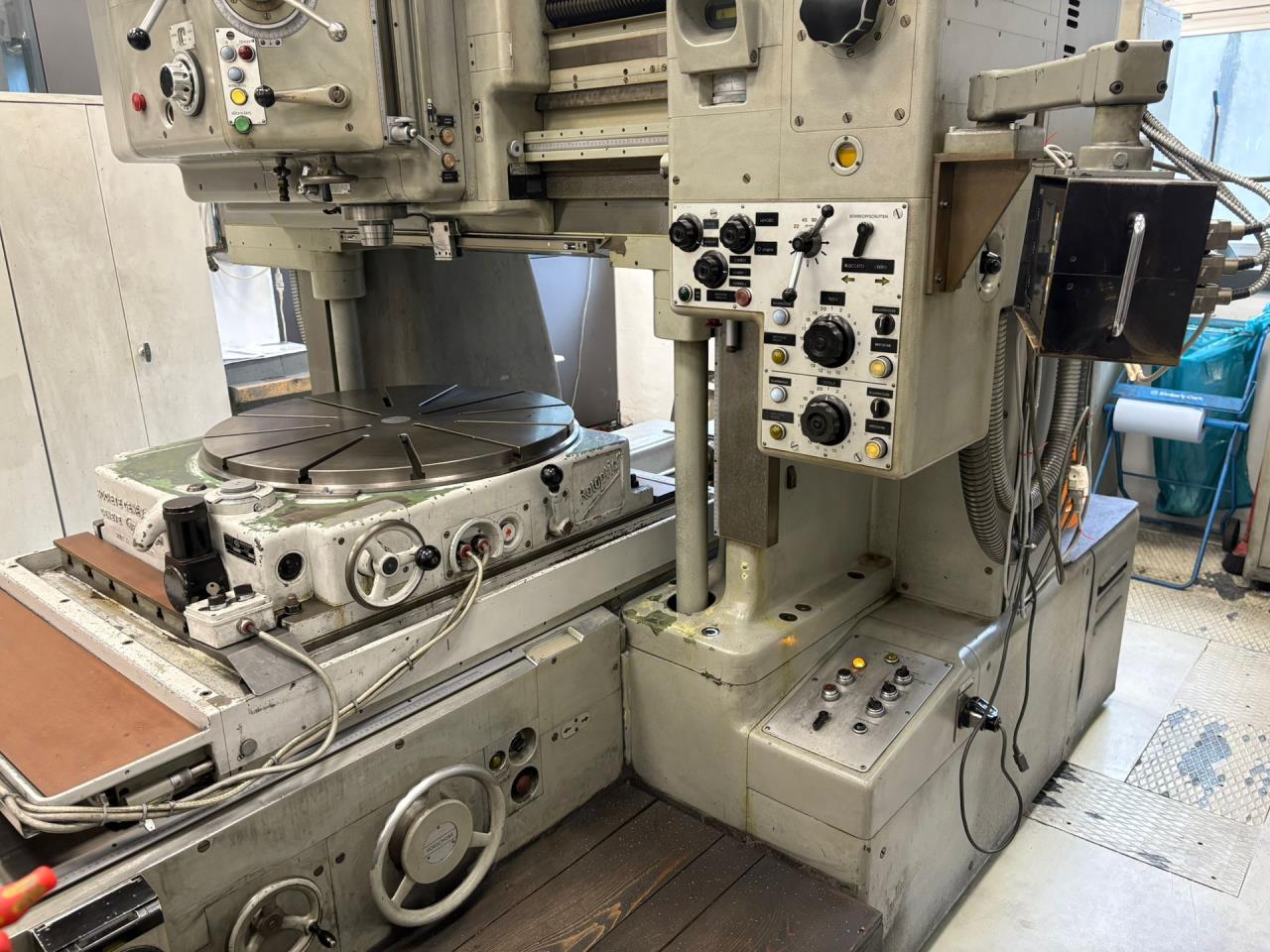

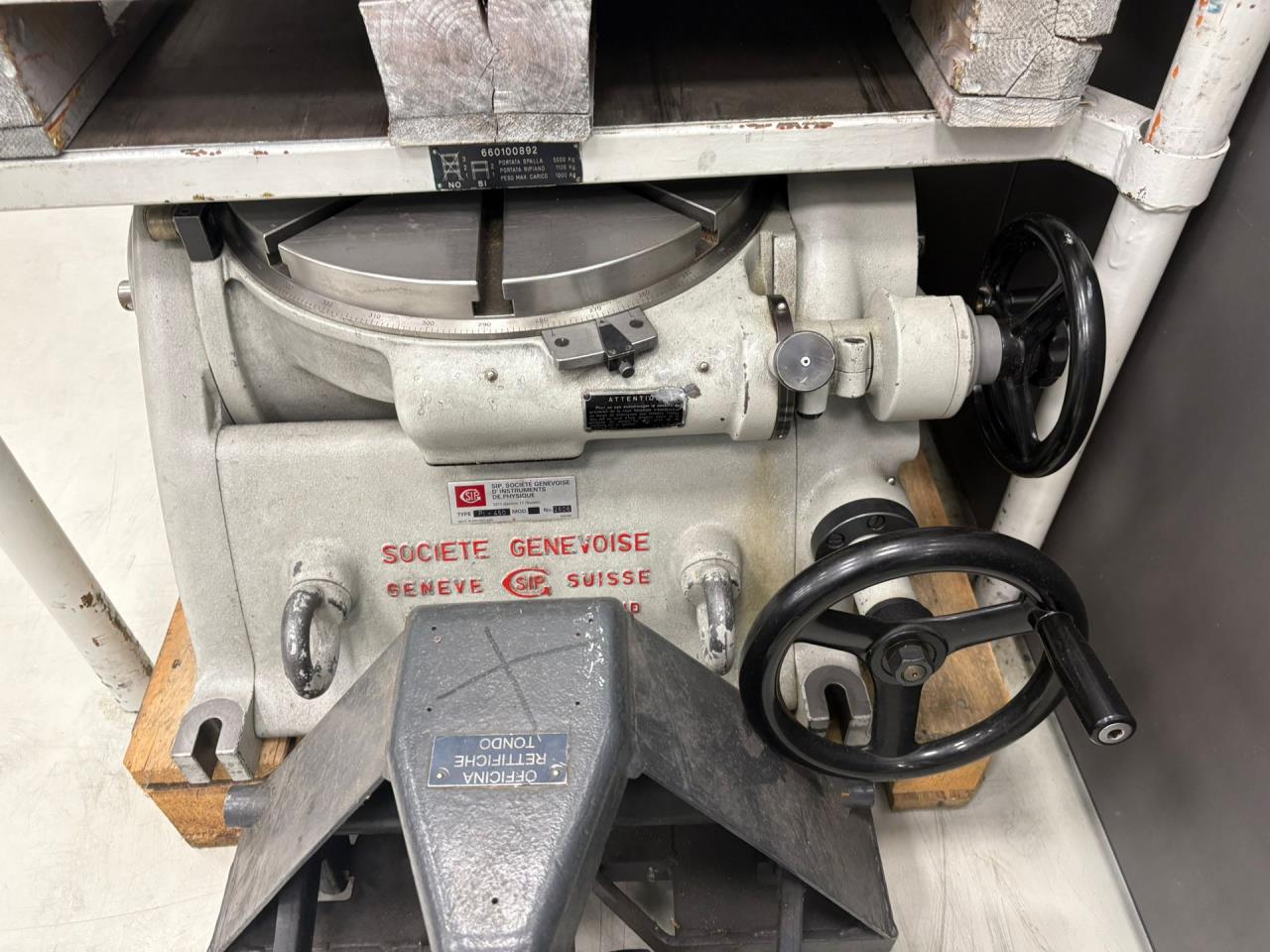

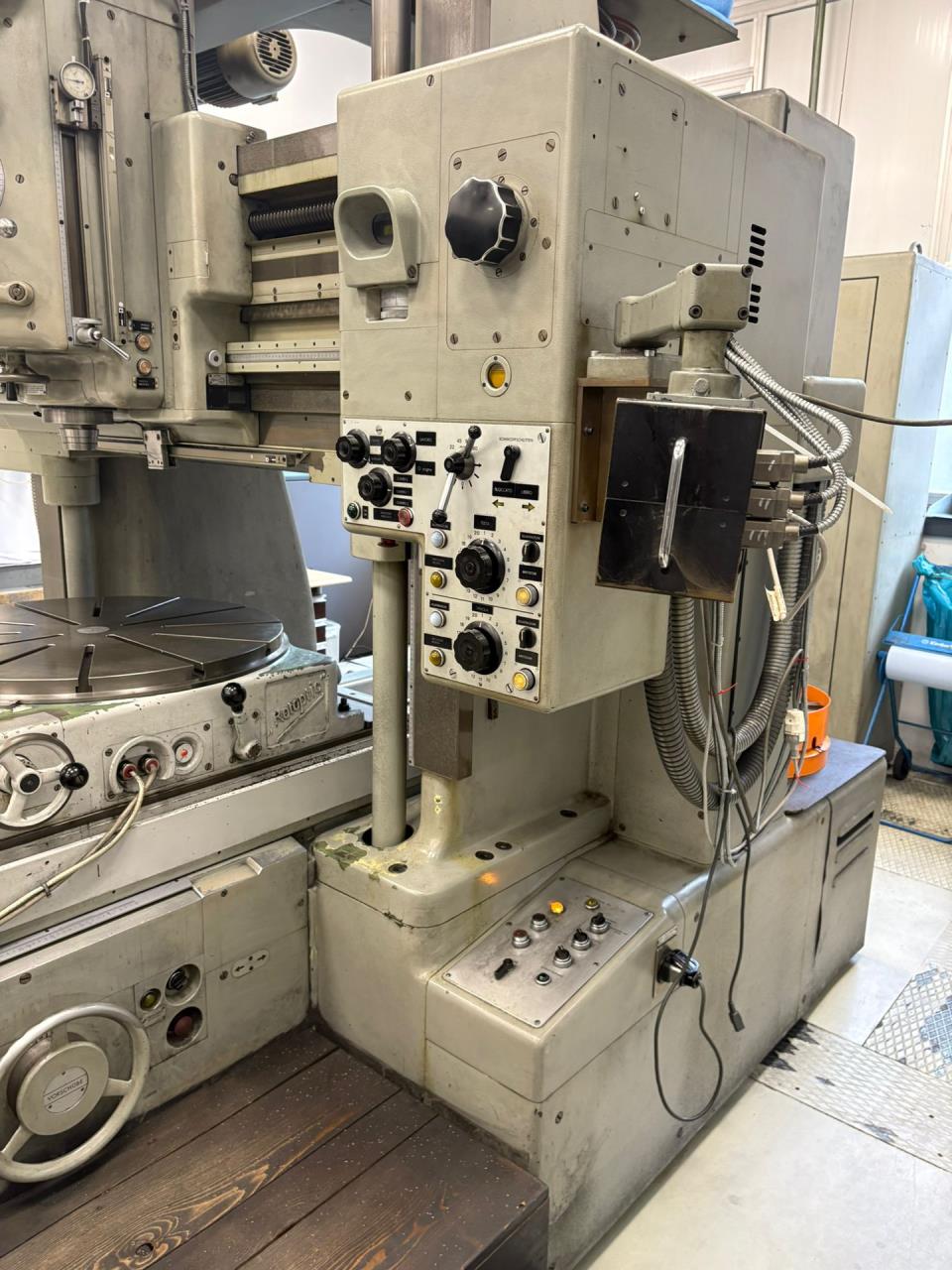

Technical data

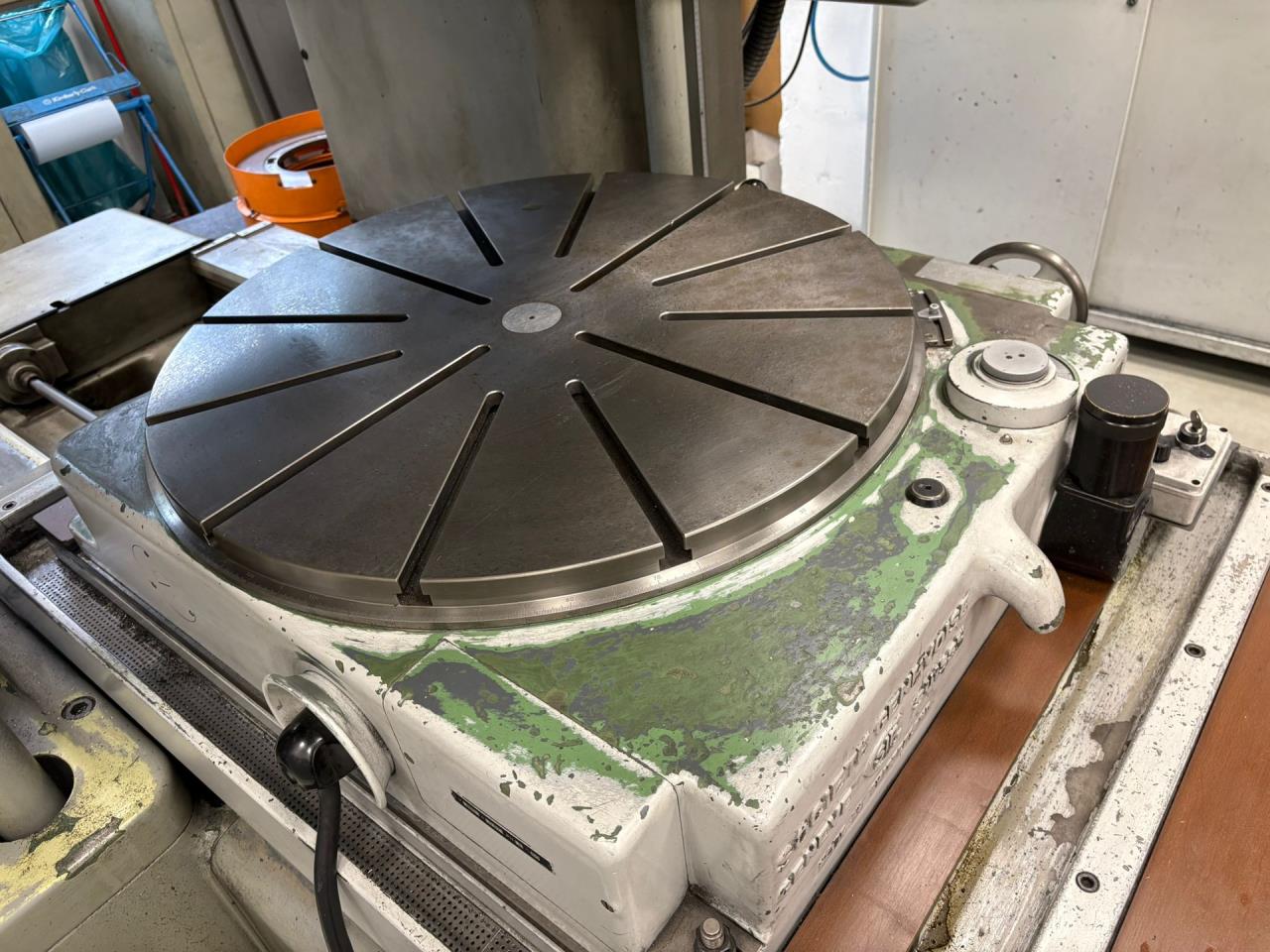

Table length
1100 mm
Table width
842 mm
Longitudinal travel (X-axis)
1000 mm
Transversal travel (y-axis)
795 mm
Vertical travel (z axis)
800 mm
Drill capacity in steel
55 mm
Taper in spindle: MT
4
Stroke of drilling spindle (Z-axis)
250 mm
Bore diameter max.
300 mm
Spindle speeds:
number (steps)
18
from
40 rpm
up to
2000 rpm
Feeds:
Table:
stepless
up to
300 mm/min
Drill spindle slide:
number (steps)
6
from
0.04 mm/r
up to
0.35 mm/r
Rapid traverse:
Table:longitudinal
2500 mm/min
transversal from
2500 mm/min
Distance between columns
1100 mm
Distance between spindle
and table
900 mm
Voltage 50 Hz 3x
380 Volt
Spindle motor
4.00 HP
Total power required
8.0 HP
Machine's weight about
7500 kg

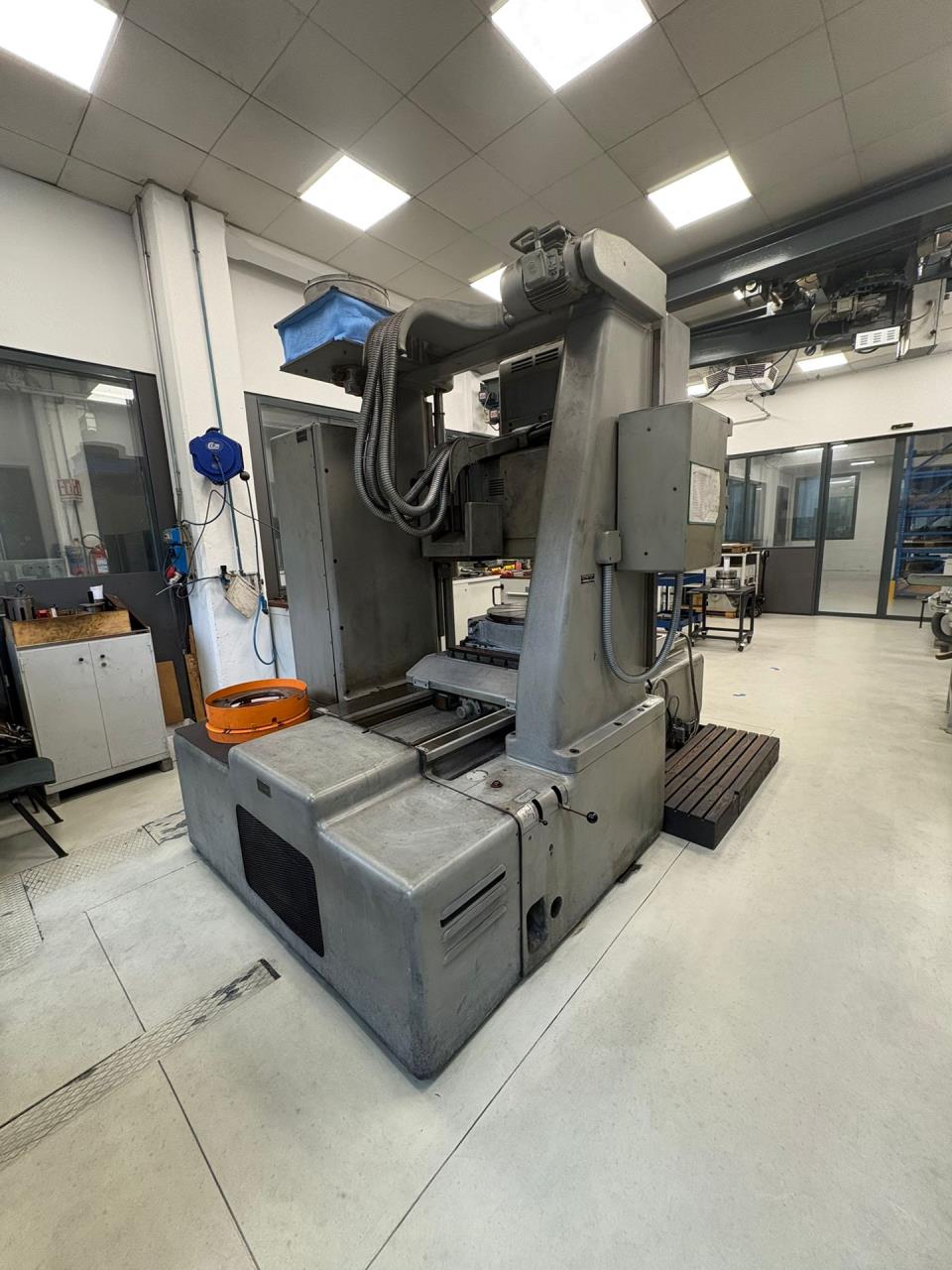

Overall dimensions machine:
Length
3220 mm
Width
2335 mm
Height
3205 mm
Technical specifications and pictures without guarantee.
