stock no. :
23121
Machine's group :
Type :
SPINNER TC 400 52MC

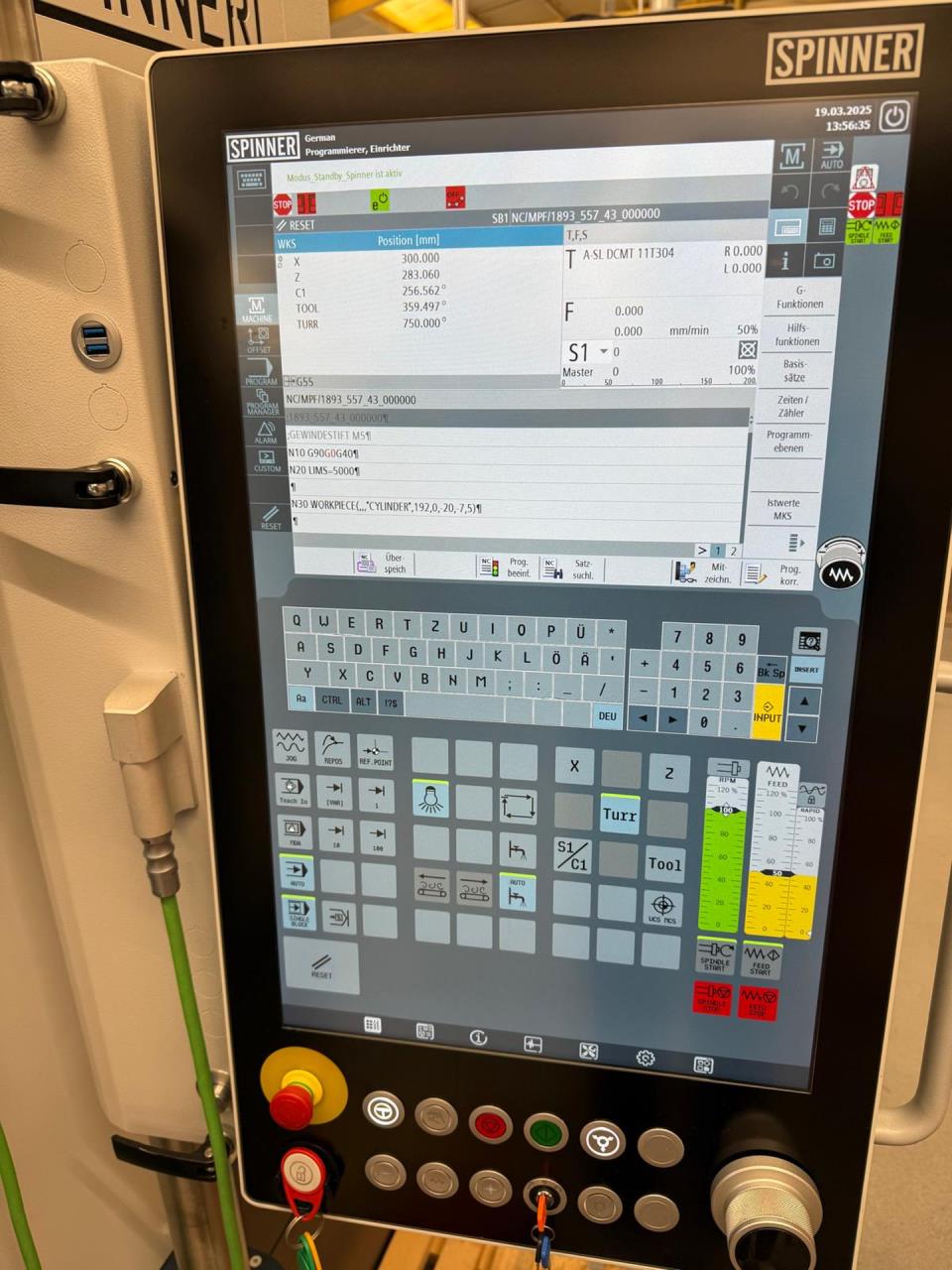

Controller :
SIEMENS 840DE
Jahrgang :
2023

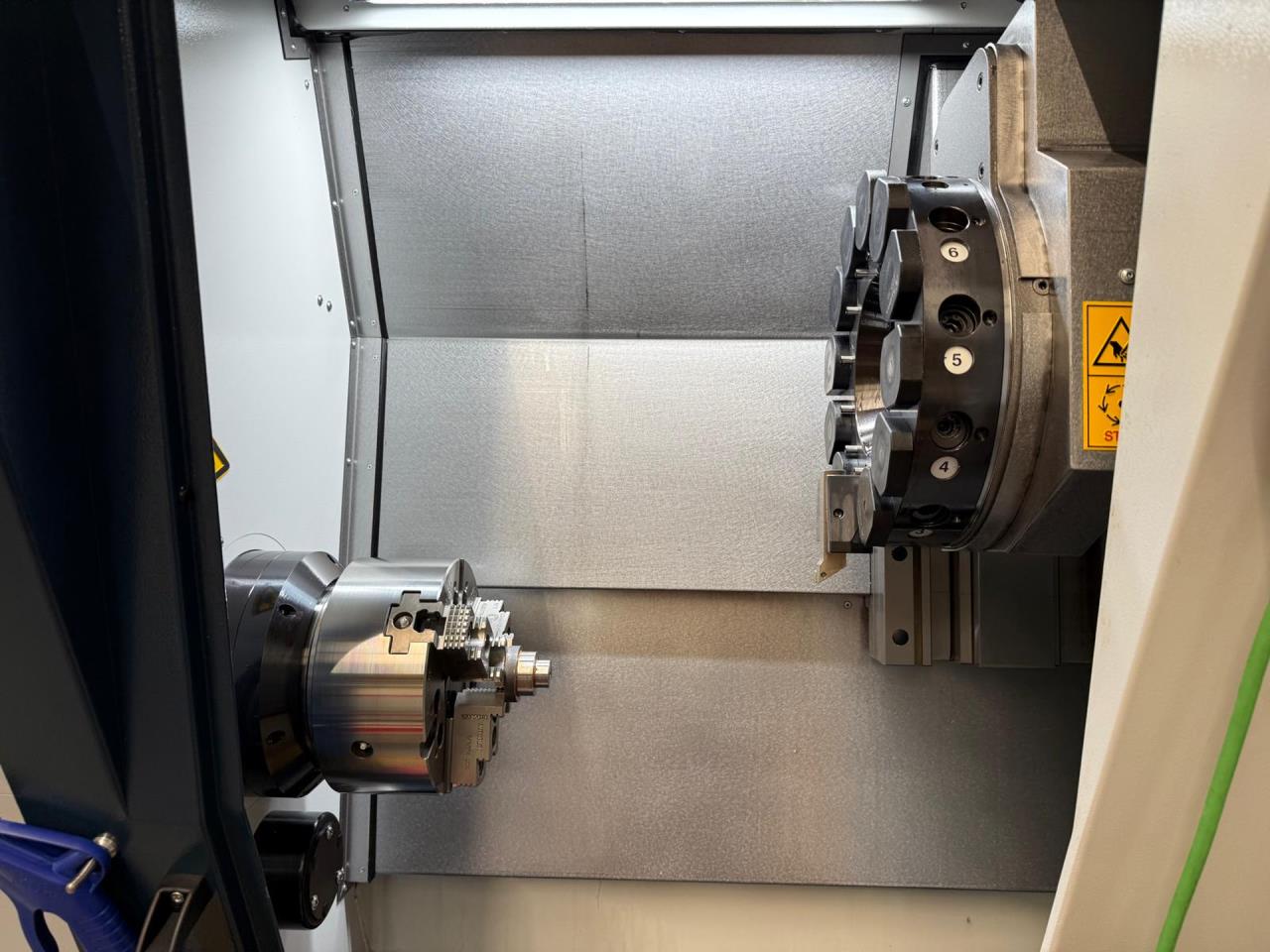

SPINNER TC 400 52MC 3 Image(s)
Back
Technical data
Distance between centres
550 mm
Swing diameter
400 mm
Spindle nose
A6 mm
Spindle hole
52 mm
Max. turning diameter
280 mm
Turret carriage:
Travels:
    Longitudinal travel (Z-axis)
515 mm
    Transversal strocke (X axis)
200 mm
    Rapid traverse X
15 m/min
    Rapid traverse Z
24 m/min
Turret slide:
    Number of positions
12
    Spindle speeds
4500 rpm
    Power of driven tools
1.1 / 5 kW
    Torque max.
7 / 31.8 Nm
    Spindle nose: VDI
30
    Spindle speeds:
       stepless
       from
0 rpm
       up to
5000 rpm
    Spindle power
23.5 kW
    Torque max.
150 Nm
Tailstock:
    Morse taper
4 MT
    Spindle stroke
125 mm
    Spindle diameter
60 mm
    Pressure
4 kN
Air connect
5 bar
Voltage 50 Hz 3x
400 Volt
Noise level
70 dB (A)
Machine's weight about
3000 kg
Overall dimensions machine:
    Length
2100 mm
    Width
1350 mm
    Height
1800 mm
Various accessories:
3-jaw chuck diameter
210 mm
Lamp
High pression colant device
15 bar
Interface Ethernet
Interface USB
Chip conveyor

Technical specifications and pictures without guarantee.
