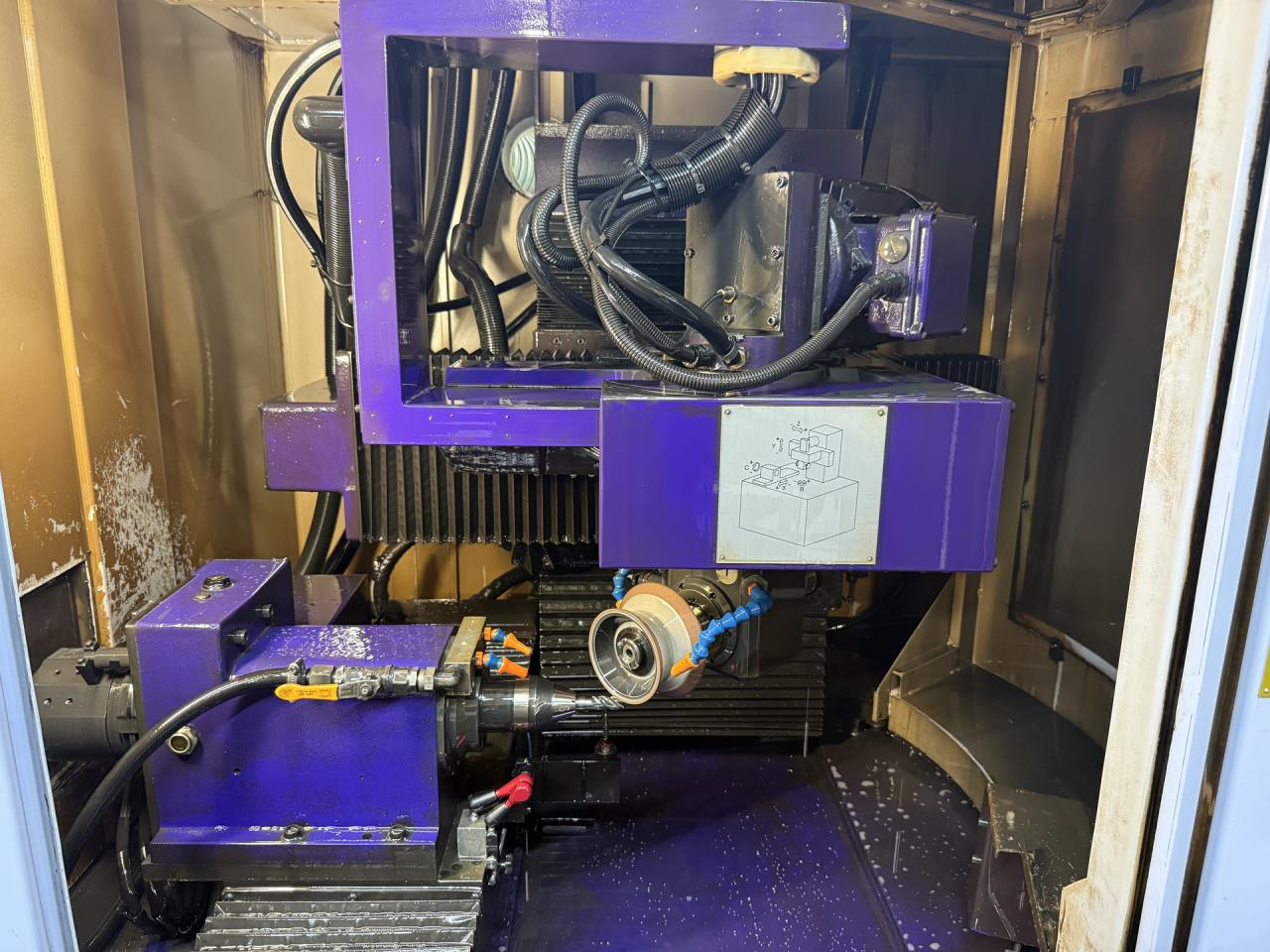

Technical data
Number of axis total
5
Max. grinding wheel diamter
160 mm
Taper in spindle
50 ISO
Axial motion:
Crosswise
360 mm
Longitudinal
240 mm
Vertical
360 mm

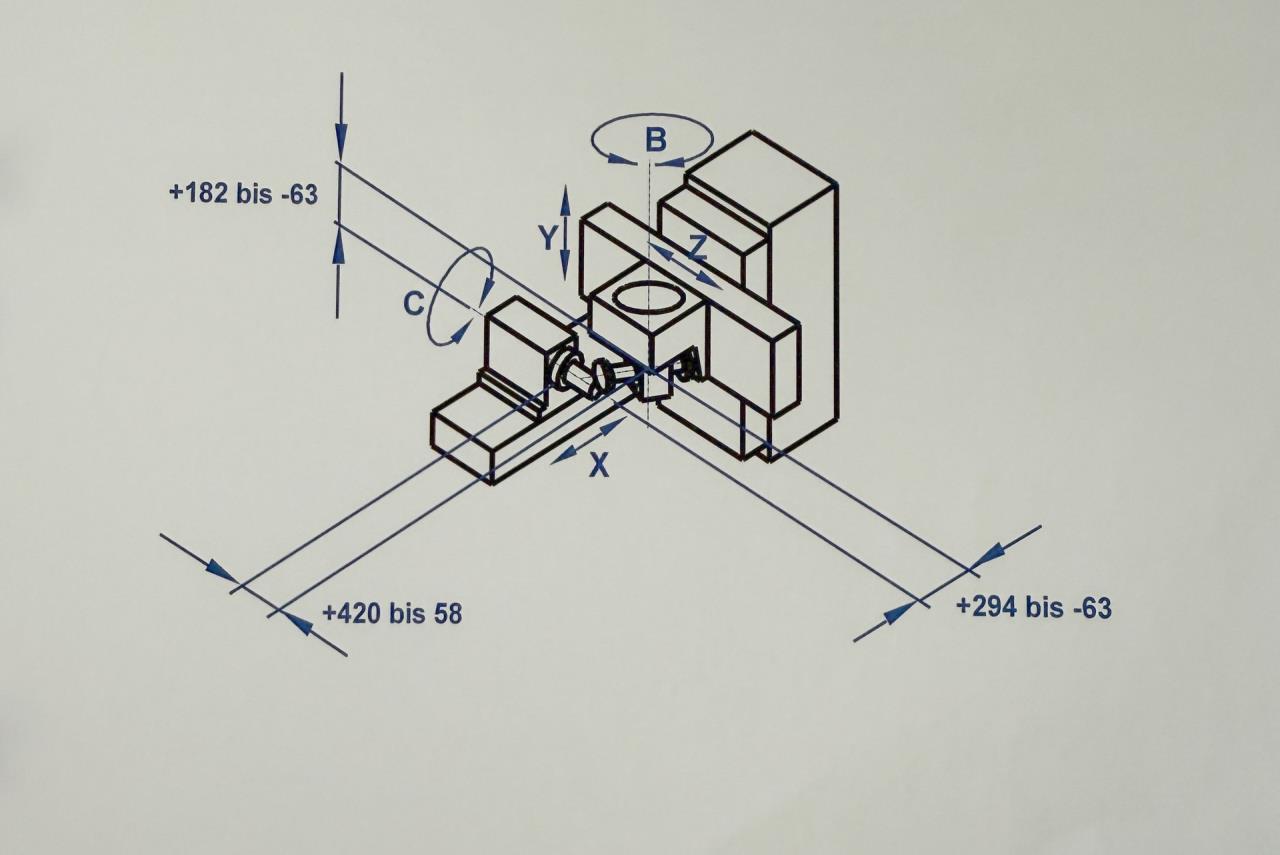

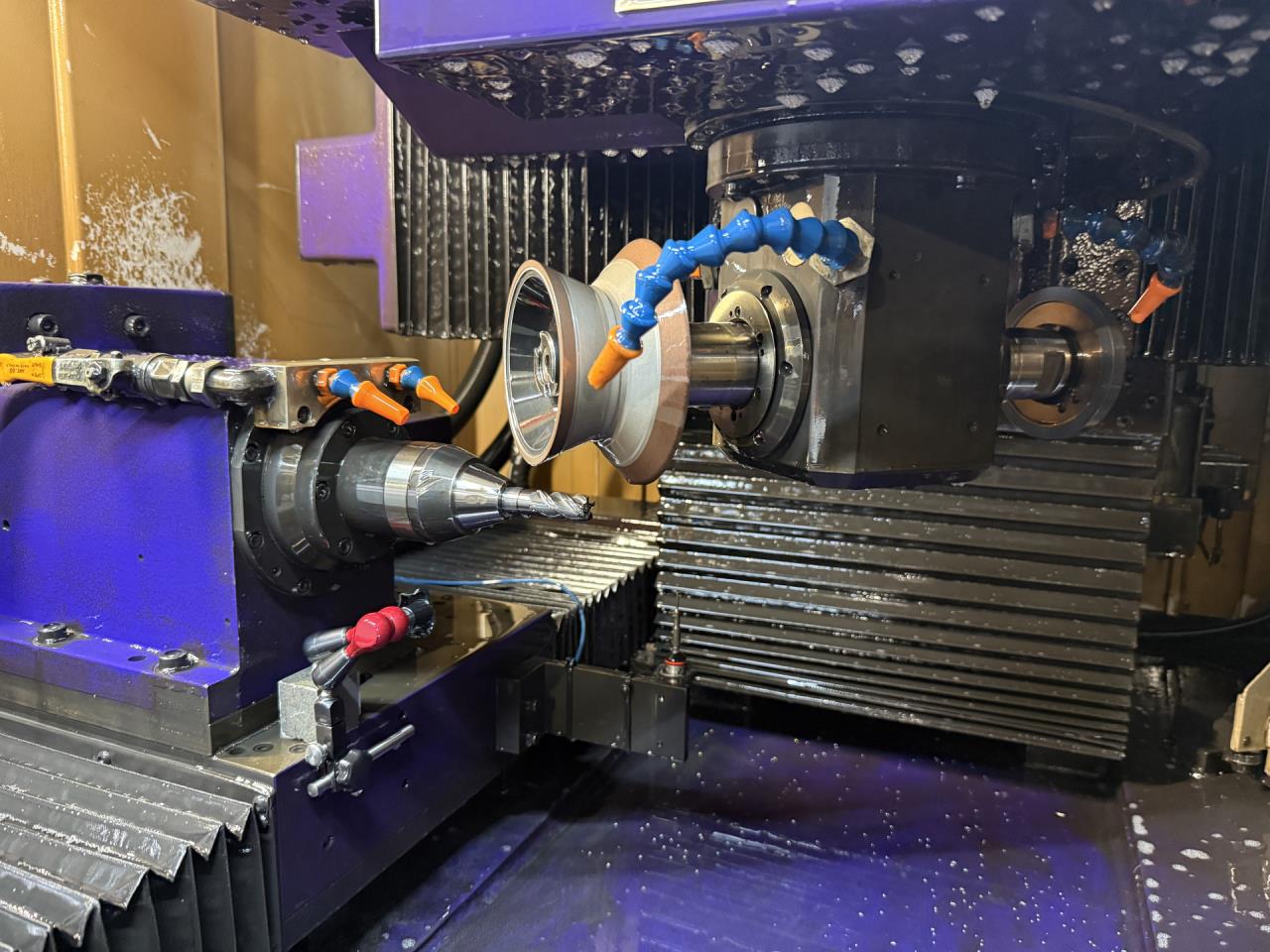

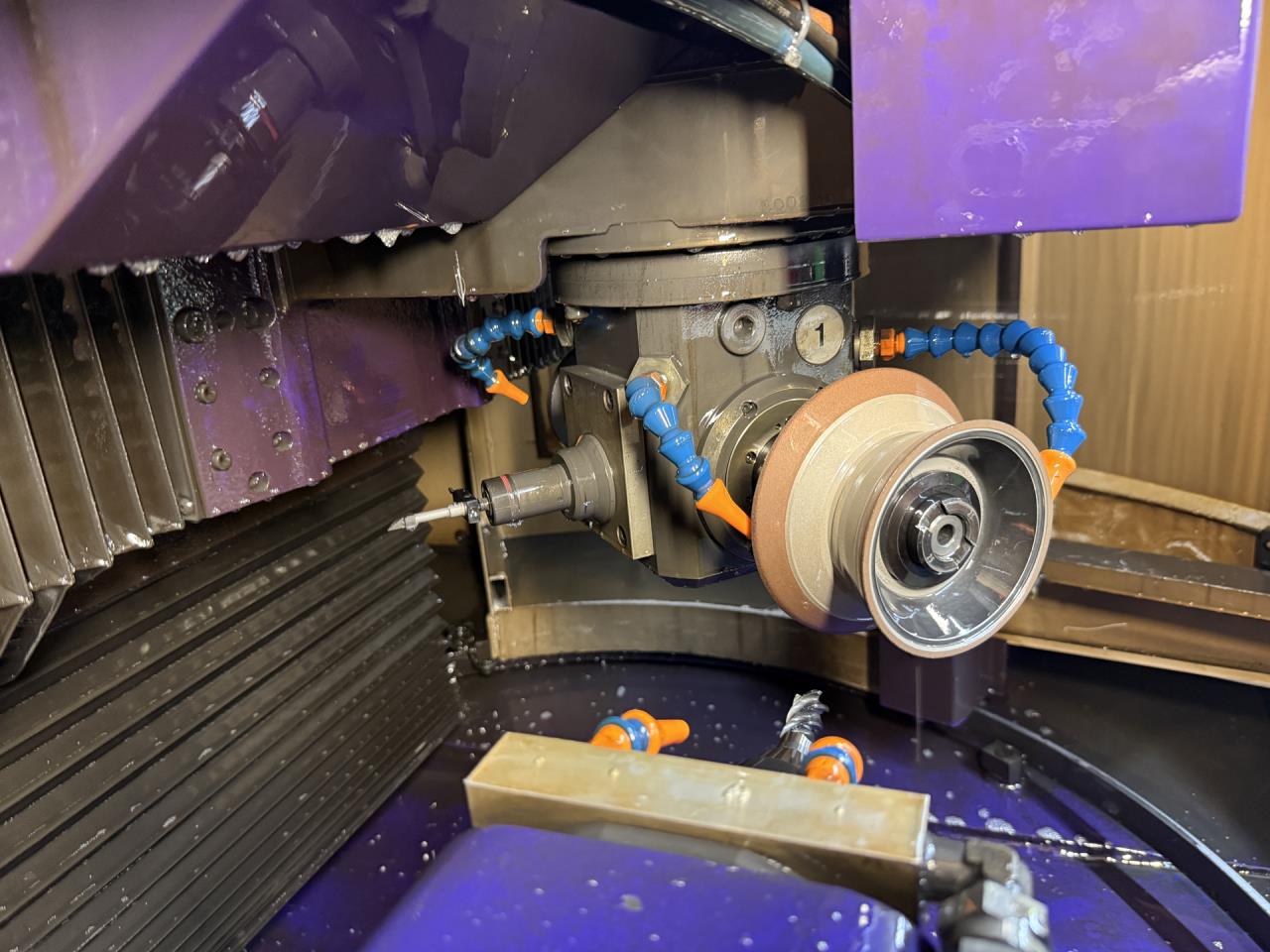

B axis (grinding head rotation)
470 °
Resolution
0.001 °
Work piece spindle speed
1000 rpm
C axis (spindle,resolution)
0.001 °
Grinding spindle speeds:
stepless
from
1000 rpm
up to
9000 rpm
Spindle motor
6 / 8 kW
Rapid traverse:
10 m/min
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
3.7 kW
Total power required
10 kVA
Machine's weight about
2750 kg
Overall dimensions machine:
Length
2050 mm
Width
1945 mm
Height
2040 mm
Various accessories:

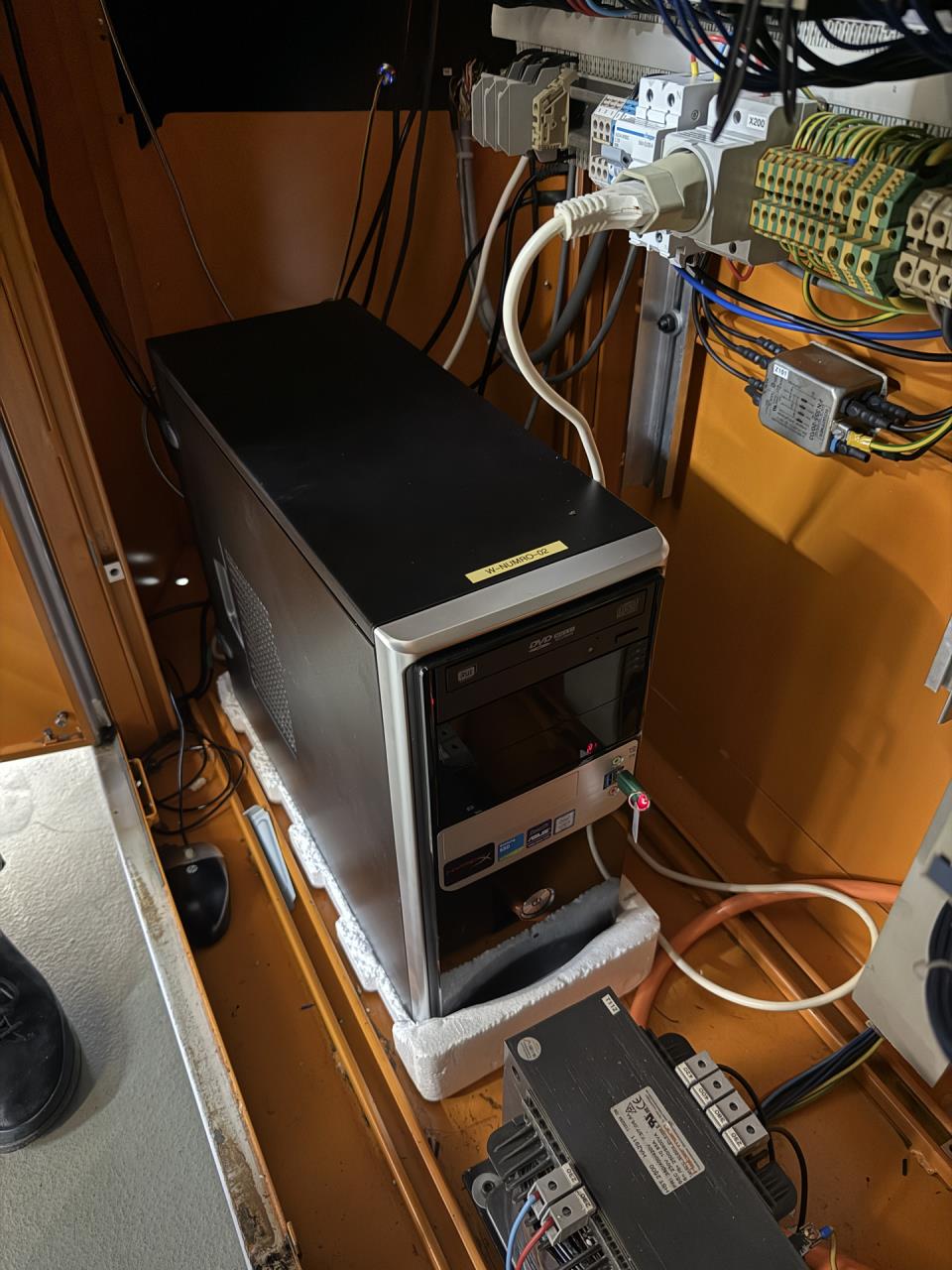

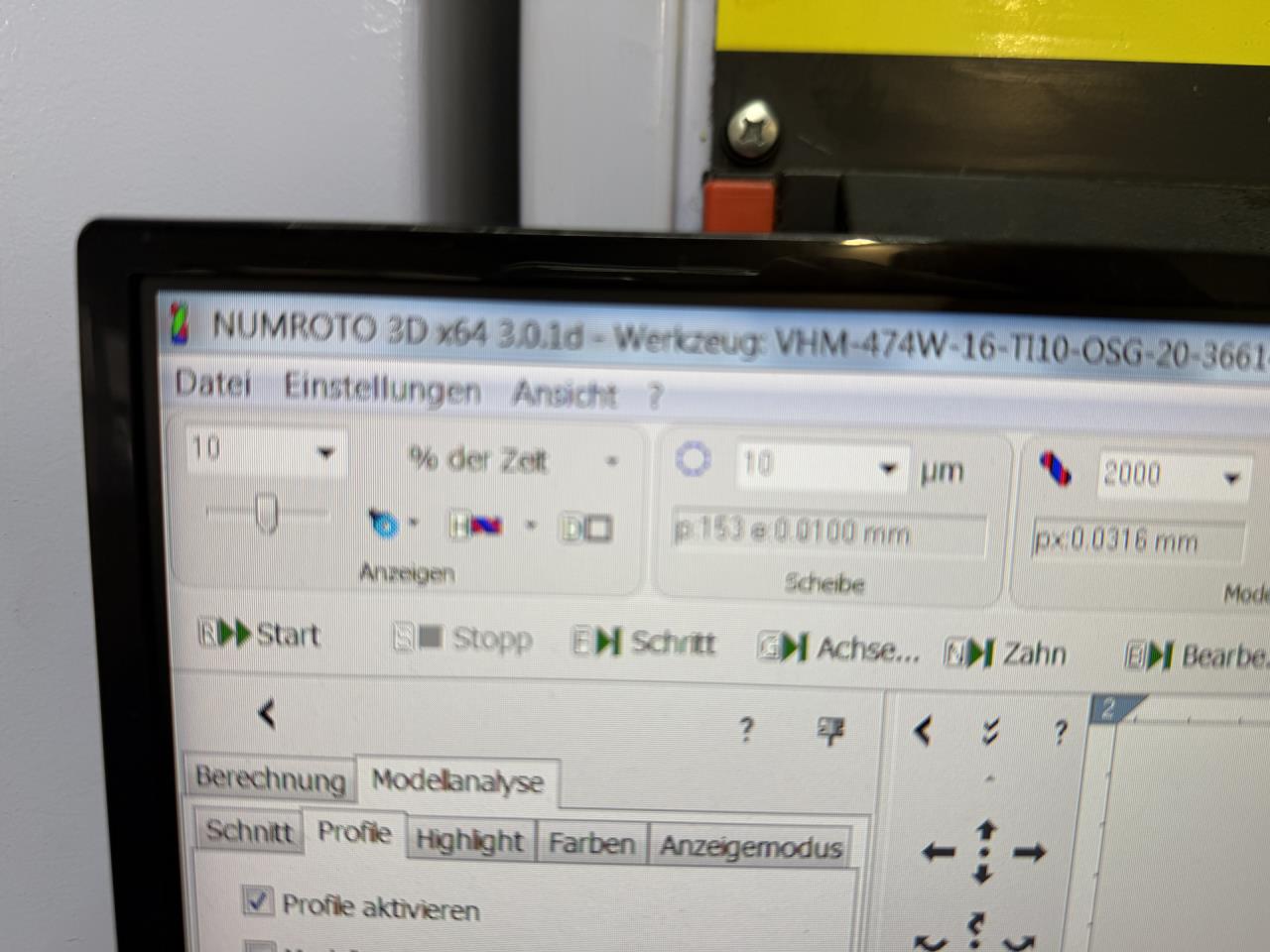

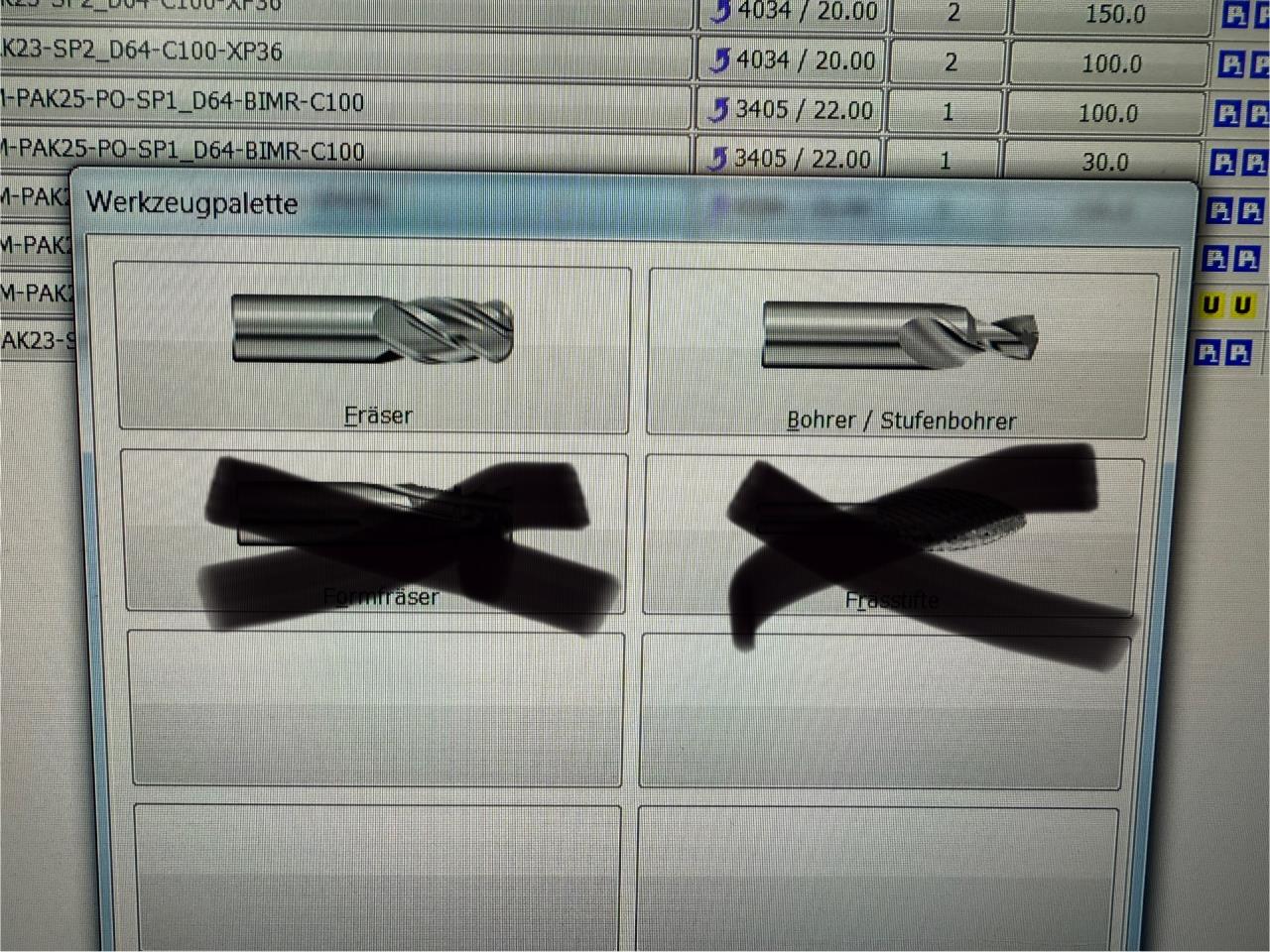

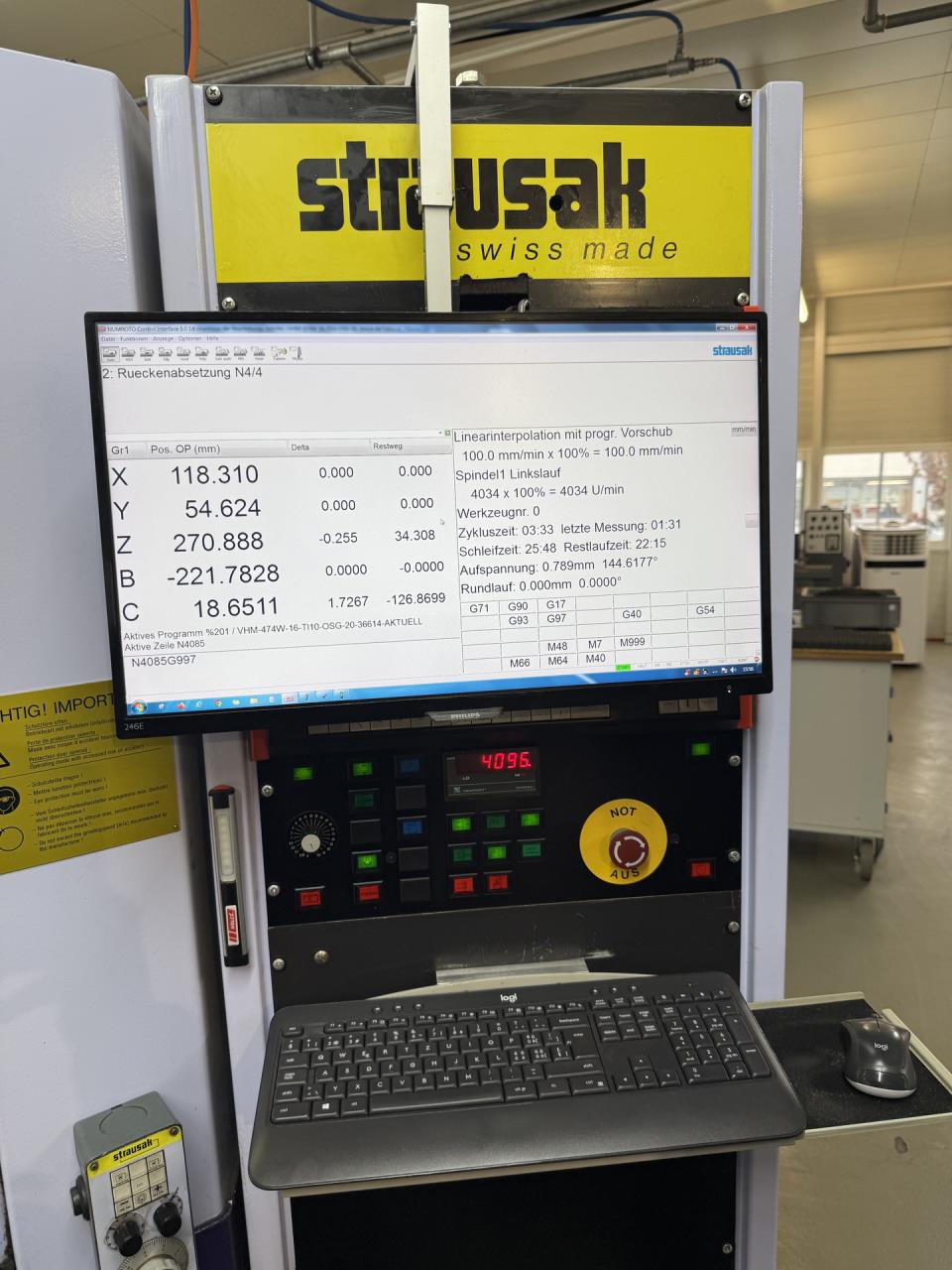

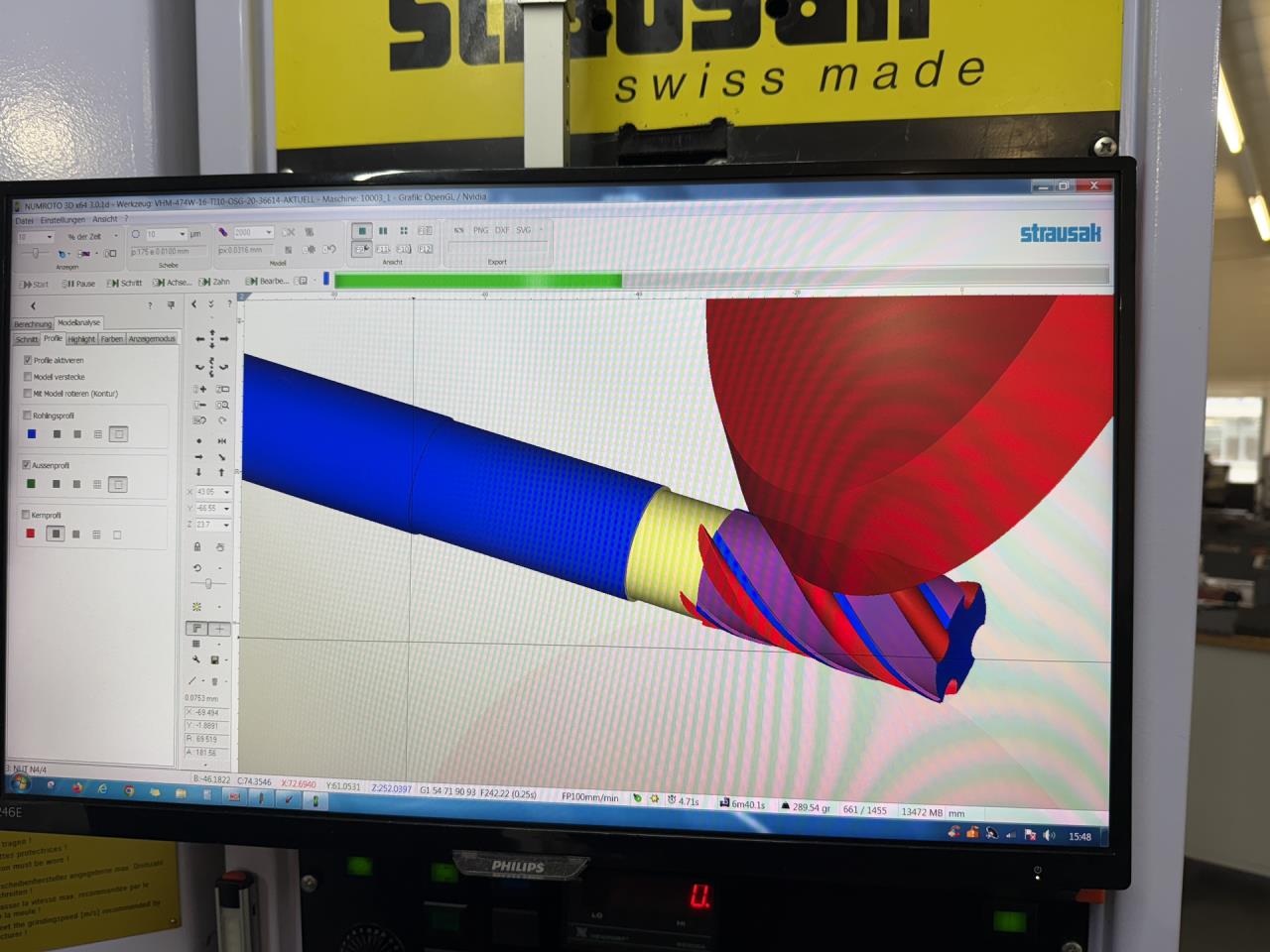

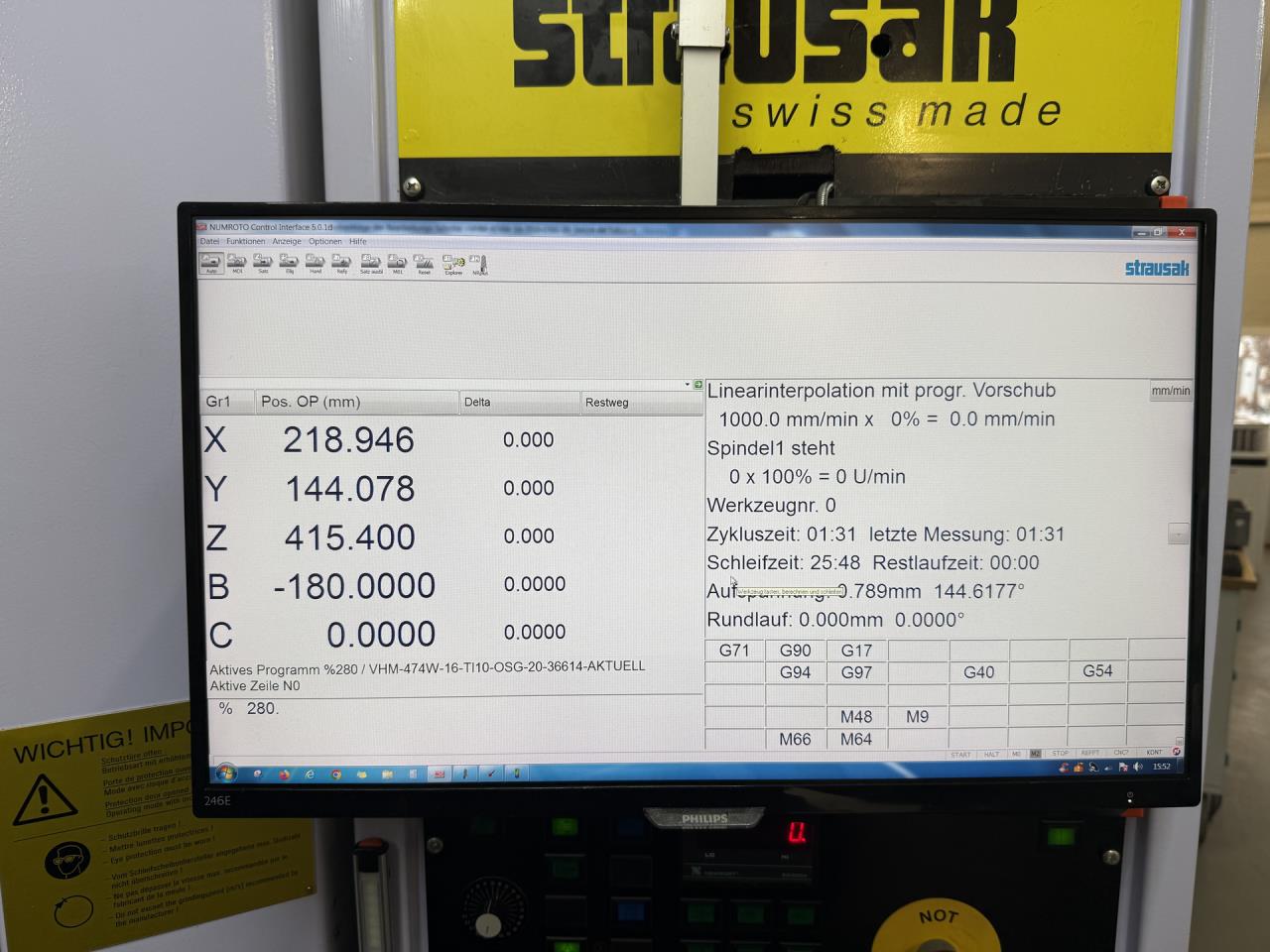

PC system

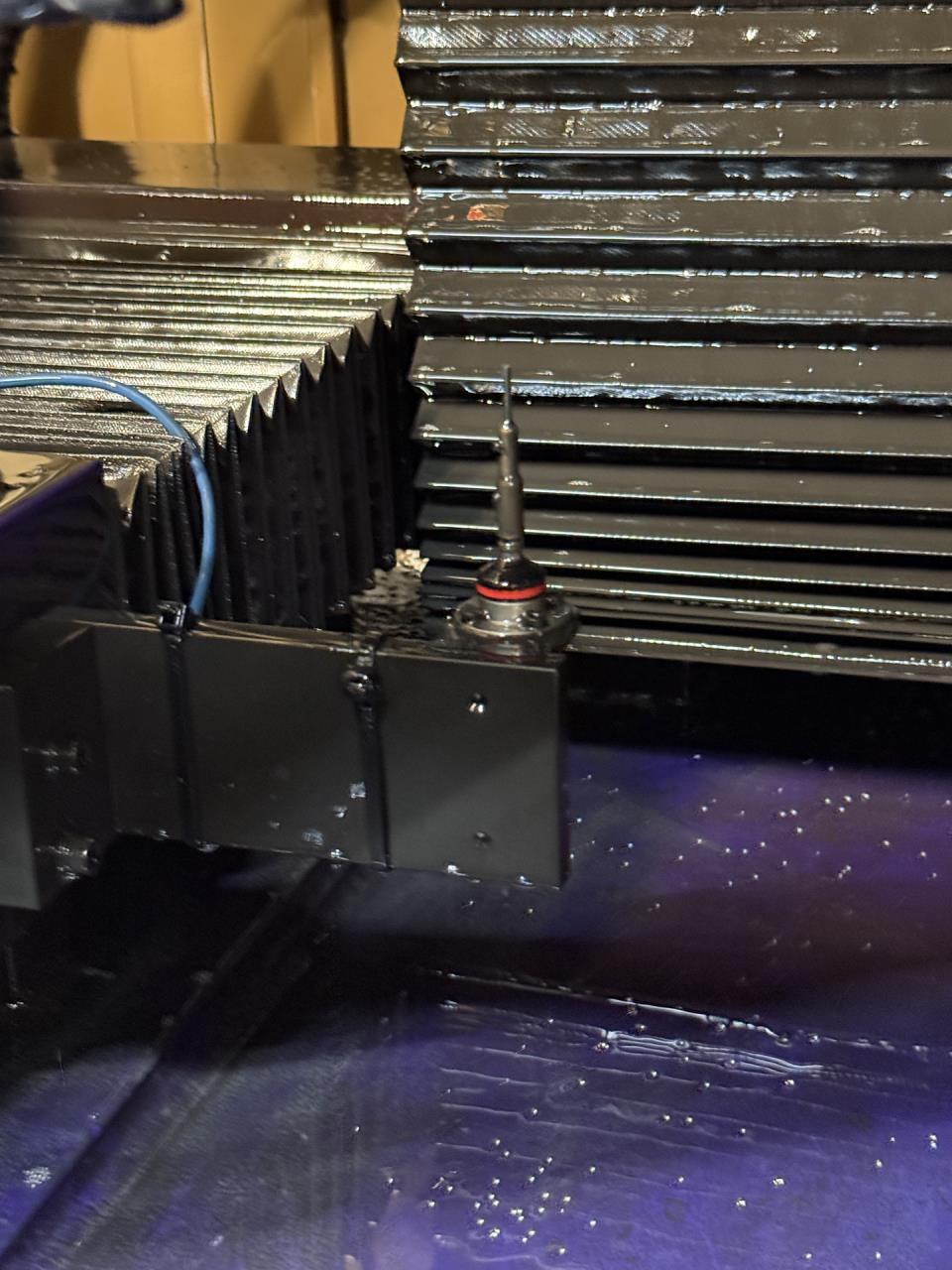

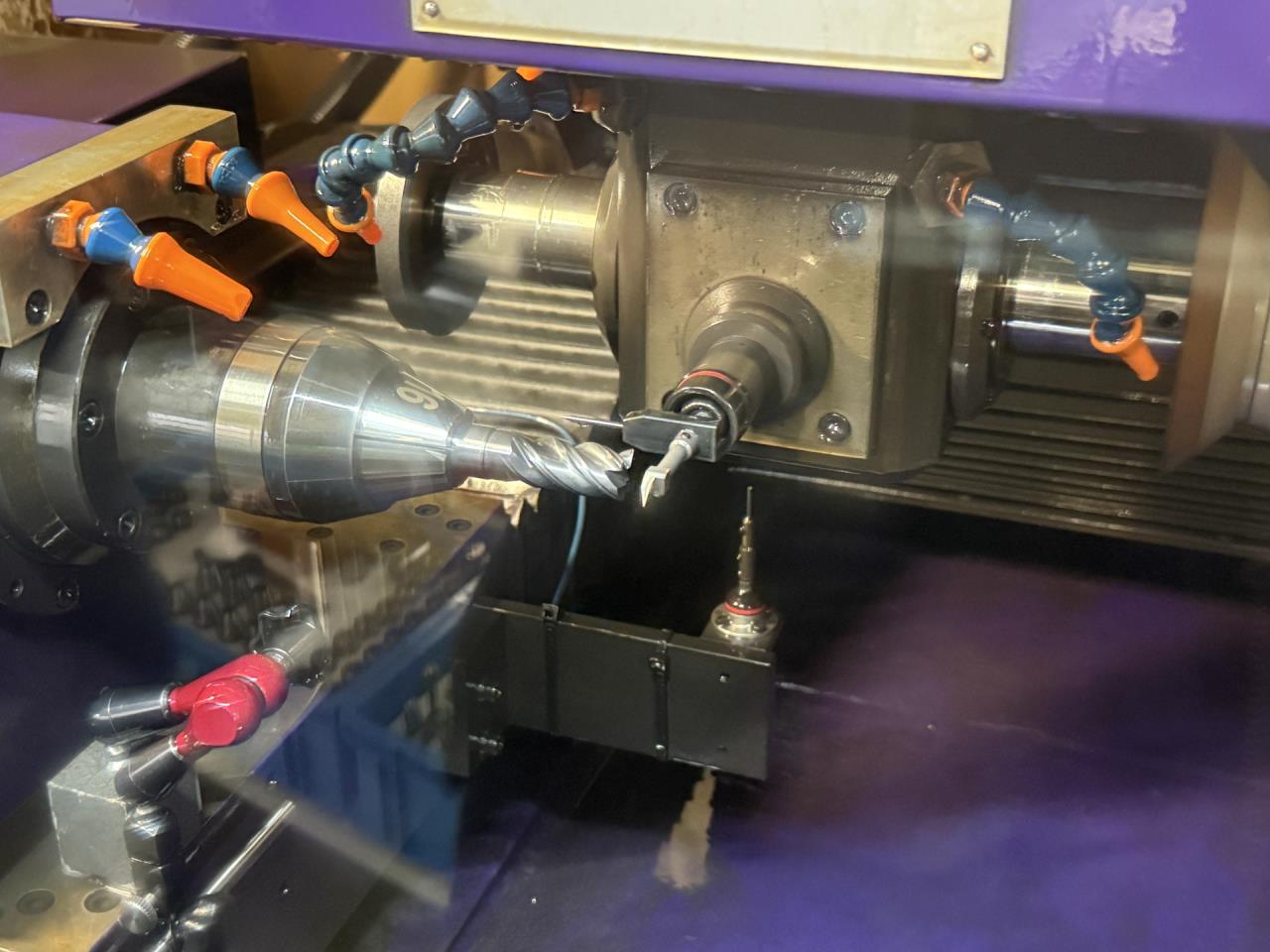

3D measuring feeler gauge

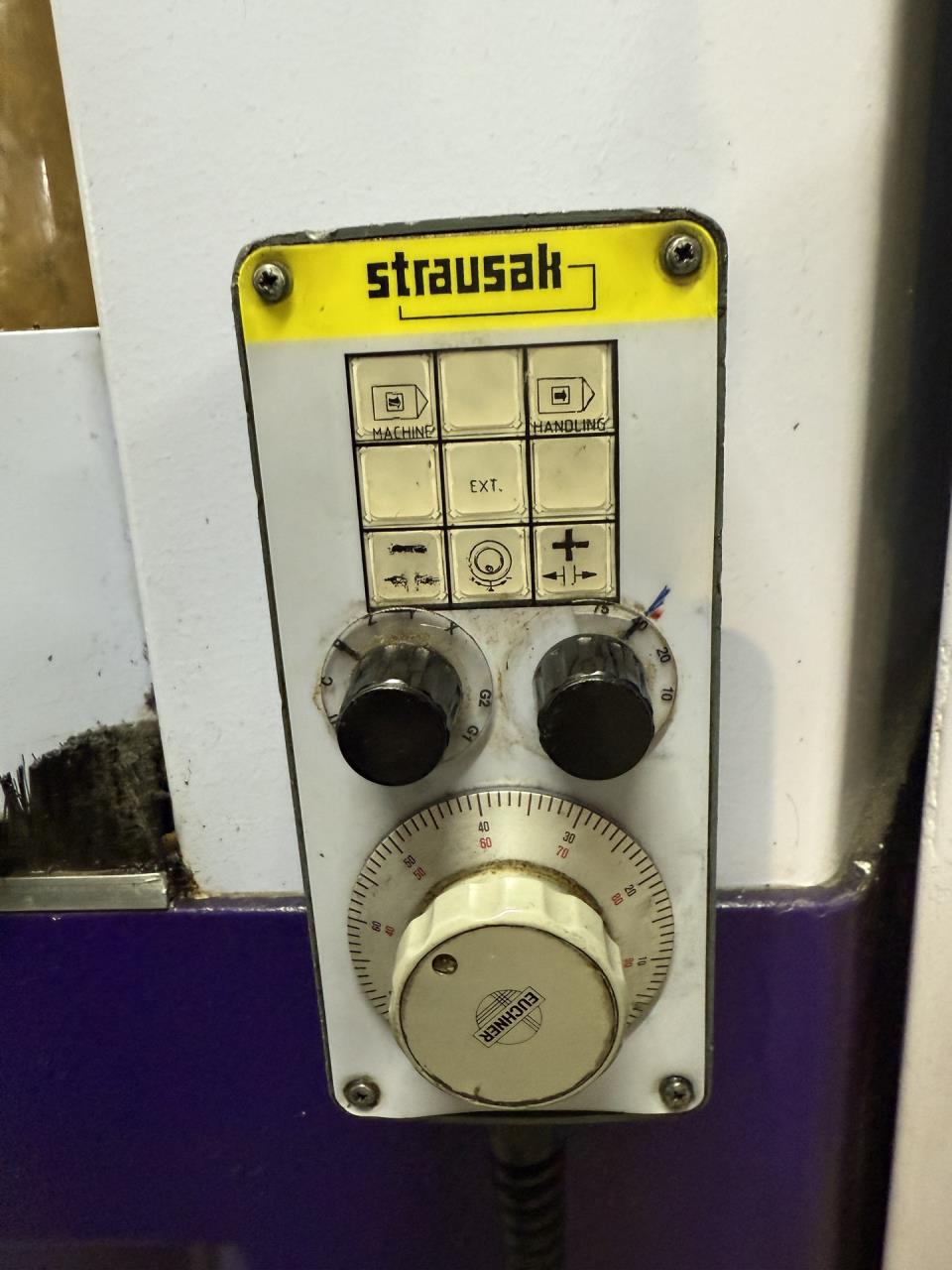

Handwheel electroinic

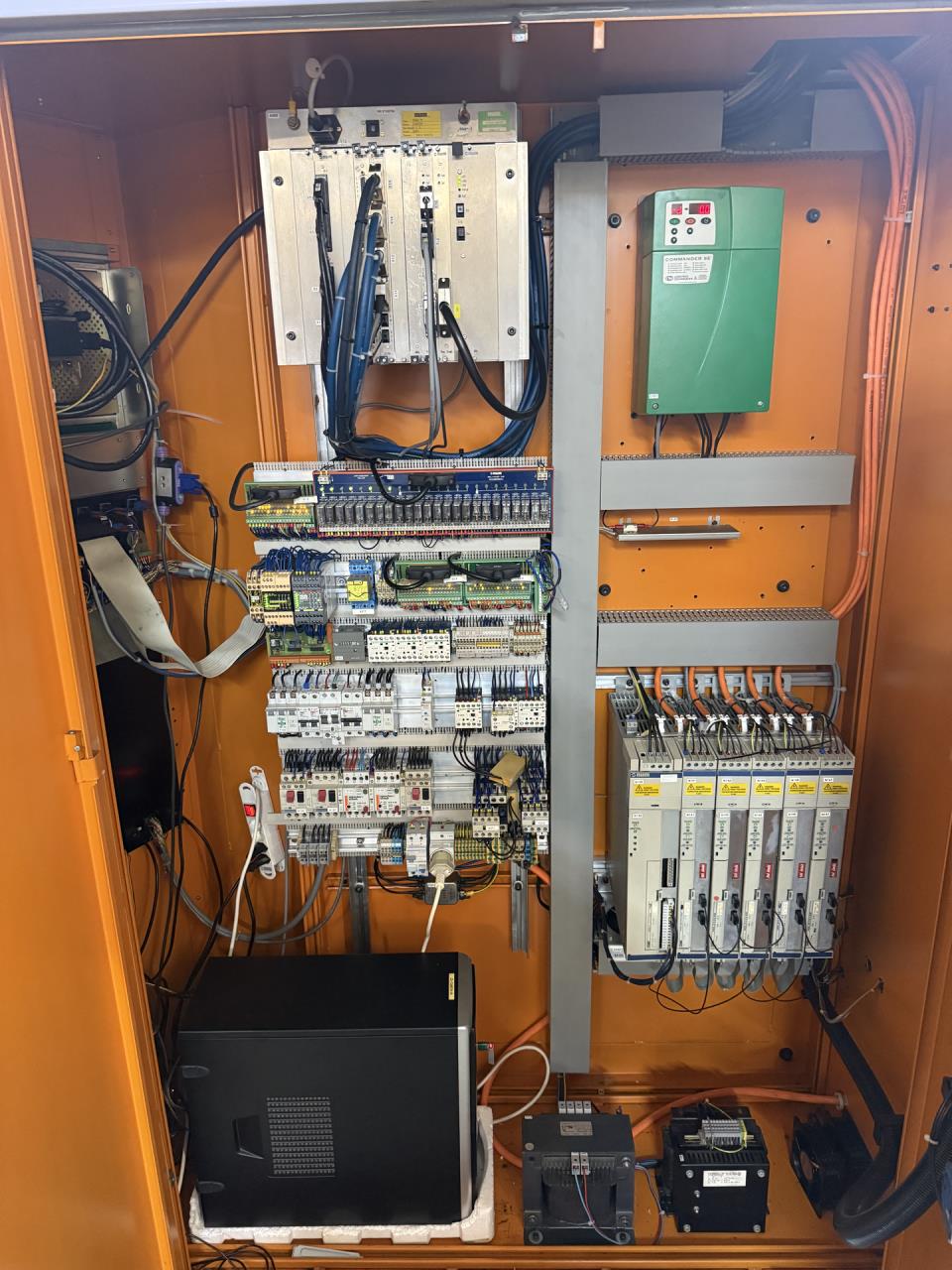

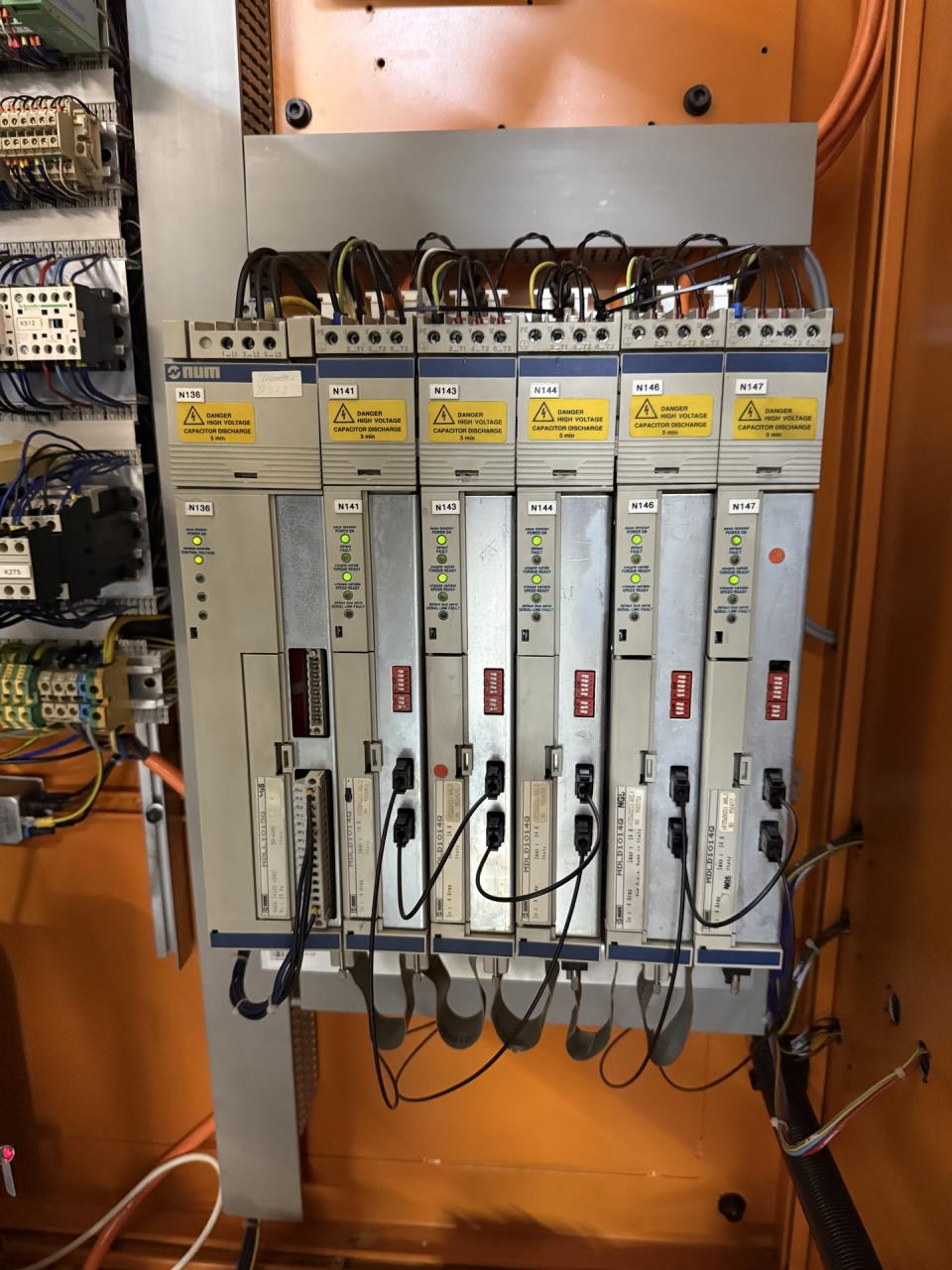

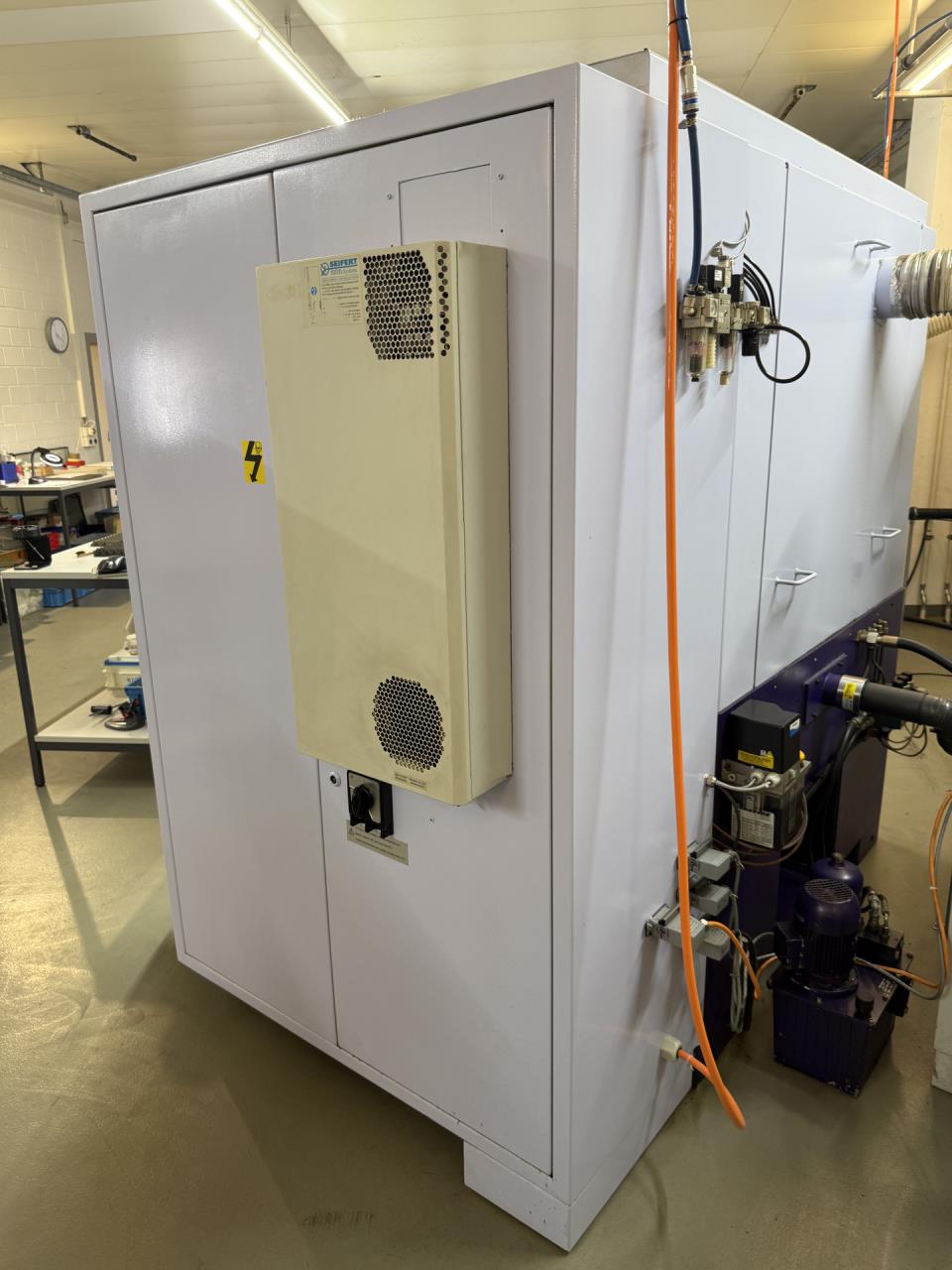

Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
