stock no. :
23091
Machine's group :
Type :

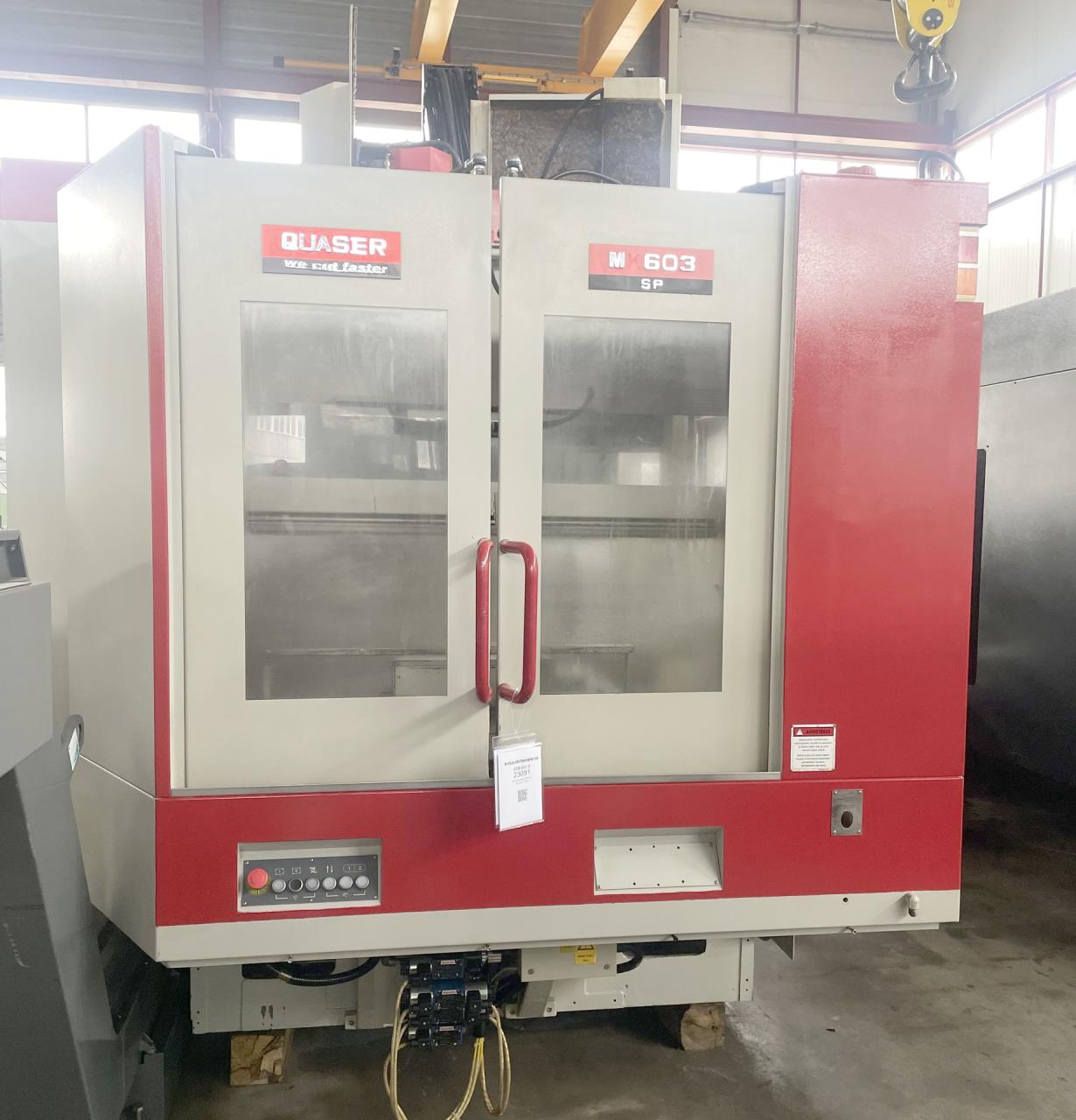

QUASER MK603SP/12B

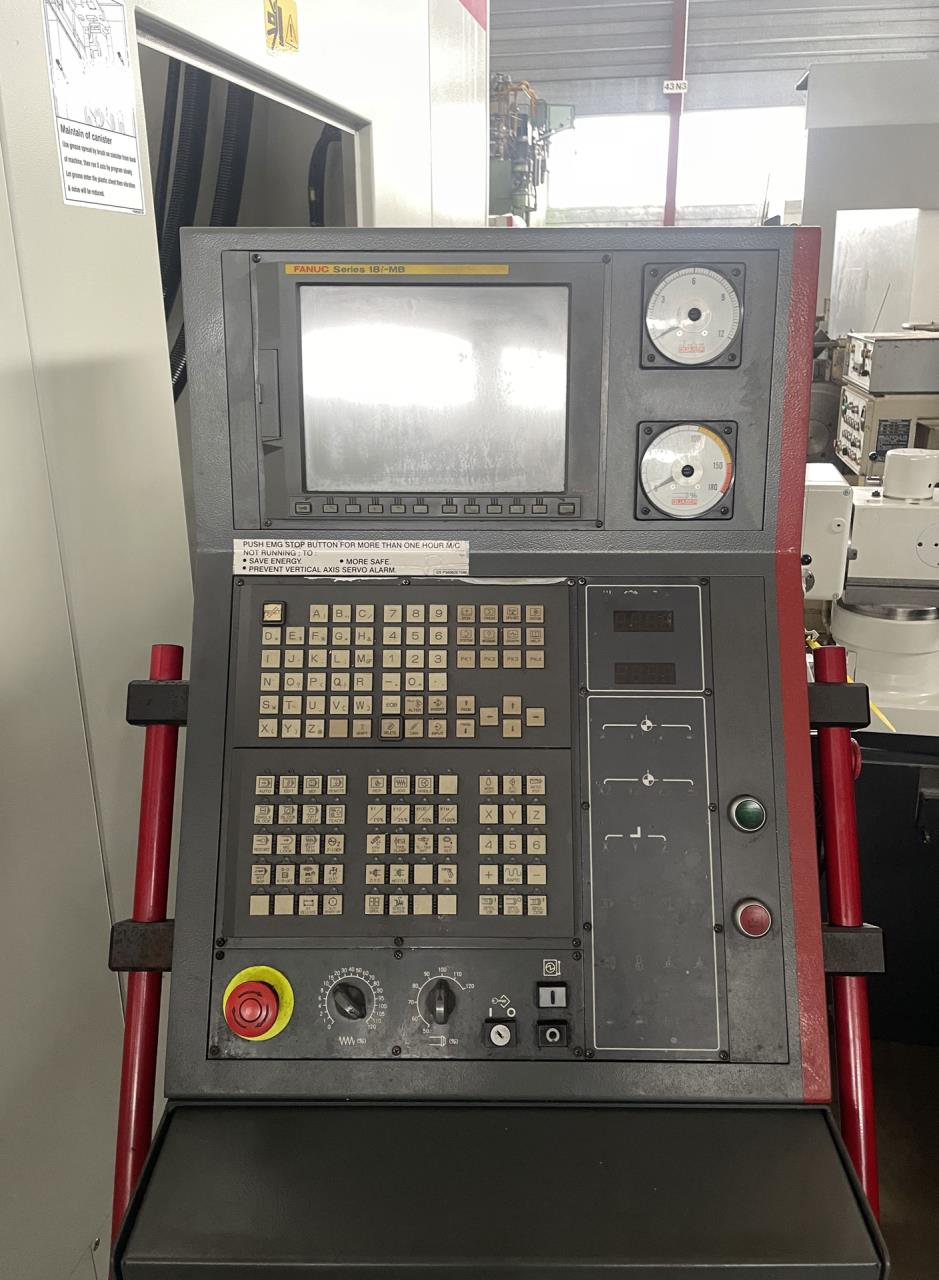

Controller :
FANUC 18i-MB
Jahrgang :
2011
Technical data

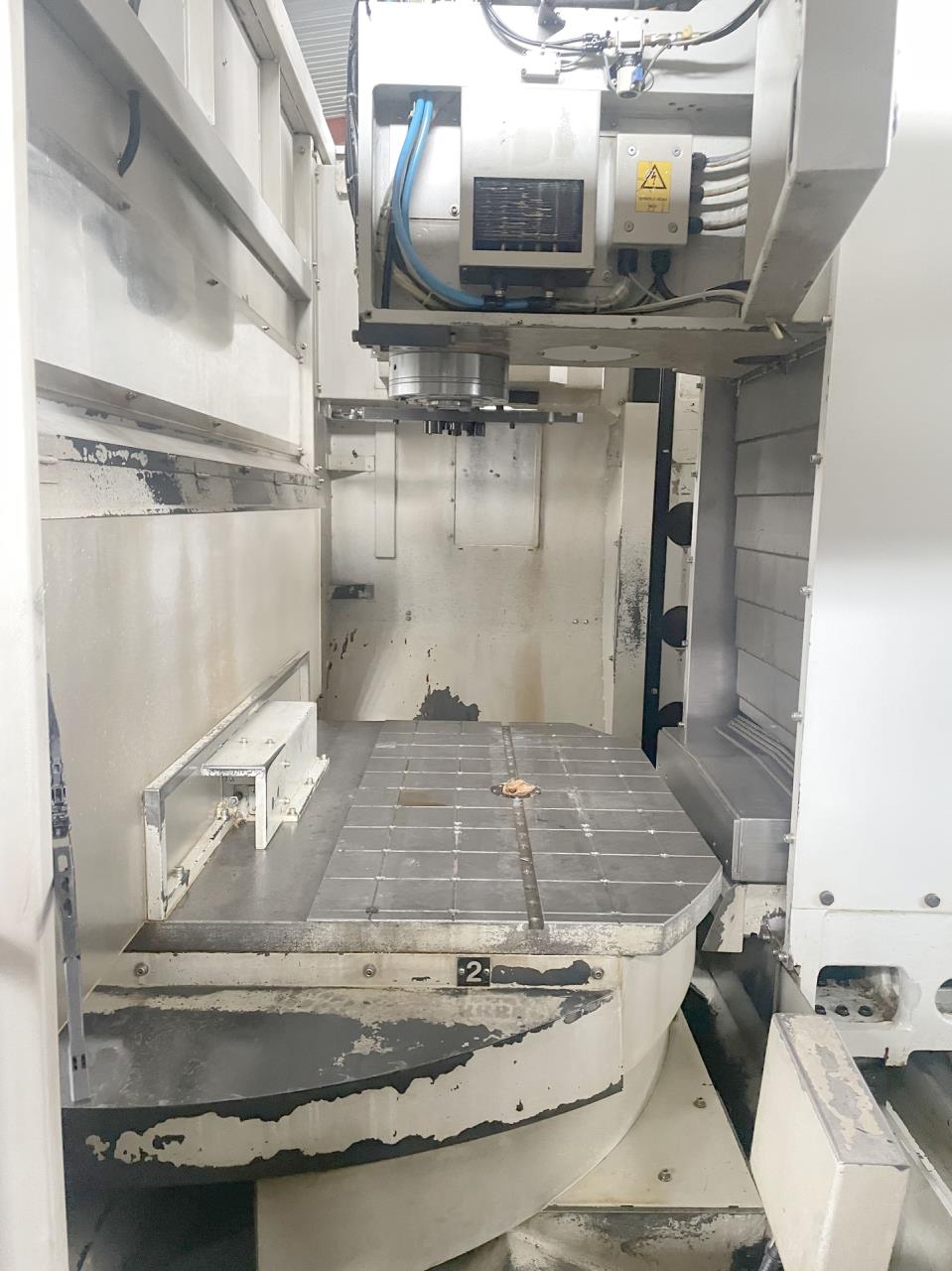

Number of tables
2
Table length
1050 mm
Table width
550 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
1020 mm
Transversal travel (y-axis)
610 mm
Vertical travel (z axis)
600 mm
Dimension of the workpice:
Height
350 mm
Diameter
1630 mm

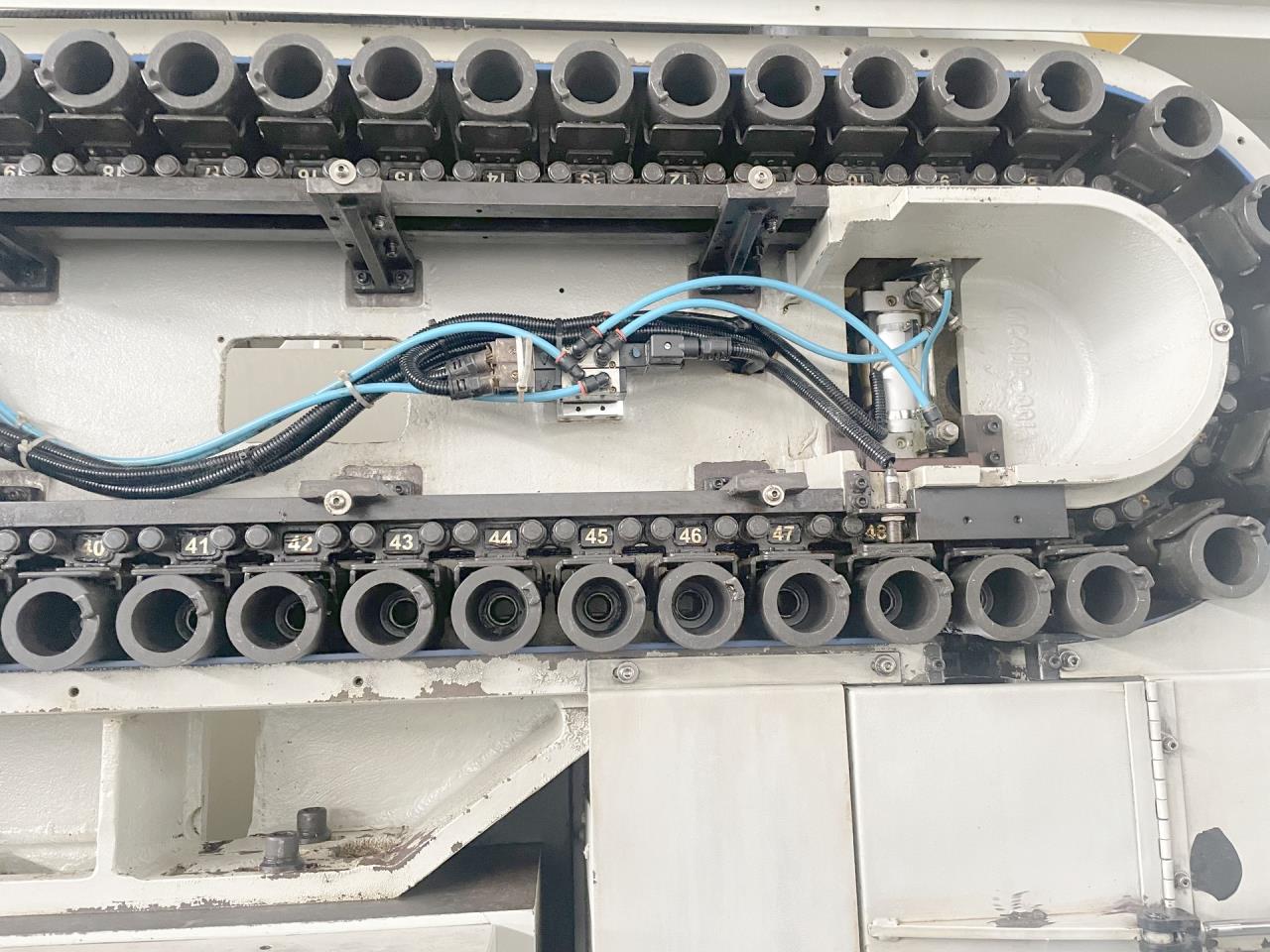

Tool magazine number of tool places
48
Tool diameter max.
75 mm
Diameter with free adjacent pockets
125 mm
Tool lenght
300 mm
Max. tool-weight
7 kg
Time of tool changing
2.5 sec
Average chip-to-chip time
6 sec
Spindle nose: ISO
40
Pull-Studs
DIN 69871
Distance from vertical
spindle to table
130 - 730 mm
Spindle diameter
70 mm
Spindle speeds:
stepless
from
80 rpm
up to
12000 rpm
Torque max.
192 Nm
Feed range
20000 mm/min
Rapid traverse:
36 m/min
Air connect
6 - 8 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
30 / 22 kW
Total power required
45 kVA
Machine's weight about
12000 kg
Overall dimensions machine:
Length
4650 mm
Width
2930 mm
Height
3300 mm
Various accessories:
Coolant system
400 l
Coolant through spindle (cts)
20 bar

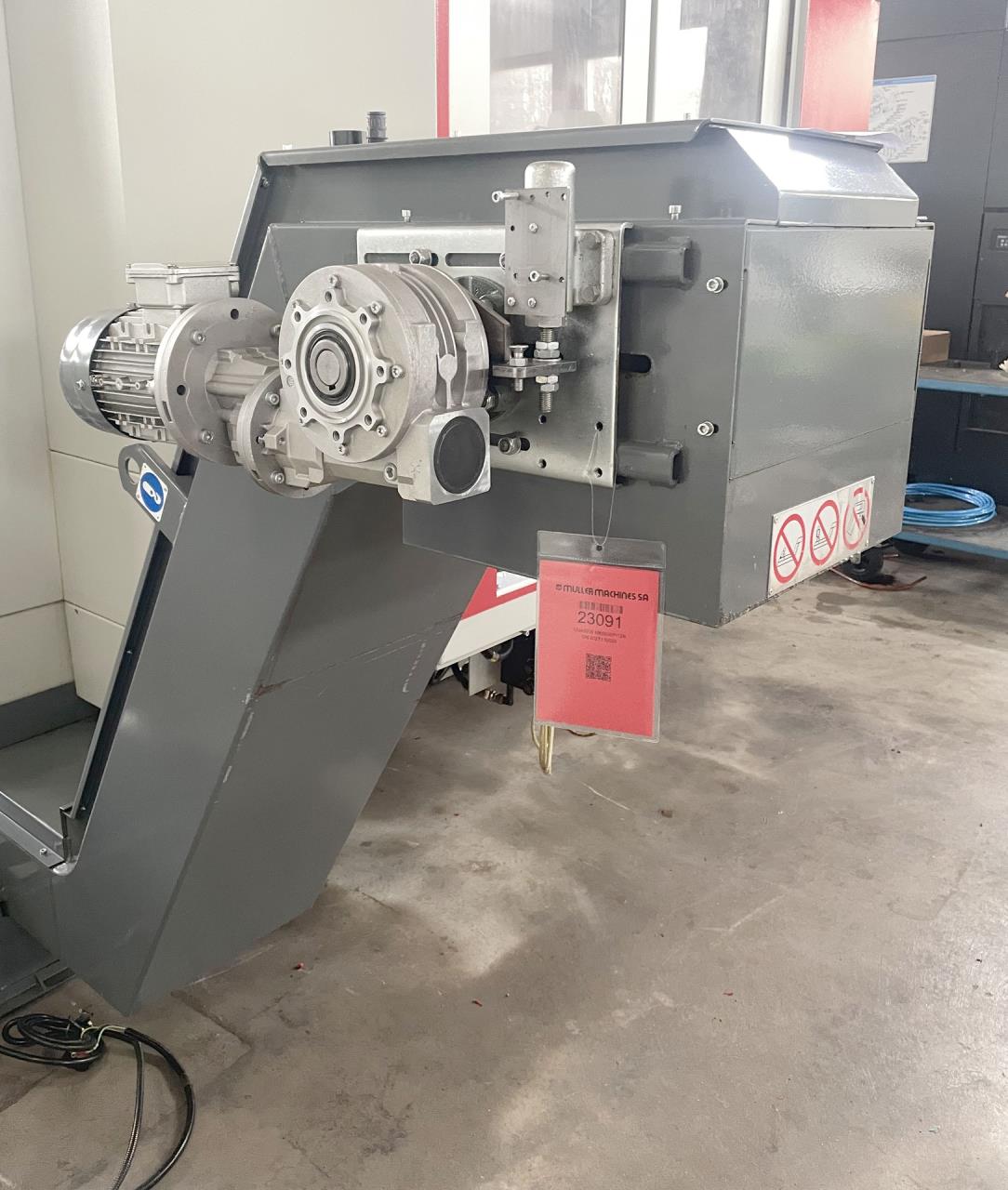

Chip conveyor

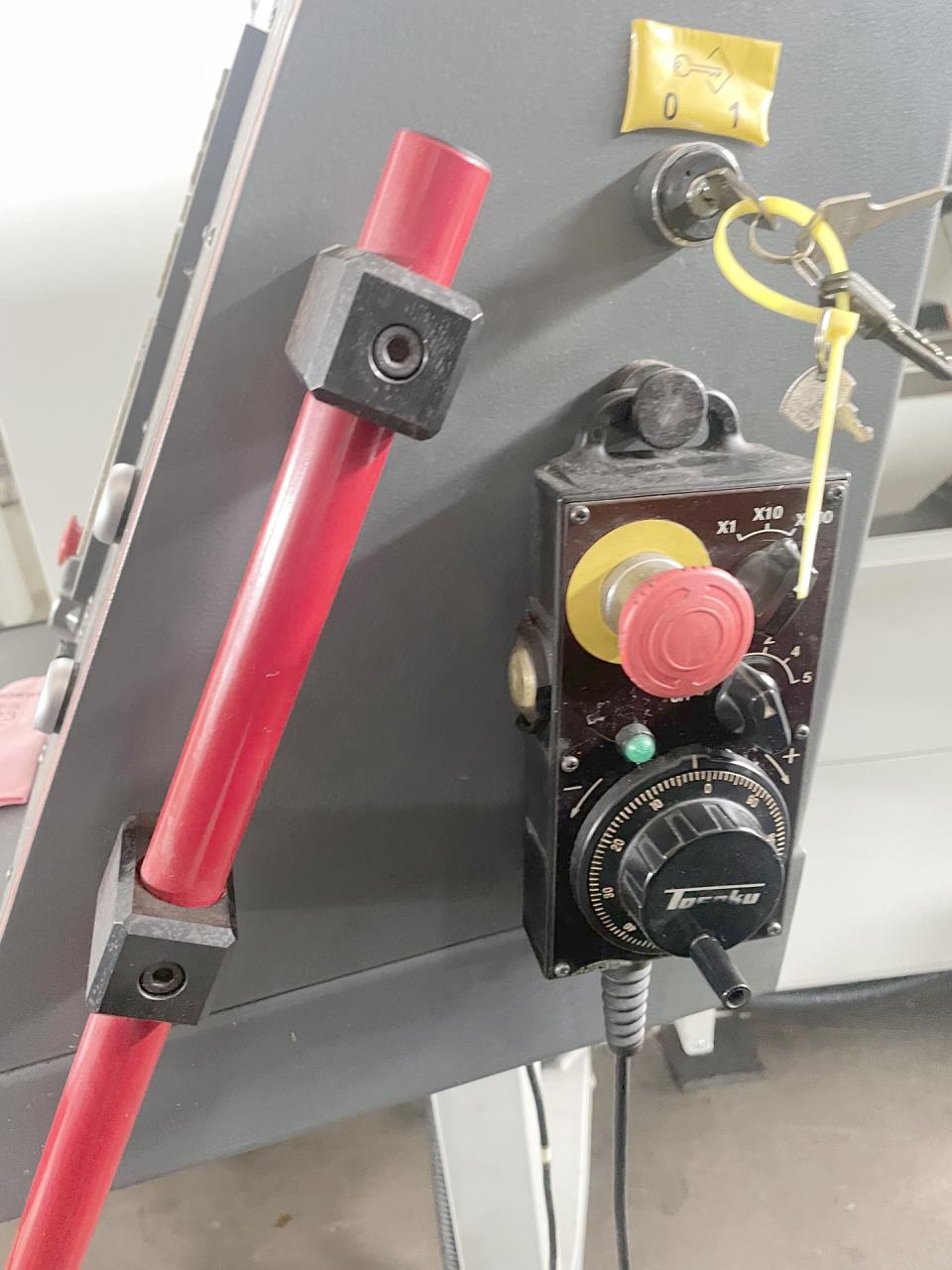

Handwheel electroinic

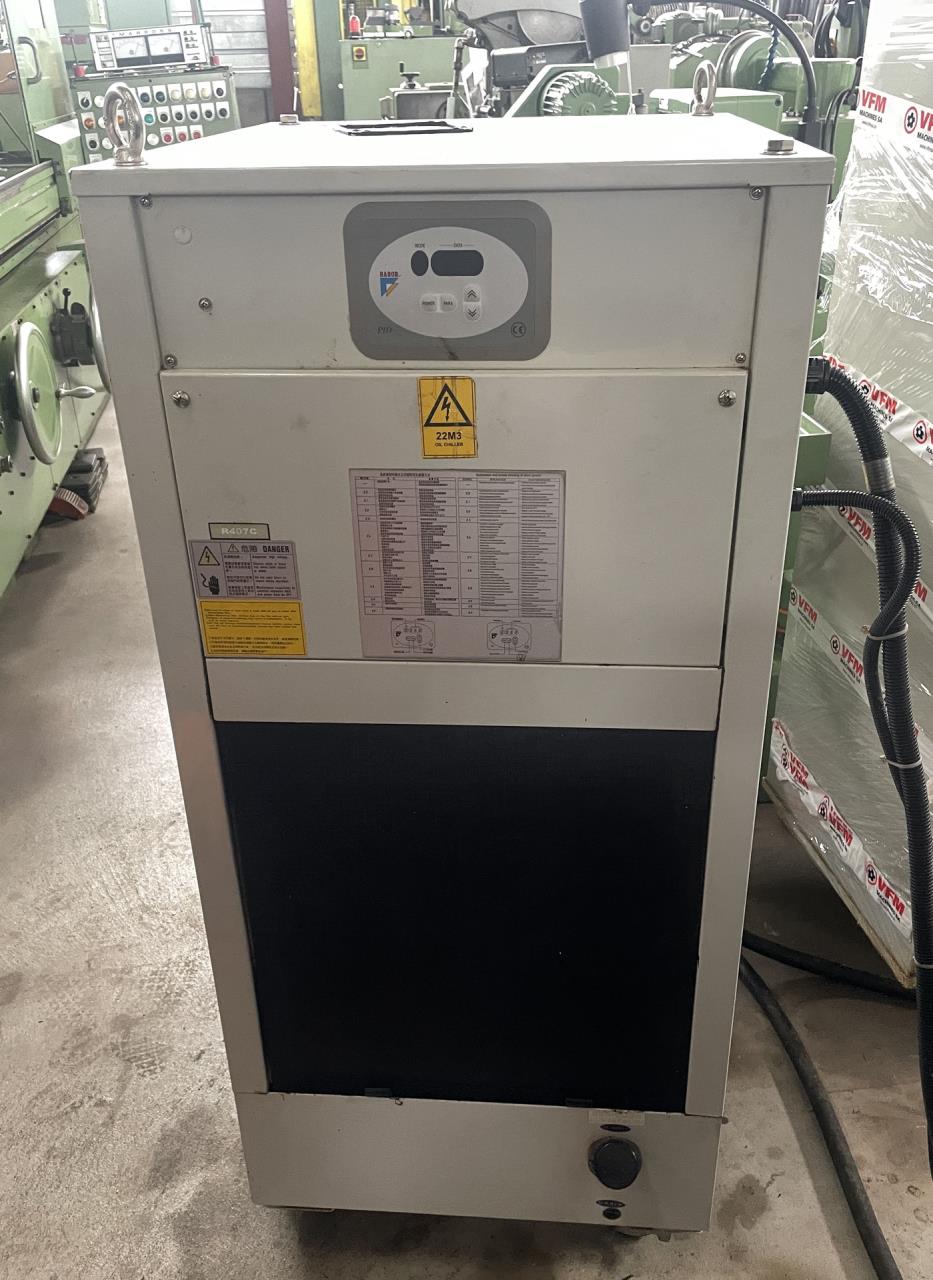

Spindle oil cooler
Interface serial port RS 232
Interface Ethernet
Technical specifications and pictures without guarantee.
