Technical data
Table length
700 mm
Table width
450 mm
Number of T-channels
4
T-channel width
14 mm
Table load max.
450 kg
Longitudinal travel (X-axis)
610 mm
Transversal travel (y-axis)
420 mm
Vertical travel (z axis)
420 mm
Tool magazine number of tool places
20
Tool diameter max.
63 mm
Diameter with free adjacent pockets
100 mm
Tool lenght
200 mm
Max. tool-weight
4 kg
Spindle nose: ISO
40
Distance spindle nose to table
150 - 600 mm
Spindle speeds:
stepless
from
65 - 8000 rpm
Feed range
1 - 10000 mm/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
5.5 / 7.35 kW
Total power required
24 kVA
Machine's weight about
3500 kg
Length
2600 mm
Width
2150 mm
Height
2500 mm
Various accessories:

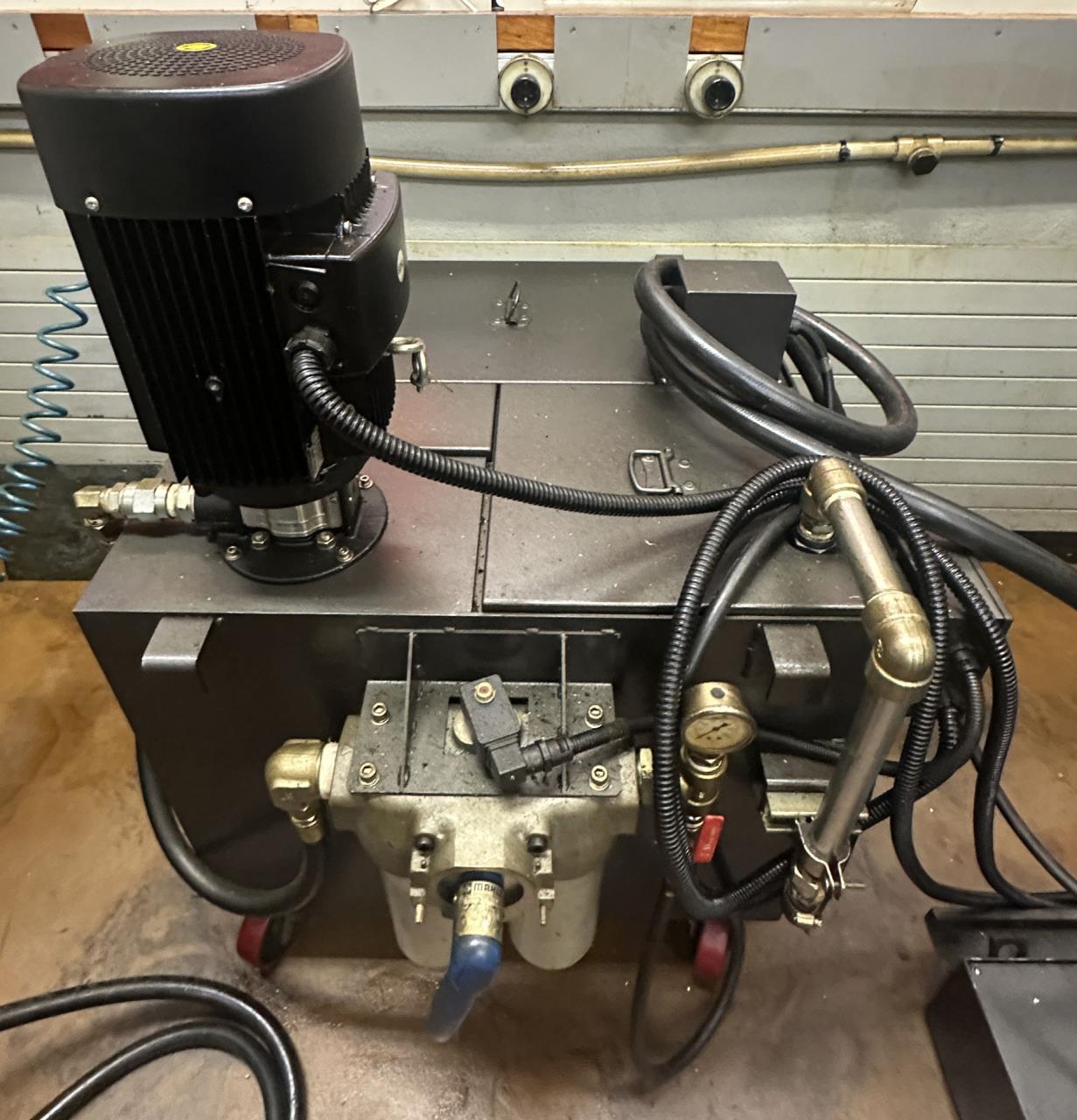

Coolant system
Chip conveyor
Handwheel electroinic
Lamp

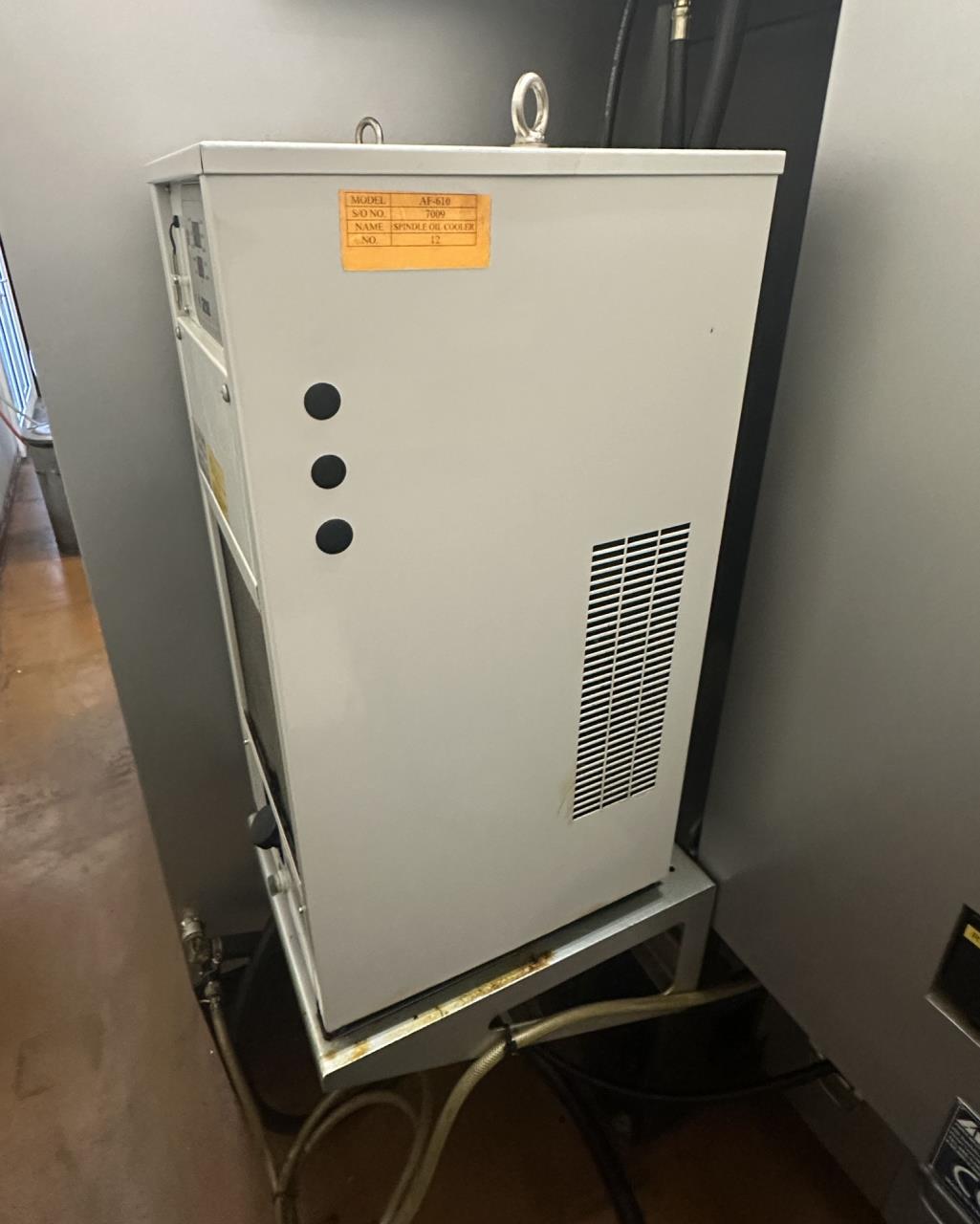

Spindlecooling
Interface serial port RS 232
Automatic central lubrication
Status light
Technical specifications and pictures without guarantee.
