stock no. :
23064
Machine's group :
Type :
STAR SB 16 D

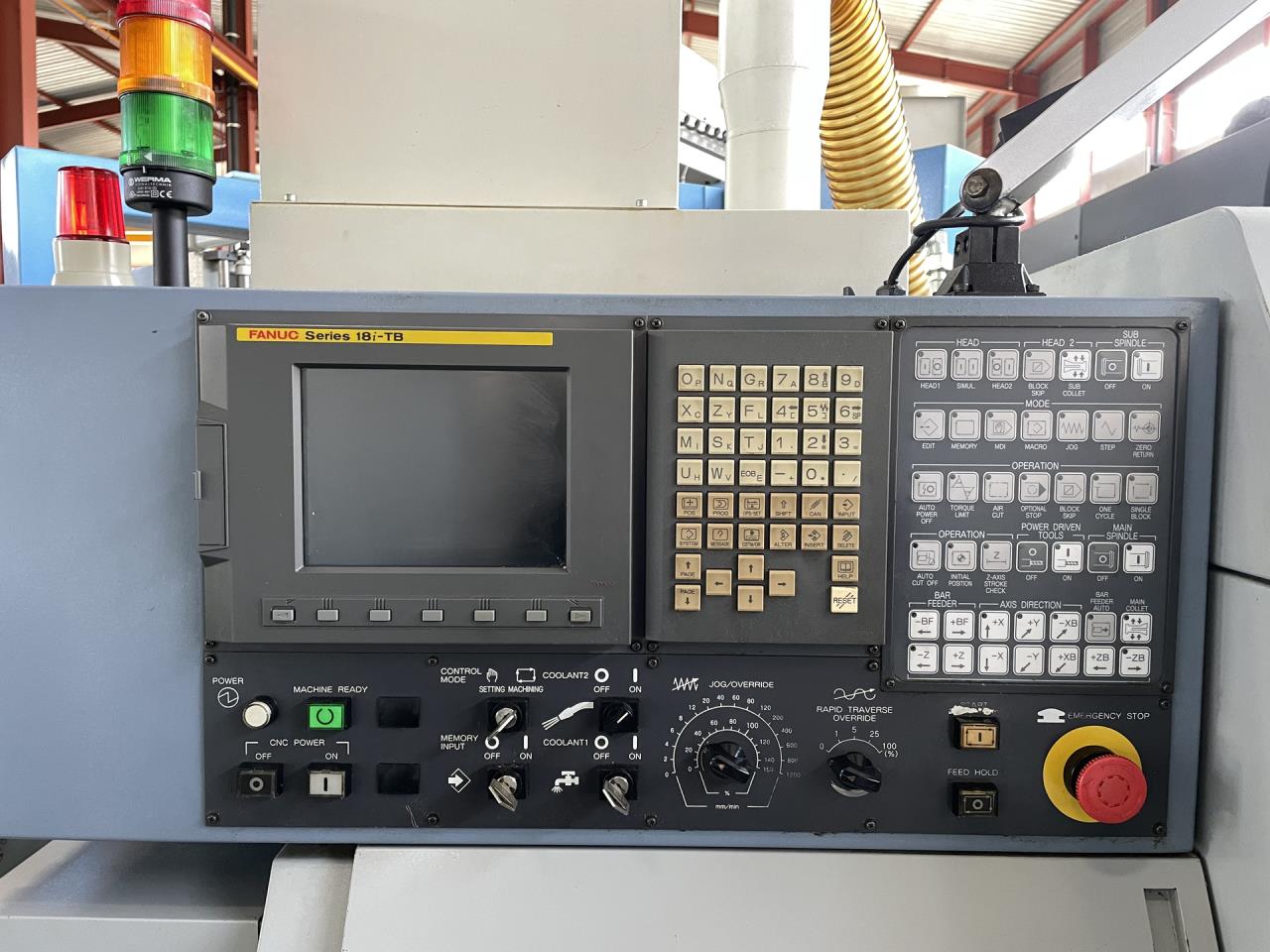

Controller :
FANUC Series 18i-TB
Jahrgang :
2007
Technical data
Max. turning diameter
16 mm
Turning length
155 / 205 mm
Max. drilling diameter
10 mm
Max. threading diameter
8 M (Metric)
number of tools
6
Spindle speeds:
stepless
from
500 rpm
up to
10000 rpm

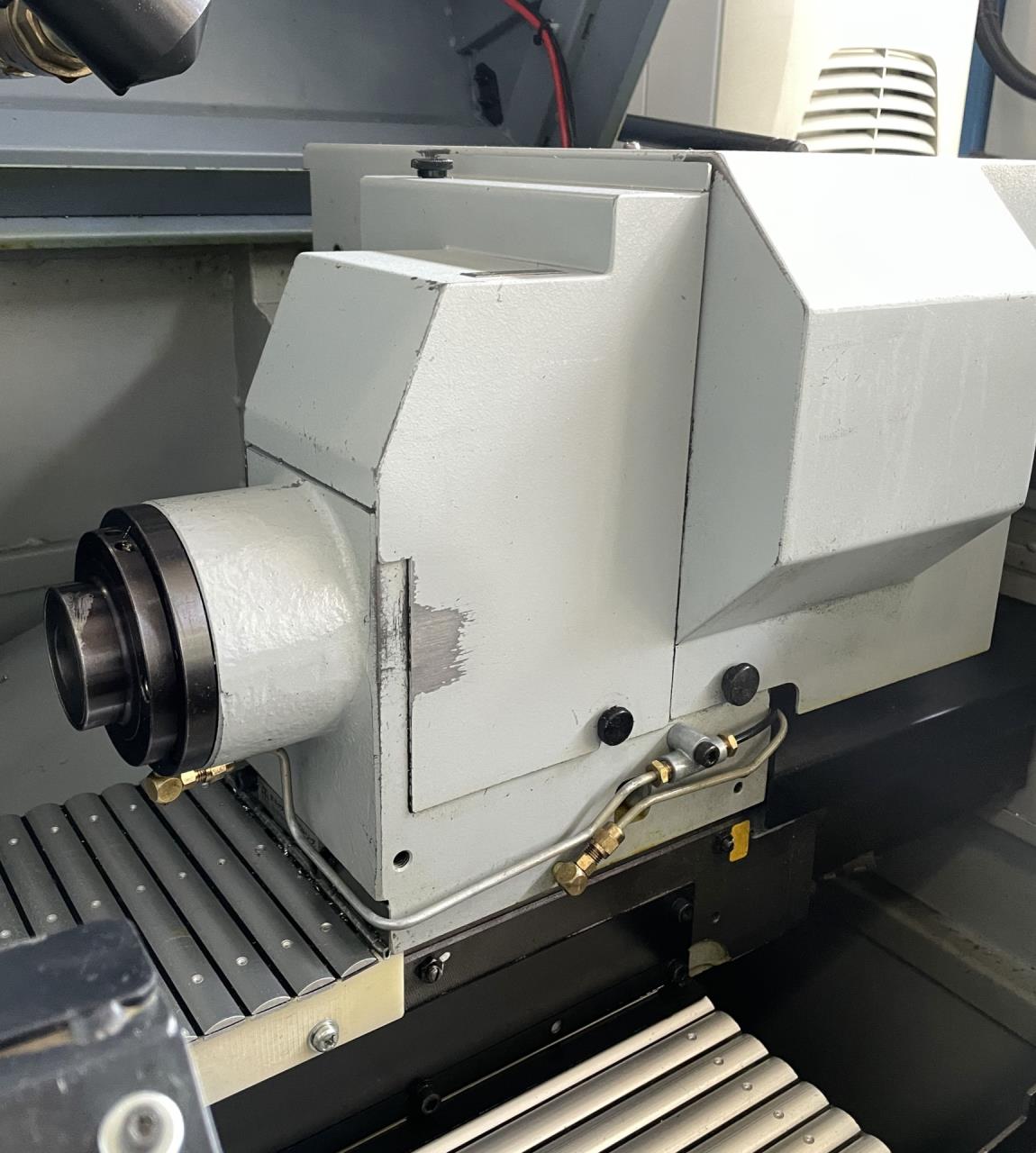

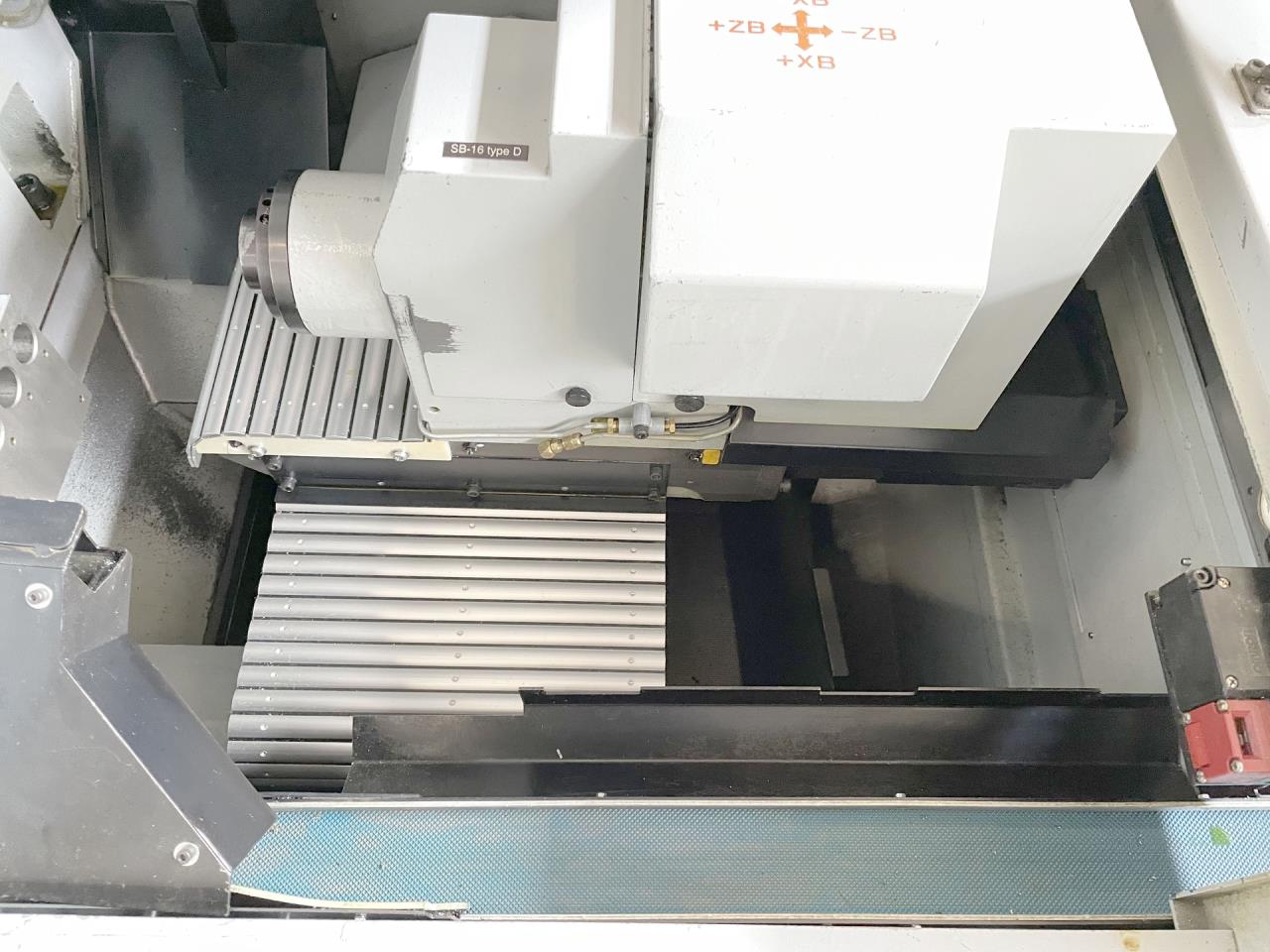

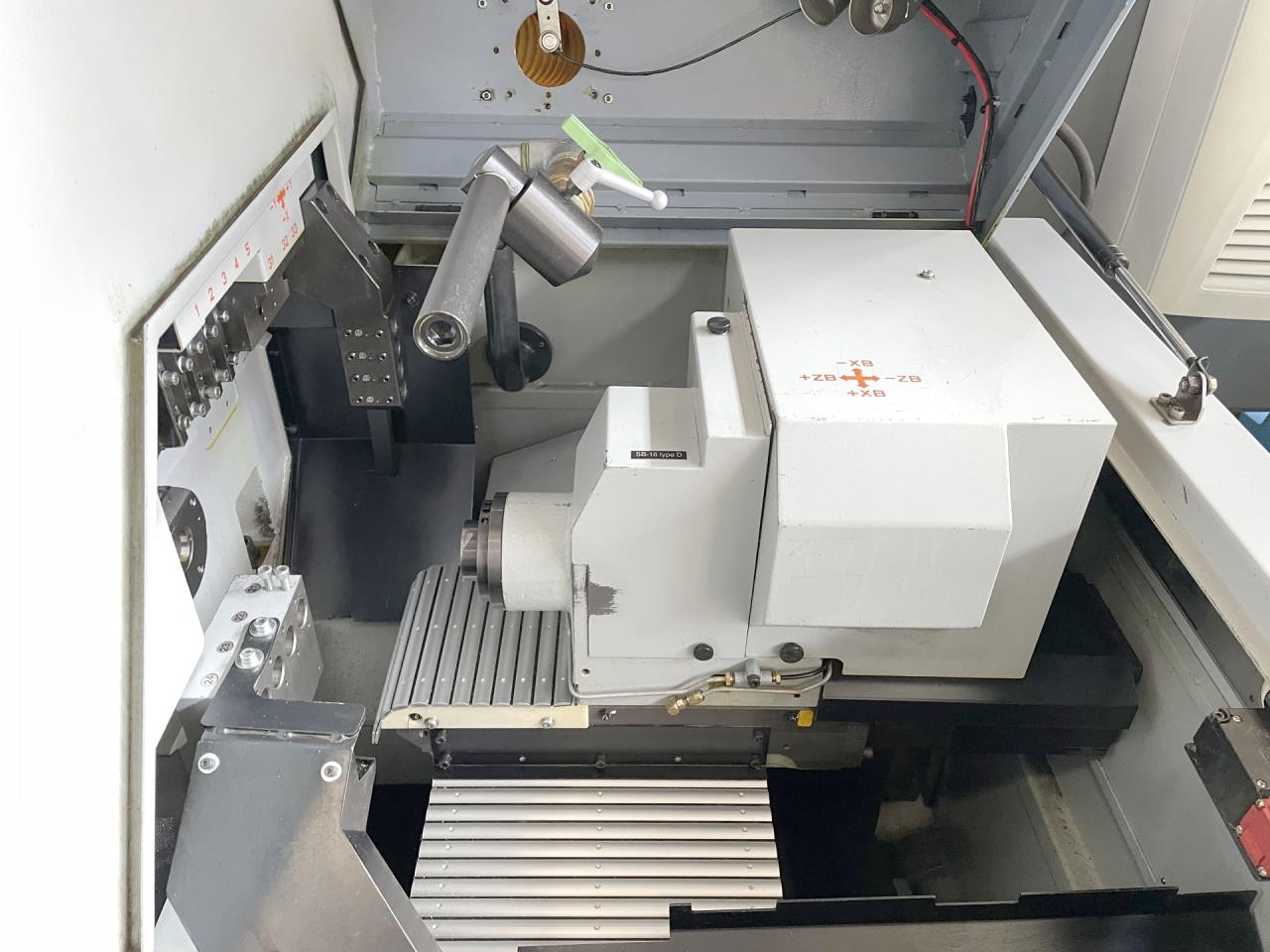

Back spindle:
speeds:
up to
8000 rpm
Thread drill diameter
6 M (Metric)
Back machining workpiece length max.
80 mm

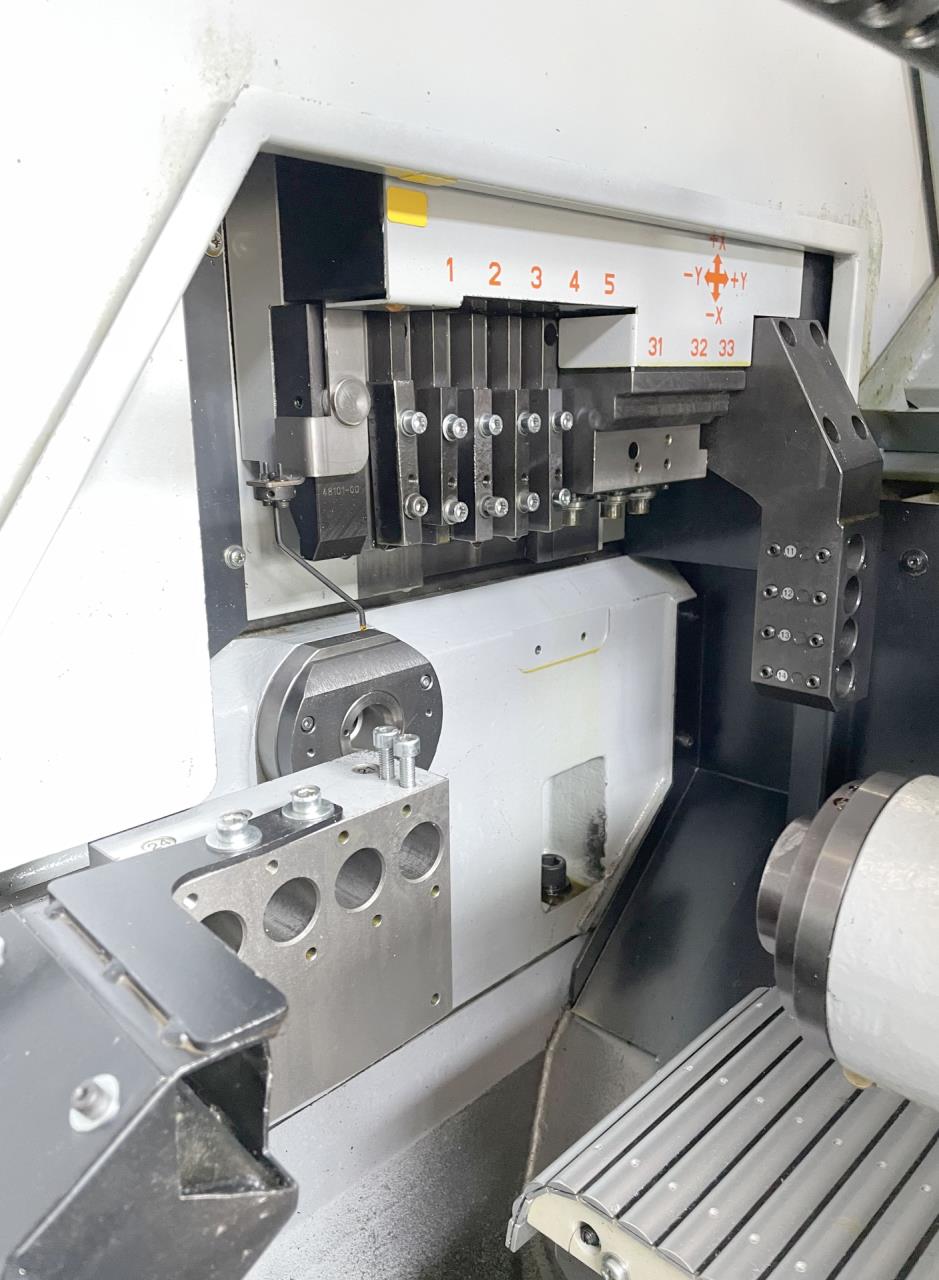

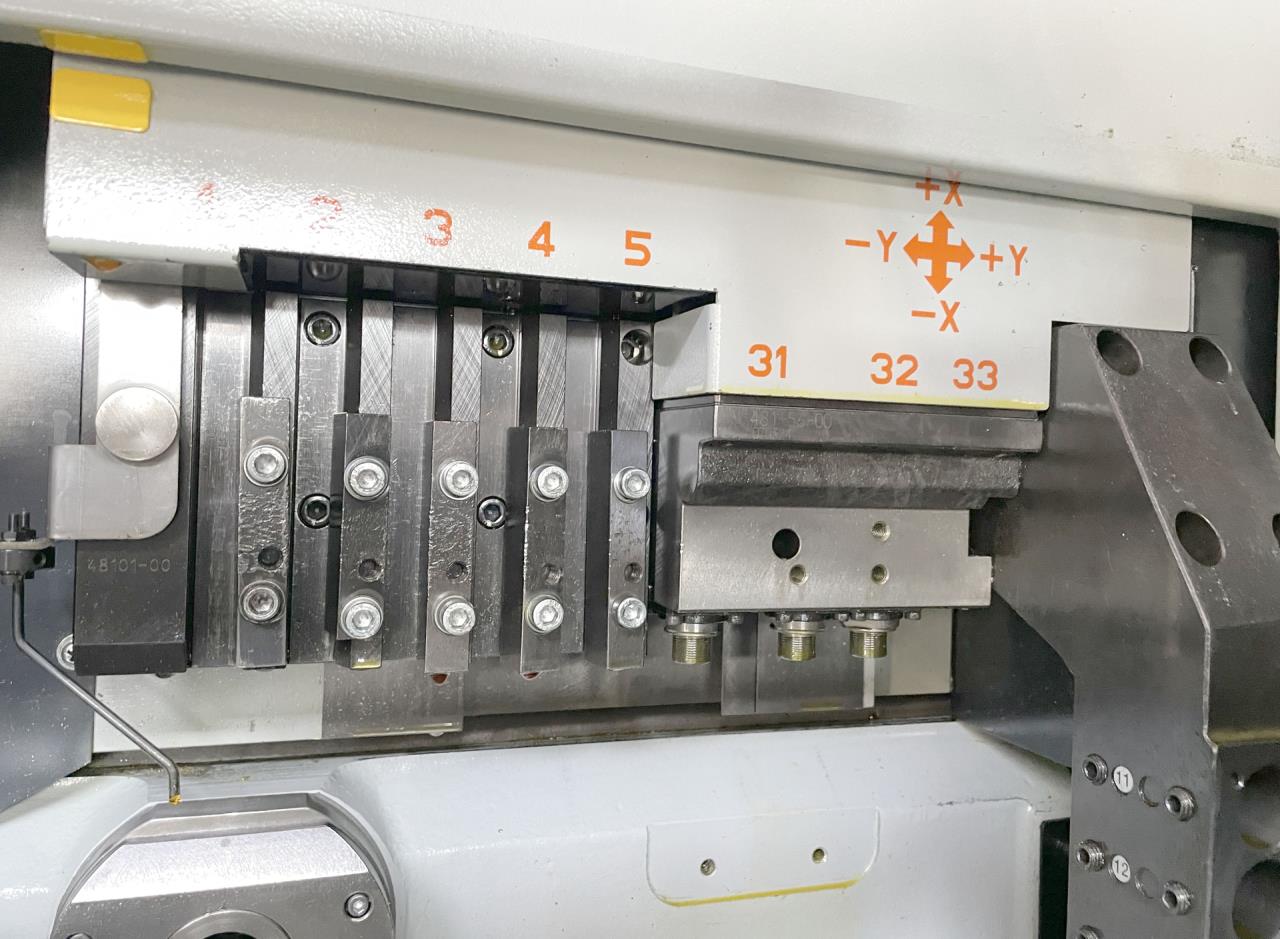

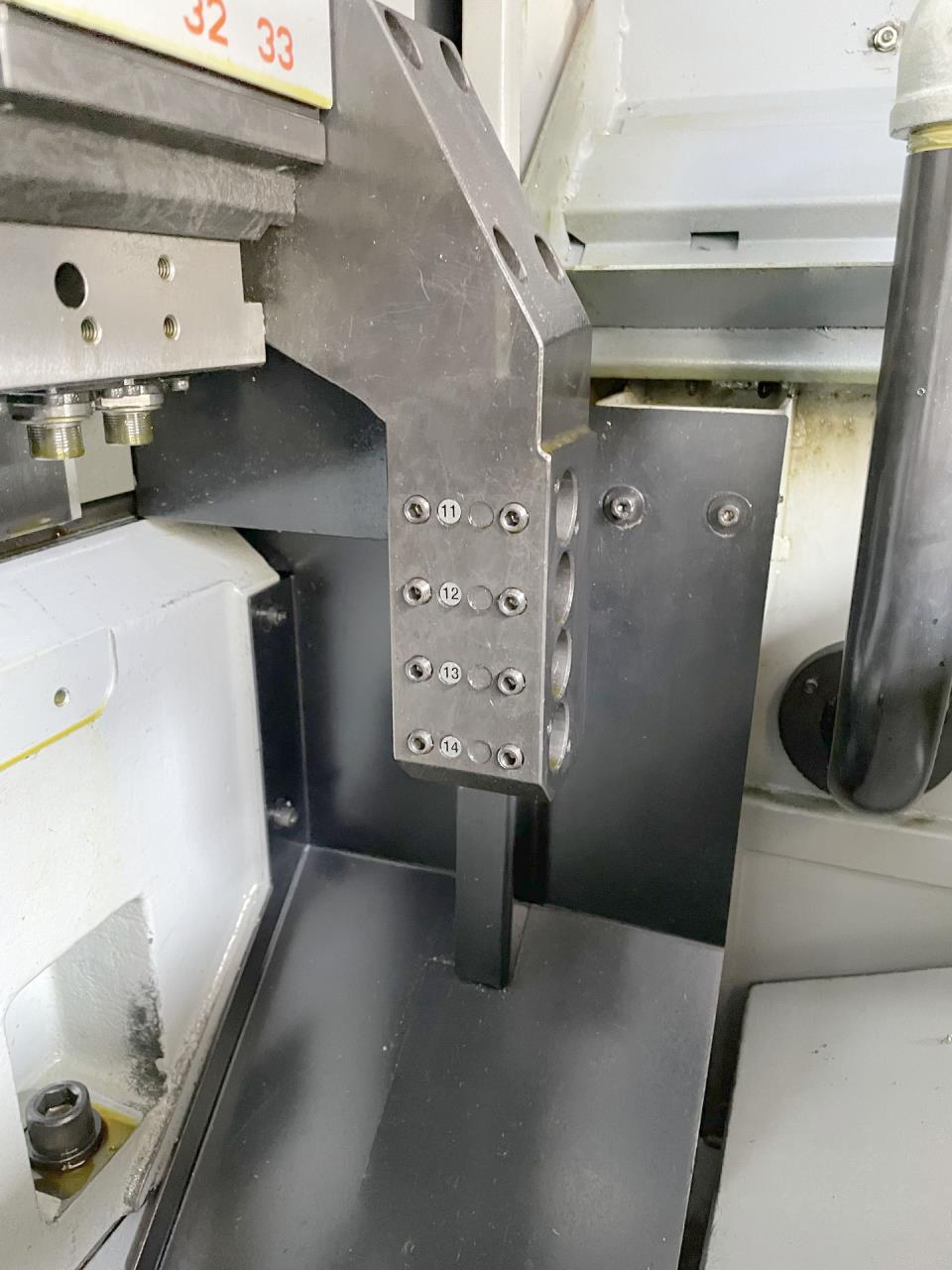

Tool-holder:
numbers
3
Number of stations
20
number of driven tools
3
Turning tools
5 pce
Drilling tools
12 pce
Spindle speeds (turning tools)
4000 rpm
Power of driven tools
0.4 kW
Rapid traverse:
35 m/min
C axis (spindle,resolution)
15 °
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Machine's weight about
1600 kg
Overall dimensions machine:
Length
1900 mm
Width
1100 mm
Height
1800 mm
Various accessories:

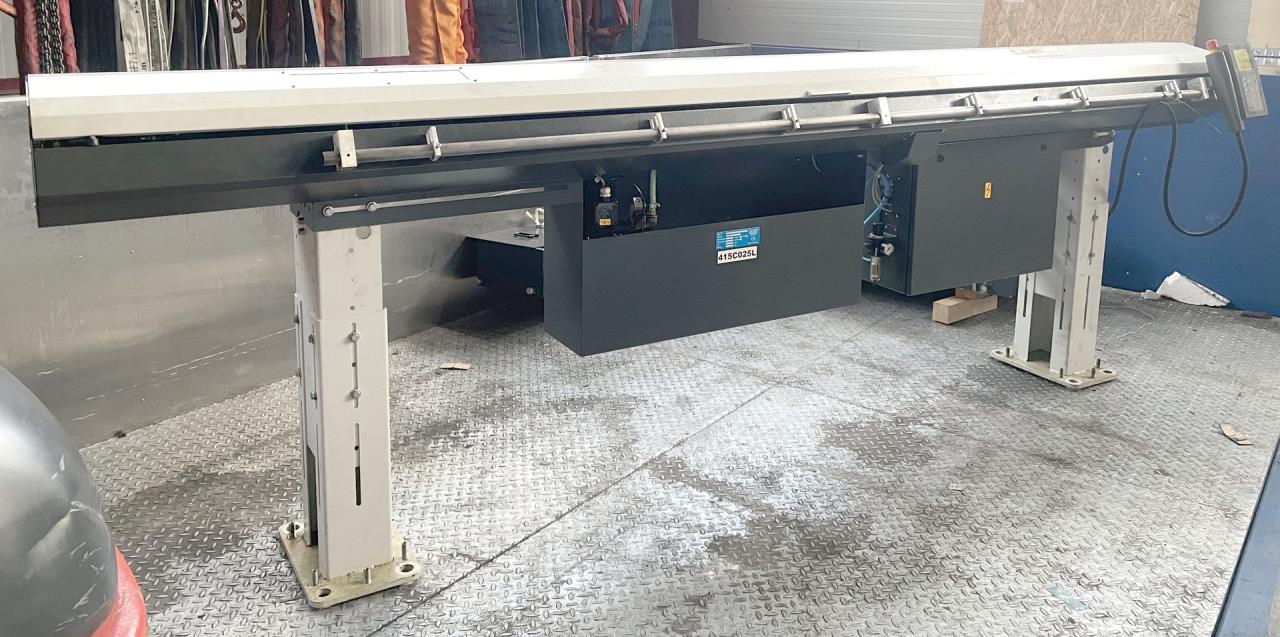

Bar feeder
Manufacturer
LNS
Type
HYDROBAR EXPRESS 220
Length of bars max.
3200 mm
Bar diameter
2 - 20 mm
Parts catcher

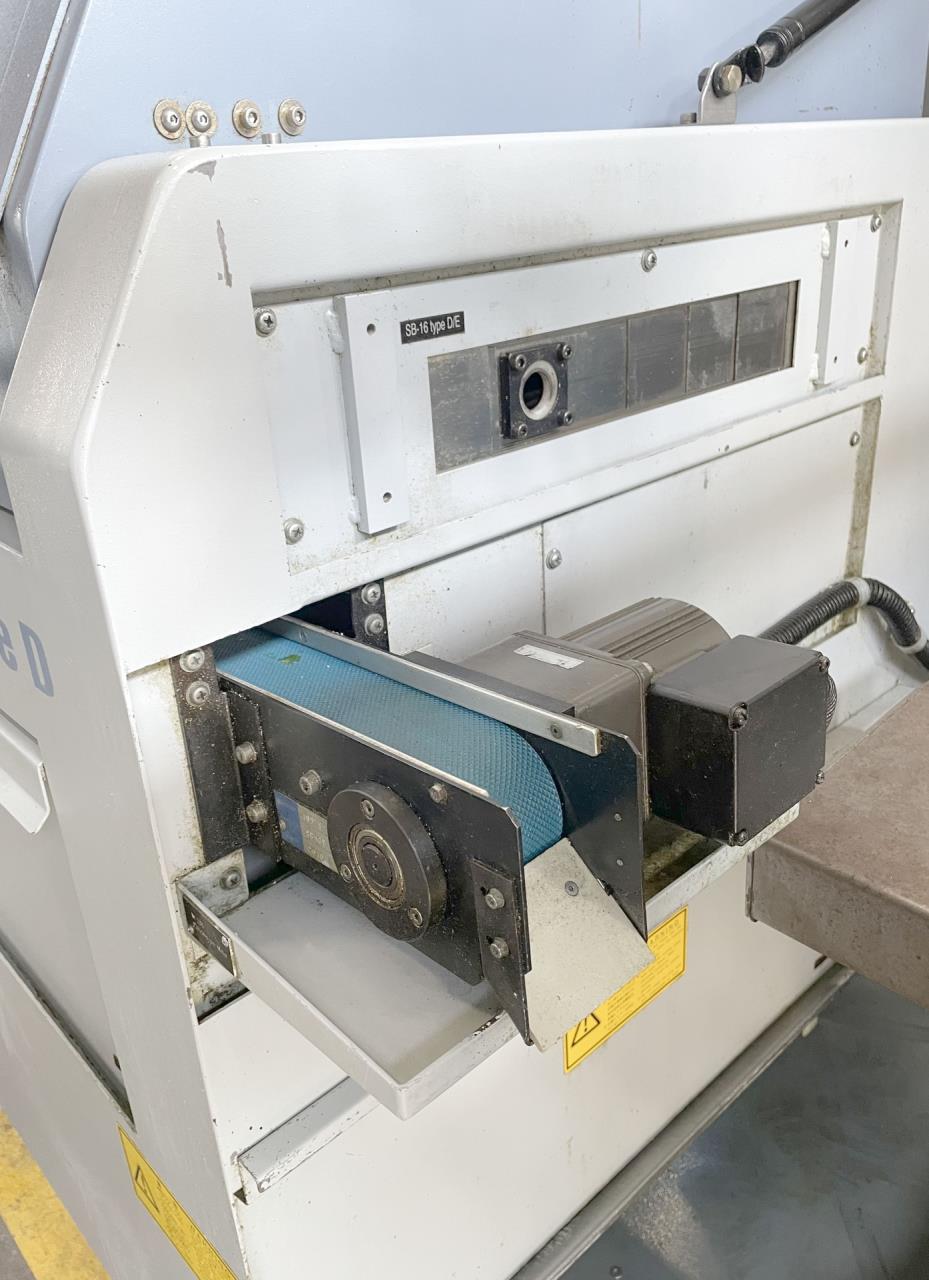

Workpiece conveyor
Lamp

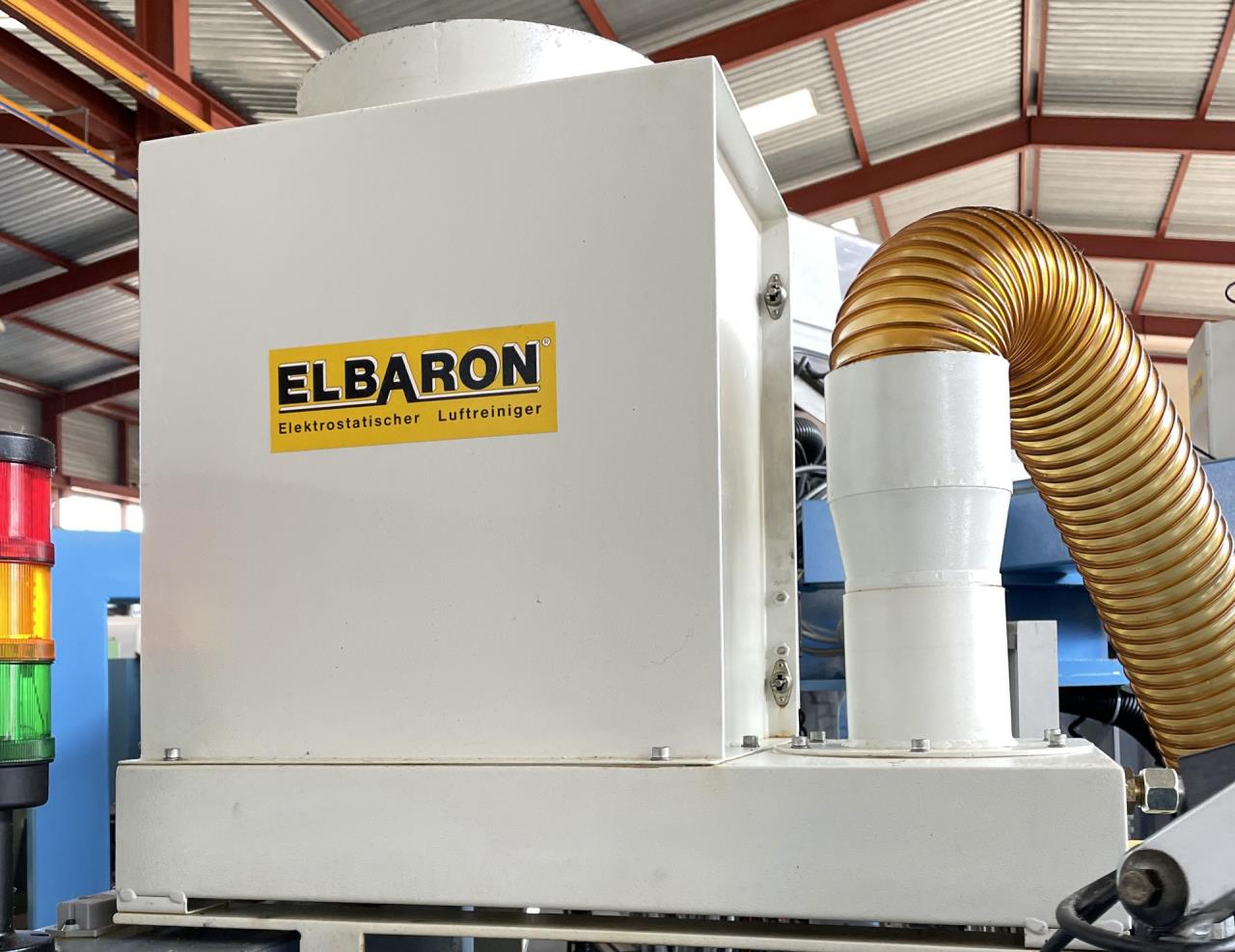

Oil mist extractor
ELBARON
Fire extinguishing system
Status light
Technical specifications and pictures without guarantee.
