Technical data
2 columns execution
Table length
1320 mm
Longitudinal travel (X-axis)
1200 mm
Transversal travel (y-axis)
600 mm
Travel of the vertical slide
635 mm
Passage from grinding motor to table
750 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Passage between the columns
950 mm
Max. angle with taper grinding:
up to
16 °
Planetary motion speeds: c axis
stepless
from
5 rpm
up to
300 rpm
Possible grinding-spindle speeds:
stepless
from
9000 rpm
up to
80000 rpm
With air-turbine max.
160000 rpm
Voltage 50 Hz 3x
380 Volt
Total power required
8.5 kVA
Machine's weight about
6300 kg
Overall dimensions machine:
Length
3000 mm
Width
2500 mm
Height
2870 mm

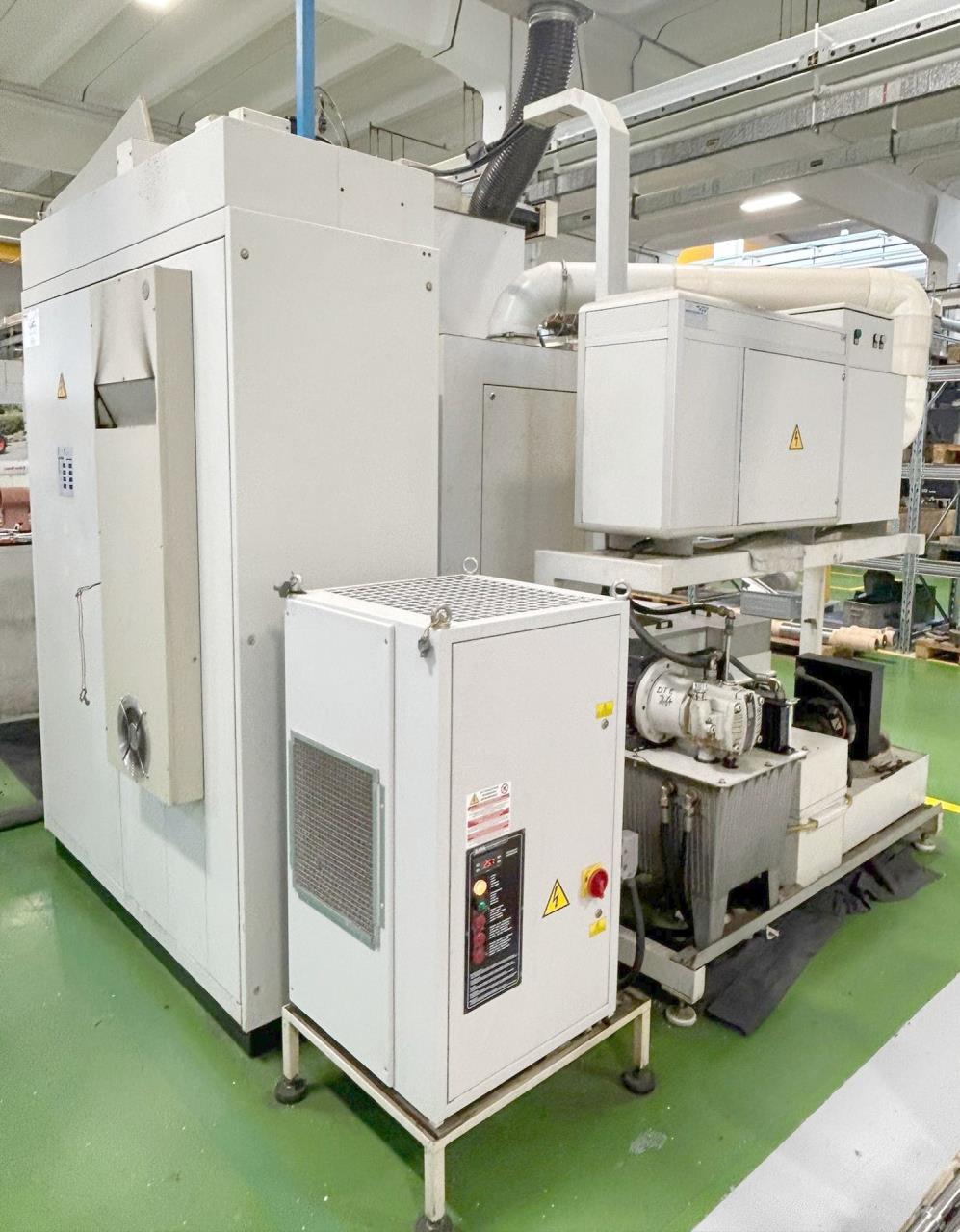

Various accessories:
Paper filtration system
MSS Multi-Sensoric-System
Fire extinguishing system
Oil mist extractor
Technical specifications and pictures without guarantee.
