Technical data
Min. grinding diameter
0.1 mm
Max. grinding diameter
12 mm
Width of the grinding wheel
50 mm
for infeed grinding
50 mm

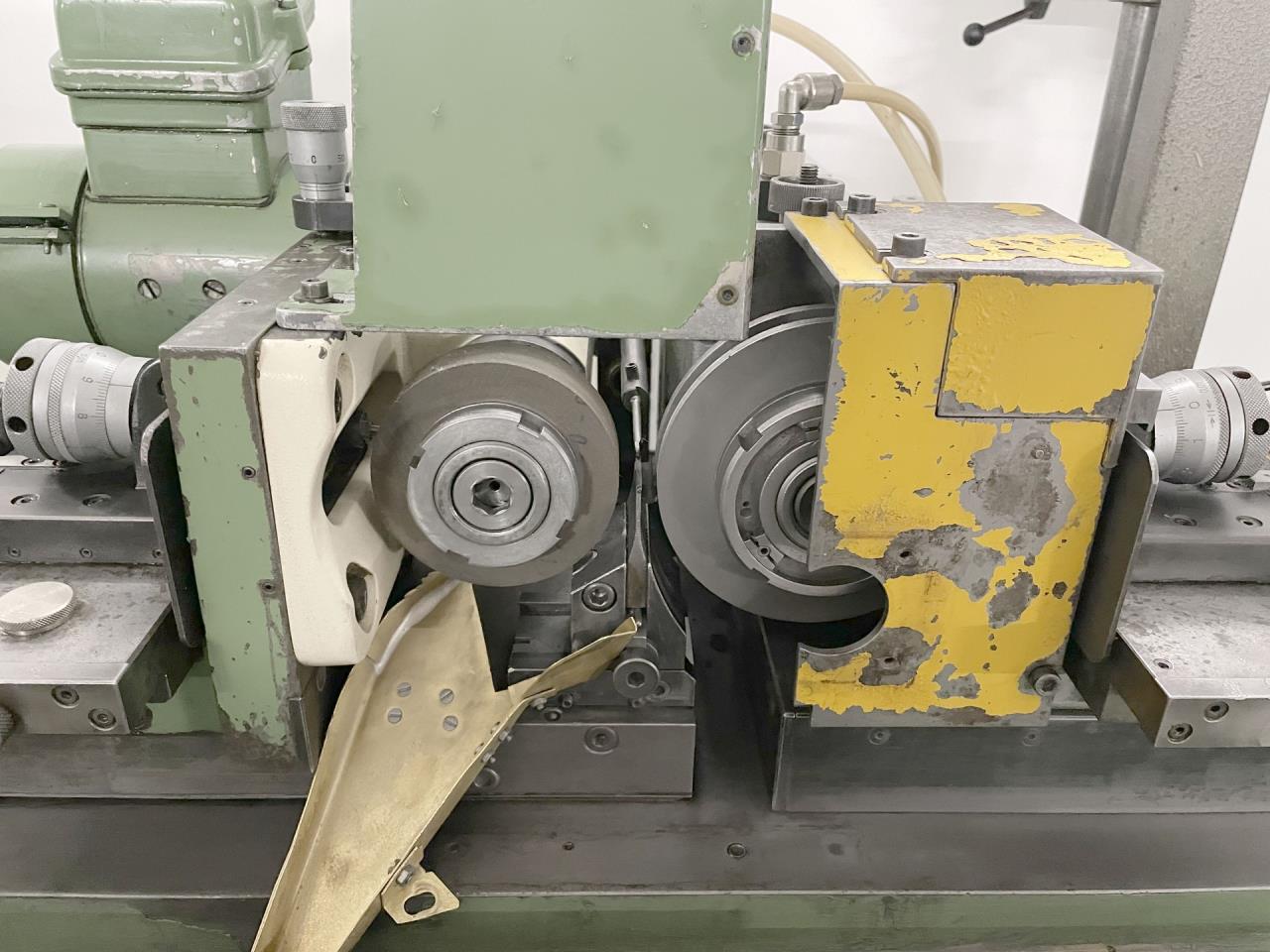

Grinding wheel:
diameter new wheel
150 mm
Width
50 mm
Bore
50 mm
Speeds:
up to
4500 rpm
Regulating spindle:
diameter new wheel
100 mm
Width
50 mm
Bore
40 mm
Speeds:
stepless
from
15 rpm
up to
150 rpm
Voltage 50 Hz 3x
380 Volt
grinding motor
1.5 kW
Regulating wheel motor
0.25 kW
Machine's weight about
650 kg
Overall dimensions machine:
Length
1200 mm
Width
800 mm
Height
1200 mm

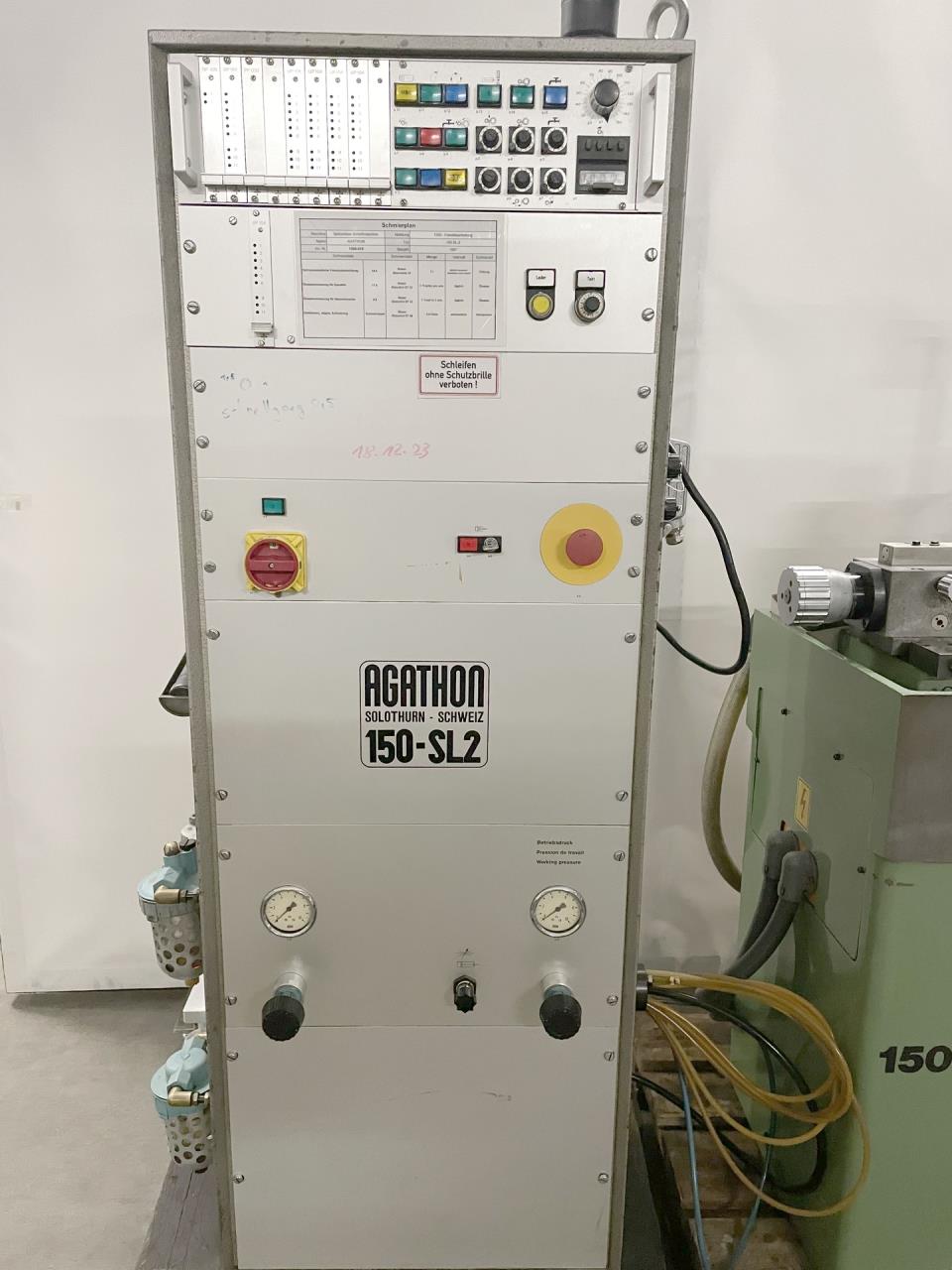

Dimensions of the control:
Length
500 mm
Width
400 mm
Height
1800 mm
Various accessories:
Lamp

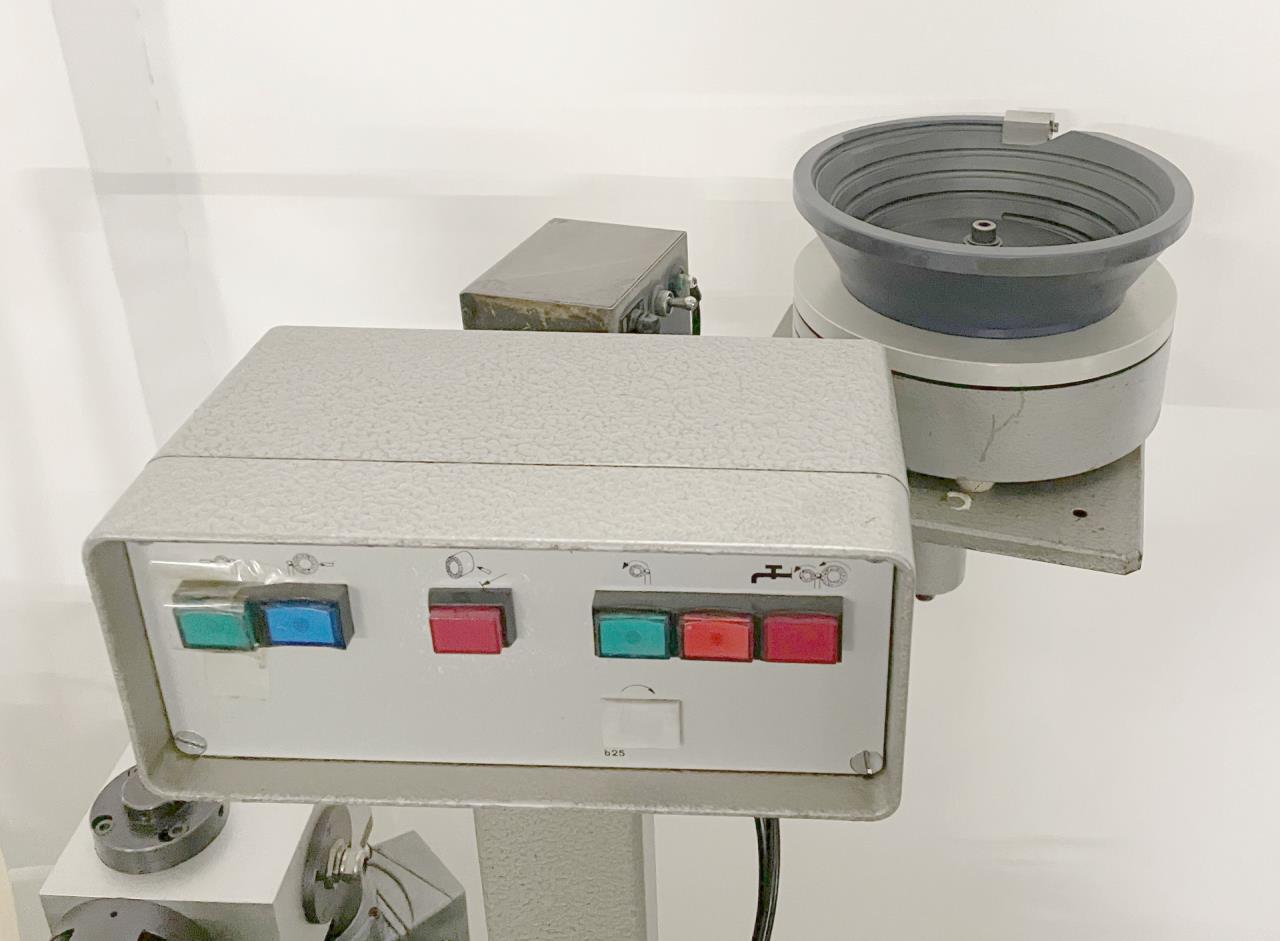

Vibrating / oscillating conveyor

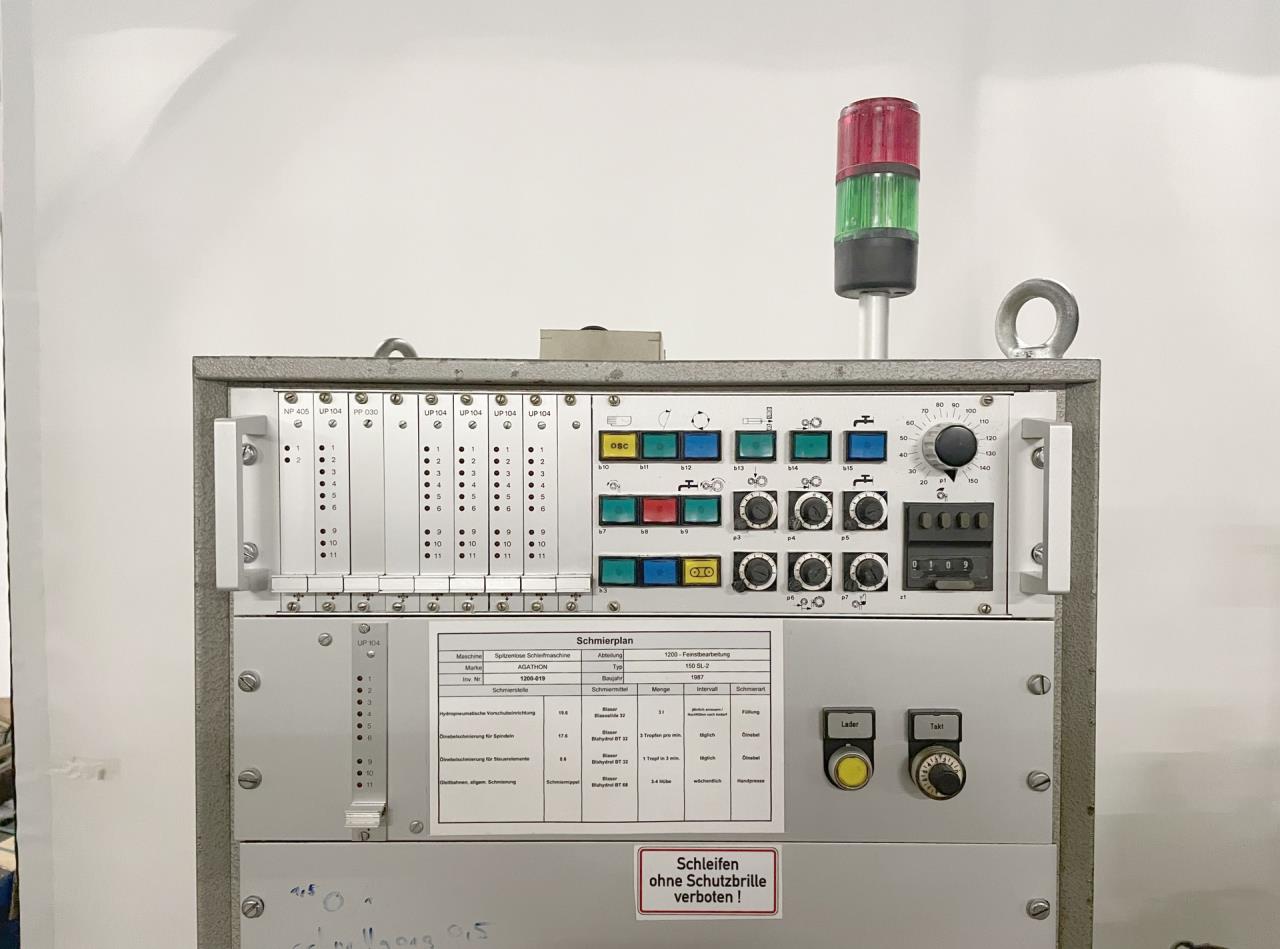

Status light
Technical specifications and pictures without guarantee.
