Technical data
Number of spindles
6
Capacity round bar
16 mm
Capacity square bar
11 mm
Capacity hexagon bar
13 mm
Max. turning length
60 mm
Max. stroke of long slide
50 mm
Number of tools
11
Number of camshaft
speeds
630
Number of cross slides:
6
Max. stroke
100 mm
Stroke of independent feeds
45-100 mm
Spindle speeds:
stepless
from
250 rpm
up to
8000 rpm
Voltage 50 Hz 3x
380 Volt
Power
7.5 kW
Machine's weight about
2970 kg
Overall dimensions machine:
Length
2145 mm
Width
1000 mm
Height
1500 mm
Various accessories:

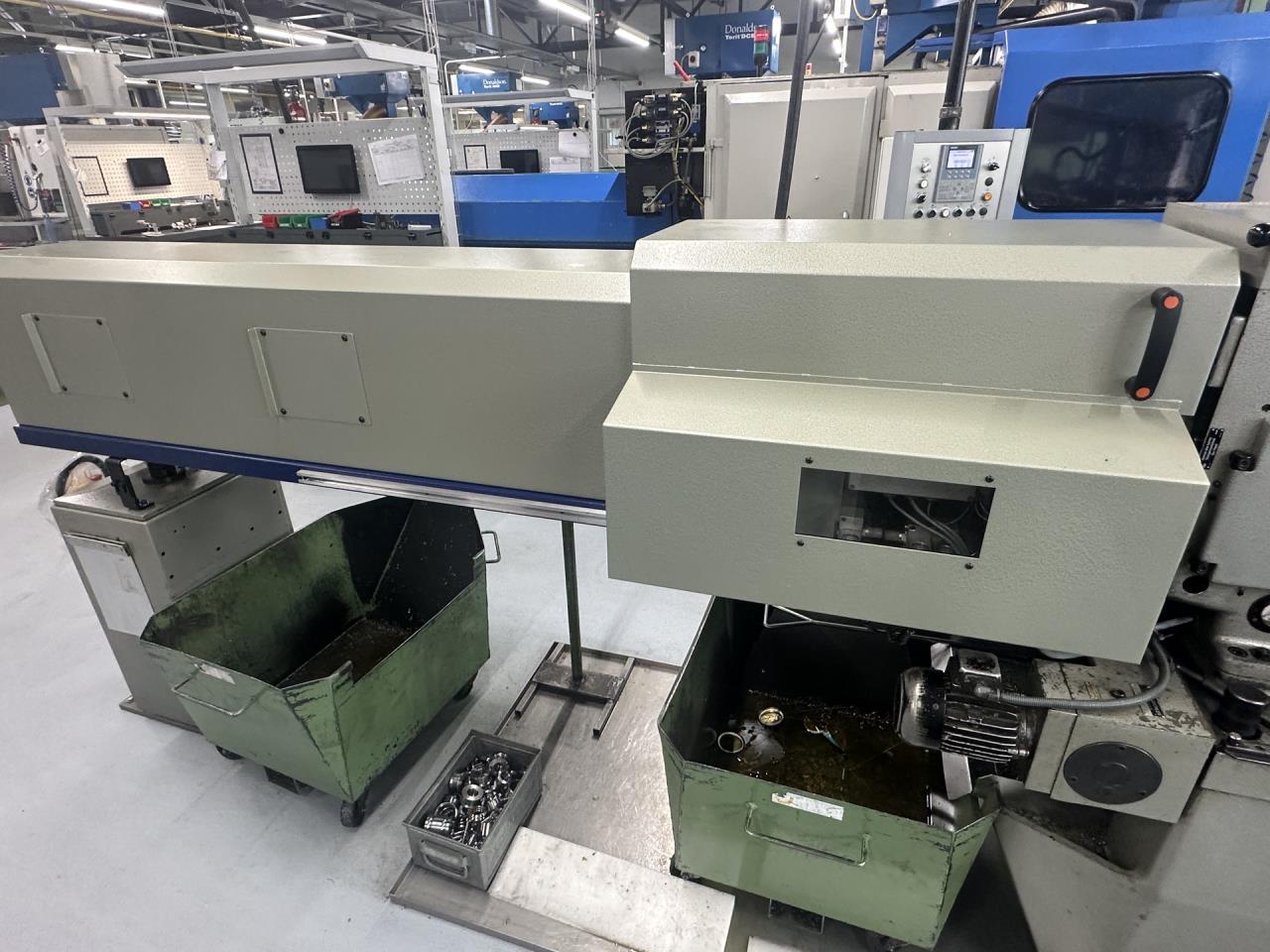

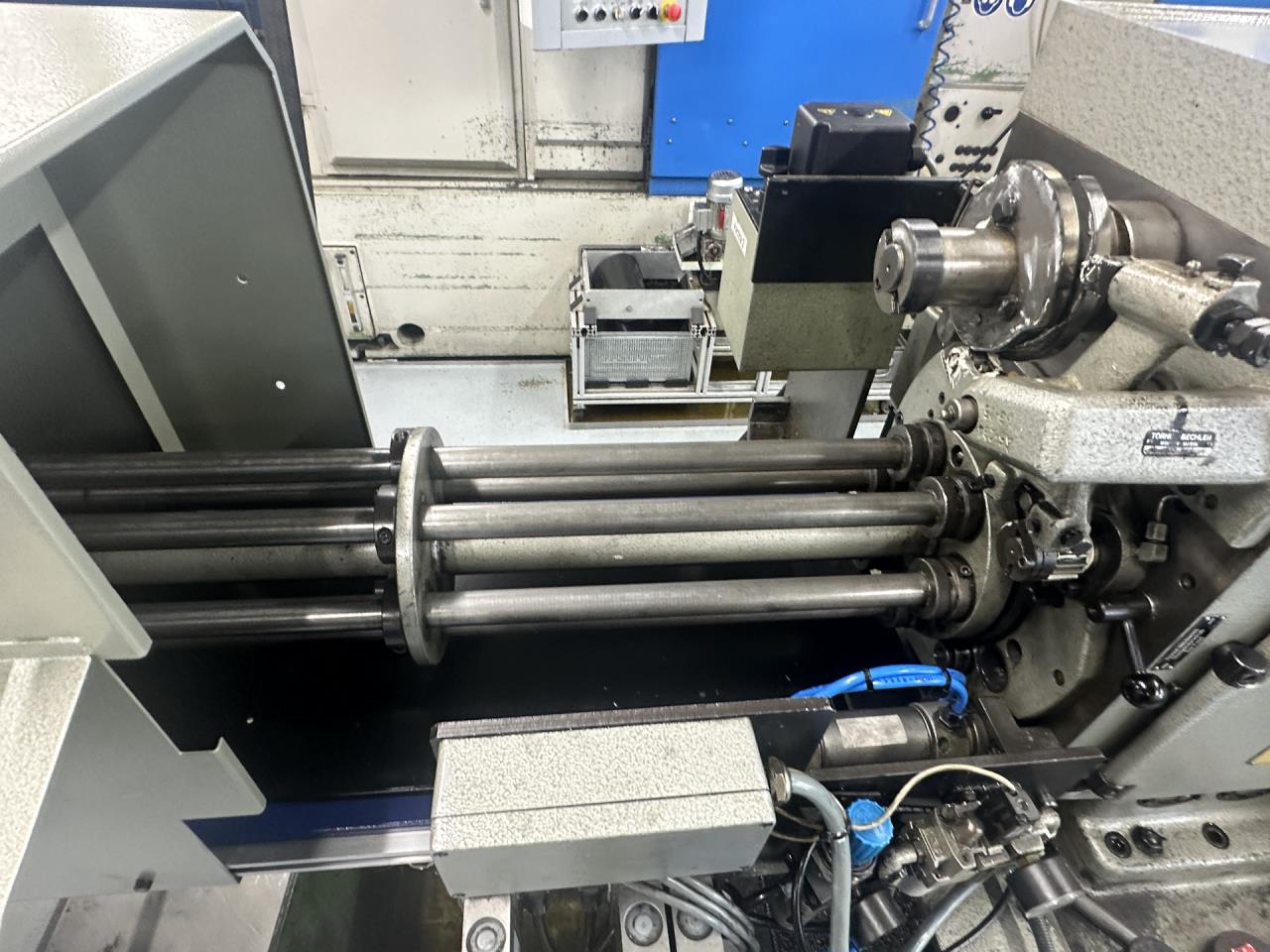

Automatic bar loader (num. bars)
Status light
Technical specifications and pictures without guarantee.
