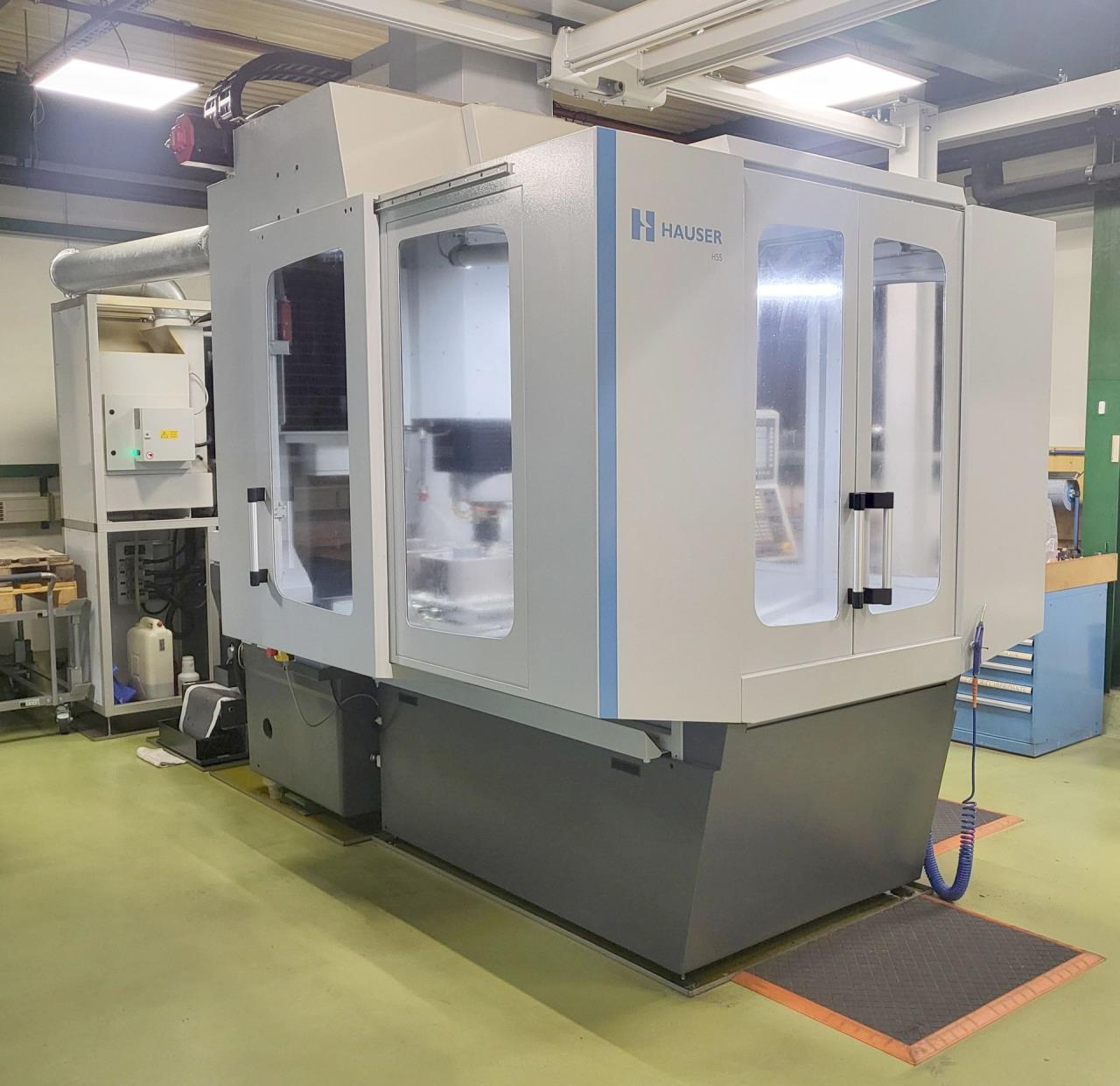

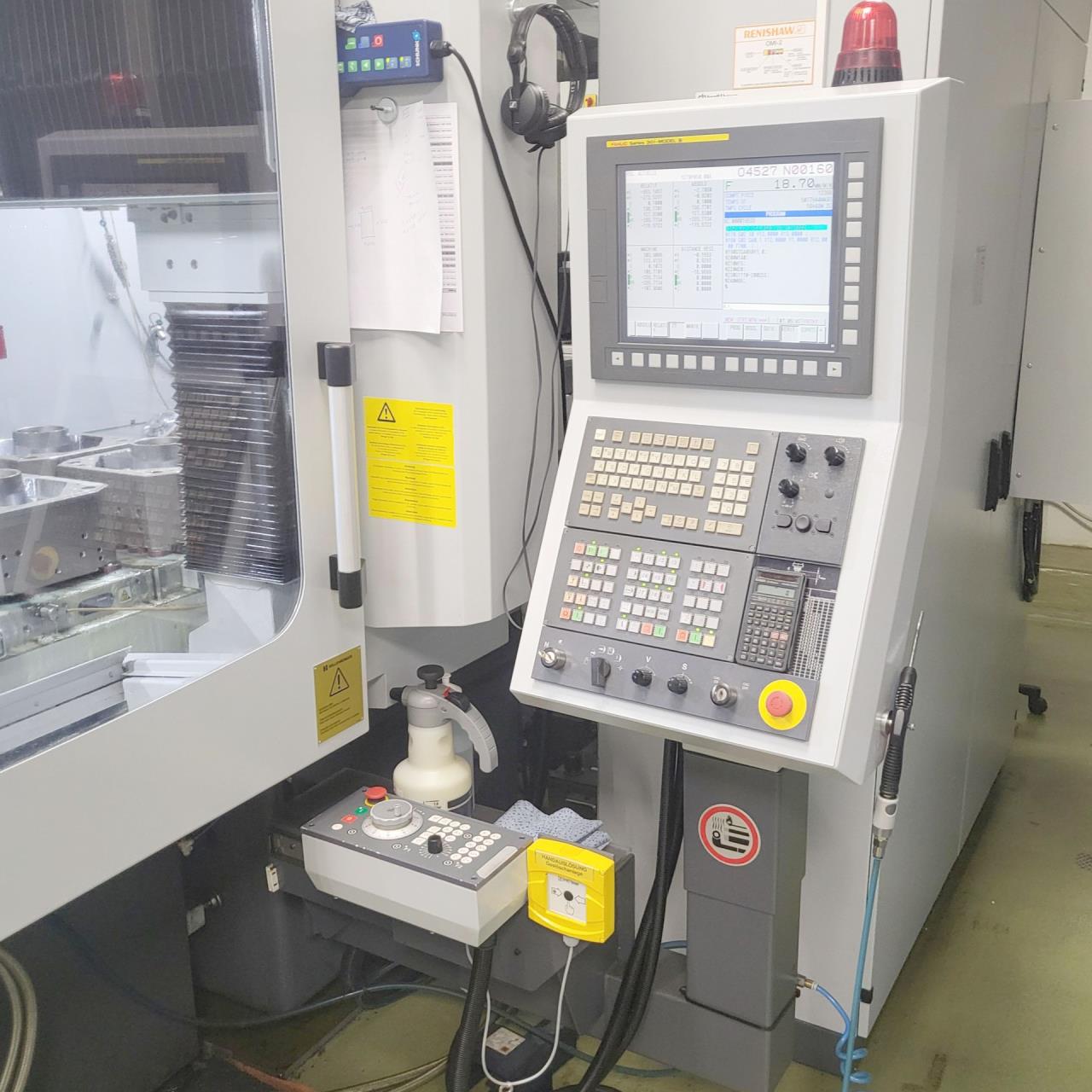

Technical data
Table:
Table length
1440 mm
Table width
860 mm
T-channel width
14 mm
Number of spline
7
Table load max.
800 kg

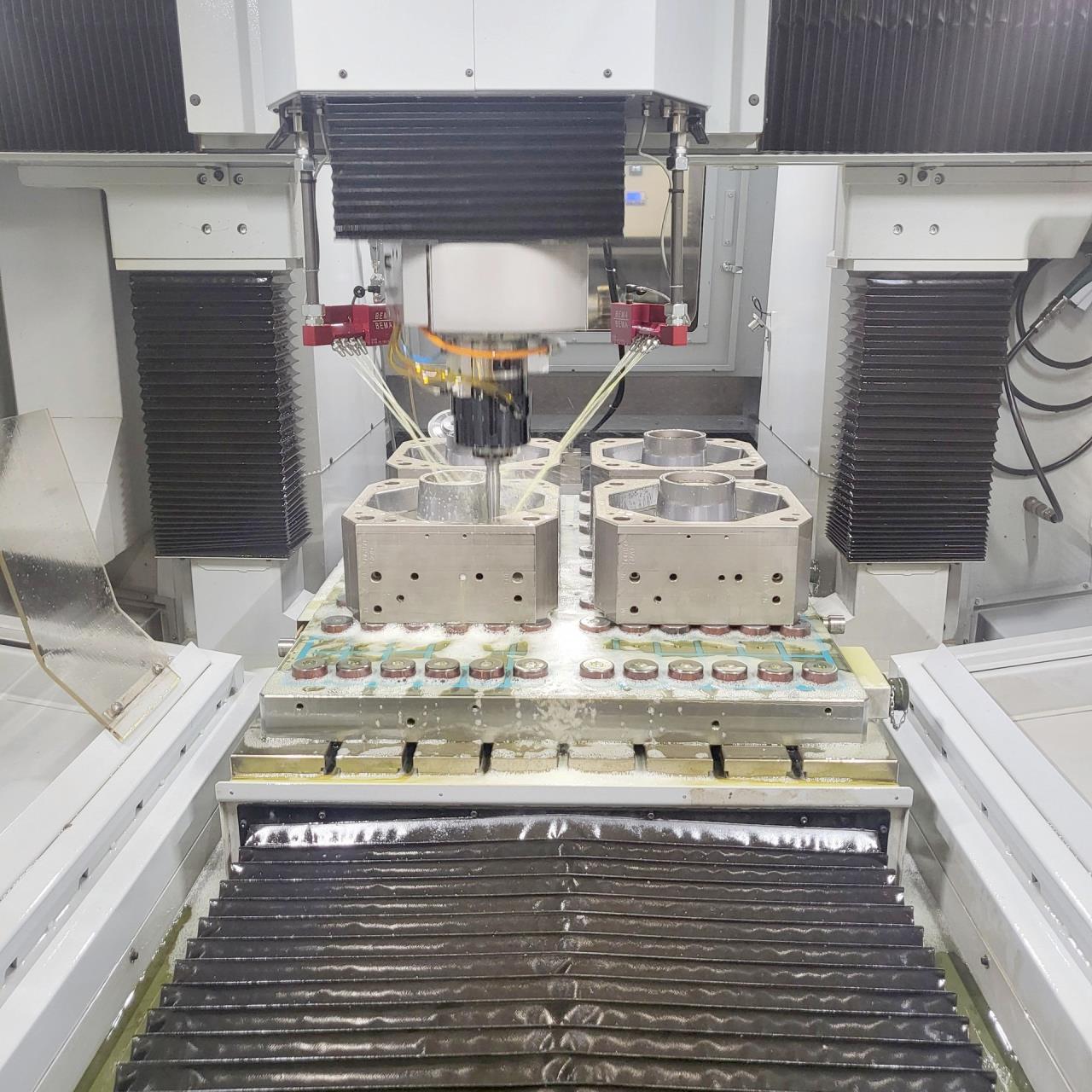

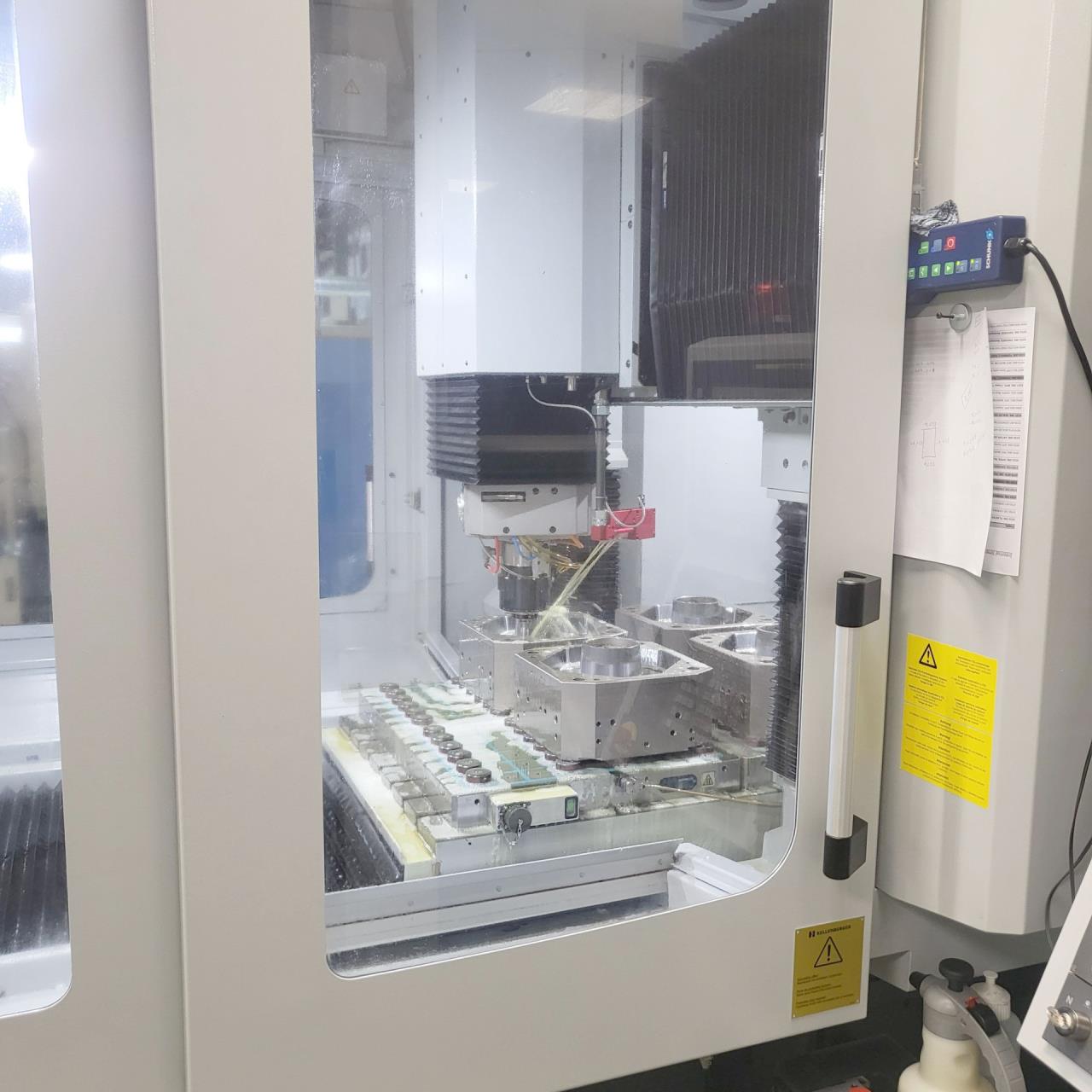

Carriage:
Longitudinal travel (X-axis)
1300 mm
Transversal travel (y-axis)
800 mm
Verticla travel (W-axis)
635 mm
Passage from grinding motor to table
0 - 710 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Passage between the columns
970 mm
Max. angle with taper grinding:
up to
16 °
Stroke speed Z-Axis:
Alternating stroke mouvement, infinitely adjust.
from Vmin.
0.5 mm/min
up to Vmax.
14000 mm/min
Stroke frequency Z
5 Hz
Stroke length Z, infinitely adjustable
170 mm
Radiale fine feed U-axis up to
5.5 mm
Planetary motion speeds: c axis
stepless
from
5 rpm
up to
300 rpm
Possible grinding-spindle speeds:
from
9000 rpm
up to
70000 rpm
Taper in spindle
HSK 25
Feeds:
X axis
0 - 2 m/min
Y axis
0 - 2 m/min
W axis
0 - 2000 mm/min
Air connect
6 - 10 bar
Voltage 50 Hz 3x
400 Volt
Total power required
9 kW
Machine's weight about
7000 kg
Overall dimensions machine:
Length
3900 mm
Width
2460 mm
Height
3000 mm
Various accessories:
Coolant system with paper band filter
Programmable coolant nozzle
Redressing device for ceramic bound cup grind.
Lamp
Feeler Renishaw
MSS Multi-Sensoric-System

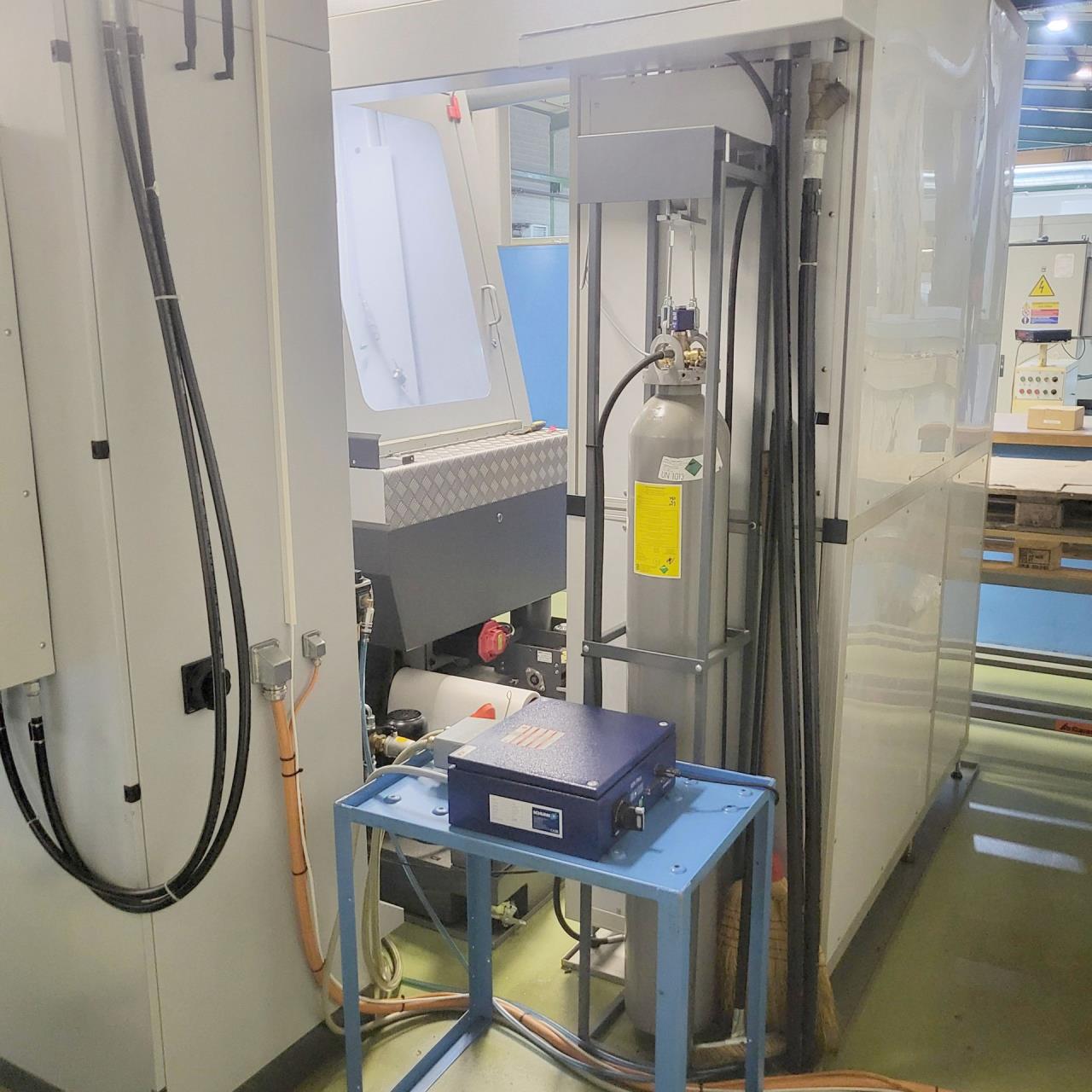

Fire extinguishing system

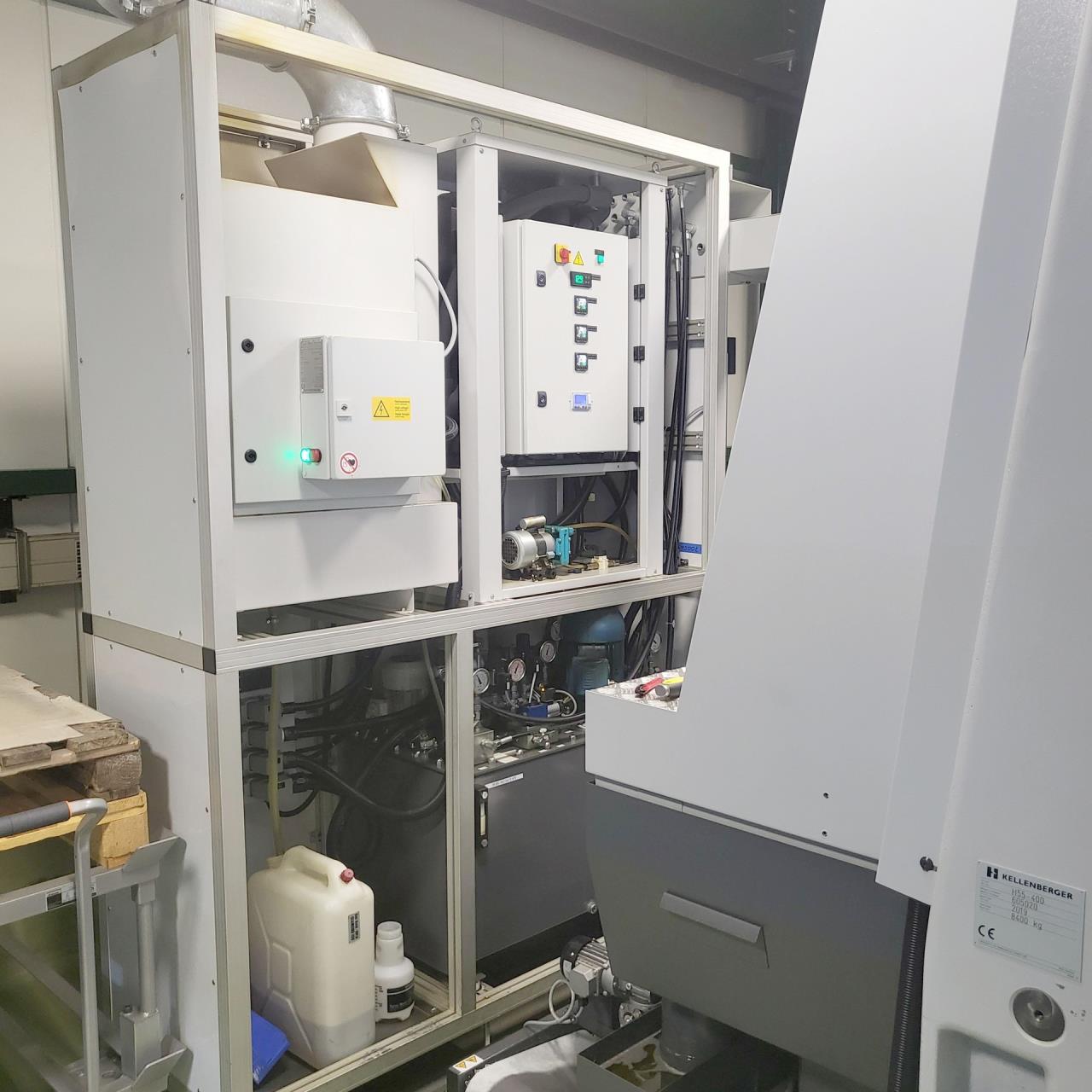

Oil mist extractor
HI-CUT Coolant system
Technical specifications and pictures without guarantee.
