stock no. :
23041
Machine's group :
Type :
HÜLLER HILLE BLUESTAR 5

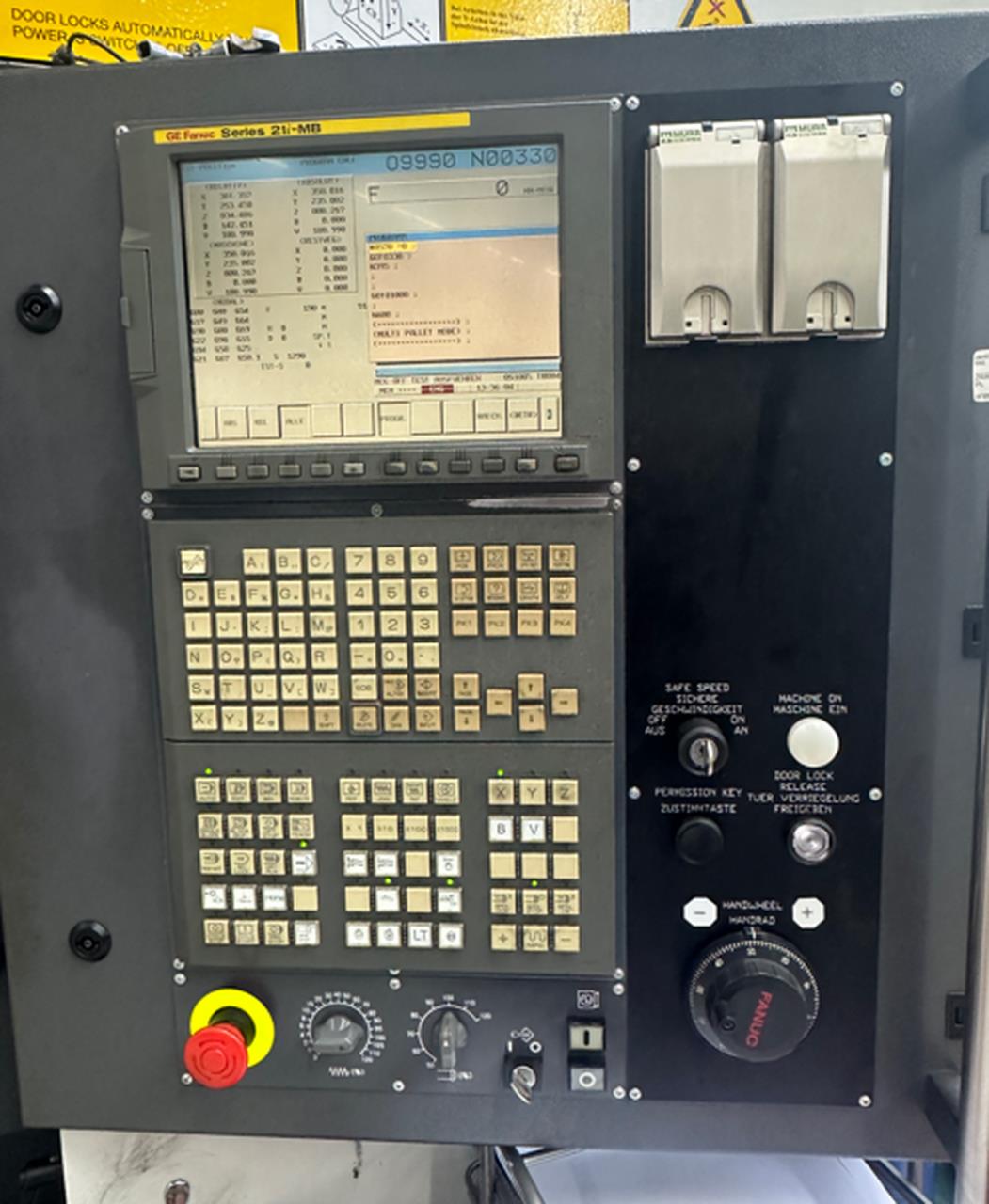

Controller :
GE FANUC Series 21i-MB
Jahrgang :
2007
Technical data
Number of axis total
4
Longitudinal travel (X-axis)
700 mm
Transversal travel (y-axis)
630 mm
Vertical travel (z axis)
700 mm
Dimension of the workpice:
Length
750 mm
Width
700 mm
Table load max.
500 kg
Table divisions (B)
0.001 °
Table speed
30 rpm
Holding torque A-axis
4000 Nm
Tilting moment
8000 Nm

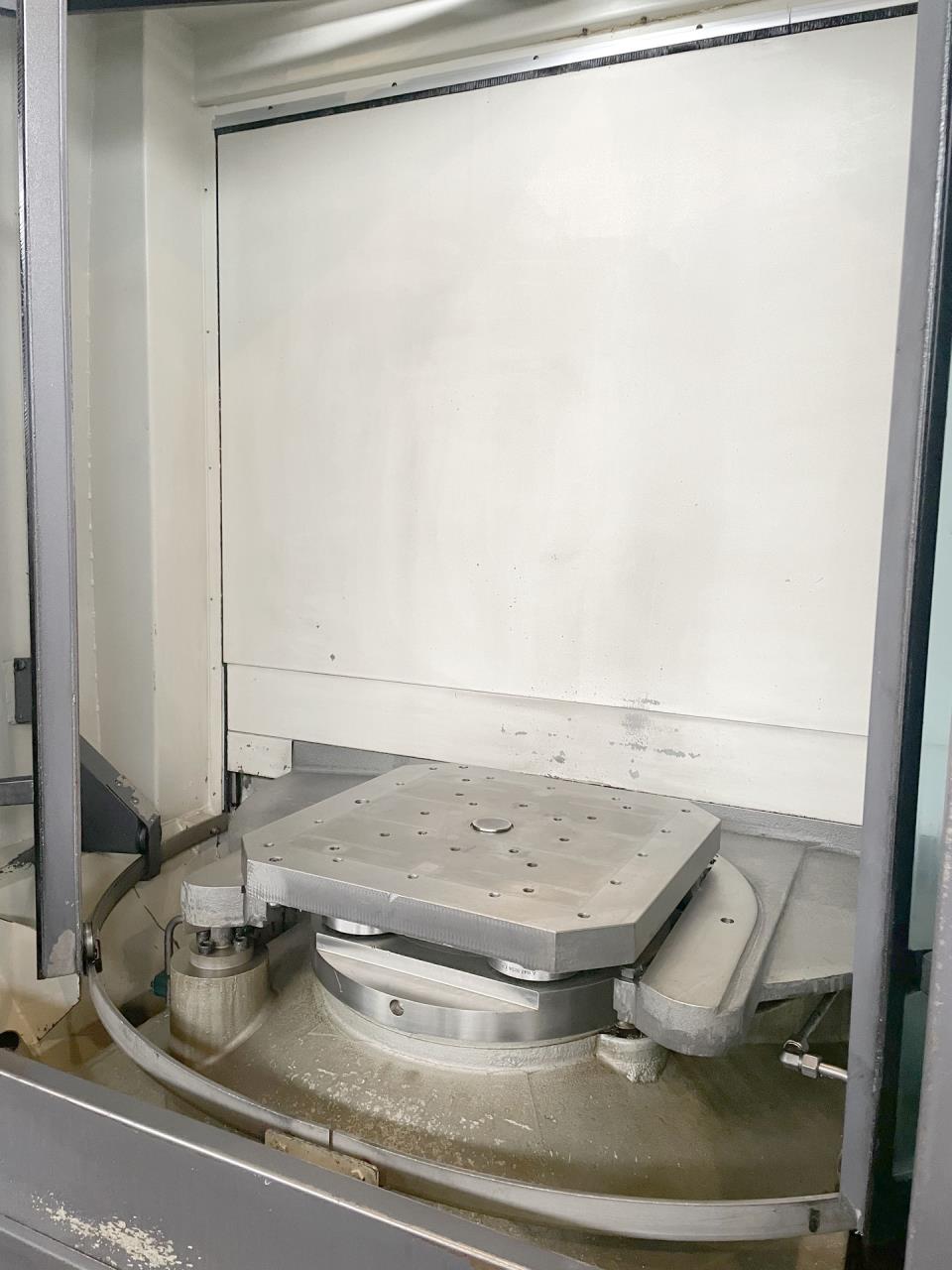

Pallets:
Length
500 mm
Width
500 mm
Pallet weight
150 kg
Time of changing palets
7 sec
Transport weight
500 kg

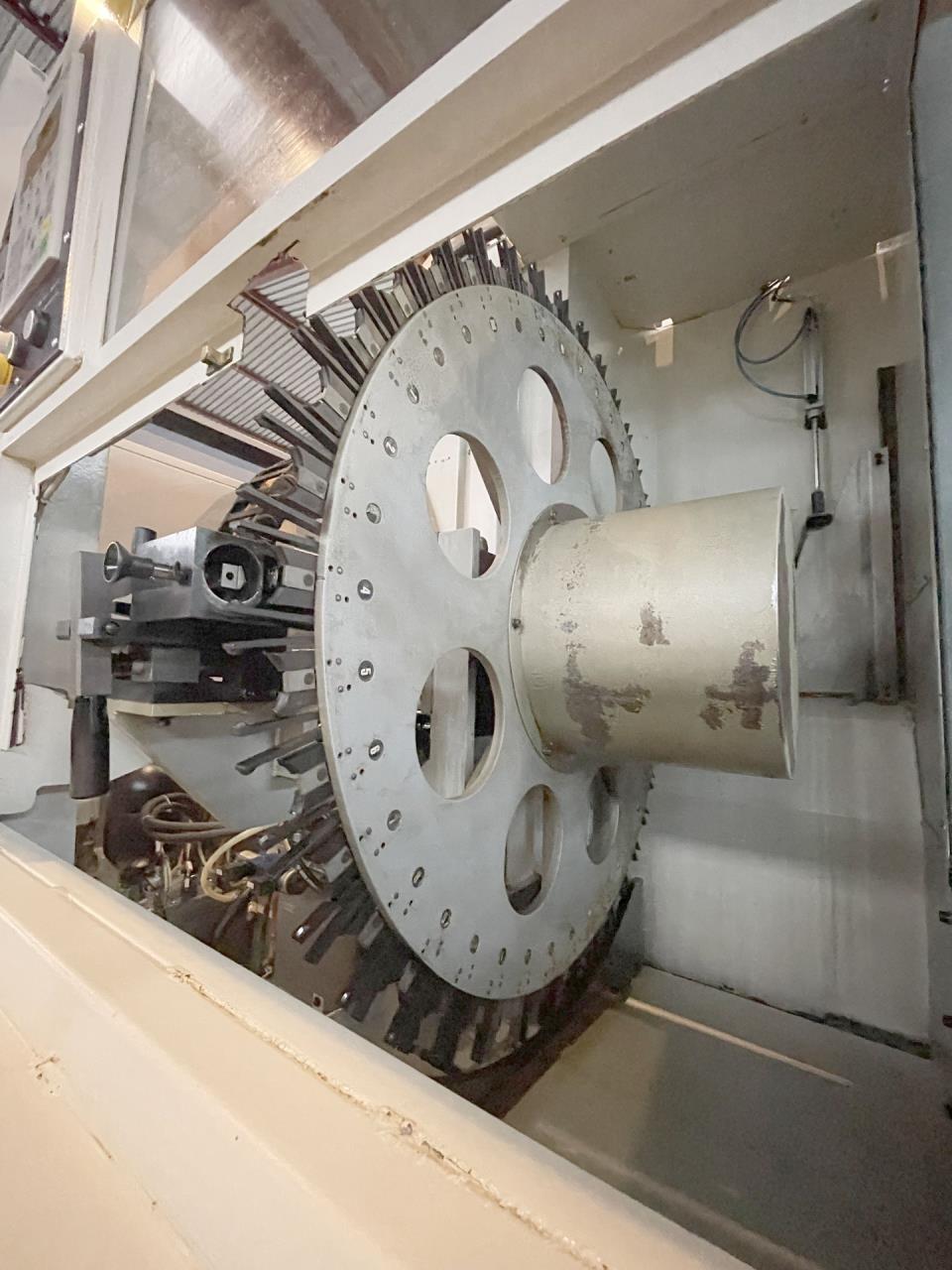

Tool changer:
Number of tools
130
Tool diameter max.
80 mm
Diameter with free adjacent pockets
150 mm
Tool lenght
350 mm
Max. tool-weight
10 kg
Time of tool changing
2.5 - 4.5 sec
Average chip-to-chip time
4 sec

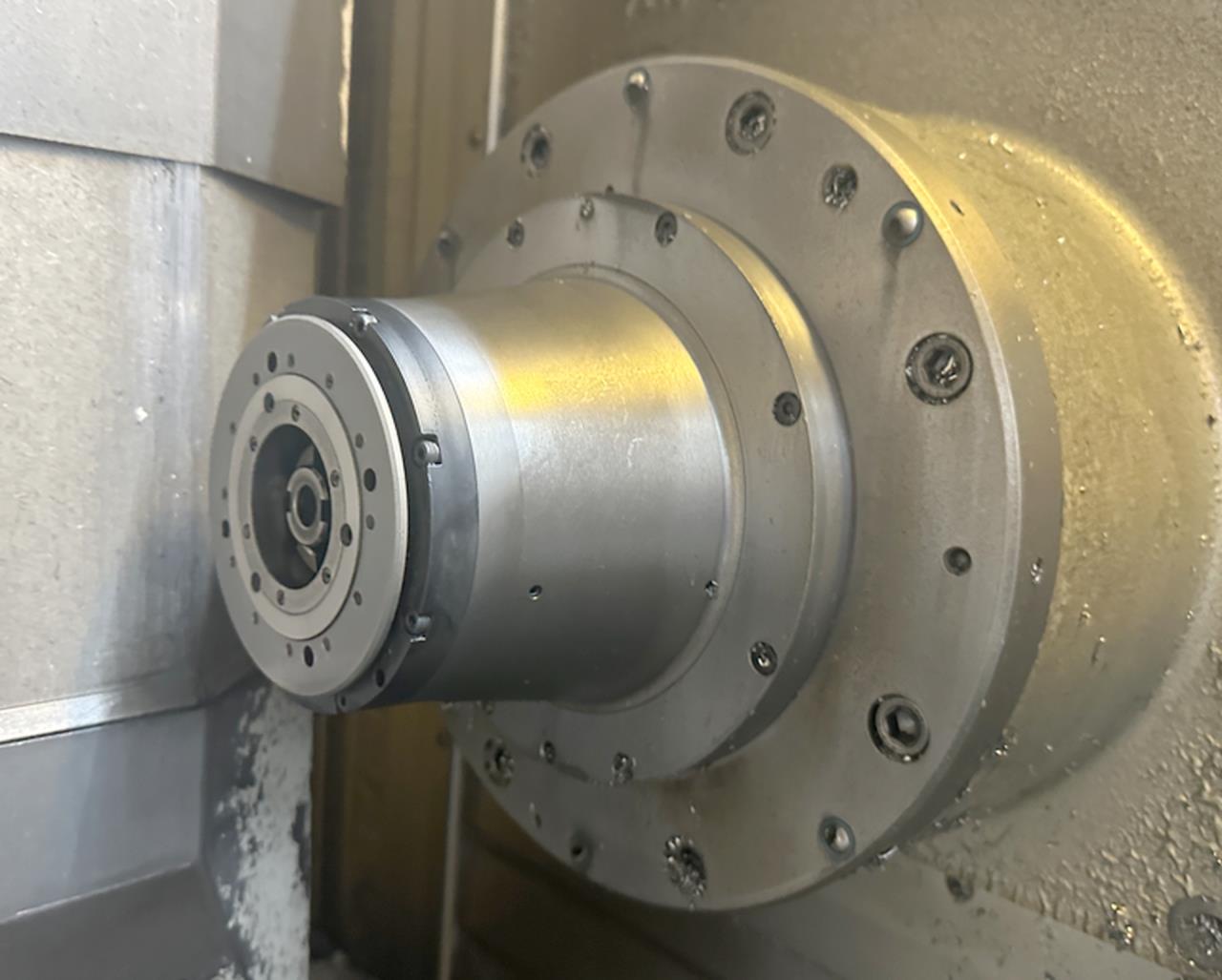

Spindle nose: HSK-A
63
Spindle speeds:
stepless
from
1 rpm
up to
10000 rpm
Feed range
1 - 50000 mm/min
Rapid traverse:
50 m/min
Acceleration
7 m/s
Max. Feed force
5000 N
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
30 / 18 kW
Torque max.
202 Nm
Total power required
27 kVA
Machine's weight about
12500 kg
Overall dimensions machine:
Length
4000 mm
Width
3000 mm
Height
3000 mm
Various accessories:
Direct measuring system

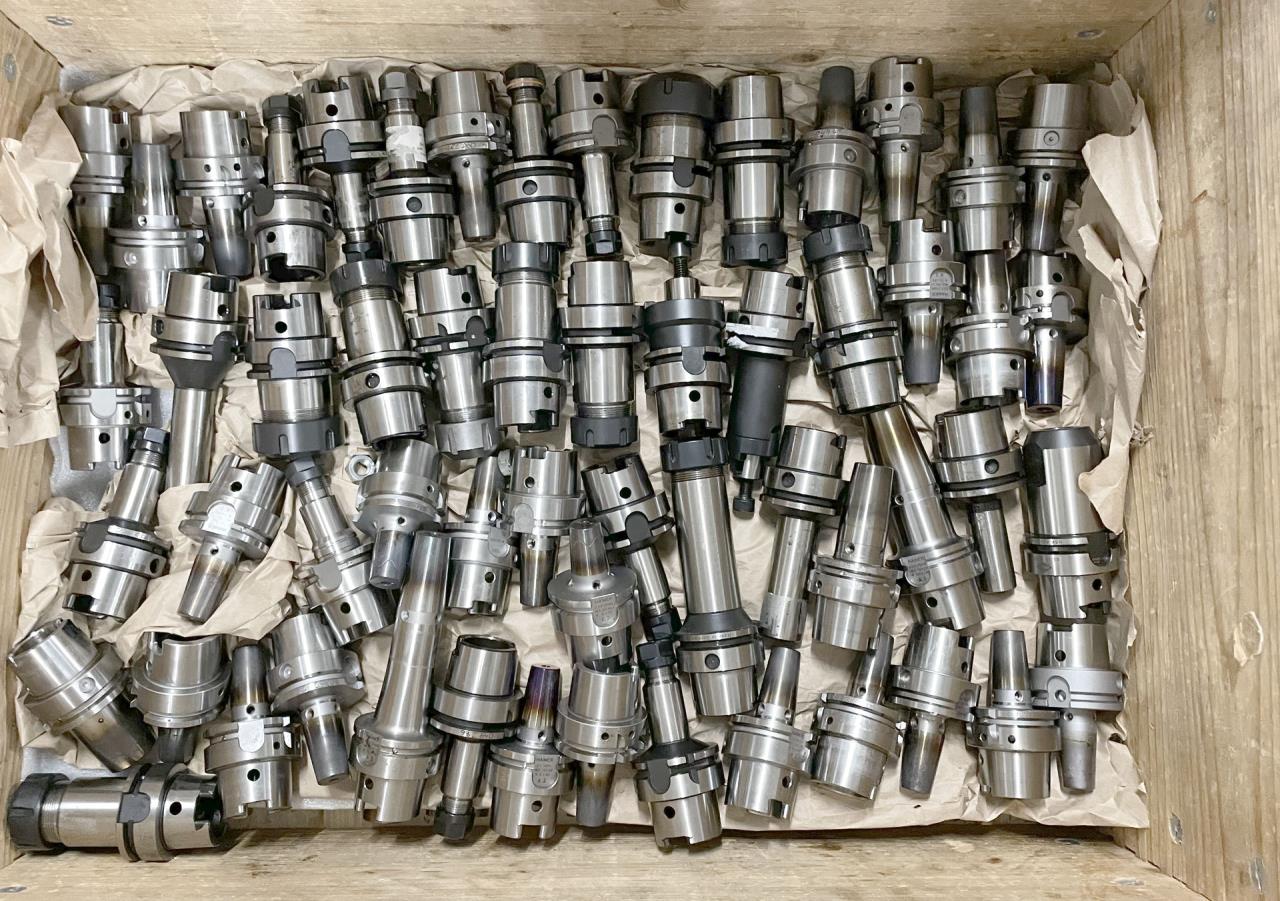

Set of toolholders
Coolant system

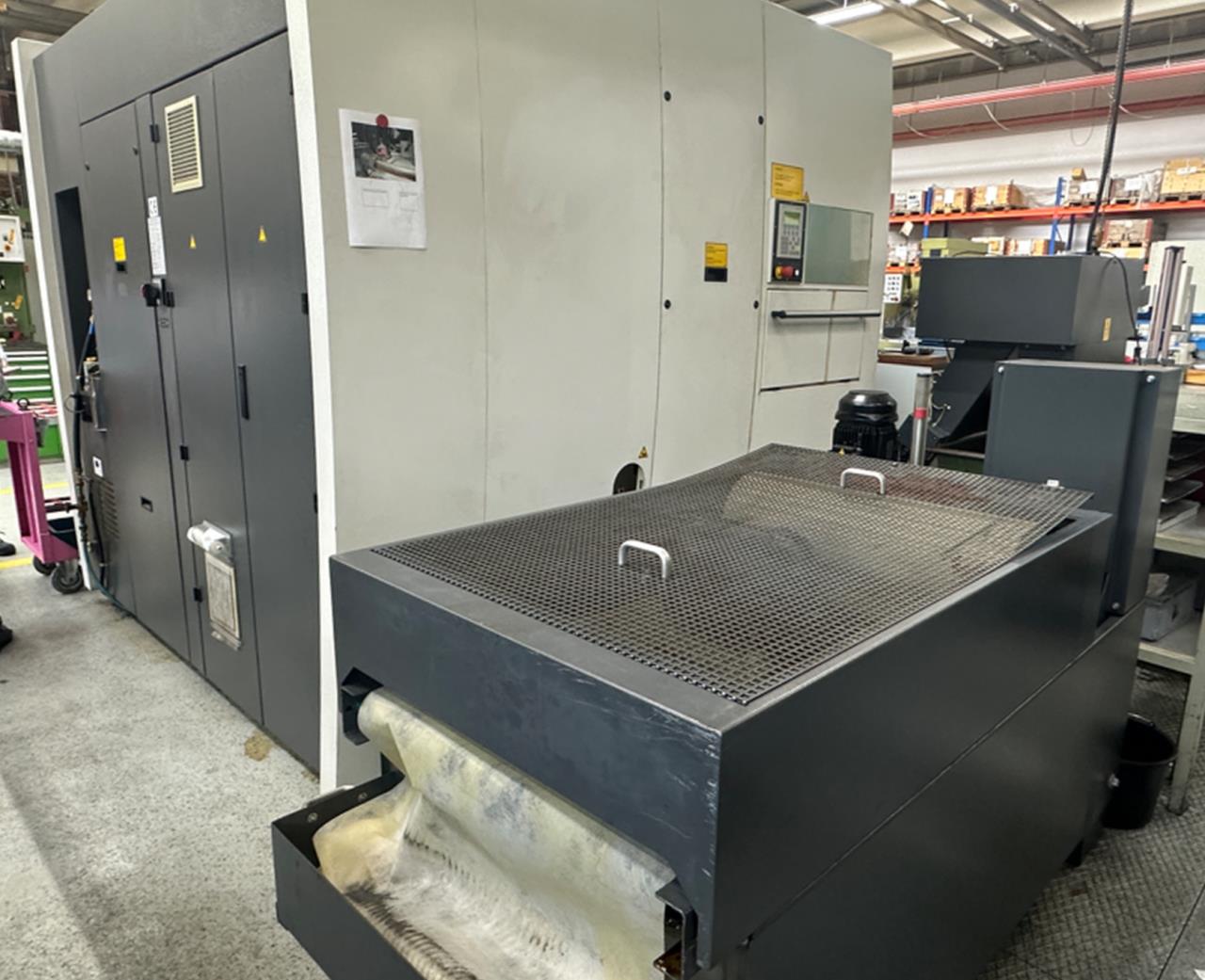

Paper filtration system
Chip conveyor
Rotating viewing window
Technical specifications and pictures without guarantee.
