stock no. :
23039
Machine's group :
Type :
TORNOS DECO 2000/20a
Controller :
PNC DECO FANUC
Jahrgang :
2008
Technical data
Number of axis total
10
Internal spindle diameter
20 mm
Spindle speeds:
stepless
up to
10000 rpm
Independent carriage:
(X1-Y1)
Number of positions
5
number of driven tools
4
Independent carriage:
(X2-Y2)
Number of positions
5
Back spindle:
3
speeds:
up to
10000 rpm
Spindle speeds (turning tools)
8000 rpm
C axis (spindle,resolution)
0.1 °
Voltage 50 Hz 3x
380-420 Volt
Spindle motor
2.2 kW
Total power required
11 kVA
Machine's weight about
3000 kg
Overall dimensions machine:
Length
2950 mm
Width
1100 mm
Height
2300 mm
Various accessories:
Bar feeder
ROBOBAR SBF 532

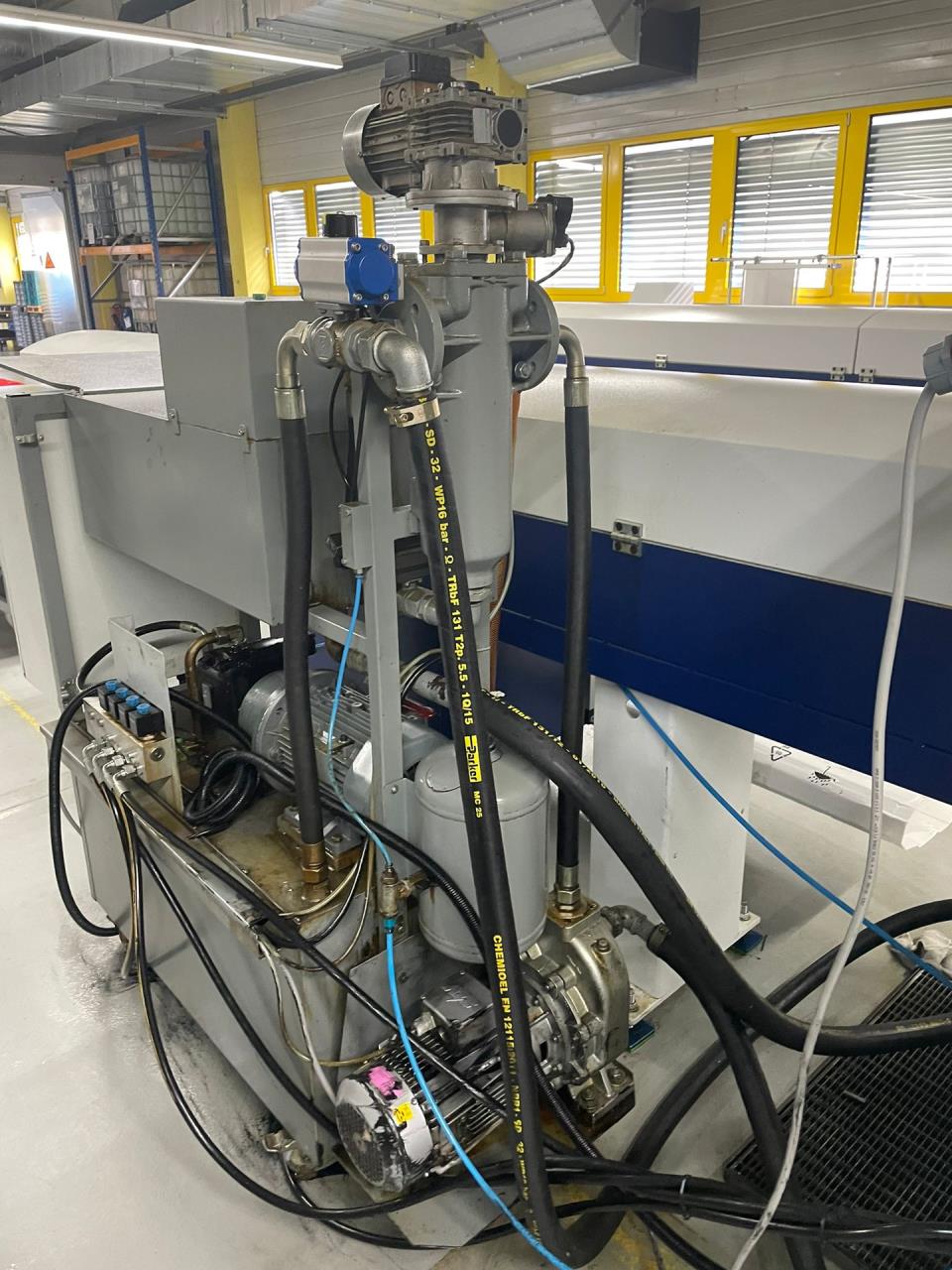

Coolant system
Technical specifications and pictures without guarantee.
