stock no. :
23034
Machine's group :
Type :
MAKINO V 33i Graphite
Controller :
MAKINO PROFESIONAL 5
Jahrgang :
2008
MAKINO V 33i Graphite 5 Image(s)
Back
Technical data
Time under power
124789 Hour
Operating time
41099 Hour
Working time
33577 Hour
Spindle run time
37924 Hour
Number of axis total
3
Table length
750 mm
Table width
450 mm
Number of T-channels
4
Distance of the T-slots
100 mm
T-channel width
18H8 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
650 mm
Transversal travel (y-axis)
450 mm
Vertical travel (z axis)
350 mm
Dimension of the workpice:
    Length
750 mm
    Width
635 mm
    Height
250 mm
Tool magazine number of tool places
60
    Tool diameter max.
80 mm
    Tool lenght
250 mm
    Max. tool-weight
7 kg
    Time of tool changing
4.8 sec
Spindle nose: HSK
E50
Distance spindle nose to table
150 - 500 mm
Spindle speeds:
    stepless
       from
300 rpm
       up to
30000 rpm
Torque max.
23.1 Nm
Feed range
1 - 20000 mm/min
Rapid traverse:
20 m/min
Air connect
4 - 8 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
17/13 kW
Total power required
50 kVA
Machine's weight about
7700 kg
Overall dimensions machine:
    Length
3000 mm
    Width
2070 mm
    Height
2400 mm
Various accessories:
Lamp
Oil mist extractor
Spindlecooling
Workpiece loader

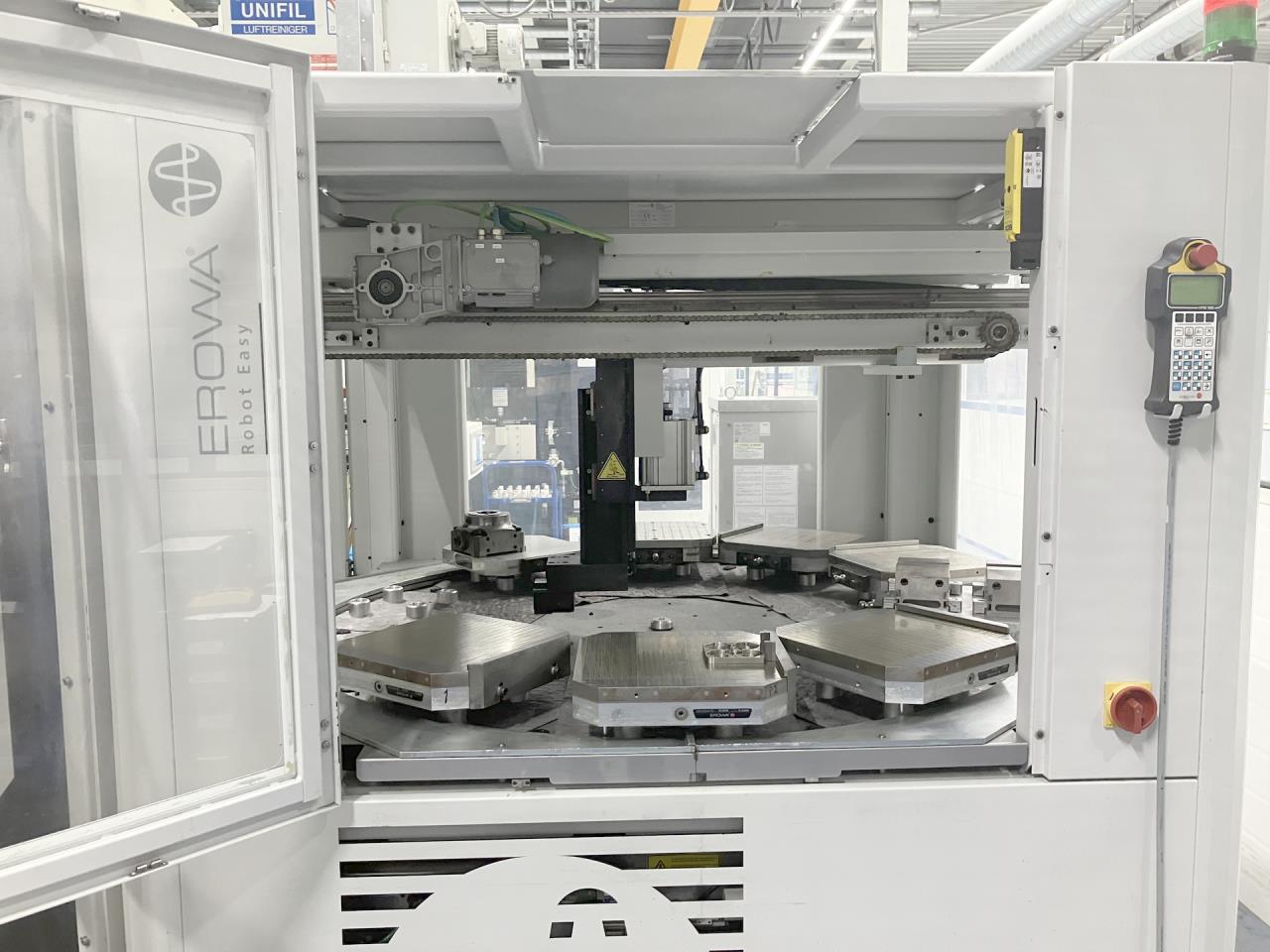

EROWA EASY ROBOT
Status light

Technical specifications and pictures without guarantee.
