stock no. :
23028
Machine's group :
Type :
MORI SEIKI DuraVertical 5100

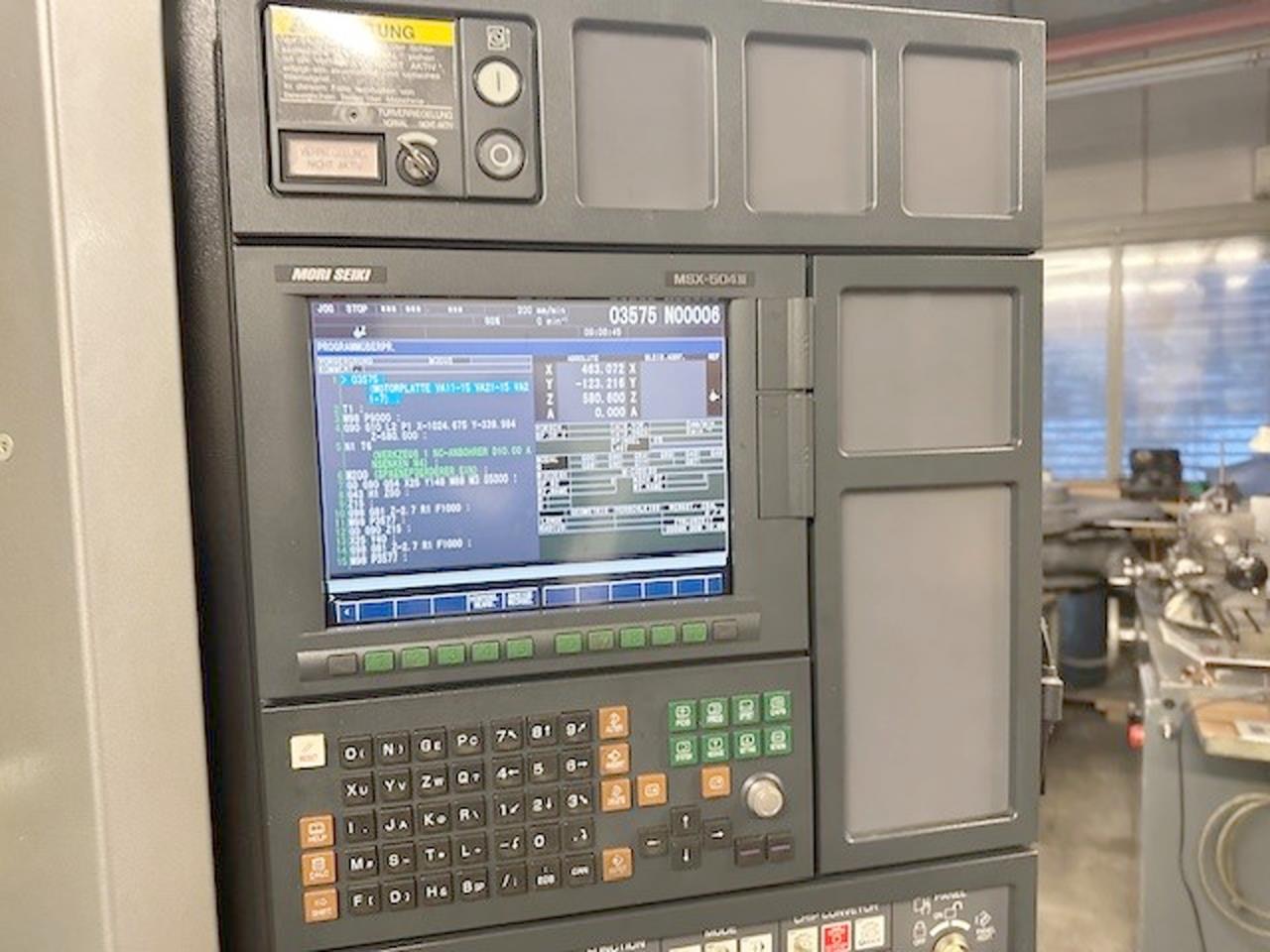

Controller :
MORI SEIKI MSX-504 II
Jahrgang :
2009
Technical data
Number of axis total
4

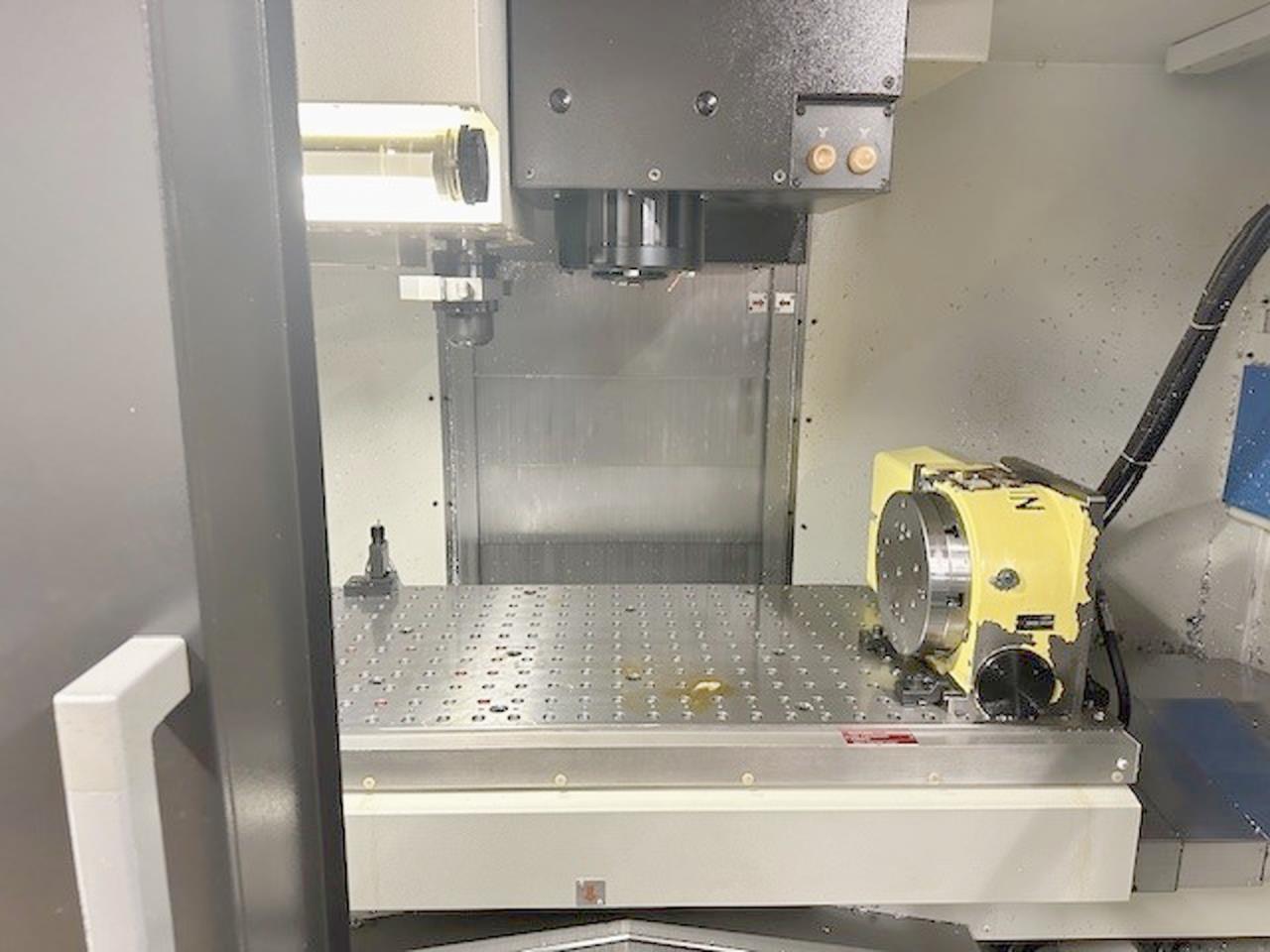

Table length
1350 mm
Table width
600 mm
Table load max.
1000 kg
Longitudinal travel (X-axis)
1050 mm
Transversal travel (y-axis)
530 mm
Vertical travel (z axis)
510 mm
Tool diameter max.
125 mm
Max. tool-weight
8 kg
Spindle nose: BT
40
Spindle speeds:
stepless
from
0 rpm
up to
10000 rpm
Voltage 50 Hz 3x
400 Volt
Spindle power
22 kW
Total power required
58 kVA
Machine's weight about
8030 kg
Overall dimensions machine:
Length
2500 mm
Width
2350 mm
Height
2700 mm
Various accessories:

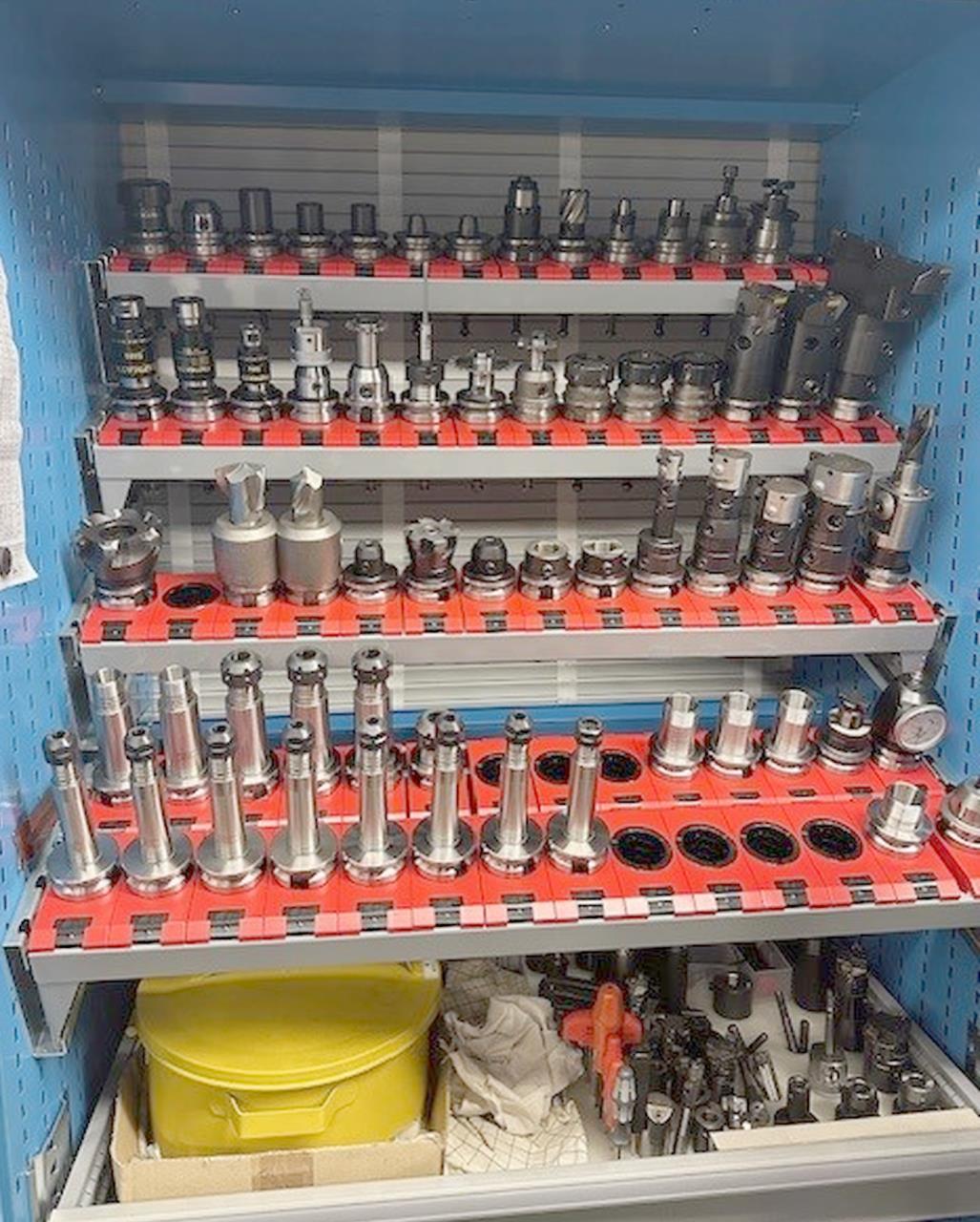

Set of toolholders

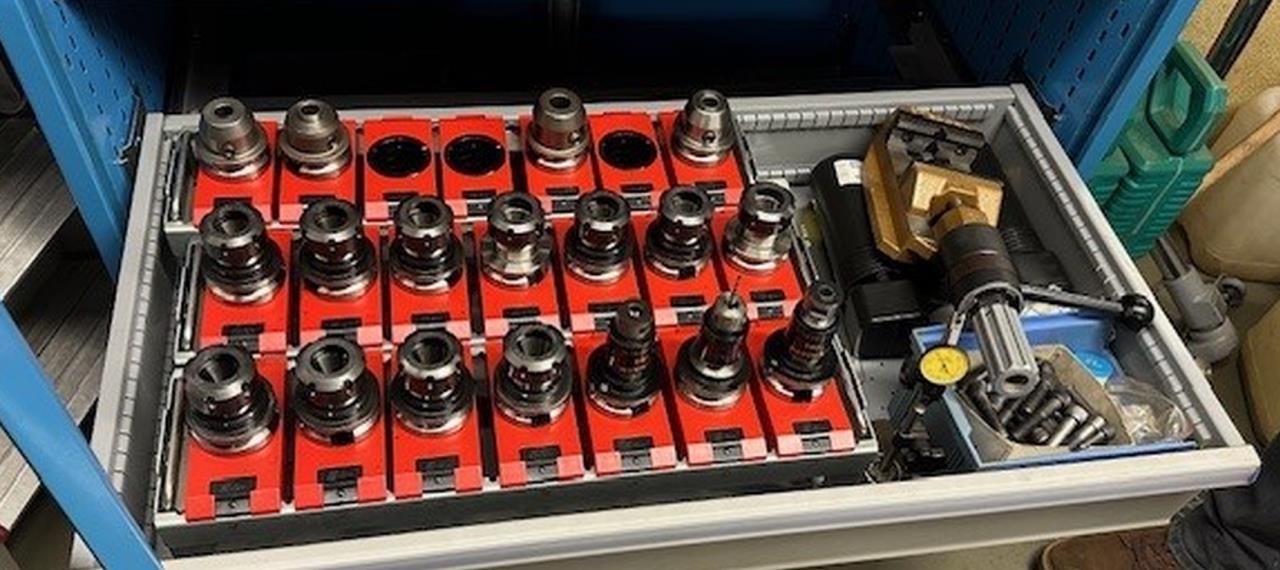

Set of collet-/ tool holder

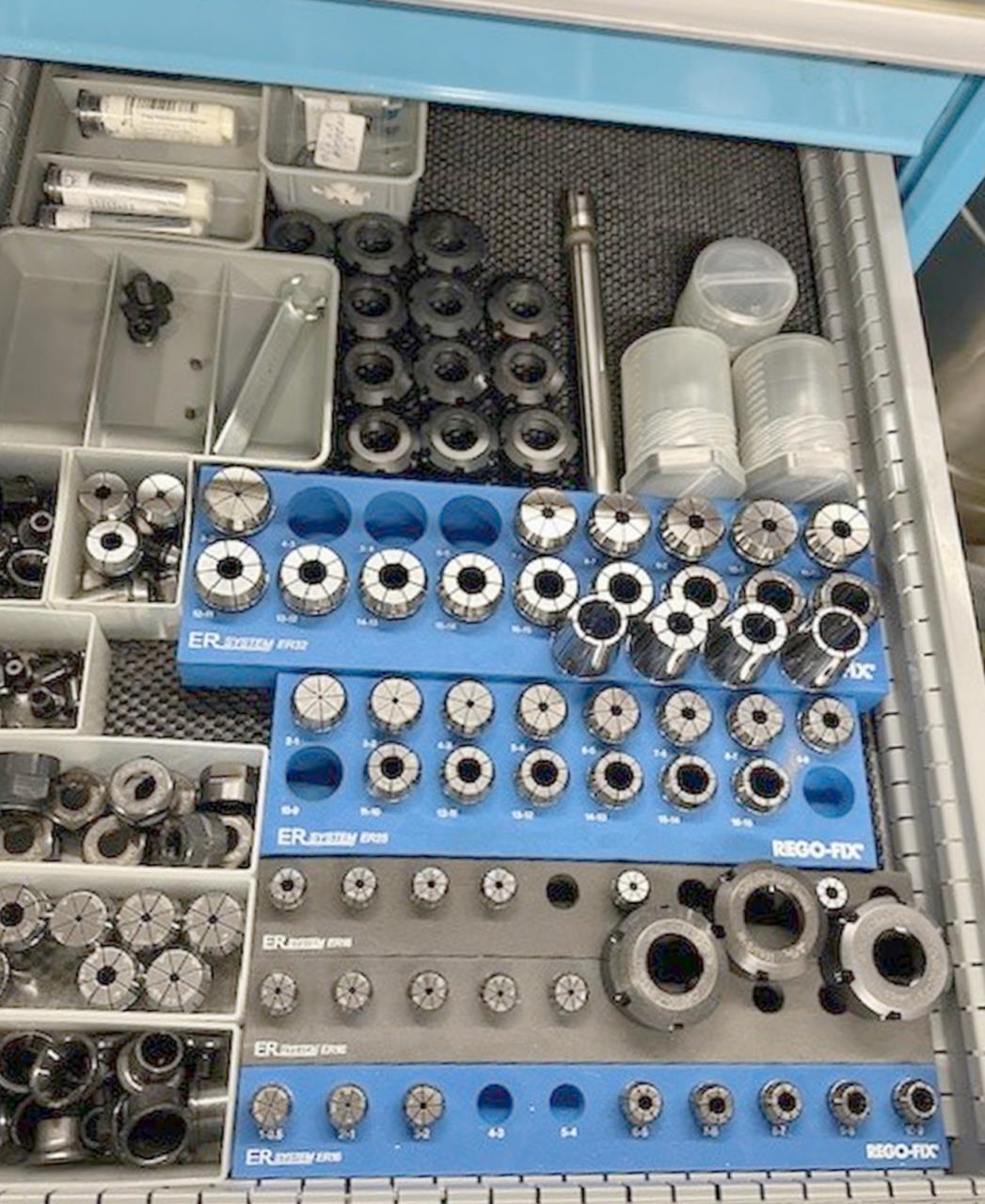

Set of collets

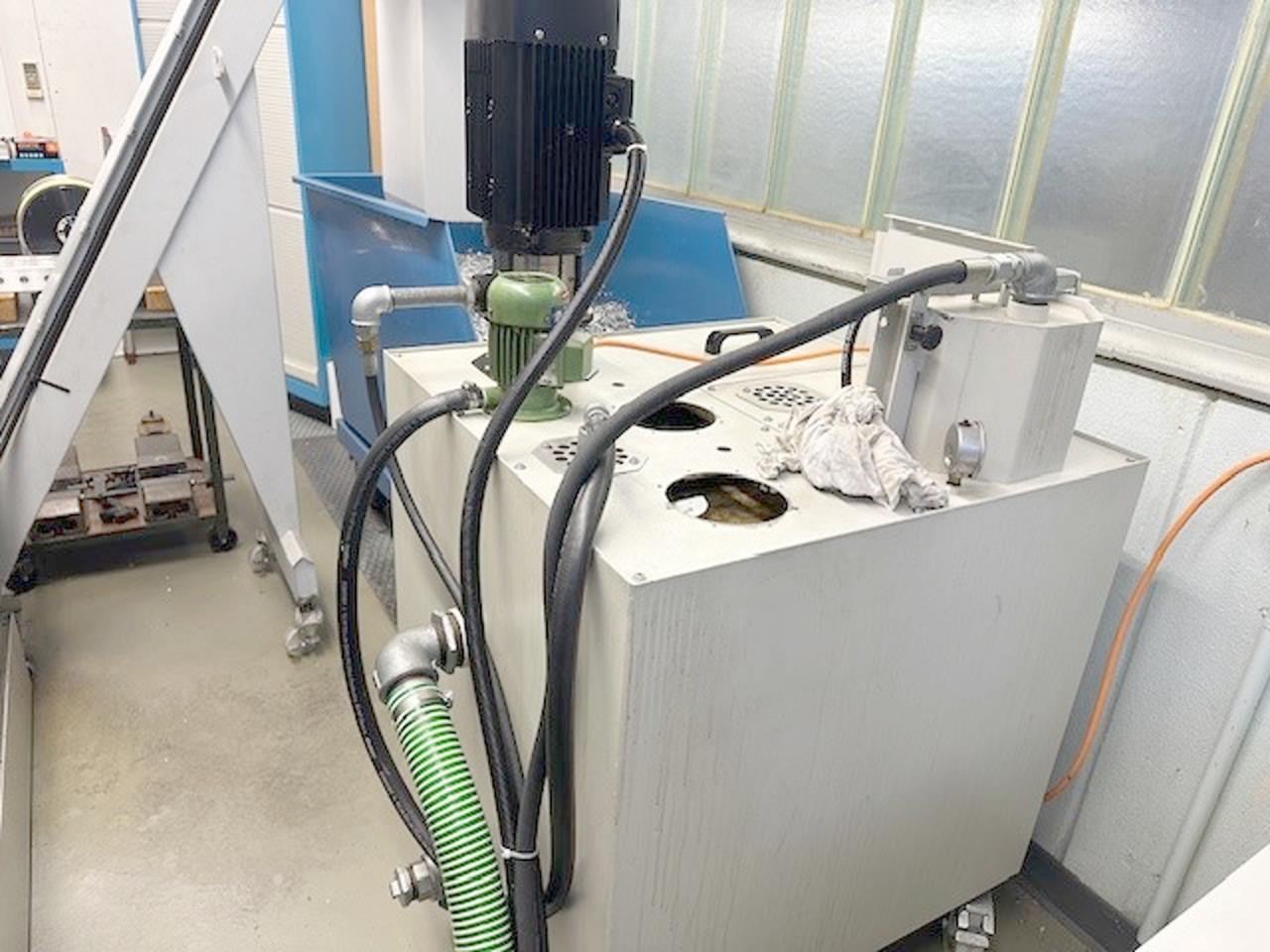

Coolant system
Dividing attachment

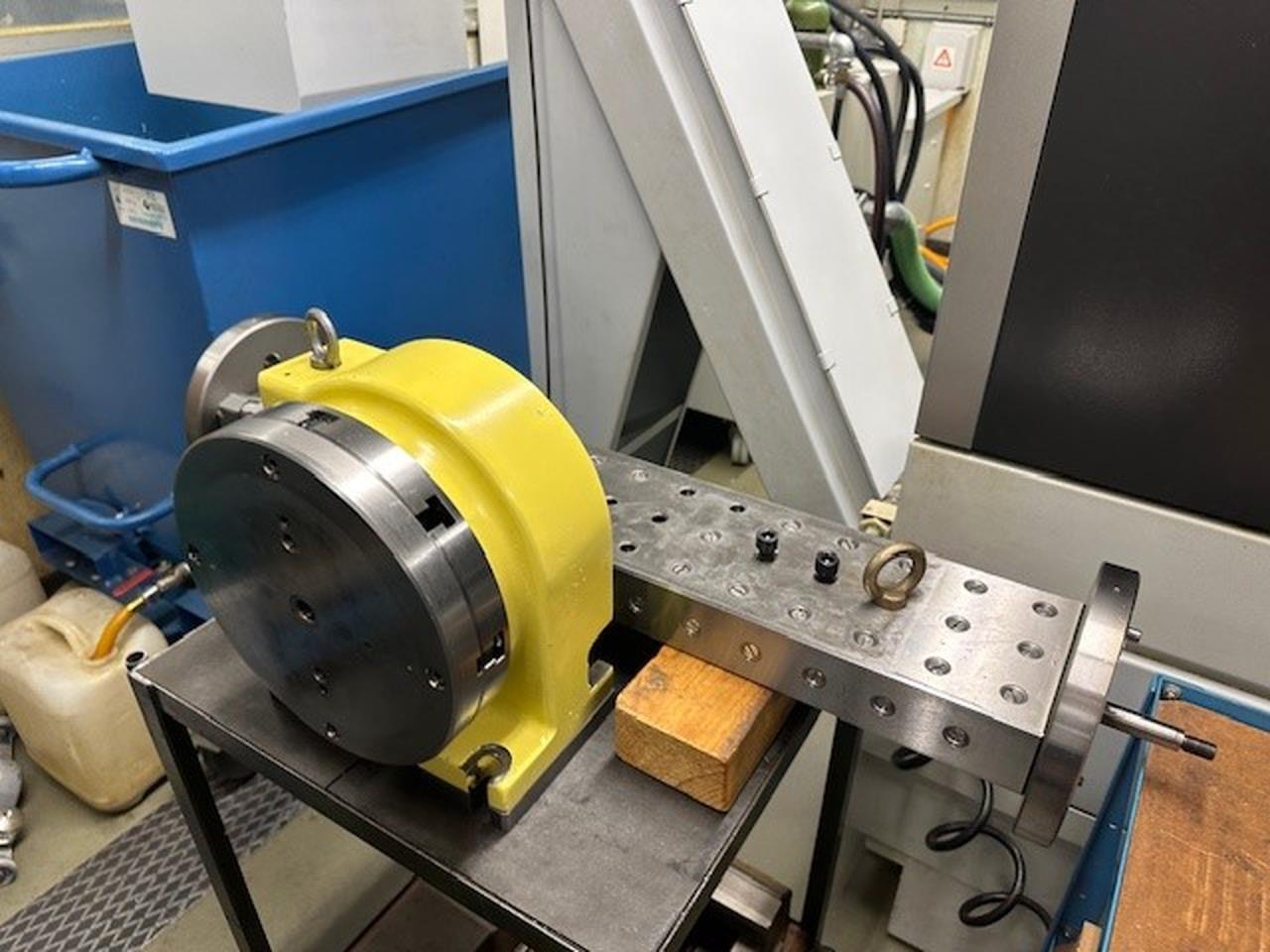

Dividing attachment 4th axis
NIKKEN
Lamp
Status light
Technical specifications and pictures without guarantee.
