stock no. :
23018
Machine's group :
Type :
MIKRON HPM 1350 U
Controller :
HEIDENHAIN iTNC 530
Jahrgang :
2007
Technical data
Number of axis total
5
Number of spindles
1
Circulary table diameter
1100 mm
Table load max.
1600 kg
Longitudinal travel (X-axis)
1350 mm
Transversal travel (y-axis)
1150 mm
Vertical travel (z axis)
895 mm
Swivel angle (a-axis)
+16 - / 120 °
Tool magazine number of tool places
46

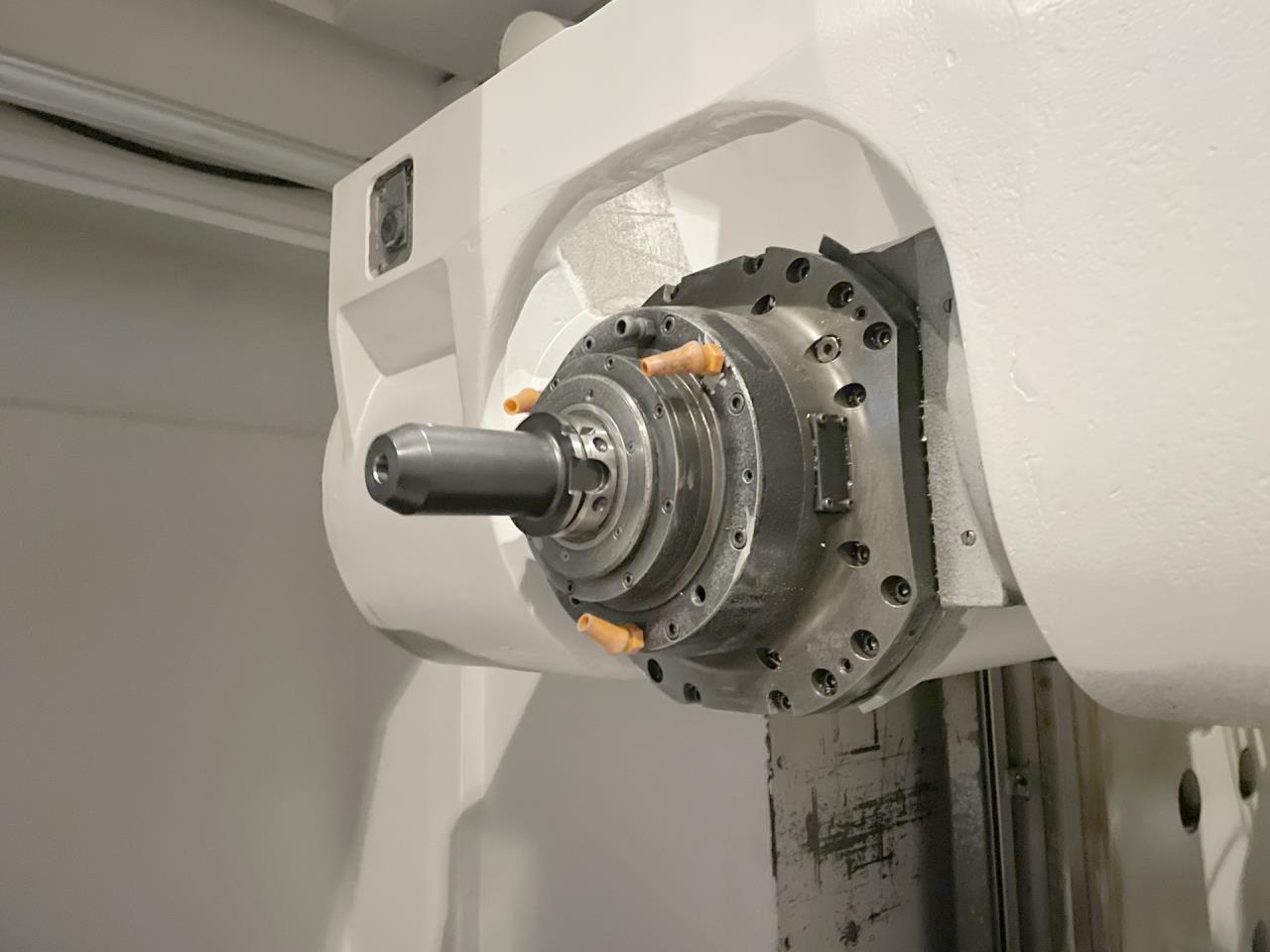

Spindle nose: HSK-A
63
Spindle speeds:
stepless
from
0 rpm
up to
18000 rpm
Voltage 50 Hz 3x
400 Volt
Total power required
68 kW
Noise level
68 dB (A)
Machine's weight about
12600 kg
Overall dimensions machine:
Length
4500 mm
Width
3600 mm
Height
3500 mm
Various accessories:
Coolant system

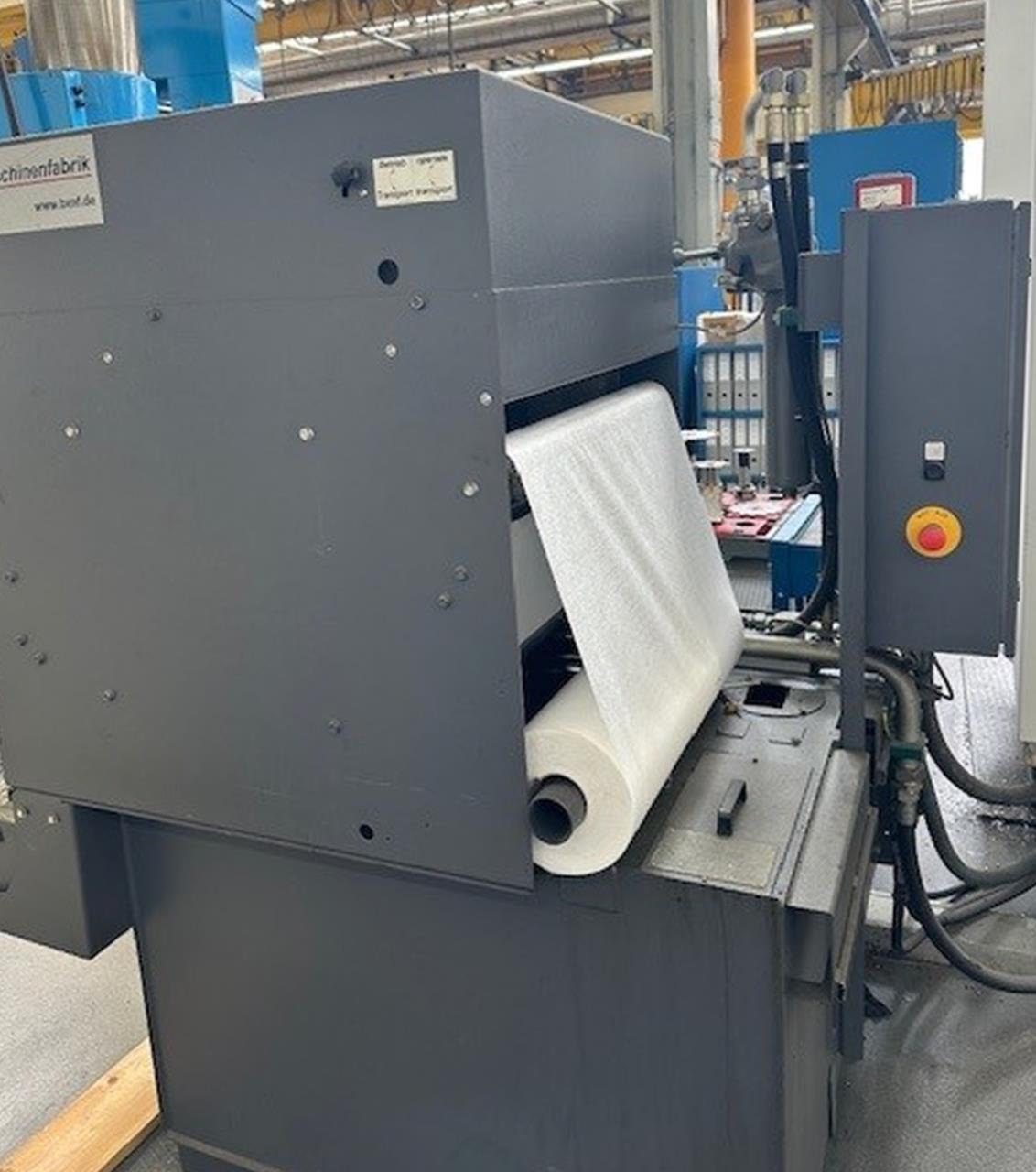

Paper filtration system
Touch Probe Renishaw
Chip conveyor
Handwheel electroinic
Rotating viewing window
Technical specifications and pictures without guarantee.
