Technical data

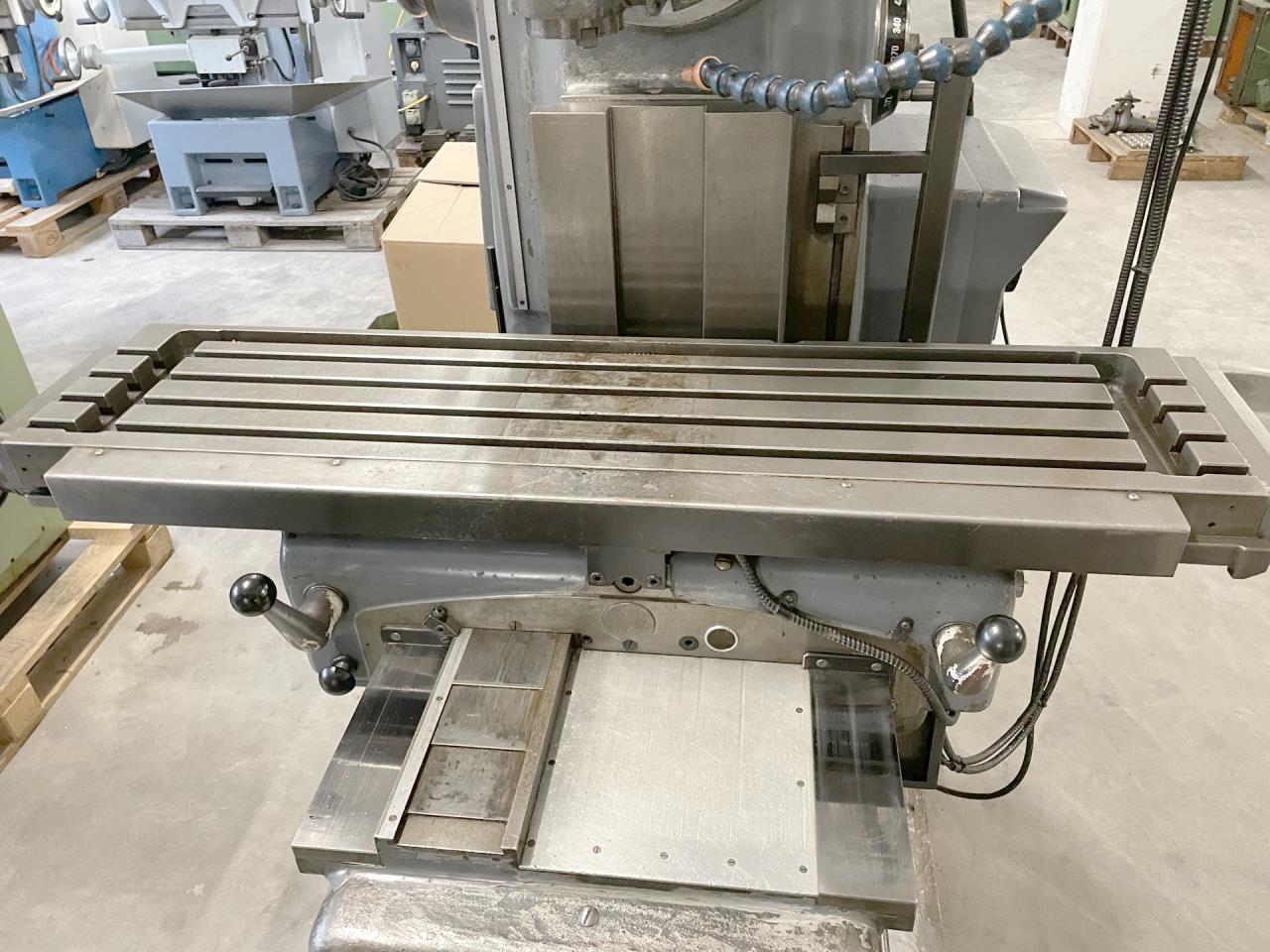

Table length
1100 mm
Table width
305 mm
Longitudinal travel (X-axis)
700 mm
Transversal travel (y axis)
250 mm
Vertical travel (z axis)
490 mm
Spindle speeds:
number (steps)
18
from
38 rpm
up to
1510 rpm
Taper in spindle
40 ISO
Feeds steps:
18
longitudinal from
12.0 mm/min
up to
1000 mm/min
transversal from
12.0 mm/min
up to
1000 mm/min
vertical from
6.0 mm/min
up to
500 mm/min
Rapid traverse:
longitudinal
3.5 m/min
transversal
3.5 m/min
vertical
1.8 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
4.0 HP
Total power required
5.0 HP
Machine's weight about
1900 kg
Overall dimensions machine:
Length
1800 mm
Width
1600 mm
Height
1900 mm
Various accessories:
Digital readout number of axis:
3
Technical specifications and pictures without guarantee.
