Technical data
Table length
1200 mm
Table width
600 mm
Axial motion:
Longitudinal travel (X-axis)
1320 mm
Cross travel (z-axis)
730 mm
vertical travel (Y-axis)
480 mm
Table load max.
1400 kg
Grinding height over table
520 mm

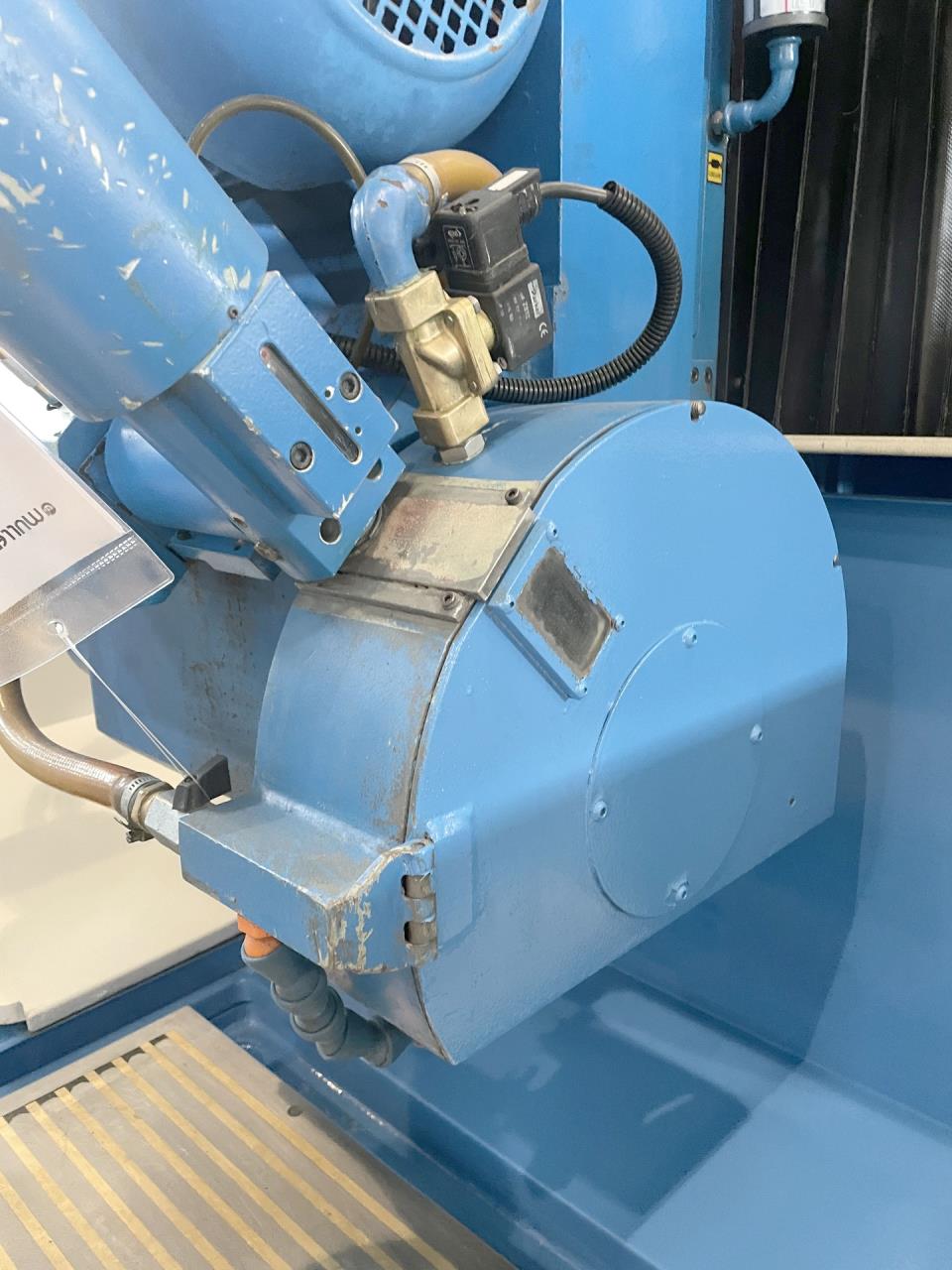

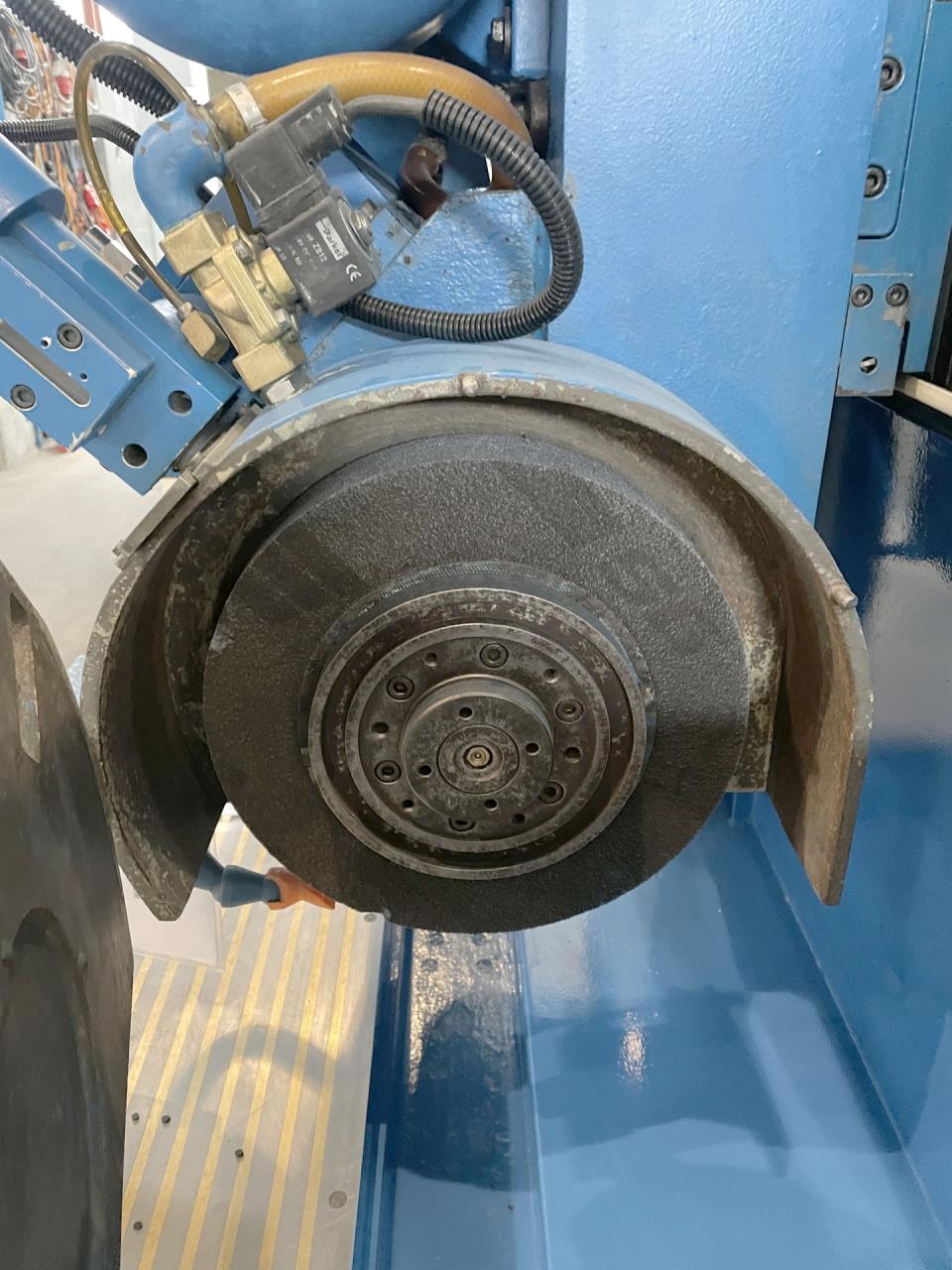

Grinding wheel:
Diameter
350 mm
max. width
50 mm
Bore
127 mm
Automatic vertical feed:
from
0.1 mm/min
up to
10 mm/min
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
9 kW
Machine's weight about
4500 kg
Overall dimensions machine:
Length
3500 mm
Width
2000 mm
Height
2300 mm
Various accessories:
Paper filtration system
Oil mist extractor
AIRTECH

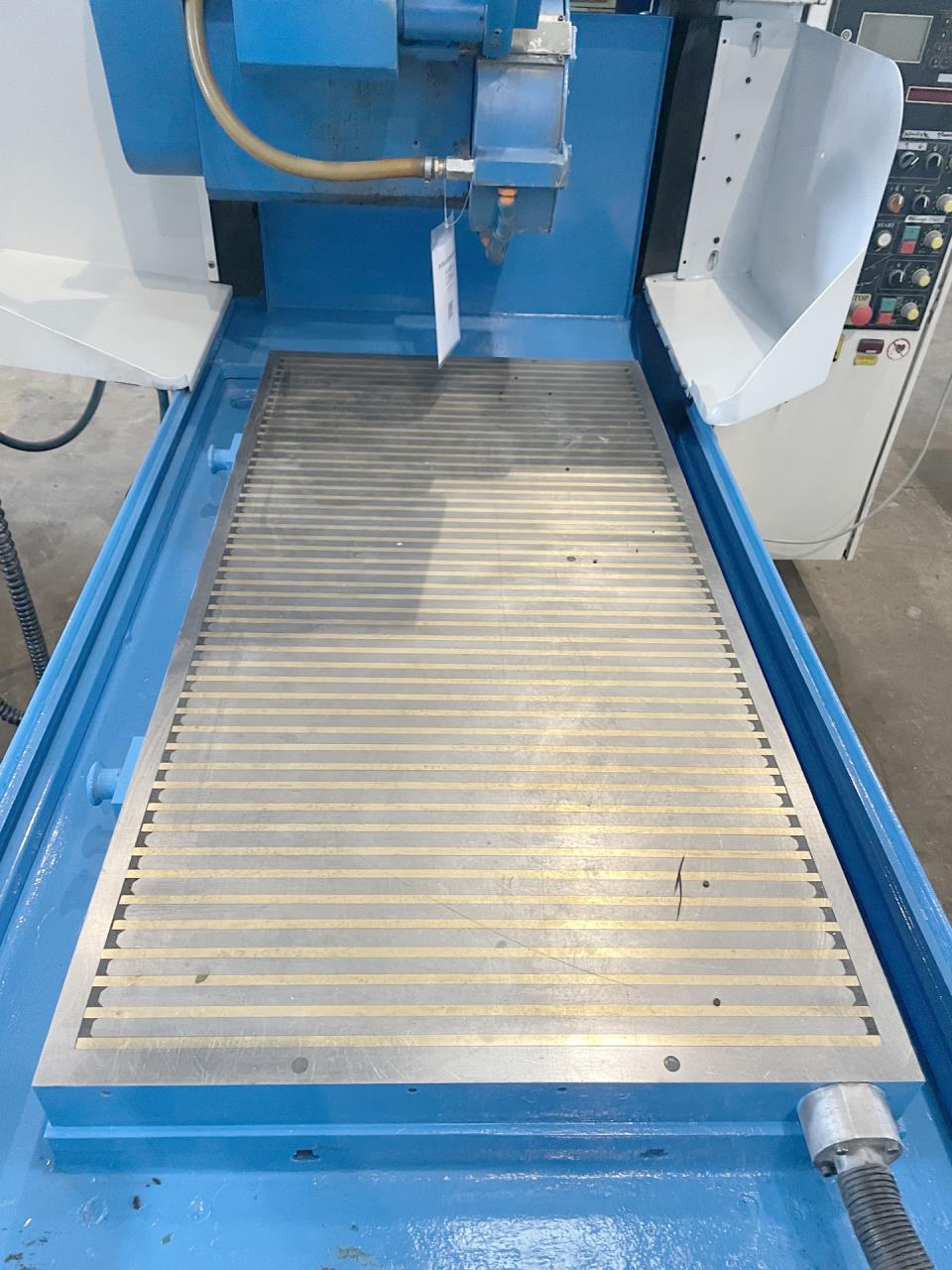

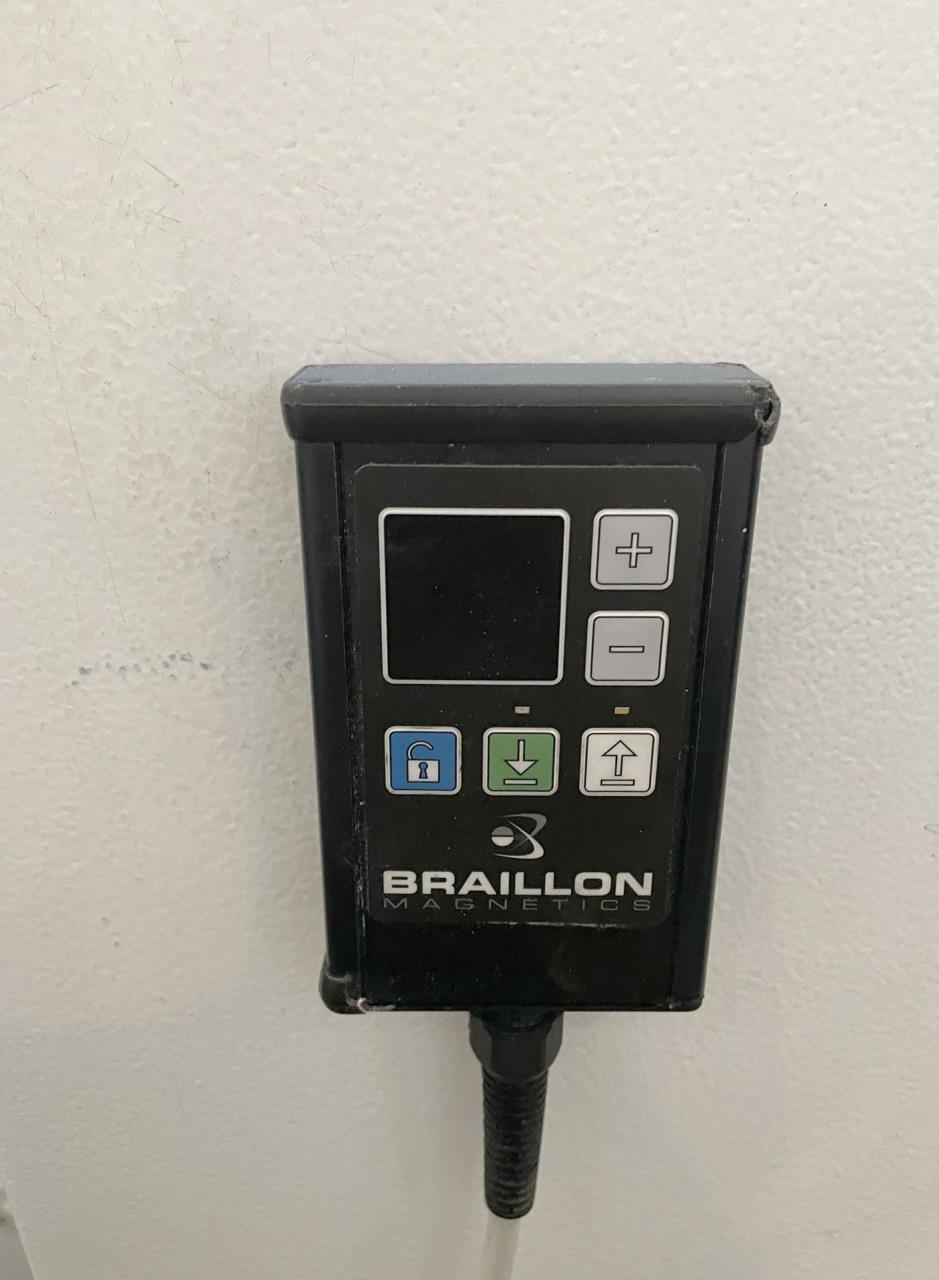

Electrical magnetic chuck
Length
1180 mm
Width
600 mm
Handwheel electroinic
Redressing attachment hydraulic

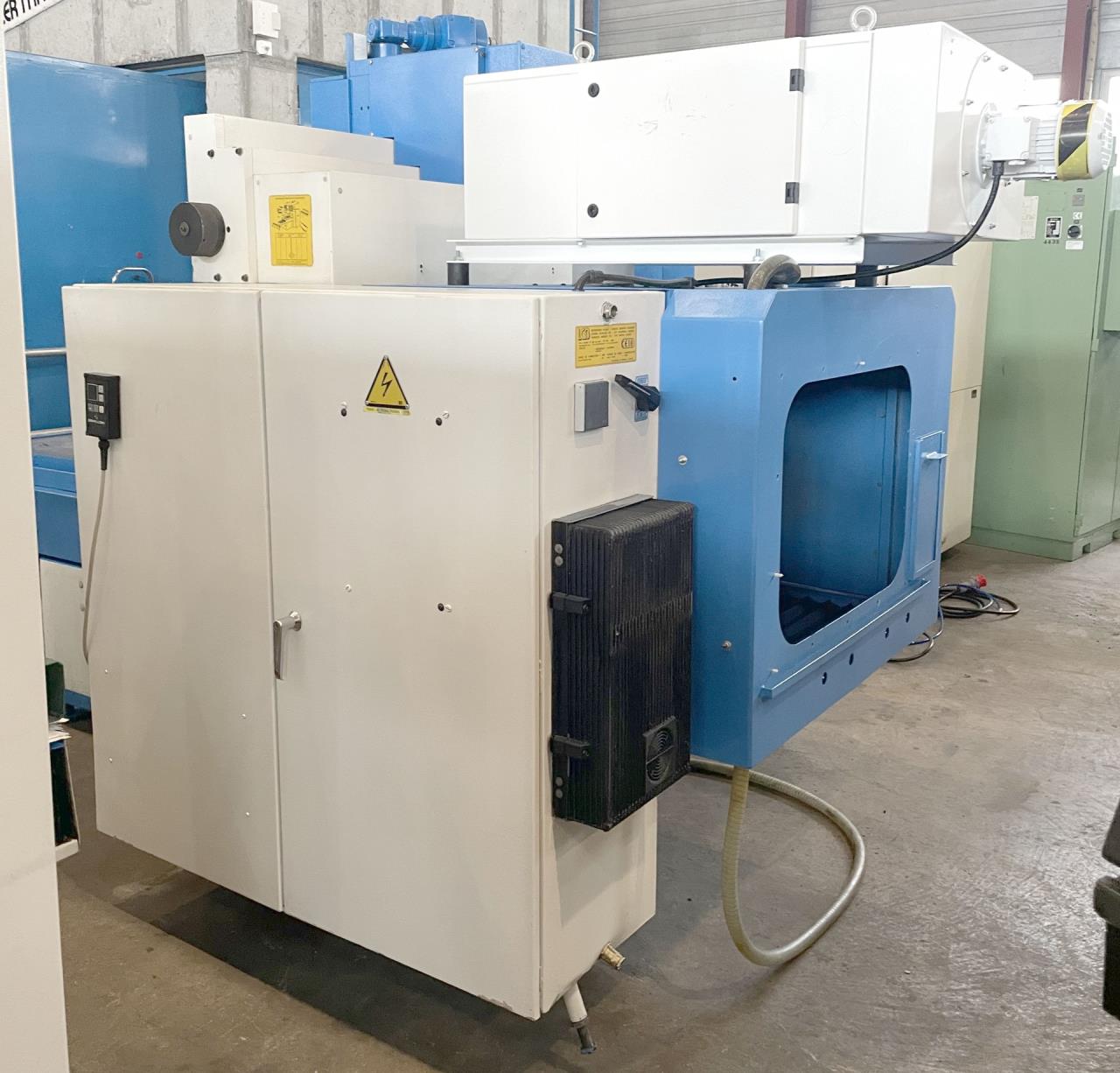

Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
