stock no. :
22991
Machine's group :
Type :
MIKRON VCE 800 Pro

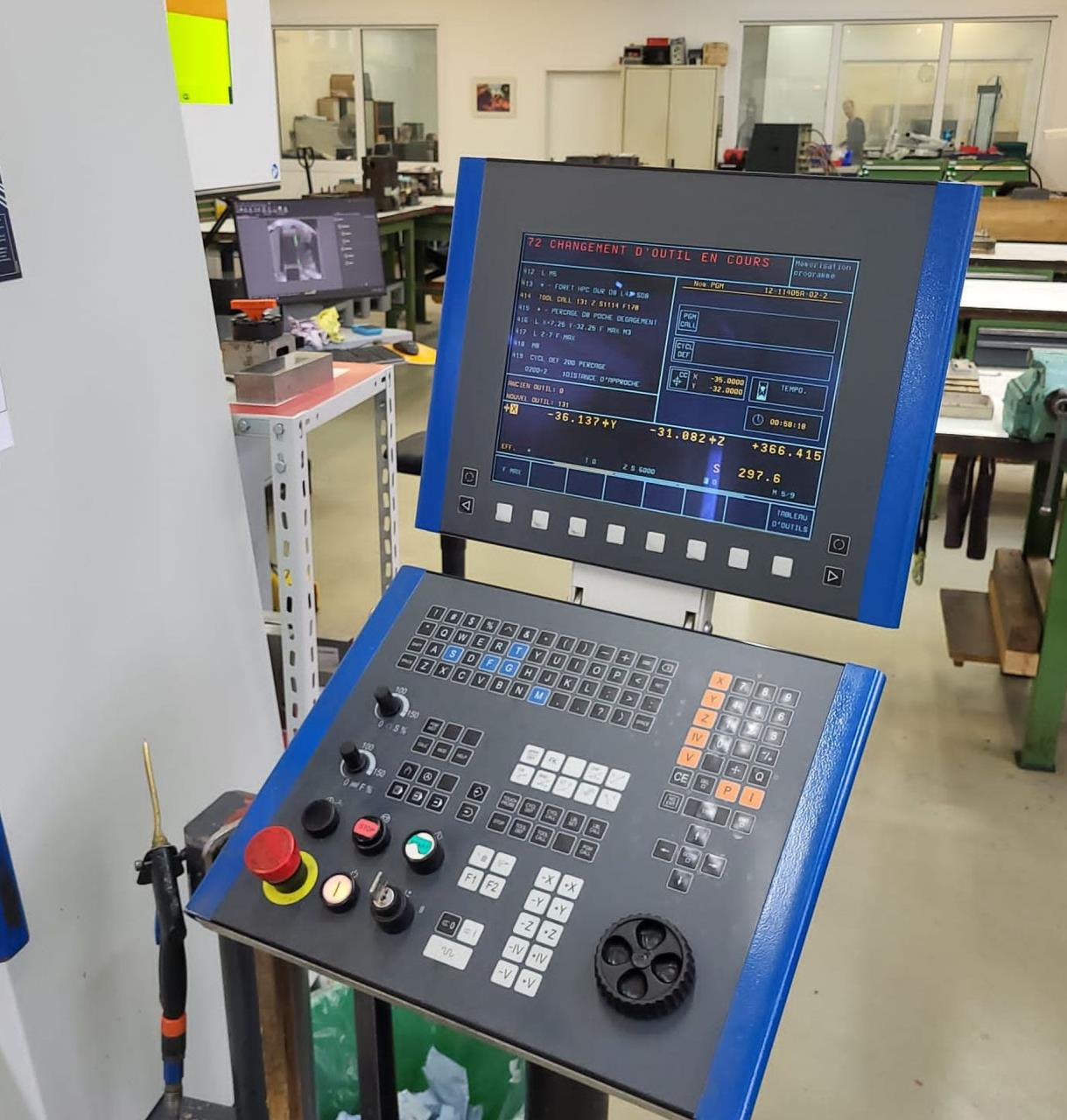

Controller :
HEIDENHAIN TNC 426
Jahrgang :
2002
Technical data
Number of axis total
3
Number of spindles
1

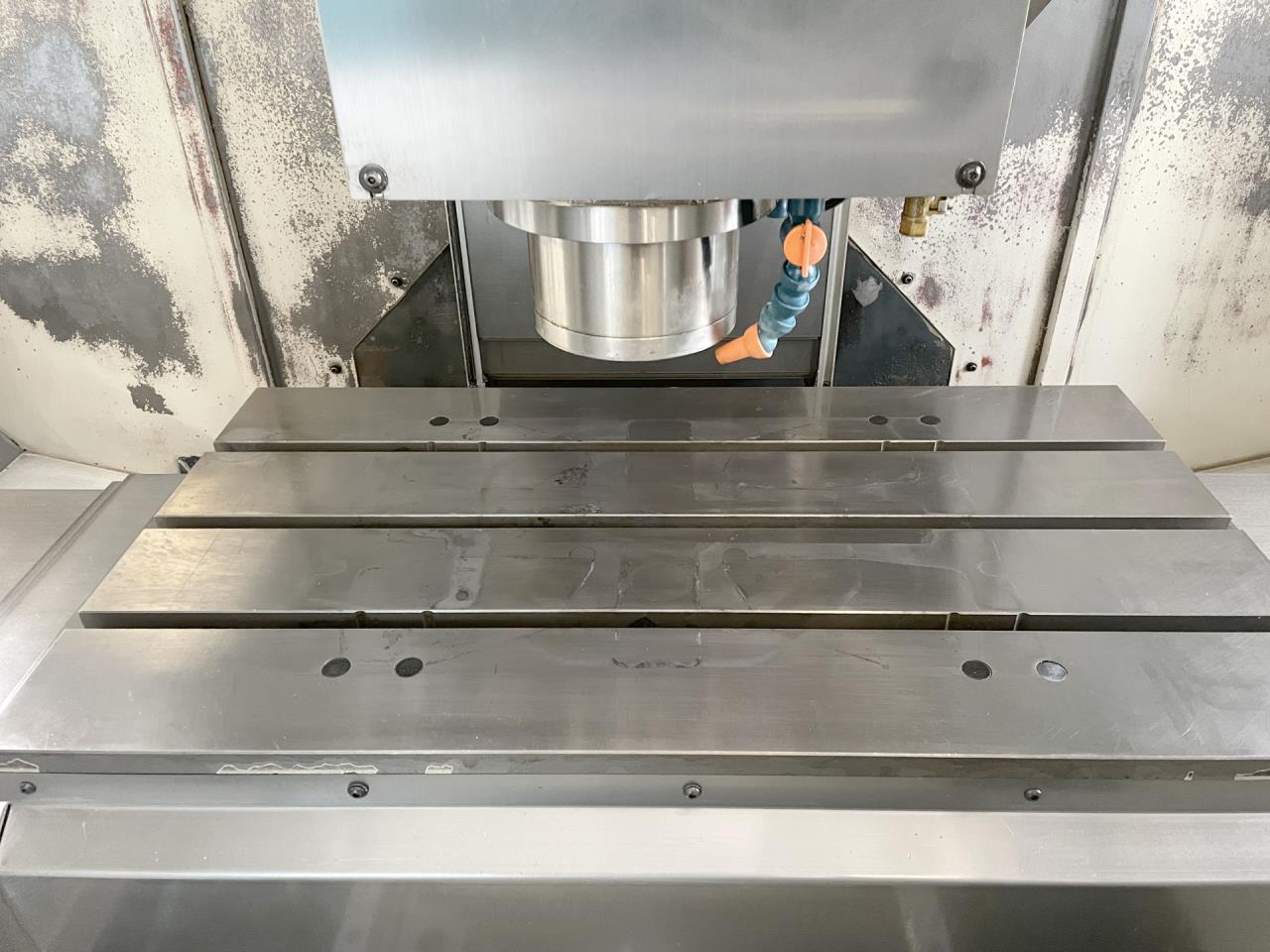

Table length
1000 mm
Table width
560 mm
Number of T-channels
5
Distance of the T-slots
100 mm
T-channel width
18 mm
Table load max.
1350 kg
Longitudinal travel (X-axis)
860 mm
Transversal travel (y-axis)
560 mm
Vertical travel (z axis)
600 mm

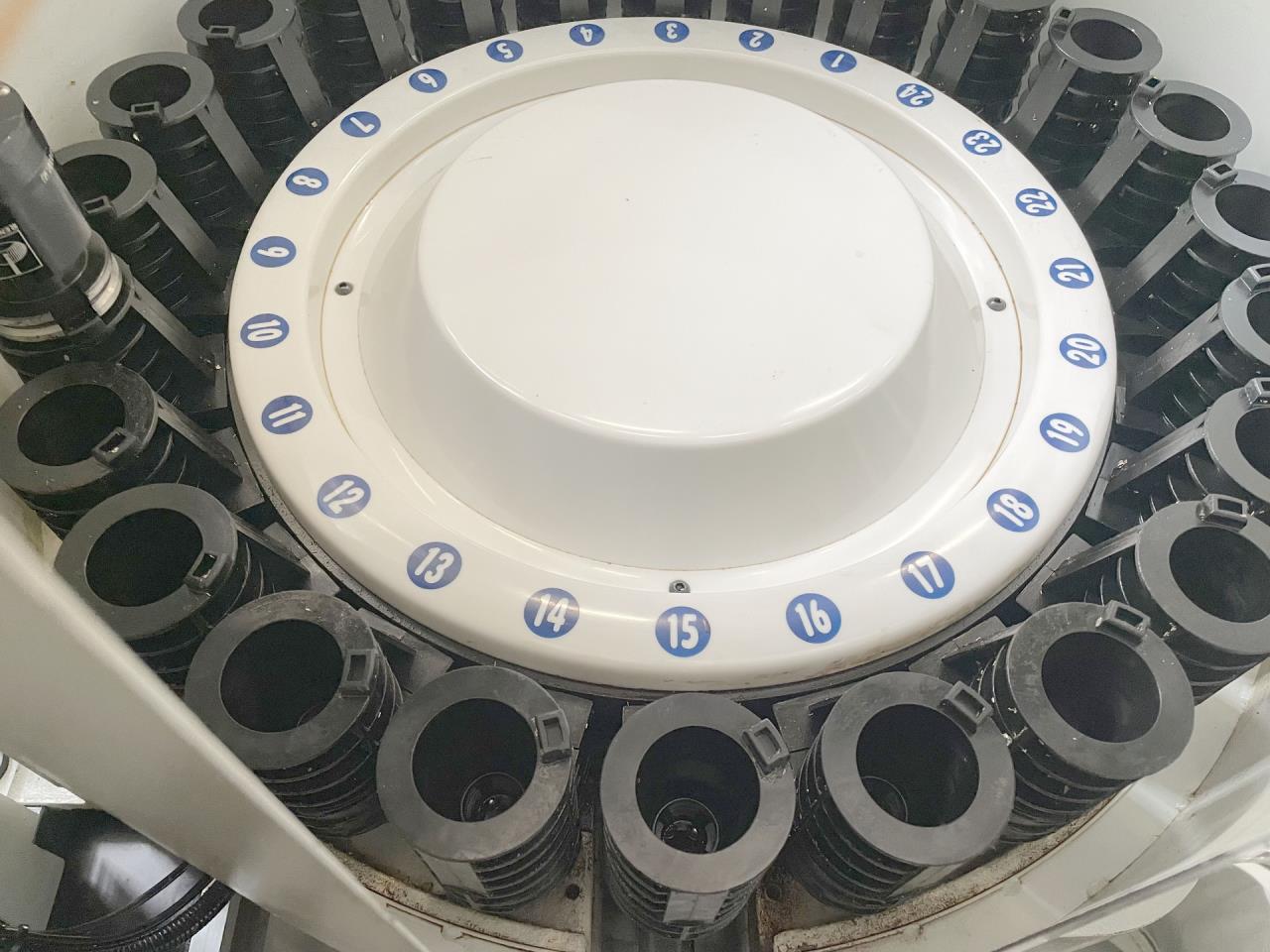

Tool changer:
Number of tools
24
Tool diameter max.
77 mm
Tool lenght
305 mm
Max. tool-weight
6 kg
Time of tool changing
6 sec
Average chip-to-chip time
8 sec
Spindle nose SK
40
Pull-Studs
DIN 69872 Form B
Spindle speeds:
stepless
from
30 rpm
up to
8000 rpm
Rapid traverse: long.
24 m/min
Rapid traverse: transversal
24 m/min
Rapid traverse: vertical
20 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
12 kW
Spindle power
18.5 / 22 kW
Total power required
42 kW
Noise level
78 dB (A)
Machine's weight about
5000 kg
Overall dimensions machine:
Length
3200 mm
Width
2300 mm
Height
2800 mm
Various accessories:
Set of toolholders
Coolant system
270 l
Handwheel electroinic
Lamp
Boring head
Status light
Technical specifications and pictures without guarantee.
