Technical data
Max. turning diameter
20 mm
Turning length
320 mm
Max. drilling diameter
10 mm
Max. threading diameter
8 M (Metric)
Internal spindle diameter
24 mm
Spindle speeds:
stepless
from
200 rpm
up to
10000 rpm
Turret slide:
Number of positions
10
Back spindle:
speeds:
from
200 rpm
up to
5000 rpm
Tool-holder:
numbers
2
number of driven tools
3
Turning tools
5 pce
Rapid traverse X
20 m/min
Rapid traverse Y
20 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
3.7 / 7.5 kW
Power of back spindle
1.5 / 3.7 kW
Power of driven tools
1.5 / 2.2 kW
Total power required
8 kVA
Machine's weight about
2500 kg
Overall dimensions machine:
Length
2800 mm
Width
1370 mm
Height
1800 mm
Various accessories:

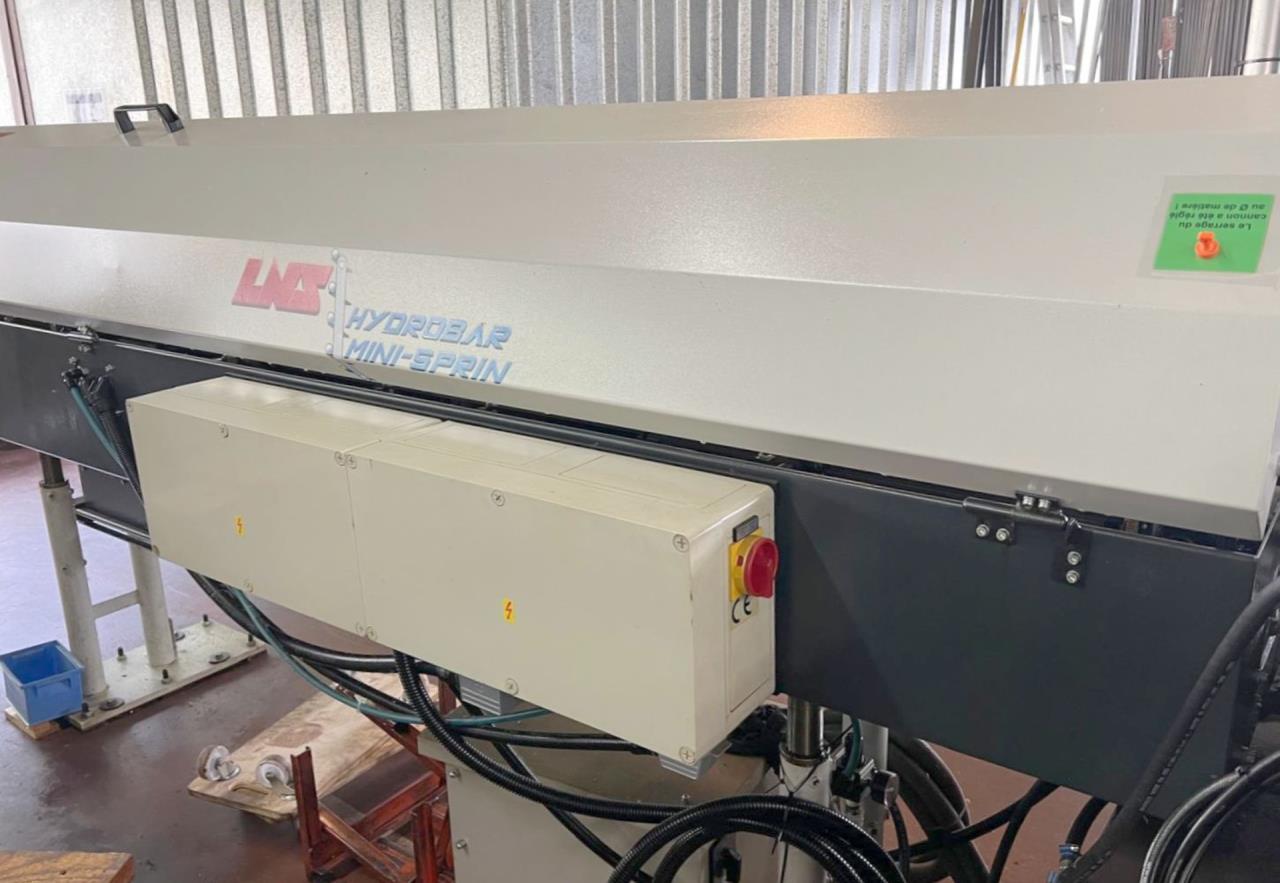

Bar feeder
Manufacturer
LNS
Type
HYDROBAR MINI-SPRINT
Chip conveyor
Technical specifications and pictures without guarantee.
