Technical data

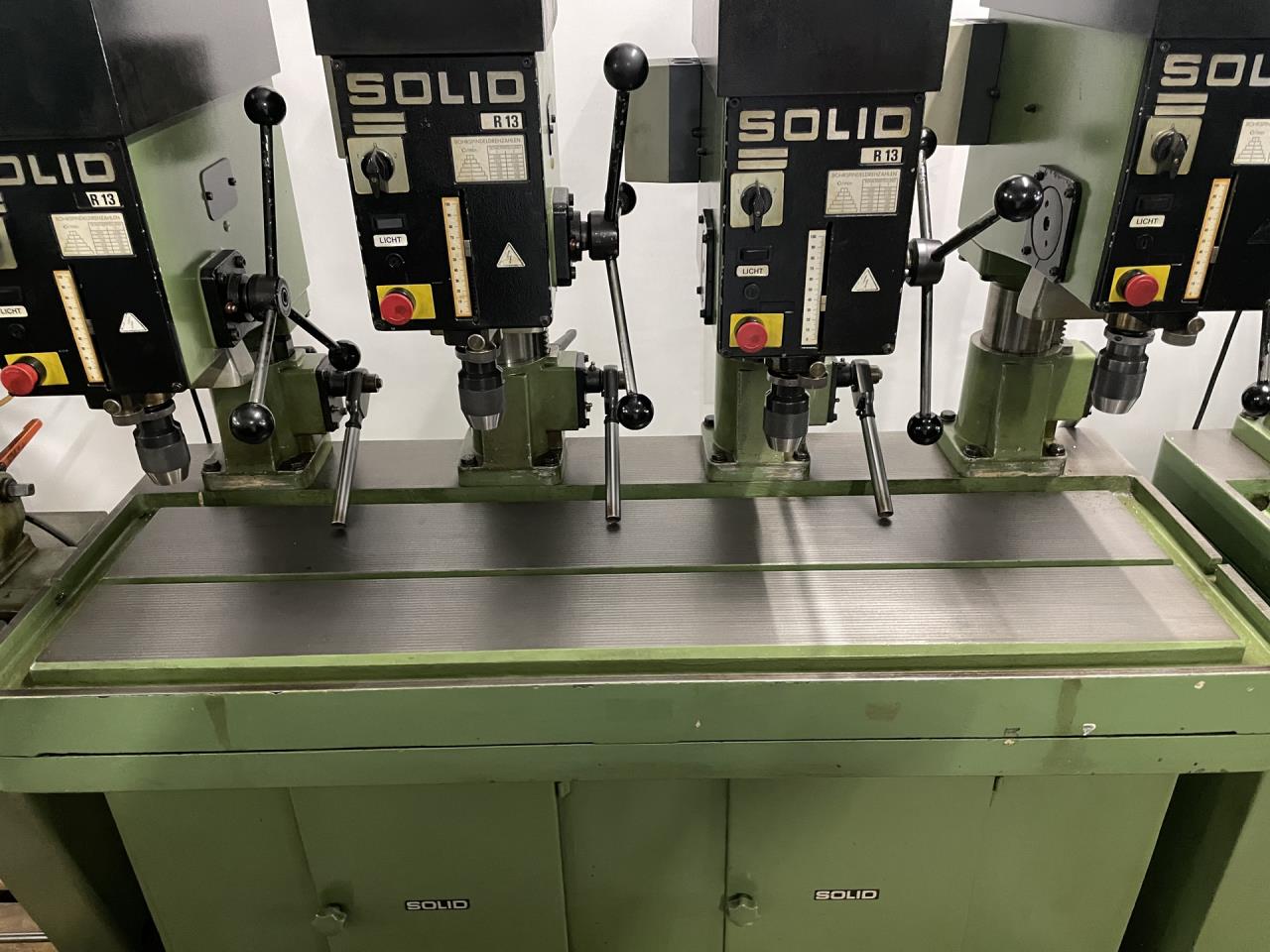

Number of drill-heads
4
Table length
1250 mm
Table width
400 mm
Number of T-channels
1
T-channel width
14 mm

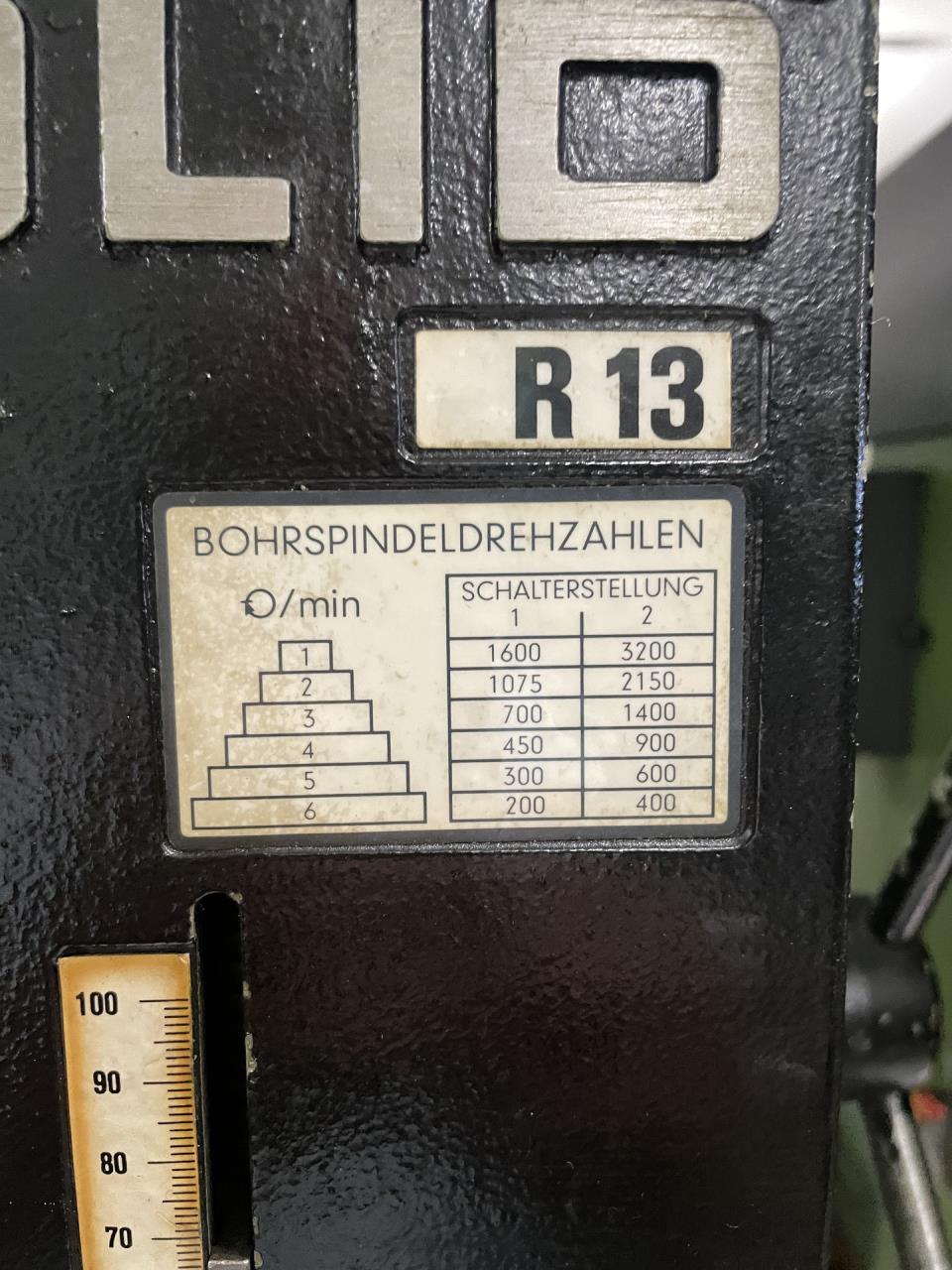

Spindle speeds:
number (steps)
12
stepless
200
from
3200 rpm
Voltage 50 Hz 3x
380 Volt
Machine's weight about
1250 kg
Overall dimensions machine:
Length
1400 mm
Width
600 mm
Height
1800 mm
Various accessories:
Drill chuck
4x

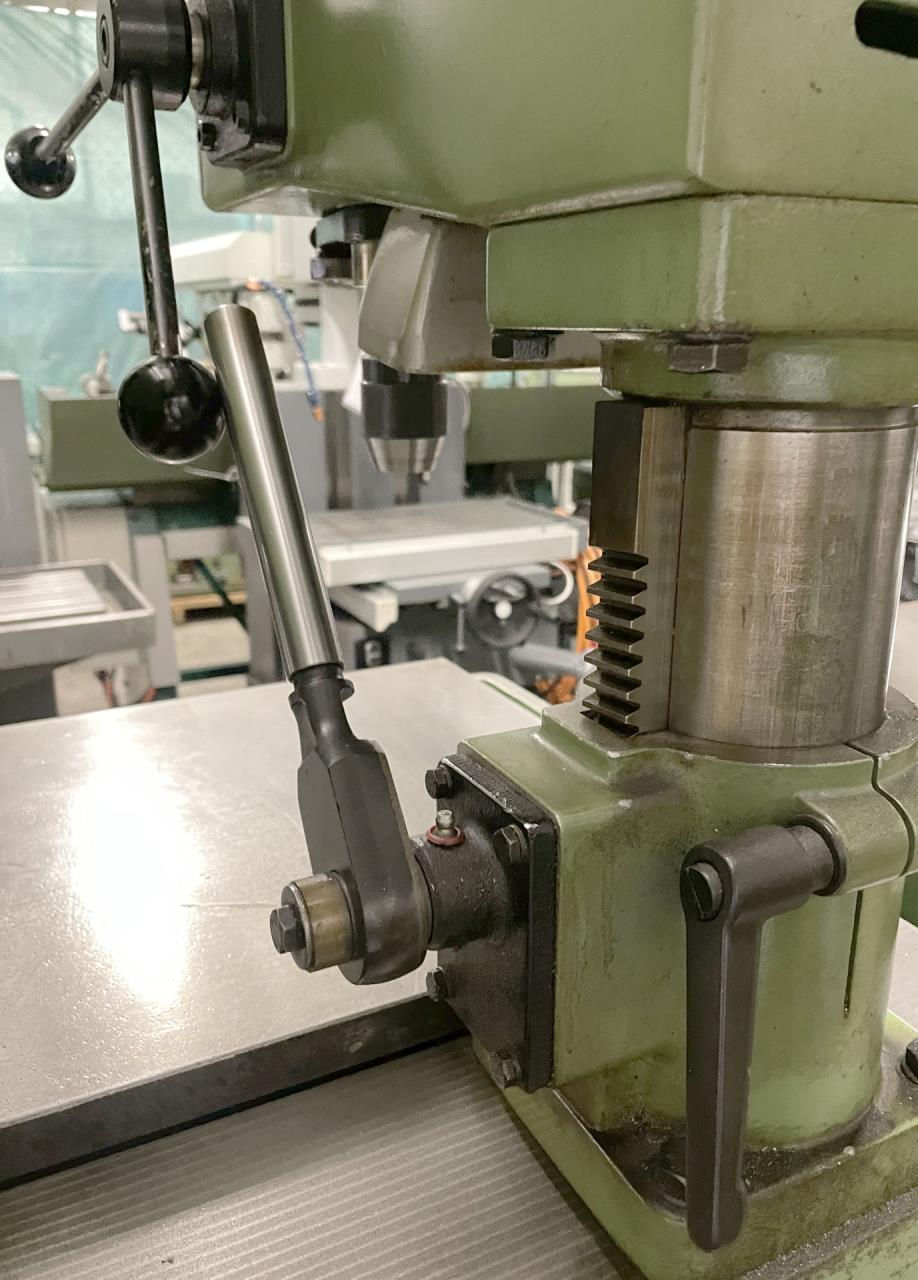

Adjustable depth stop
Lamp
Technical specifications and pictures without guarantee.
