stock no. :
22954
Machine's group :
Type :

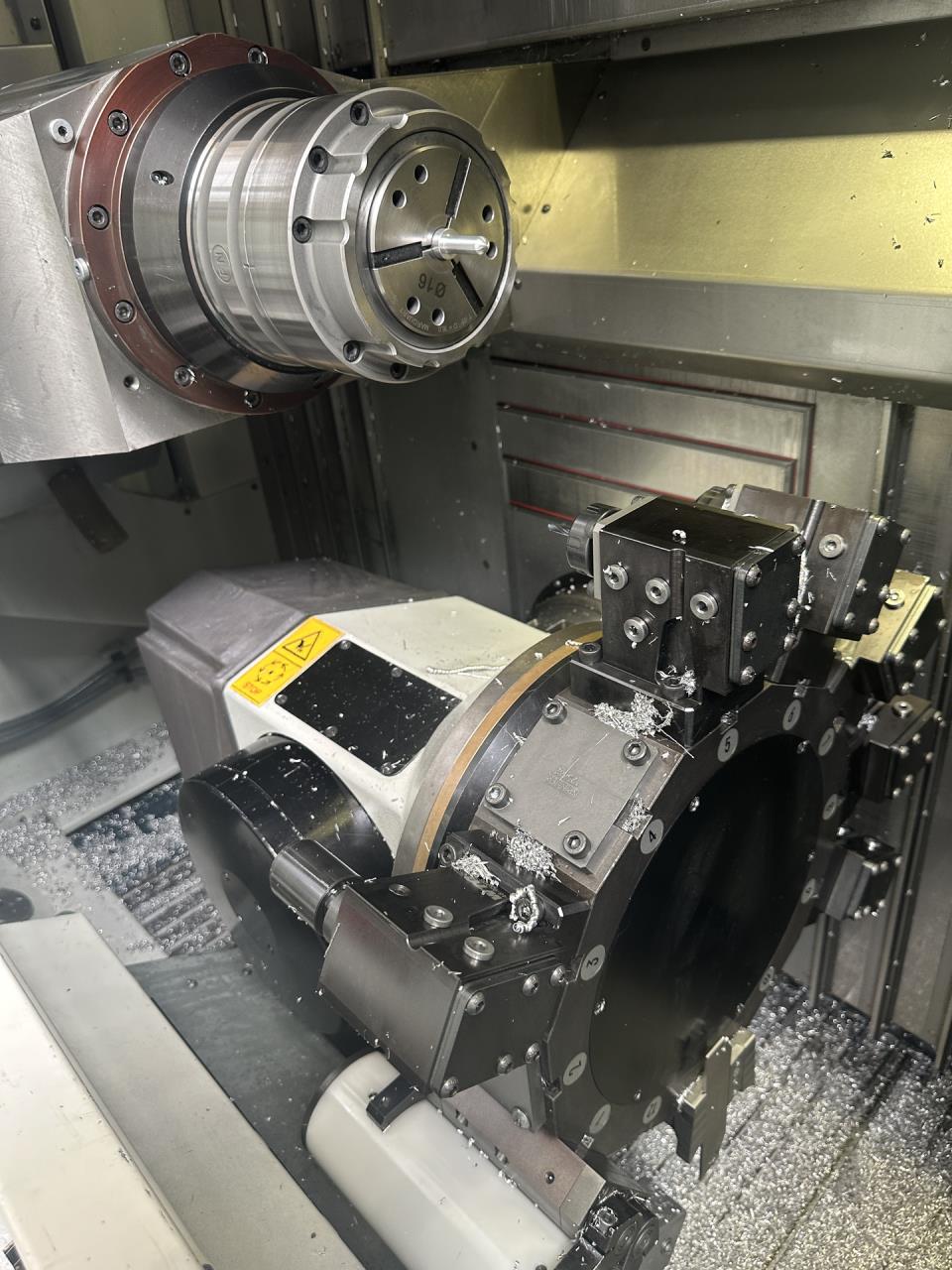

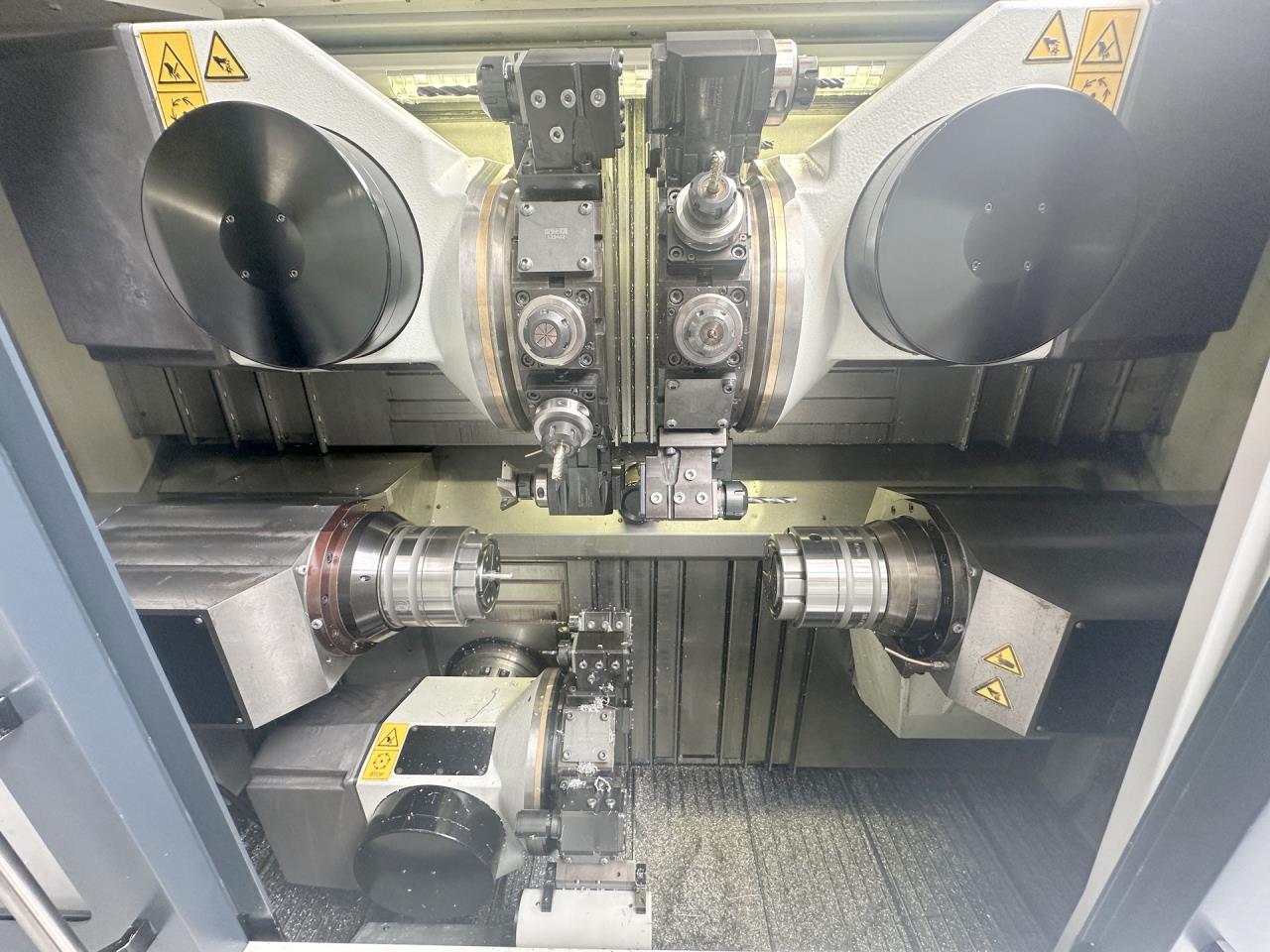

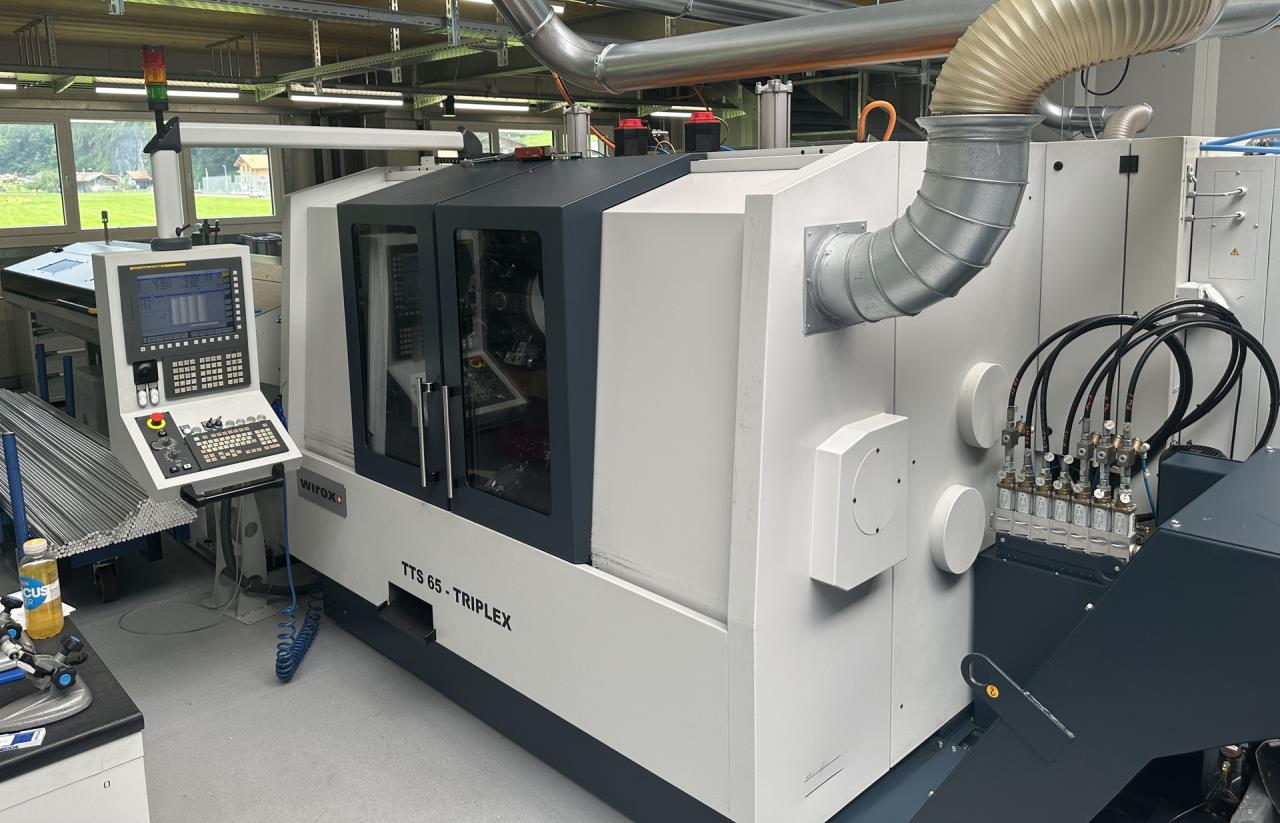

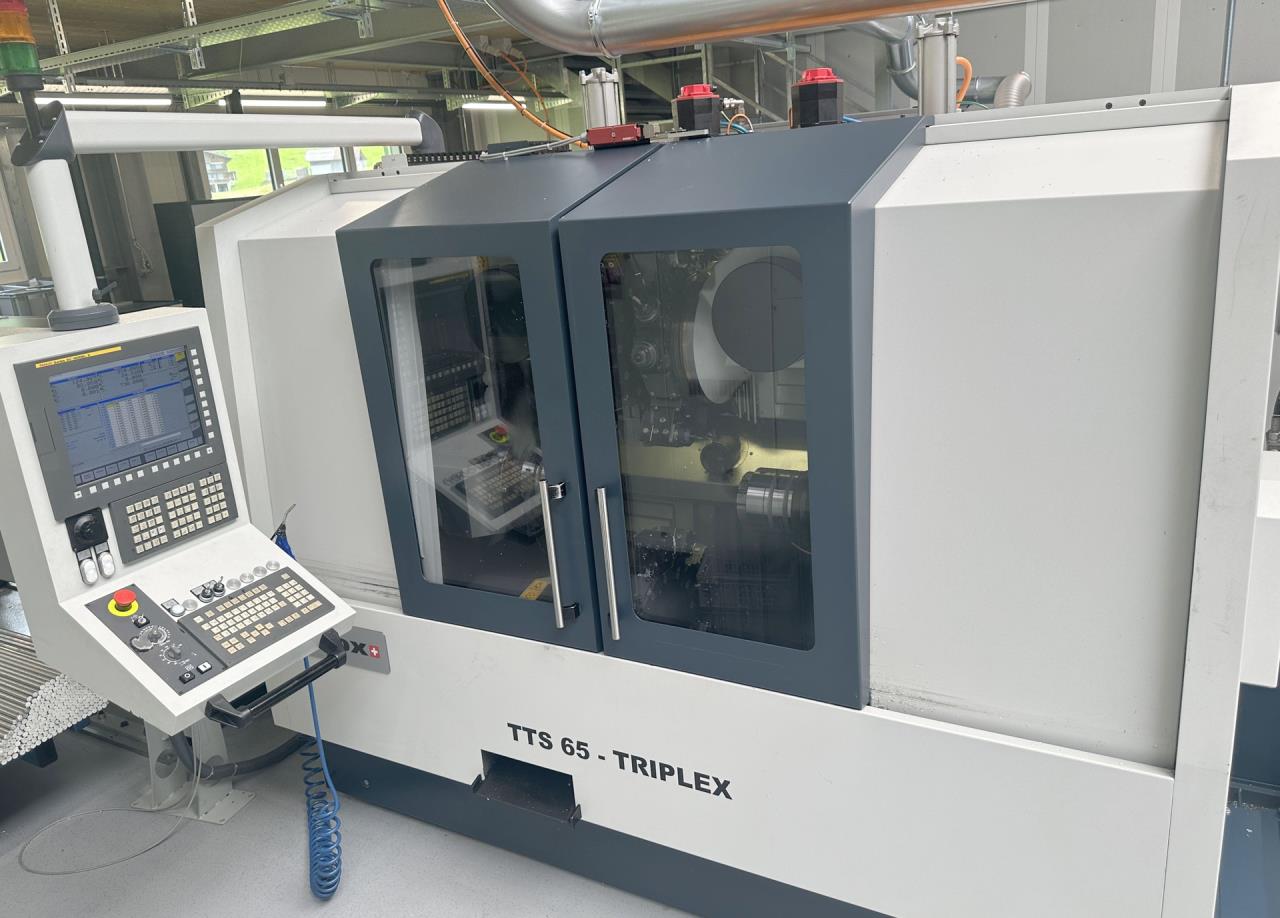

SPINNER TTS 65 - TRIPLEX

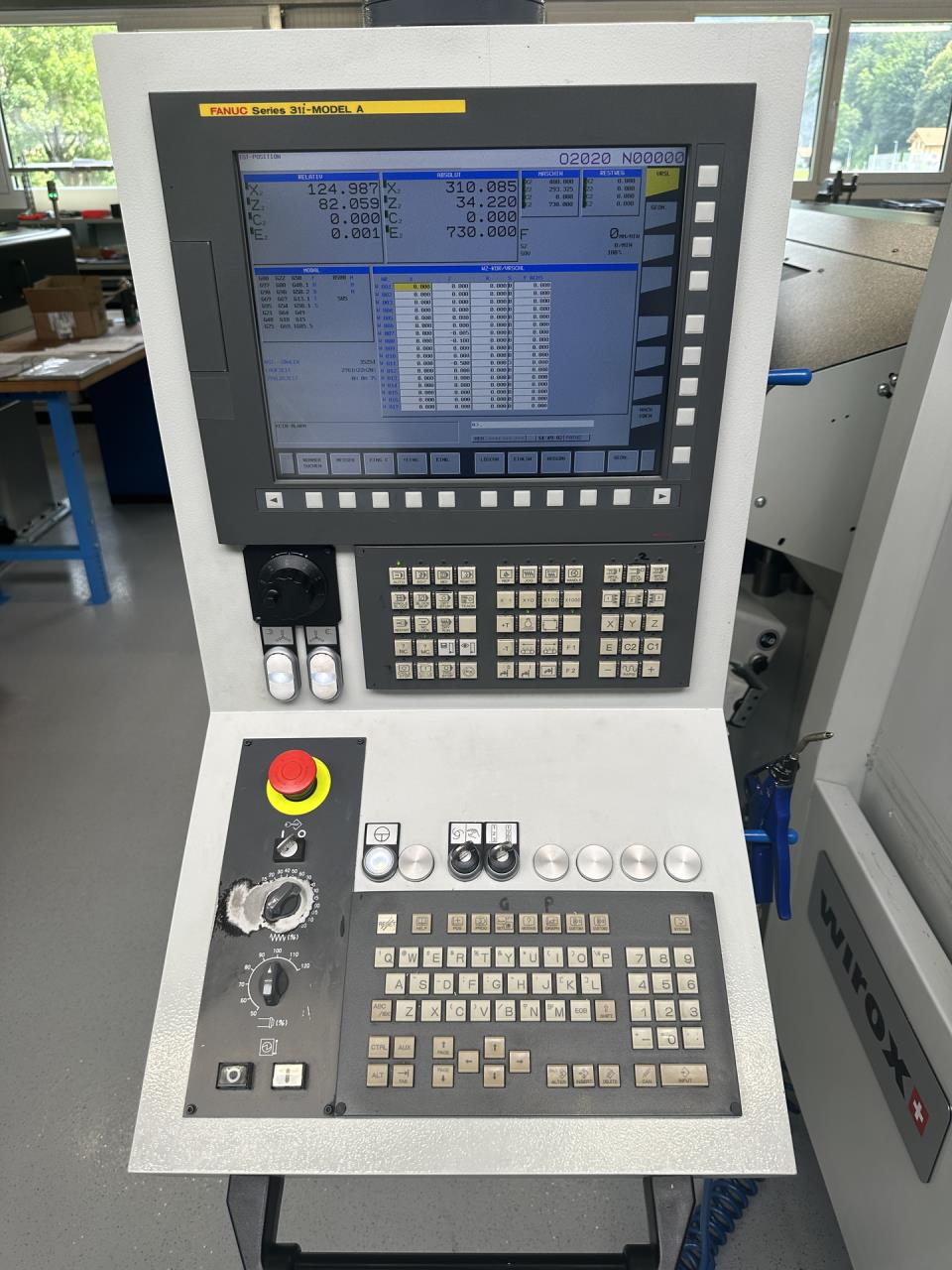

Controller :
FANUC Series 31i-Model A
Jahrgang :
2015
Technical data
Number of axis total
9
Number of spindles
2
Number of revolvers
3
Travels:
X1
180 mm
X2
180 mm
X3
180 mm
Z1
704 mm
Z3
704 mm
Y1
+/-45 mm
Y3
+/-45 mm

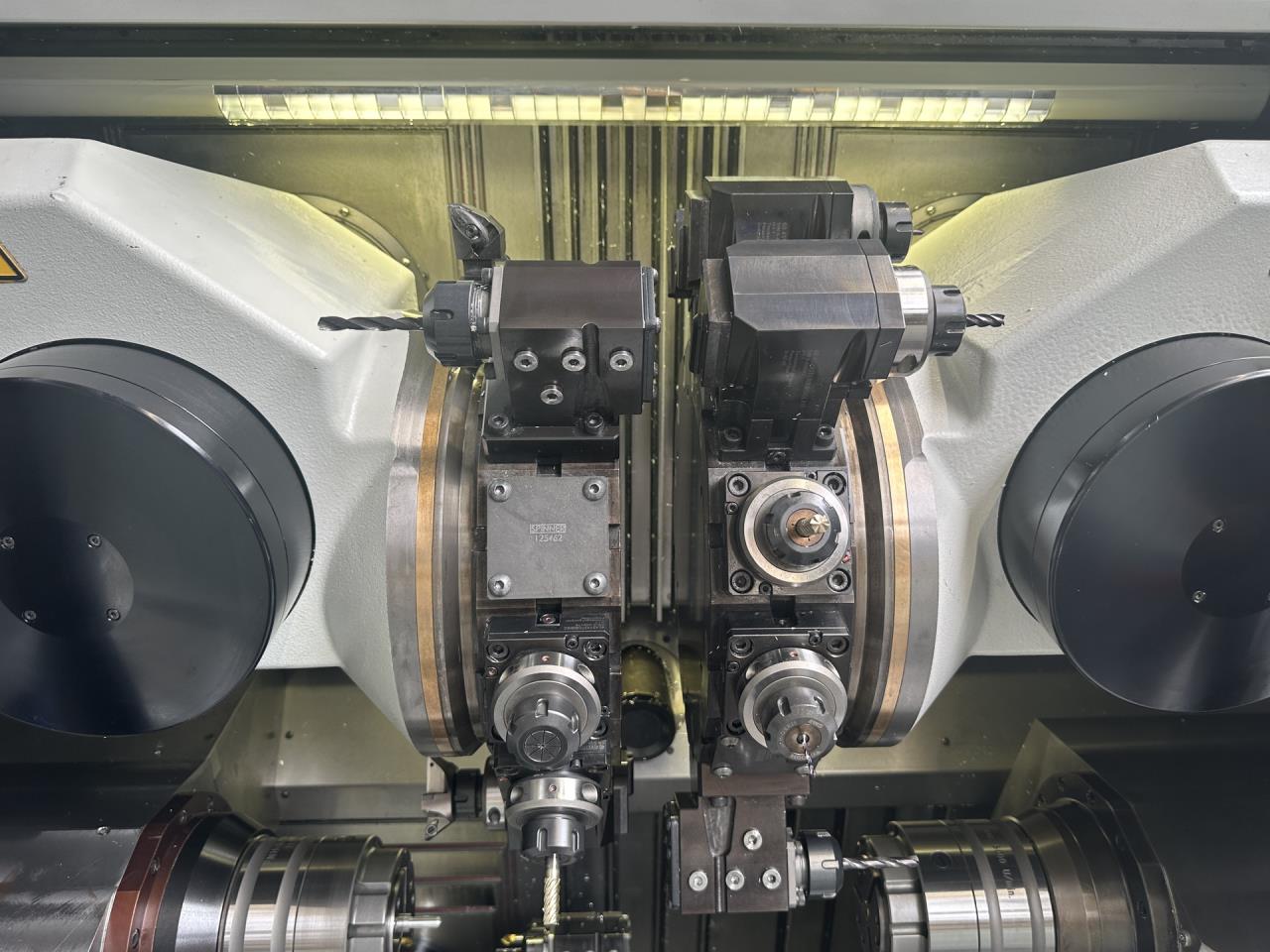

Turret slide:
3x
Number of positions
12
Driven tools turret
12
Spindle speeds
8000 rpm
Power of driven tools
11.4 / 2.3 kW
Torque max.
26 / 14 Nm
Spindle nose:
BMT 45
Main spindle:
Taper in spindle
DIN A6
Collet bore
65 mm
Spindle speeds:
stepless
from
0 rpm
up to
5000 rpm
Spindle power
24 / 18 kW
Torque max.
151 / 115 Nm

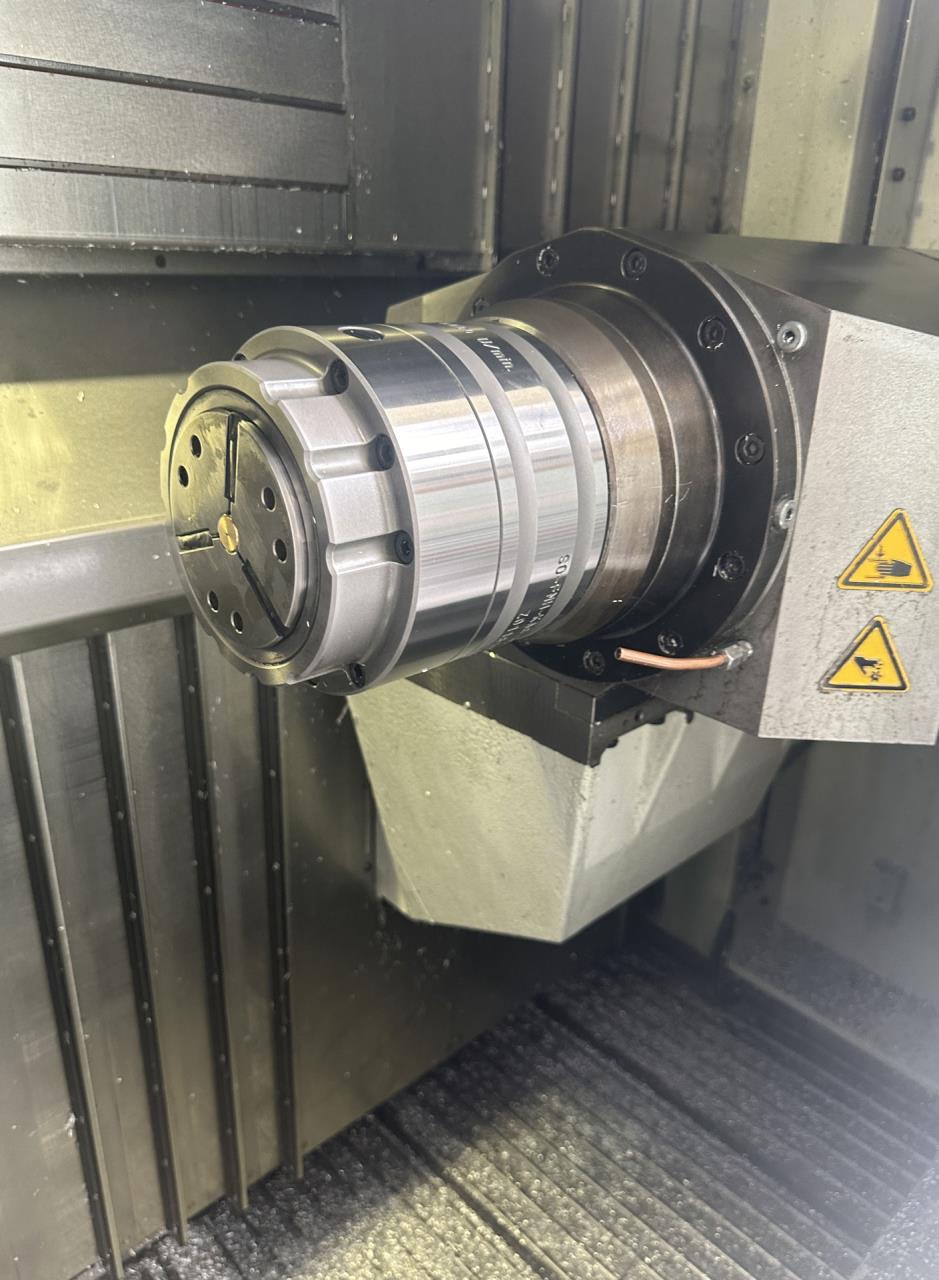

Back spindle:
max. speed
7000 rpm
Internal spindle diameter
42 mm
Power of back spindle
22 / 16.5 kW
Torque max.
128 / 100 Nm
Rapid traverse:
30 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Total power required
60 kW
Machine's weight about
7500 kg
Overall dimensions machine:
Length
2500 mm
Width
2300 mm
Height
2300 mm
Various accessories:
Coolant system
200 l

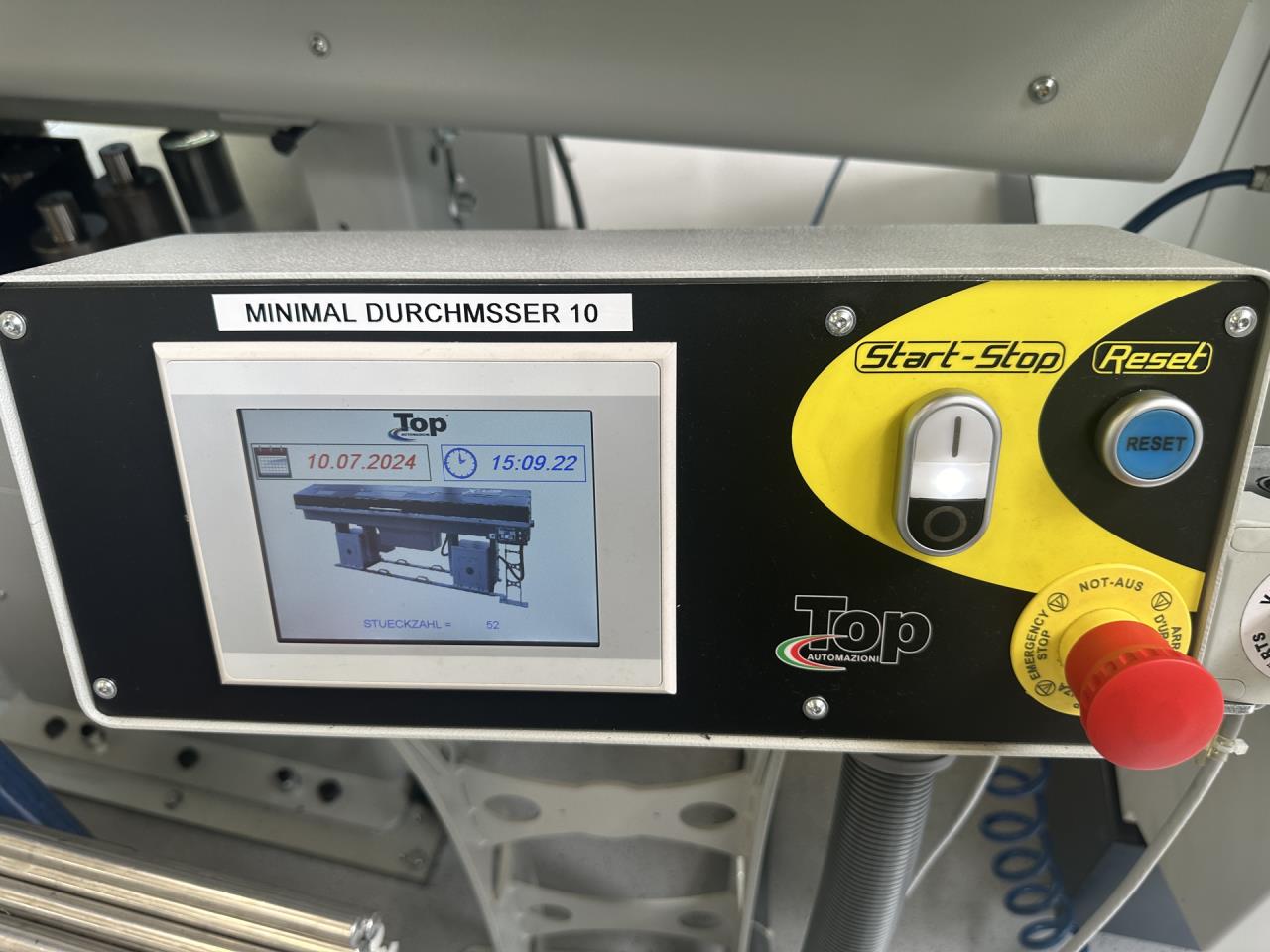

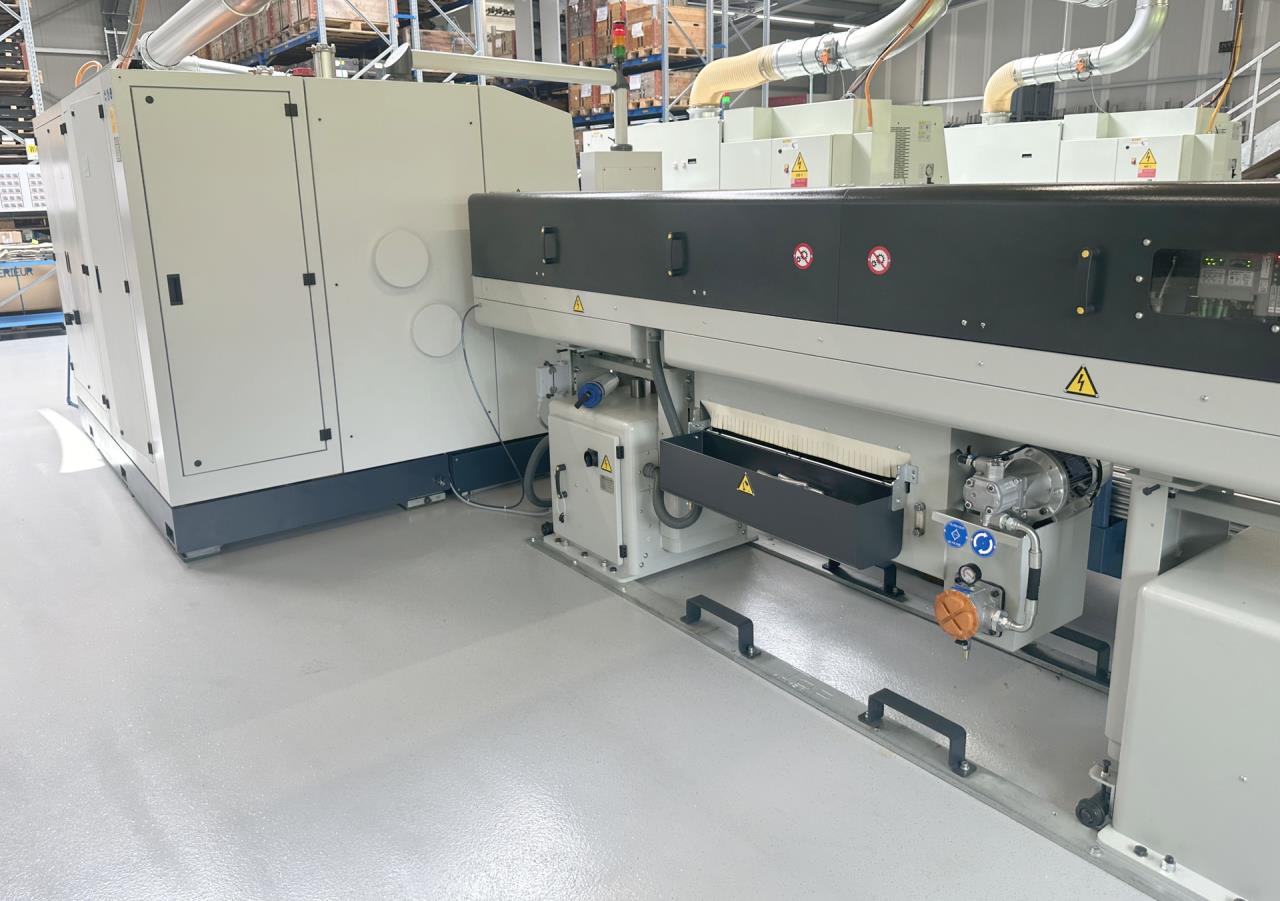

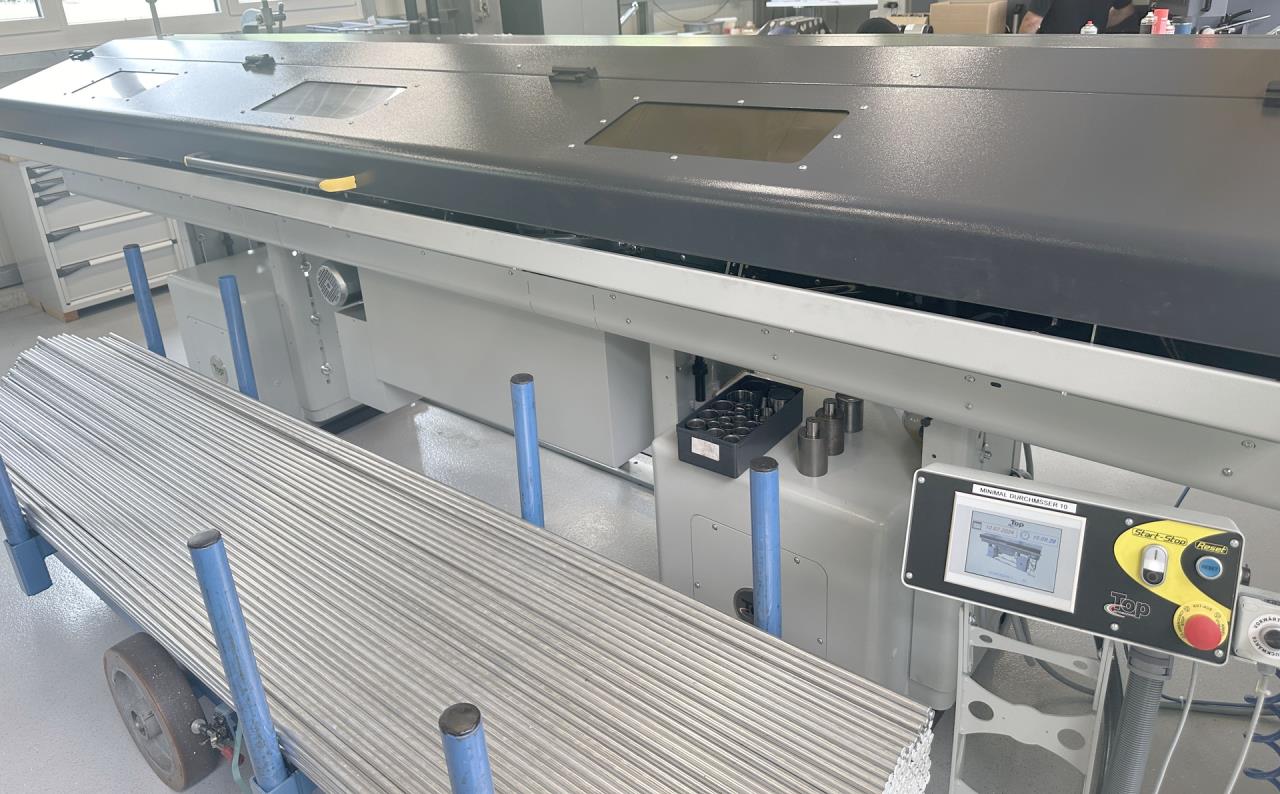

Bar feeder
TOP
C axis

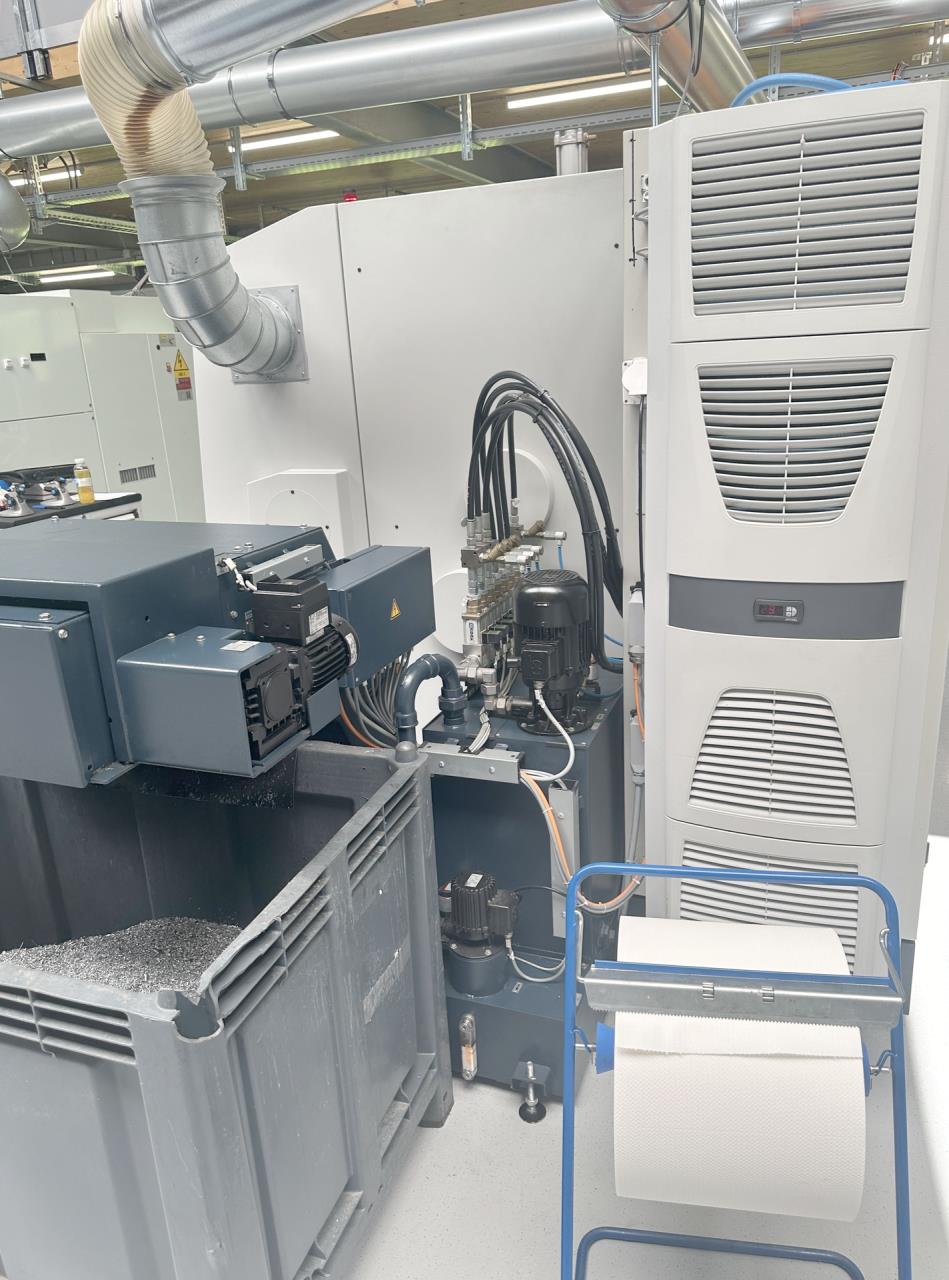

Chip conveyor
Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
