stock no. :
22953
Machine's group :
Type :

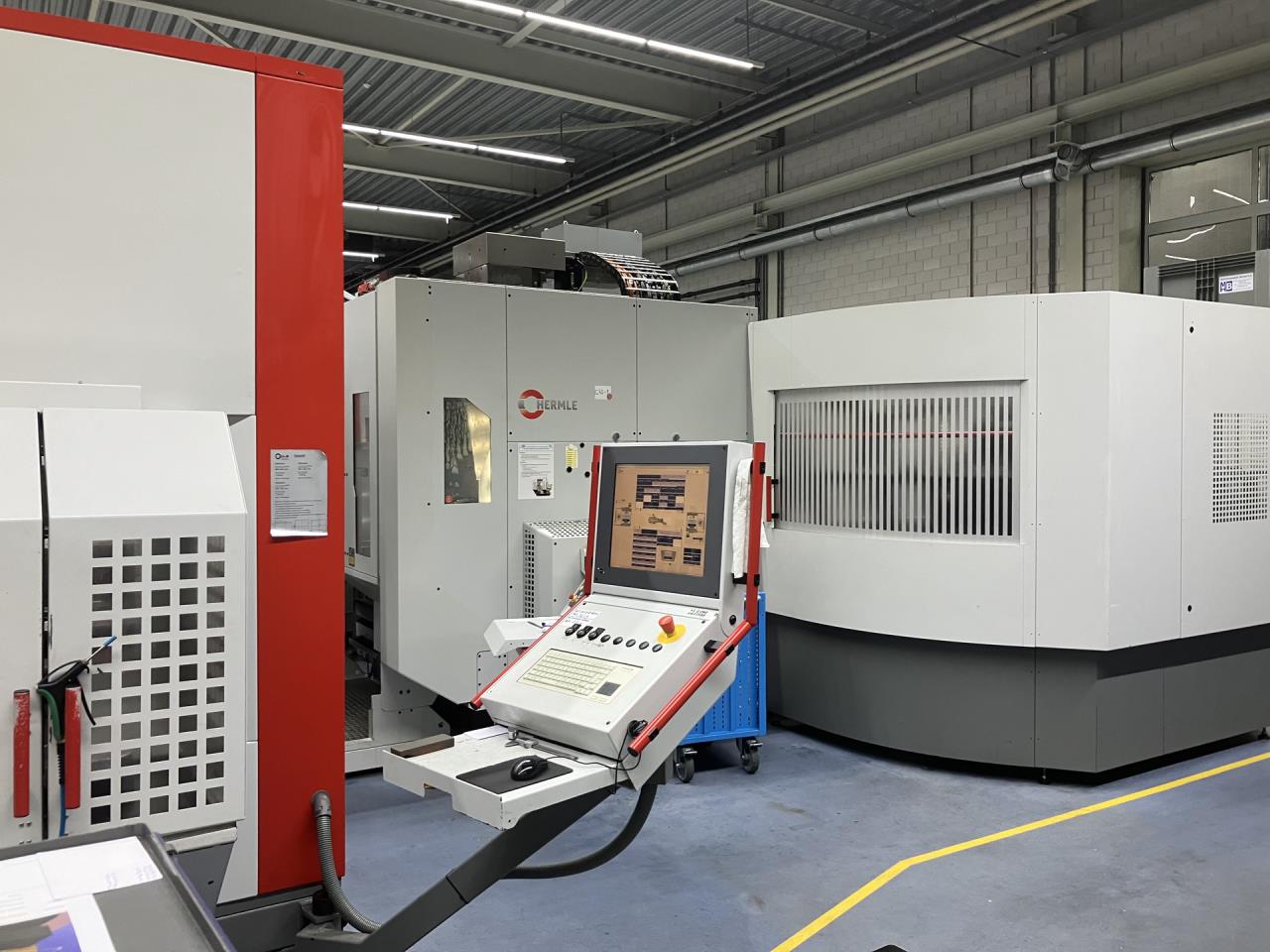

HERMLE C 42 U
Controller :
HEIDENHAIN TNC 530
Jahrgang :
2014
Technical data
Number of axis total
5

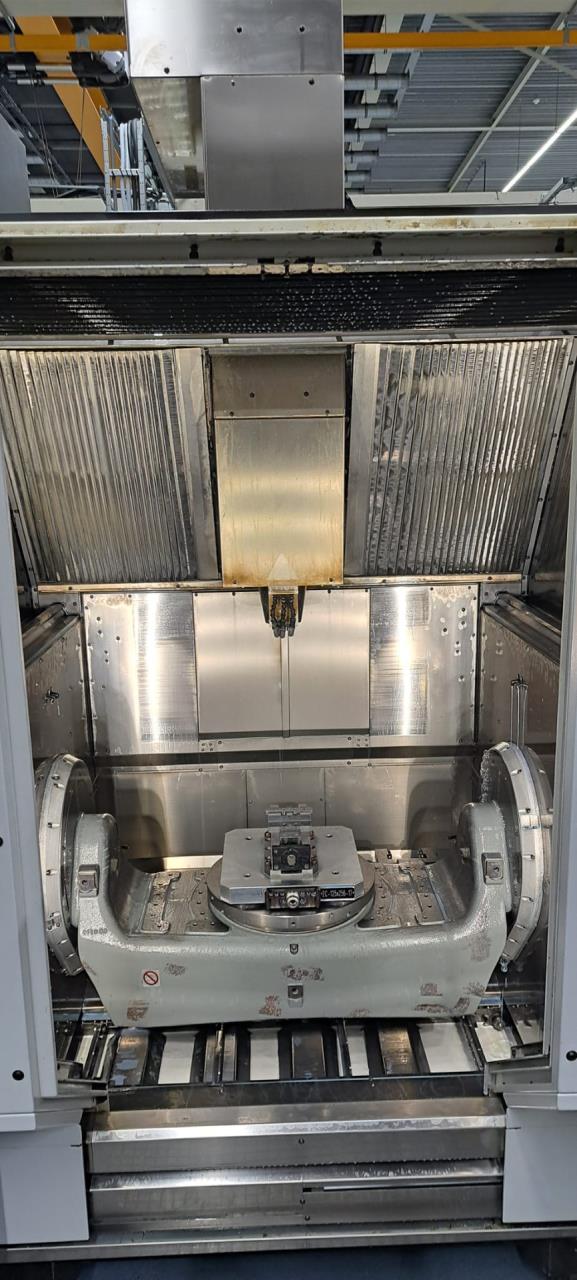

Circulary table diameter
440 mm
Number of T-channels
5
T-channel width
14H7 mm
Table load max.
450 kg
Maximum swing circle of up to
990 mm
Longitudinal travel (X-axis)
800 mm
Transversal travel (y-axis)
800 mm
Vertical travel (z axis)
550 mm
Swivel angle (a-axis)
+/-130 °
Table speed
30 rpm
Pallets chanching device:
numbers
30
Length
400 mm
Width
400 mm

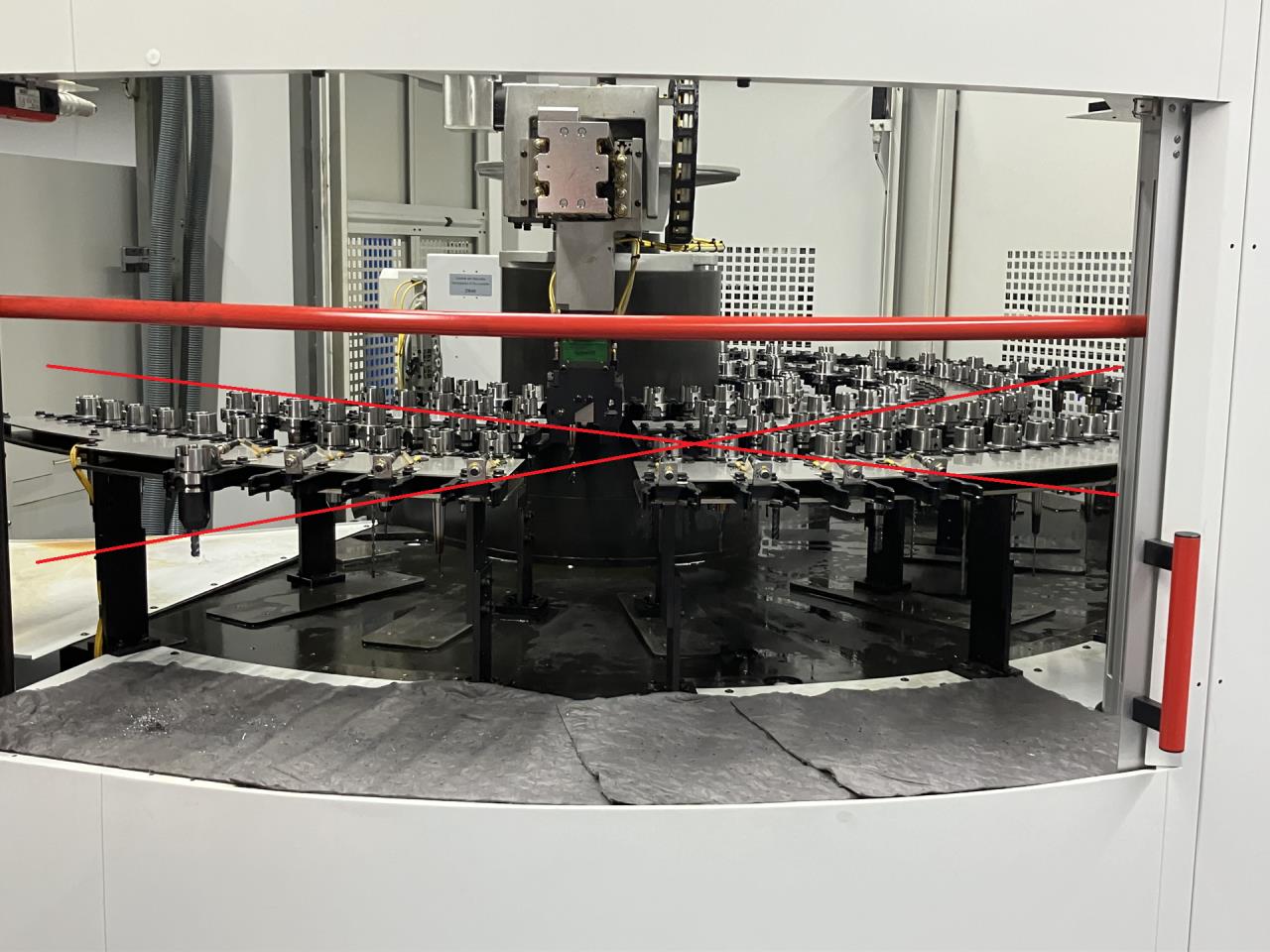

Tool magazine number of tool places
42 +160
Spindle nose: HSK-A
63
Spindle speeds:
stepless
from
0 rpm
up to
18000 rpm
Rapid traverse: long.
45 m/min
Rapid traverse: transversal
45 m/min
Rapid traverse: vertical
40 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
42 kW
Torque max.
148 Nm
Total power required
37 kVA
Machine's weight about
12500 kg

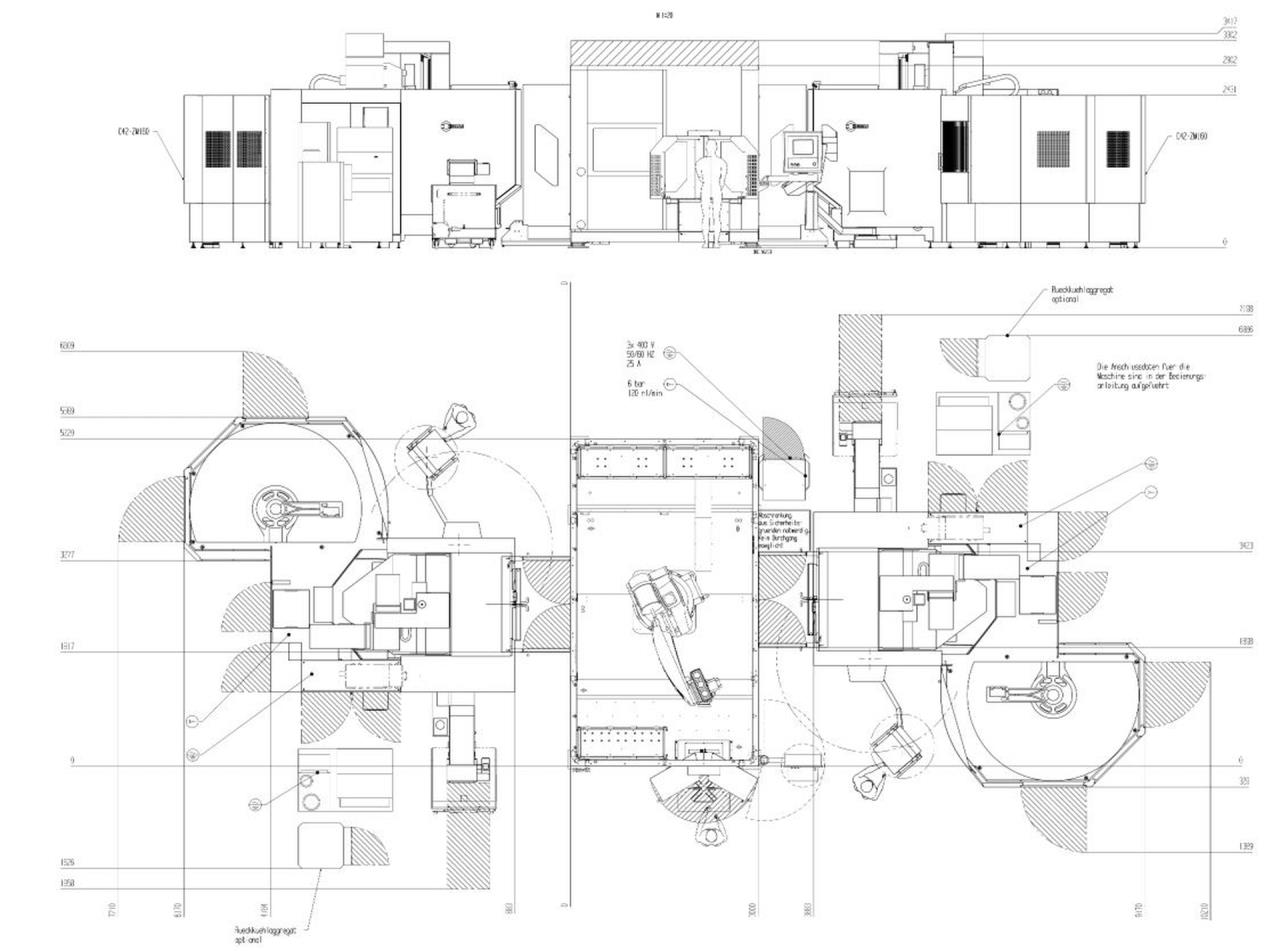

Overall dimensions machine:
Length
16000 mm
Width
7000 mm
Height
3500 mm

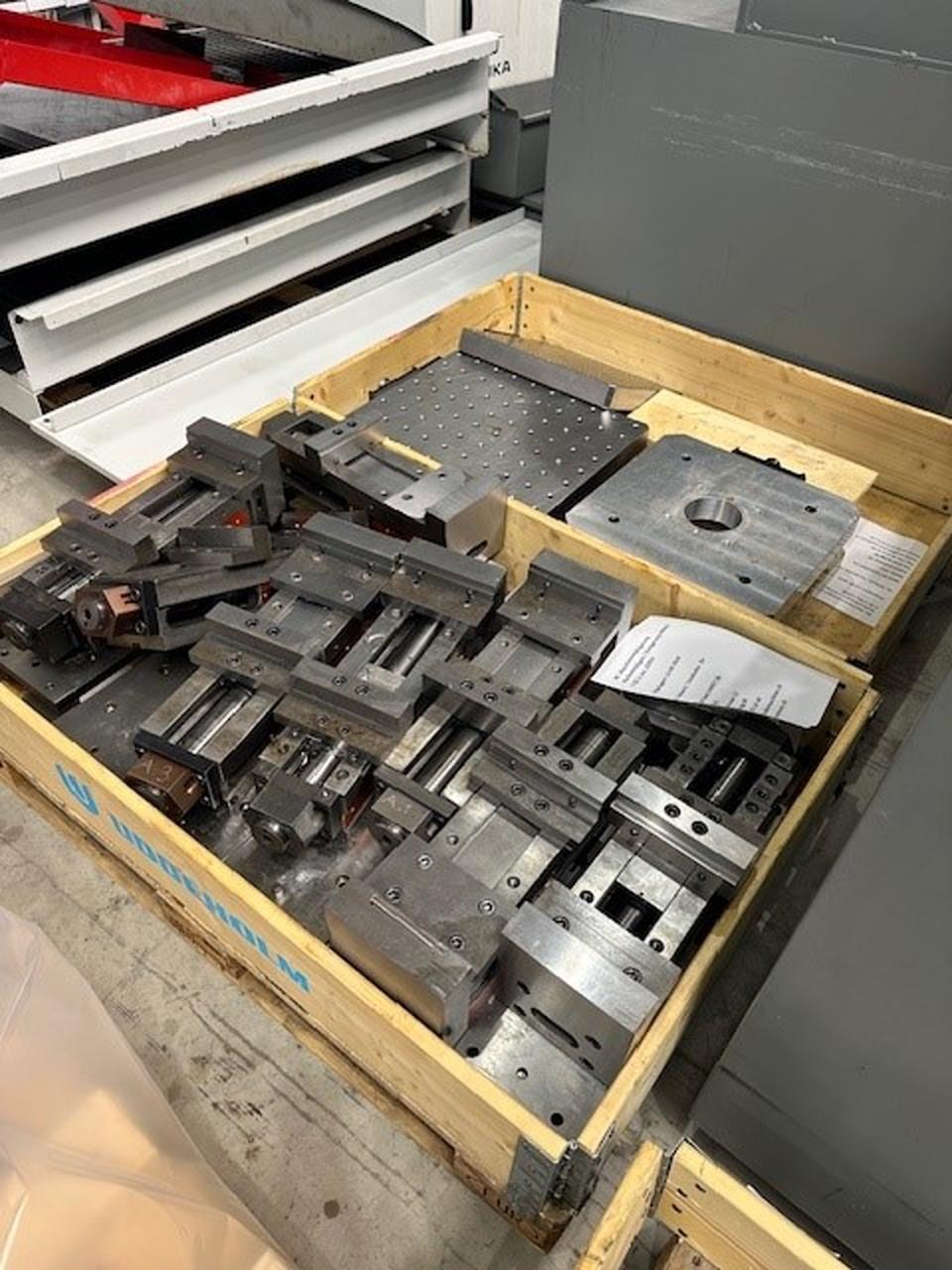

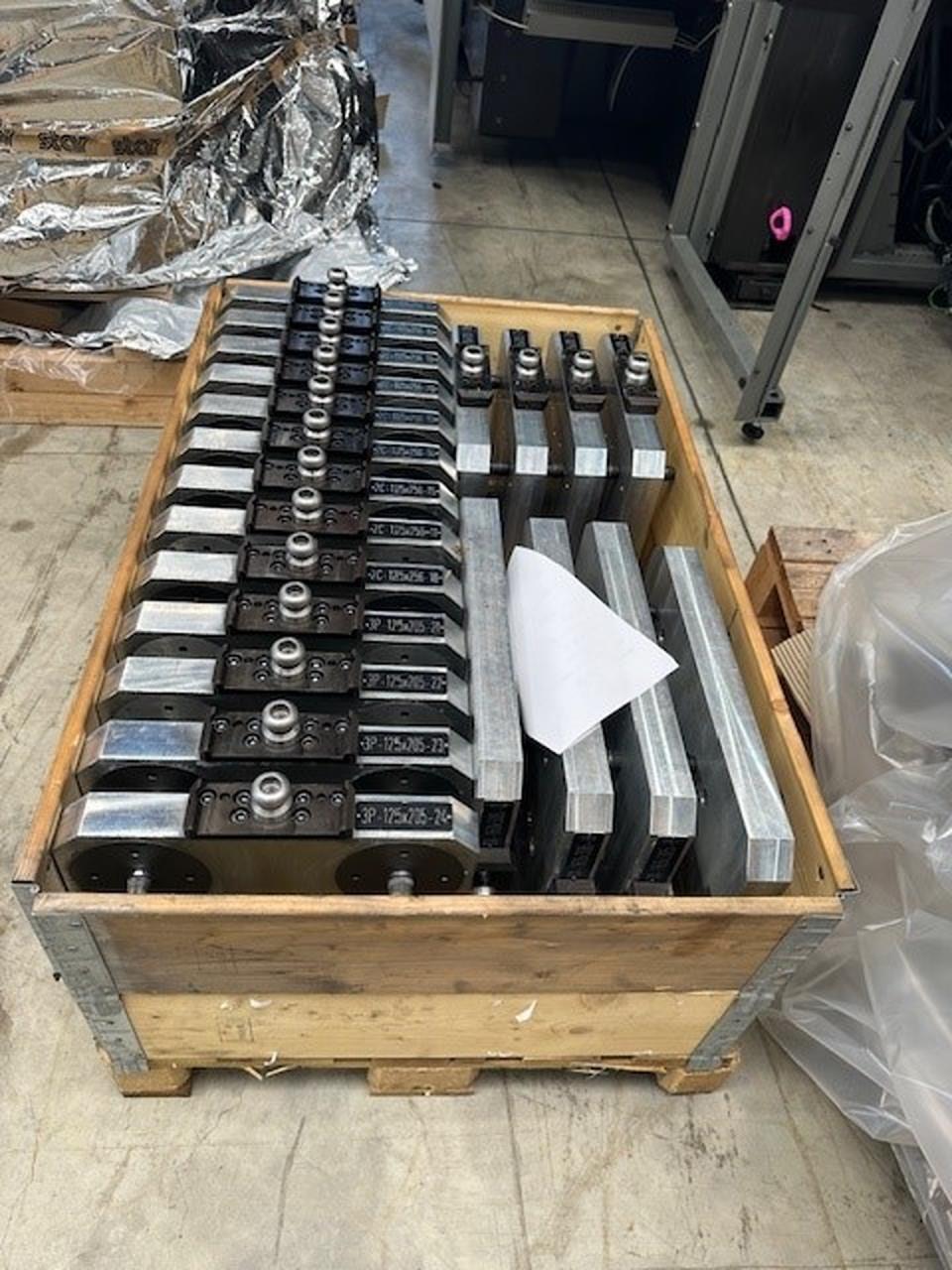

Various accessories:
Addet tool-holder magazine
Number of tool places
160

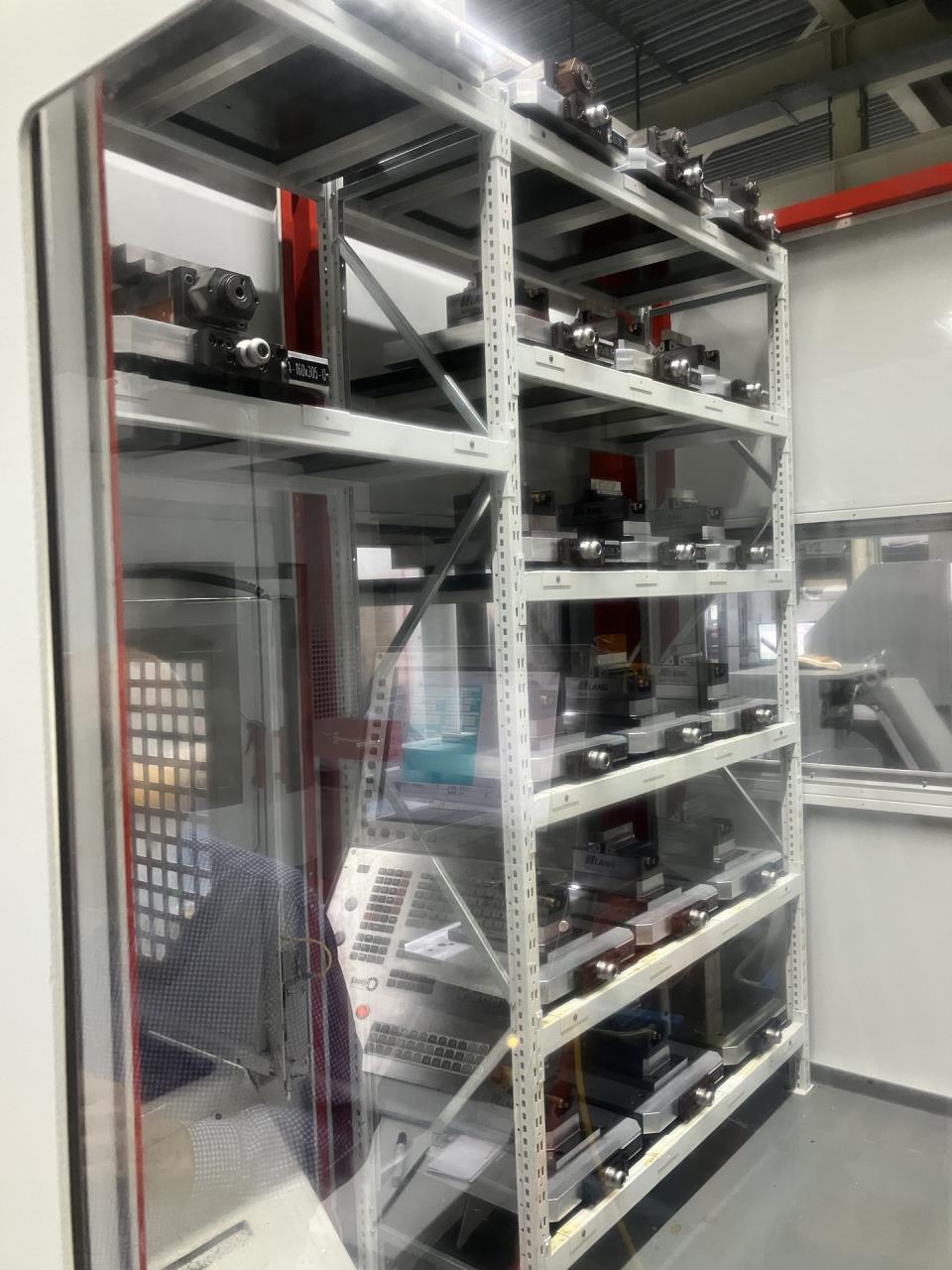

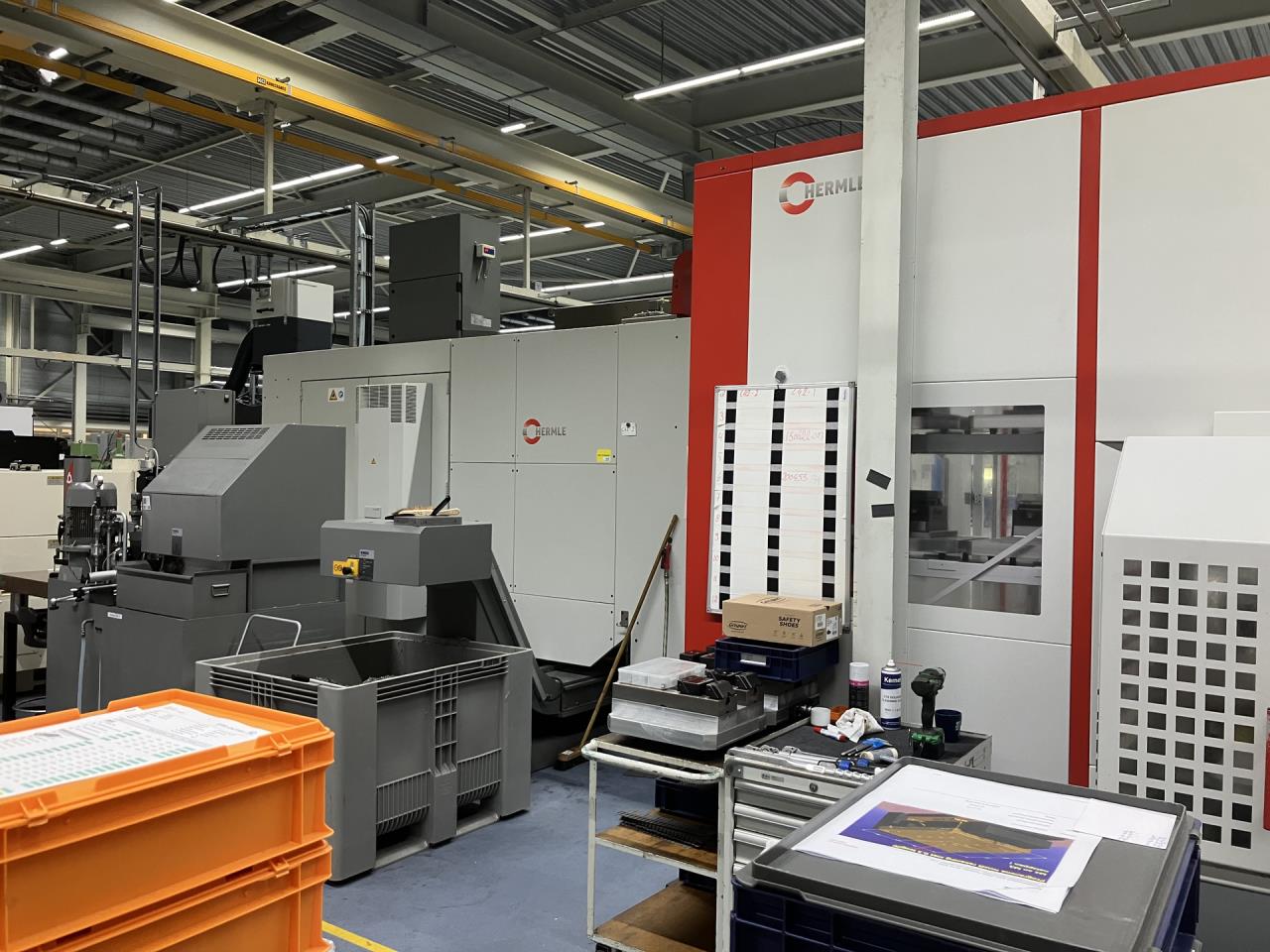

Pallet station (number of spaces)
54

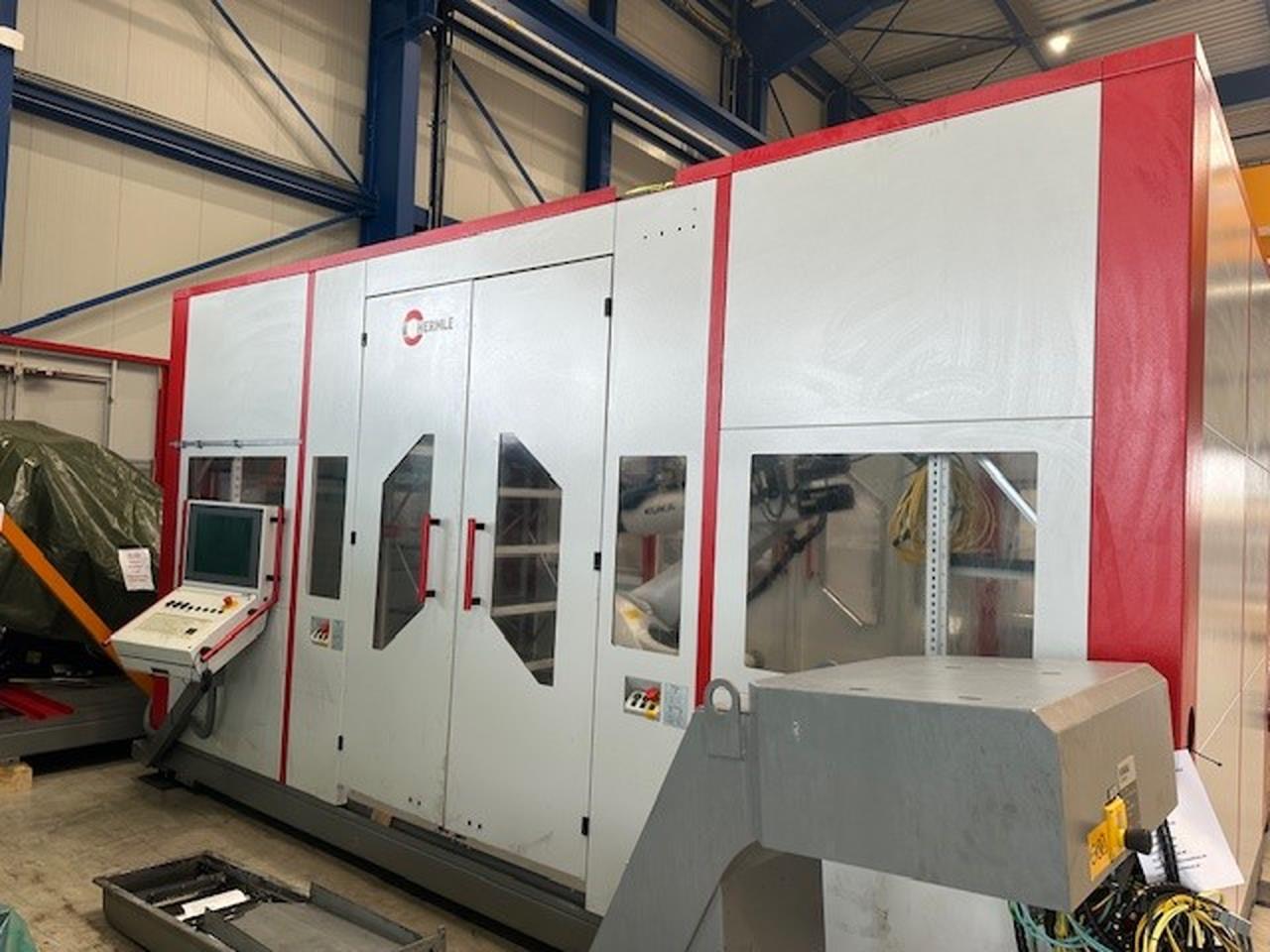

Loading roboter
KUKA
Coolant through spindle (cts)
80 bar
Air blast through milling spindle
Paper filtration system
Measuring feeler gauge Renishaw
Workpiece measurement
BLUM
Tool break control
BLUM
Chip conveyor

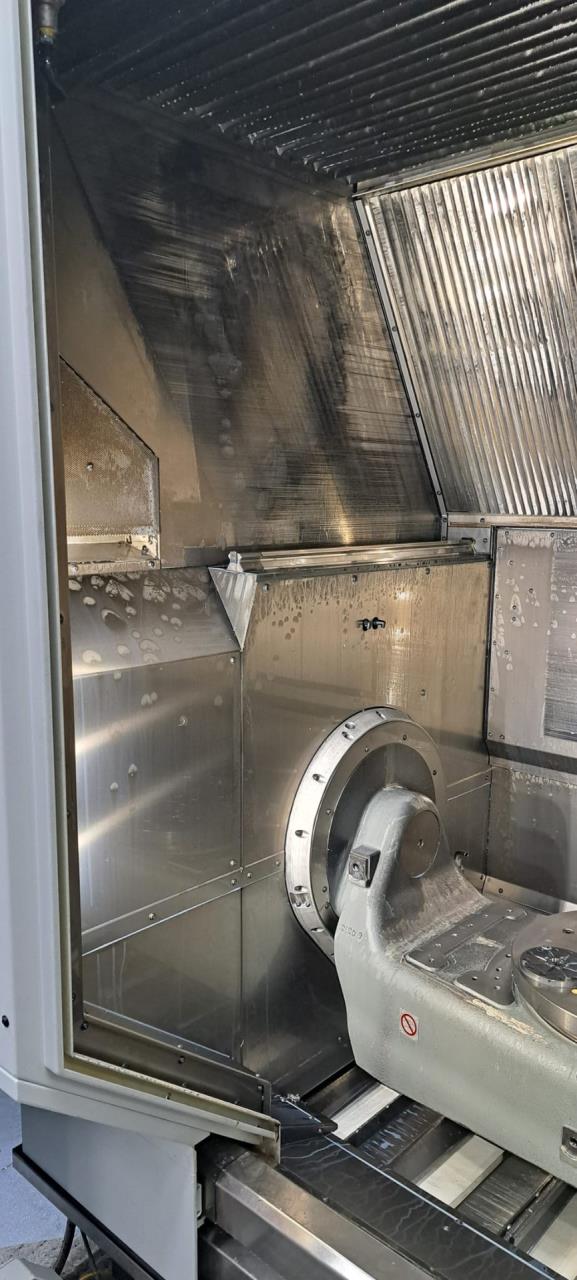

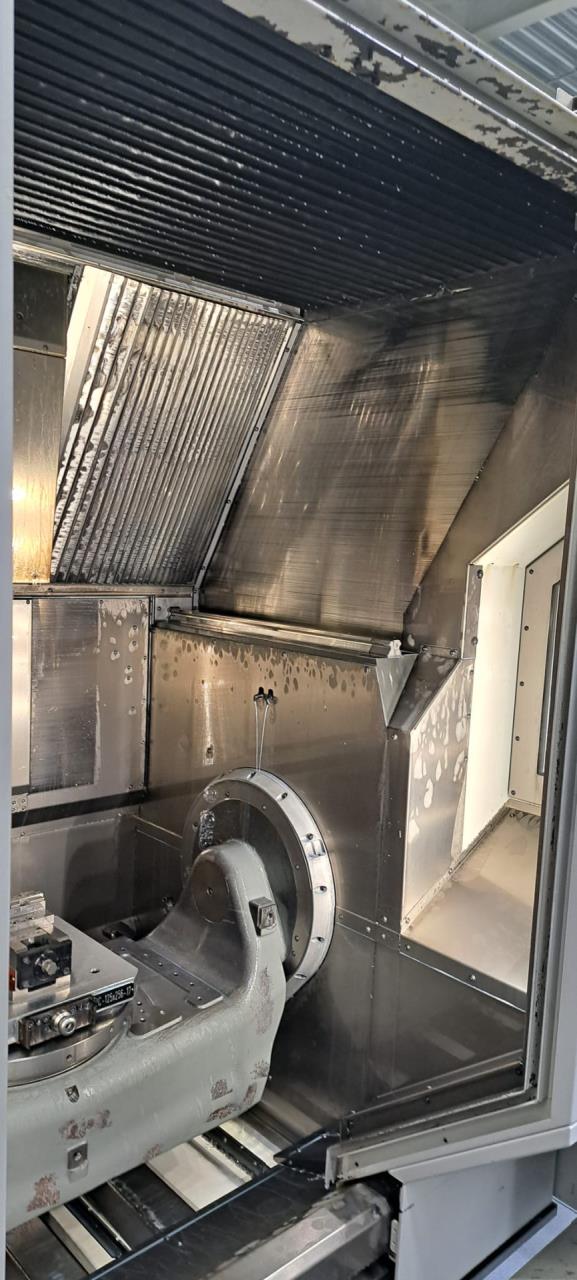

NC Rotary and swiveling table
Oil mist extractor
Rotating viewing window
Automatic sliding door
Interface serial port RS 232
Interface Ethernet
Interface USB
Switch cabinet Air conditioner
Notes:
without tool holders
Technical specifications and pictures without guarantee.
