stock no. :
22936
Machine's group :
Type :
CITIZEN CINCOM R 07 VI

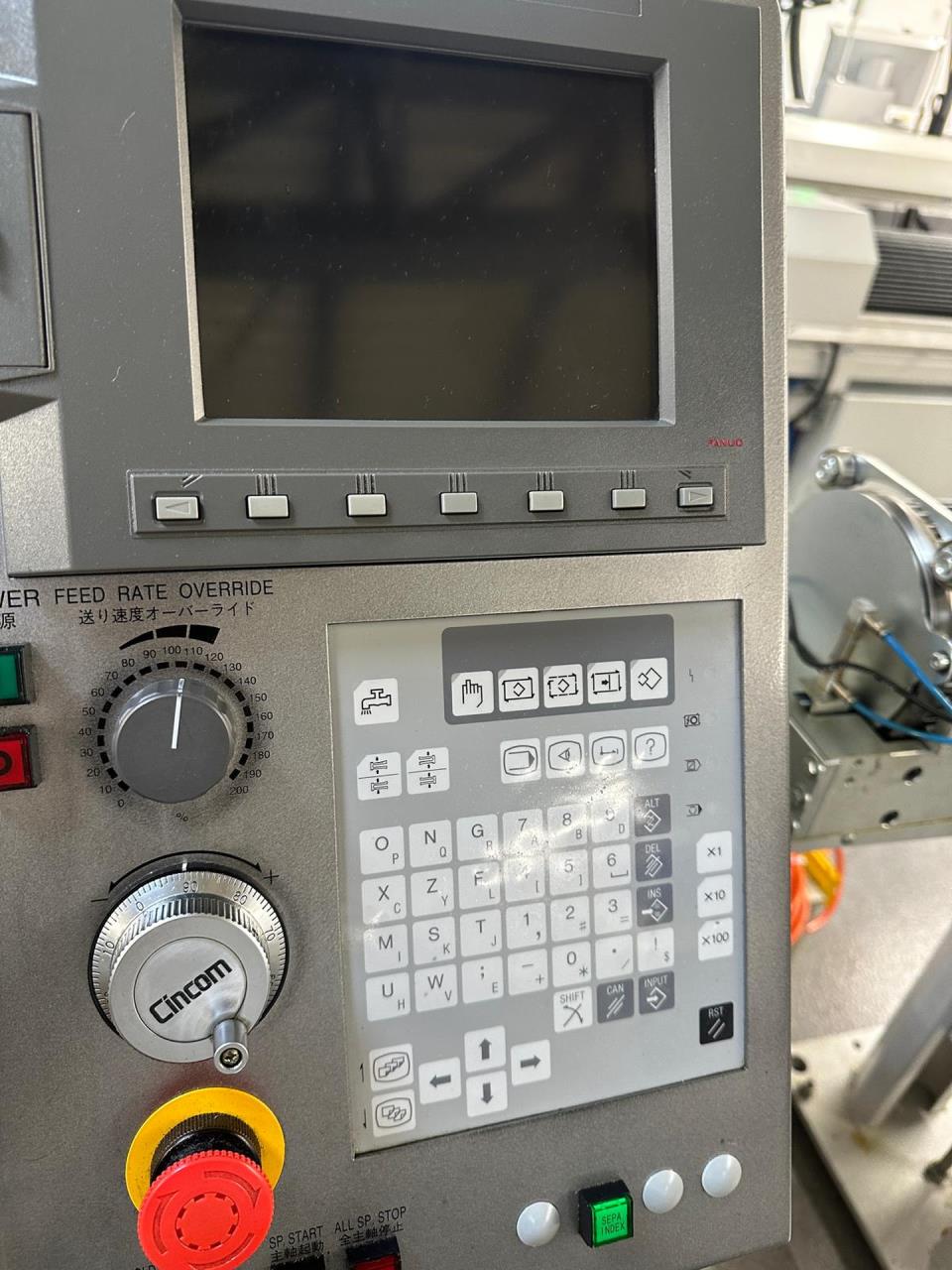

Controller :
Citizen Cincom
Jahrgang :
2007
Technical data
Number of axis total
6
Number of spindles
2
Max. turning diameter
7 mm
Maximum turning length
40 mm
Max. threading diameter
4 M (Metric)
Internal spindle diameter
12 mm
Spindle speeds:
stepless
from
0 rpm
up to
16000 rpm
Spindle power
1.1 kW
C axis (spindle,resolution)
0.001 °
Back spindle:
speeds:
from
0 rpm
up to
10000 rpm
Max. tapping length
40 mm
C axis (spindle,resolution)
1 °
Thread drill diameter
2.6 M (Metric)
Tool-holder:
numbers
2
Number of stations
13
Turning tools
5 pce
Drilling tools
4 pce
Tool shank cross section
8 mm
Counter-operation:
number of tools
4
Voltage 50 Hz 3x
400 Volt
Power of back spindle
0.5 kW
Total power required
4 kVA
Machine's weight about
950 kg
Overall dimensions machine:
Length
1465 mm
Width
560 mm
Height
1410 mm
Various accessories:
Parts catcher
Lamp
Bar feeder
LNS
Central lubrification
Status light
Technical specifications and pictures without guarantee.
