Technical data

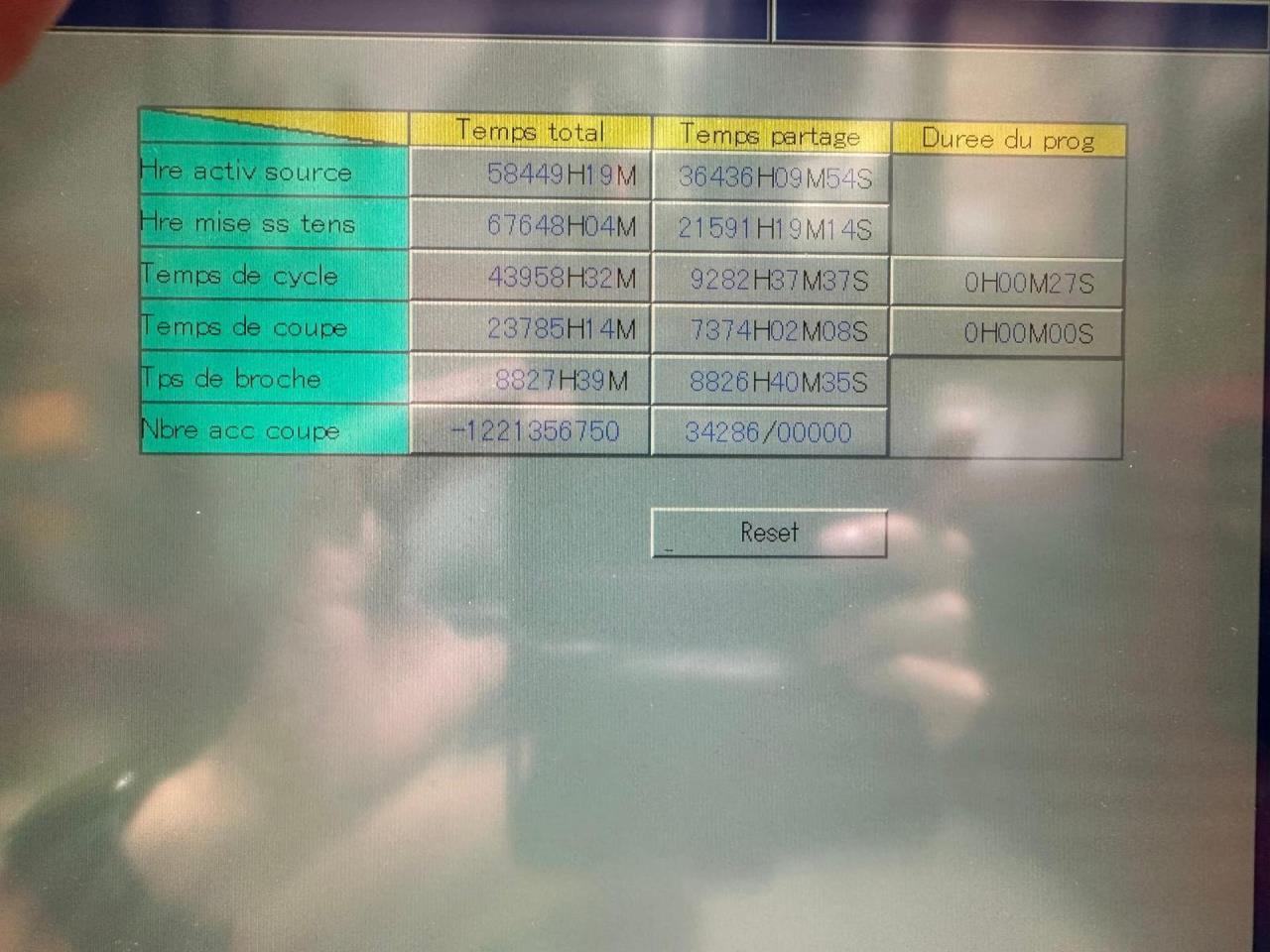

Time under power
67648 Hour
Operating time
58449 Hour
Working time
23785 Hour
Spindle run time
8827 Hour
Number of axis total
3

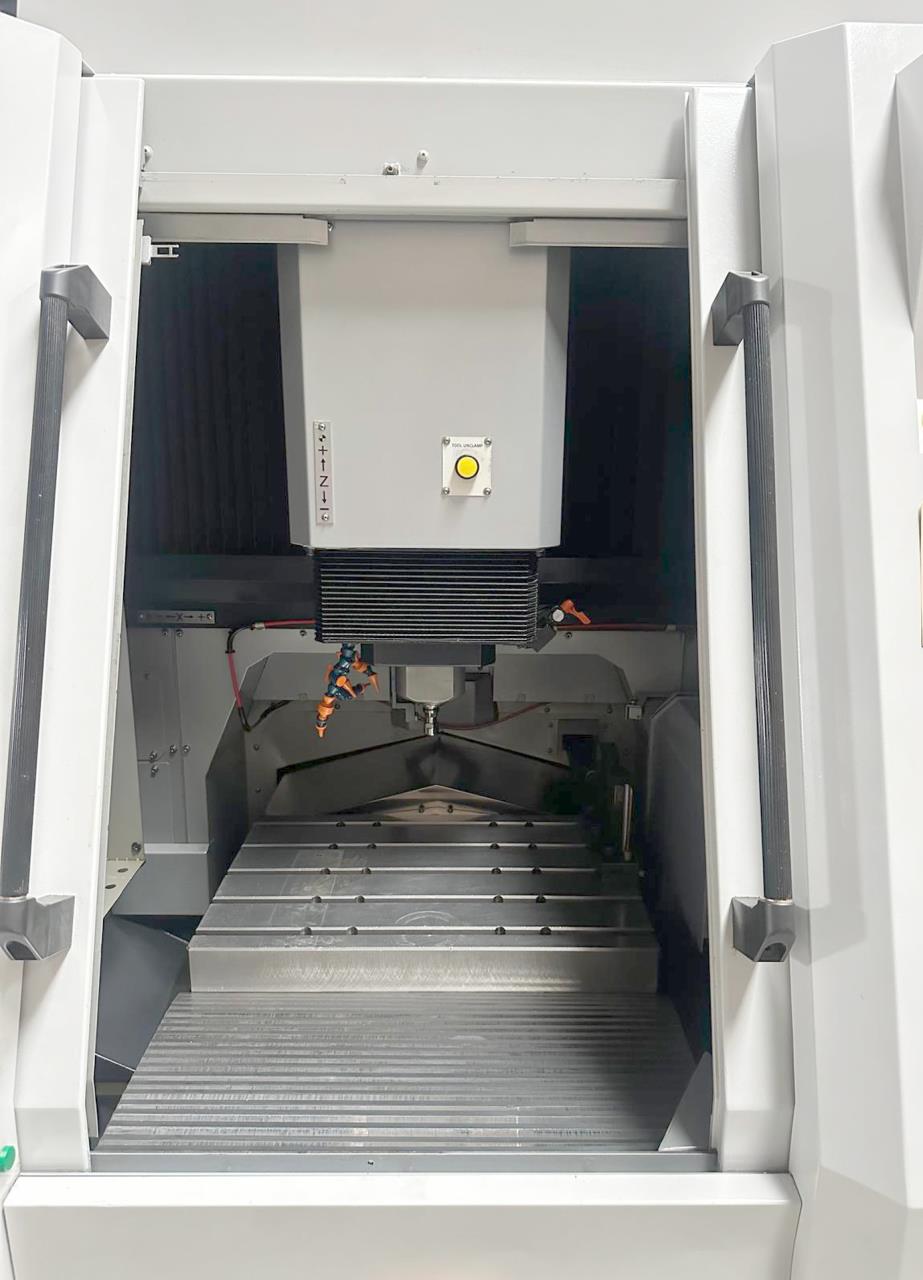

Table length
600 mm
Table width
400 mm
Number of T-channels
5
Distance of the T-slots
80 mm
T-channel width
14 mm
Table load max.
60 kg
Longitudinal travel (X-axis)
420 mm
Transversal travel (y-axis)
350 mm
Vertical travel (z axis)
200 mm
Dimension of the workpice:
Diameter
6 mm

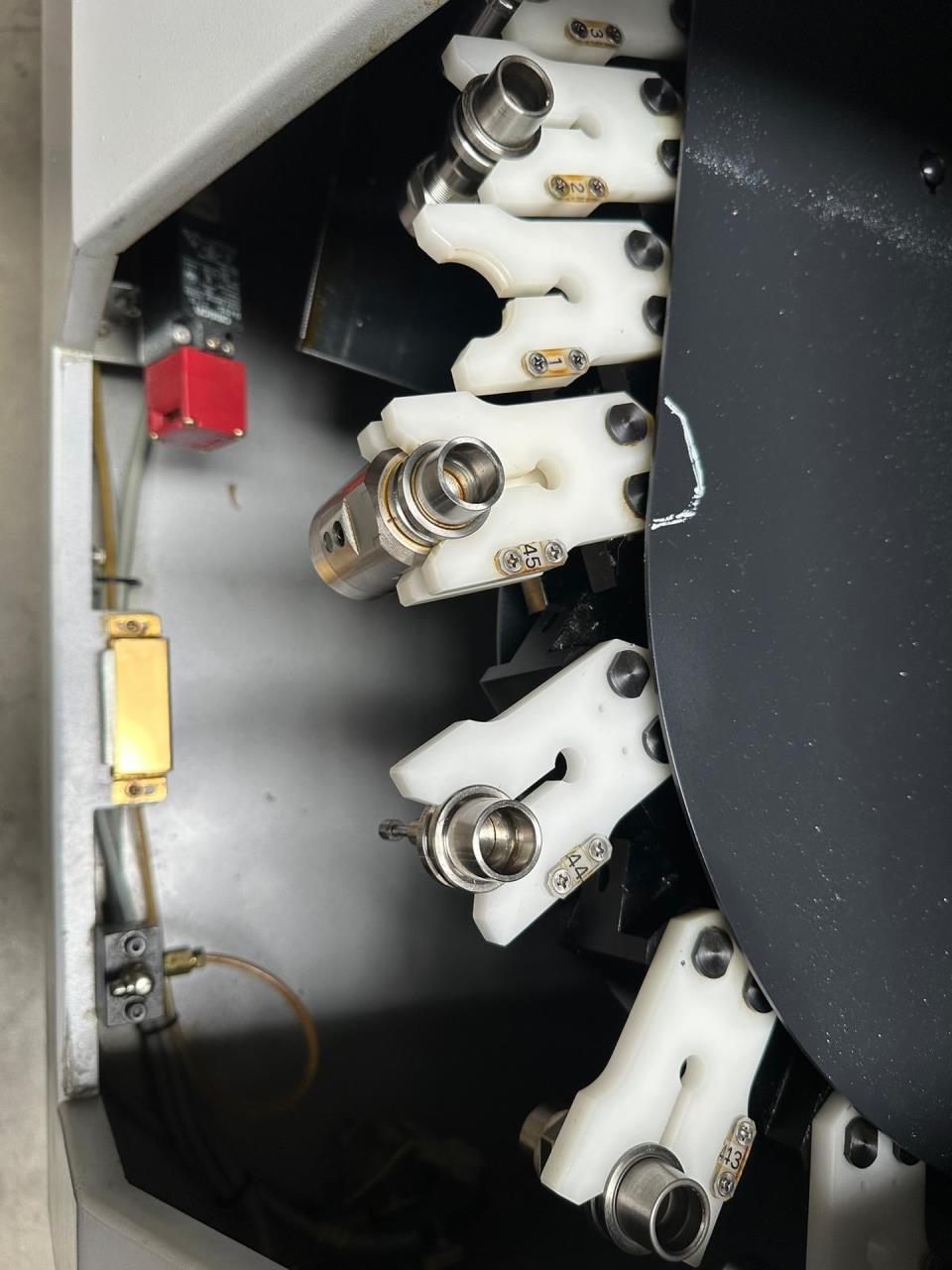

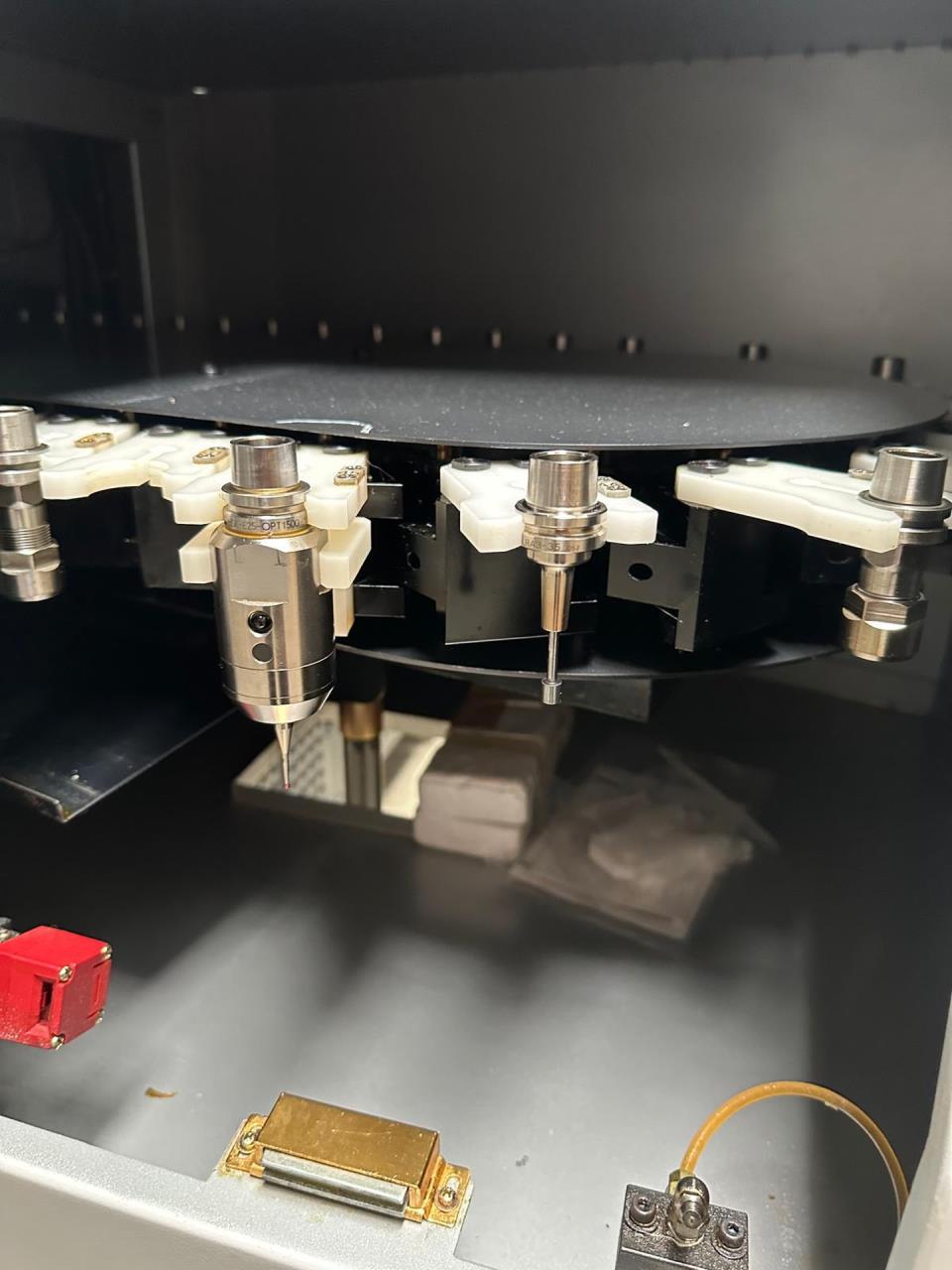

Tool changer:
Number of tools
45
Spindle nose: HSK
E25
Distance spindle nose to table
115 - 315 mm
Spindle speeds:
stepless
from
6000 rpm
up to
40000 rpm
Feed range
0 - 4000 mm/min
Rapid traverse:
36 m/min
Voltage 50 Hz 3x
400 Volt
Machine's weight about
5800 kg
Overall dimensions machine:
Length
1625 mm
Width
1500 mm
Height
2105 mm
Various accessories:
Direct measurement by glass scales

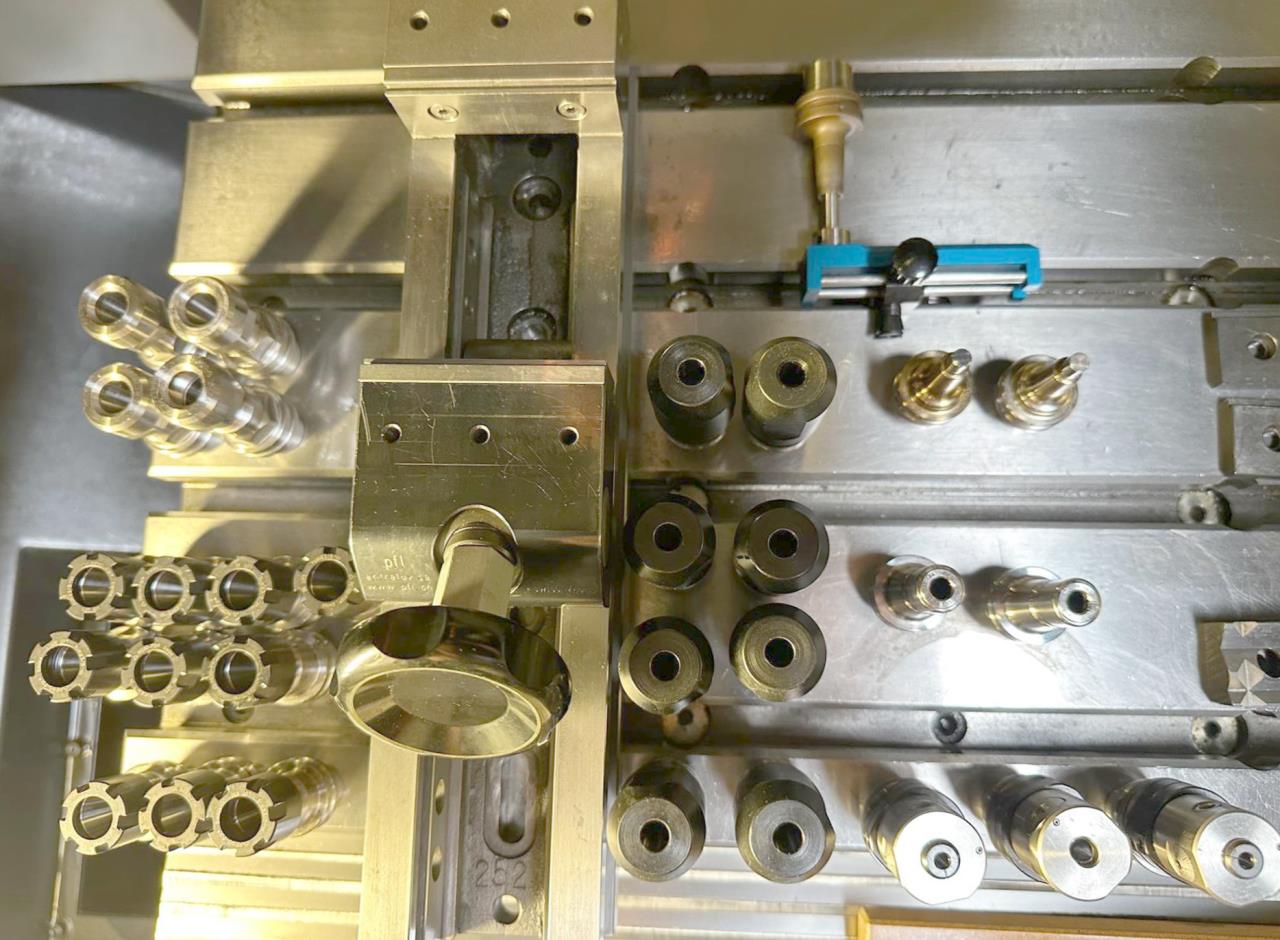

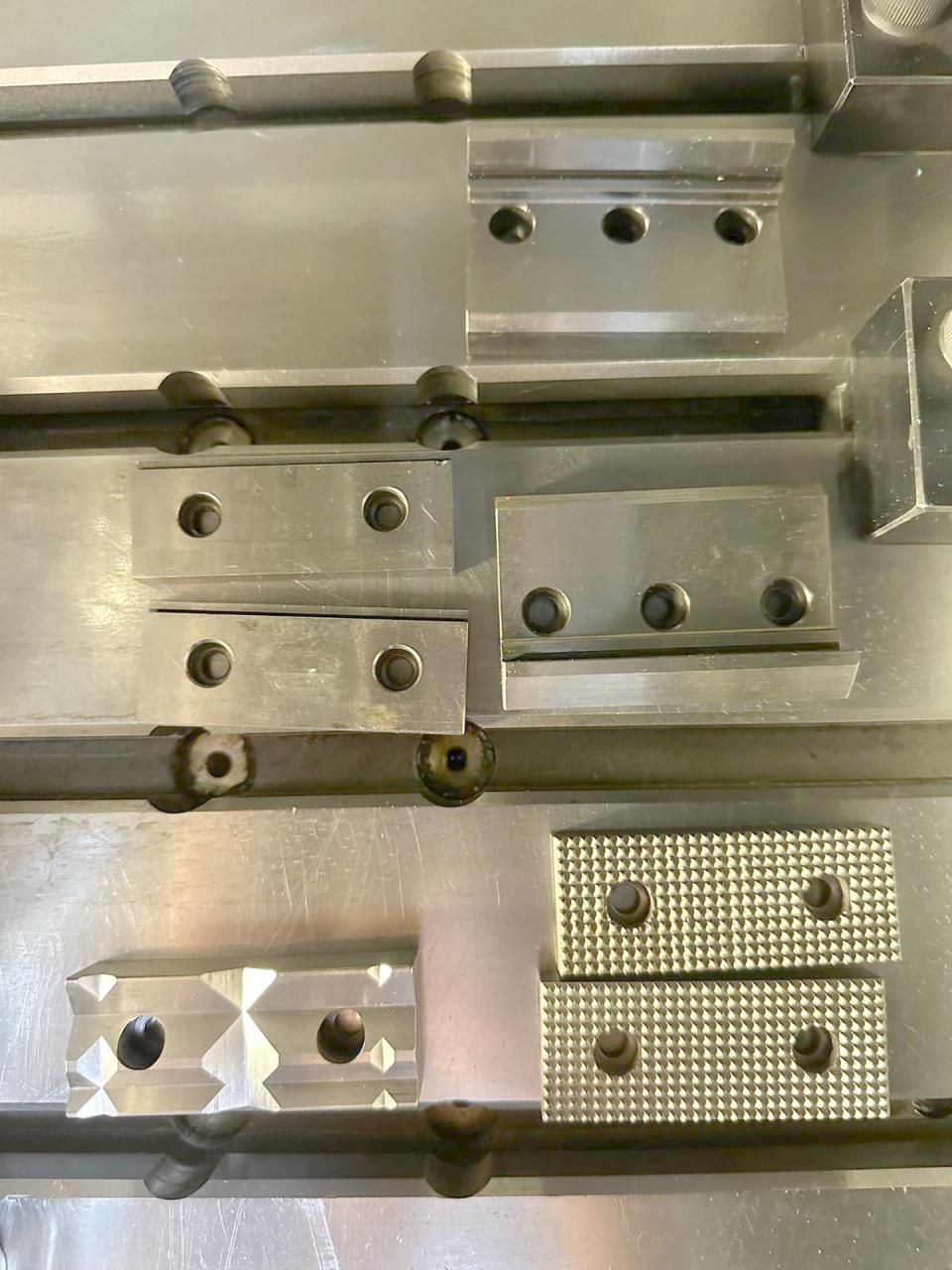

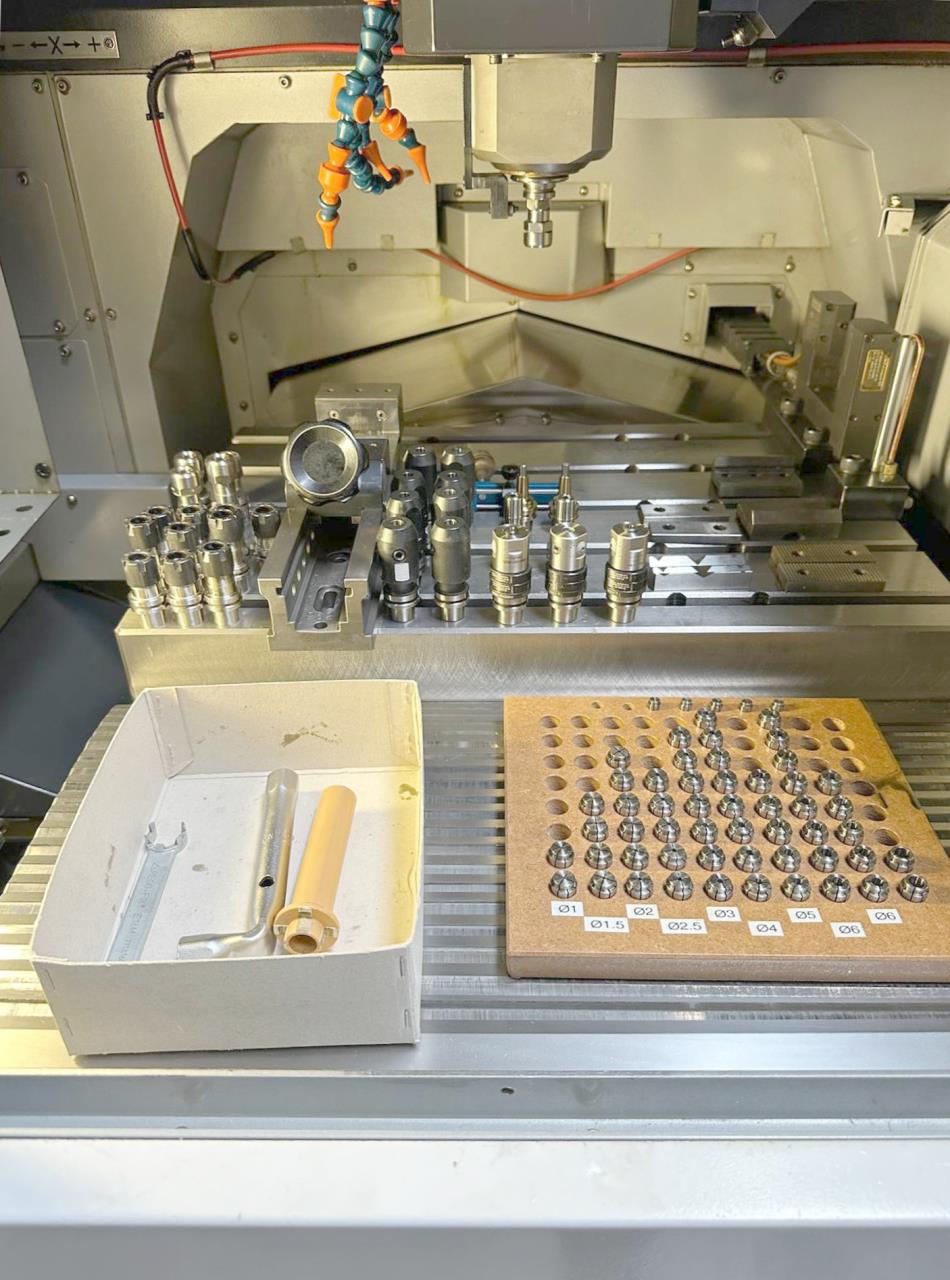

Vice

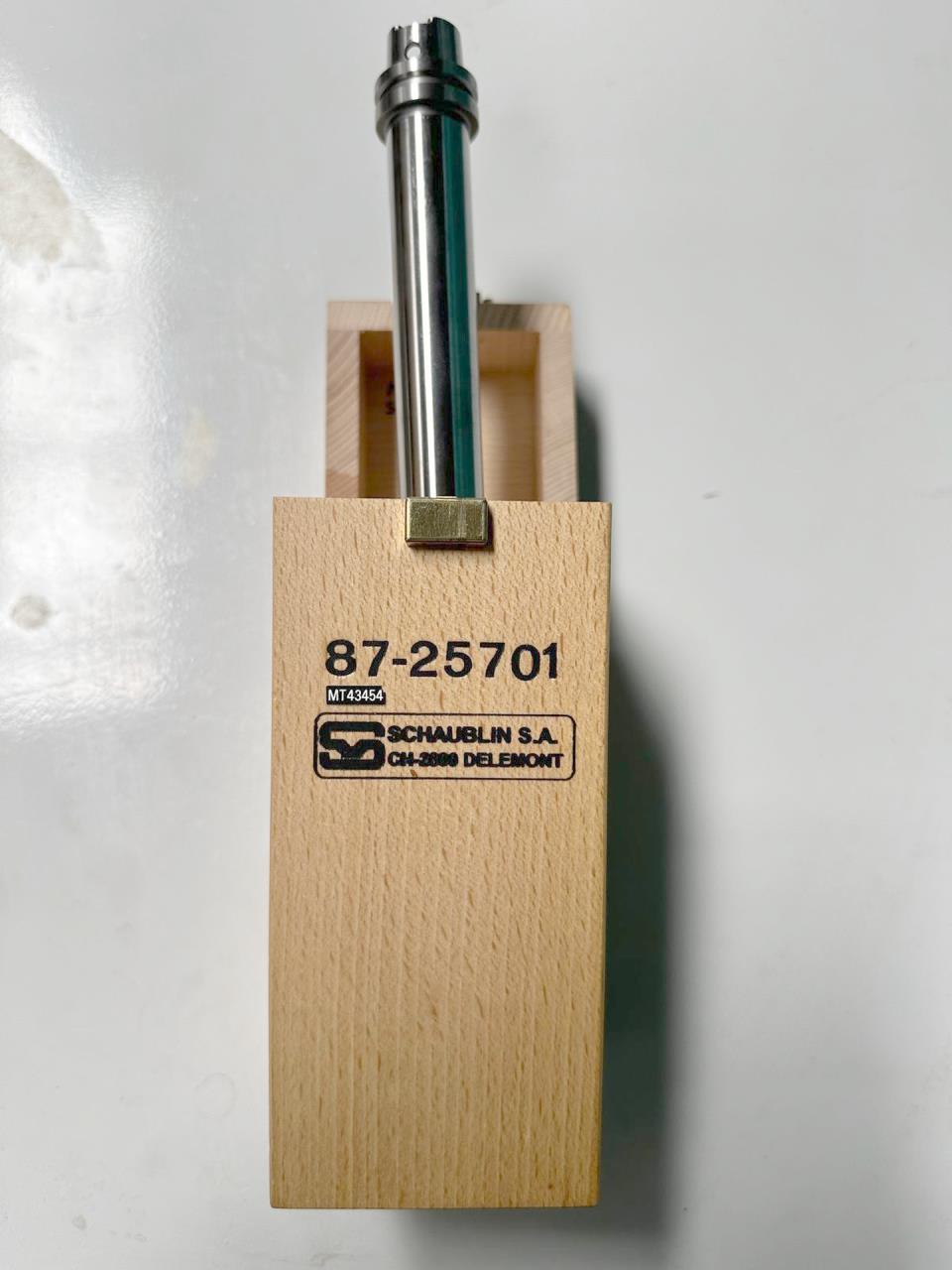

Set of toolholders

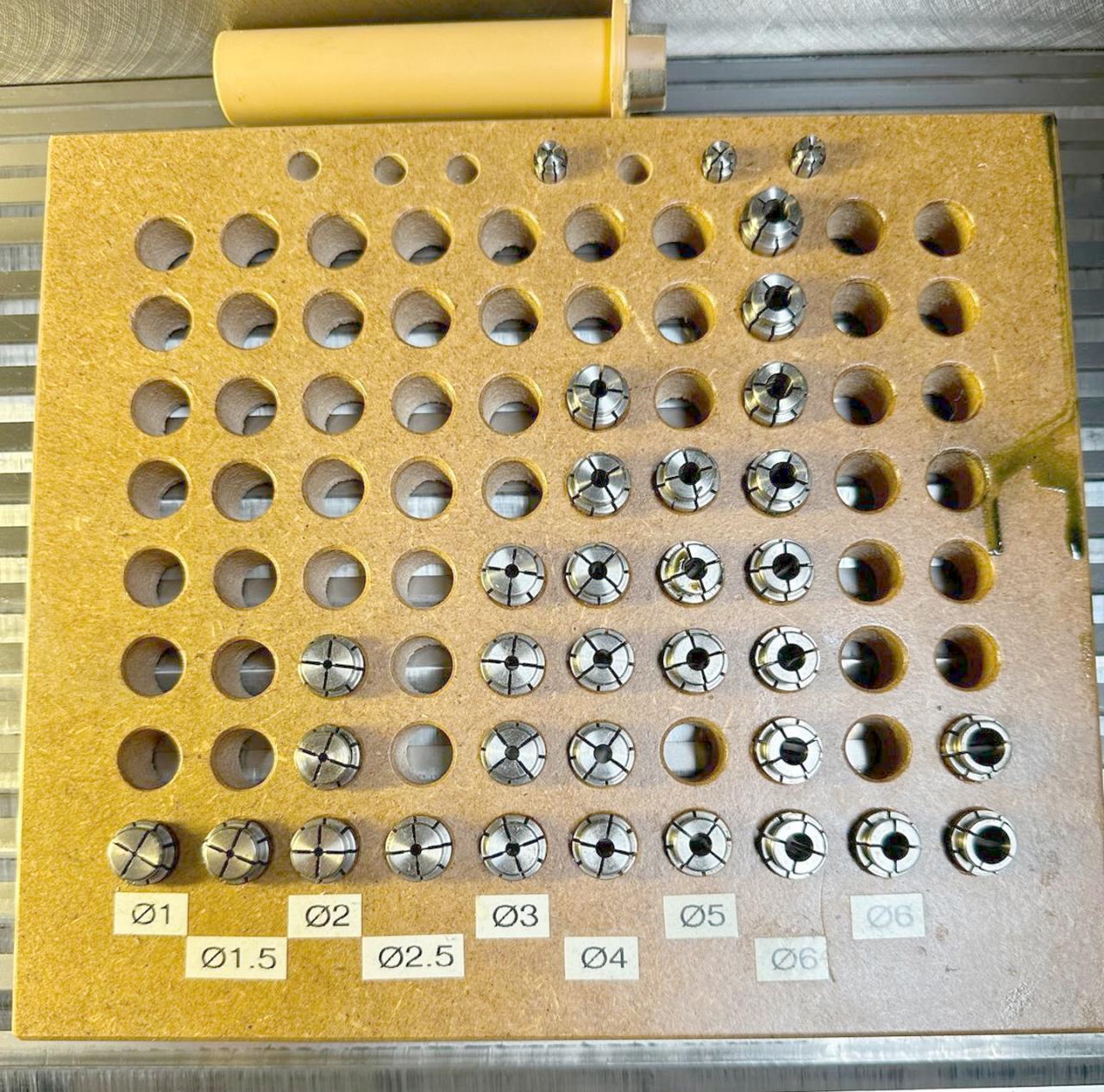

Set of collets

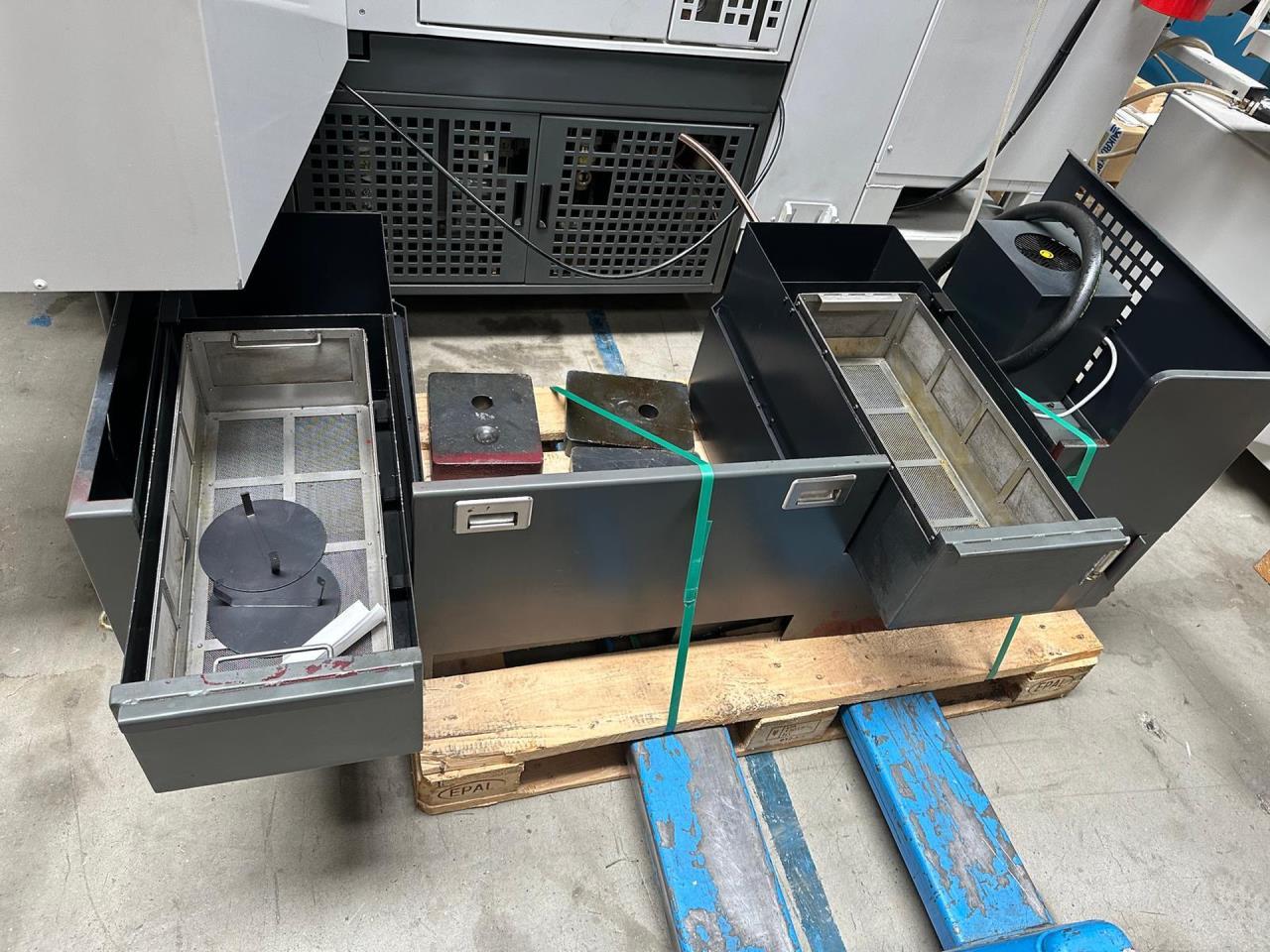

Coolant system
l
Touch Probe
Handwheel electroinic

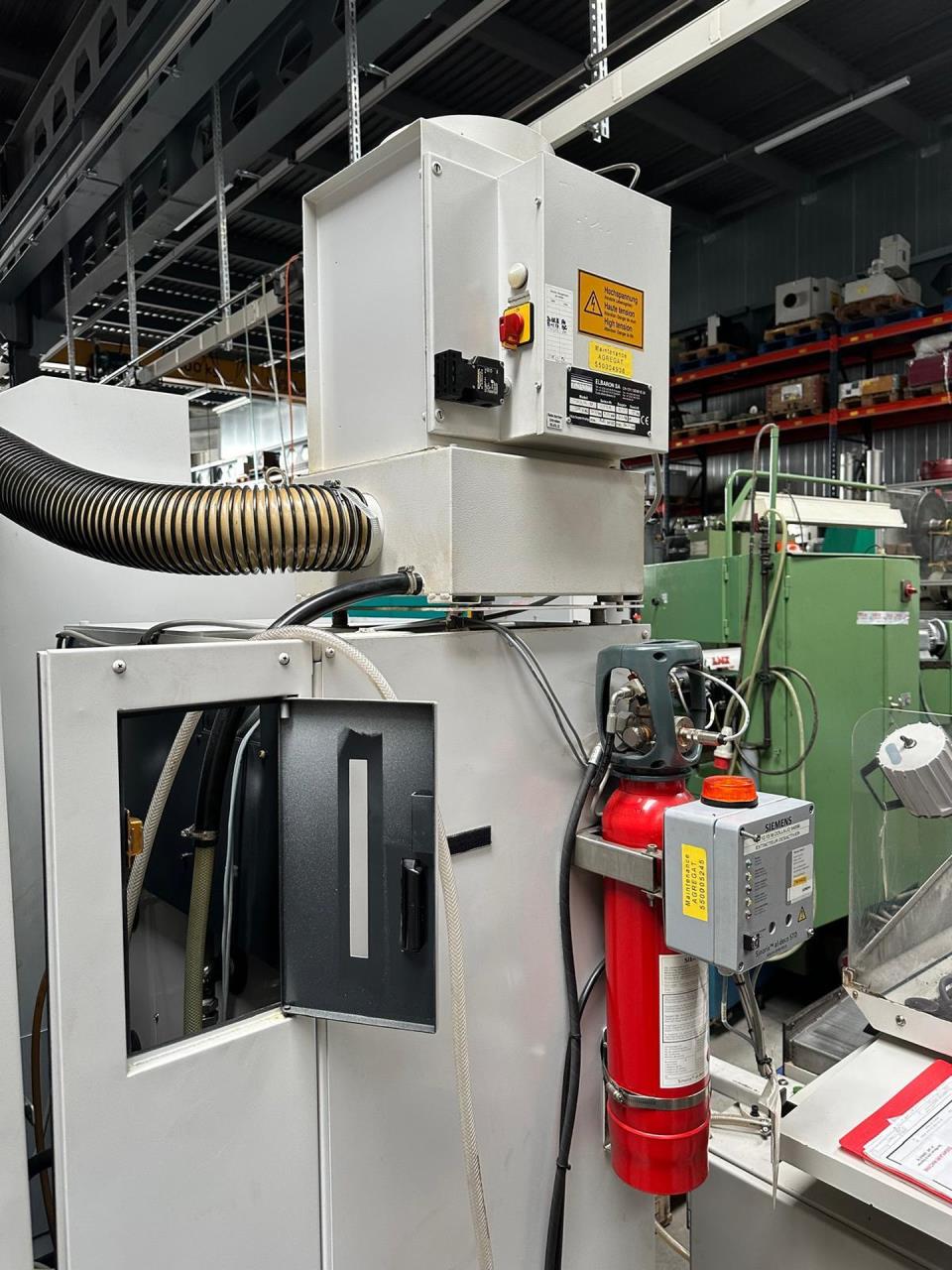

Oil mist extractor
ELBARON

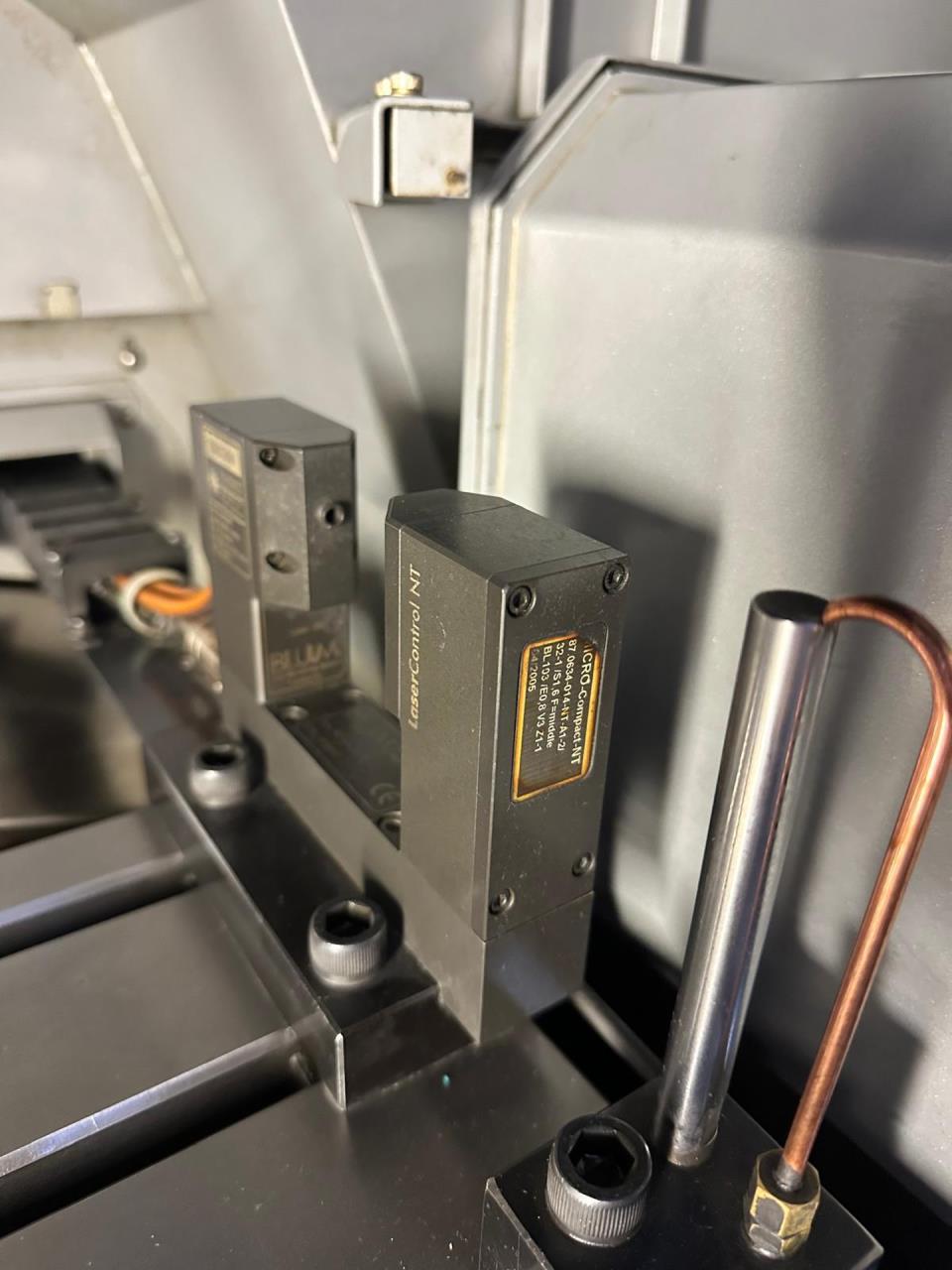

Laser tool measurement

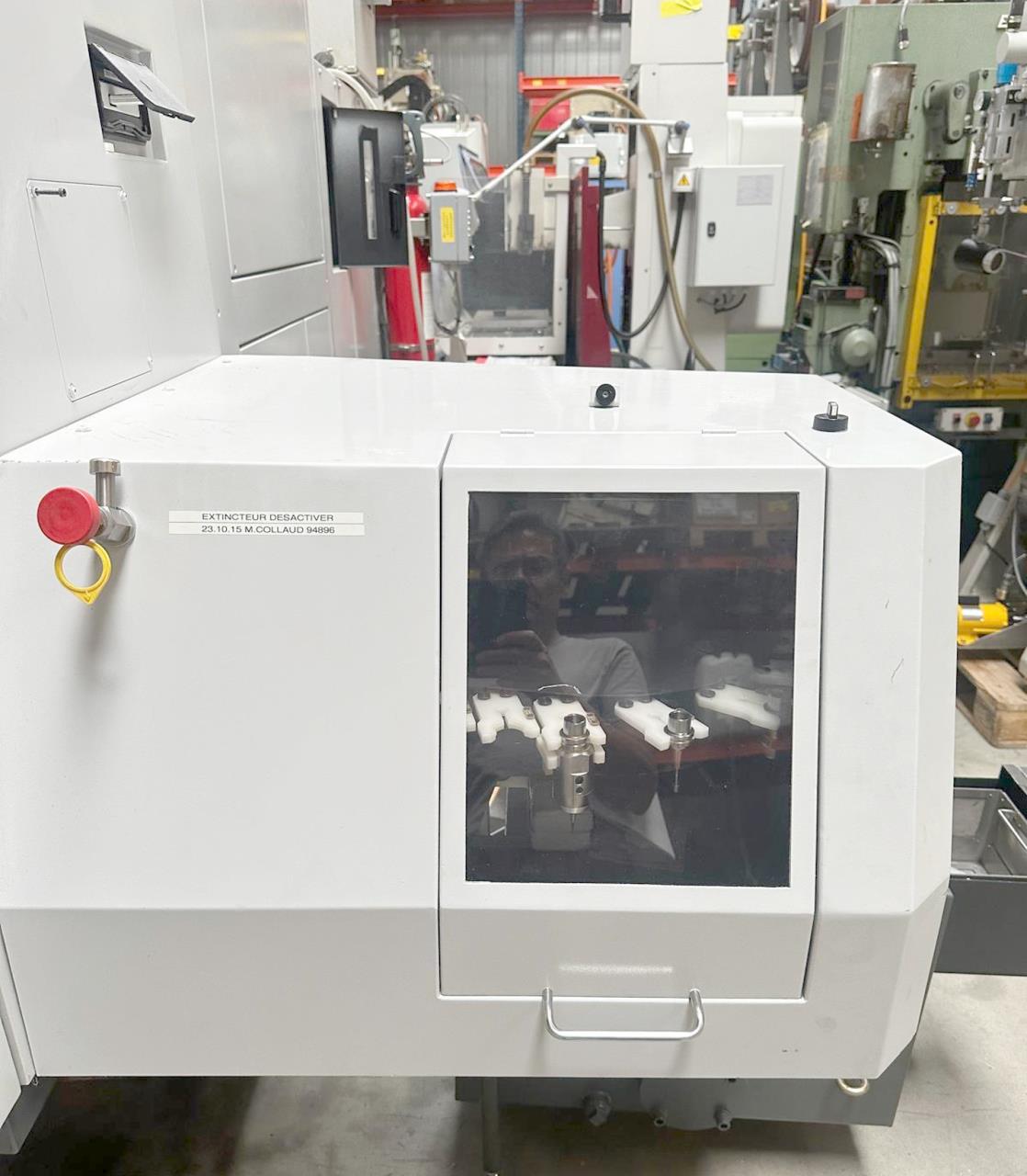

Fire extinguishing system
Technical specifications and pictures without guarantee.
