Technical data
Number of spindles
2
Number of revolvers
3
Swing over bed
200 mm

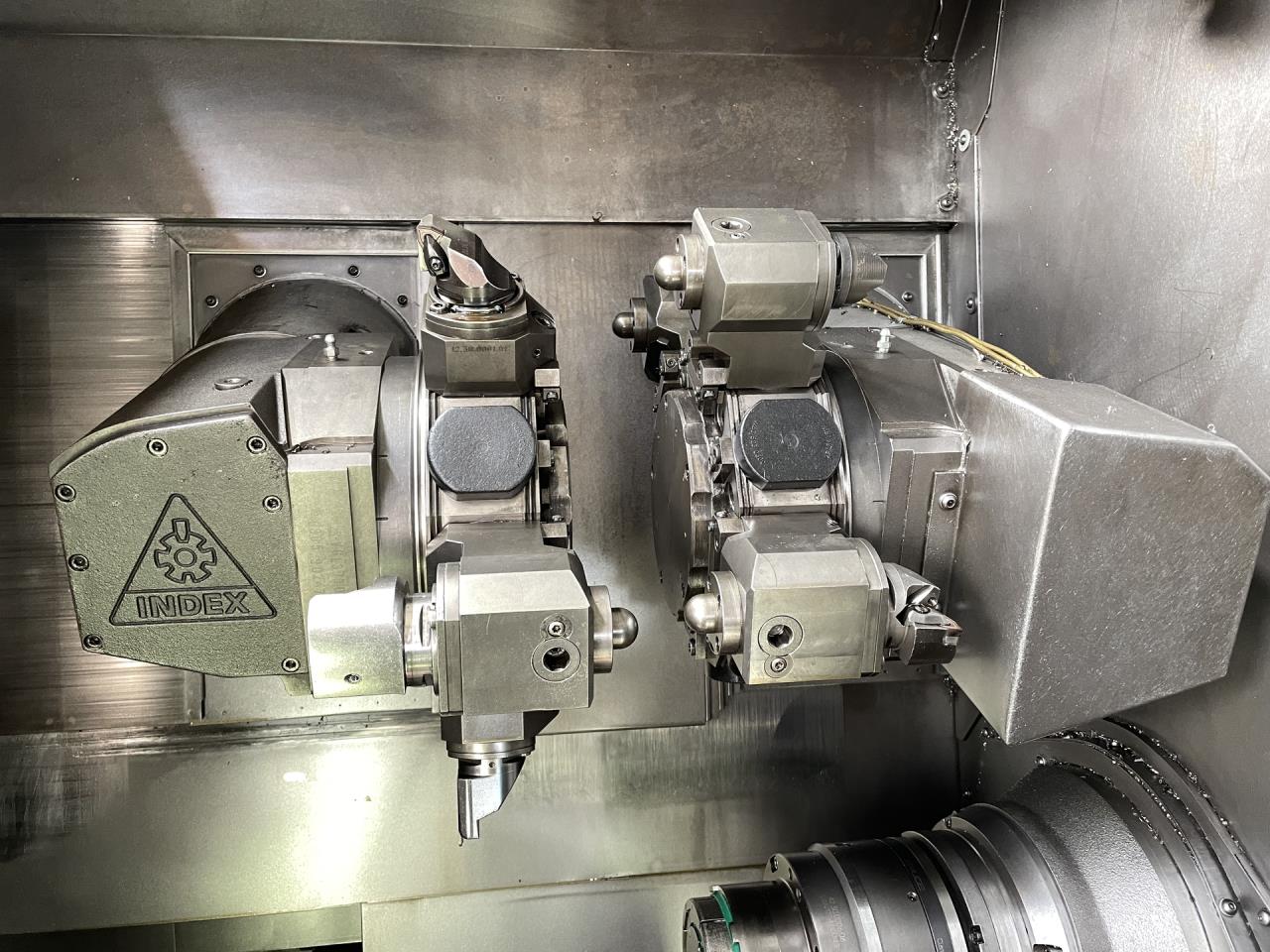

Turret slide:
Number of positions turret 1
10
Number of positions turret 2
10
Spindle nose: VDI
25

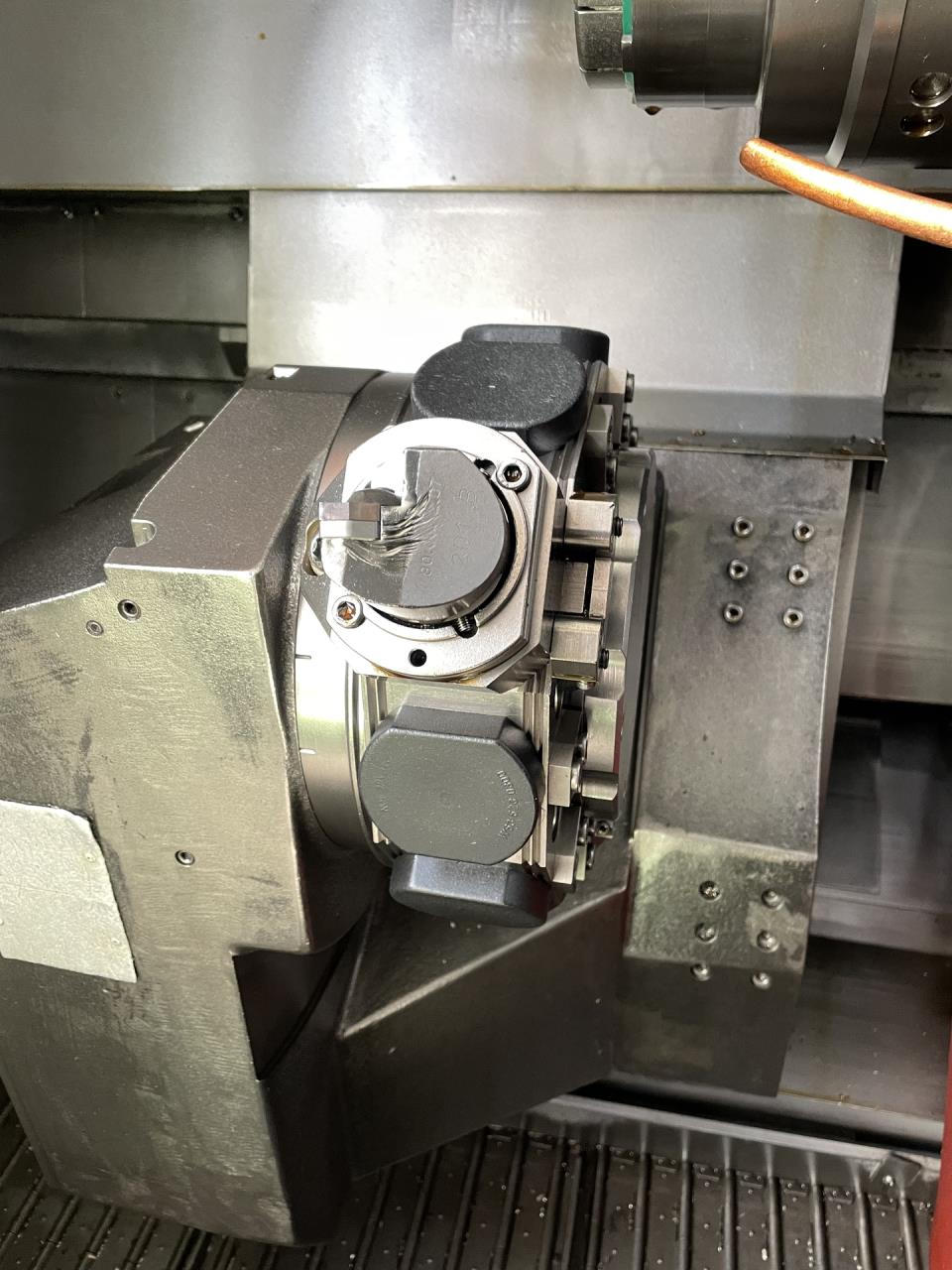

Lower turret head:
Number of positions
10
Spindle speeds
6000 rpm
Power of driven tools
8 kW

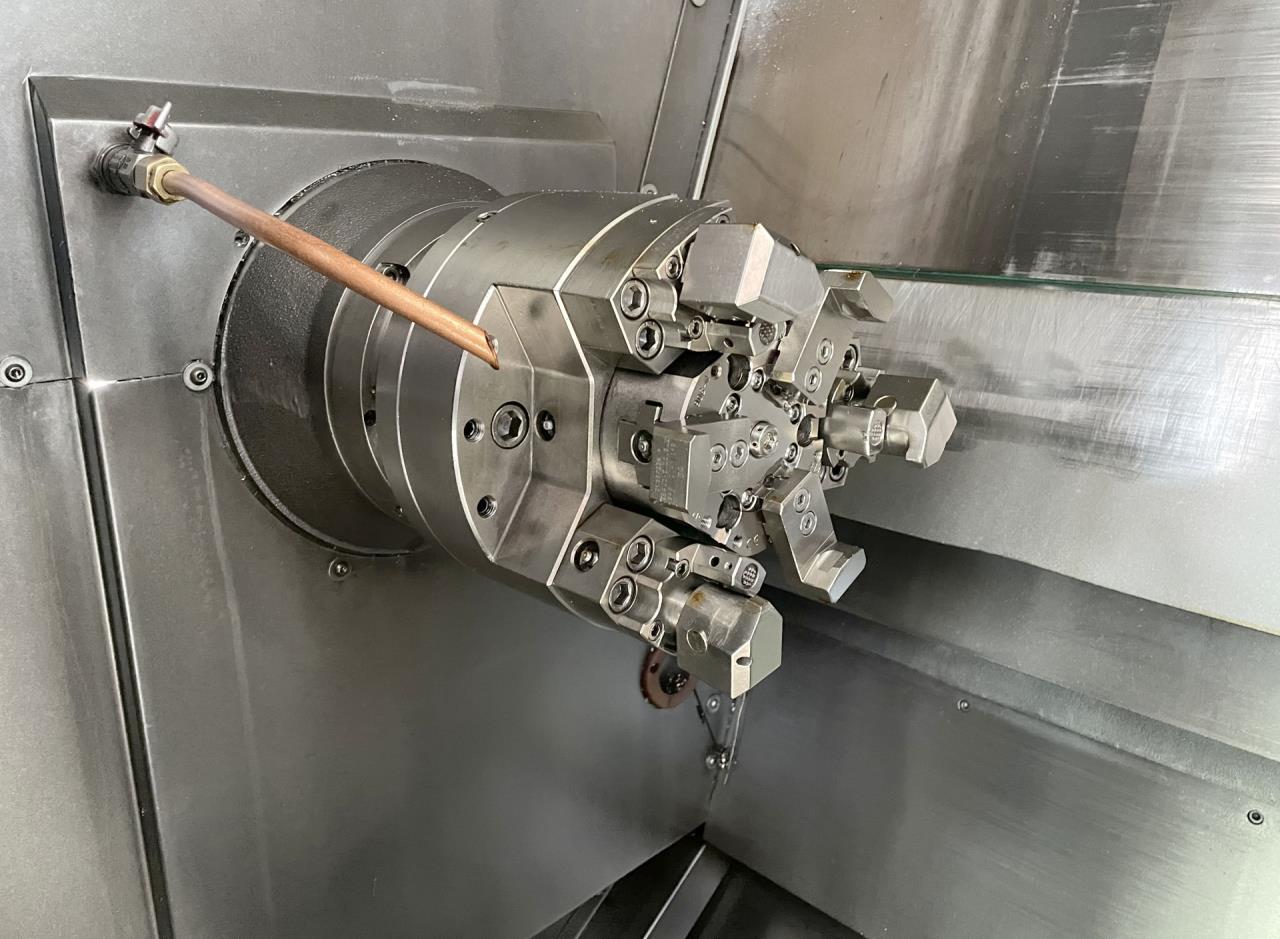

Main spindle:
C axis (spindle,resolution)
0.001 °
Spindle speeds:
stepless
from
0 rpm
up to
5000 rpm
Spindle power
27 kW
Voltage 50 Hz 3x
400 Volt
Total power required
43 kW
Machine's weight about
7500 kg
Overall dimensions machine:
Length
3200 mm
Width
2100 mm
Height
2100 mm
Various accessories:

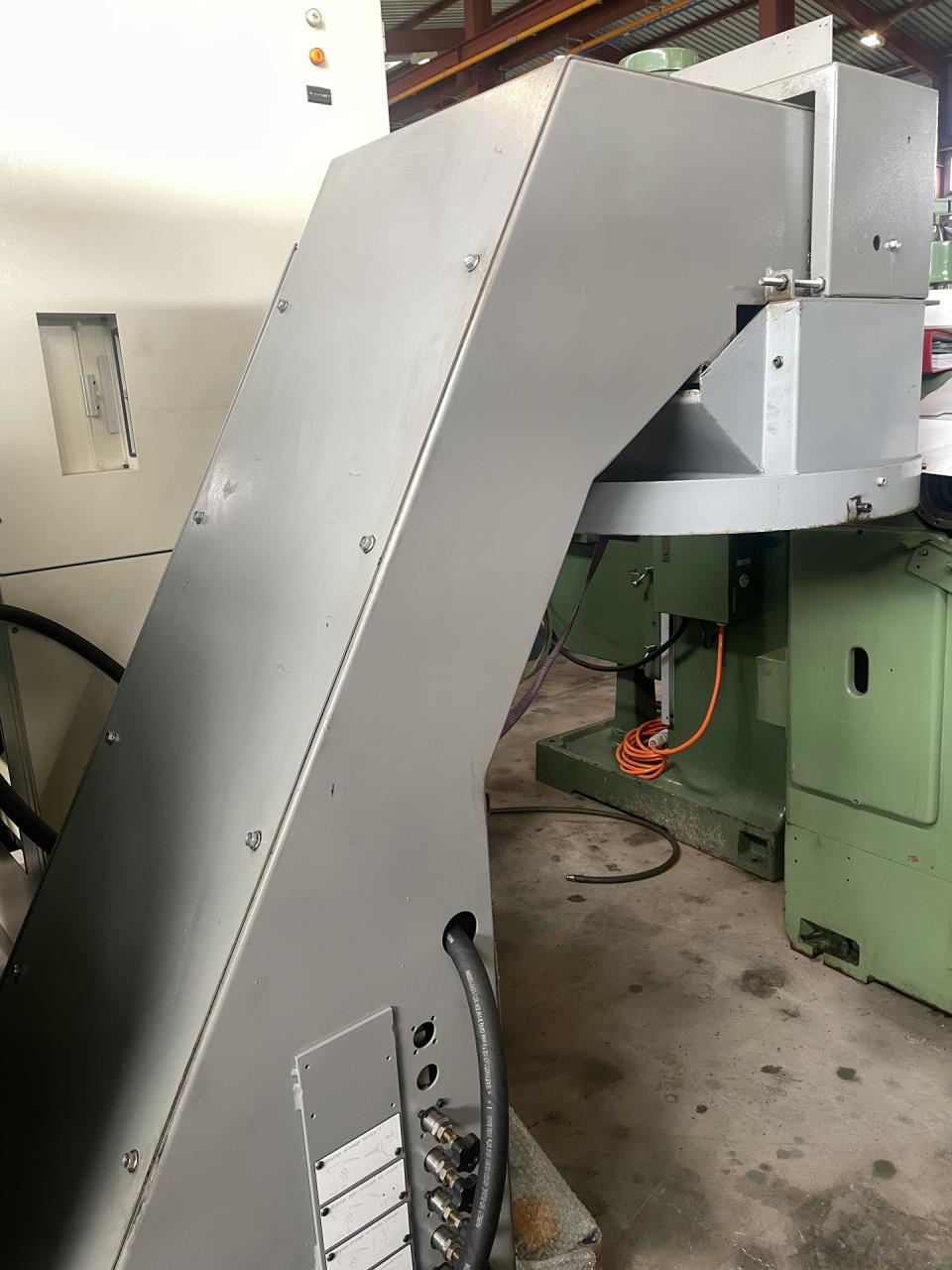

Chip conveyor
Foot pedal
Technical specifications and pictures without guarantee.
