Technical data

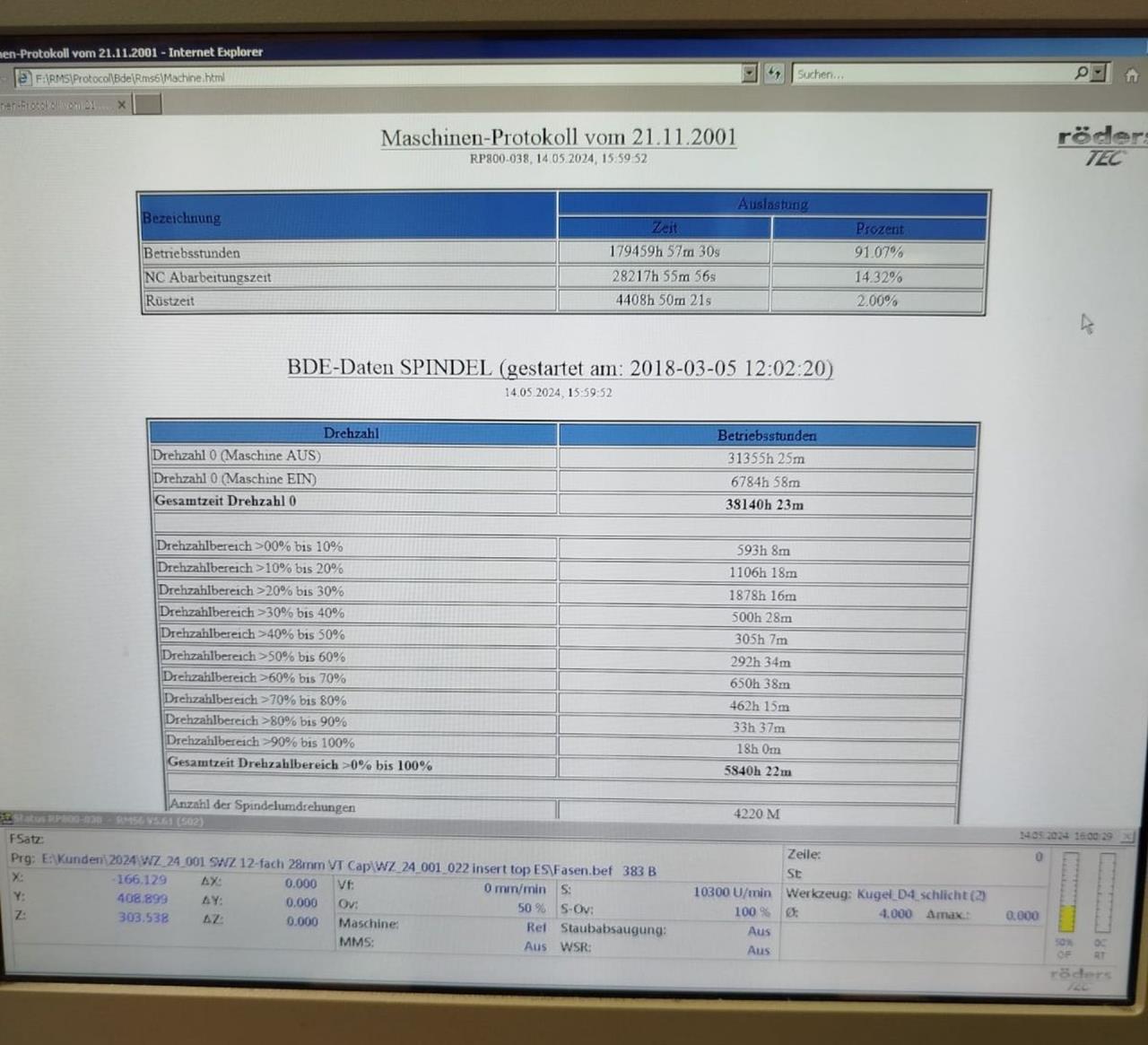

Spindle run time
6785 Hour
Number of axis simultaneous
3

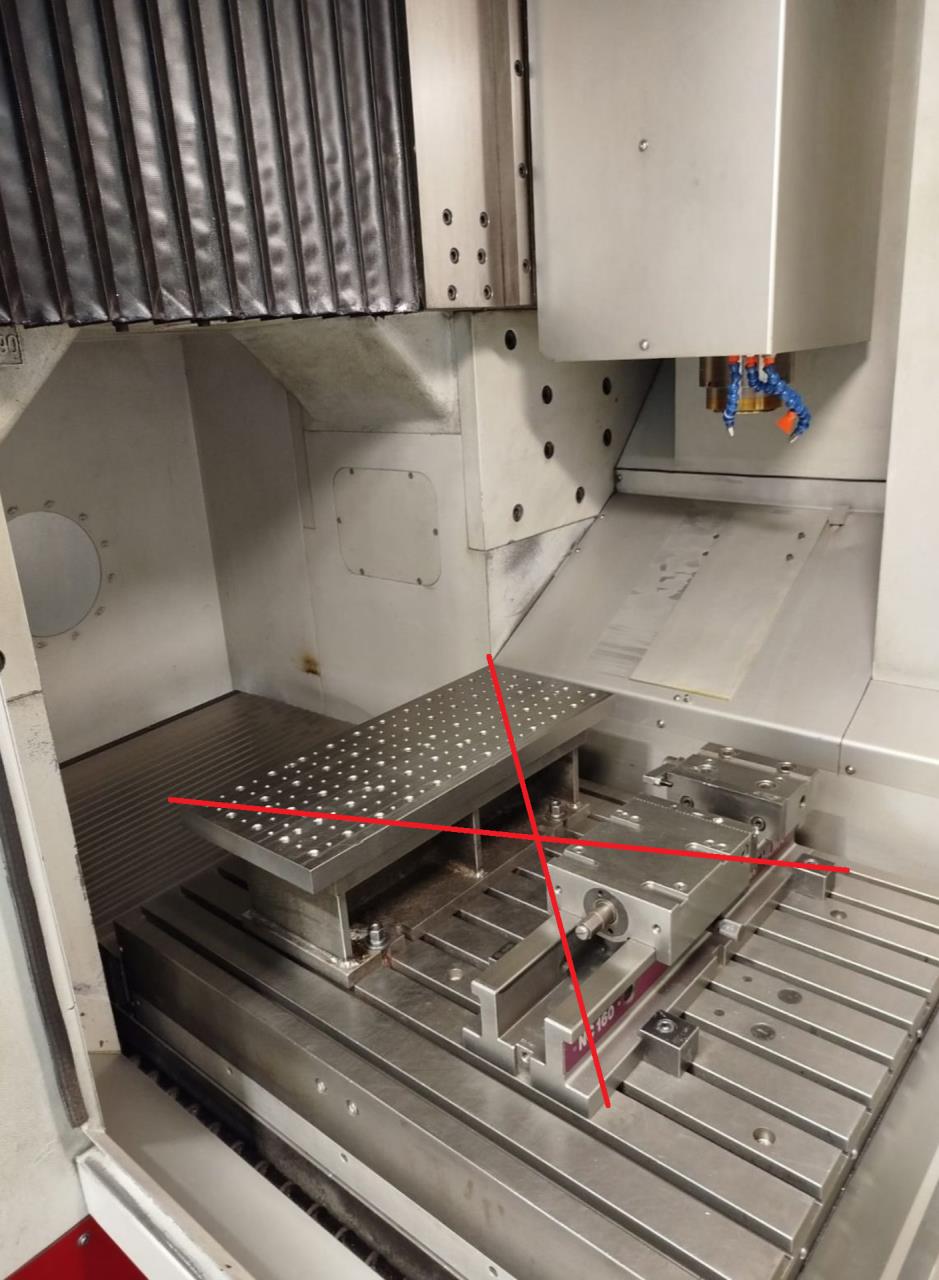

Table length
880 mm
Table width
770 mm
Table load max.
800 kg
Longitudinal travel (X-axis)
800 mm
Transversal travel (y-axis)
600 mm
Vertical travel (z axis)
400 mm

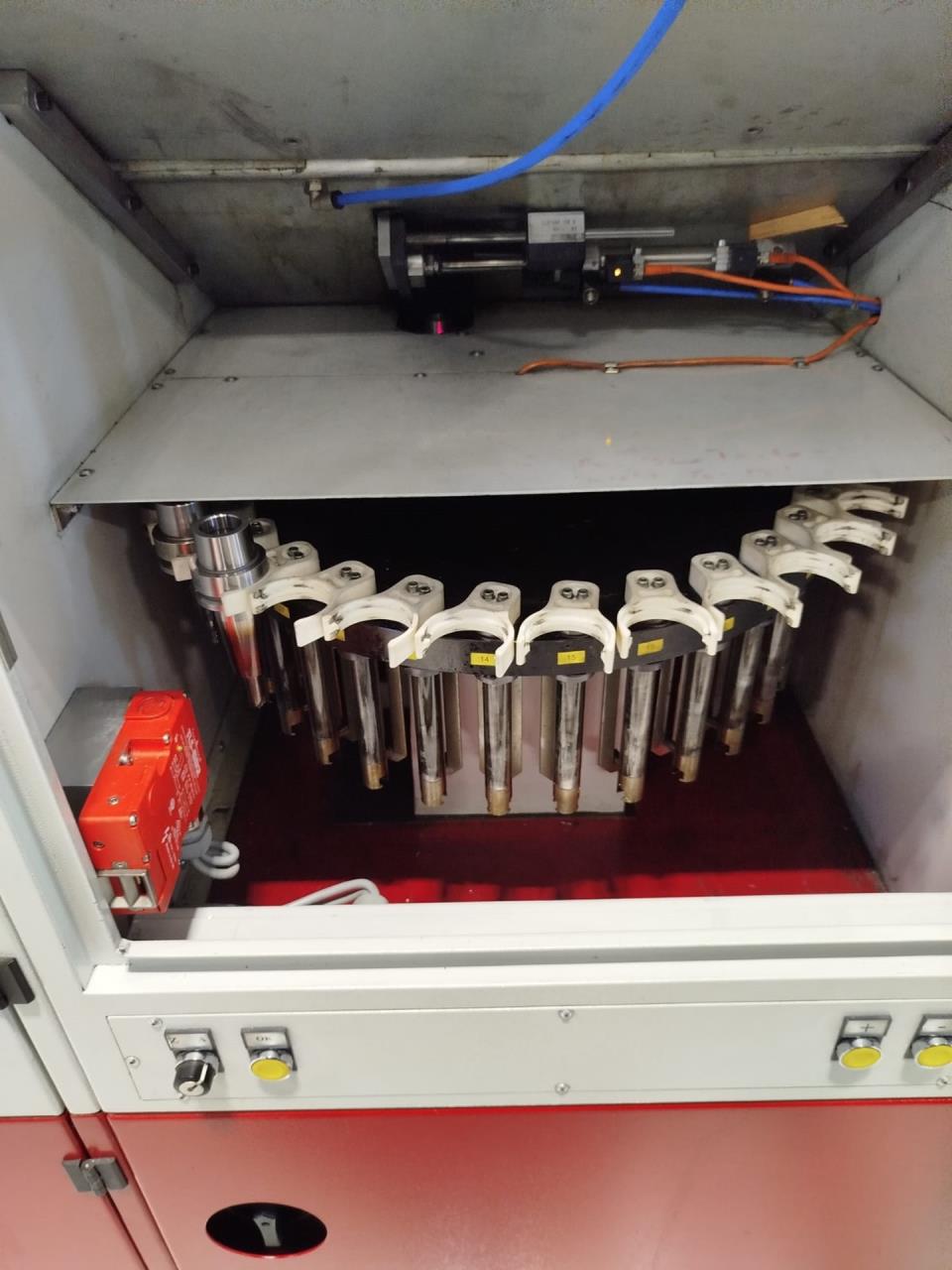

Tool magazine number of tool places
30
Spindle nose: HSK
E50
Spindle speeds:
stepless
from
0 rpm
up to
42000 rpm
Rapid traverse:
60 m/min
Voltage 50 Hz 3x
400 Volt
Total power required
25 kW
Machine's weight about
8500 kg
Overall dimensions machine:
Length
3150 mm
Width
2850 mm
Height
3000 mm
Various accessories:
Set of toolholders
Touch Probe
Handwheel electroinic
Lamp

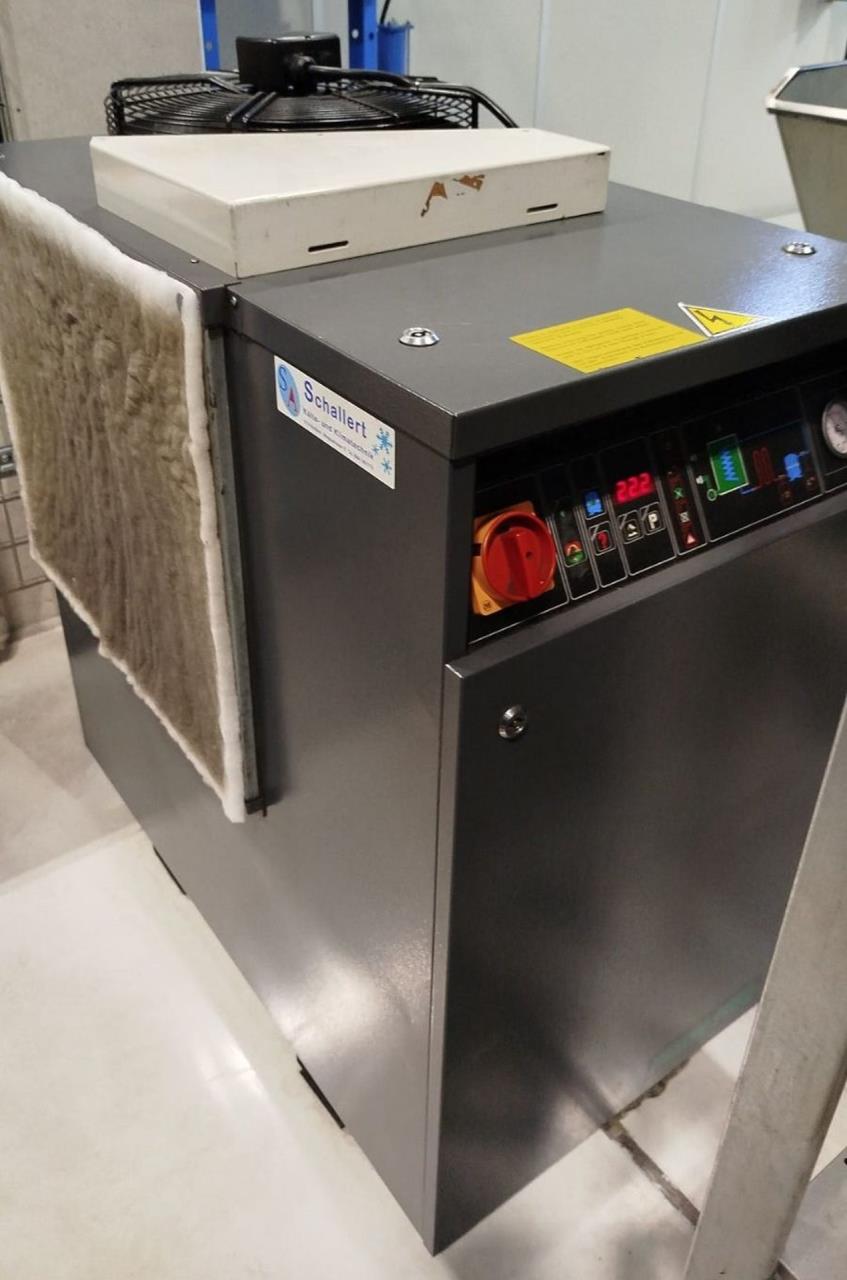

Spindlecooling
Notes:
Spindle changed
2018

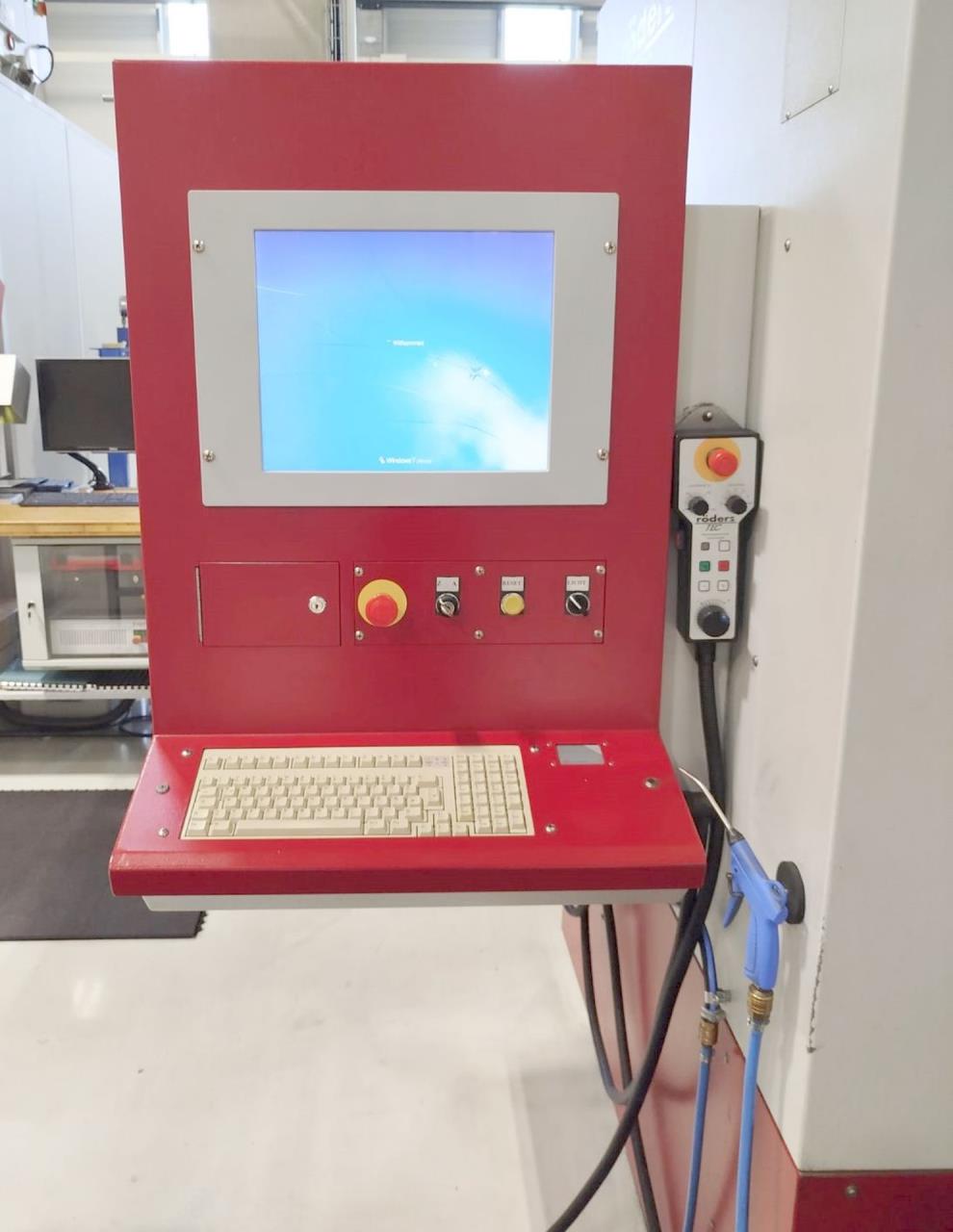

New PC system
2018
Technical specifications and pictures without guarantee.
