stock no. :
22876
Machine's group :
Type :

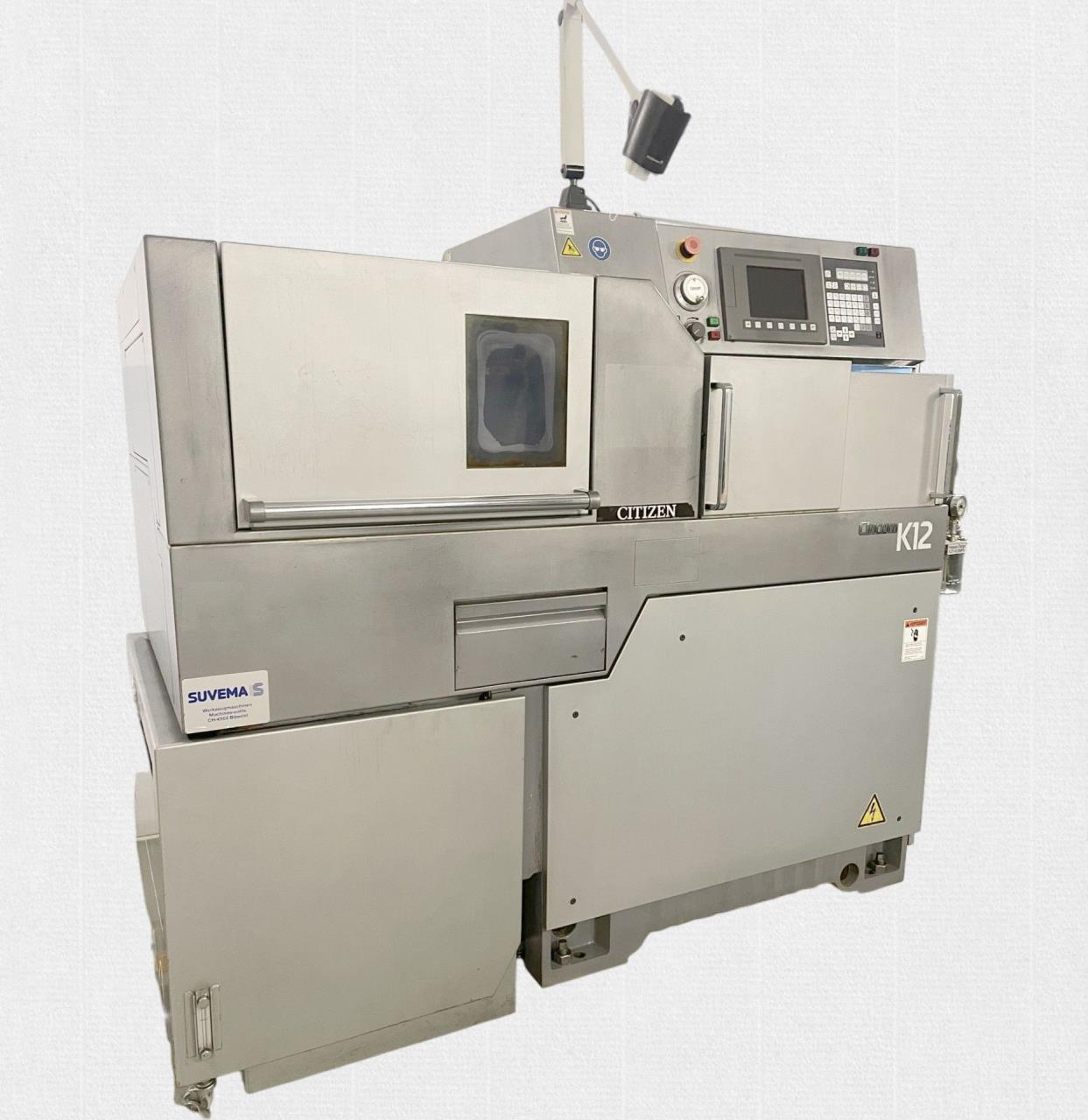

CITIZEN CINCOM K 12 VIIP

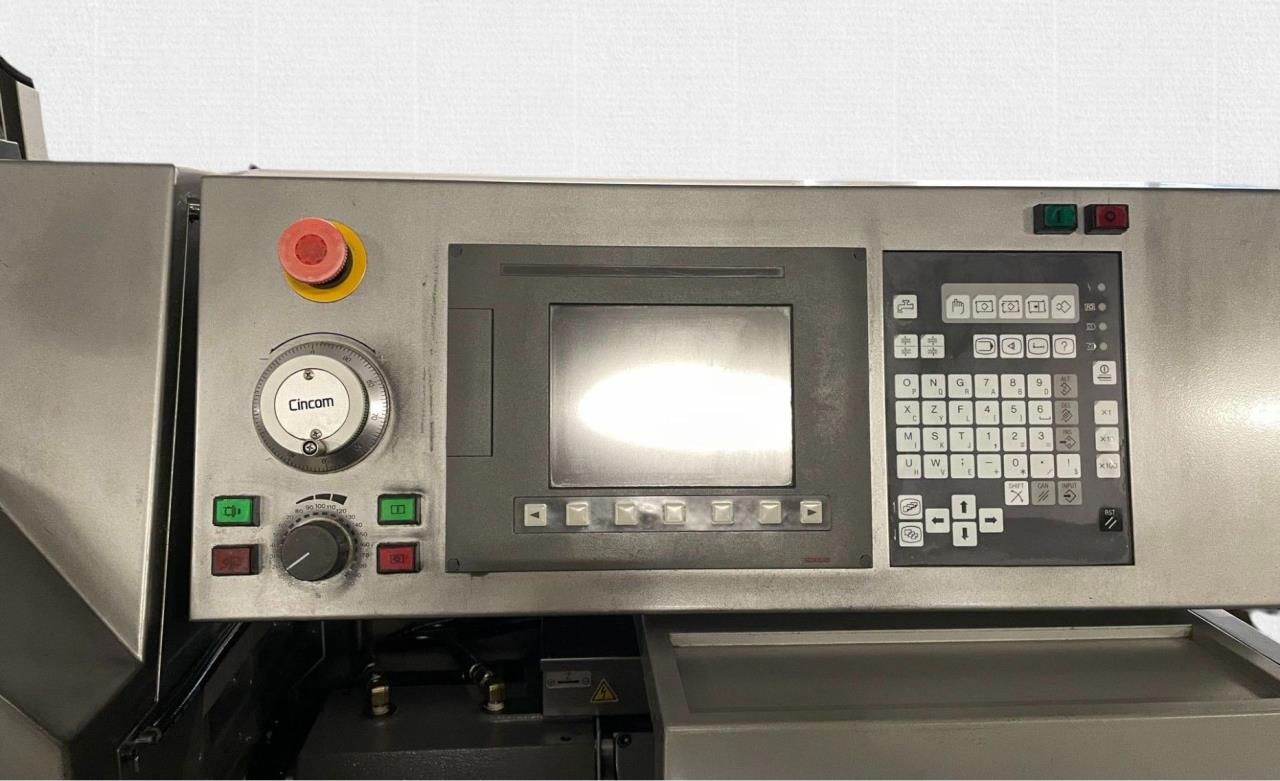

Controller :
FANUC
Jahrgang :
2007
Technical data
Number of axis total
7
Number of spindles
2
Max. turning diameter
12 mm
Maximum turning length
200 mm
Max. drilling diameter
10 mm
Max. threading diameter
8 M (Metric)
Internal spindle diameter
20 mm
Spindle speeds:
stepless
from
200 rpm
up to
15000 rpm
Spindle positioning increment
15 °
Back spindle:
speeds:
from
200 rpm
up to
10000 rpm
Max. tapping length
80 mm
Spindle positioning increment
15 °
Thread drill diameter
5 M (Metric)
Tool-holder:
Turning tools
6 pce
Drilling tools
4 pce
Transverse processing tools
4 pce
Spindle speeds (turning tools)
6000 rpm
Power of driven tools
0.4 kW
Counter-operation:
Drilling tools
4 pce
Voltage 50 Hz 3x
400 Volt
Total power required
8 kVA
Machine's weight about
2050 kg
Overall dimensions machine:
Length
1875 mm
Width
1125 mm
Height
1610 mm
Various accessories:
Driven tools (number)

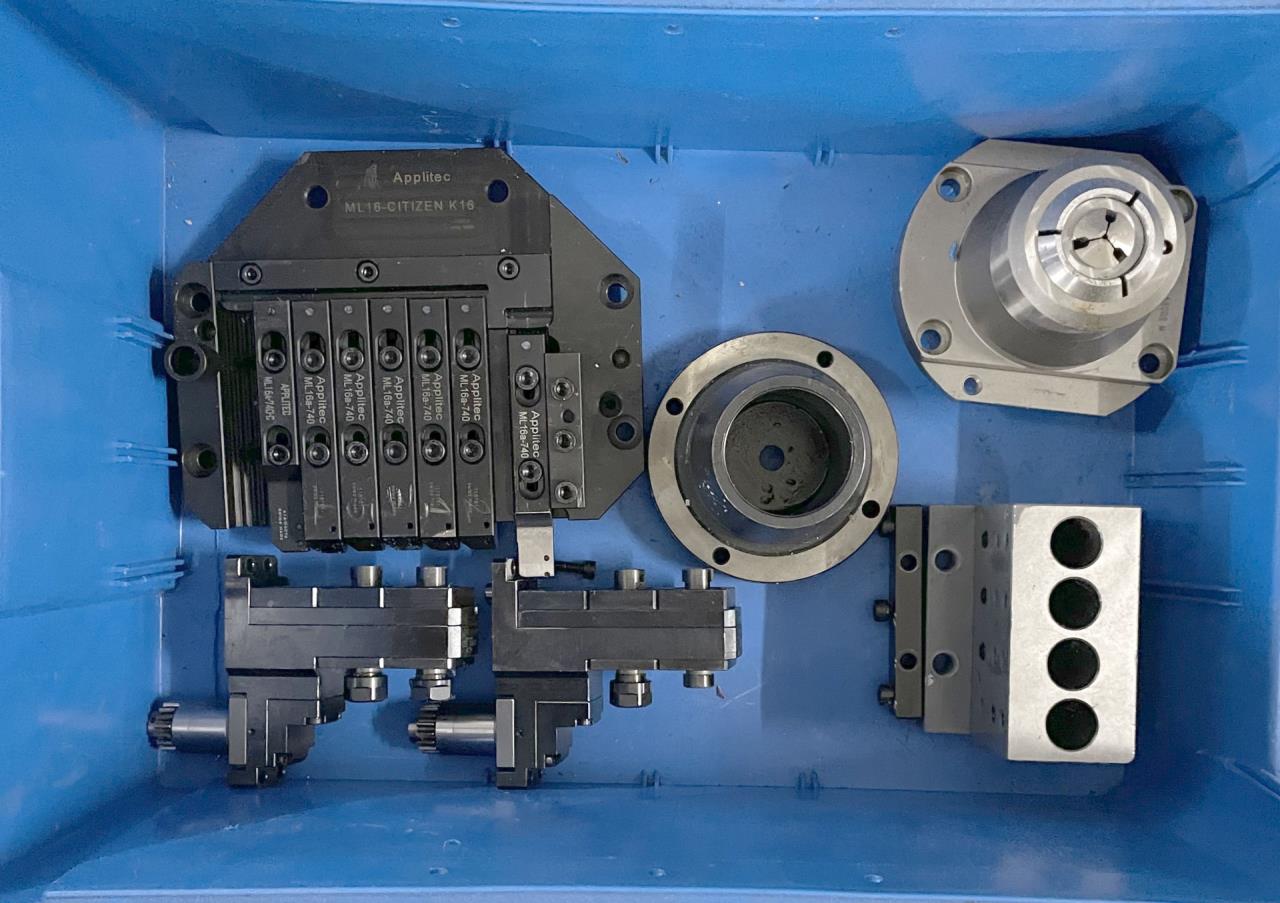

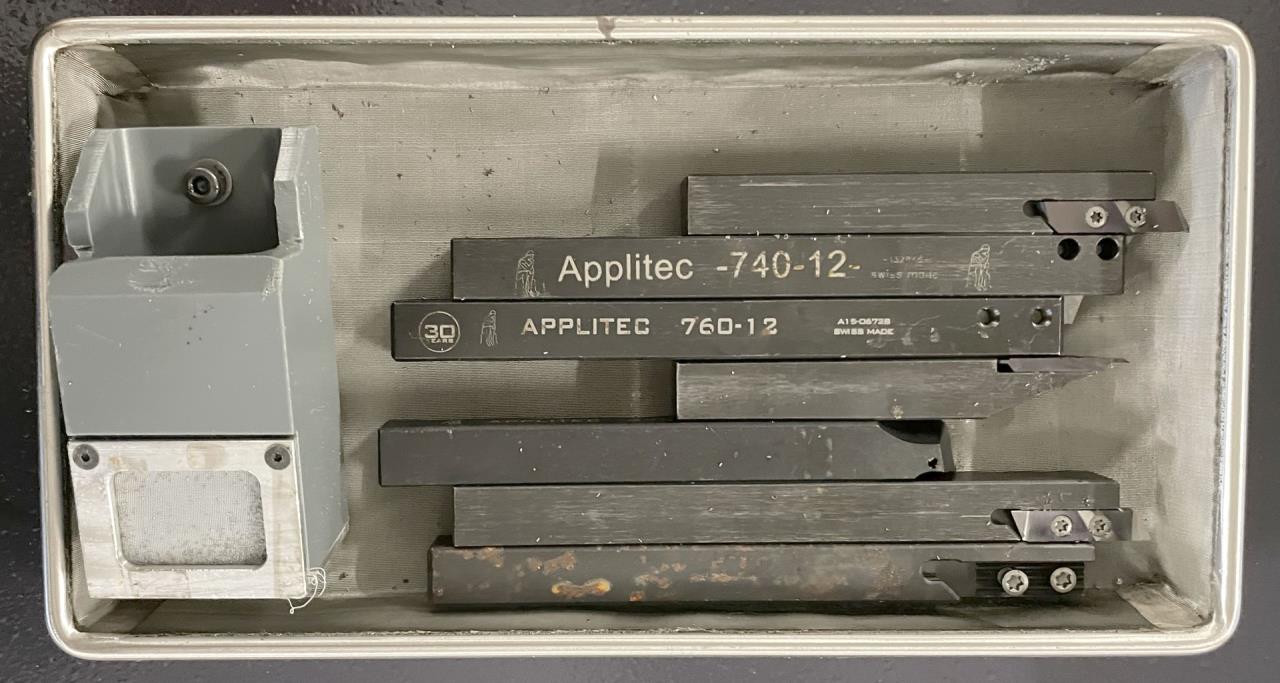

Toolholders

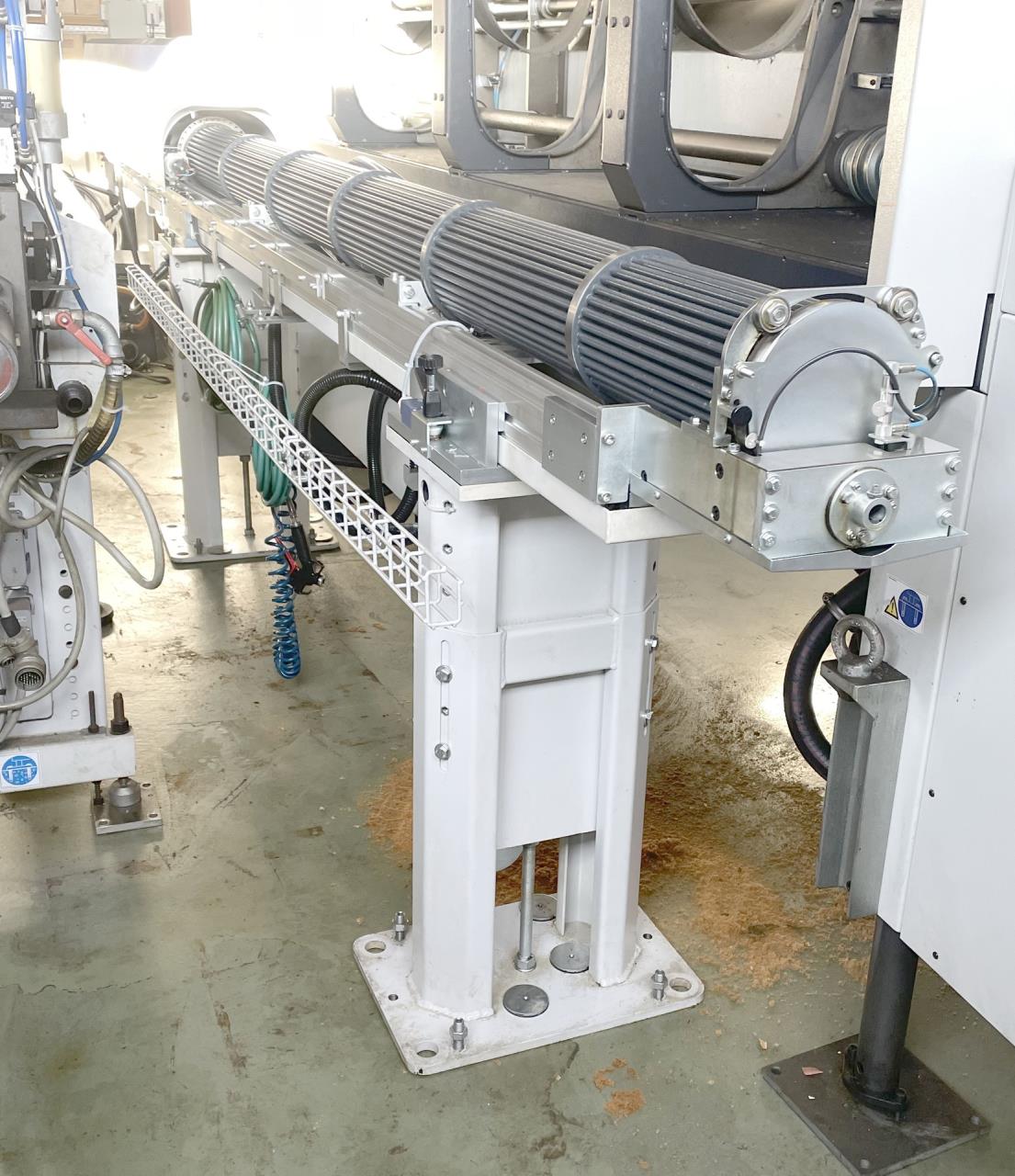

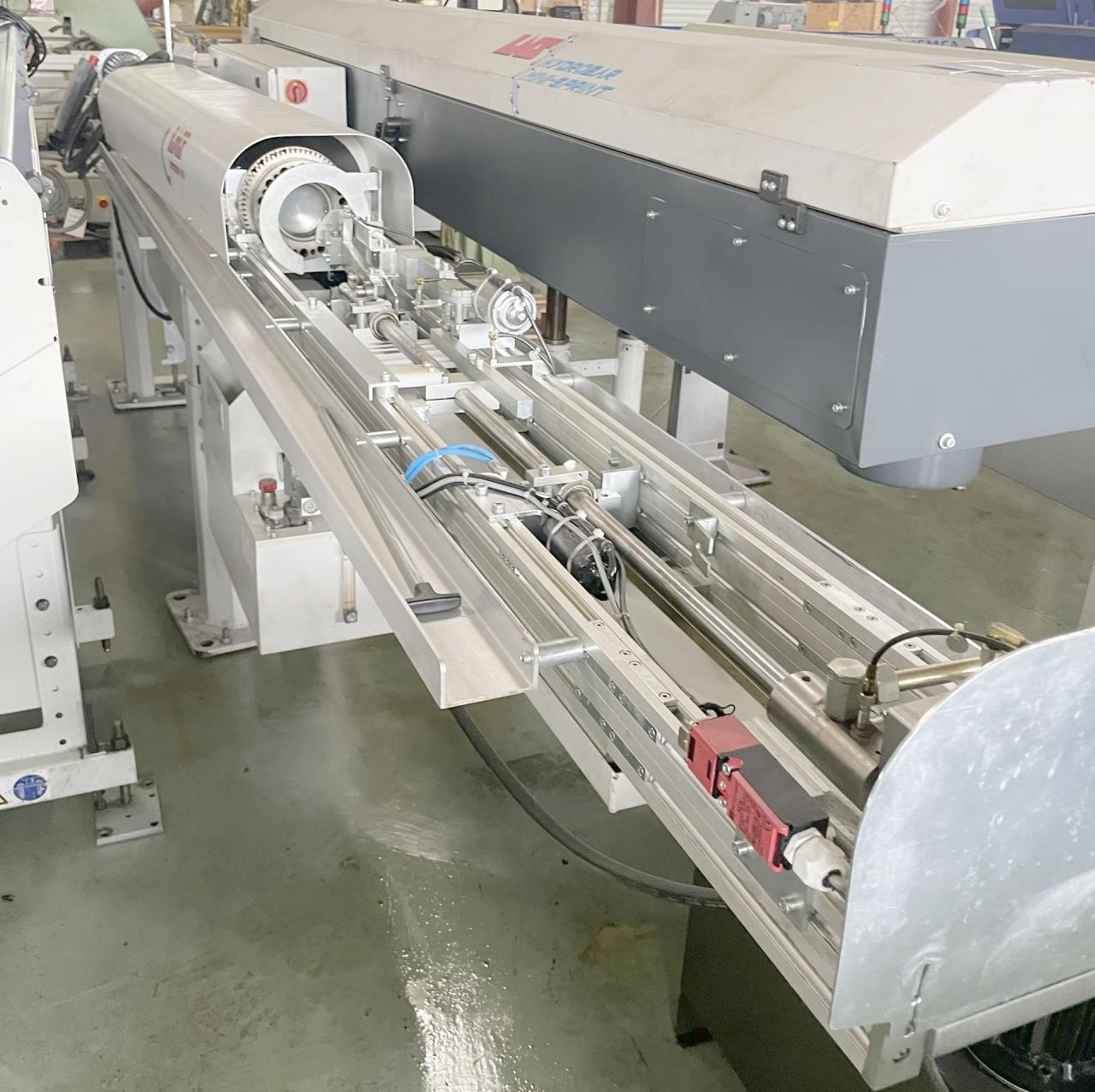

Bar feeder
Manufacturer
LNS
Type
TRYTON 107

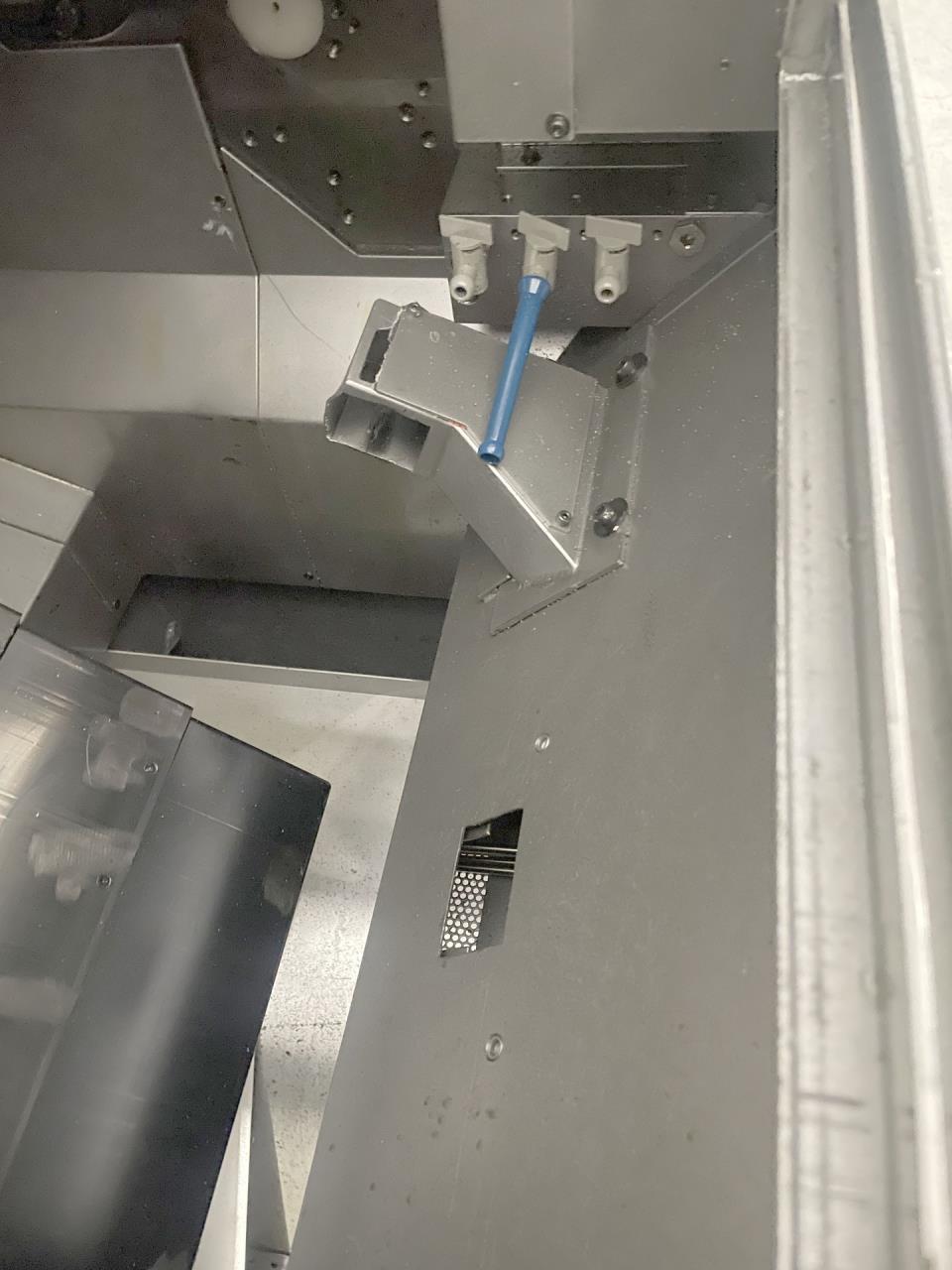

Parts catcher
Lamp
Coolant system
Collet chuck

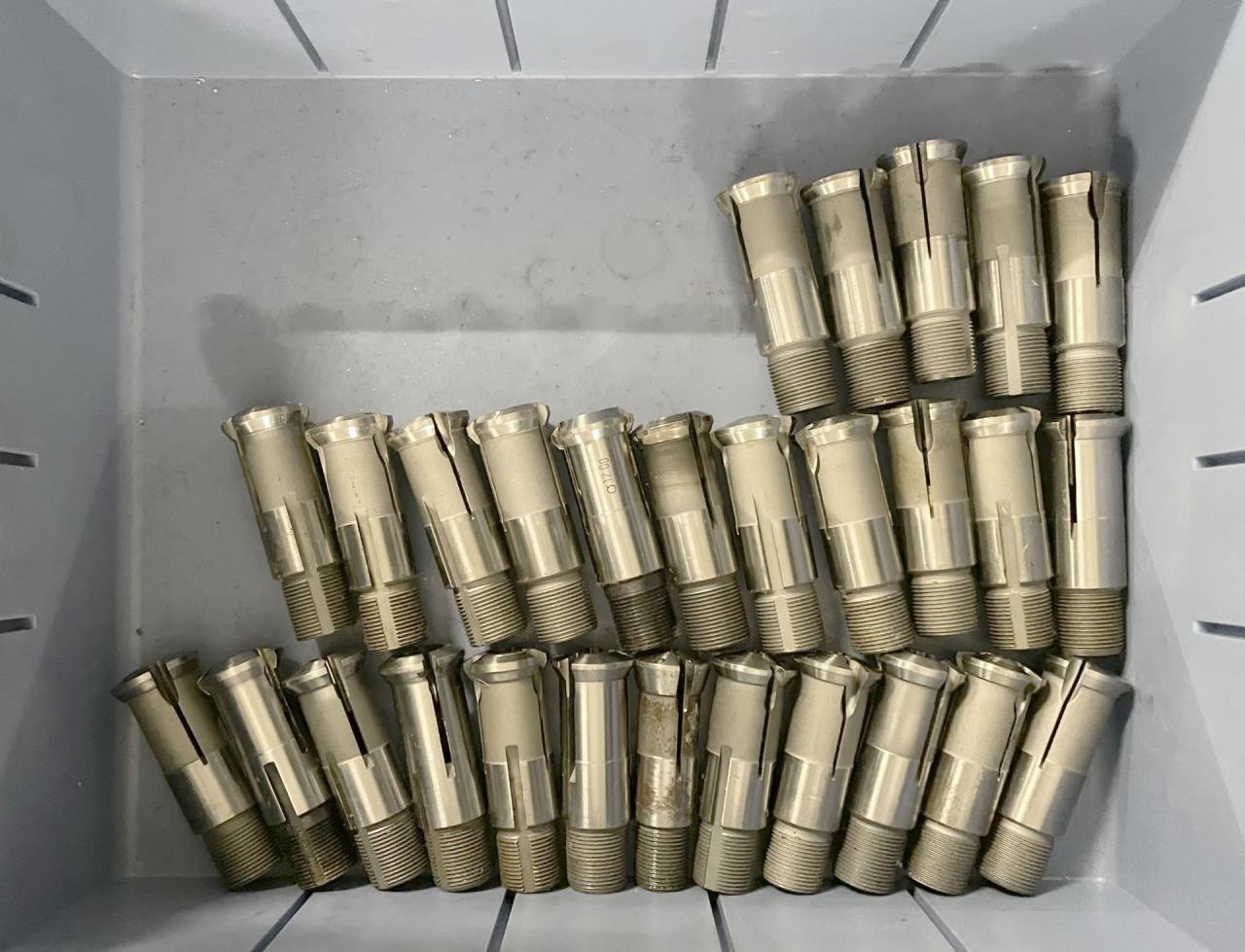

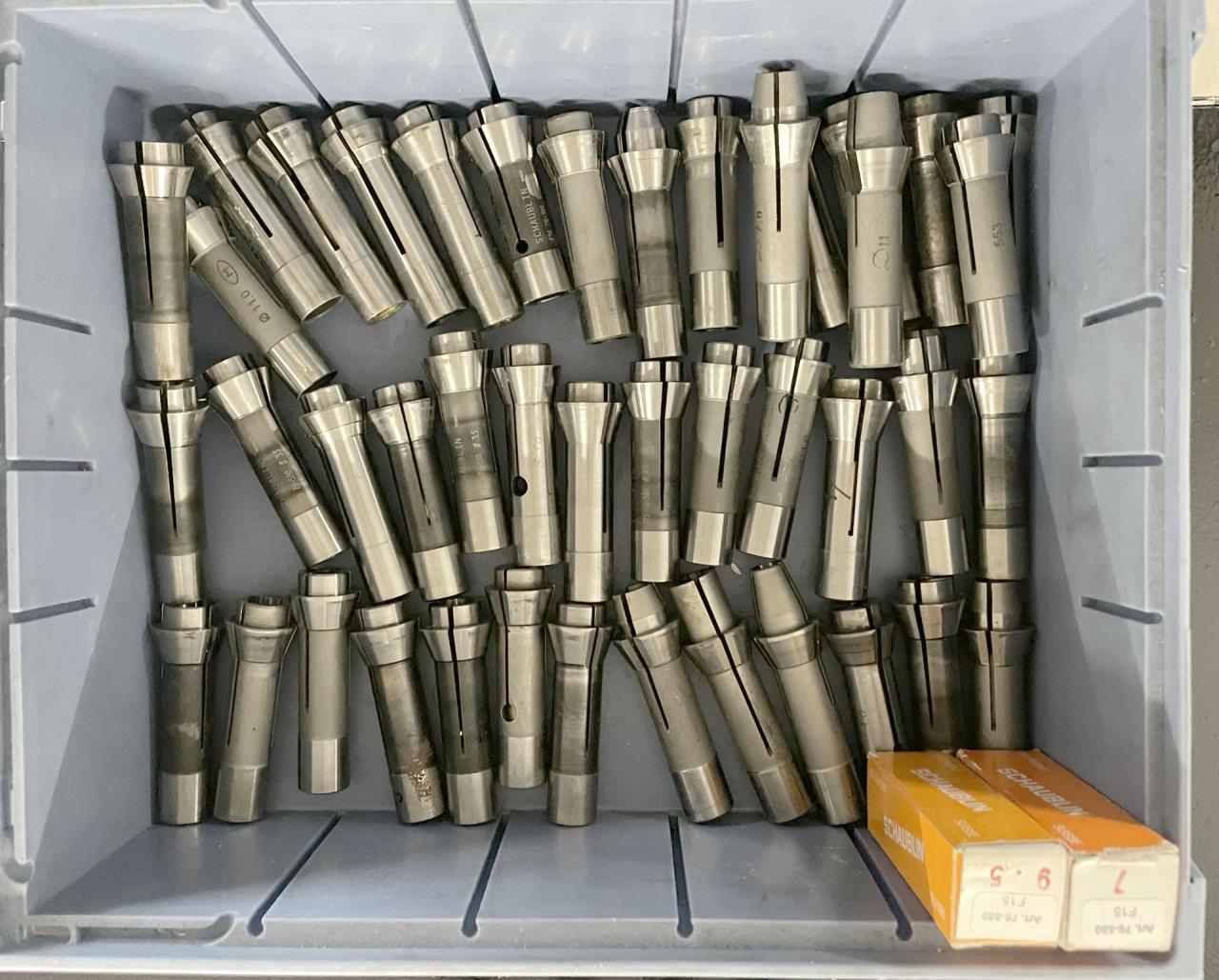

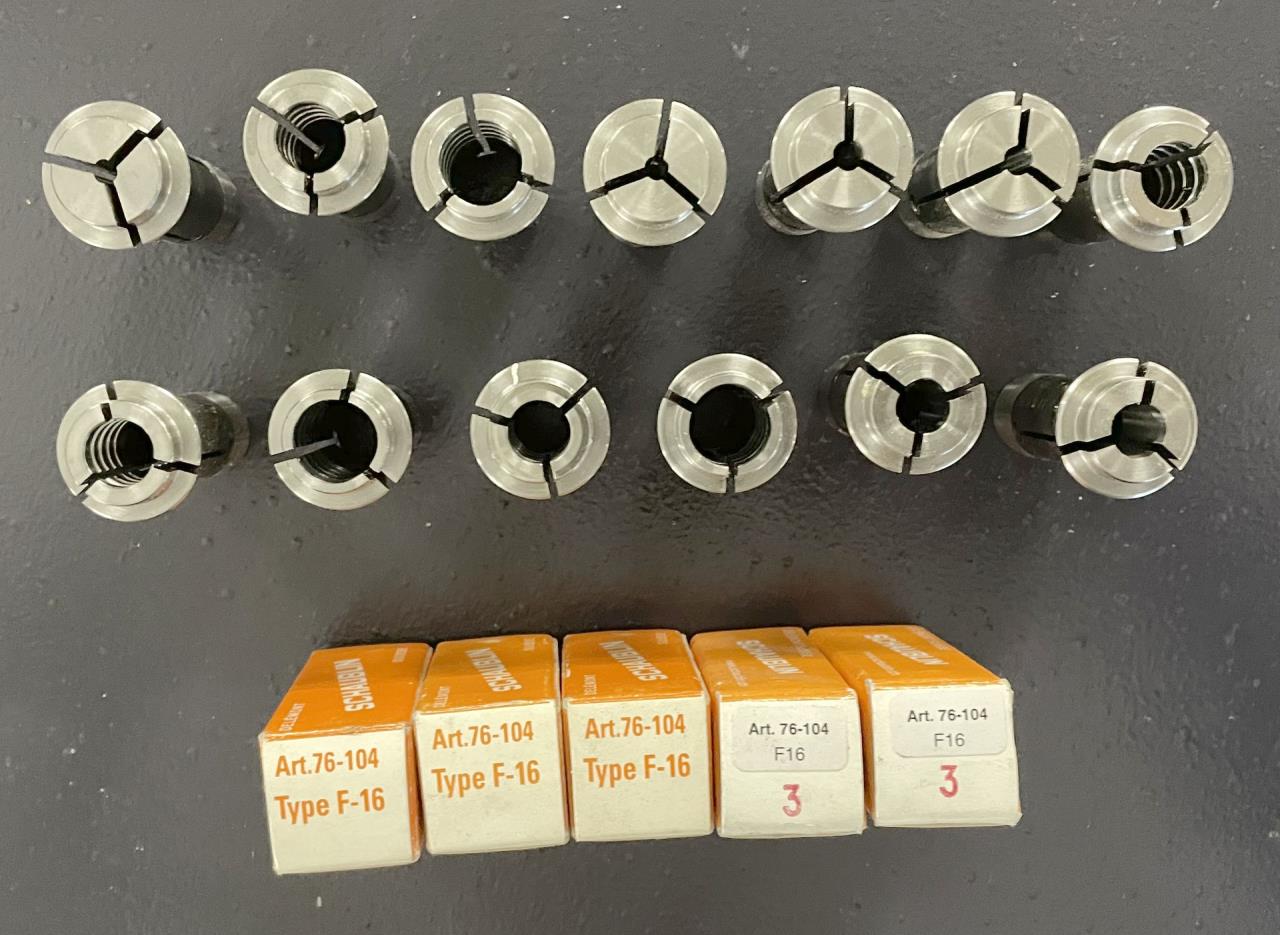

Set of collets
Interface serial port RS 232
Status light
Technical specifications and pictures without guarantee.
