stock no. :
22873
Machine's group :
Type :
MORI SEIKI SV-503B/40

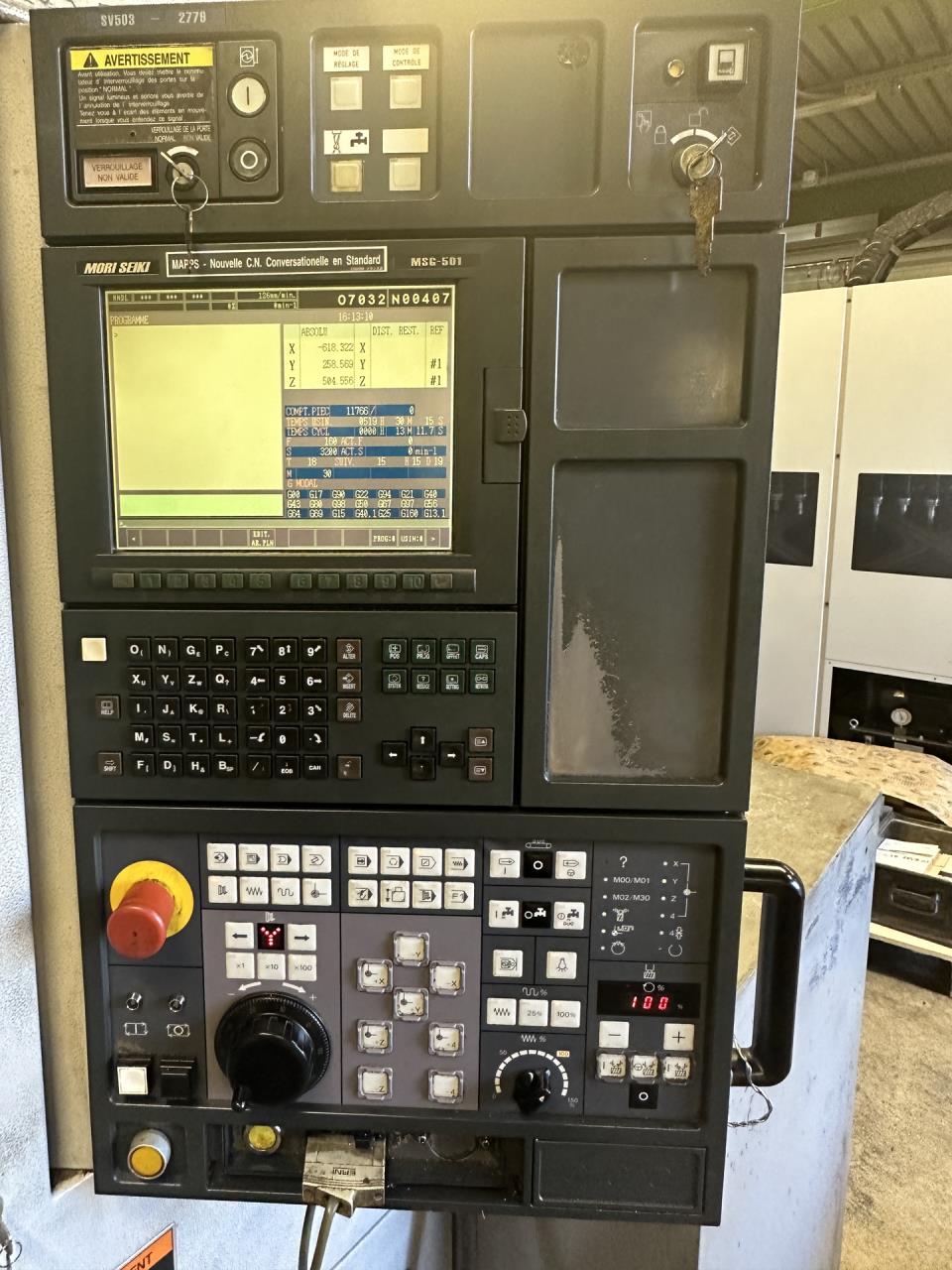

Controller :
MORI SEIKI MSG-501
Jahrgang :
2001
Technical data
Number of axis total
4

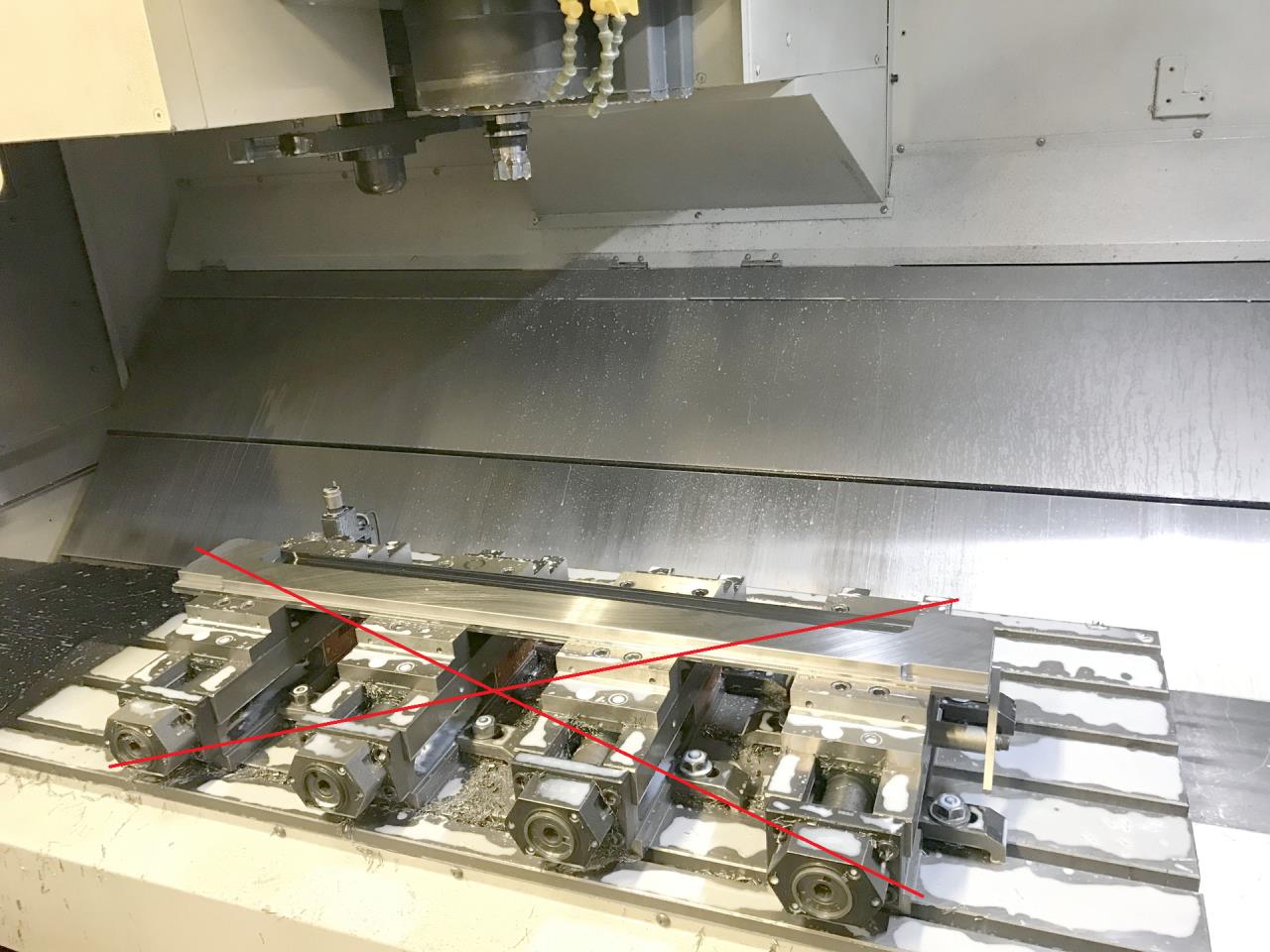

Table length
1320 mm
Table width
600 mm
Table load max.
1200 kg
Longitudinal travel (X-axis)
1050 mm
Transversal travel (y-axis)
510 mm
Vertical travel (z axis)
510 mm

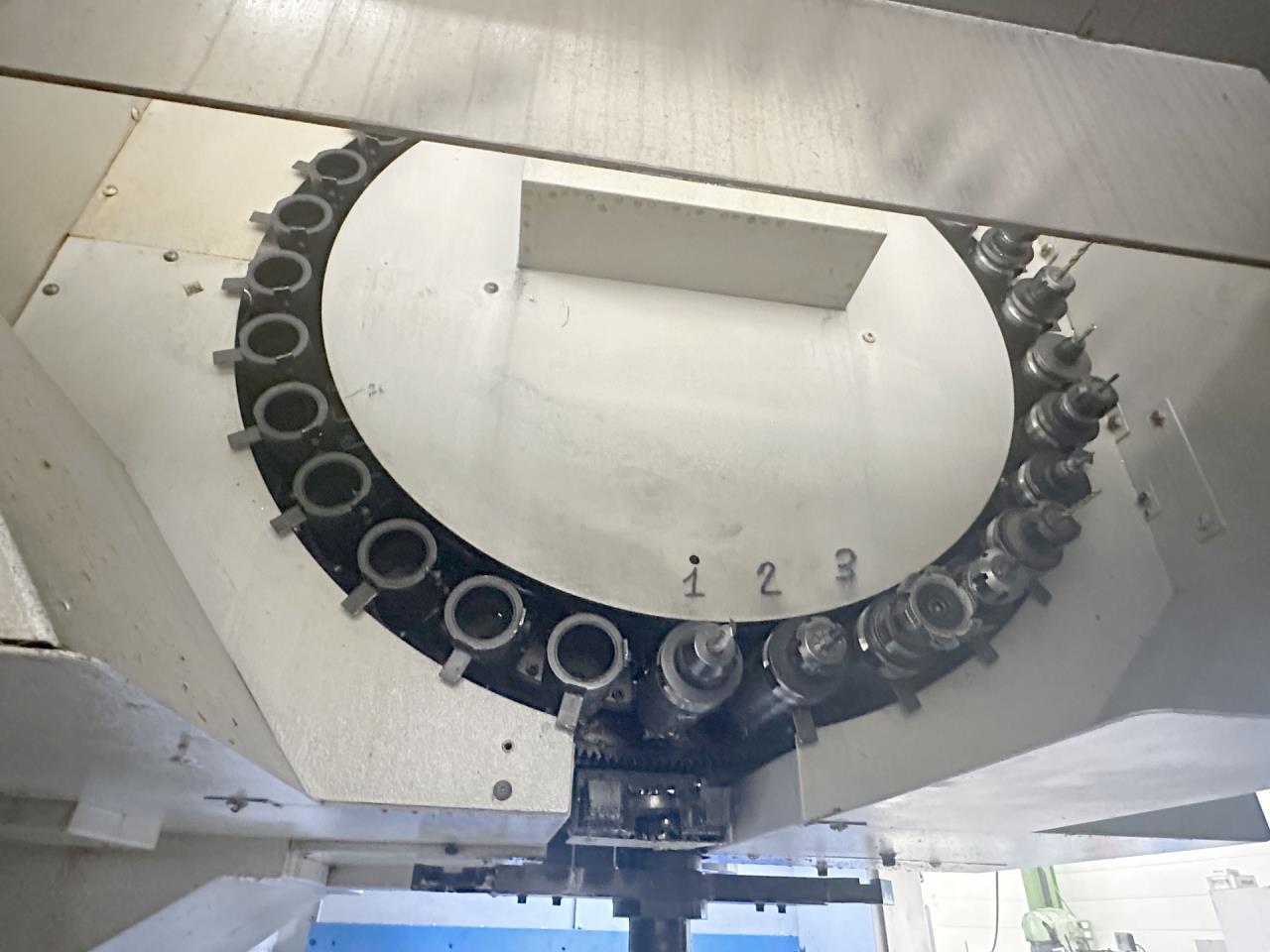

Tool magazine number of tool places
30
Spindle nose: BT
40
Spindle speeds:
stepless
from
0 rpm
up to
10000 rpm
Measurement system:
Voltage 50 Hz 3x
200 Volt
Spindle power
22 kW
Total power required
58 kVA
Machine's weight about
8030 kg
Overall dimensions machine:
Length
2500 mm
Width
2350 mm
Height
2700 mm
Various accessories:
Set of toolholders
Coolant system
Coolant through spindle (cts)
30 bar
Chip conveyor

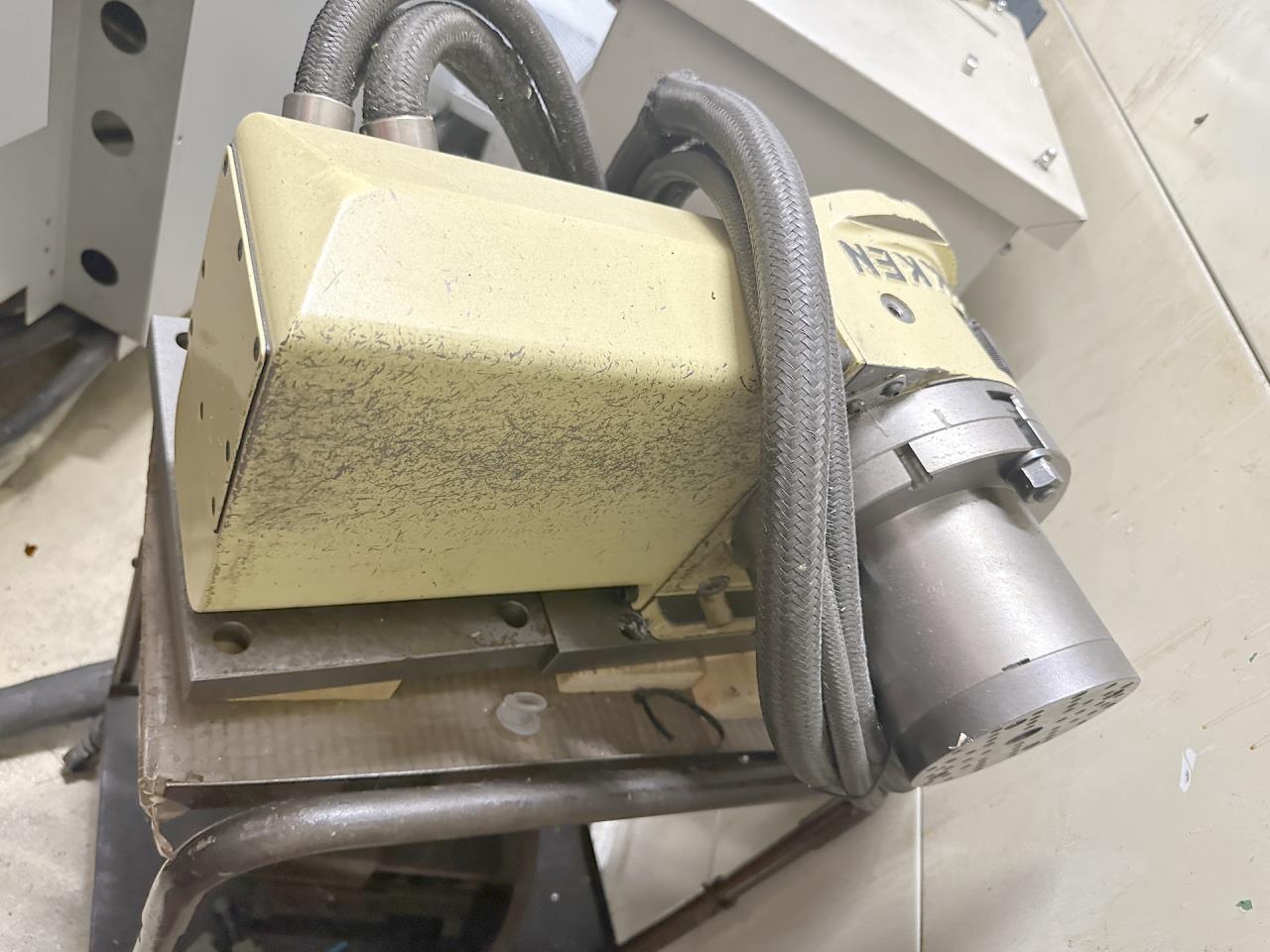

Dividing attachment
NIKKEN
Lamp
Status light
Technical specifications and pictures without guarantee.
