Technical data
Dressing wheel diameter max.
150 mm
Max. grinding wheel diamter
250 mm
Swivelling range
-30 / +30 °
Clamping diameter
3 - 32 mm
Infeed stroke
40 mm

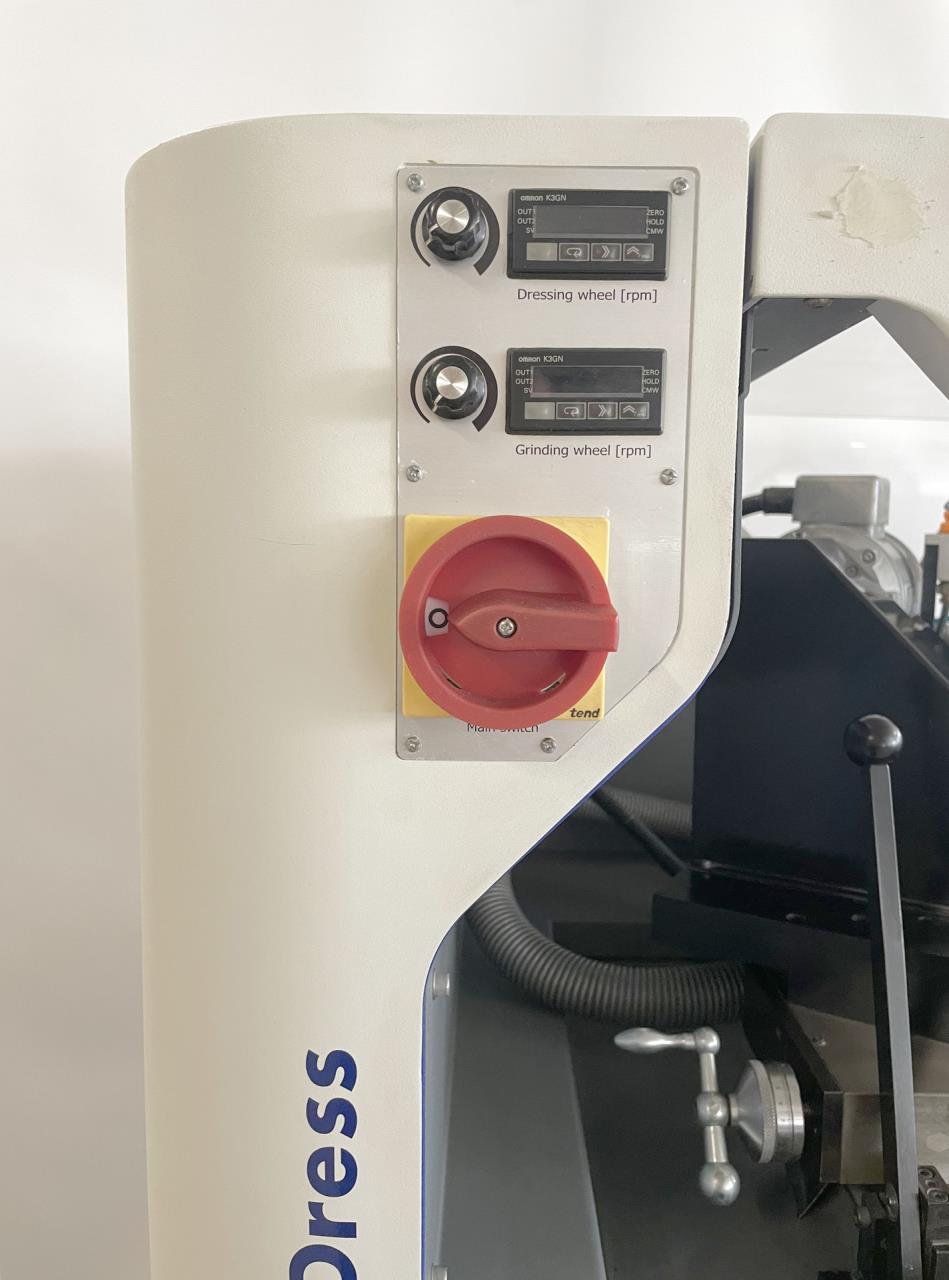

Spindle speeds:
stepless
from
150 rpm
up to
1050 rpm
Dressing wheel:
speeds:
stepless
from
750 rpm
up to
3500 rpm
Spindle power
0.37 kW
Total power required
2 kVA
Voltage 50 Hz 3x
230 Volt
Machine's weight about
330 kg
Overall dimensions machine:
Length
800 mm
Width
800 mm
Height
1700 mm
Various accessories:

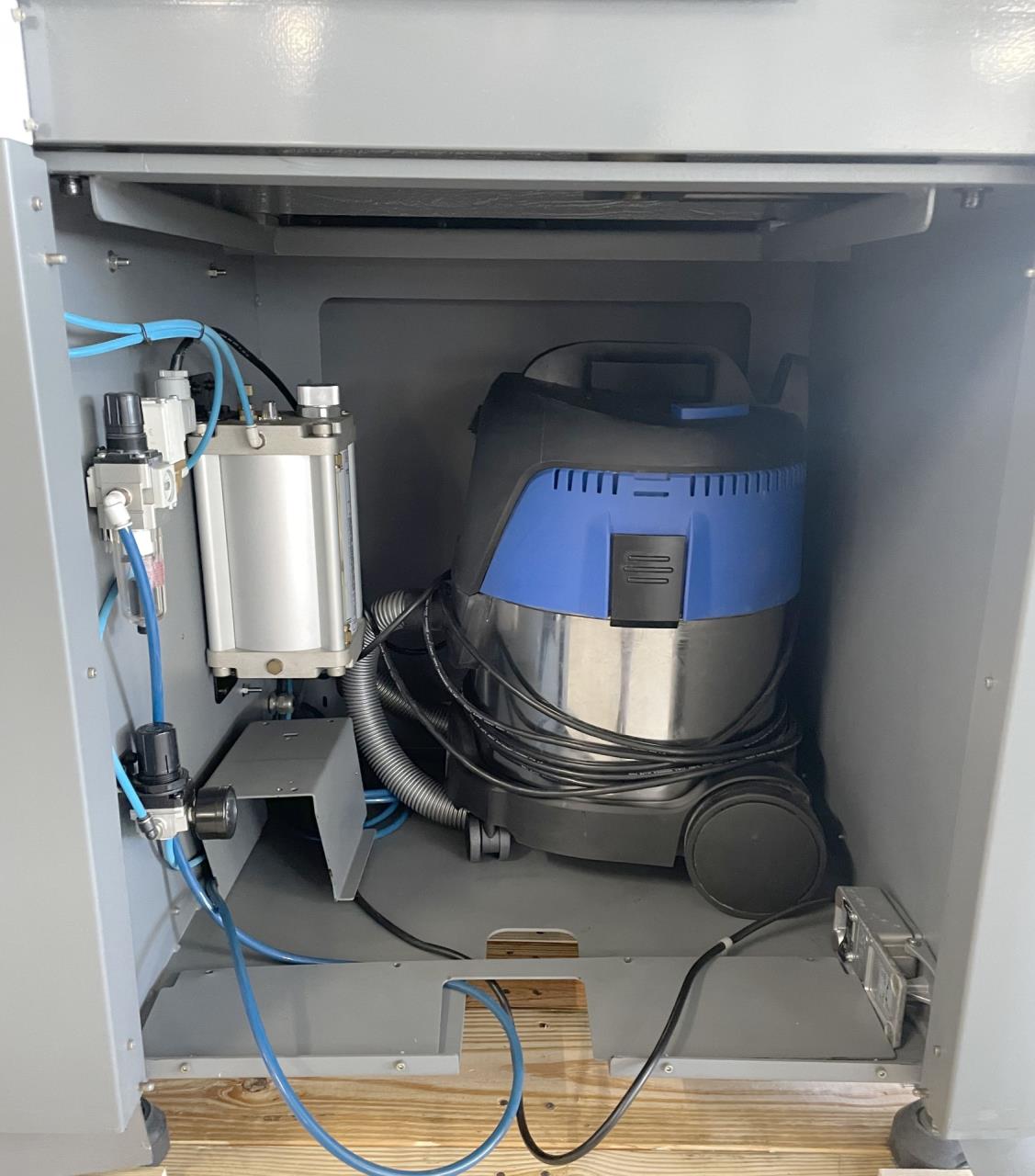

Grinding dust extraction
Foot pedal

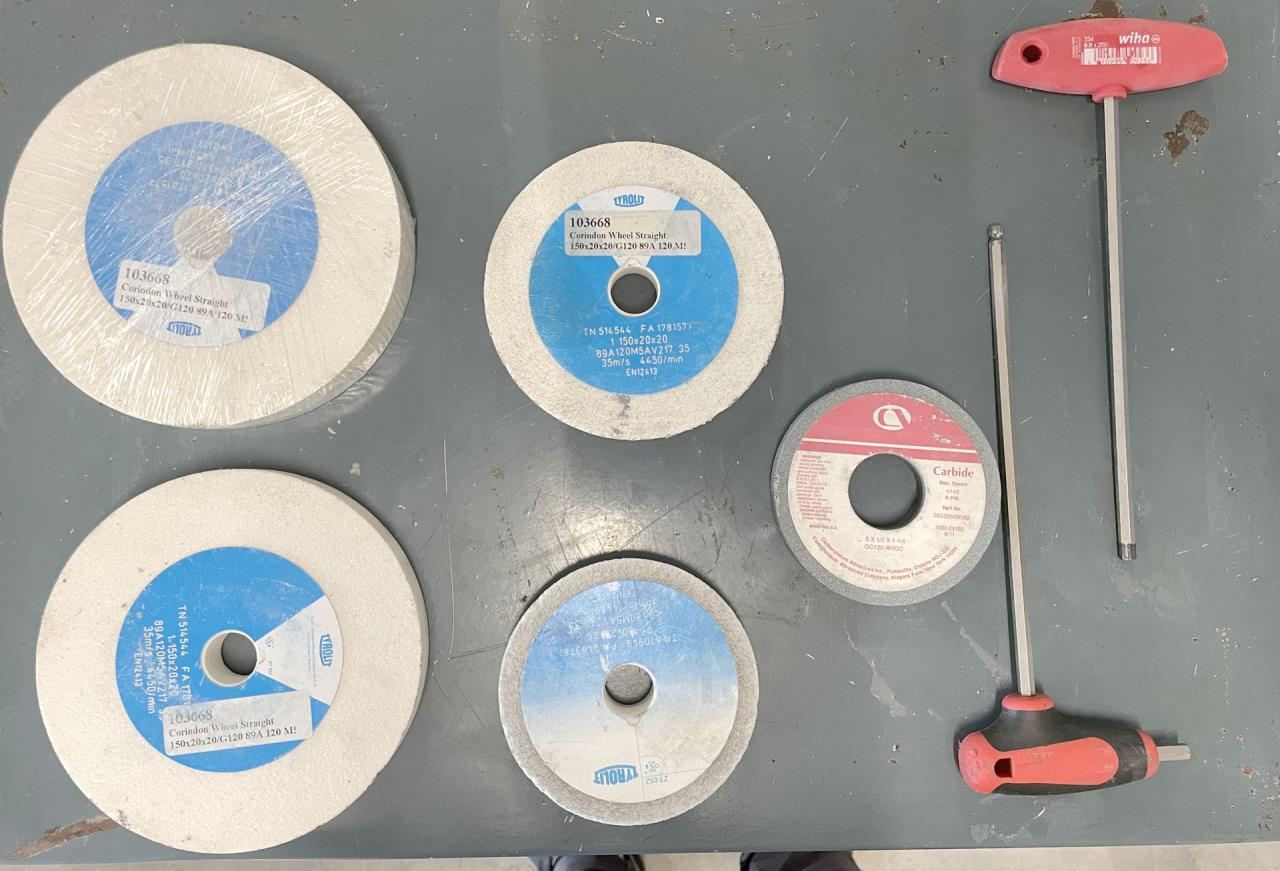

Set of grinding wheels
Protective cover
for single discs or disc packs
Excellent ergonomics for quick adjustment
adjustment
precise & sensitive dressing process
compatible with a wide range of discs & holders due to integrated cross table

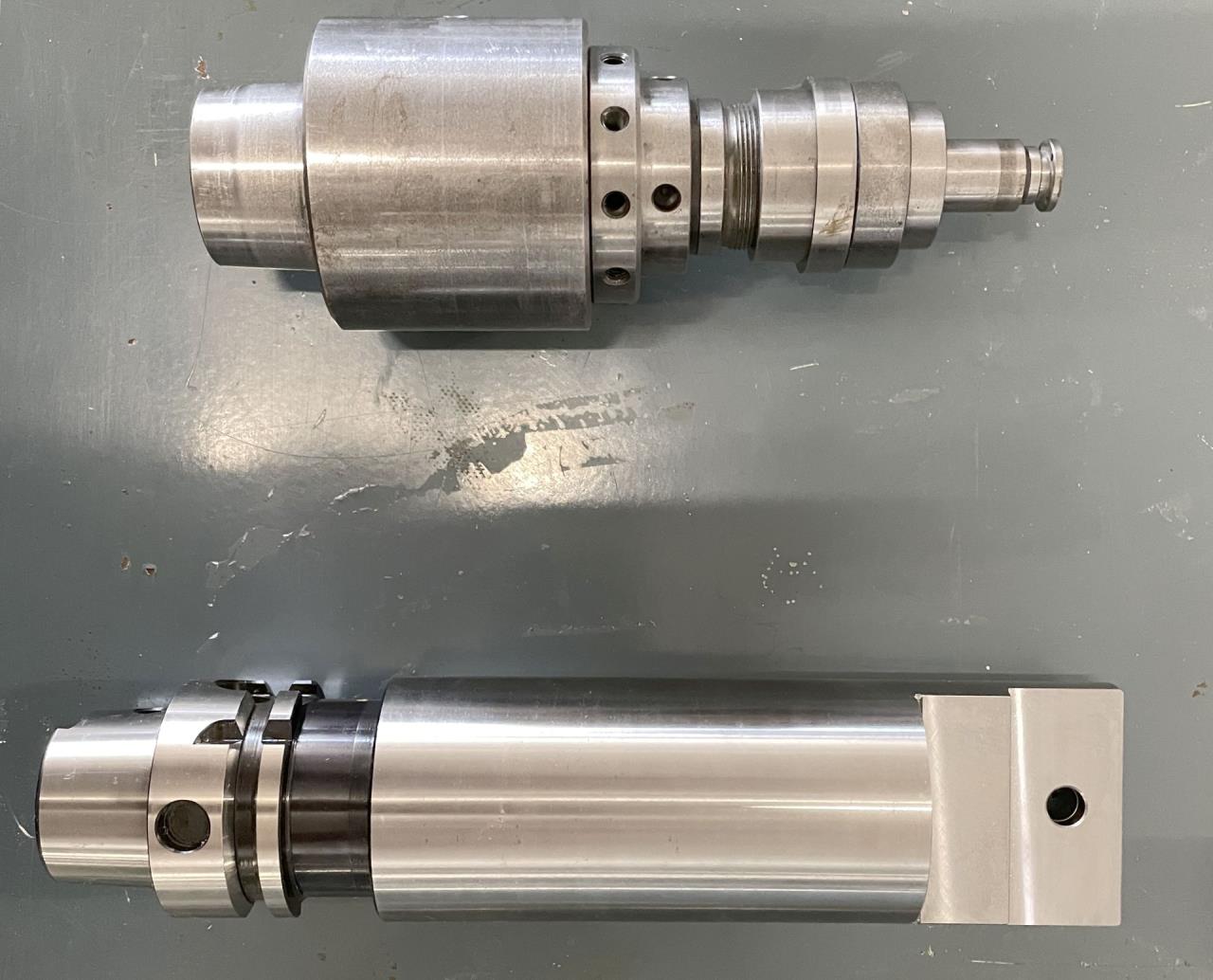

flexibly customisable mounting interface
(PerfectArbor, HSK, others ...)
Dual drives with adjustable spindle
spindle speeds
integrated suction
integrated micro-lubrication
Excellent ergonomics for quick adjustment
adjustment
precise & sensitive dressing process
compatible with a wide range of discs & holders due to integrated cross table
flexibly customisable mounting interface
(PerfectArbor, HSK, others ...)
Dual drives with adjustable spindle
spindle speeds
integrated suction
integrated micro-lubrication
Technical specifications and pictures without guarantee.
