Technical data
Table length
665 mm
Table width
205 mm
Grinding length
500 mm
Grinding width
200 mm
Execution:
hydraulic
Max. distance from table
to spindle-centreline
425 mm
Longitudinal travel (X-axis)
550 mm
Transversal travel (y axis)
200 mm
Automatic cross-feed:
stepless
from
0.5 m/min
up to
30 m/min
Table speeds:
stepless
from
1 m/min
up to
22 m/min

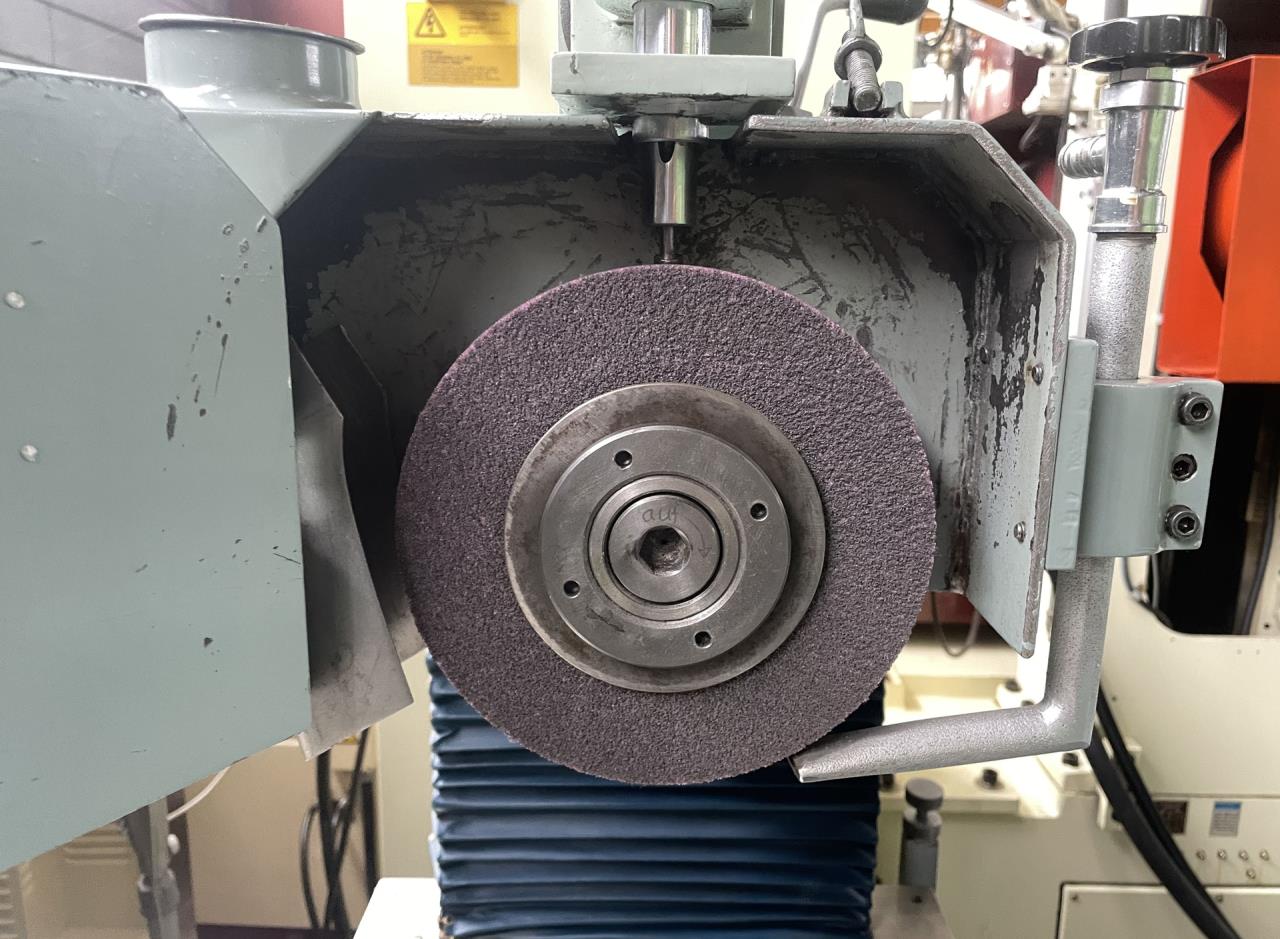

Diameter of grinding wheel
225 mm
Width of the grinding wheel
30 mm
Grinding wheel speeds fix
2800 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
2 HP
Total power required
3 HP
Machine's weight about
850 kg
Overall dimensions machine:
Length
1500 mm
Width
1300 mm
Height
1700 mm

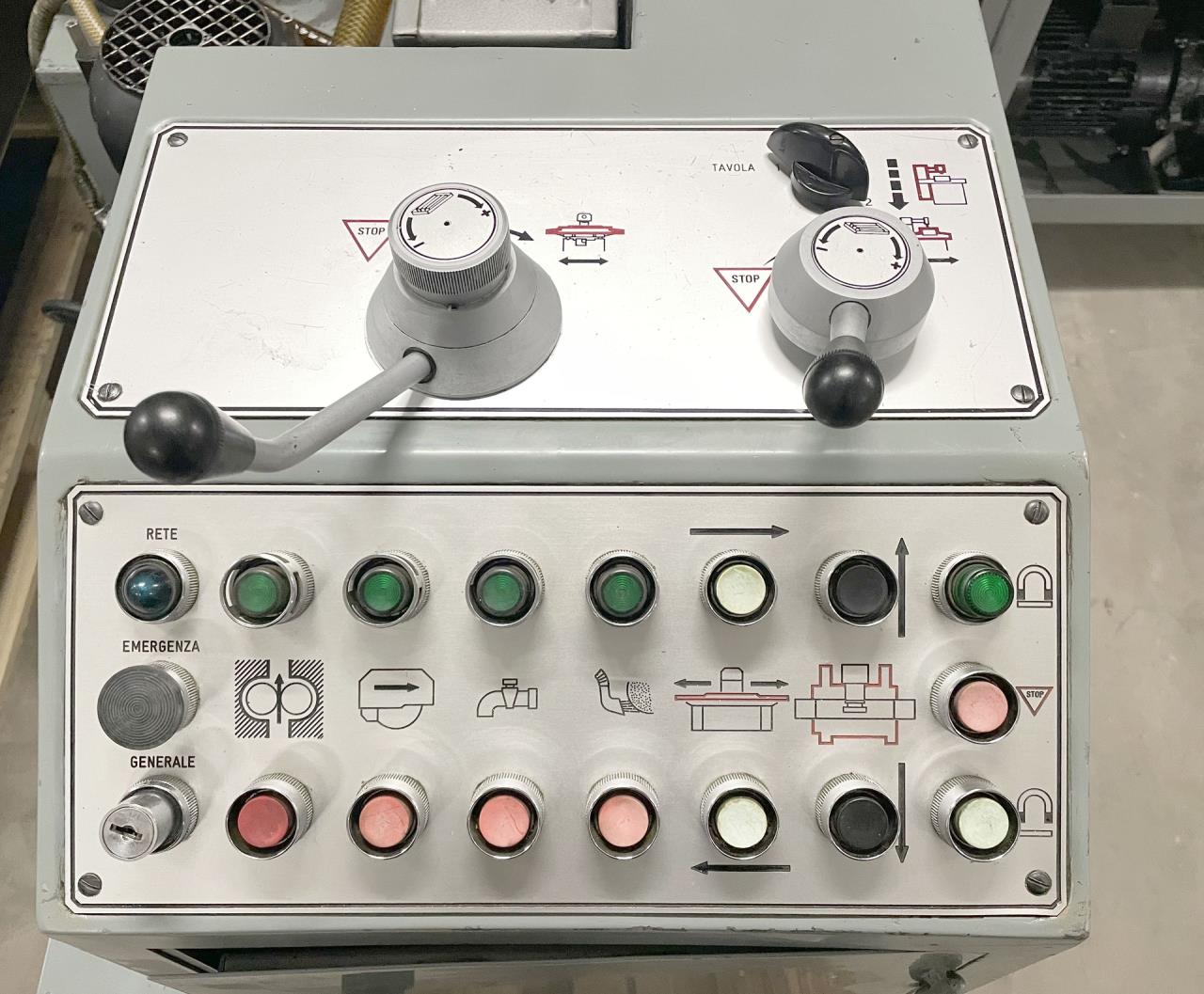

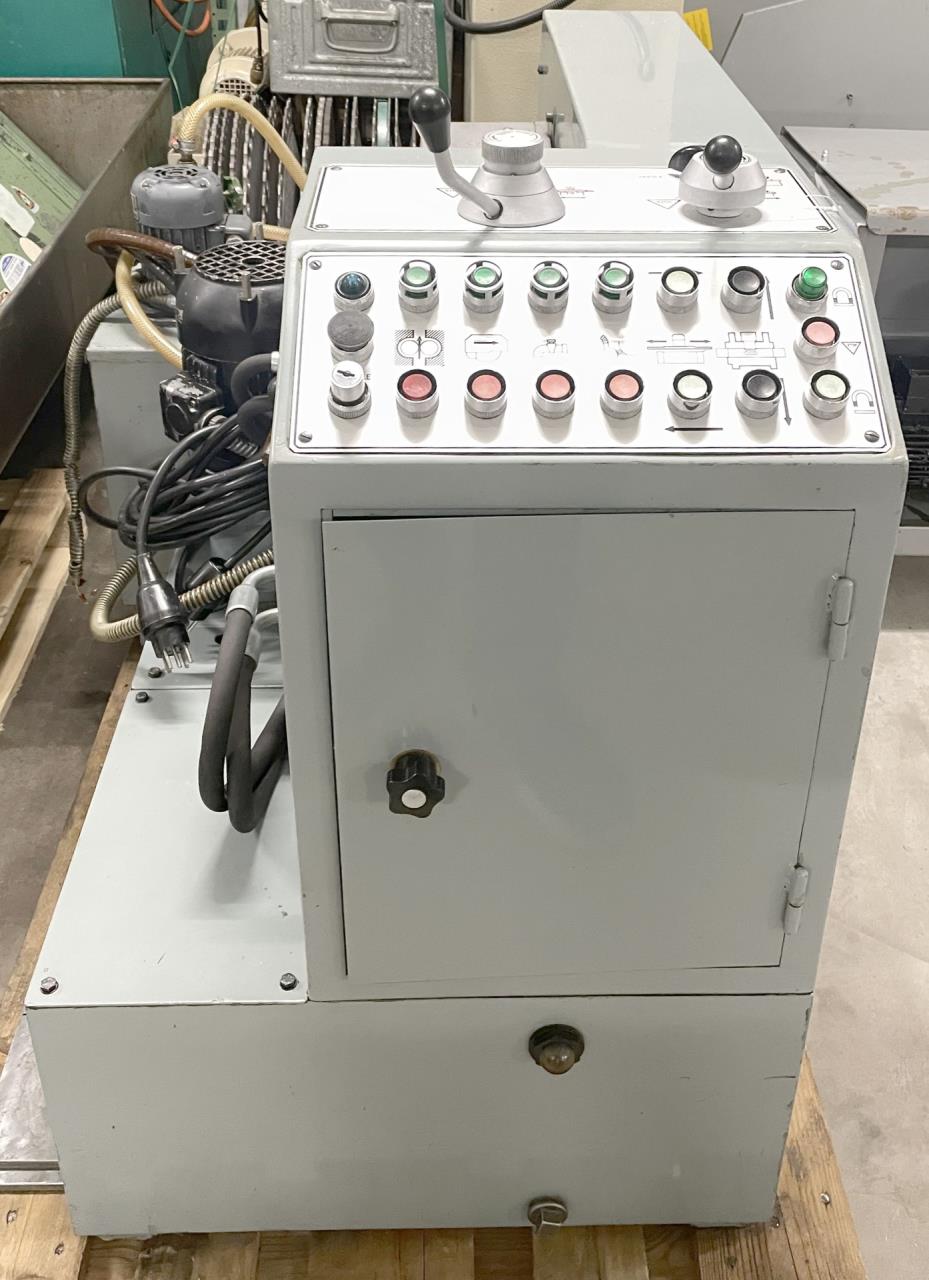

Dimensions of the control:
Length
1000 mm
Width
600 mm
Height
850 mm
Various accessories:
Coolant system

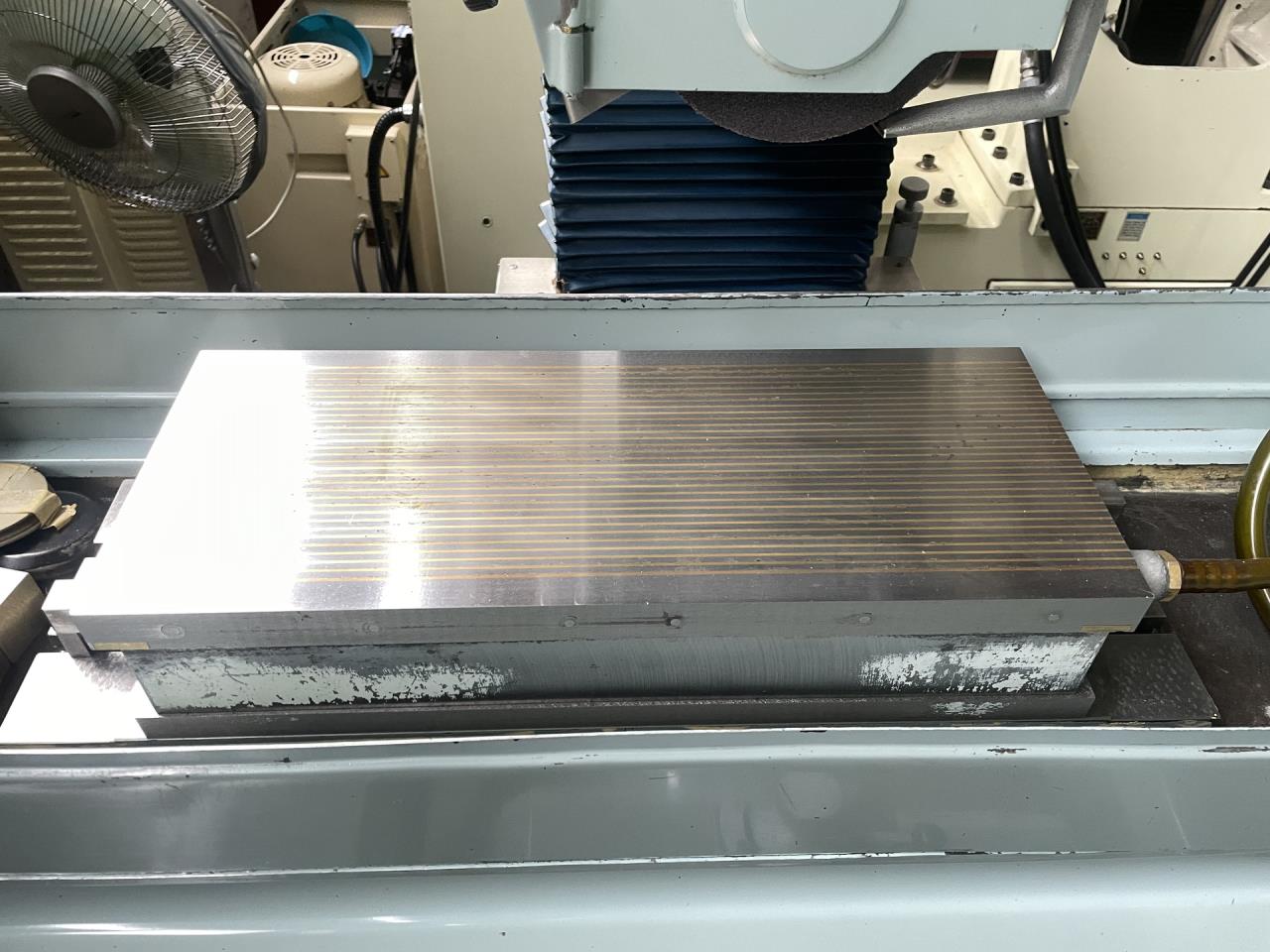

Magnetic plate:
Length
665 mm
Width
200 mm

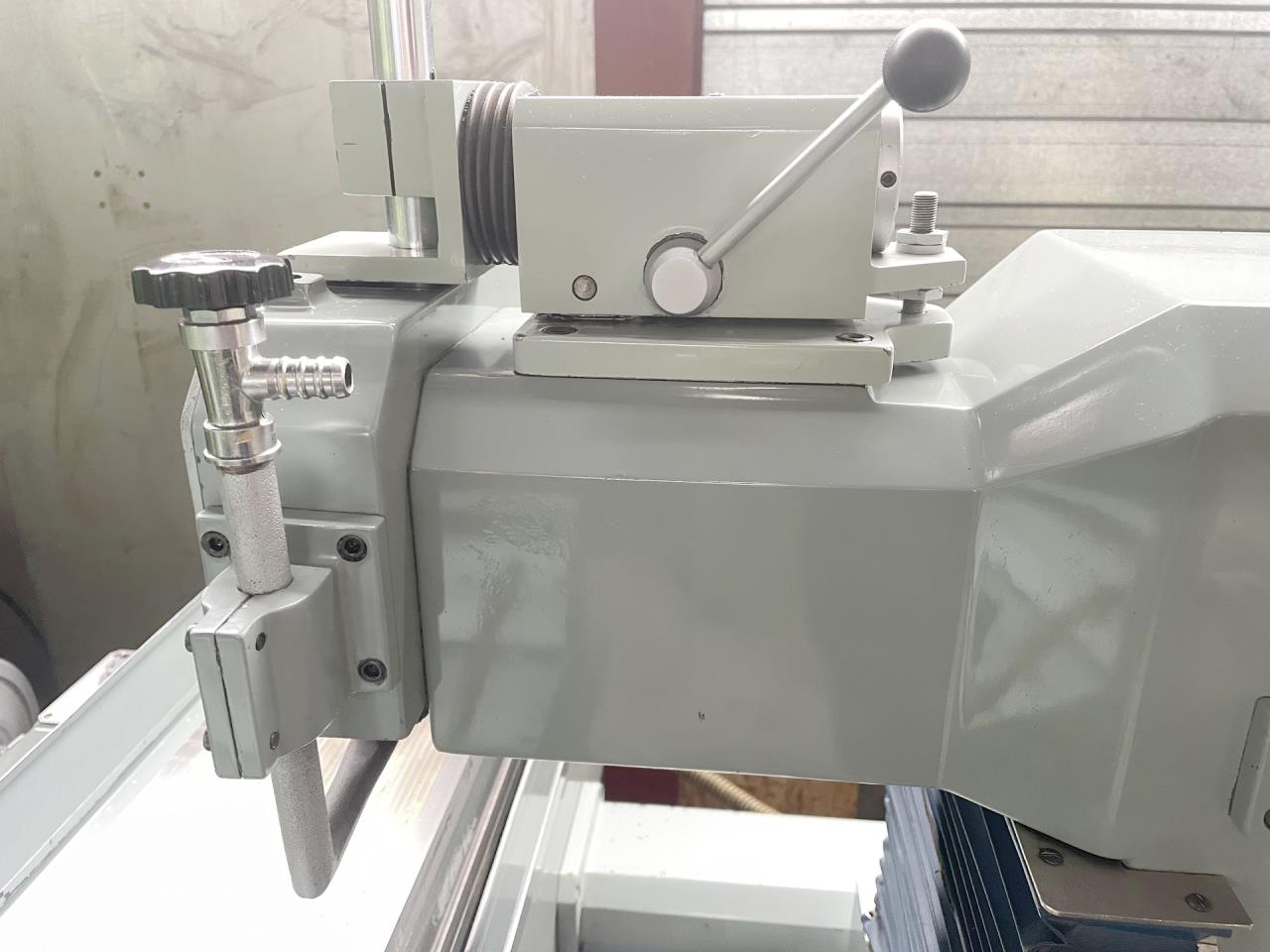

Redressing device

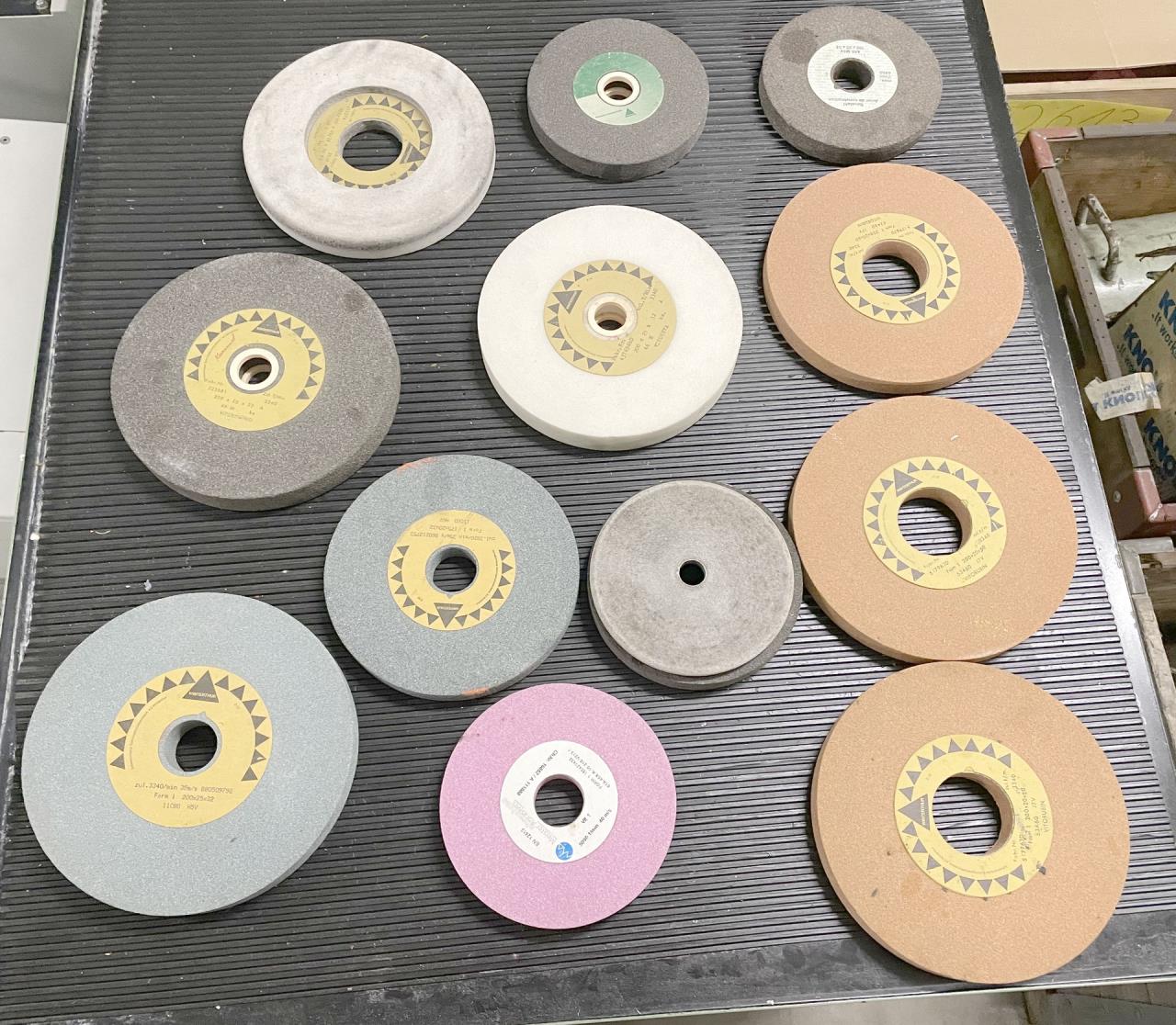

Set of grinding wheels
Technical specifications and pictures without guarantee.
