Technical data
Number of axis total
10
Number of axis total
Internal spindle diameter
20 mm
Spindle speeds:
stepless
up to
10000 rpm

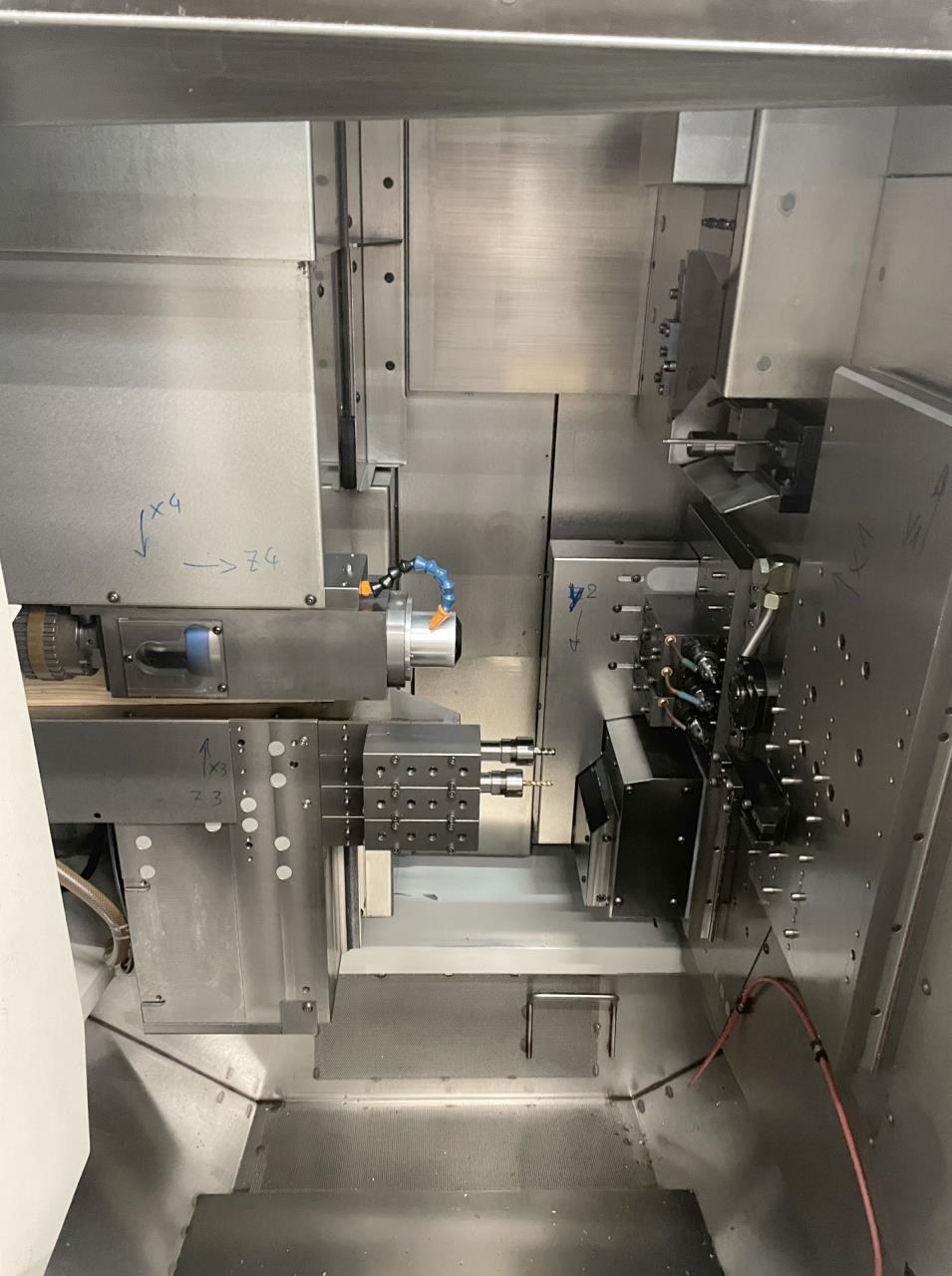

Independent carriage:
(X1-Y1)
Number of positions
5
number of driven tools
4

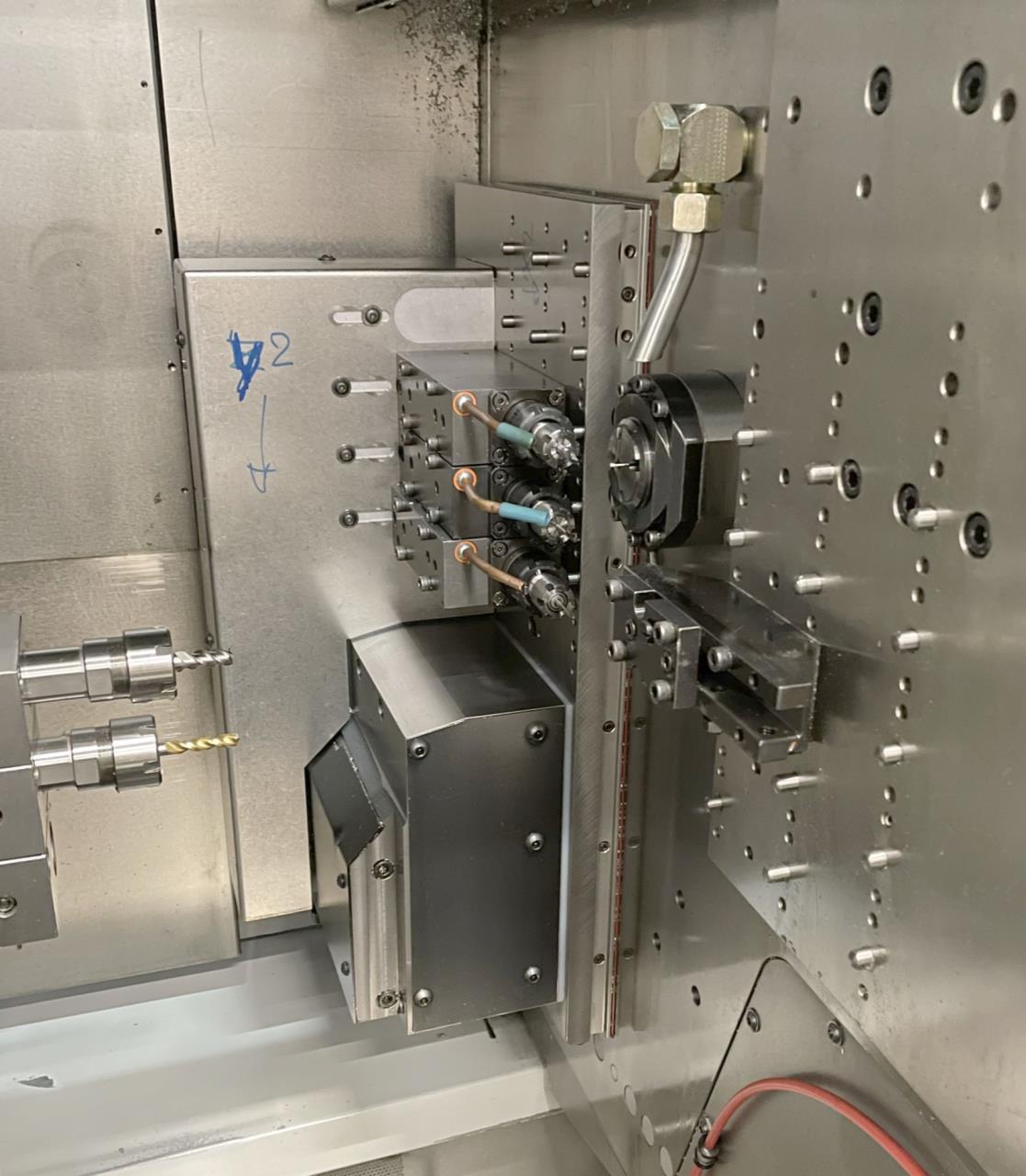

Independent carriage:
(X2-Y2)
Number of positions
5
Back spindle:
3
speeds:
up to
10000 rpm
Inner taper type
F25
Spindle speeds (turning tools)
8000 rpm
C axis (spindle,resolution)
0.1 °
Voltage 50 Hz 3x
380-420 Volt
Spindle motor
2.2 kW
Total power required
11 kVA
Machine's weight about
3000 kg
Overall dimensions machine:
Length
2950 mm
Width
1100 mm
Height
2300 mm
Various accessories:

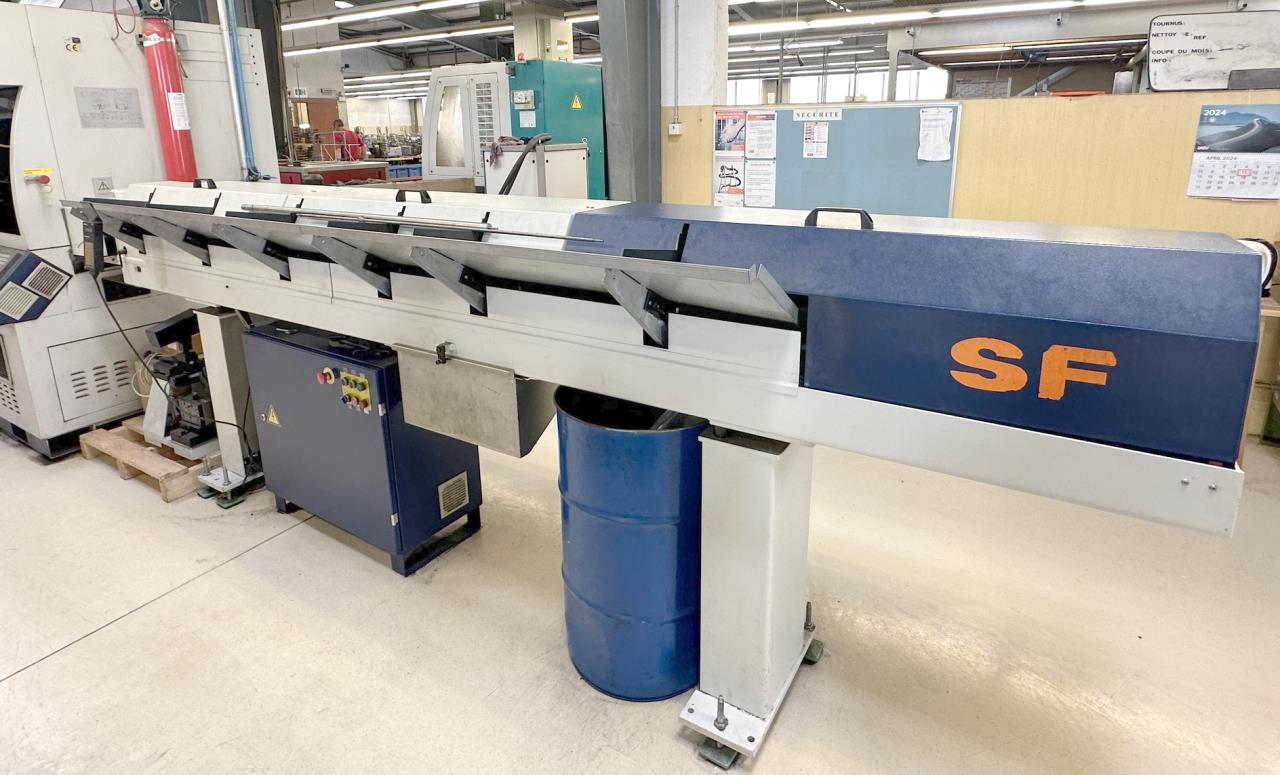

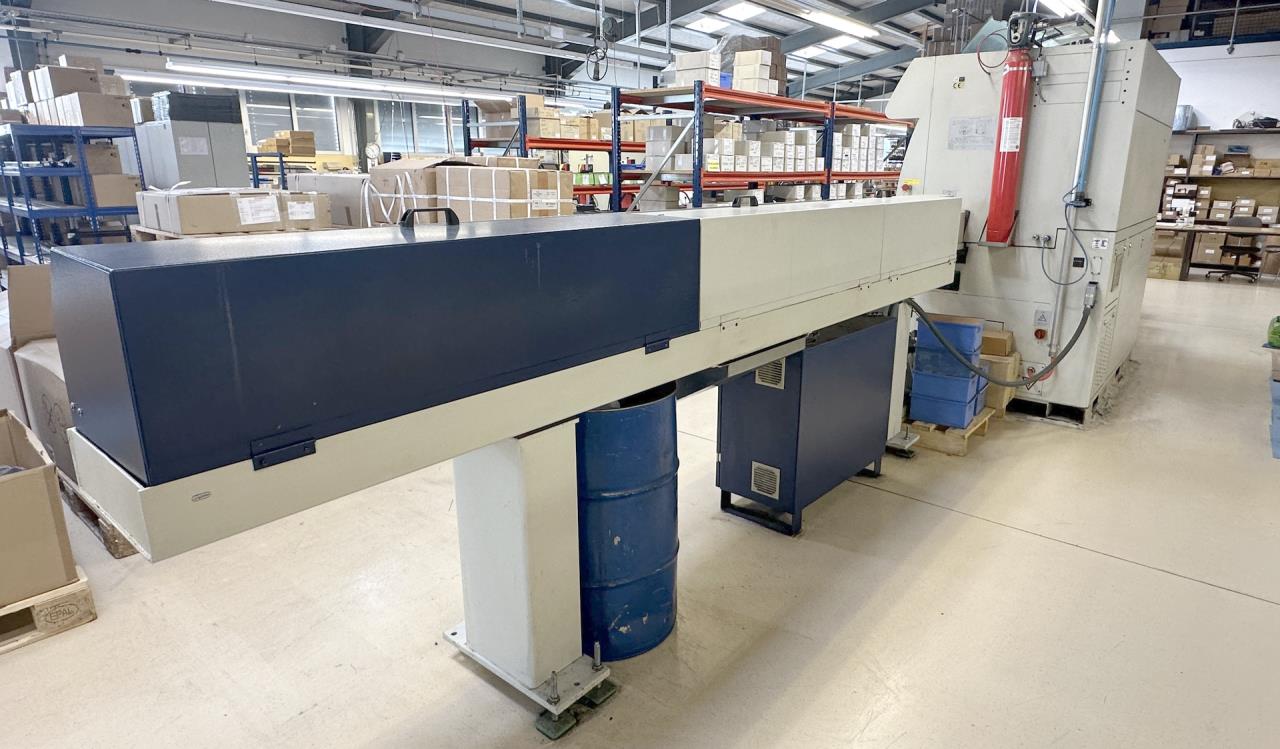

Bar feeder
Manufacturer
SBF
Type
535

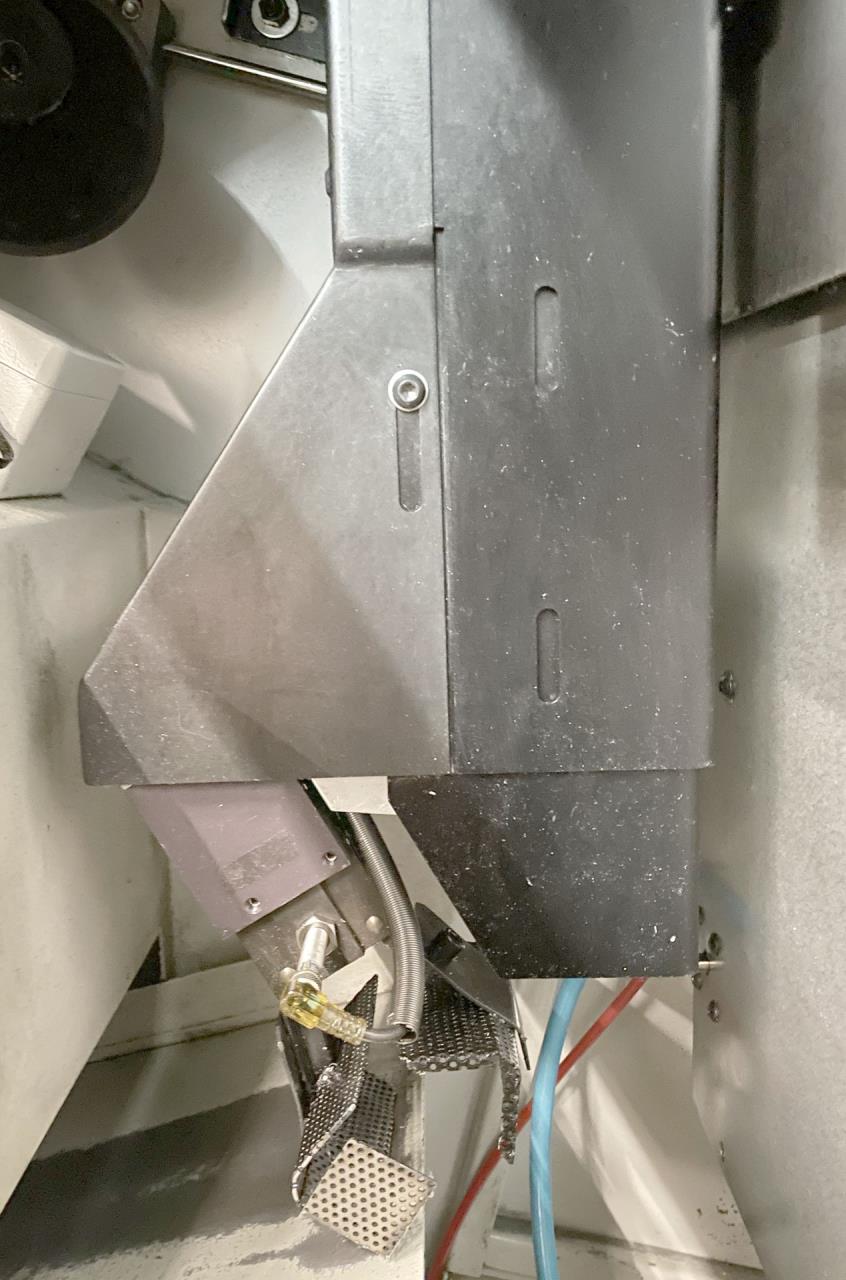

Parts catcher
Tool pre-setting device
Technical specifications and pictures without guarantee.
