Technical data
X axis
100 mm
Y axis
100 mm
Z axis
100 mm
Grinding-wheel diameter
75 mm
Work piece spindle speed
100 - 1300 rpm
Vertical adjustment of grinding head
100 mm

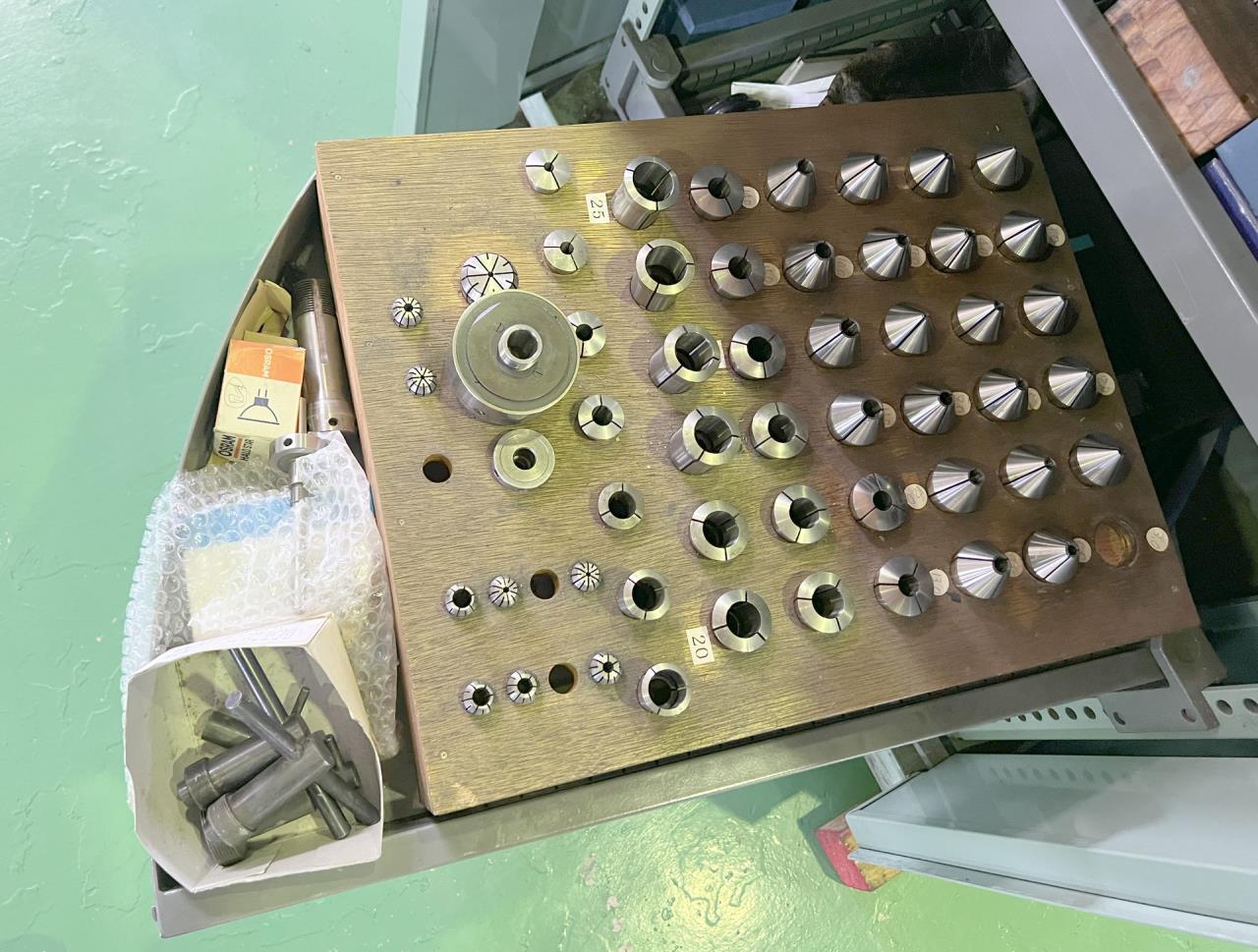

Collet attachment
25 W
Slewing range of grinding head:
horizontal
165 °
Grinding spindle speeds:
from
2500 rpm
up to
7100 rpm
Voltage 50 Hz 3x
380 Volt
Workpiece spindle motor
0.25 kW
Total power required
2 kVA
Machine's weight about
400 kg
Overall dimensions machine:
Length
850 mm
Width
850 mm
Height
1580 mm

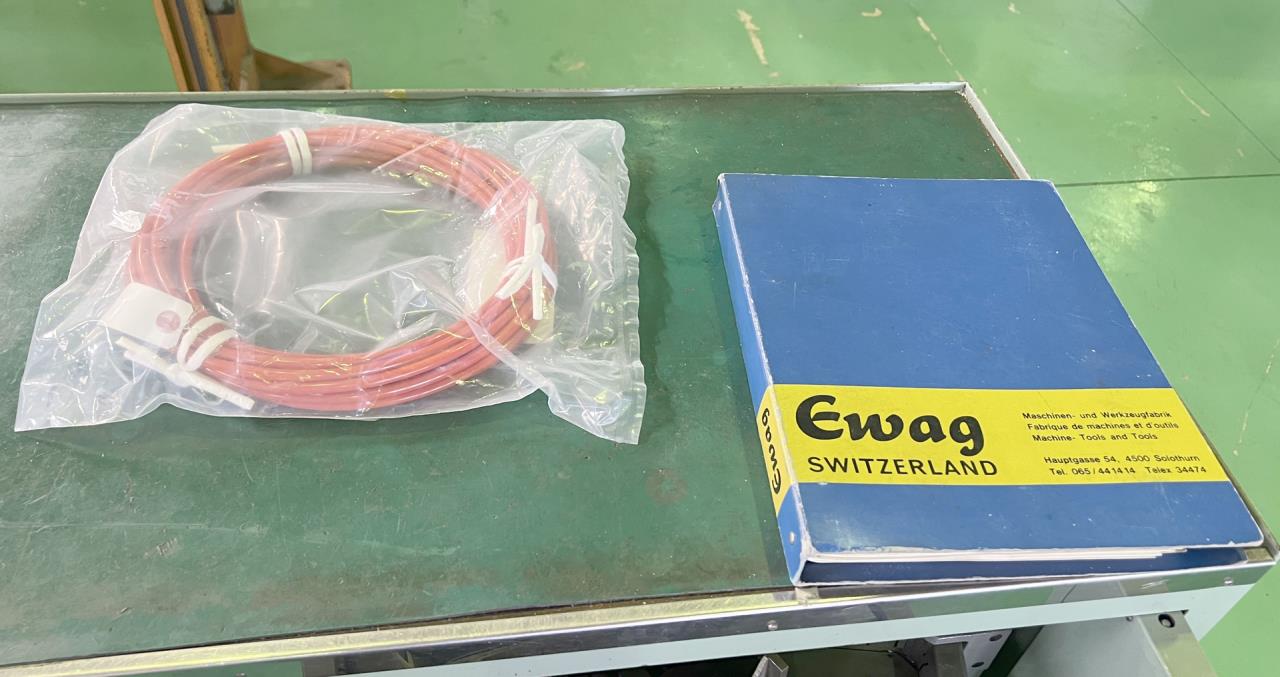

Various accessories:

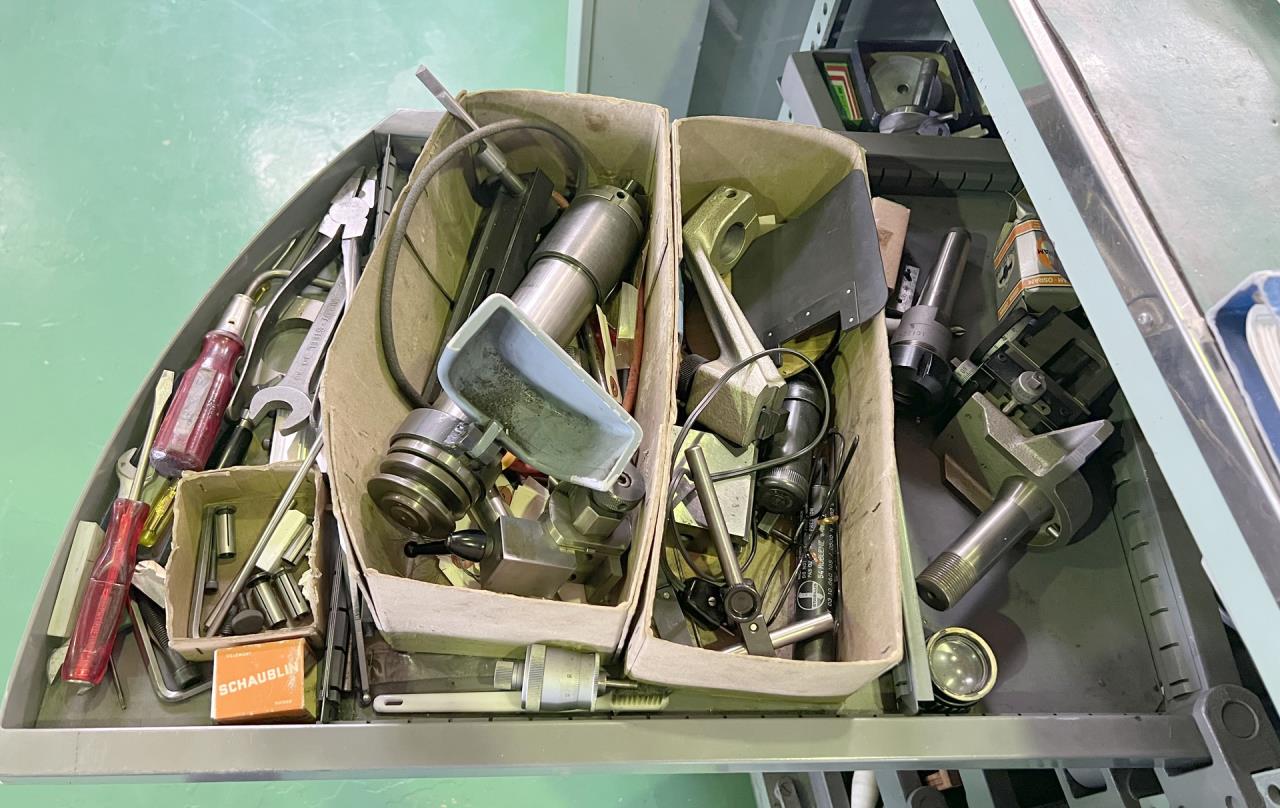

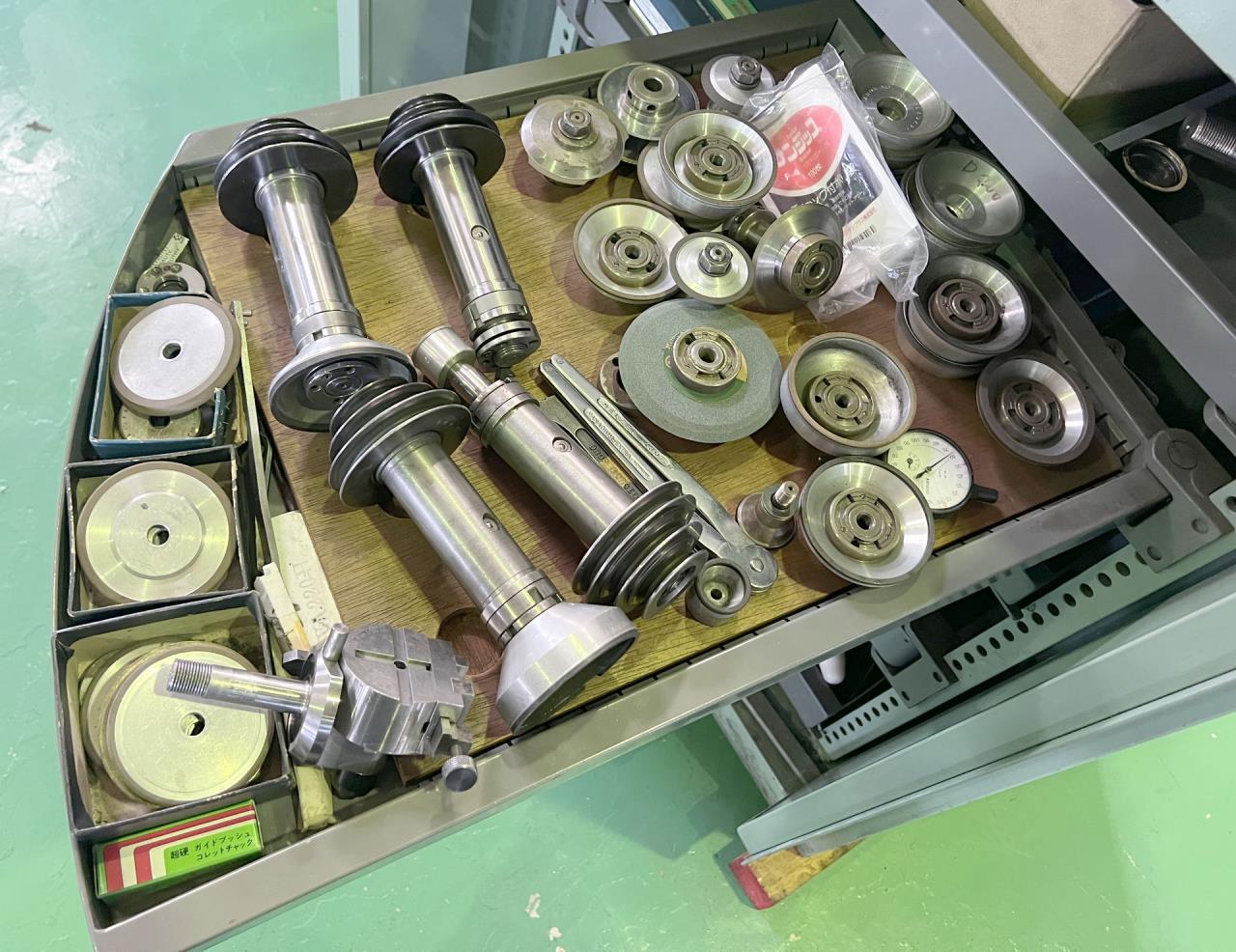

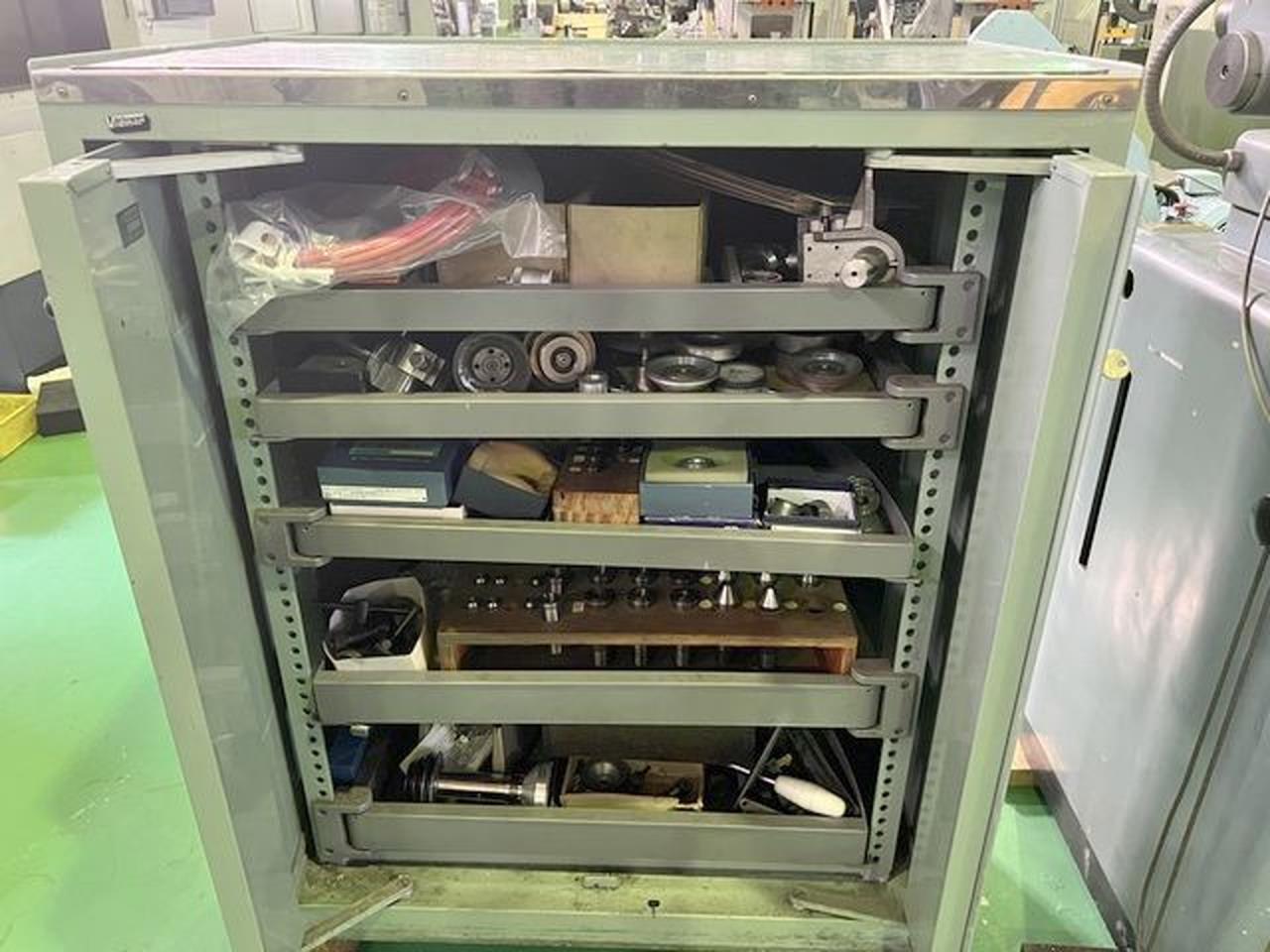

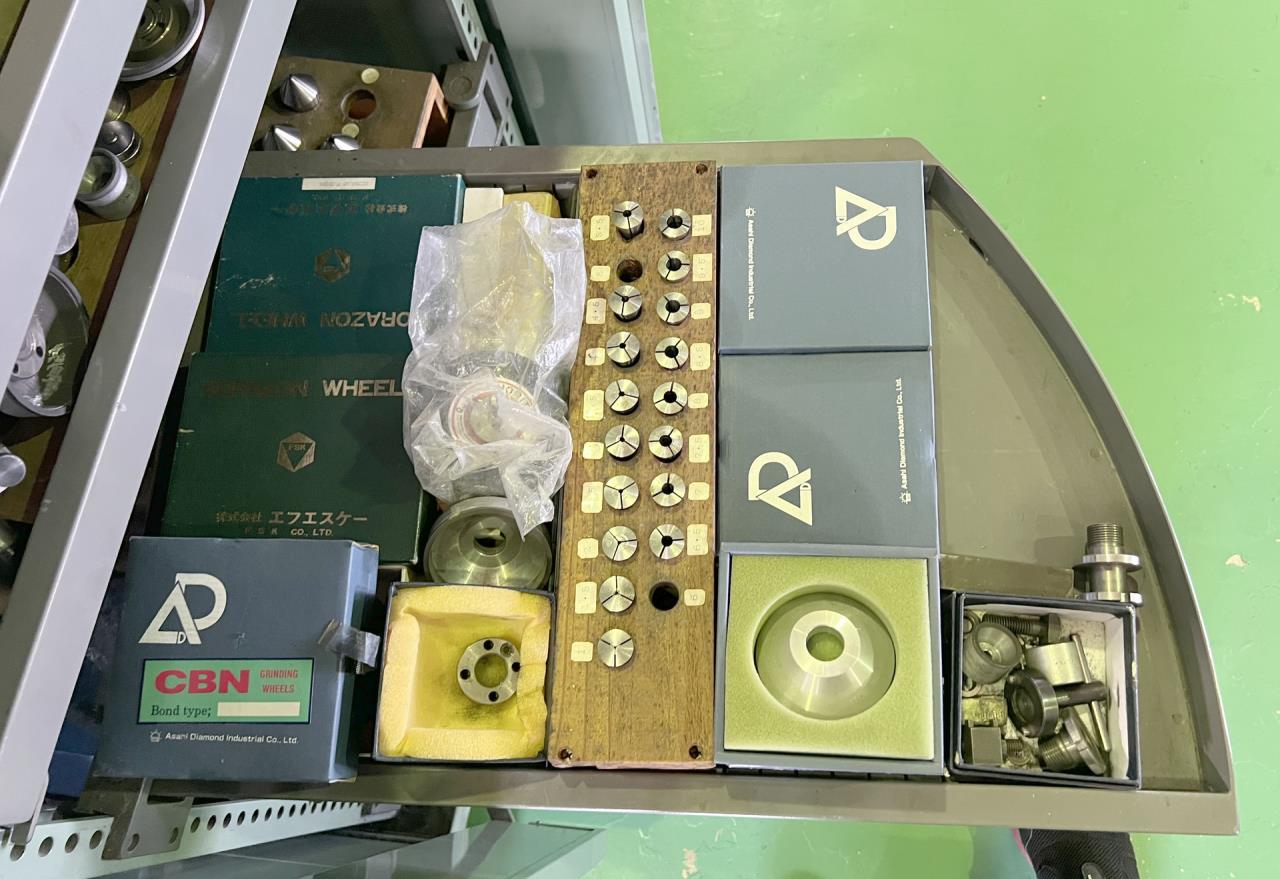

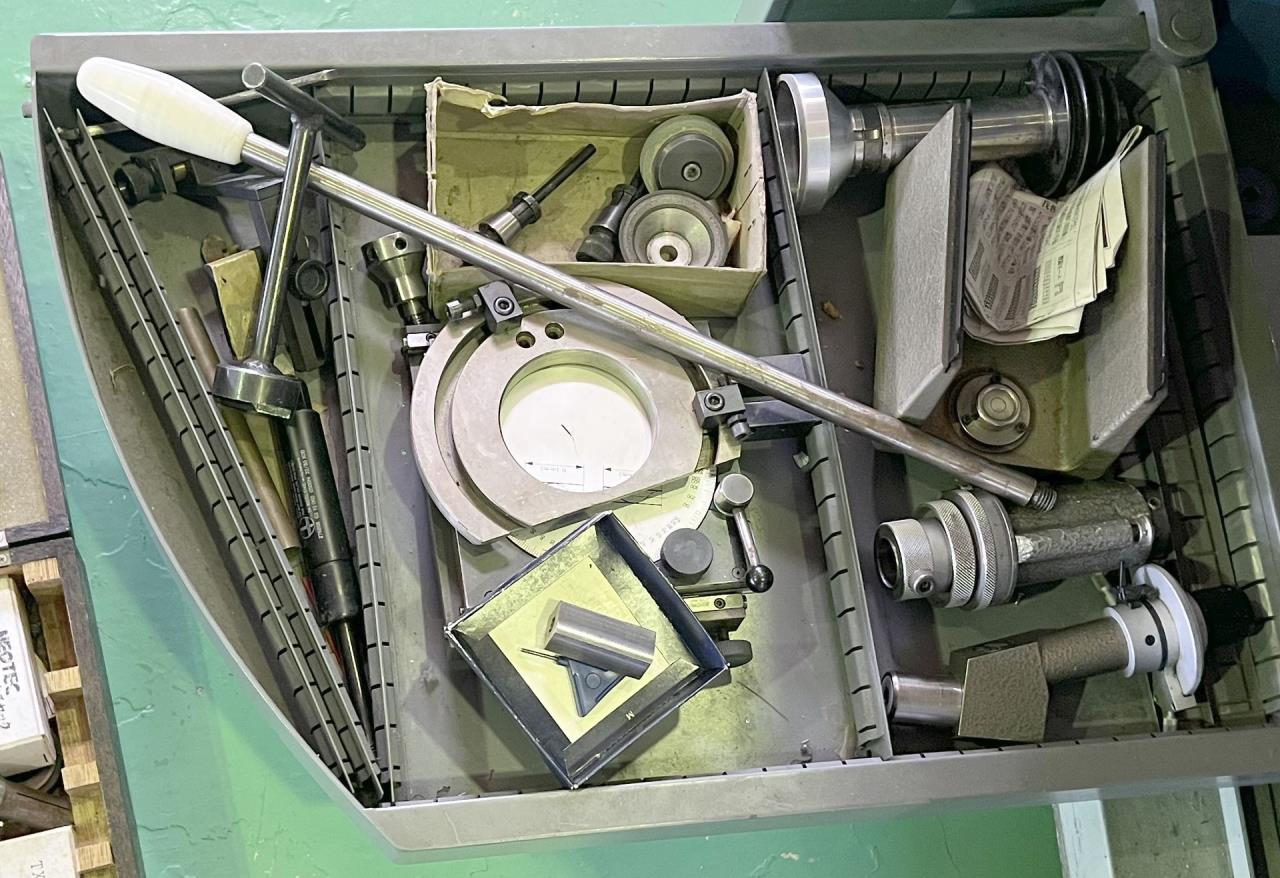

Tool cabinet
Lamp
Grinding stroke 3 H
Technical specifications and pictures without guarantee.
