Technical data
Number of axis total
5
Max. turning diameter
20 mm
Turning length
205 mm
Max. drilling diameter
10 mm
Max. threading diameter
8 M (Metric)
Spindle speeds:
stepless
from
500 rpm
up to
10000 rpm
C axis (spindle,resolution)
0.001 °

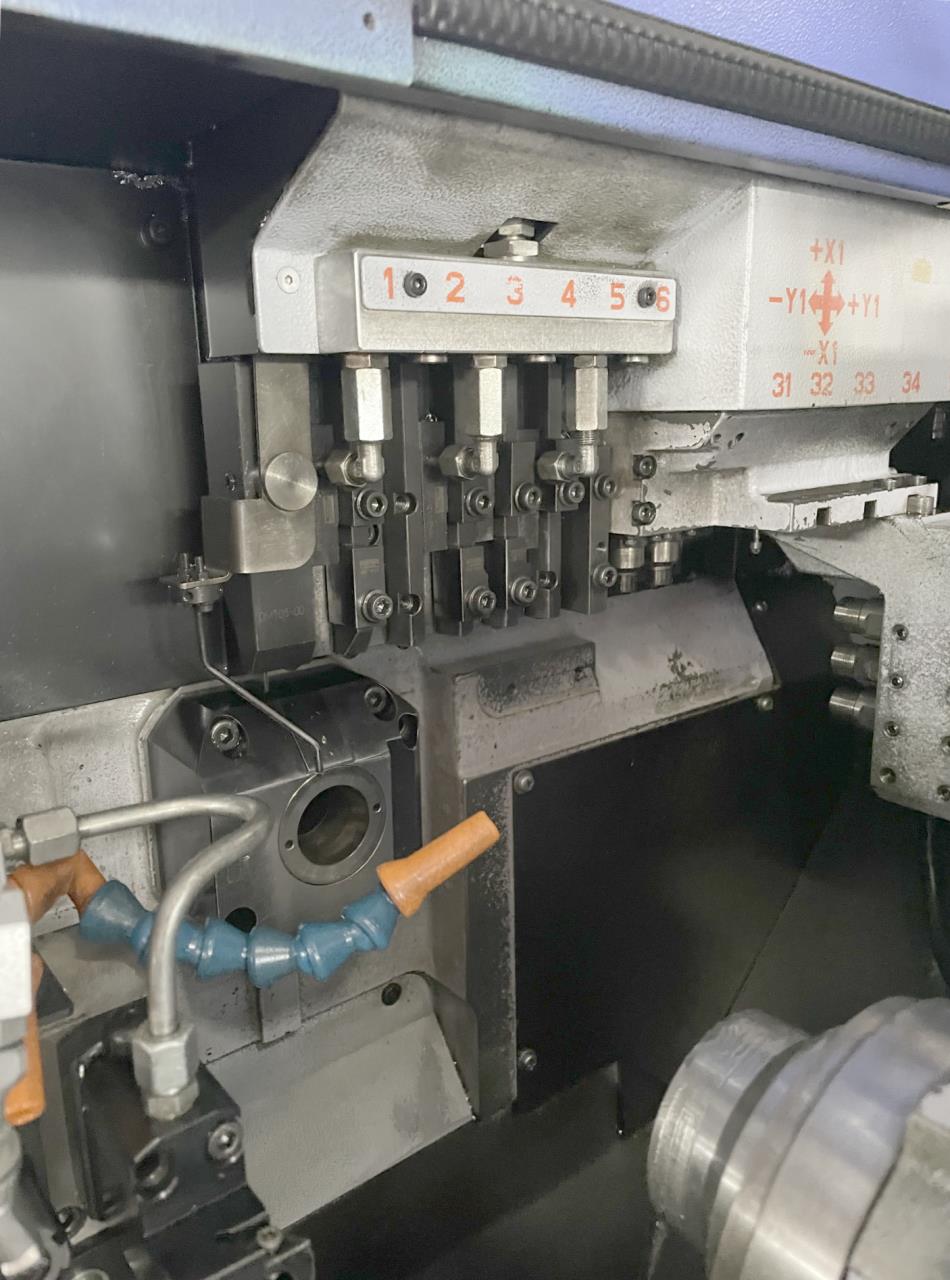

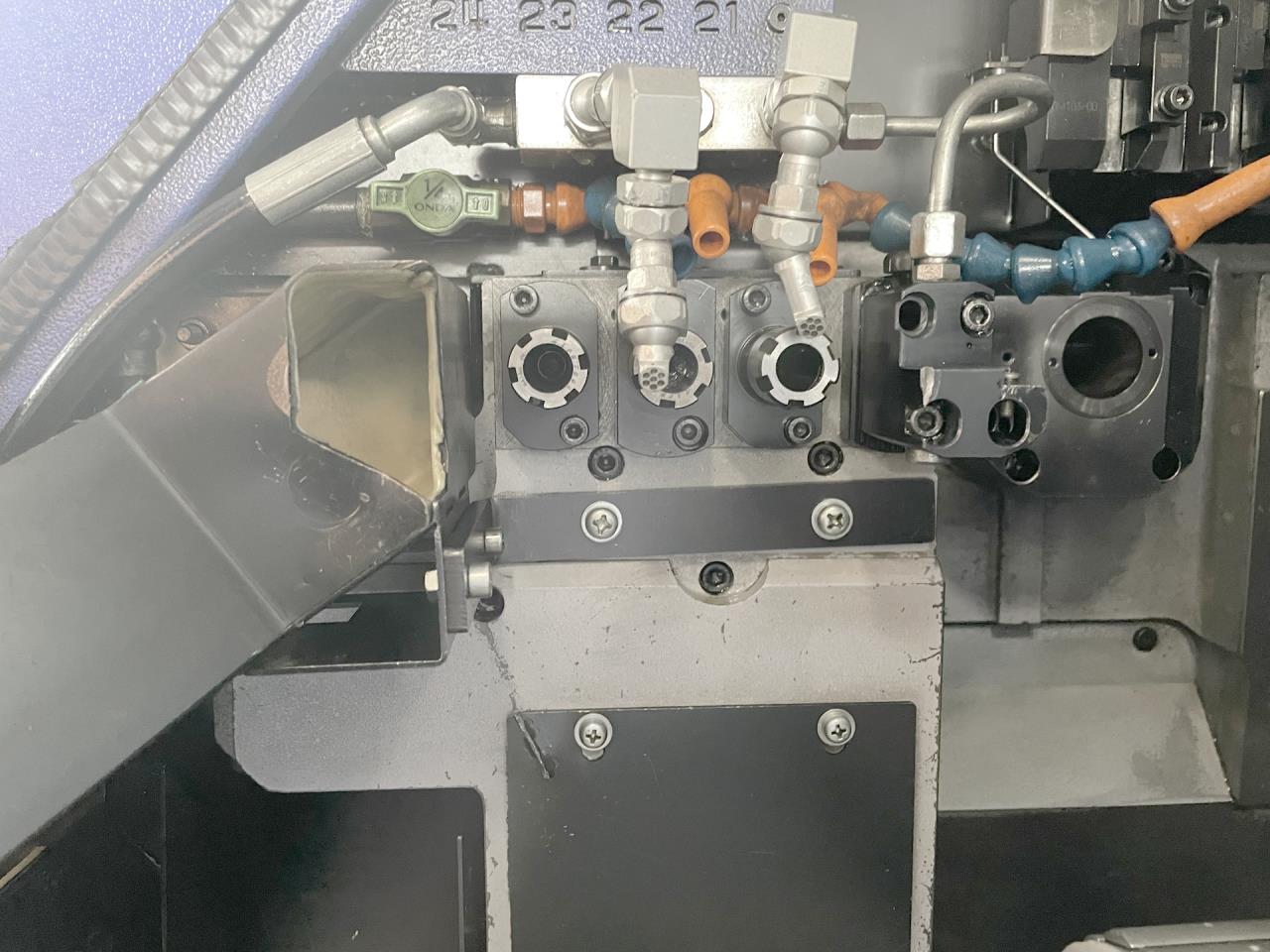

Tool-holder:
numbers
4
number of tools
17
number of driven tools
4
Turning tools
6 pce
Transverse processing tools
3 pce

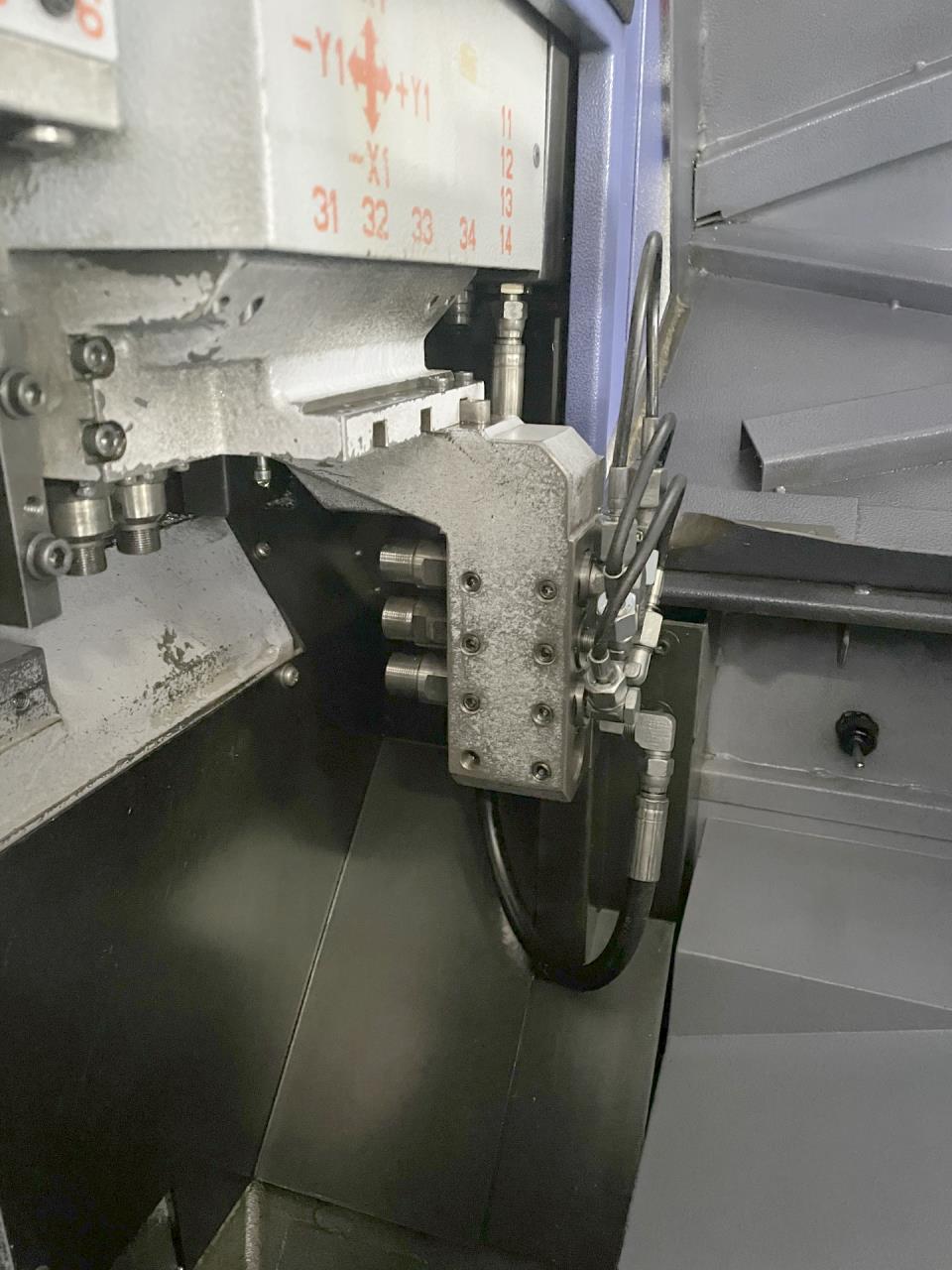

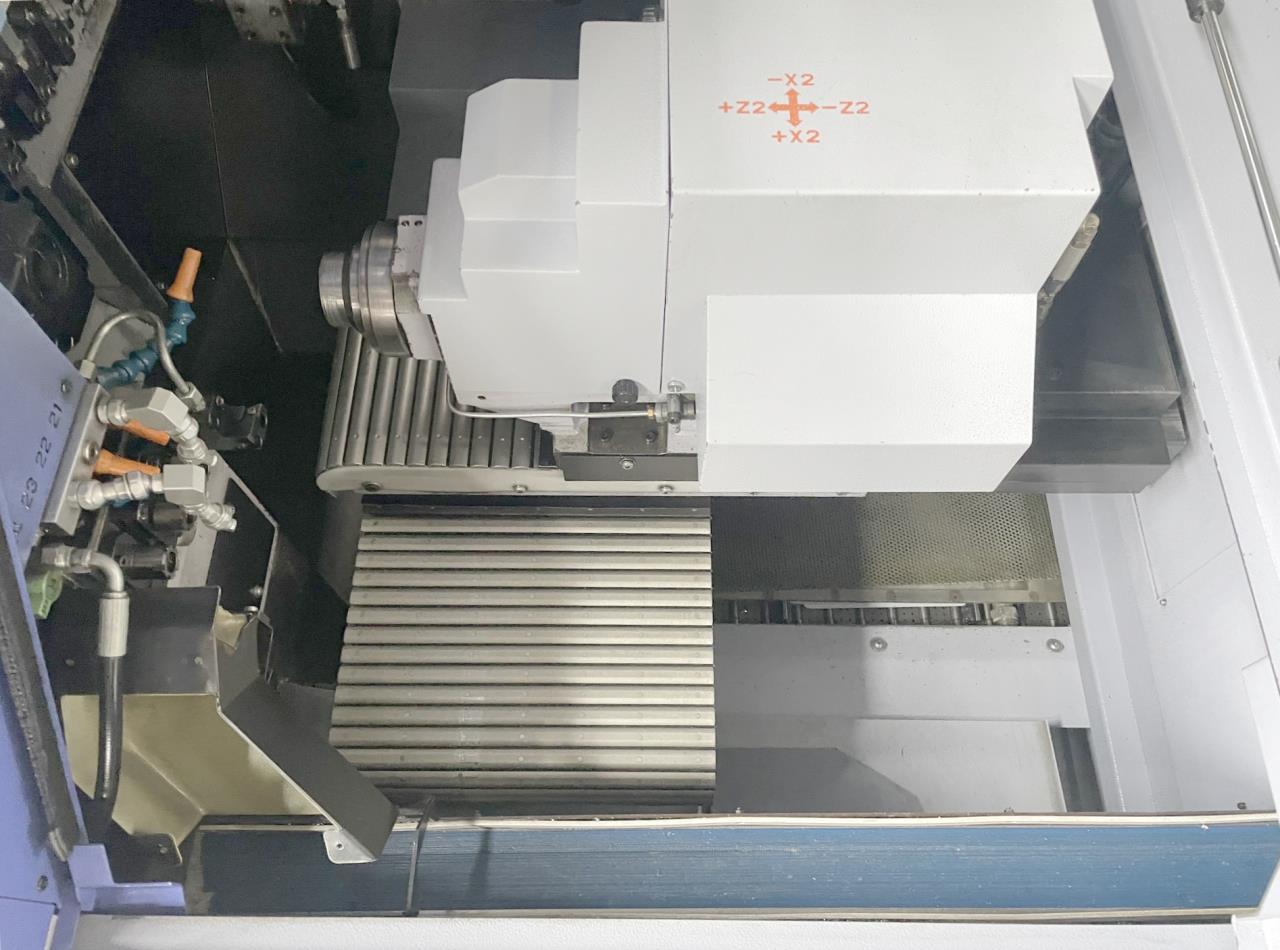

Counter-operation:
number of tools
4
Drilling tools
4 pce
Rapid traverse:
35 m/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Total power required
3.7 kVA
Machine's weight about
1750 kg
Overall dimensions machine:
Length
2070 mm
Width
1770 mm
Height
1760 mm
Various accessories:

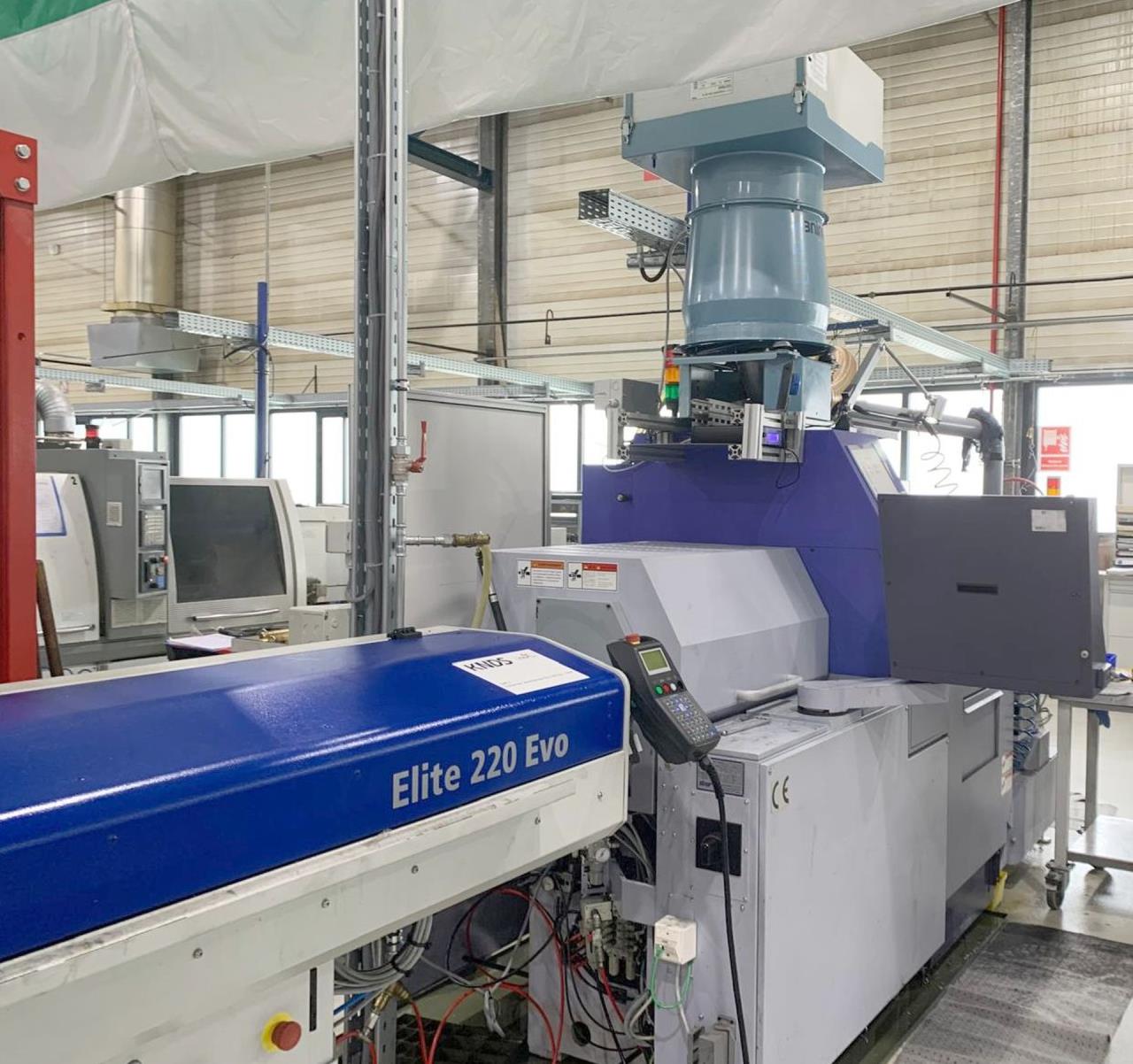

Loader IEMCA
Type
Elite 220 Evo
Bar diameter
2 - 23 mm
Parts catcher
Workpiece conveyor
Lamp

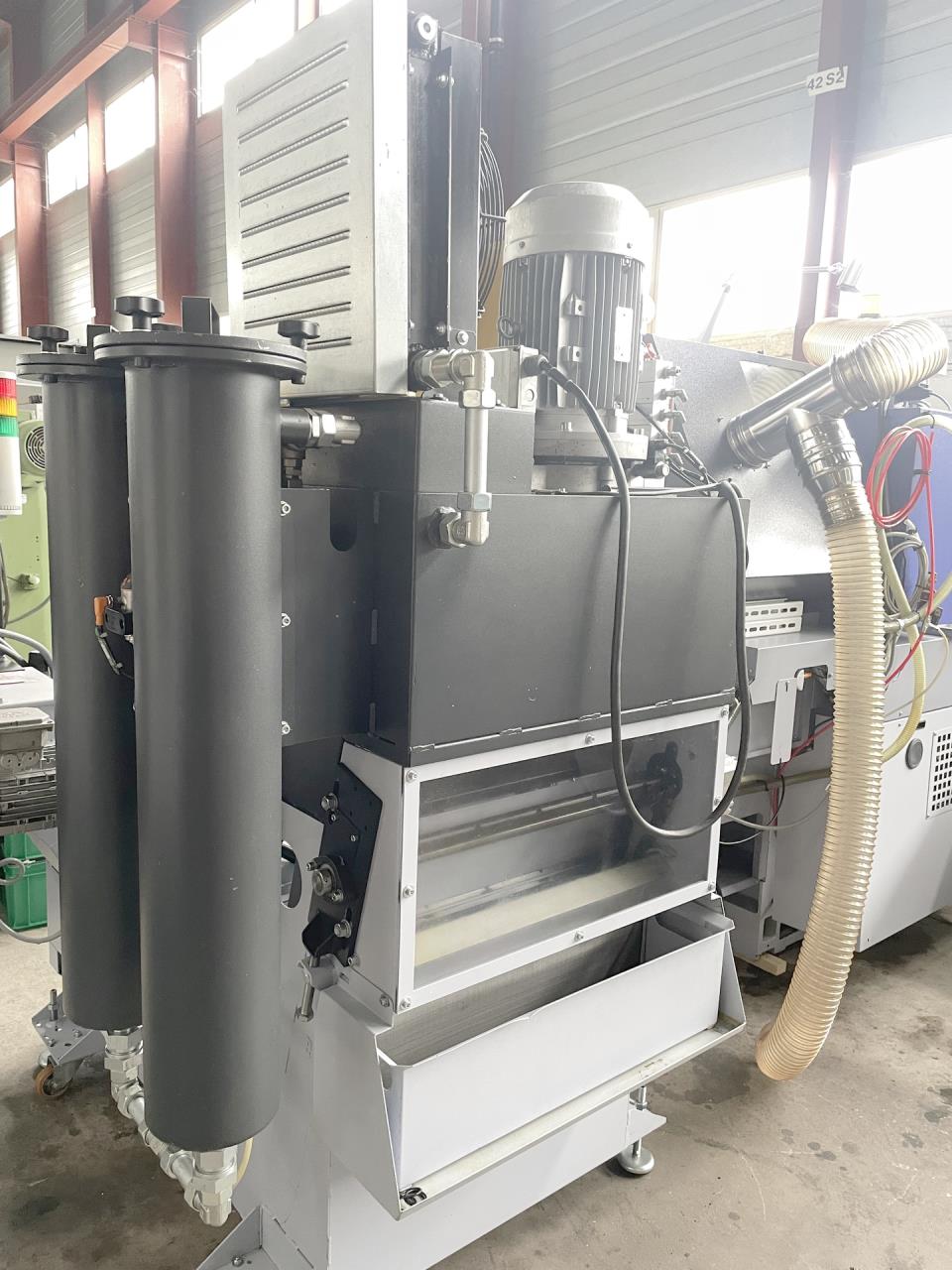

High pression colant device

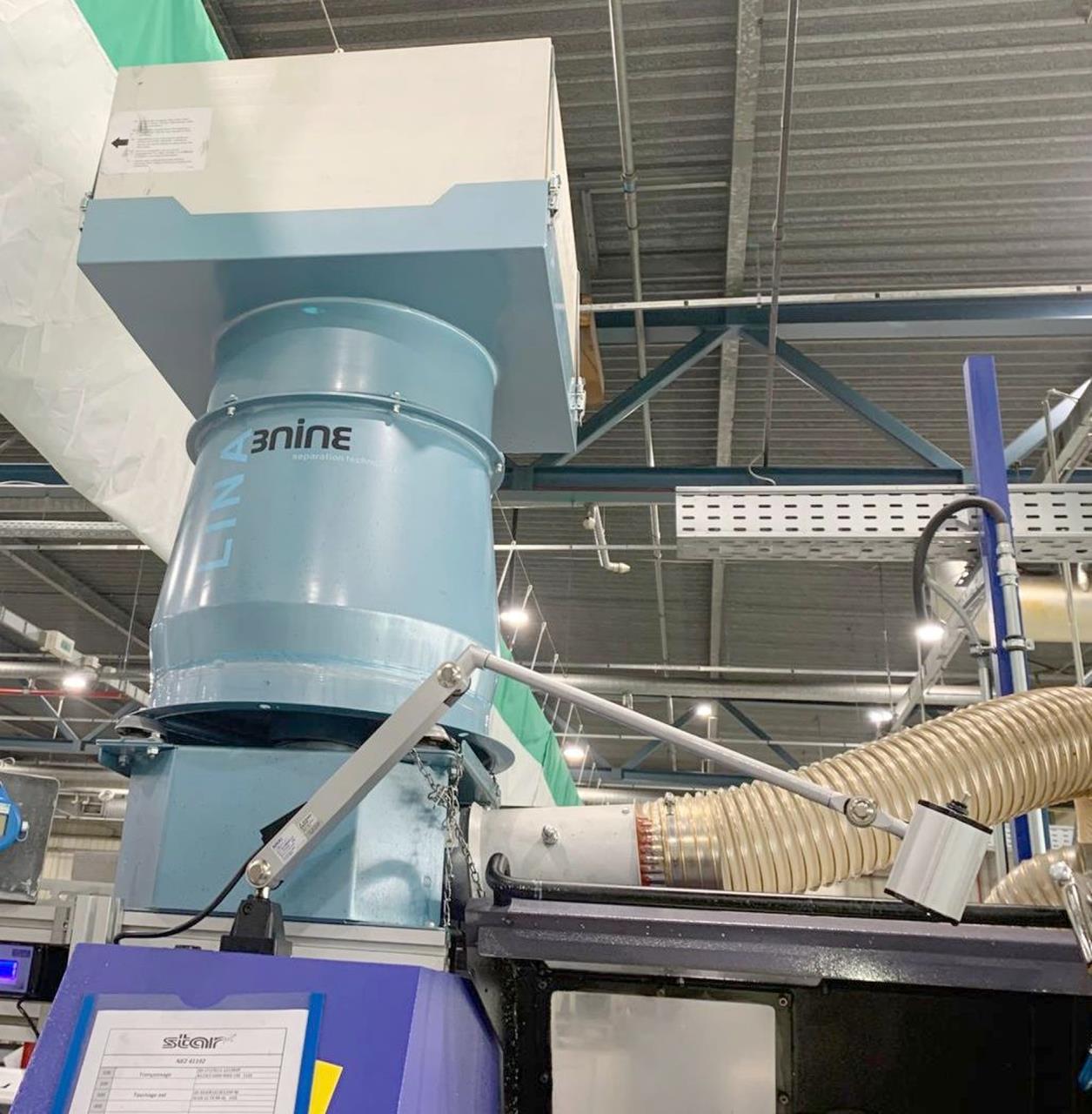

Oil mist extractor

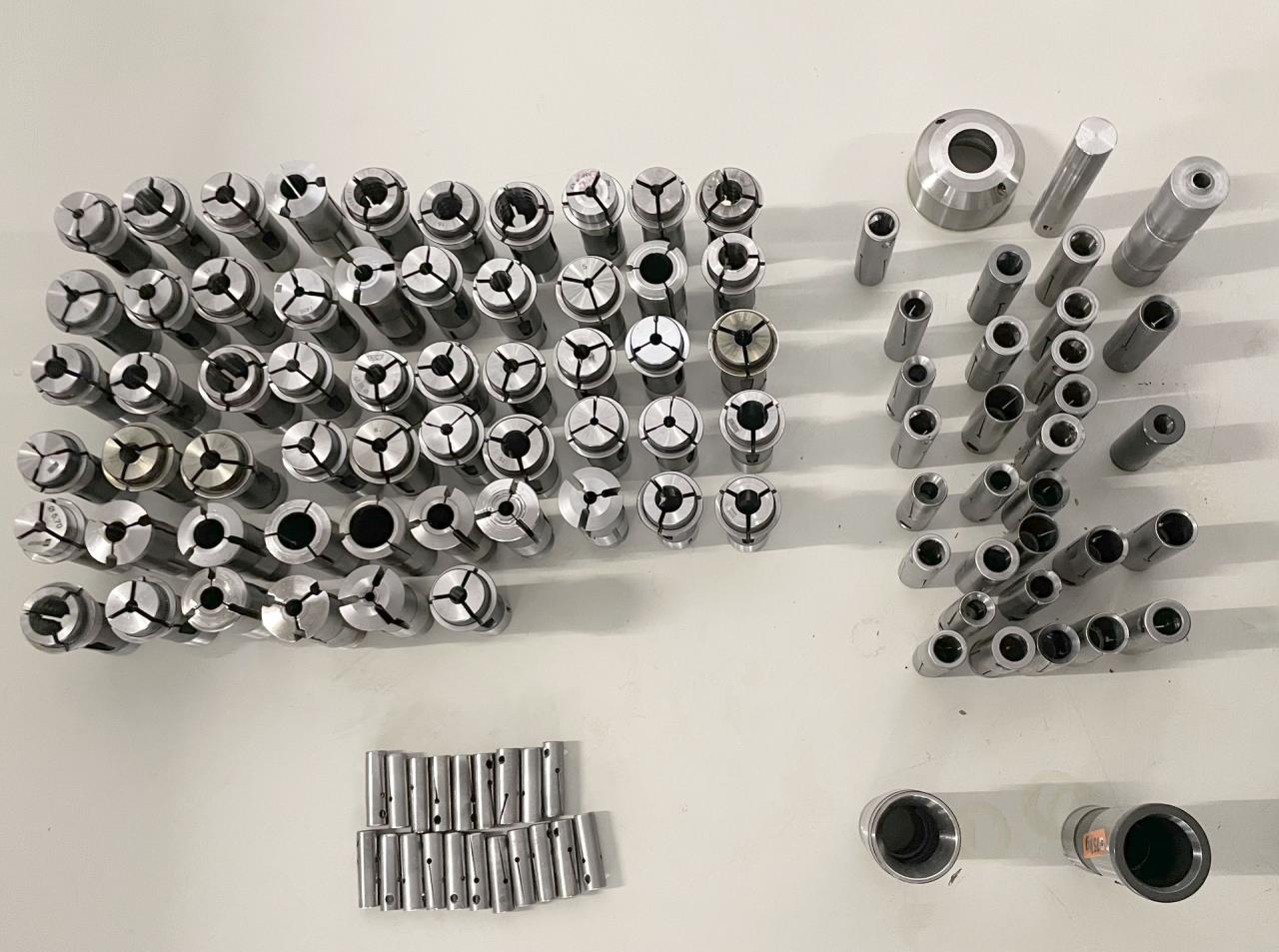

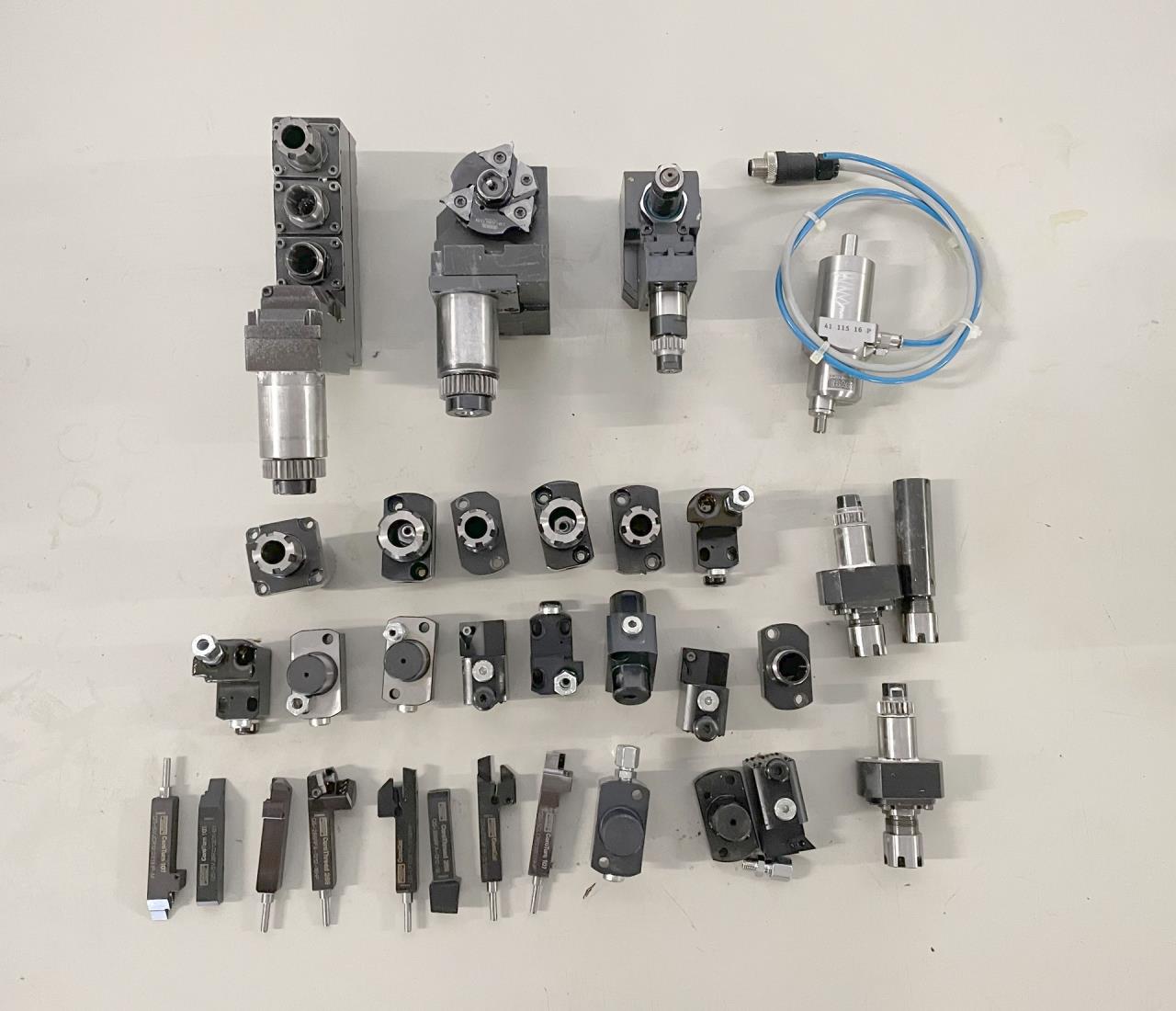

Set of collets
Set of tools
Set of reducing bushes
Set of toolholders
Technical specifications and pictures without guarantee.
