Technical data
Table length
600 mm
Table width
200 mm
Grinding length
500 mm
Grinding width
200 mm
Grinding height
300 mm
Execution:
hydraulic
Longitudinal travel (X-axis)
530 mm
Transversal travel (y axis)
220 mm
Automatic cross-feed:
stepless
up to
9 m/min
Table speeds:
stepless
up to
21 m/min
Creep feed:
from
0.5 mm/min
up to
8000 mm/min
Automatic vertical feed:

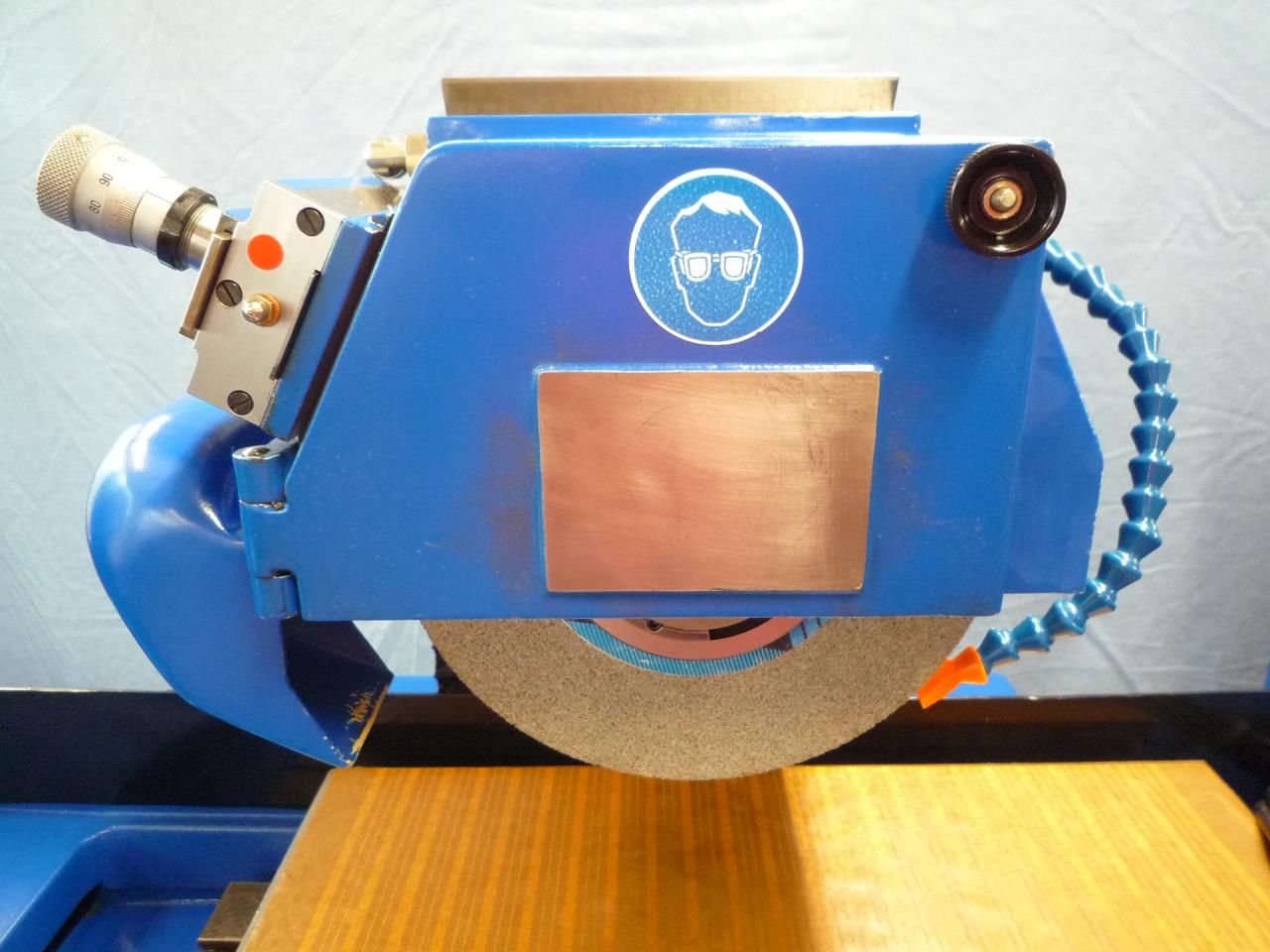

Diameter of grinding wheel
225 mm
Width of the grinding wheel
25 mm
Grinding wheel speeds:
from
1000 rpm
up to
2700 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1.8 kW
Machine's weight about
800 kg
Overall dimensions machine:
Length
1000 mm
Width
700 mm
Height
1500 mm

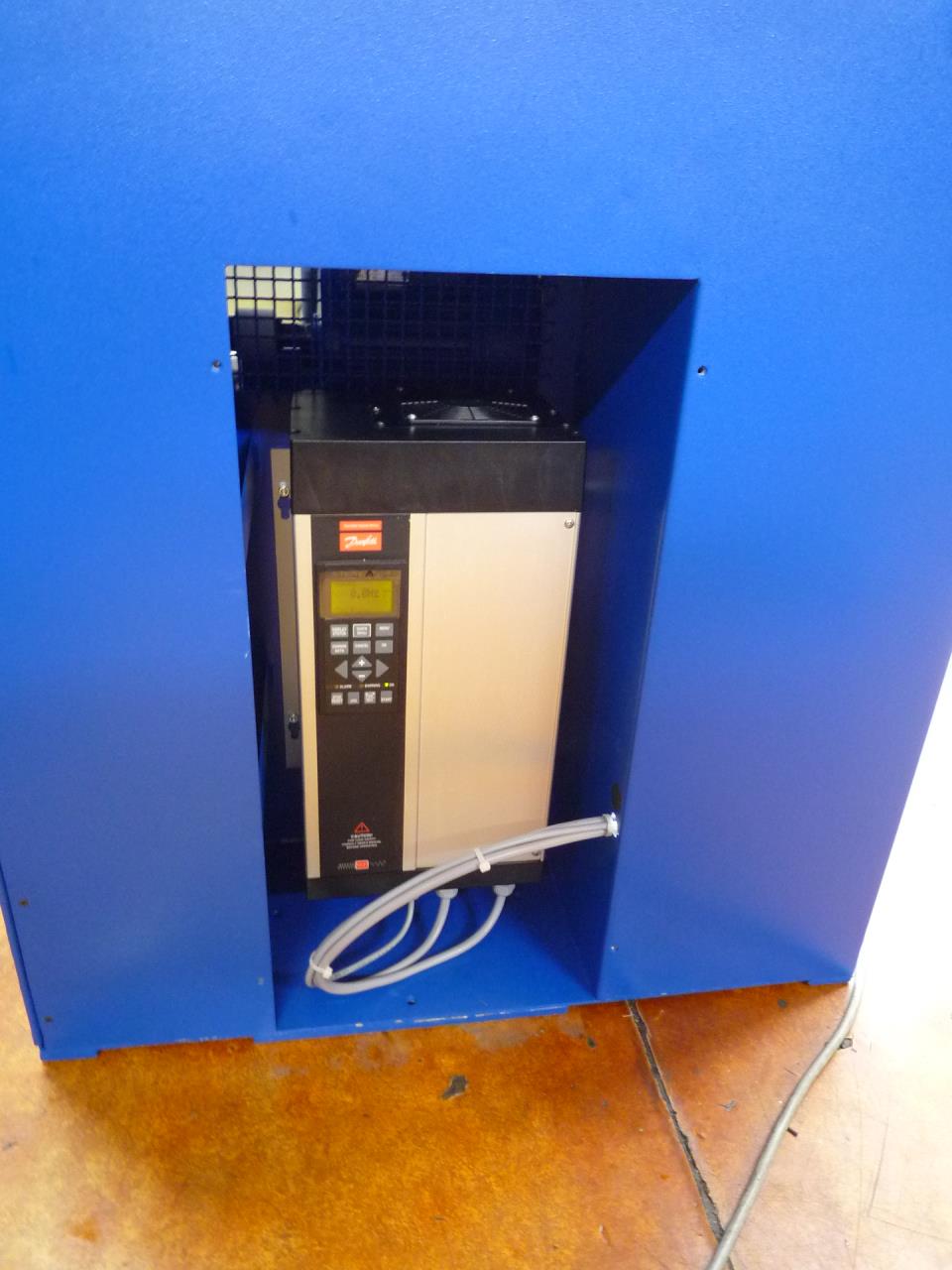

Dimensions electric cabinet:
Length
800 mm
Width
600 mm
Height
1500 mm
Various accessories:

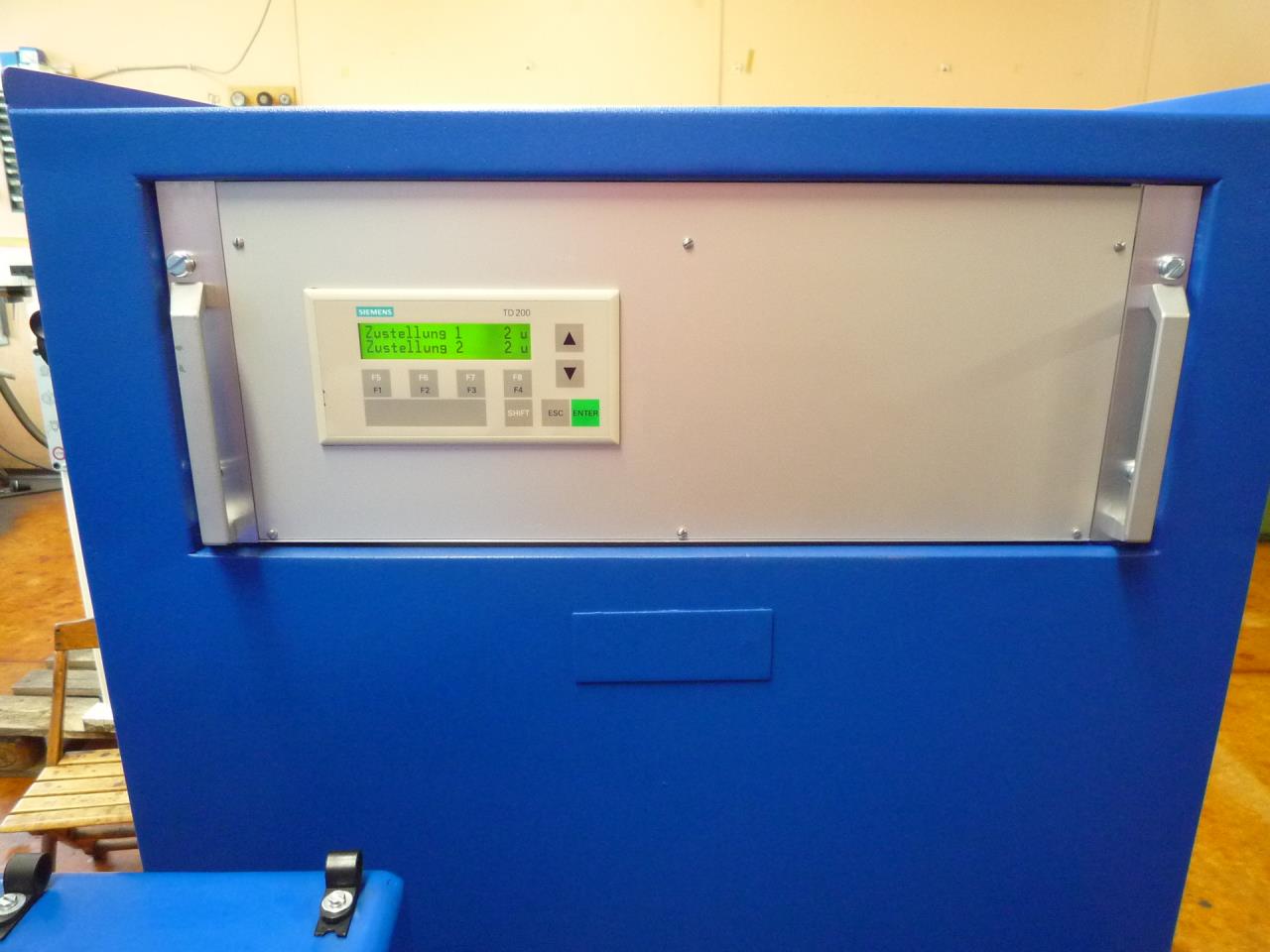

Hydro-electric cabinet
Magnetic plate:
Length
500 mm
Width
200 mm
Redressing device
Central lubrification
Technical specifications and pictures without guarantee.
