Technical data
Table length
500 mm
Table width
250 mm
Execution:
manual
Max. distance from table
to spindle-centreline
500 mm
Longitudinal travel (X-axis)
600 mm
Cross travel (z-axis)
280 mm
Vertical travel (Y-axis)
340 mm
Table speeds:
stepless
from
5 m/min
up to
25 m/min
Grinding wheel speeds fix
2900 rpm

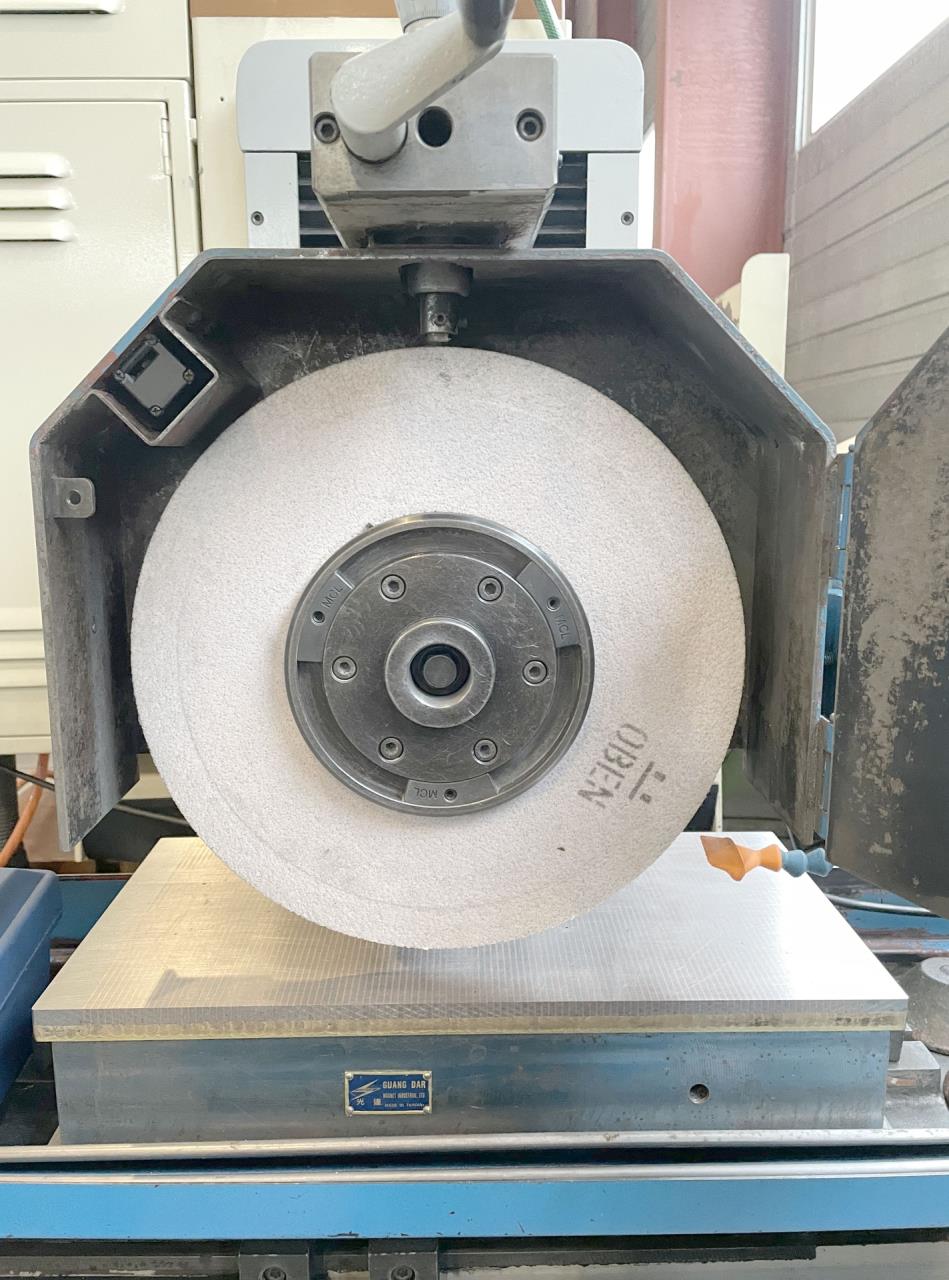

Diameter of grinding wheel
350 mm
Width of the grinding wheel
25 mm
Drilling cap. of grind.wheel
31.75 mm
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
2 HP
Machine's weight about
1350 kg
Overall dimensions machine:
Length
1770 mm
Width
1500 mm
Height
1900 mm
Various accessories:
Paper filtration system

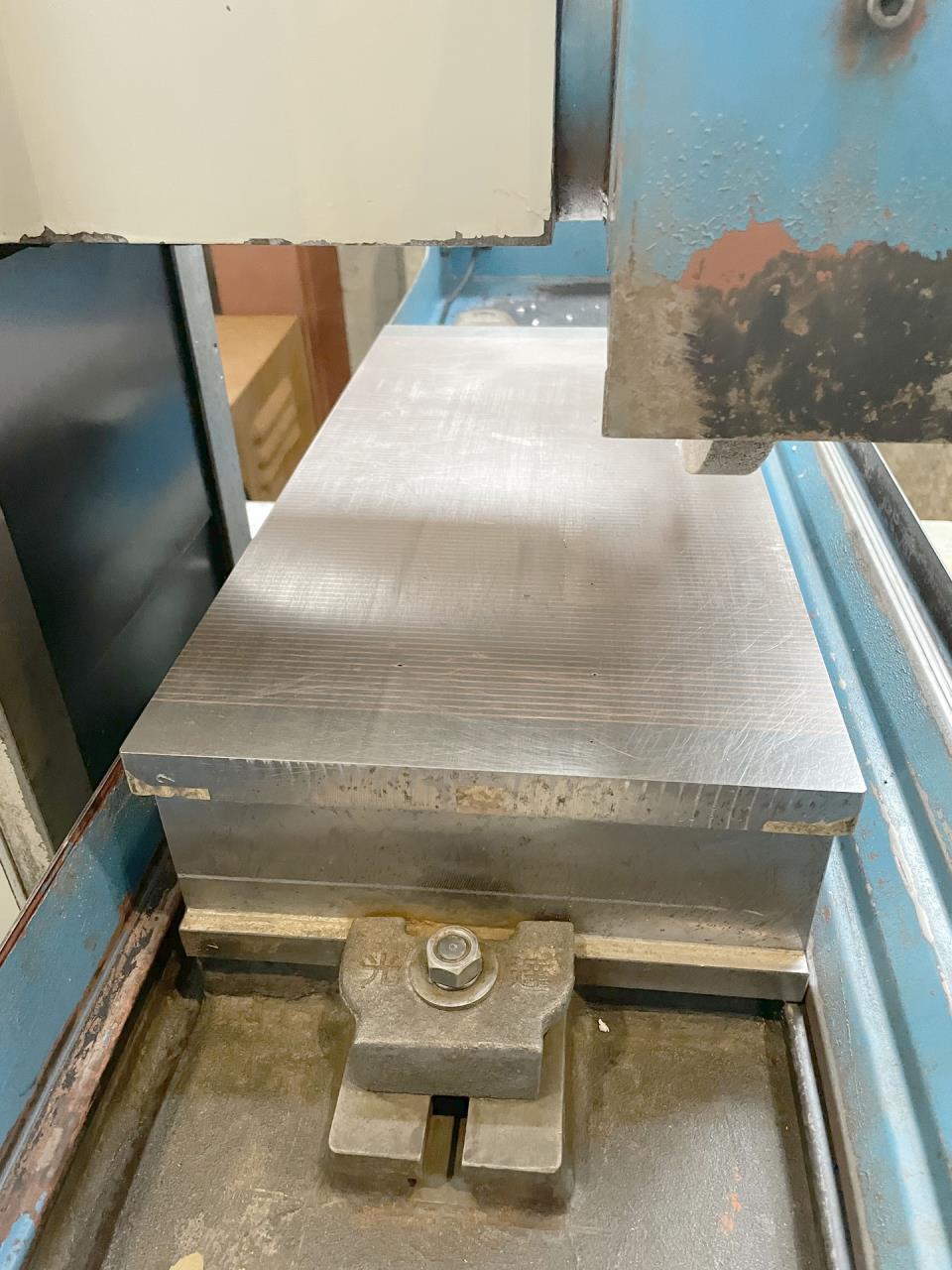

Magnetic plate:
Length
500 mm
Width
250 mm
Redressing device
Lamp
Technical specifications and pictures without guarantee.
